SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Module

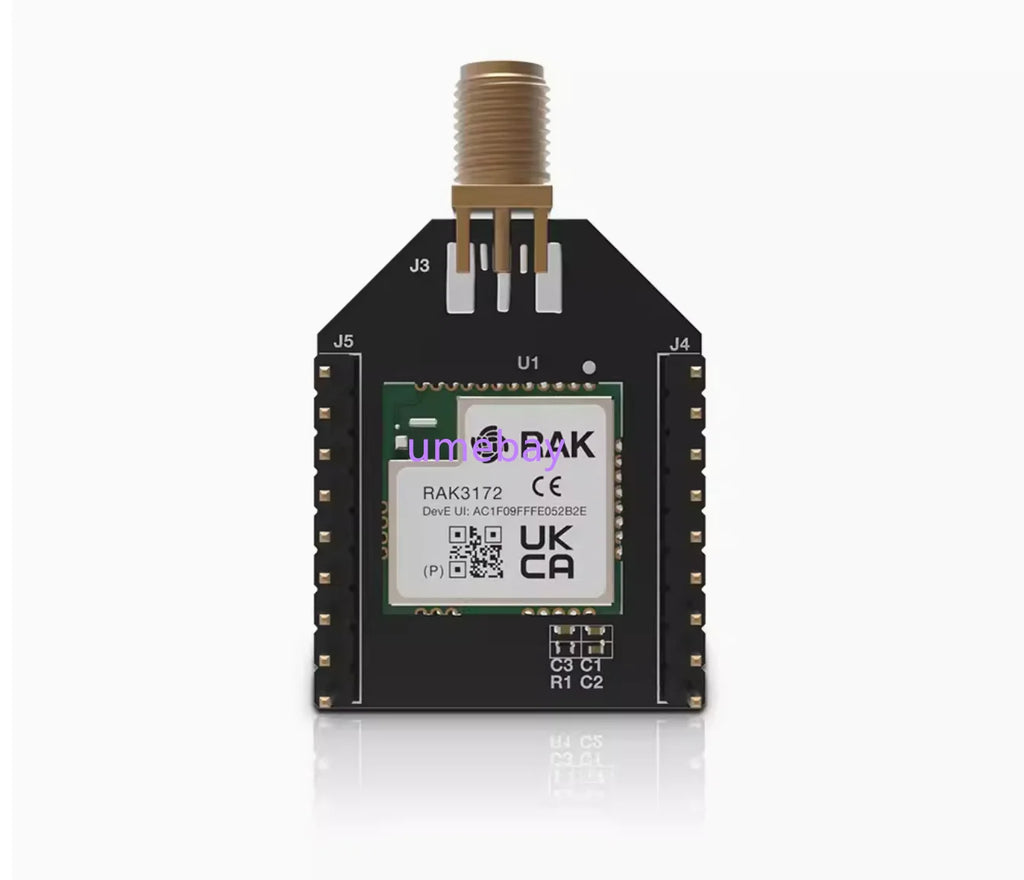

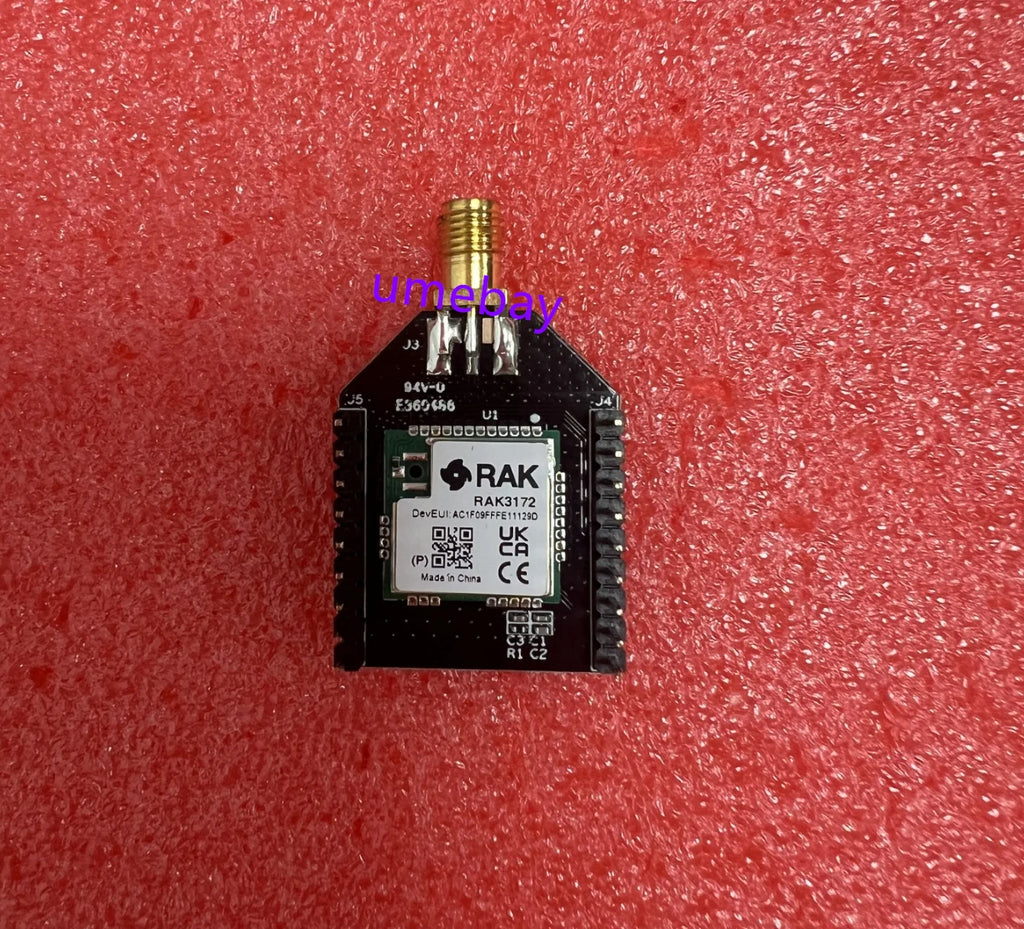

LPWAN transceiver module WisDuo ModuleRAK3172

Low power, economical, and stable IoT LoRa ® Transceiver module

Low power consumption, high cost-effectiveness

Simple, fast, and convenient for secondary development

Multi platform compatible and versatile

Long transmission distance, compact and easy to use

Low cost, low power consumption

High cost performance ratio

The WisDuo RAK3172 module integrates the STM32WLE5CC MCU chip, making it suitable for applications that require low power consumption and battery power, with a power consumption as low as 1.69 μ A. Can help enterprises develop customized IoT products that are economical and energy-saving.

Quick to operate, simple and easy to use, and convenient for secondary development

The RAK3172 module is equipped with specialized software tools, which can simplify firmware development and support three working modes: Class A, Class B, and Class C. It is easy to connect to different server platforms and helps enterprises easily and quickly build LoRaWAN ® Equipment facilitates secondary development.

Compact and easy to use, with diverse functions and long transmission distance

The RAK3172 module has a very small size of 15 mm x 15.5 mm x 2.5 mm and supports LoRa ® P2P (peer-to-peer) communication can help users quickly achieve long-distance LoRa ° networks. Using optimized antennas, the communication distance of RAK3172 can exceed 15 kilometers.

Compact and easy to use, with diverse functions and long transmission distance

The RAK3172 module has a very small size of 15 mm x 15.5 mm x 2.5 mm and supports LoRa ® P2P (peer-to-peer) communication can help users quickly achieve long-distance LoRa ° networks. Using optimized antennas, the communication distance of RAK3172 can exceed 15 kilometers.

The terminal device management software WisToolBox can help users unify the management of RAK3172 based sensing terminal devices, allowing users to easily send AT commands, update firmware, configure devices, and other operations on their mobile phones and computers.

Specification parameters:

Processor: Integrated STM32WLE5CC chip, ARM32-bitCortex-M4, built-in 256 KB flash memory with ECC, 64 KB RAM

LoRa 'characteristics:

1. Compliant with LoRaWAN ® 1.0.3 Specification

2. LoRaWAN activation mode: OTAA, ABP

3. Support LoRa P2P (peer-to-peer) communication

4. Communication range: can exceed 15 kilometers

5. Frequency bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, AS923-1/2/3/4

Temperature range: -40 ° C~+85 ° C

Power supply voltage: 2.0 V~3.6 V
