1PCS MAX7219 Module LED Microcontroller Display Dot Matrix Module 5V for Arduino DIY KIT 8x8 Red/Blue/Green

1PCS MAX7219 Module LED Microcontroller Display Dot Matrix Module 5V for Arduino DIY KIT 8x8 Red/Blue/Green

$25.88

$25.88 $0.00

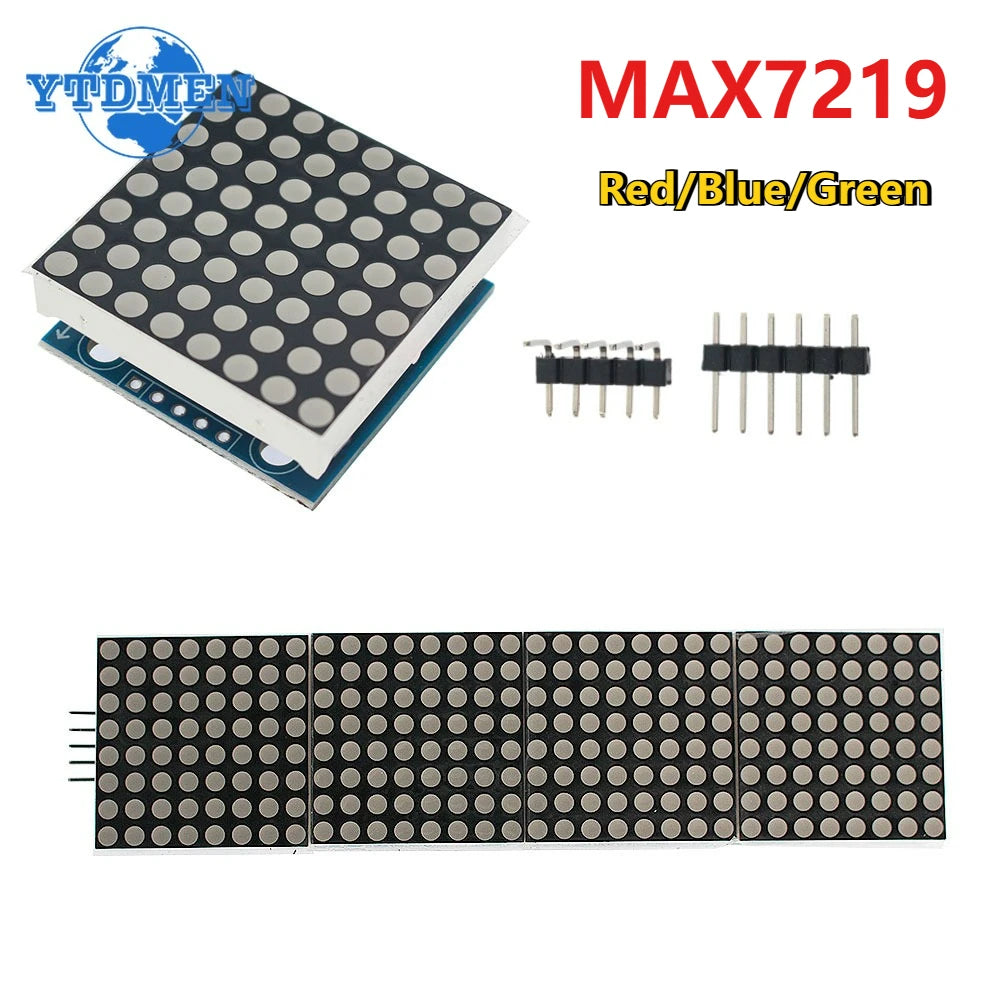

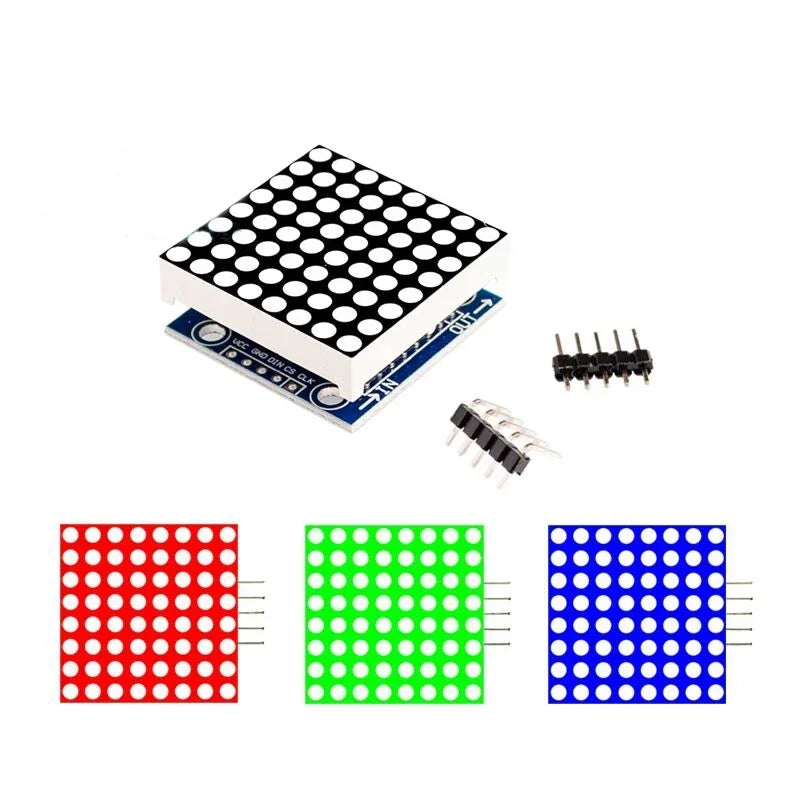

Color 4 in 1-Green 1 bit-Green 1 bit-Red 4 in 1-Red 4 in 1-Blue

Description

SPECIFICATIONS

1: MAX7219 dot matrix module

2: MAX7219 MCU module

3: LED display

4: integrated circuit

5: MAX7219 LED display module

6: 8*8 LED display common cathode

Application: Computer

Brand Name: YTDMEN

Choice: yes

Condition: New

Dissipation Power: standard

High-concerned chemical: none

Operating Temperature: standard

Origin: Mainland China

Package: SMD

Supply Voltage: 5V

Type: Module

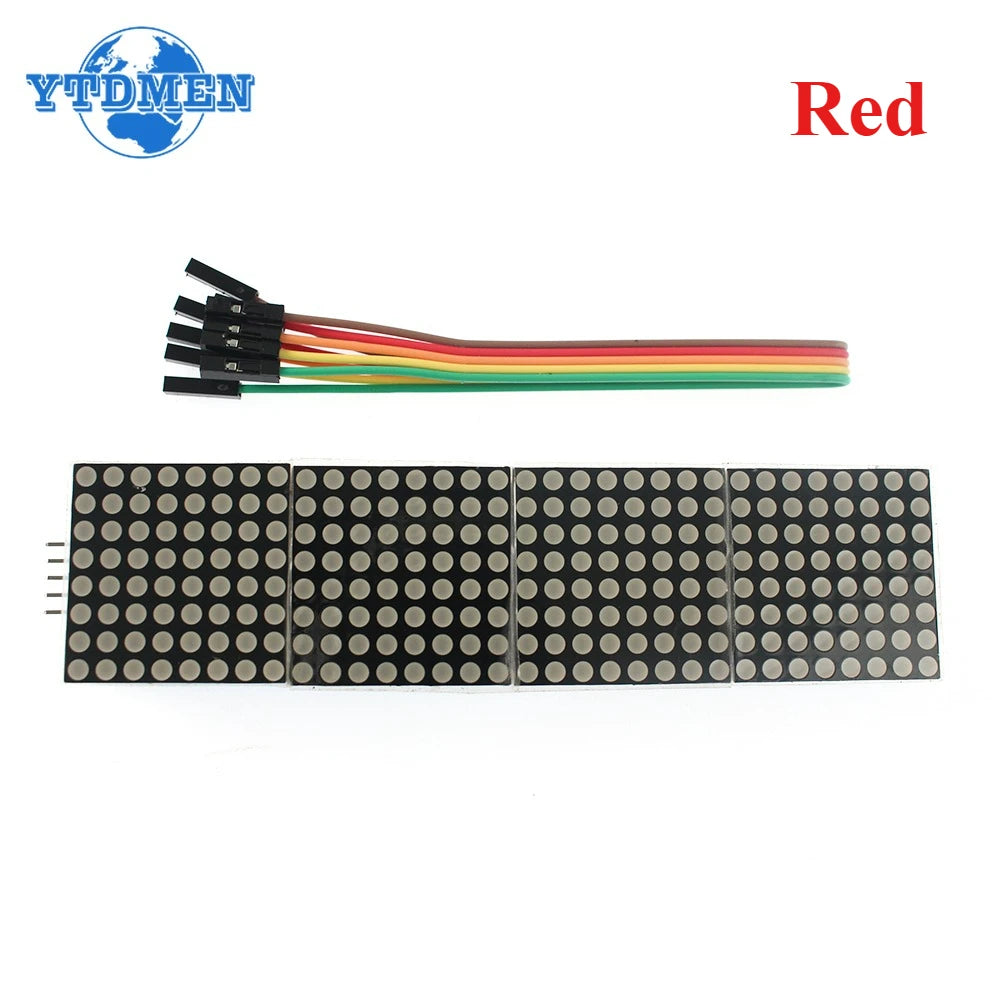

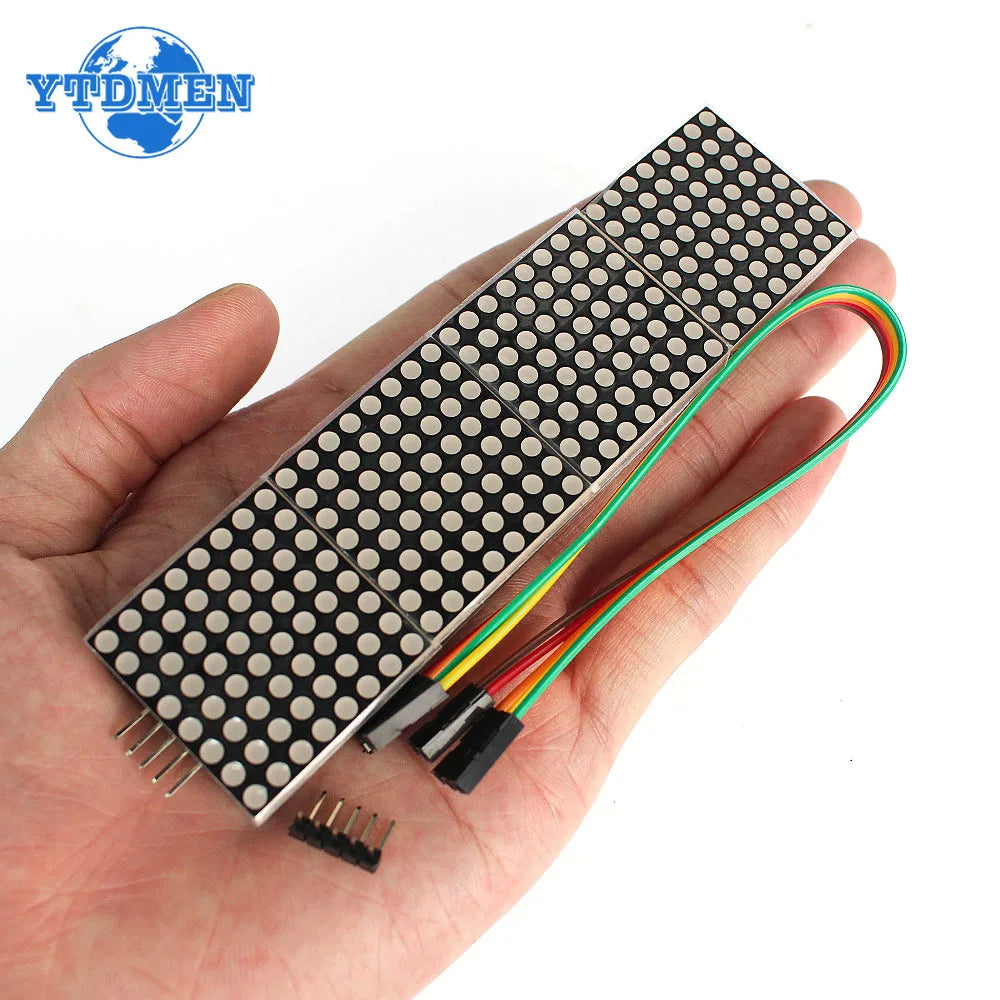

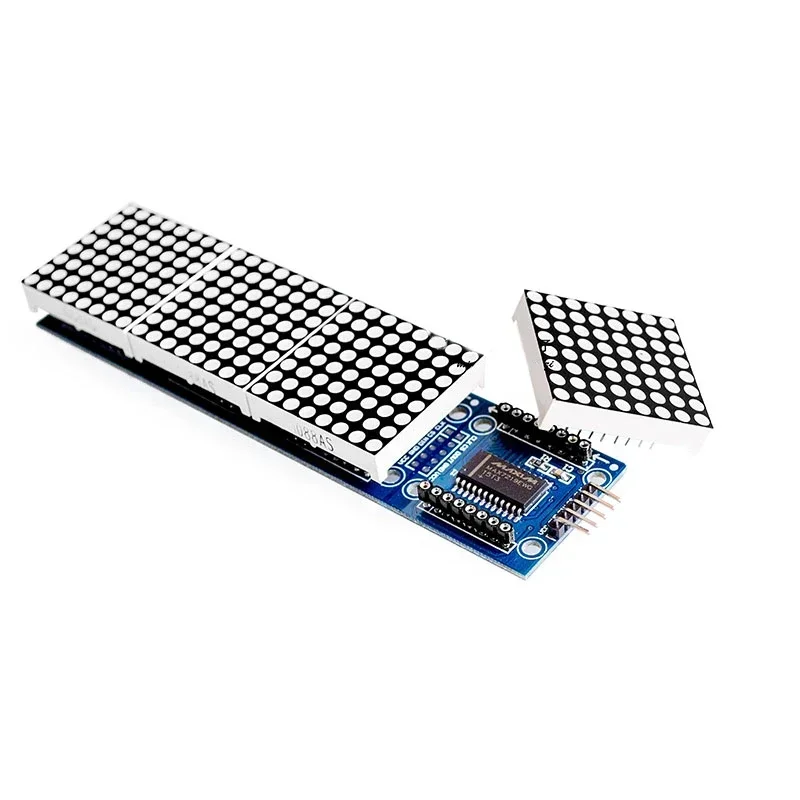

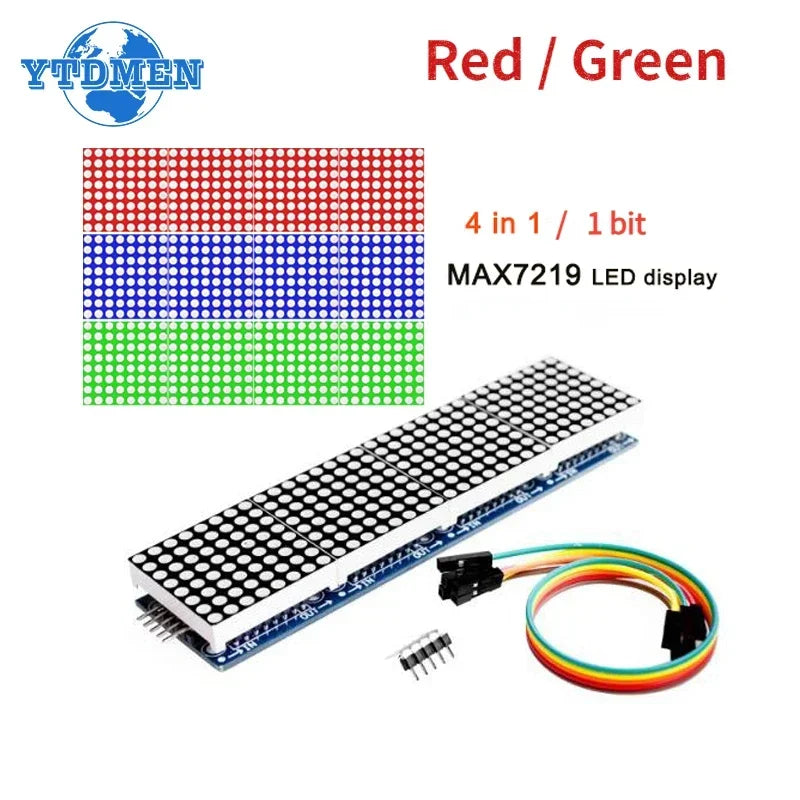

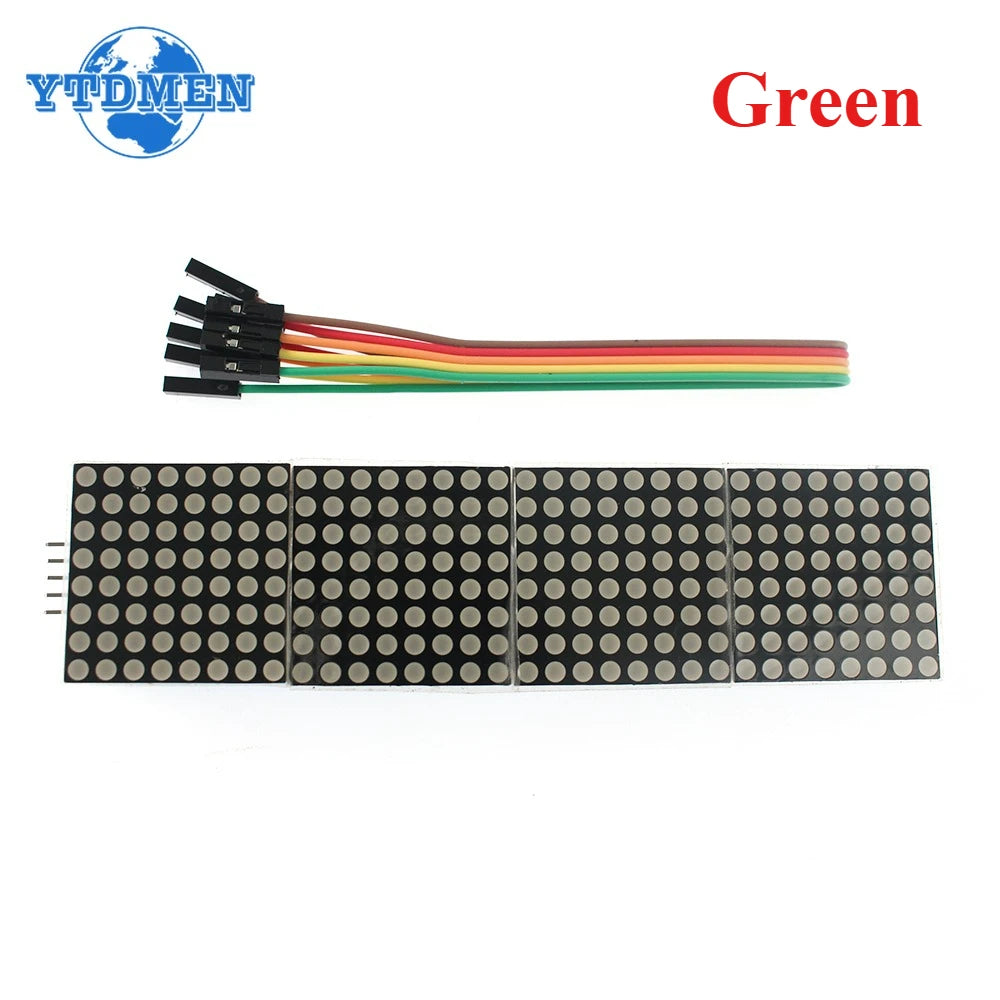

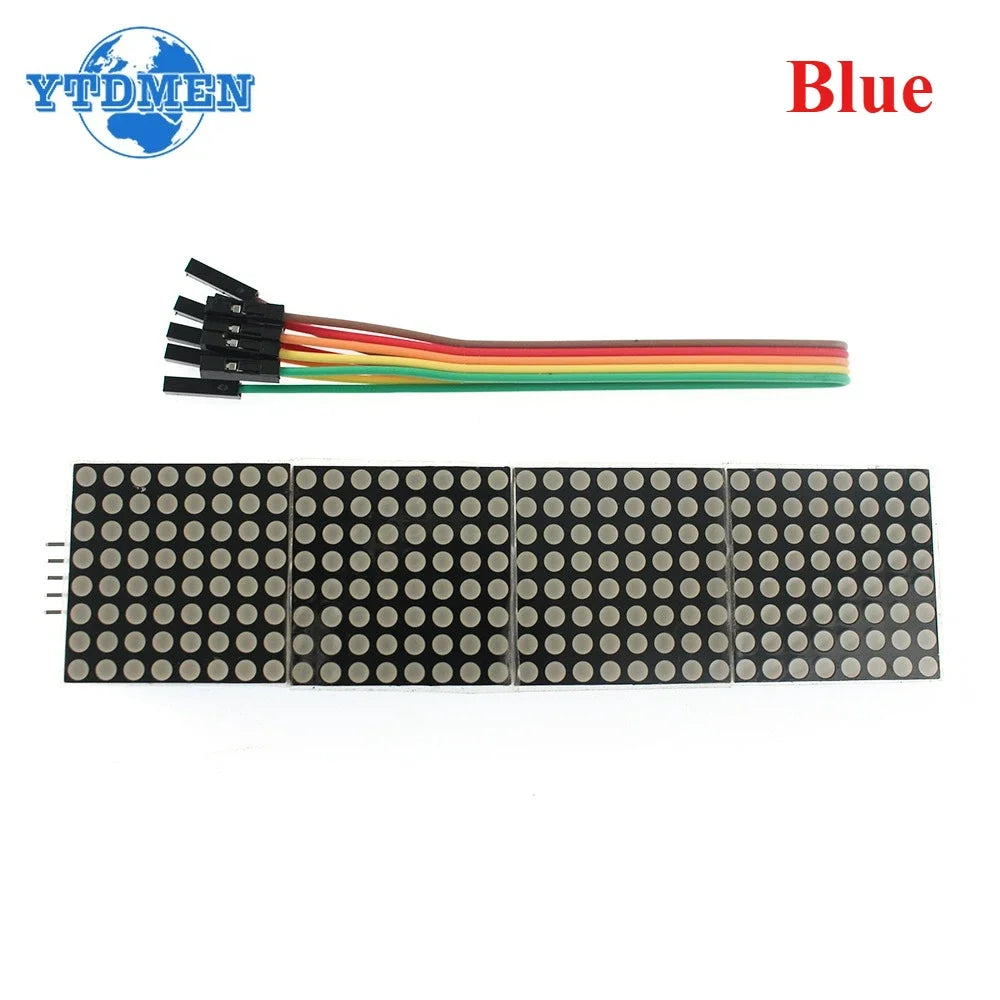

4 in 1 Module parameters:
1. A single module can drive an 8*8 common cathode matrix
2. Module working voltage: 5V
3. Module size: length 12.8 cm X width 3.2 cm X height 1.3 cm
4. With 64 fixing screw holes, 3mm diameter
5. Module with input and output interface, support multiple module cascade

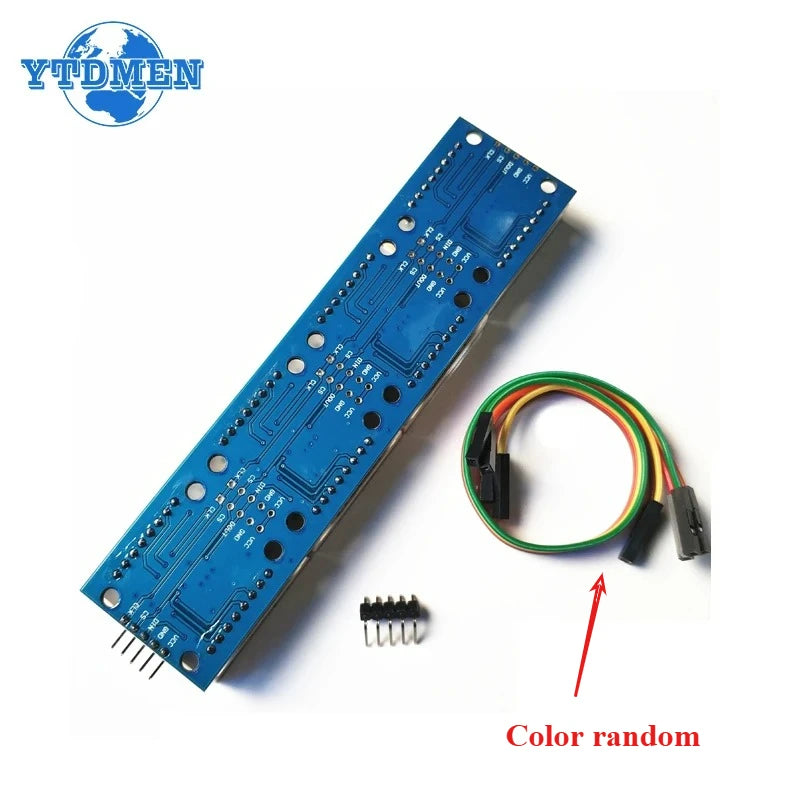

Shipping list:
1. MAX7219 dot matrix module 4 in 1 (finished product, with dot matrix, tested)
2.20CM Dupont Line 5P

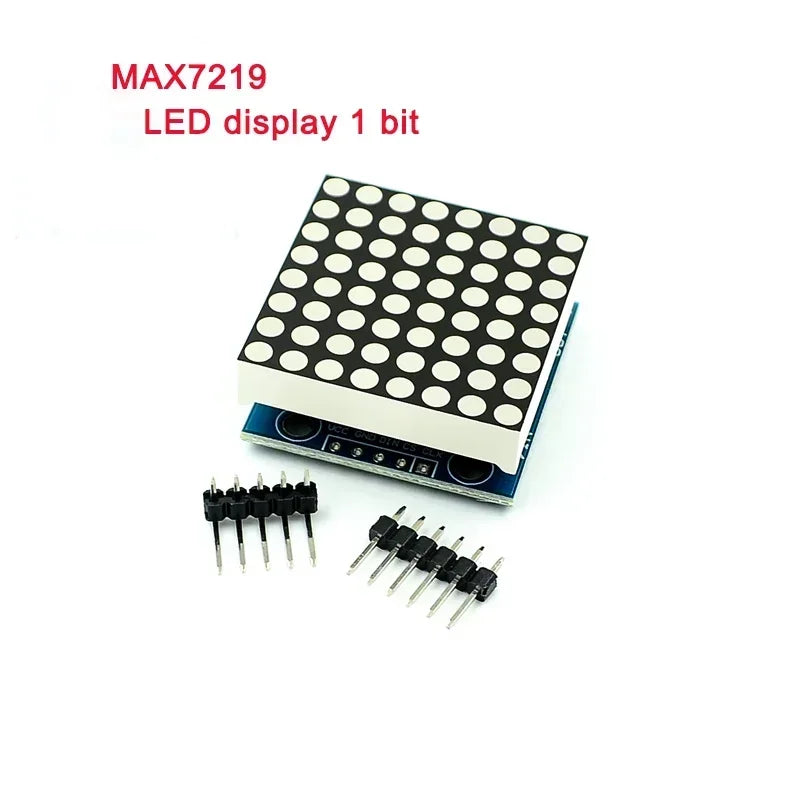

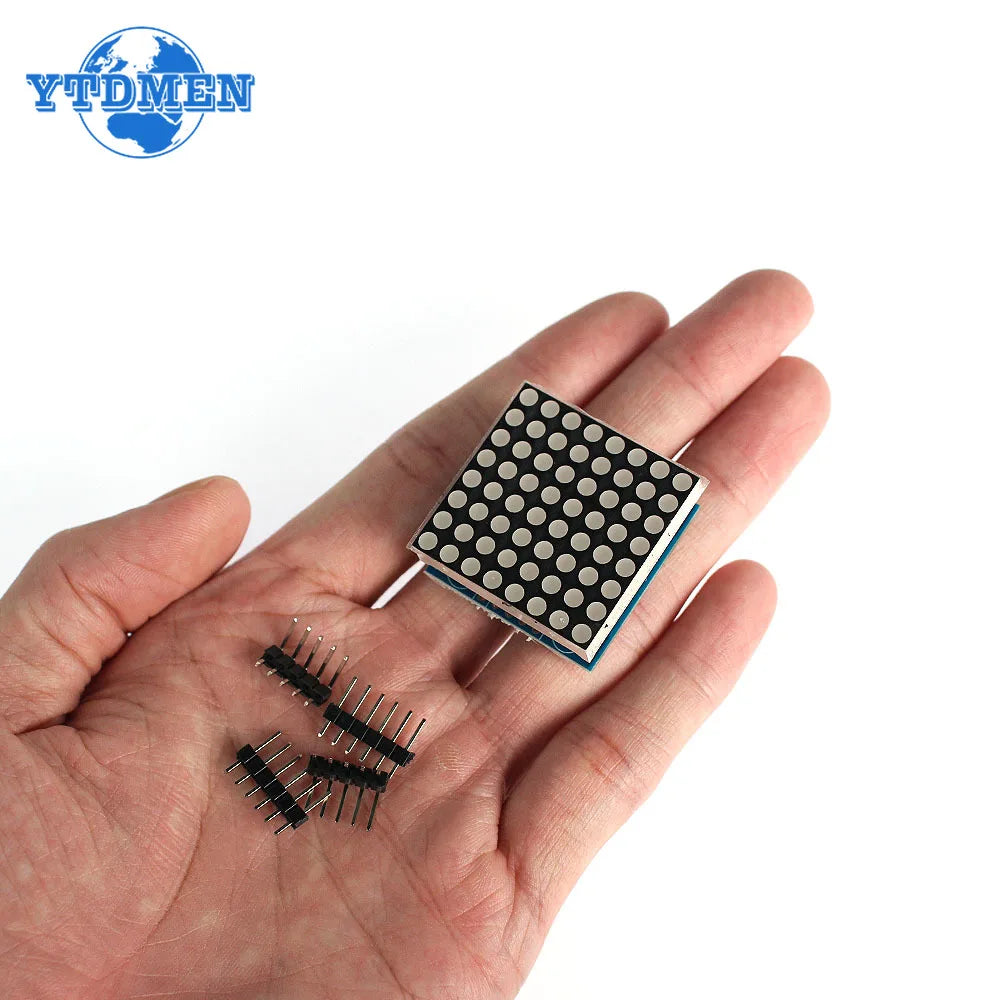

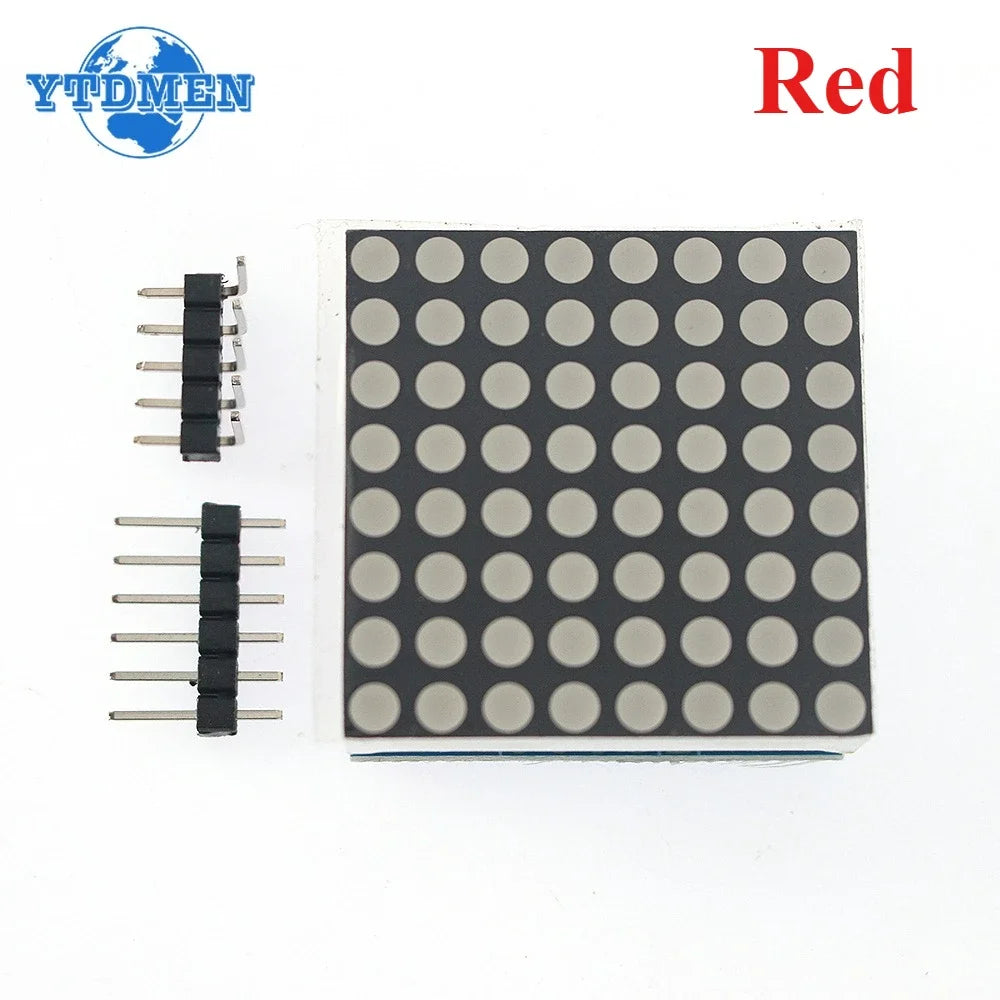

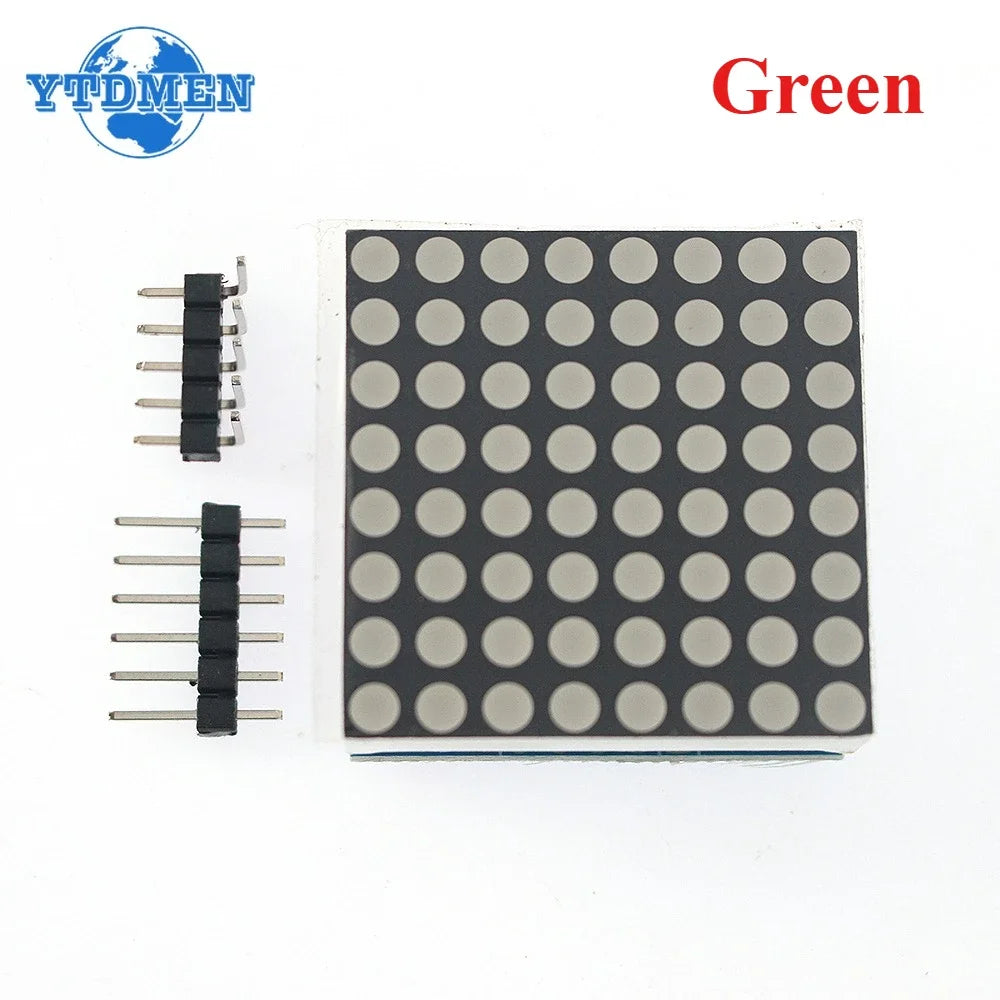

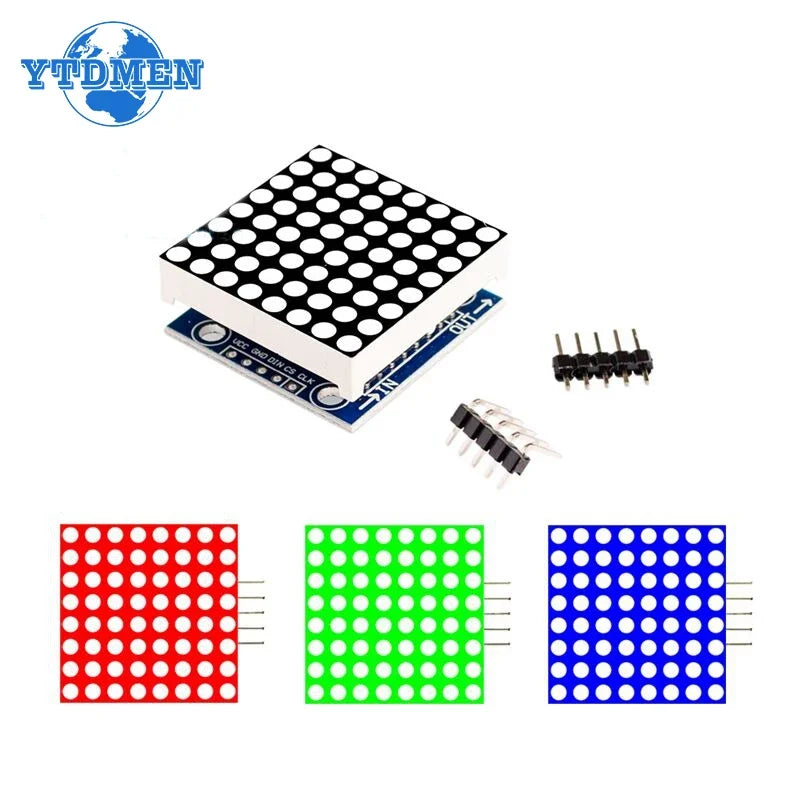

1 bit 7219 dot matrix module parameters:
1. A single module can drive an 8*8 common cathode matrix
2. Module working voltage: 5V
3. Module size: length 3.2 cm X width 3.2 cm X height 1.3 cm
4. With 4 fixing screw holes, 3mm diameter
5. Module with input and output interface, support multiple module cascade
1 bit without Dupont cable
(Note: the round hole pin header is welded, the wiring pin header is not welded)

MAX7219 is an integrated serial input/output common-cathode display driver. It connects a microprocessor and an 8-digit 7-segment digital LED display. It can also connect to a bar graph display or 64 independent LEDs. It includes an on-chip B-type BCD encoder, multiple scan loops, segment word drivers, and an 8*8 static RAM to store each data. Only one external register is used to set the segment current of each LED.

A convenient four-wire serial interface can be connected to all general-purpose microprocessors. Each data can be addressed without rewriting all the displays when updating. MAX7219 also allows users to select encoding or not encoding for each data.
The entire device includes a 150μA low-power shutdown mode, analog and digital brightness control, a scan limit register allowing users to display 1-8 bits of data, and a detection mode to make all LEDs glow.

Only 3 IO ports can drive 1 dot matrix! No flicker during dot matrix display! Support cascading!

Wiring instructions:

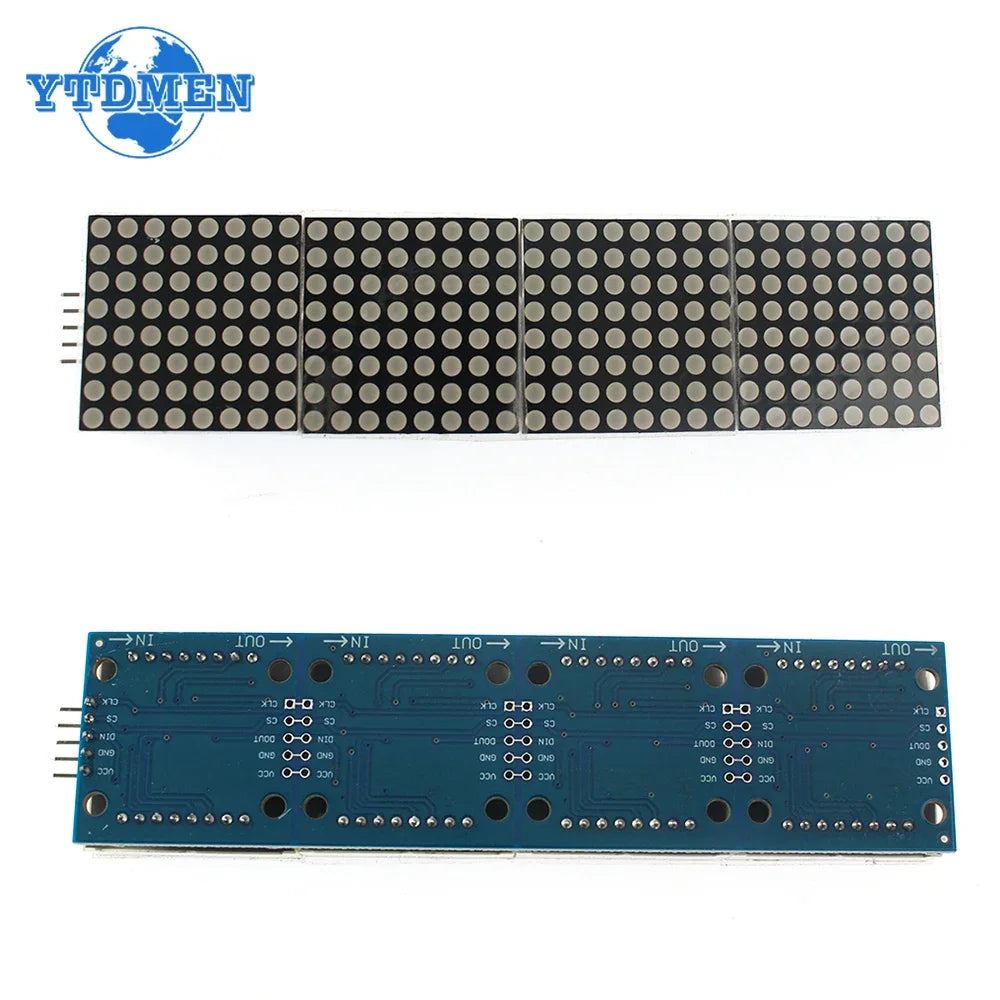

1. The left side of the module is the input port, and the right side is the output port.
2. When controlling a single module, you only need to connect the input port to the CPU
3. When multiple modules are cascaded, the input terminal of the first module is connected to the CPU, the output terminal is connected to the input terminal of the second module, the output terminal of the second module is connected to the input terminal of the third module, and so on. ..

Take 51 single chip microcomputer as an example:
VCC → 5V
GND → GND
DIN → P2.2
CS → P2.1
CLK → P2.0
