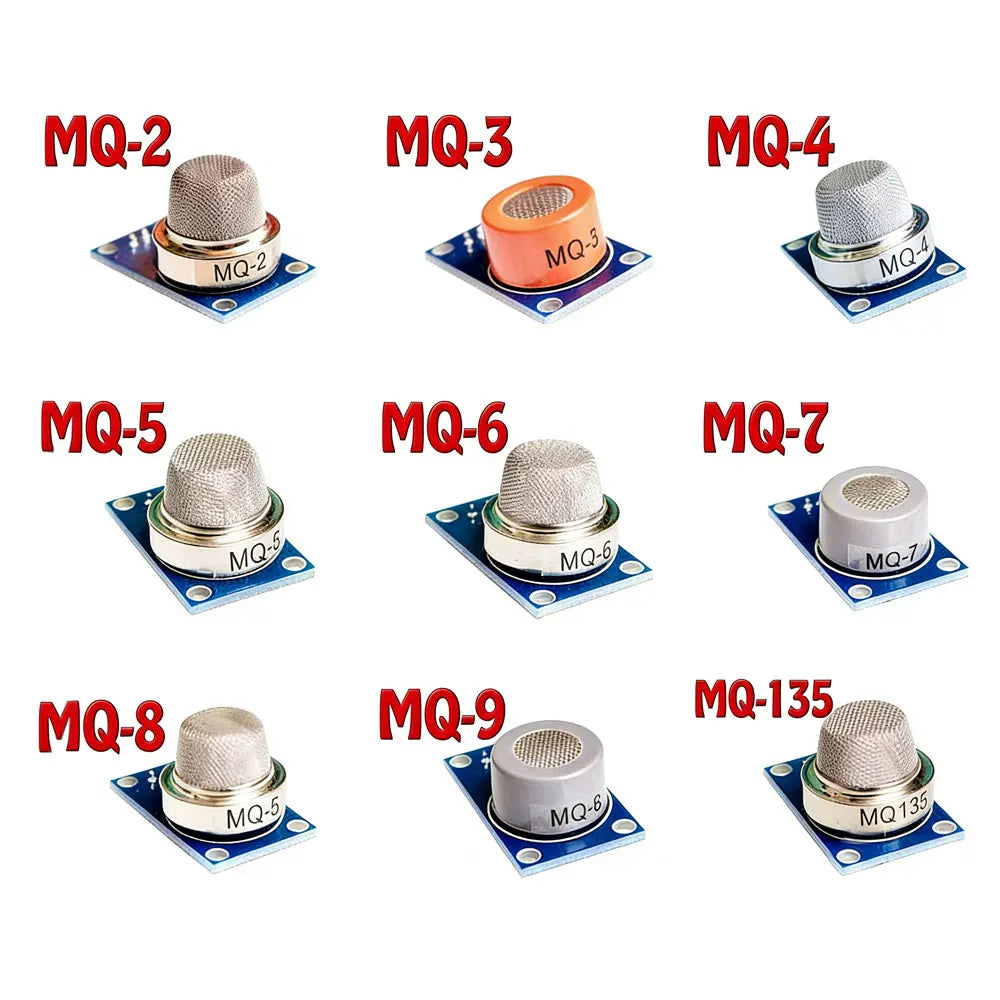

1pcs MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke Methane Liquefied Gas air quality Alcohol Sensor Module
MQ-3 Alcohol sensor
$10.04
Sale price
$10.04
Regular price
$0.00
Skip to product information
1pcs MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke Methane Liquefied Gas air quality Alcohol Sensor Module
$10.04
Sale price
$10.04
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE,Estardyn
High-concerned chemical: none
Origin: Mainland China

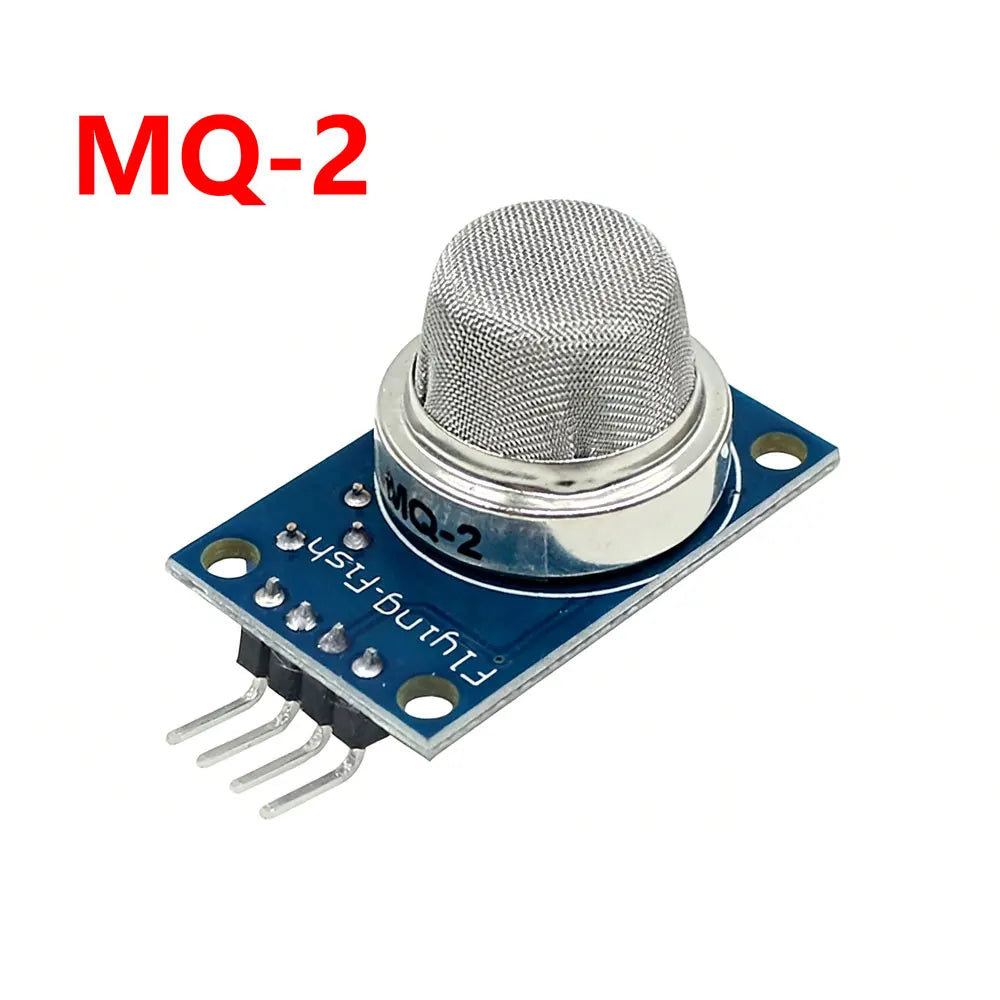

MQ-2 Sensor
-
Model: MQ-2
-
Gas: smoke
-
Detection range: 300 to 10000ppmm
-
Characteristic gas: 1000ppmm isobutane
-
Sensitivity: R in air/Rin typical gasge5
-
Sensitive body resistance: 1KOmega to 20KOmega in 50ppm toluene
-
Response time: le10s
-
Recovery time: le30s
-
Heating resistance: 31 Omega plusmn 3 Omega
-
Heating current: le180mA
-
Heating voltage: 5.0V plusmn 0.2V
-
Heating power: le900mW
-
Measuring voltage: le24V
-
Working conditions Ambient temperature: -20 deg C ~ +55 deg C
-
Humidity: le95% RH
-
Environmental oxygen content: 21%
-
Storage conditions Temperature: -20 deg C ~ +70 deg C
-
Humidity: le70%RH
-
Applications: Household and factory gas leak monitoring devices suitable for detection of liquefied gases, butane, propane, methane, alcohol, hydrogen, fumes, etc.

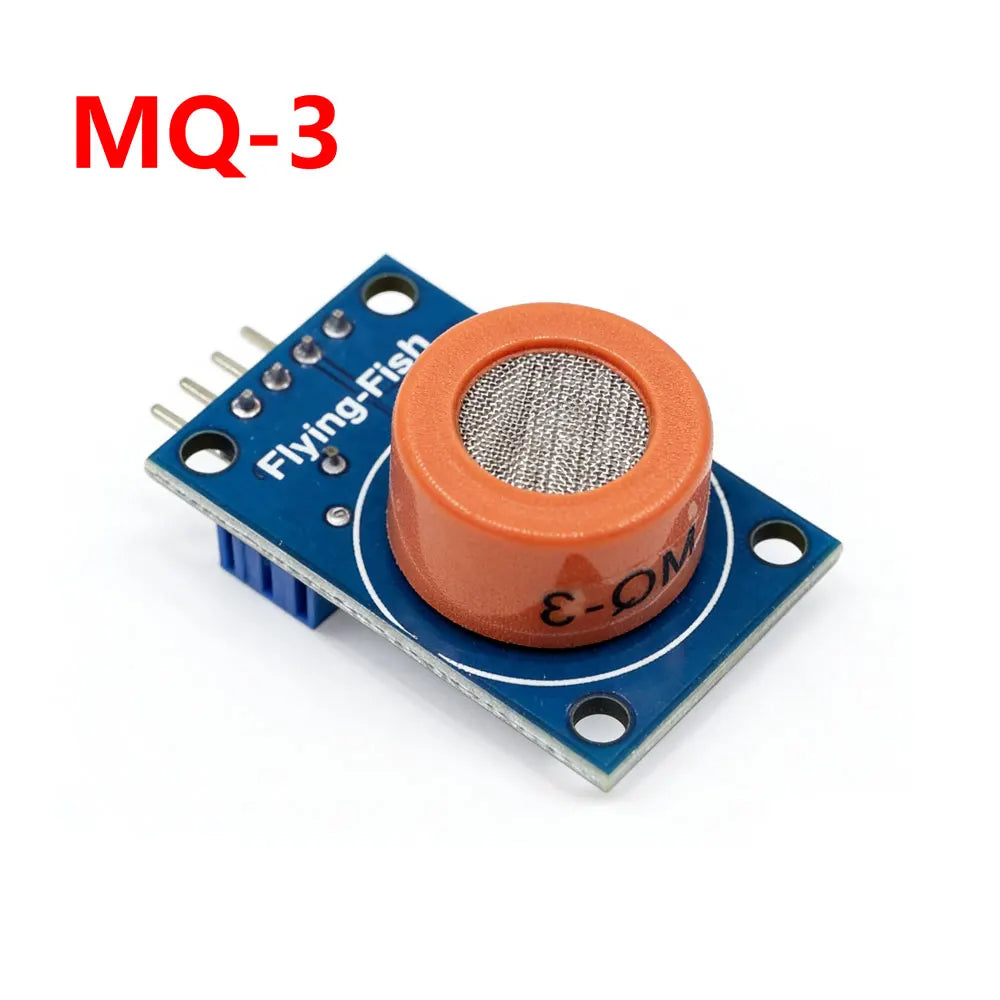

MQ-3 Sensor
-
Gas: Alcohol (ethanol)
-
Detection range: 10 ~ 1000ppm alcohol
-
Characteristic gas: 125ppm alcohol
-
Sensitivity: R in air/Rin typical gasge5
-
Sensitive body resistance: 1 ~ 20KOmega in air
-
Response time: le10s (70% Response)
-
Recovery time: le30s (70% Response)
-
Heating resistance: 31 Omega plusmn 3 Omega
-
Heating current: le180mA
-
Heating voltage: 5.0V plusmn 0.2V
-
Heating power: le900mW
-
Measuring voltage: le24V
-
Ambient temperature: -20 deg C ~ +55 deg C
-
Humidity: le95% RH
-
Environmental oxygen content: 21%
-
Storage temperature: -20 deg C ~ +70 deg C
-
Storage humidity: le70%RH

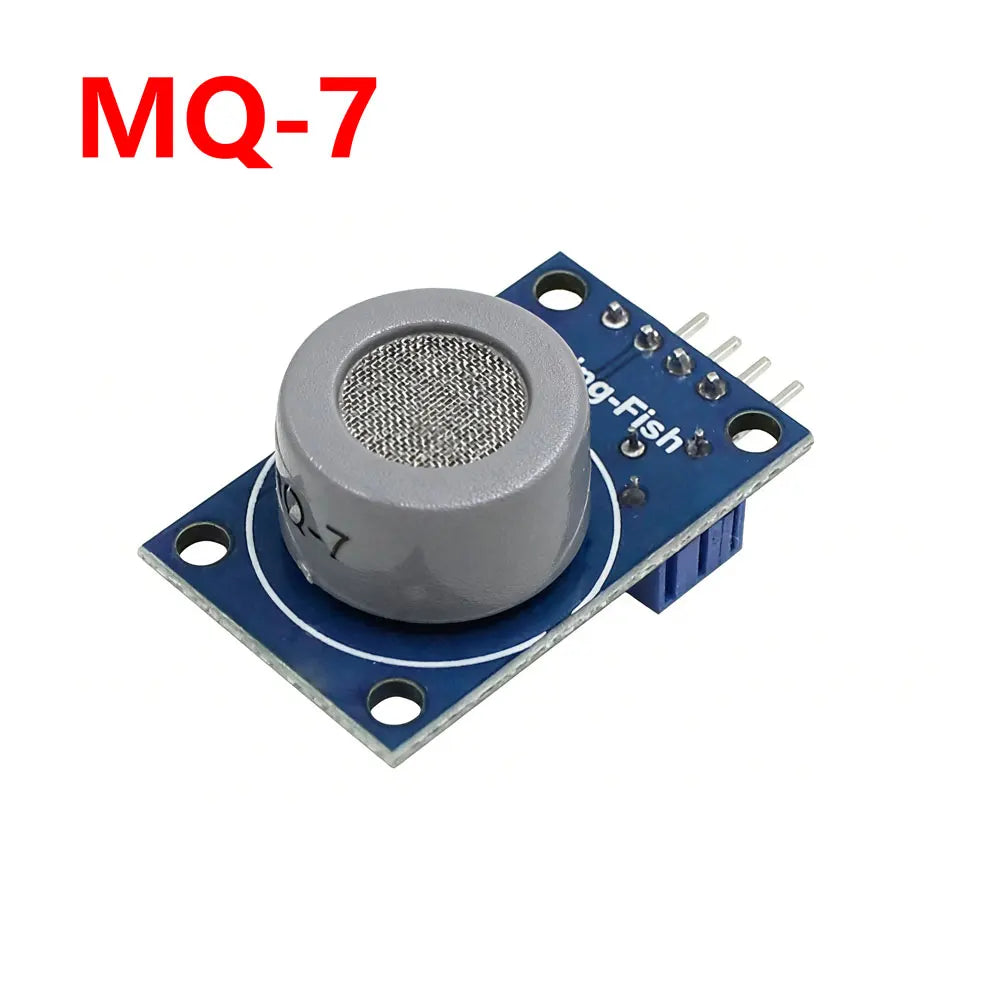

MQ-7 Sensor
-
Product model: MQ-7
-
Product type : Semiconductor gas sensor
-
Detection gas: carbon monoxide
-
Detection concentration: 10-1000ppmCO
-
Loop voltage: le10V DC
-
Heating voltage (VH): 5.0V plusmn 0.2V ACorDC (high)
-
1.5V plusmn 0.1VACorDC (low)
-
Heating time (TL): 60plusmn1S (high) 90plusmn1S (low)
-
Load resistance (RL): adjustable
-
Heating resistance (RH): 31Omega plusmn 3Omega (room temperature)
-
Heating power consumption (PH): le350mW
-
Sensitive surface resistance (Rs): 2KOmega-20KOmega (in100ppmCO)
-
Sensitivity (S); Rs (in air) / Rs (100ppmCO) ge 5
-
Concentration slope (alpha): le 0.6 (R300ppm/R100ppmCO)
-
Temperature, humidity: 20 deg C plusmn 2 deg C; 65% plusmn 5% RH
-
Standard test circuit: Vc: 5.0V plusmn 0.1V; VH (high): 5.0V plusmn 0.1V; VH (low): 1.5V plusmn 0.1V
-
Warm-up time: no less than 48 hours

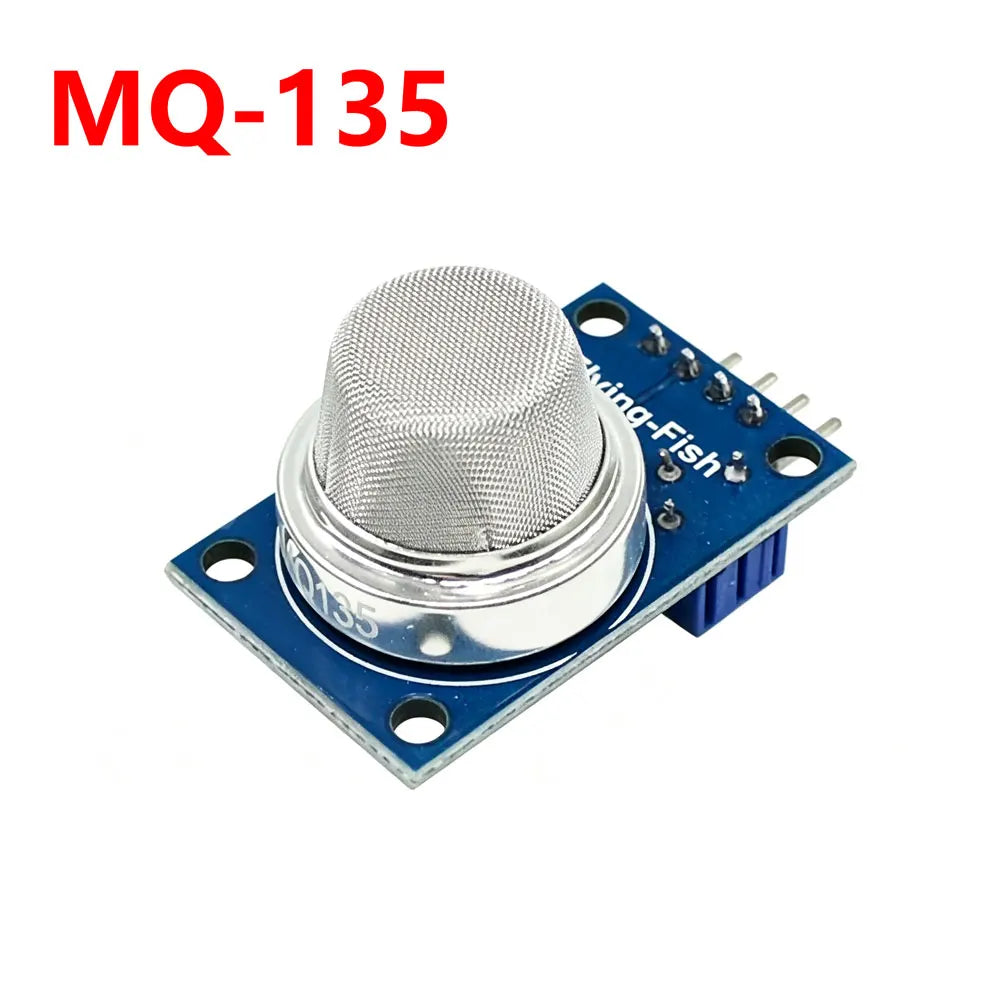

MQ135 Sensor
-
Product model: MQ135
-
Product Type: Semiconductor Gas Sensor
-
Detection gas: ammonia, sulfide, benzene vapor
-
Detection concentration: 10-1000ppm (ammonia, toluene, hydrogen)
-
Loop voltage (Vc): le24V DC
-
Heating voltage (VH): 5.0V plusmn 0.2V ACorDC
-
Load resistance (RL): adjustable
-
Heating resistance (RH): 31 Omega plusmn 3 Omega (room temperature)
-
Heating power consumption (PH): le900mW
-
Sensitive surface resistance (Rs): 2KOmega-20KOmega (in 100ppm NH3)
-
Sensitivity (S): Rs (in air) / Rs (100ppm NH3) ge 5
-
Concentration slope (alpha): le 0.6 (R100ppm/R50ppmNH3)
-
Temperature, humidity: 20 deg C plusmn 2 deg C; 65% plusmn 5% RH
-
Standard test circuit: Vc: 5.0V plusmn 0.1V; VH: 5.0V plusmn 0.1V
-
Warm-up time: no less than 48 hours
