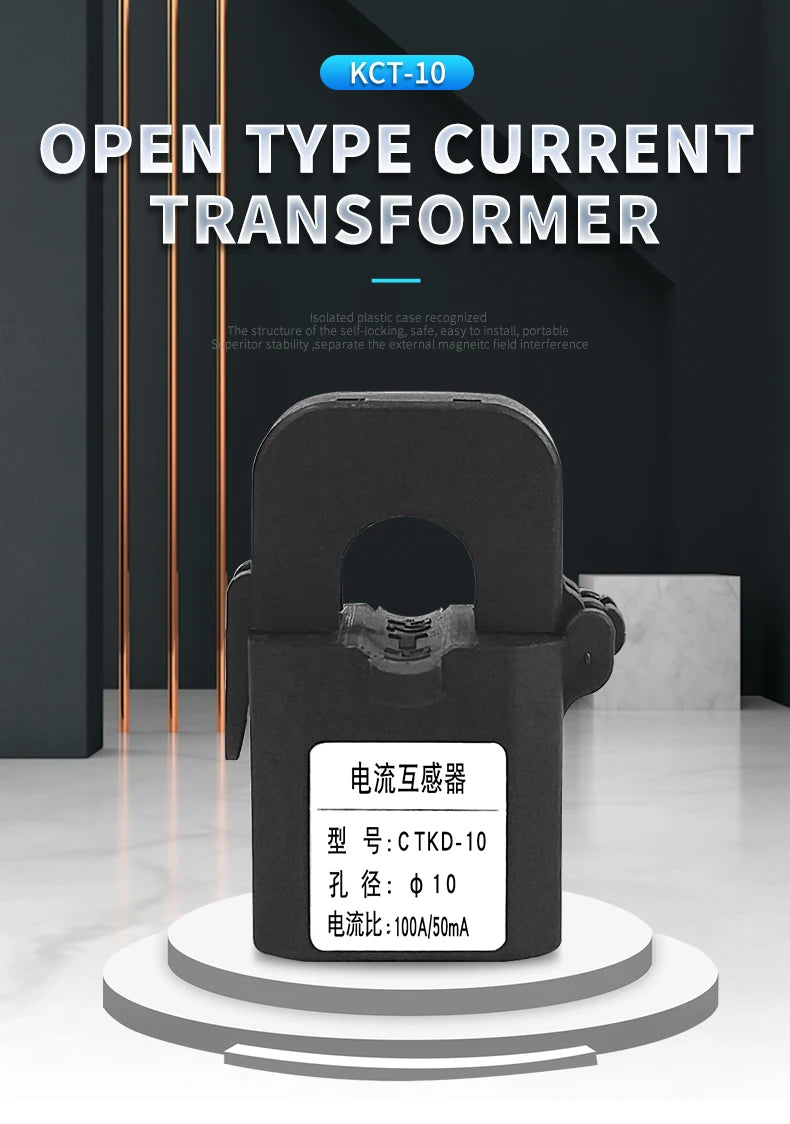

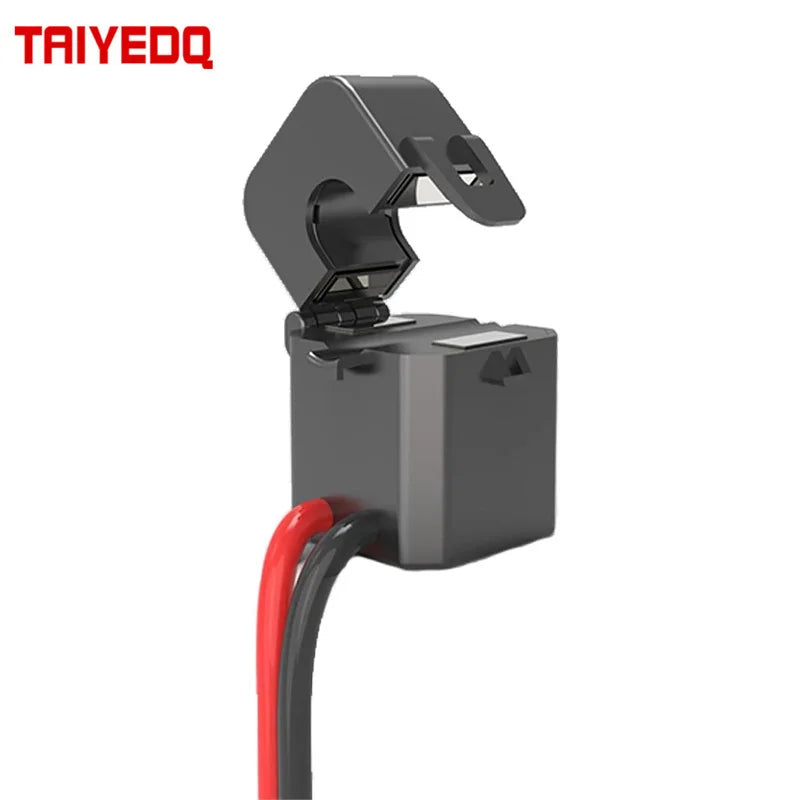

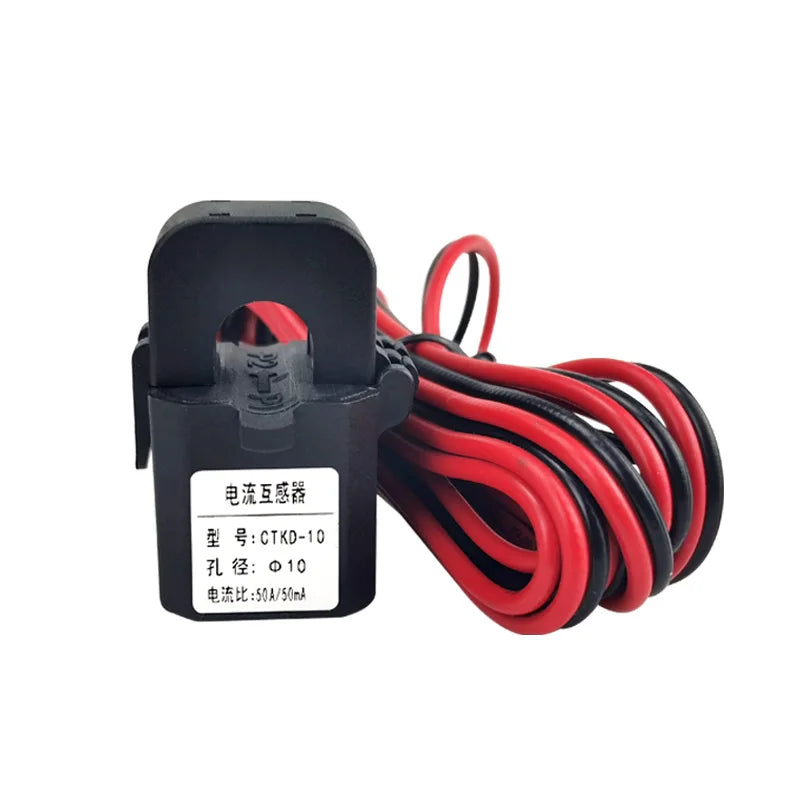

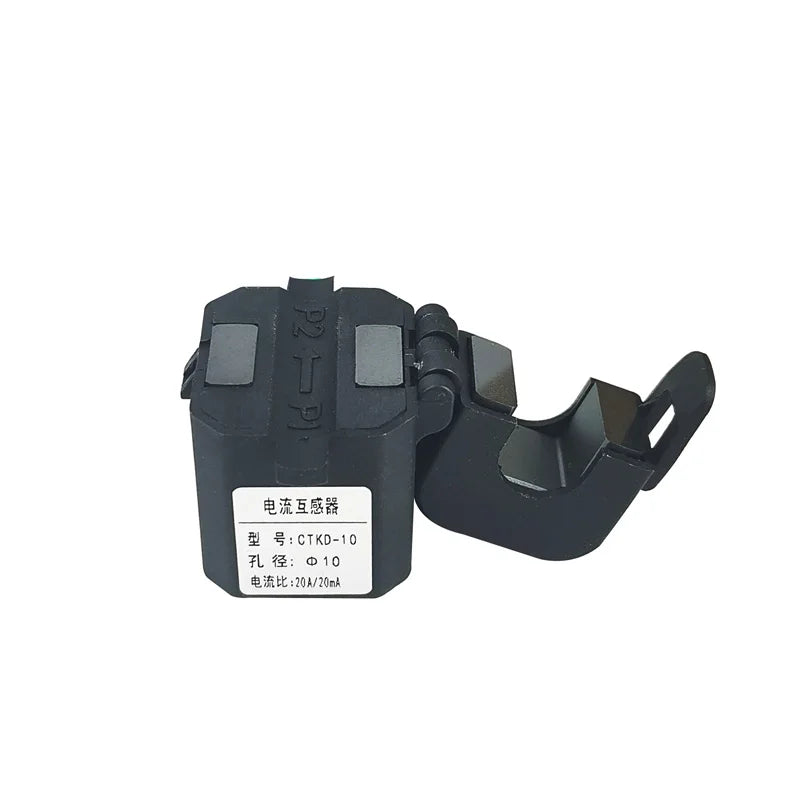

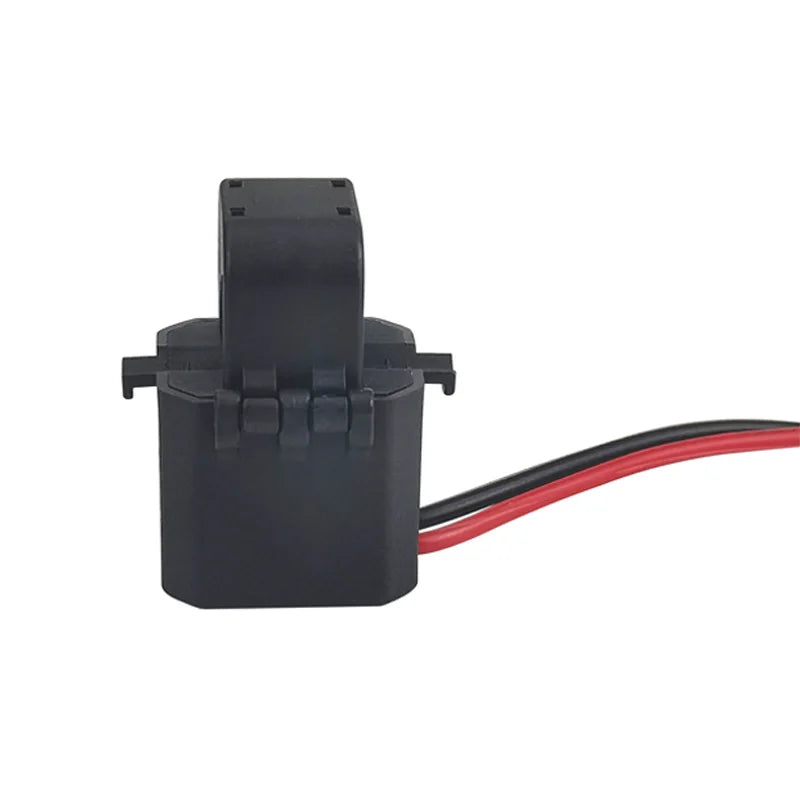

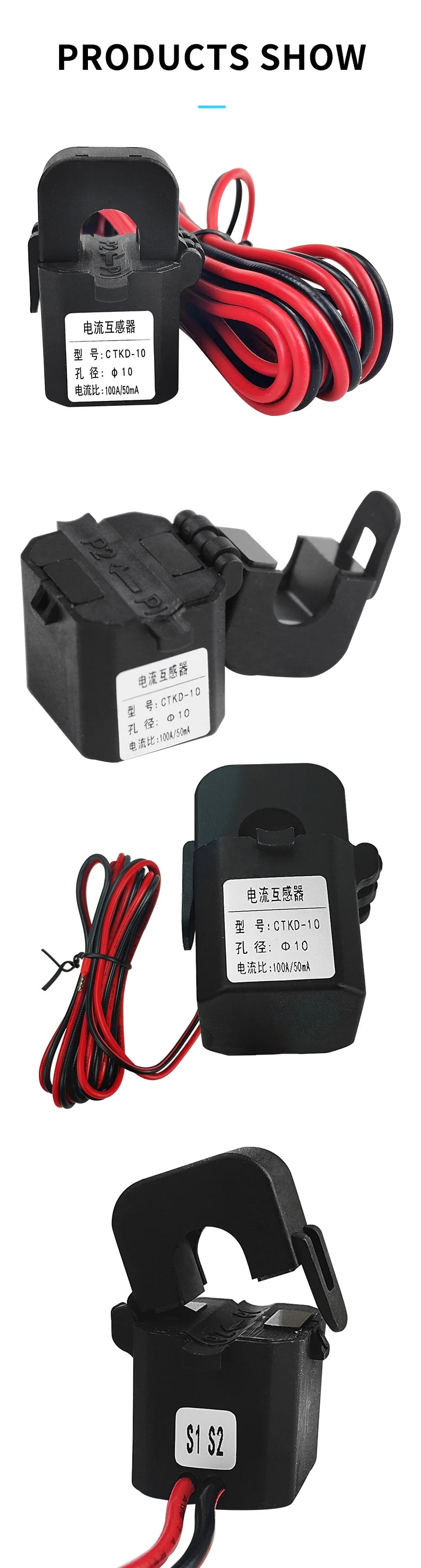

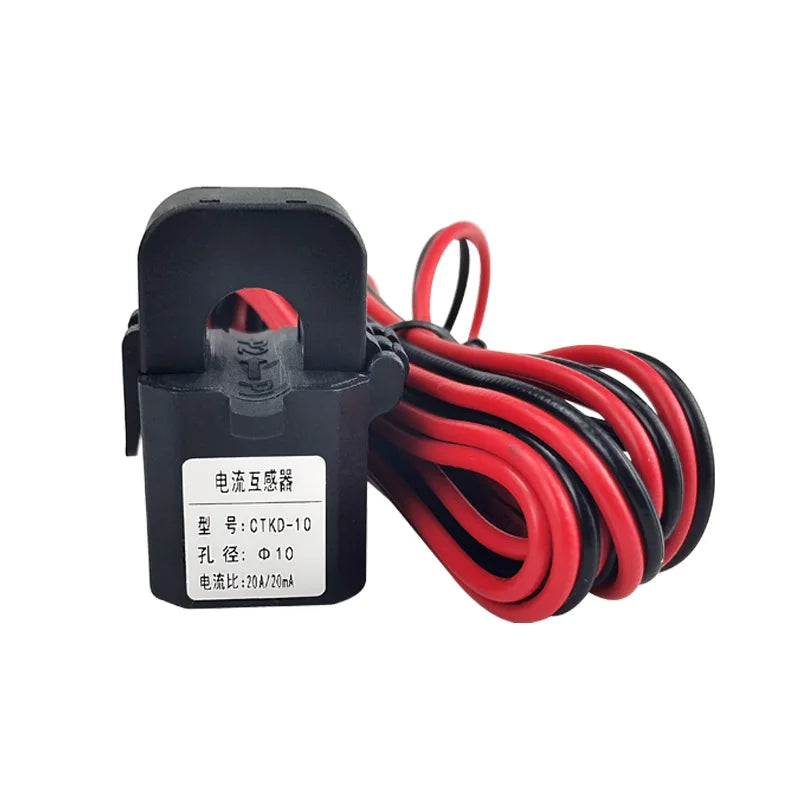

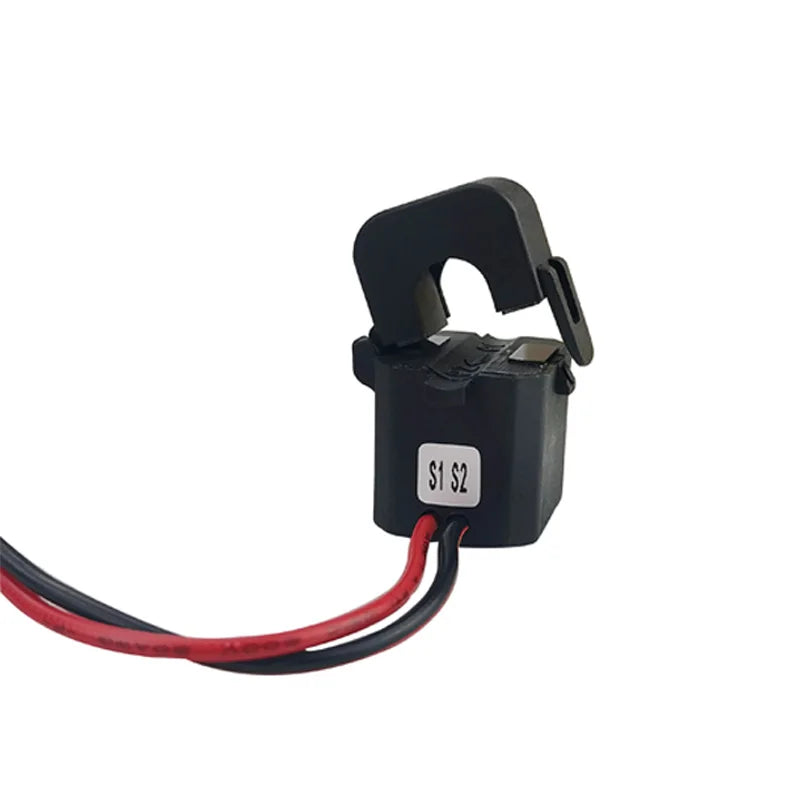

1PCS Snap-in Type Small Current Transformer Three-phase Electric Sensor CT MA 0.5 Class 10/20/50/75mA
10A 10mA
$15.03
Sale price
$15.03
Regular price
$0.00
Skip to product information
1PCS Snap-in Type Small Current Transformer Three-phase Electric Sensor CT MA 0.5 Class 10/20/50/75mA
$15.03
Sale price
$15.03
Regular price
$0.00
Description
SPECIFICATIONS
ACCURACY CLASS: 0.5
Brand Name: TAIYEDQ
COLOR: Black
Certification: NONE
Coil Number: other
Coil Structure: other
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: CTKD-10
Origin: Mainland China
Phase: Three
Use: Current
is_customized: Yes
Description
Working frequency: 50-2KHz
Rated input: 5A-630A
Measuring range: 10%In-130%In
Rated output: 0.333V (AC) or 0-500mA
Ratio difference: ≤±1.0%
Phase difference: ≤±60 minutes
Dielectric strength: 2.5KV/1mA/1min
Insulation resistance: DC500V/100MΩ min

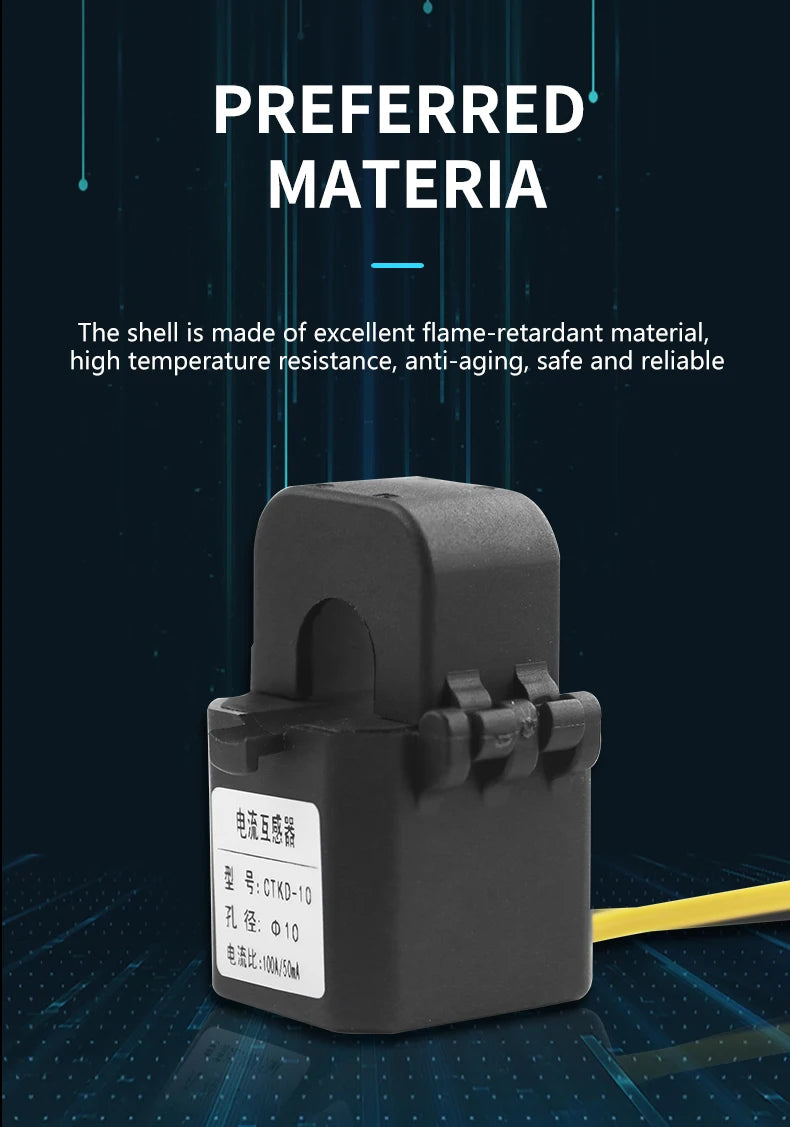

Shell: PA, flame retardant grade 94-V0
Frame: PBT
Iron core: silicon steel

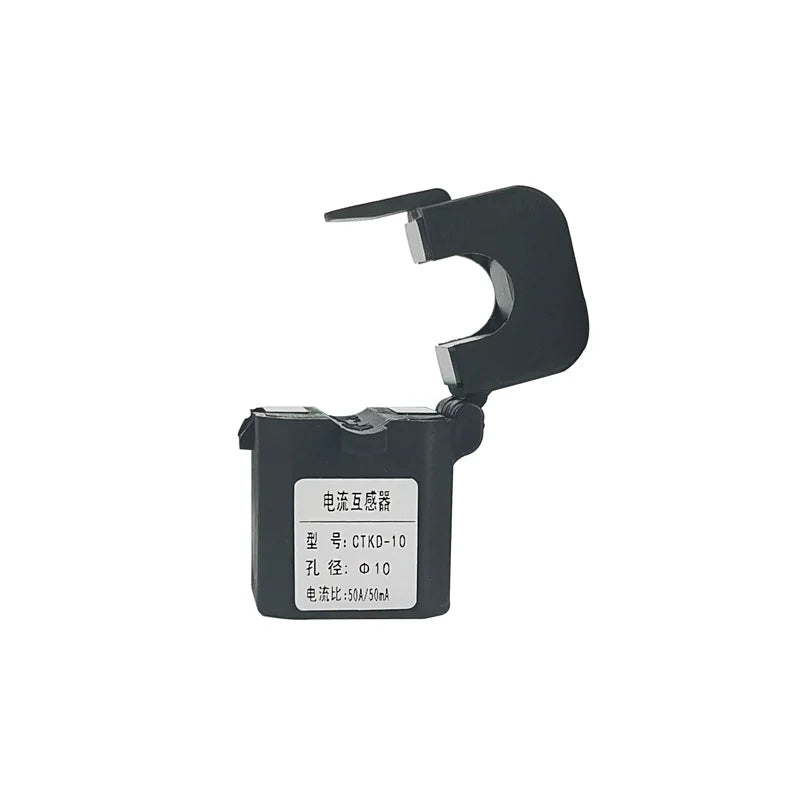

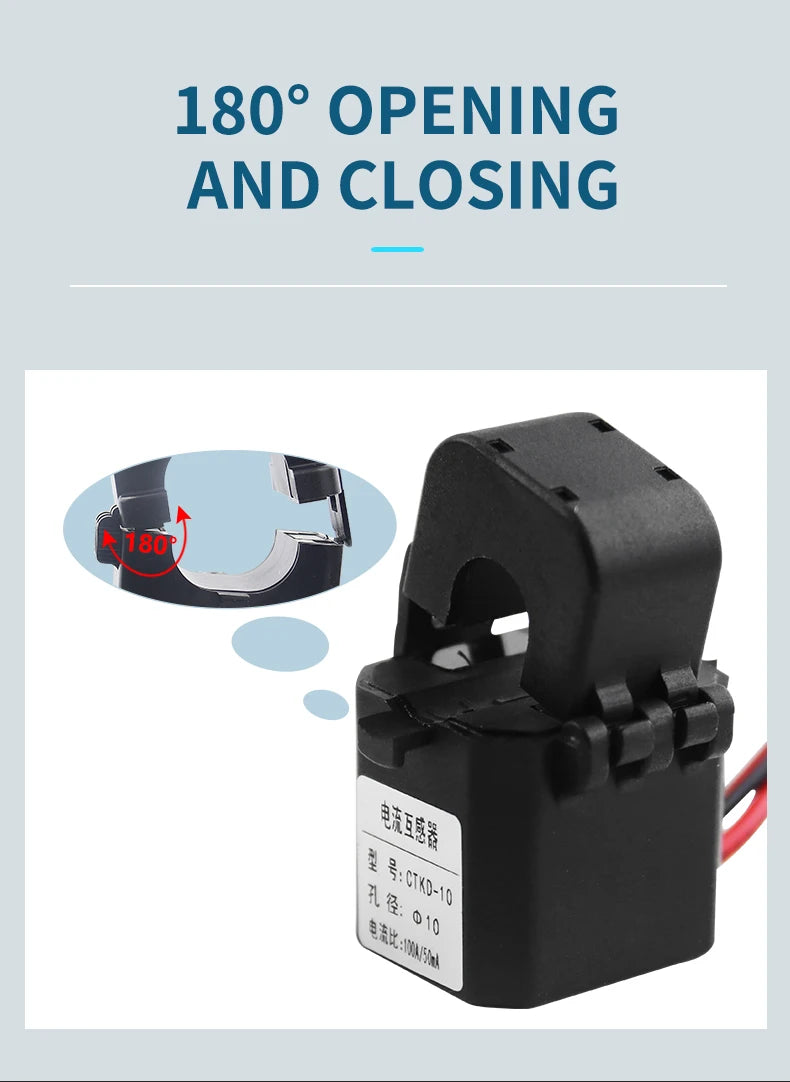

Internal structure: buckle
Construction: fixed with tie
Working temperature: -25℃~+75℃
Environment temperature: ≤85%

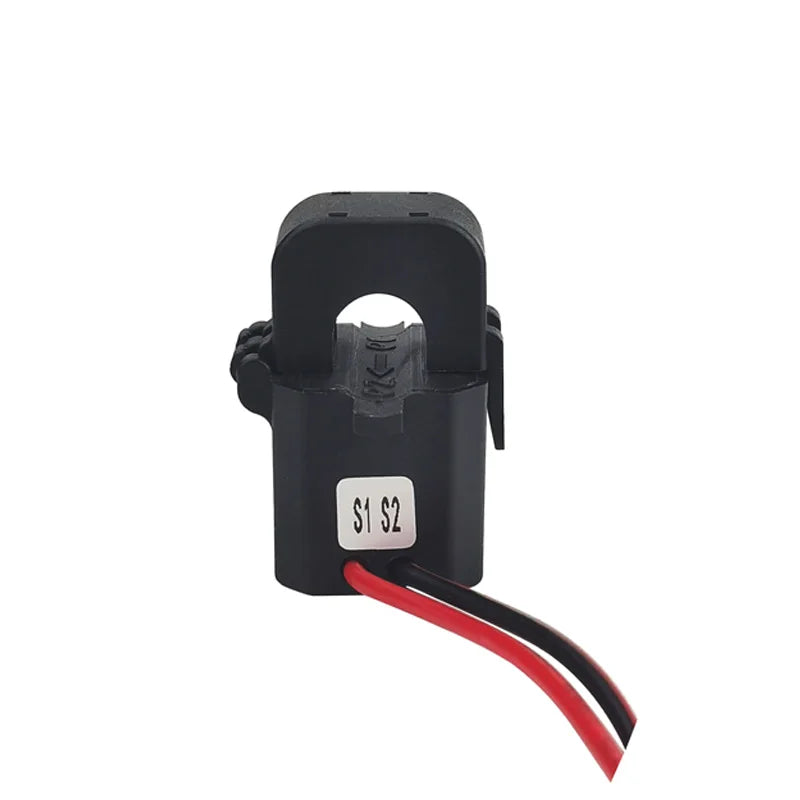

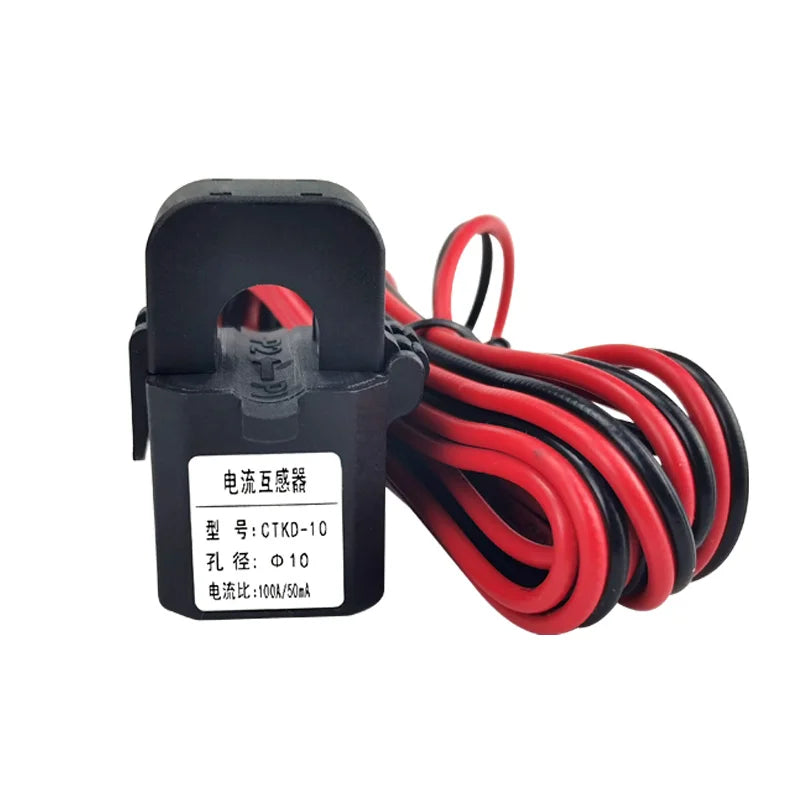

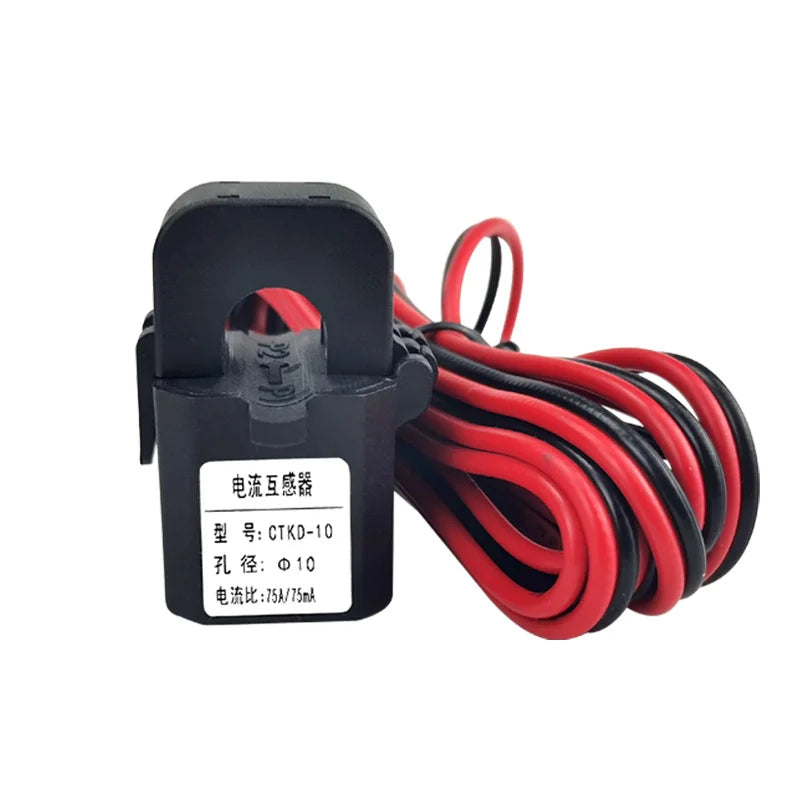

Output connection: PVC three-color 1.5m twisted pair cable
Package Included
1 × Small current transformer
The colors of the lines are red, yellow, and blue, and they are sent randomly！！！
