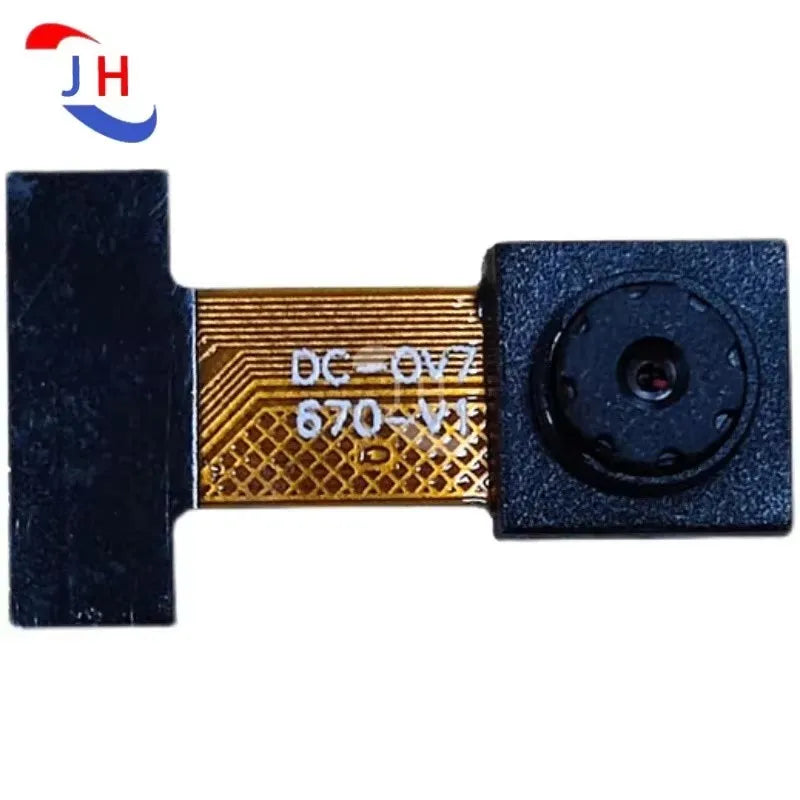

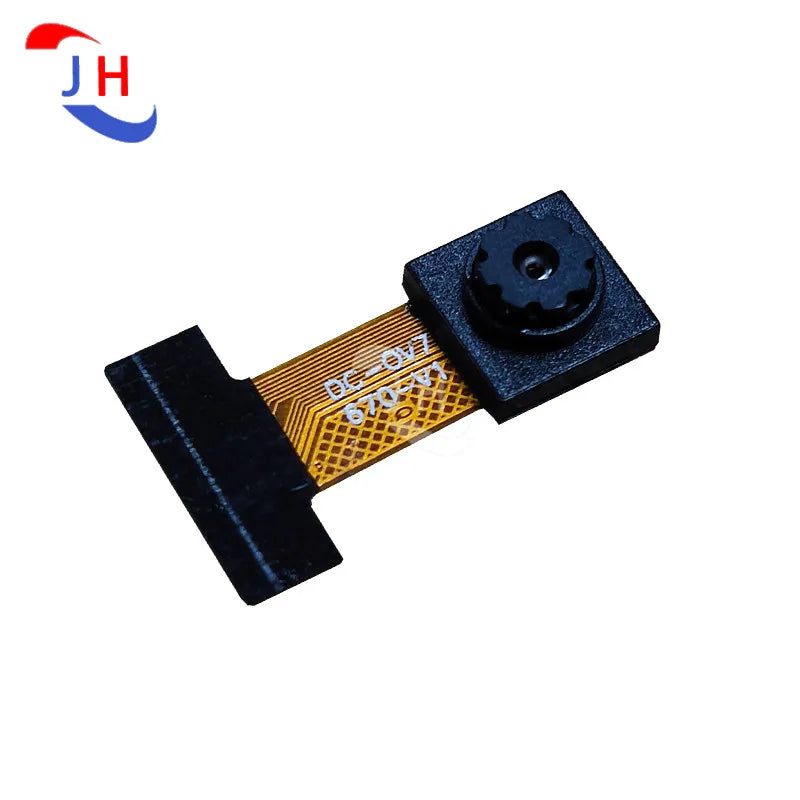

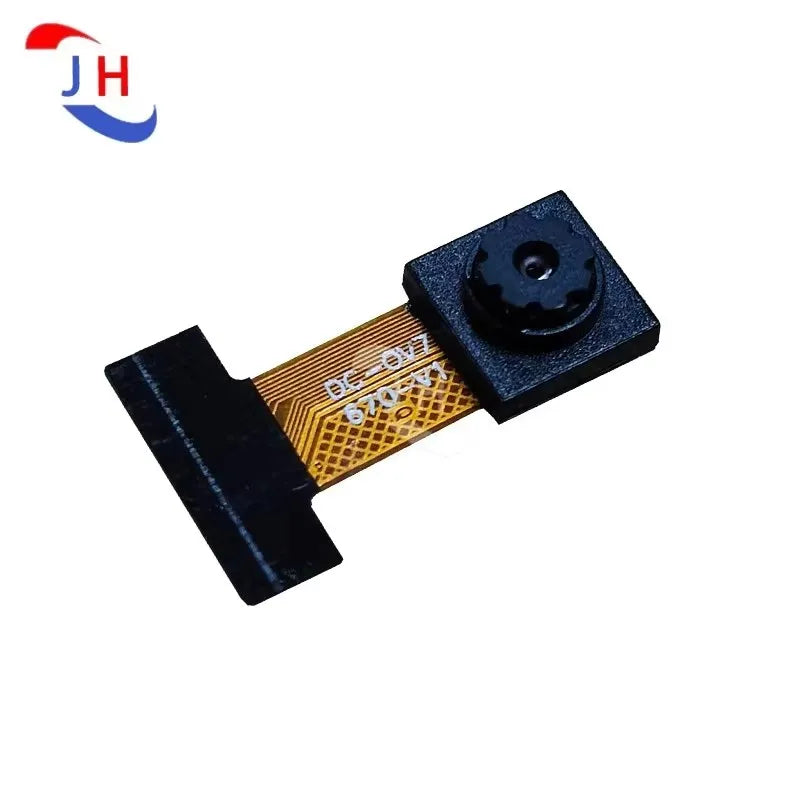

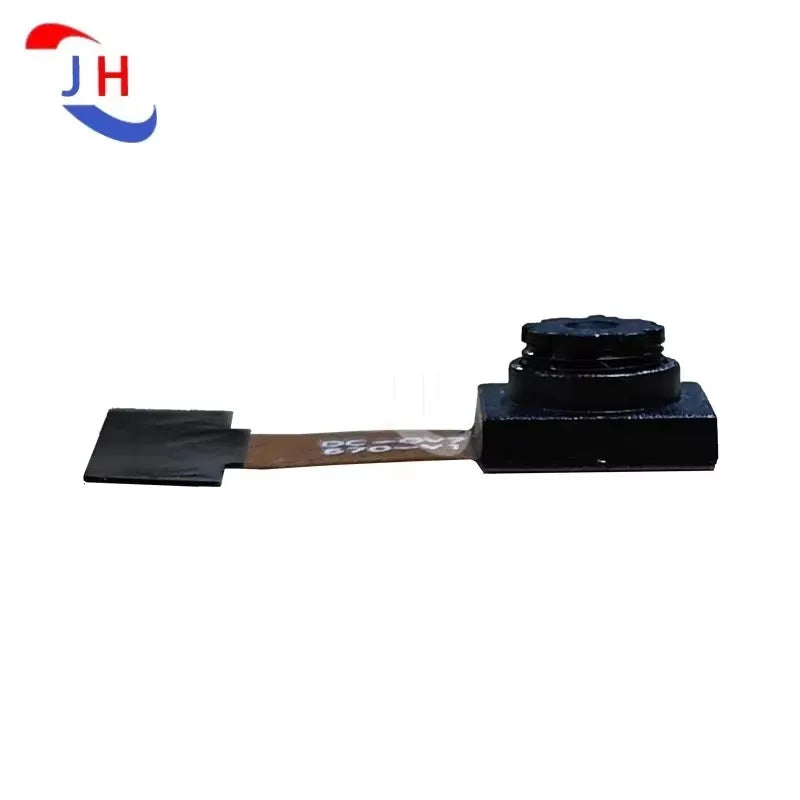

1PCS The 30W Pixel OV7670 Camera Module Delivers Super-Good Quality Row Seat (30W pixel) IO Voltage Of 2.5V
Default Title
$9.00
Sale price
$9.00
Regular price
$0.00
Skip to product information
1PCS The 30W Pixel OV7670 Camera Module Delivers Super-Good Quality Row Seat (30W pixel) IO Voltage Of 2.5V
$9.00
Sale price
$9.00
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: LinXinChuangKe
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
Photosensitive array 640X480
IO voltage 2.5V to 3.0V(internal LDO supplies 1.8V power to the core)
Power consumption working 60mW/15fpsVGAYUV
Dormancy < 20 mu A
Temperature operation -30℃ to 70℃
Stable operation from 0℃ to 50℃
Output format (8 bits)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size 1/6"
The view Angle of 67 °
Fiona rate 30 FPS VGA
The sensitivity of 1.3 V/(Lux - SEC)
SNR 46 dB
Dynamic range 52 dB
Browse mode line by line
Electronic exposure lines 1 to 510
Pixel area 3.6 μm x 3.6 μm
Dark current 12 mV/s at 60℃
