SPECIFICATIONS

Application: Computer

Brand Name: ENLINCA

Choice: yes

Condition: New

Dissipation Power: 3A/4A/5A

High-concerned chemical: none

Operating Temperature: -

Origin: Mainland China

Package: SMD

Supply Voltage: 3A/4A/5A

Type: Voltage Regulator

is_customized: Yes

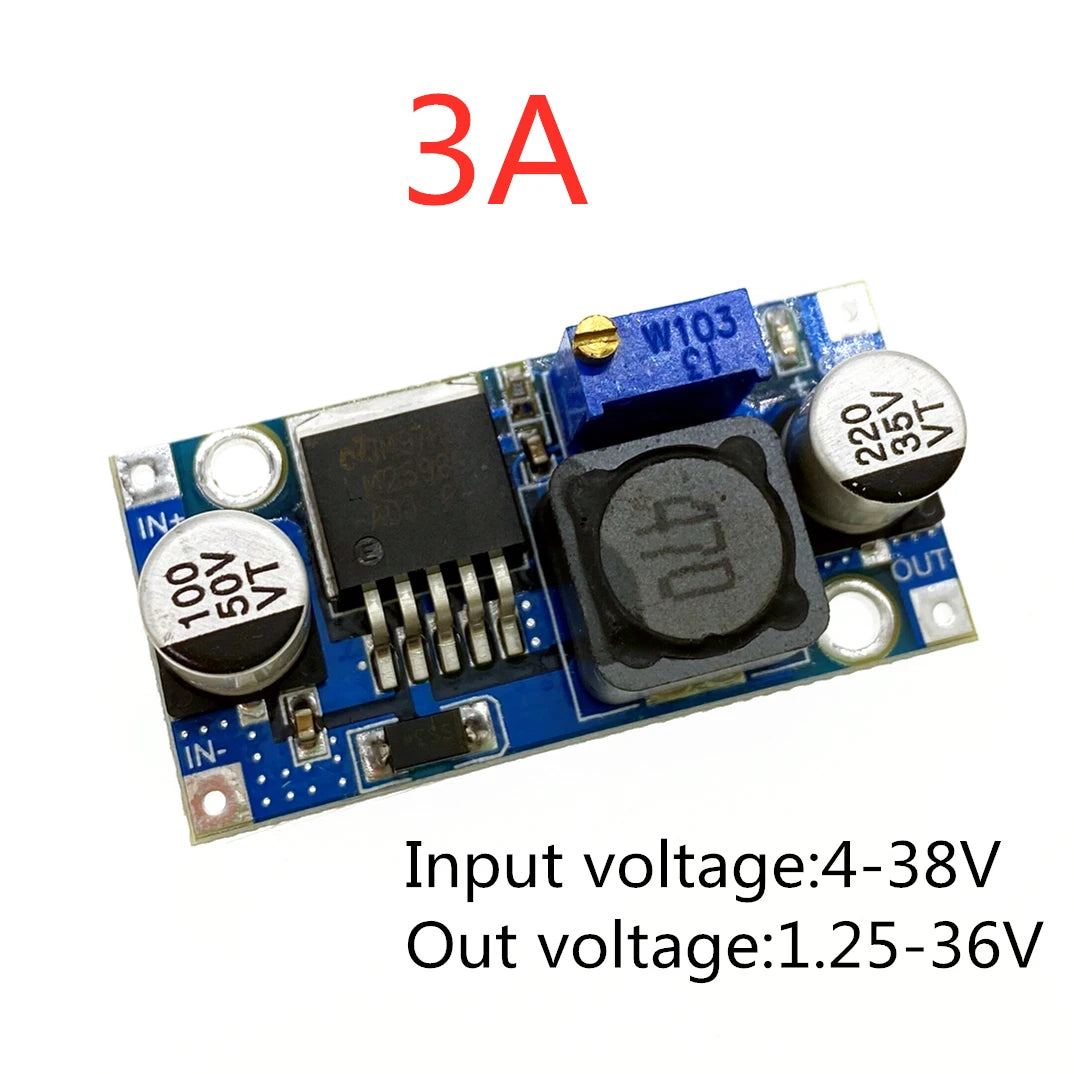

3A:
Input voltage
Name : LM2596 DC-DC Buck module
Input voltage :4V ~ 35V
The output voltage : 1.23V ~ 30V
Output Current :3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: <30mV
Switching frequency: 150KHz
Working temperature: -forty Five~ +85
Size :43mm * 21mm * 14mm(Long*Width*Hight)
Features:
1. the range of input voltage: 3.2 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)
2. the range of output voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.

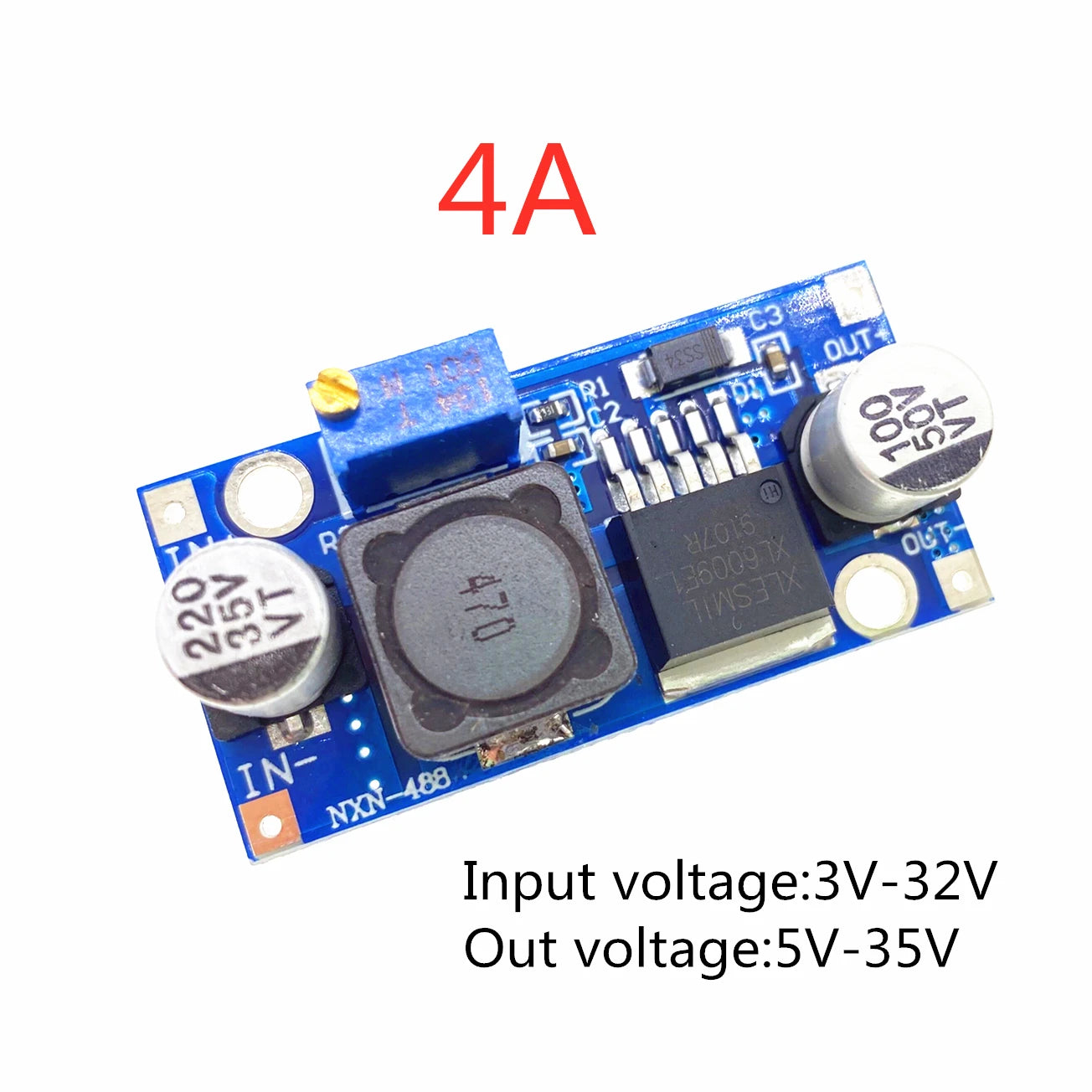

4A:
Specification:
      Model: XL6009 boost module
      Module Properties: Non-isolated boost (BOOST)
      Rectification: Non-Synchronous Rectification
      Input Range: 3V ~ 32V
      Output Range: 5V ~ 35V
      Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
      Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
      Switching frequency: 400KHz
      Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
      Load Regulation: +/-0.5%
      Voltage Regulation: +/-0.5%
      Operating Temperature: -40 degree to +85 degree
      Body Size: 43 x 20 x 12mm/1.7" x 0.8" x 0.47"(L*W*T)
      Input way: IN+, IN-;
      Output way: OUT+, OUT-

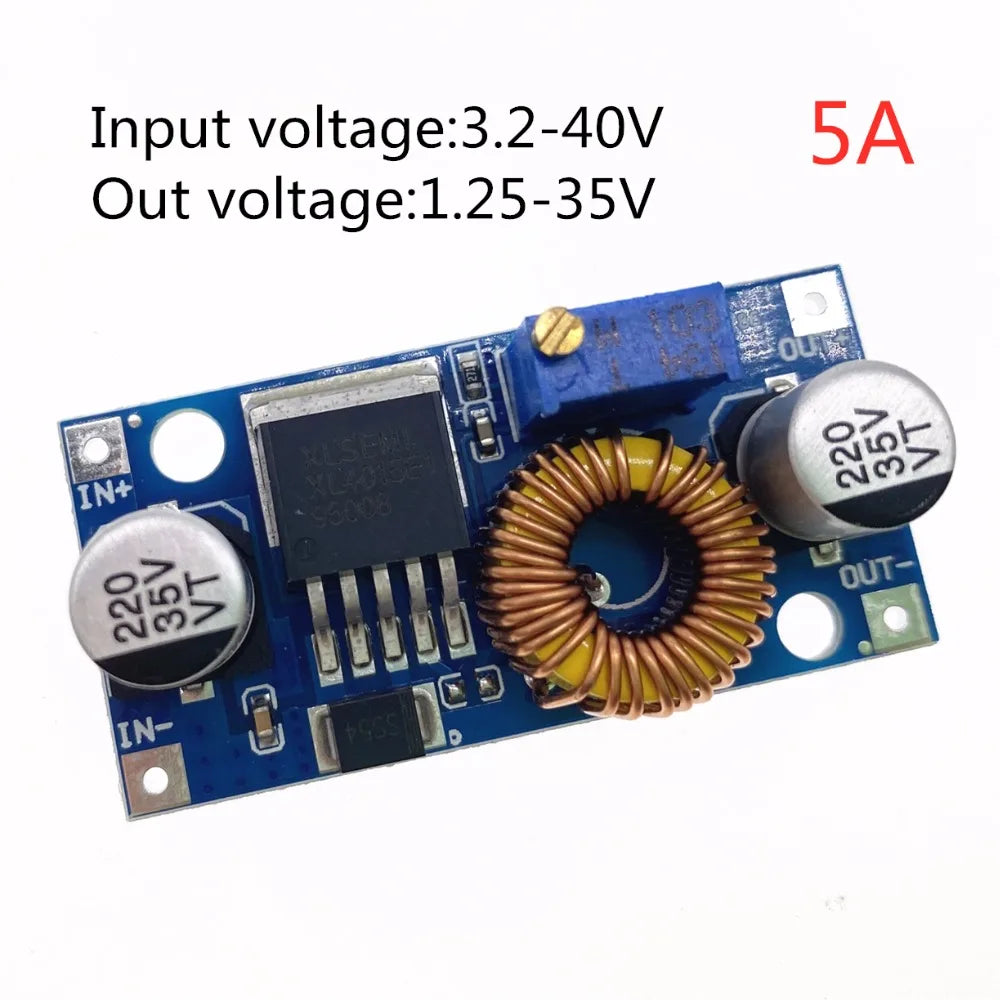

5A:
Module performance and features:
Module nature: Non-isolated Buck Module (BUCK)
Input voltage: 4-38V (Please try not to exceed 38V as input)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A, recommended for use within 4.5A.
Output power: It is recommended to use within 75W. If more than 50W, please add heat sink.
Working temperature: -40~+85 degrees
Working frequency: 180KHz SUNLEPHANT
Conversion efficiency: up to 96% (efficiency related to input, output voltage, current, voltage difference)
Load adjustment rate: S(I) ≤ 0.8%
Voltage adjustment rate: S(u) ≤ 0.8%
Power indicator: Yes
Short circuit protection: Yes (limited current 8A)
temperature protection: Yes (automatically turn off the output after over temperature)
Input reverse connection protection: None, (If necessary, please input a large current diode in the input string)
Installation method: 2 3mm silk
Wiring method: welding, V-IN is input, V-OUT is output
