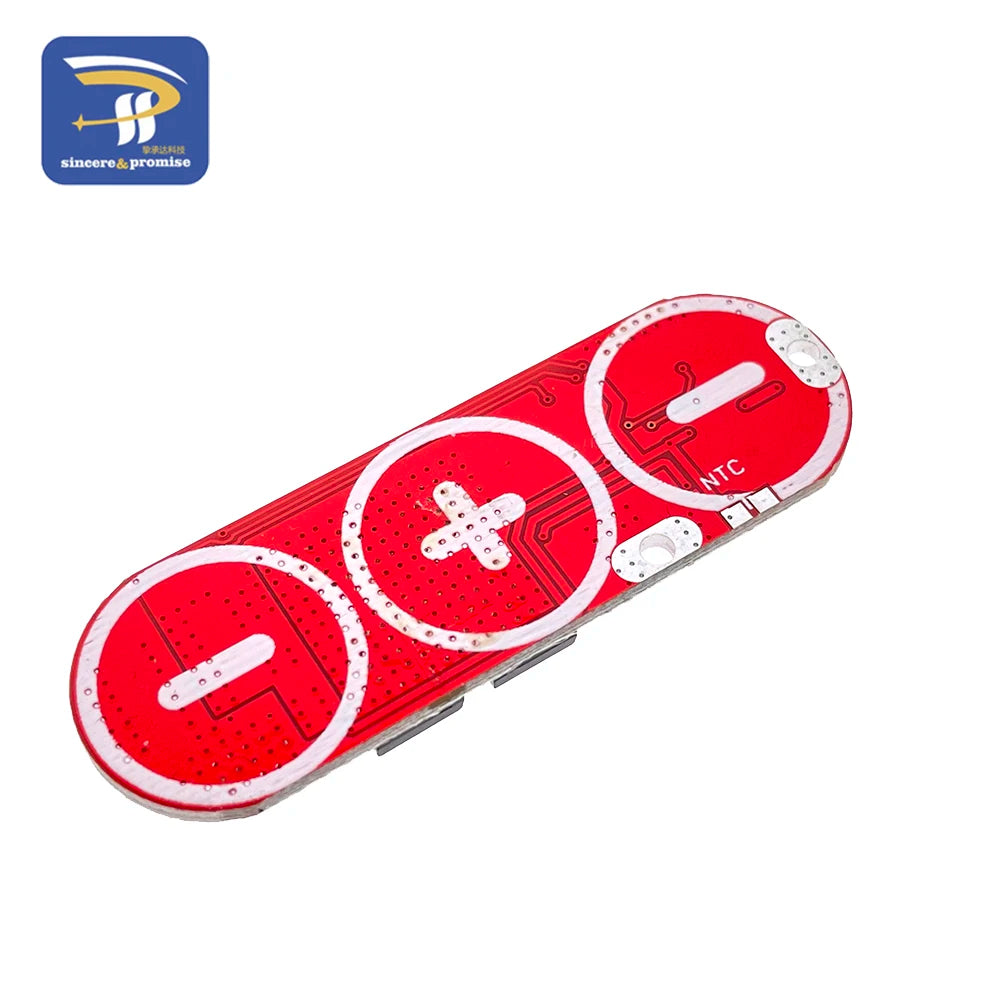

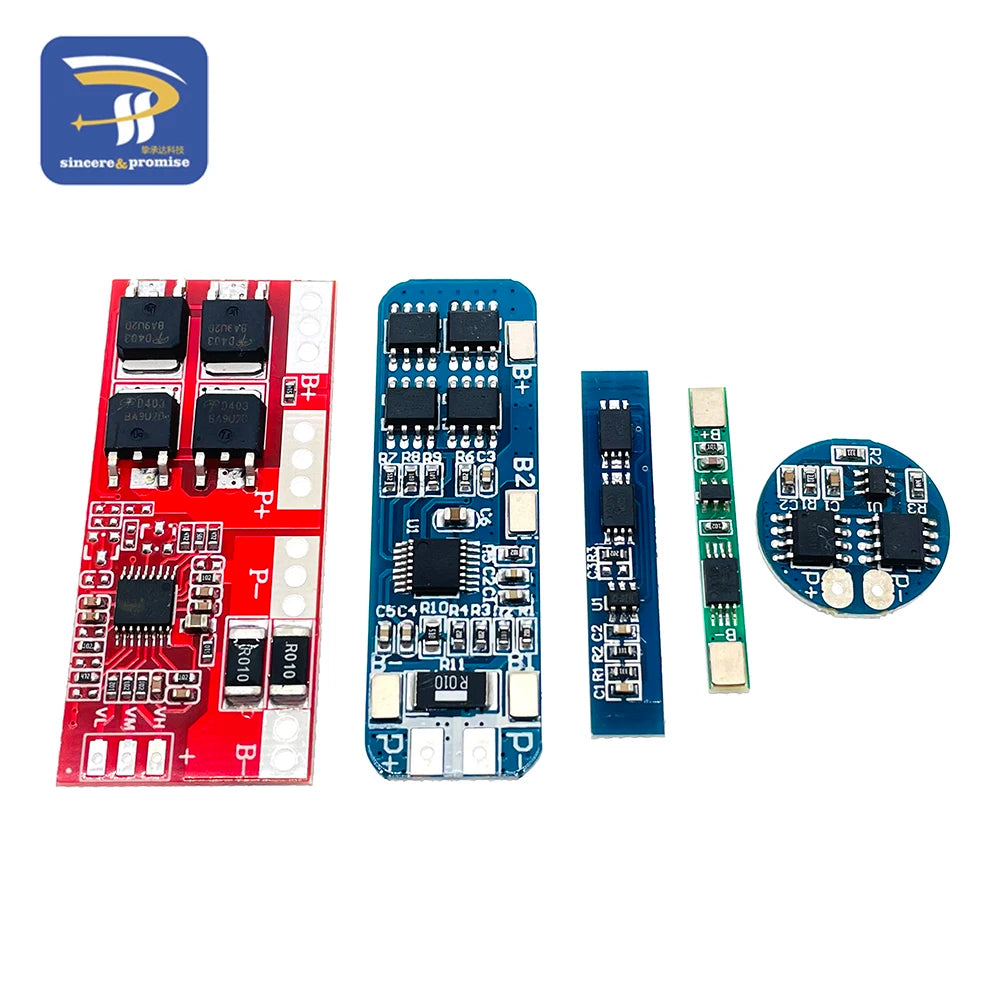

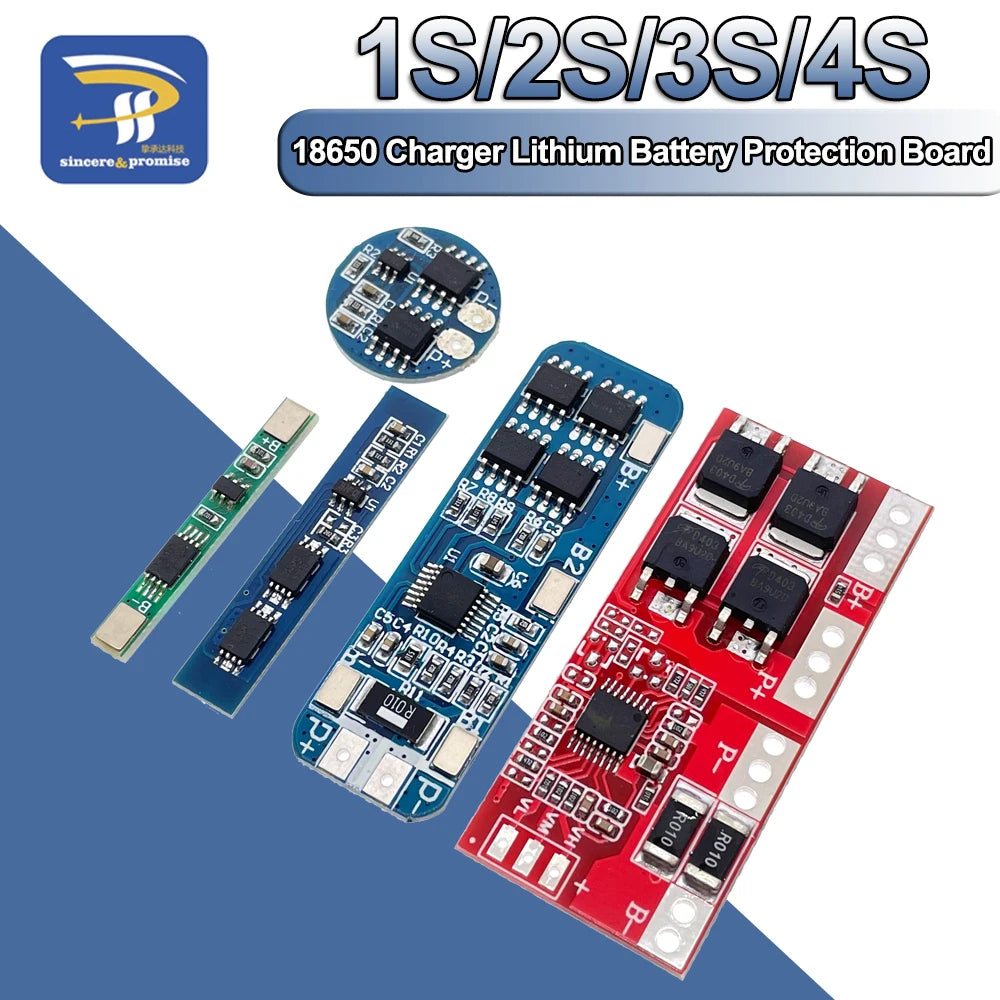

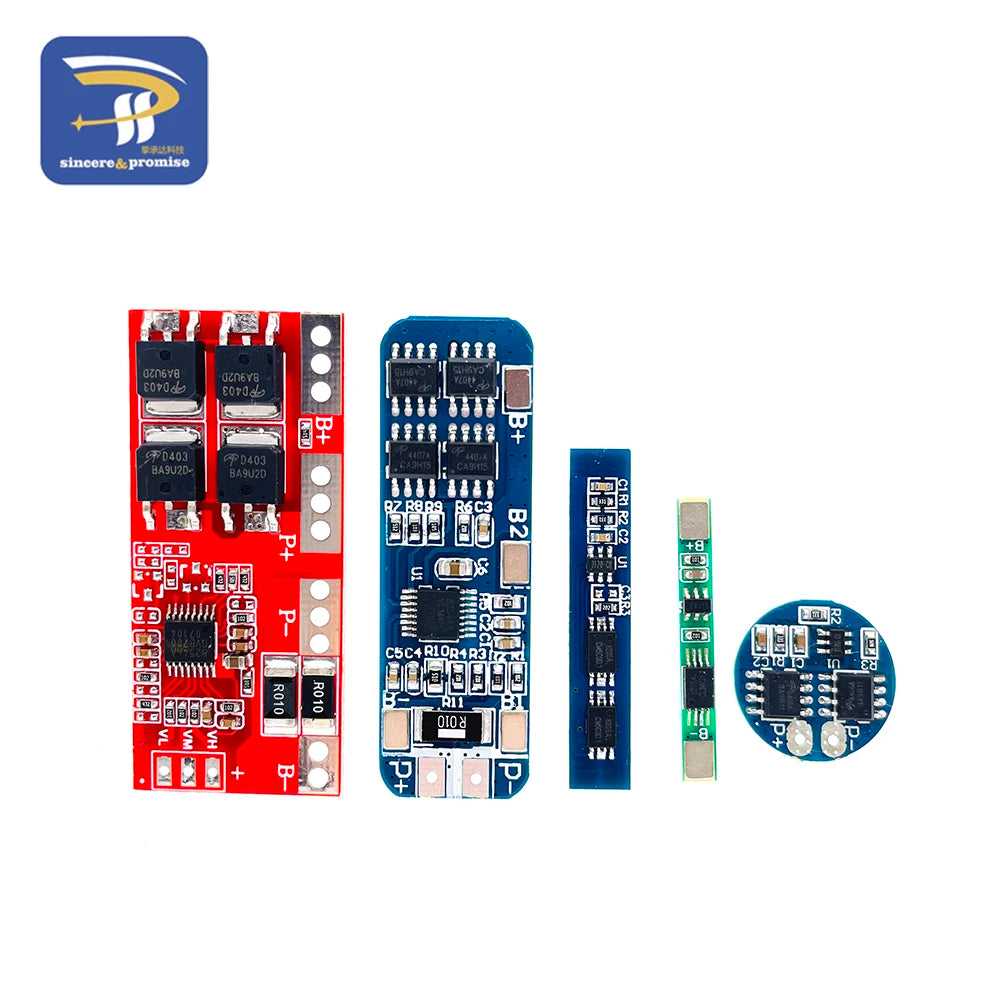

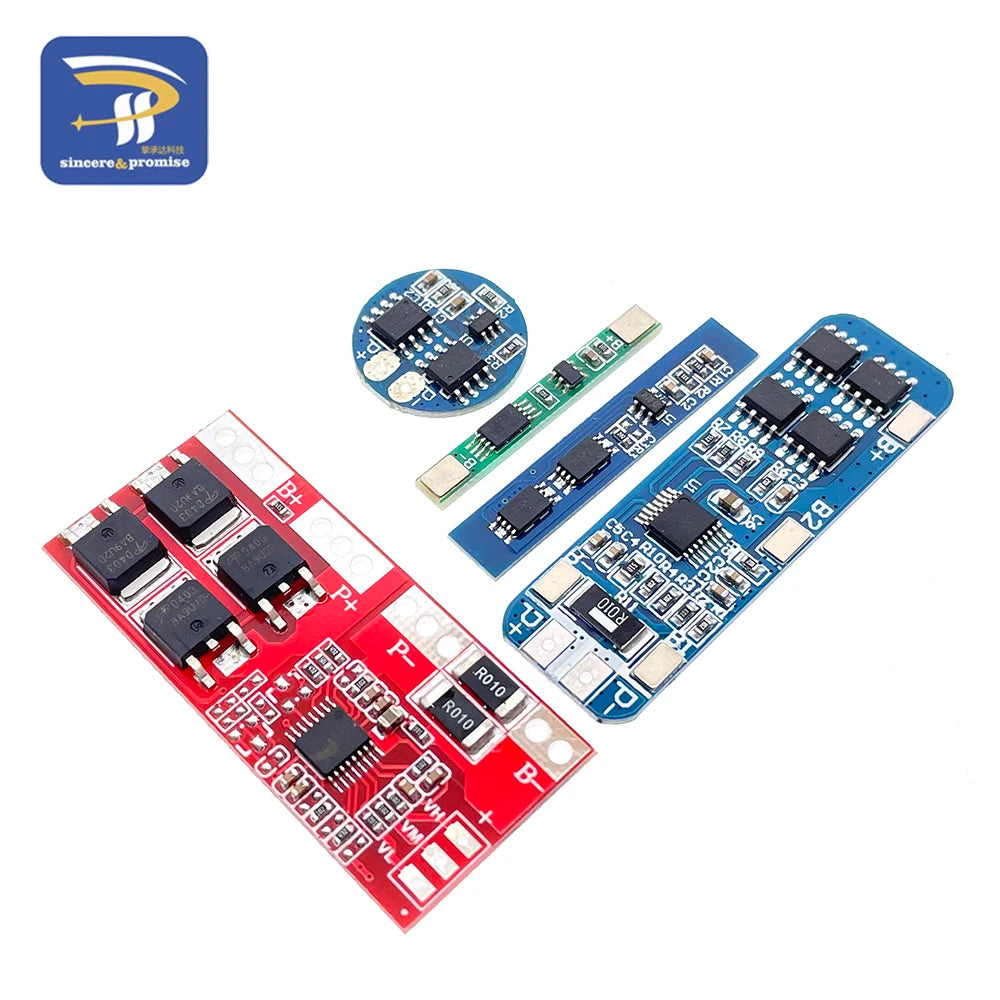

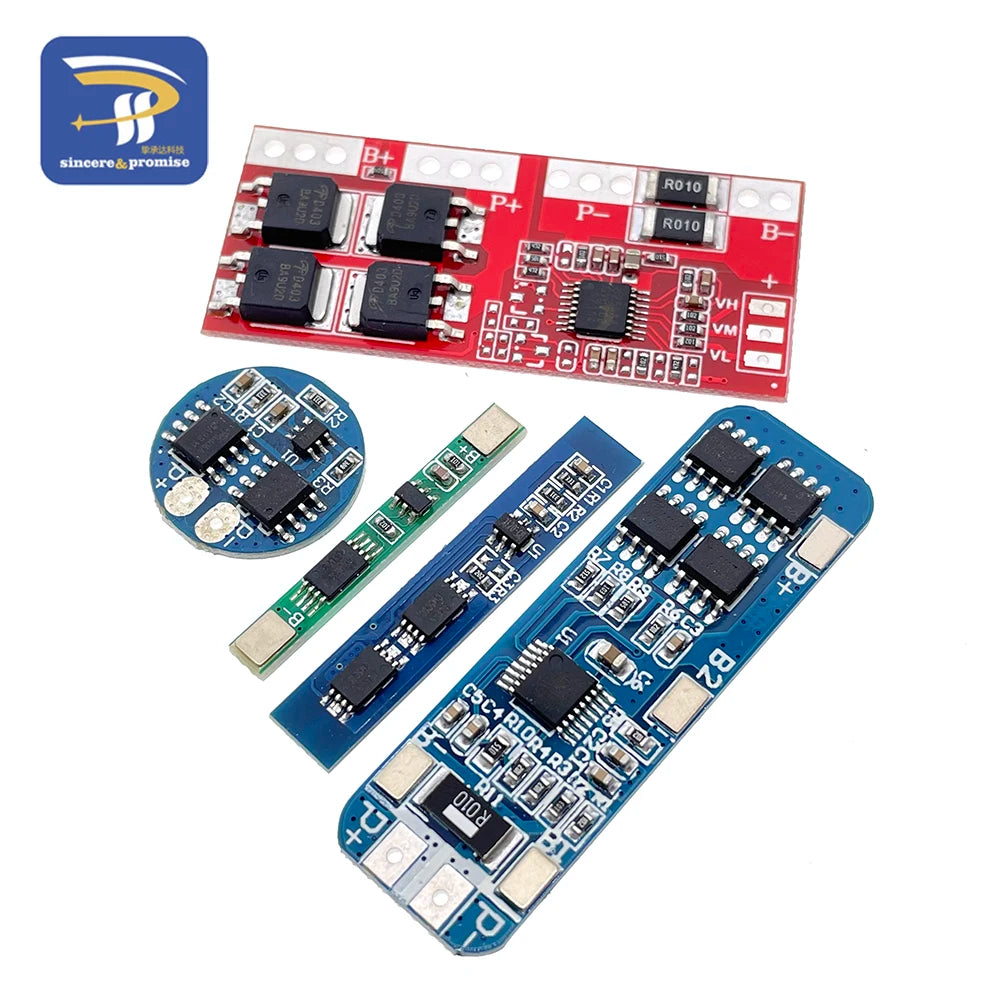

1S 2S 3S 4S 3A 10A 20A 30A Li-ion Lithium Battery 18650 Charger PCB 11.1V BMS Protection Board For Drill Motor Lipo Cell Module

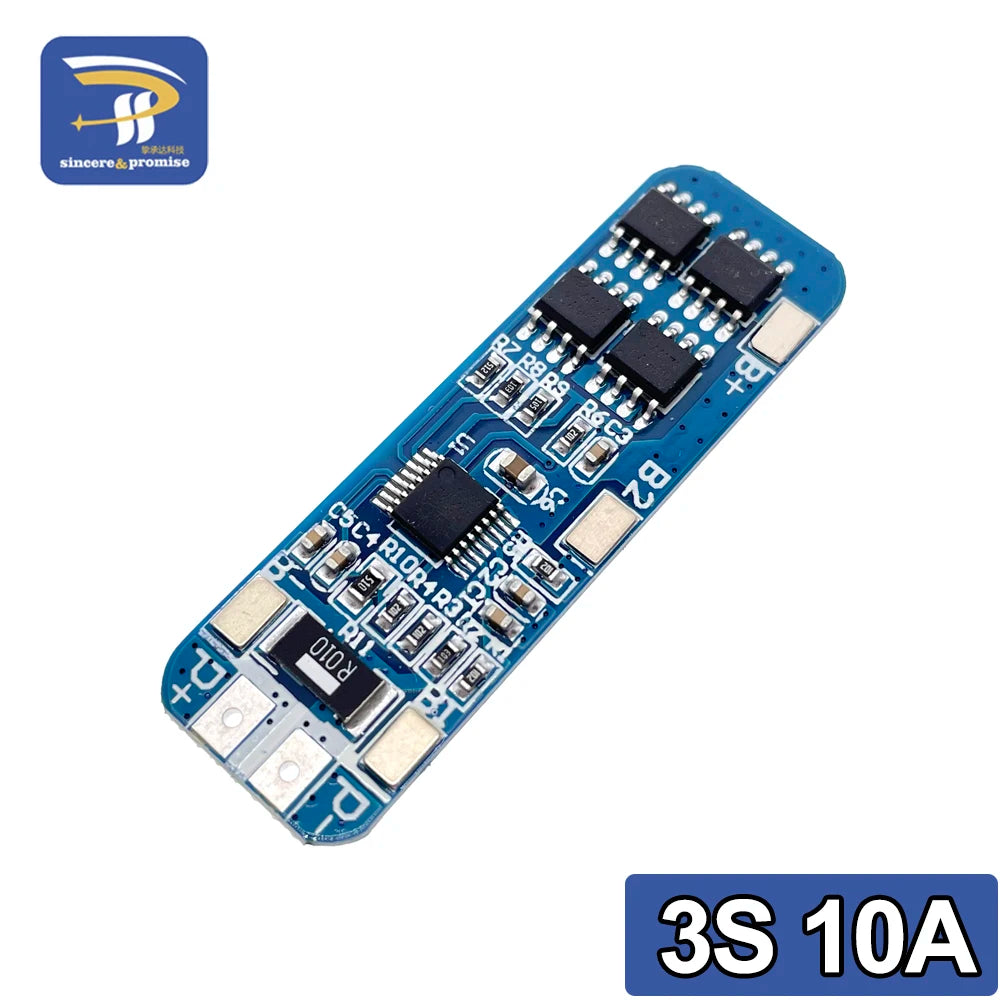

3S 10A
$7.16
Sale price
$7.16
Regular price
$0.00
Skip to product information
1S 2S 3S 4S 3A 10A 20A 30A Li-ion Lithium Battery 18650 Charger PCB 11.1V BMS Protection Board For Drill Motor Lipo Cell Module
$7.16
Sale price
$7.16
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: sincere&promise
Choice: yes
Condition: New
Dissipation Power: 30A
High-concerned chemical: none
Operating Temperature: -40-+85
Origin: Mainland China
Supply Voltage: 14.4V 14.8V 16.8V
Type: Voltage Regulator

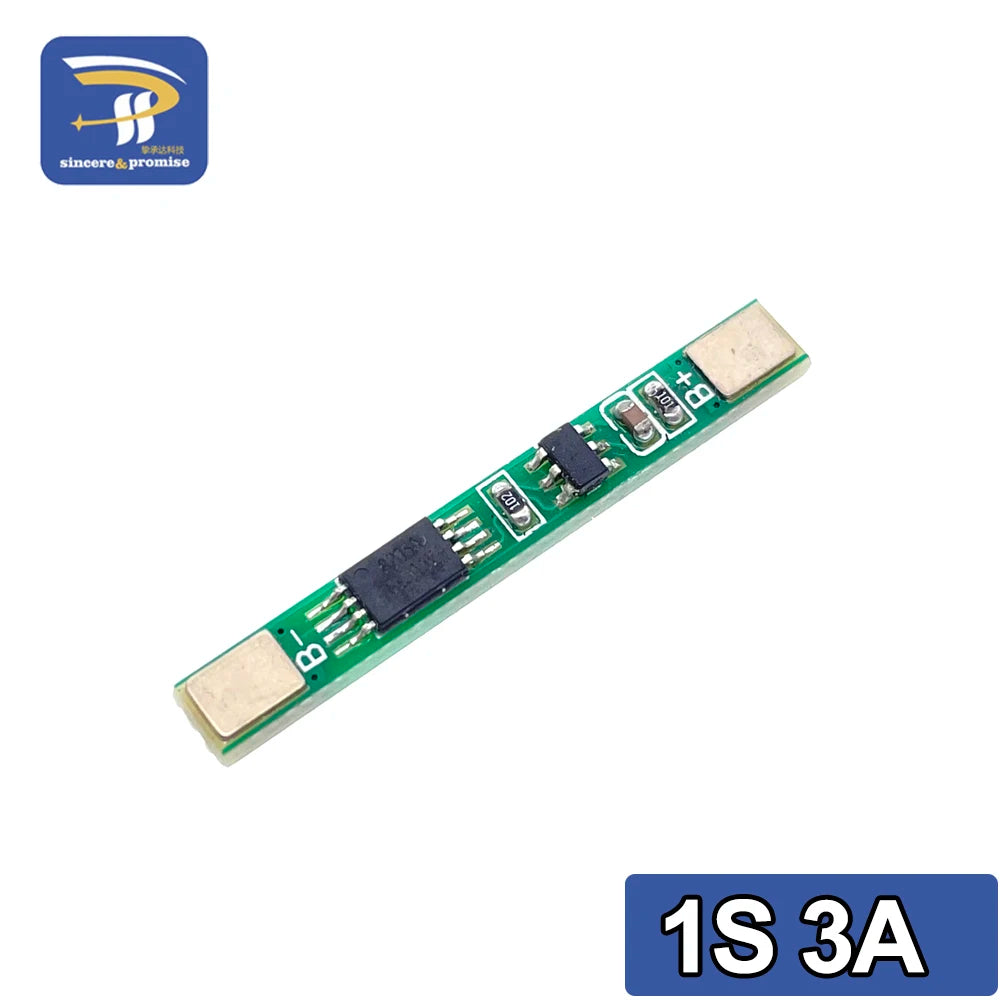

1S 3.7V 3A
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
4) MOS transistor can control the battery charge and discharge;
Parameter:
Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximal continuouscharging current: 2A
Maximal continuous Discharging current: 2A
Over current protection: 3A
Size: L40*W4*T3mm

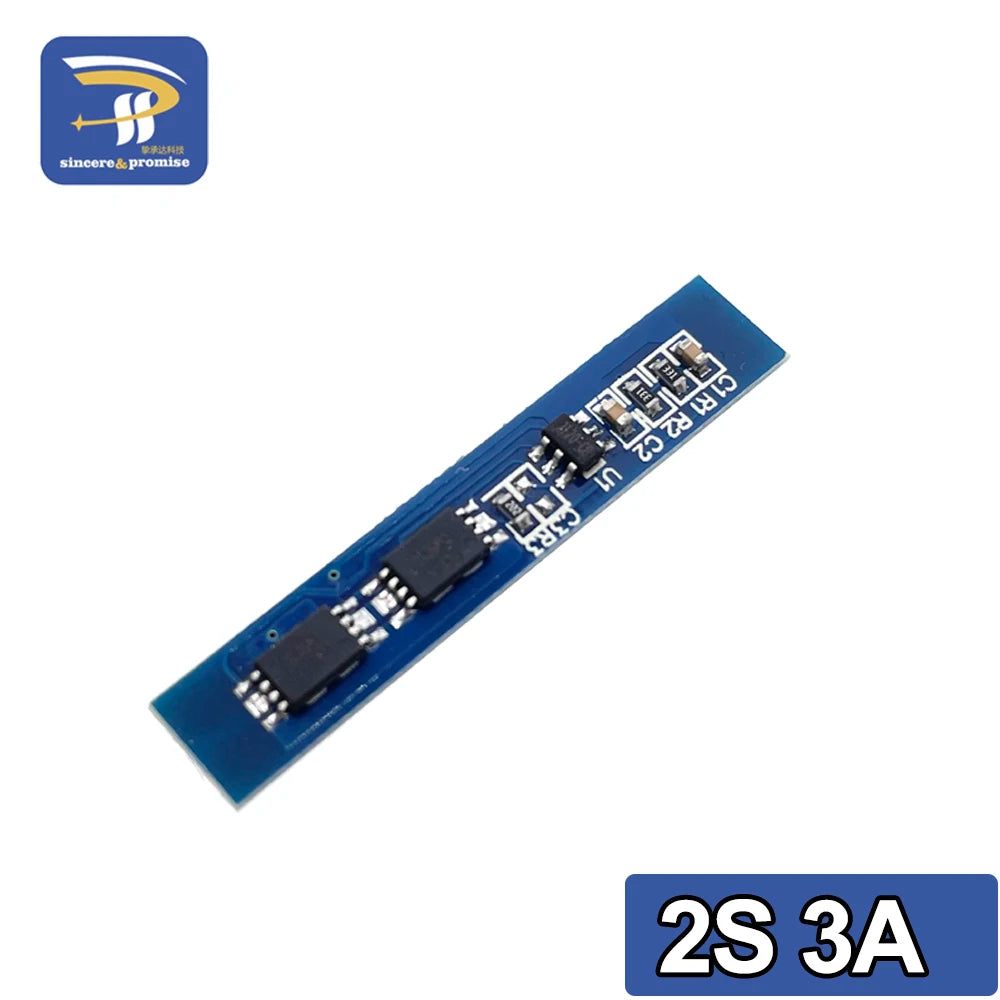

2S 7.4V 3A
Description:
Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Overcharge Detection Voltage: 4.25-4.35V±0.05V
Over Discharge Detection Voltage: 2.3-3.0V±0.05V
Maximum Working Current: 3A
Transient Current: 5A
Operating Temperature: -40-50 degree
Internal Resistance: Less than 45m Ω

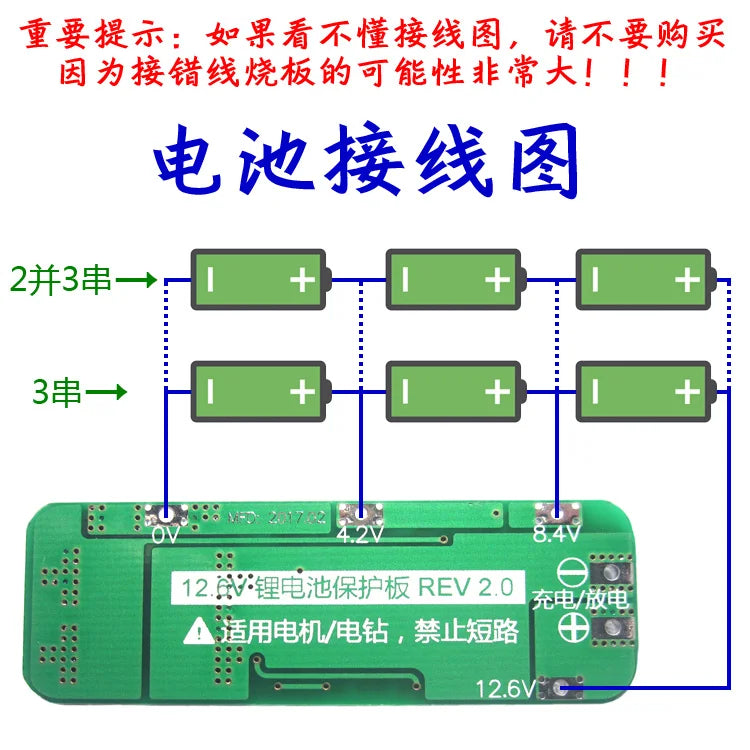

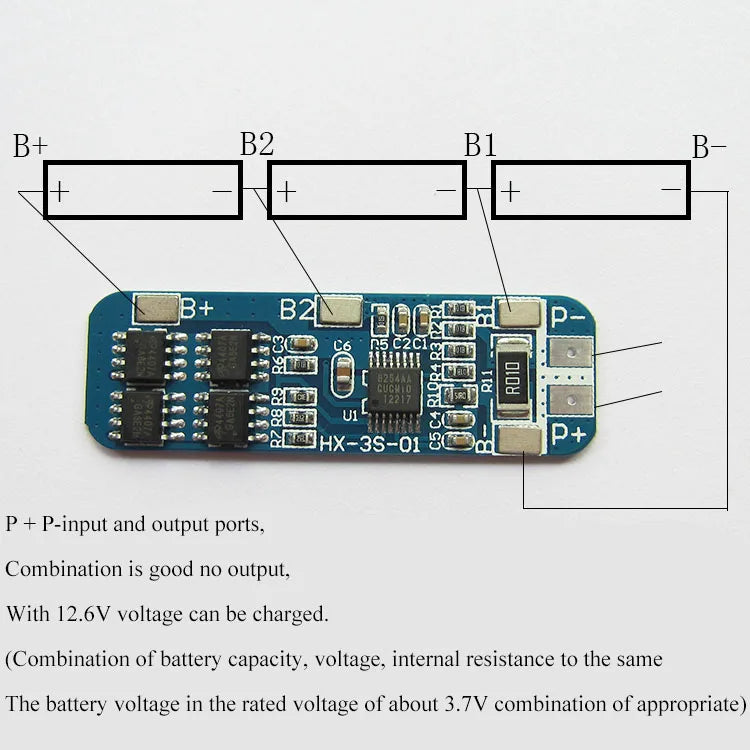

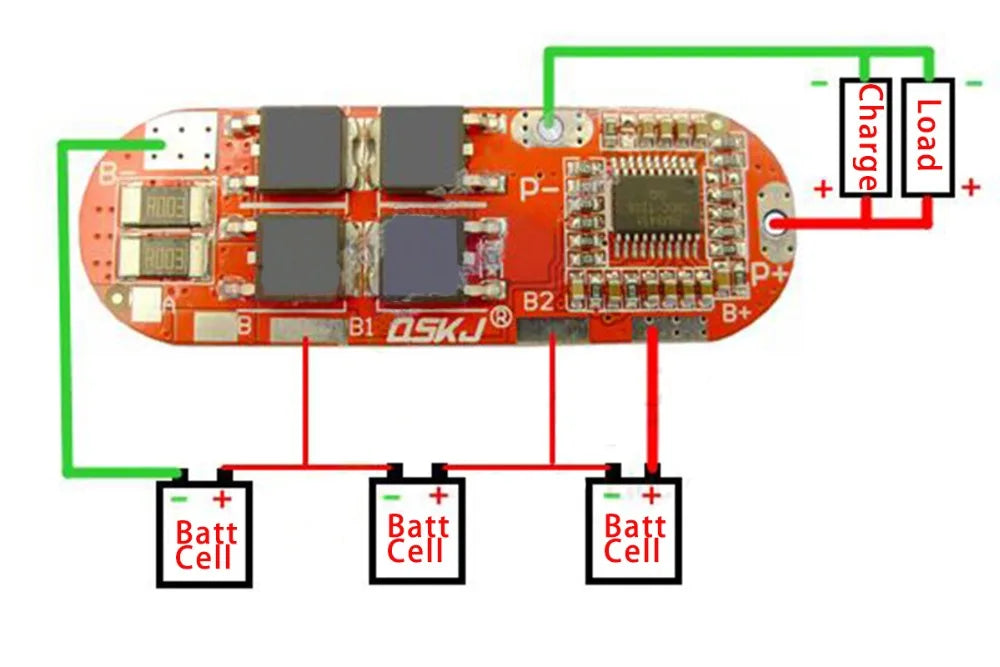

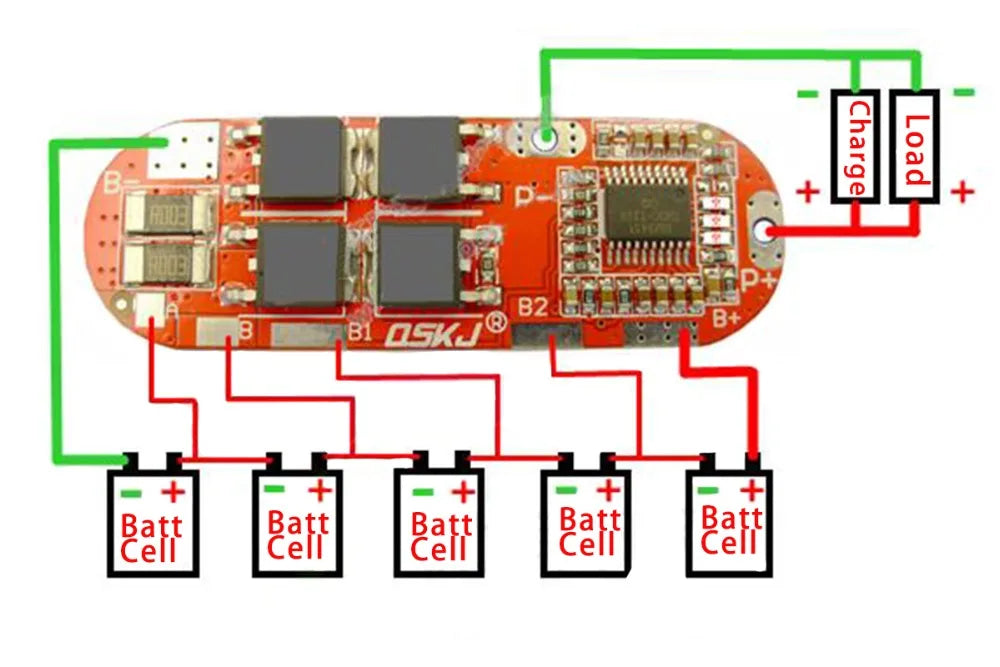

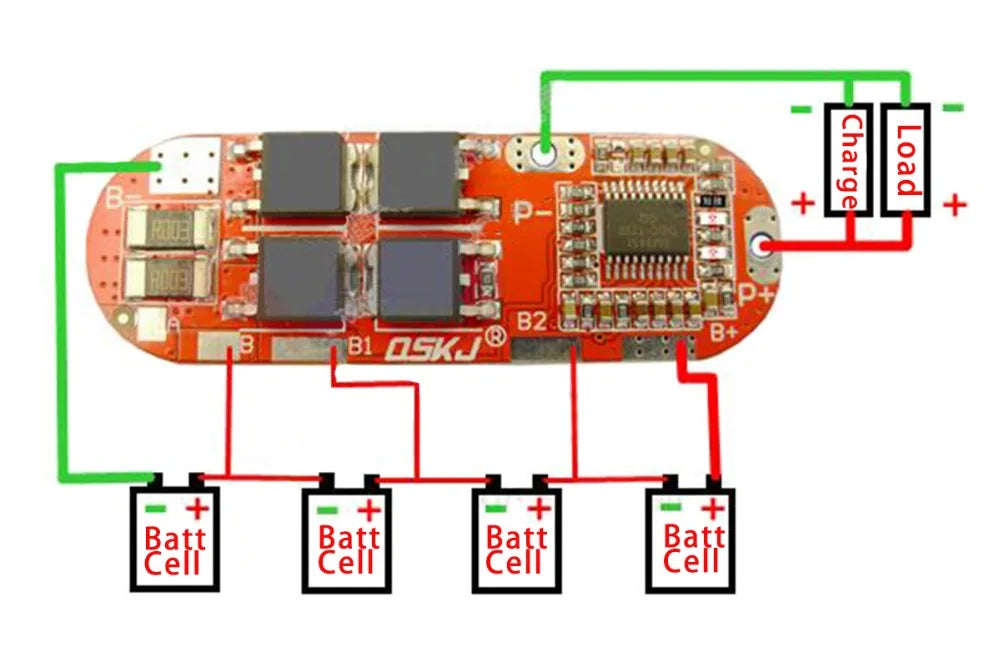

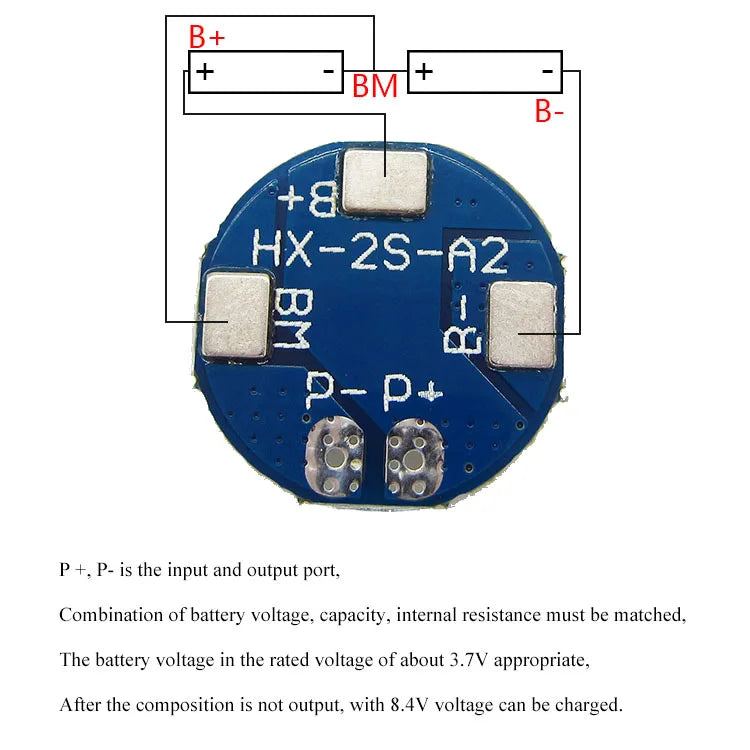

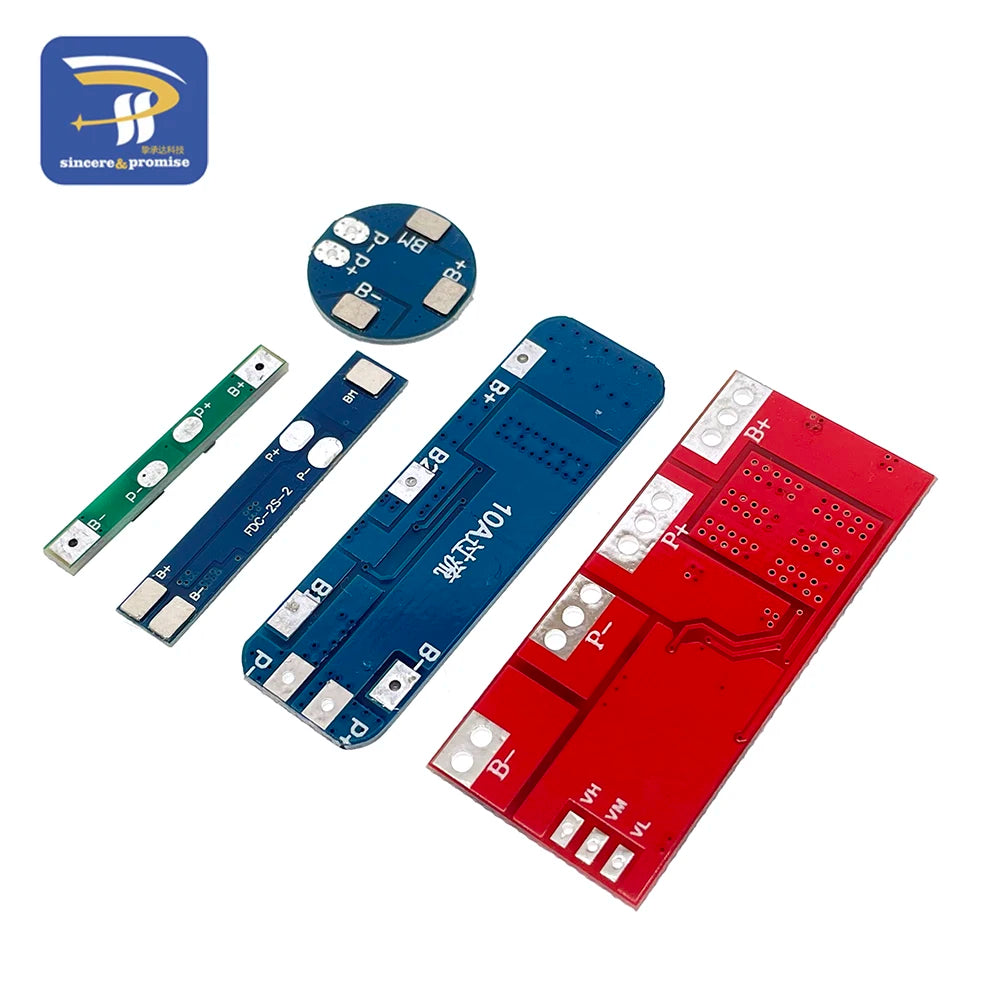

B+ B-: The interface of battery core
P+ P-: The connector of battery board
MB: The connection point between the batteries
B+: Battery V+ Positive
