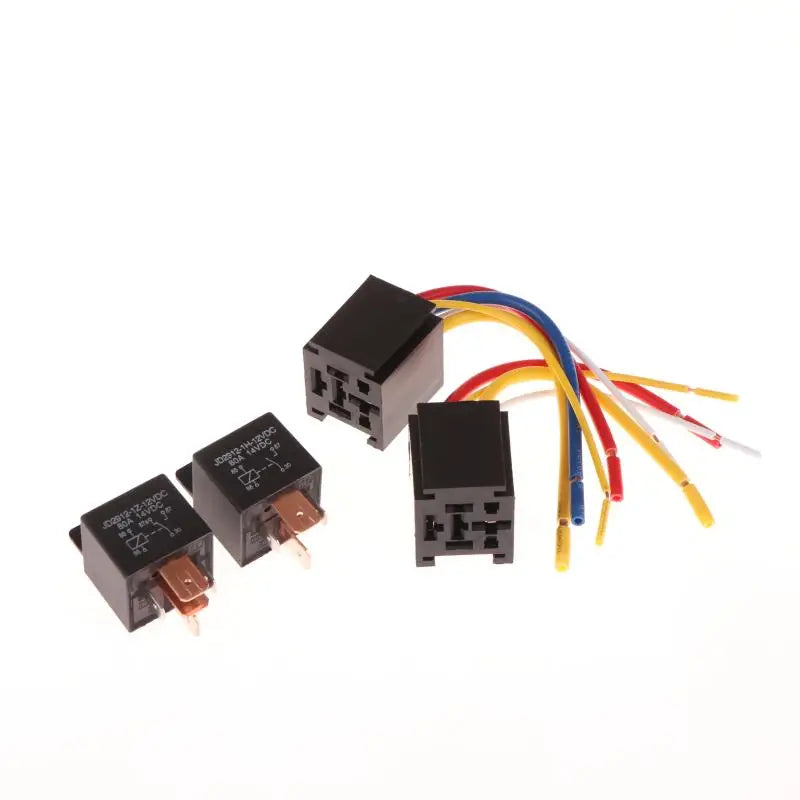

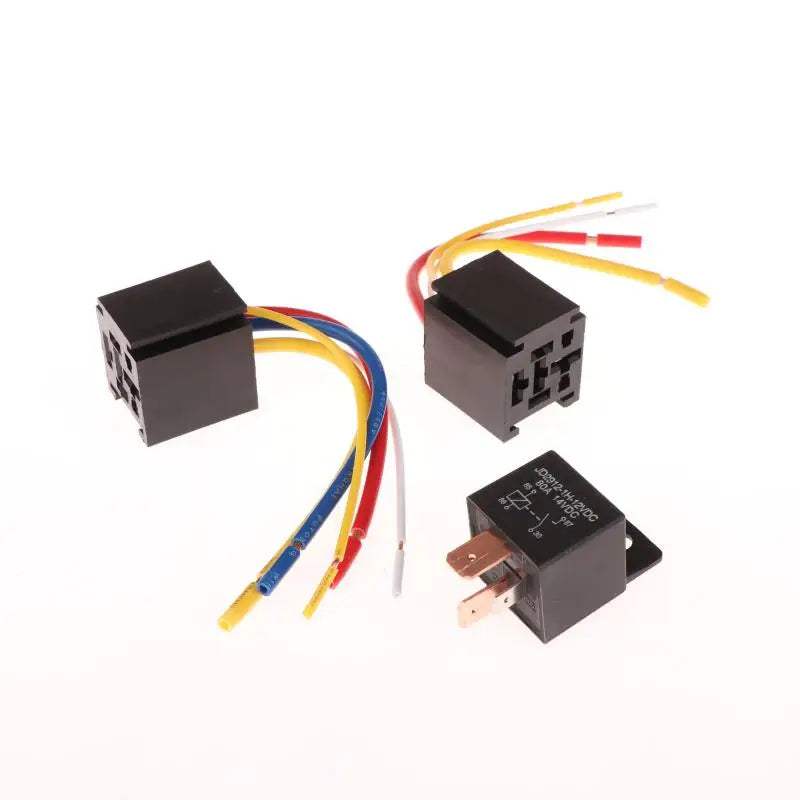

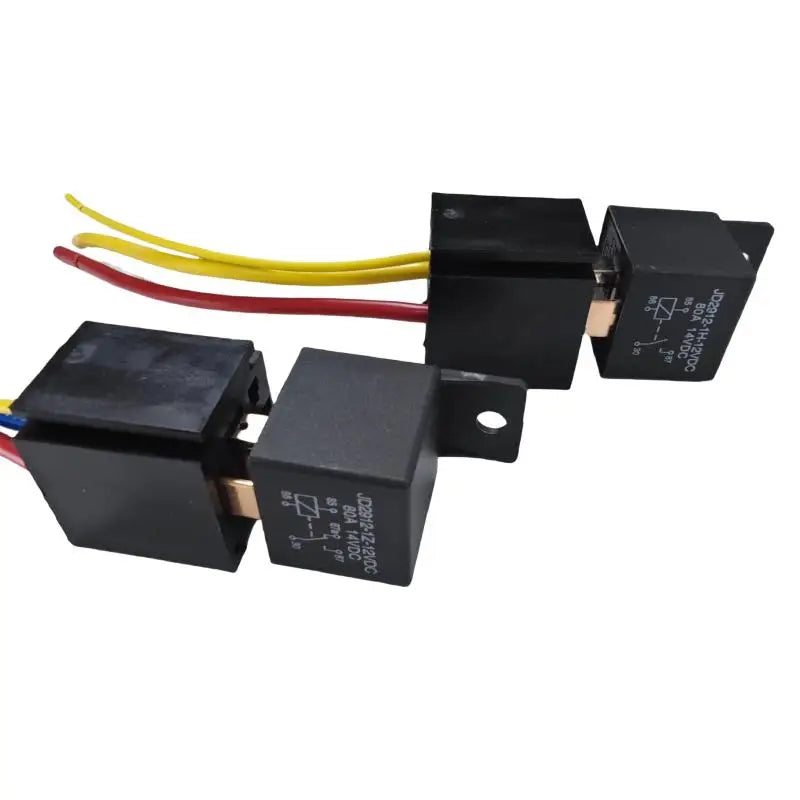

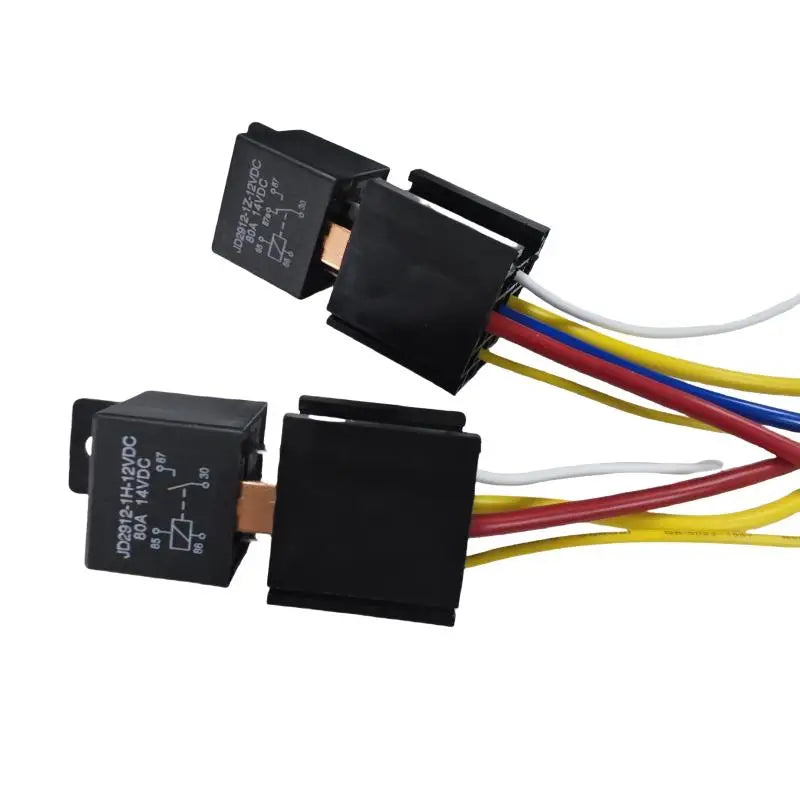

1Set 4/5 Pin Automotive Relay 12V DC 24V 40A Waterproof Relay For Motorcycle Headlight Air Conditioner With Socket

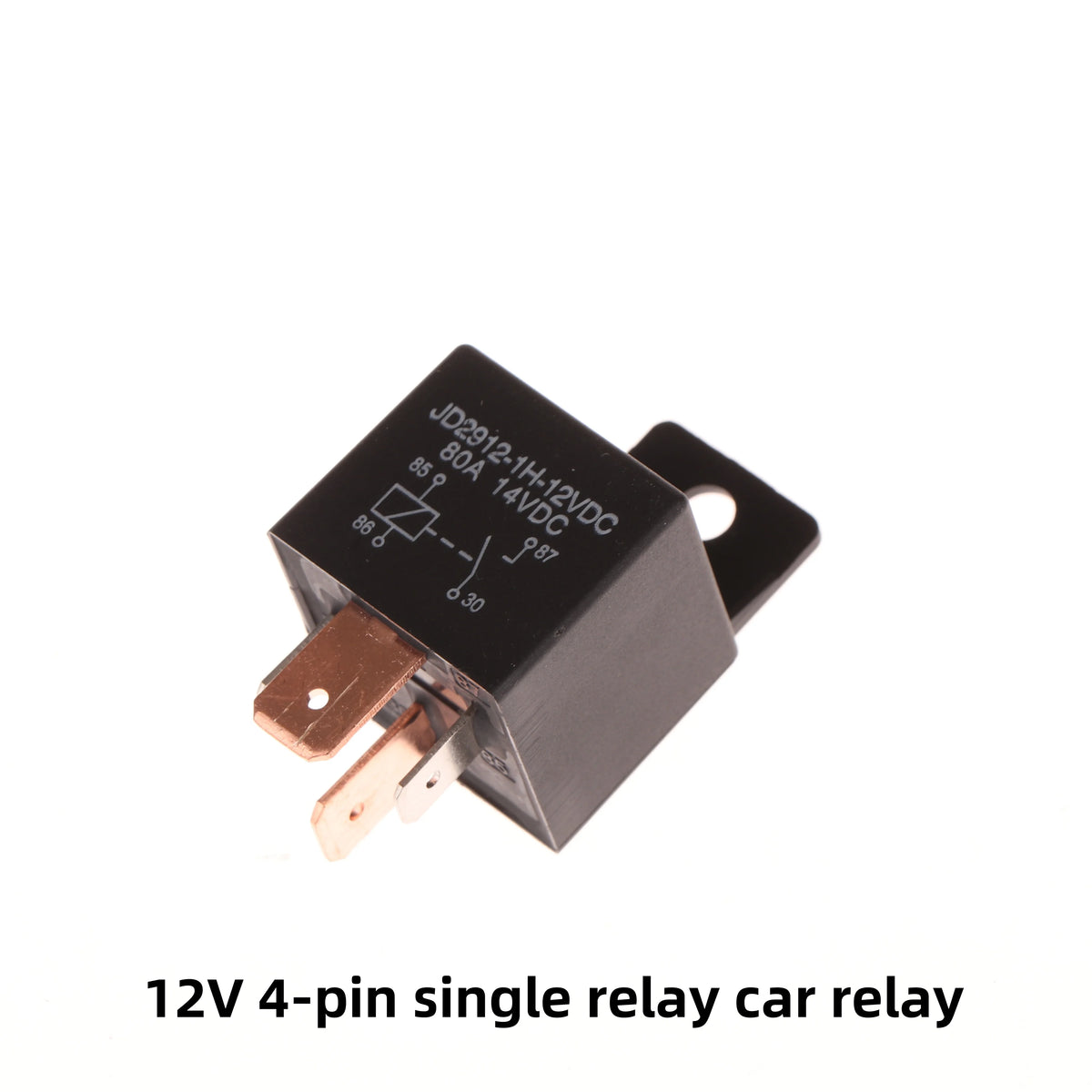

12V 4PIN Relay
$15.39
Sale price
$15.39
Regular price
$0.00
Skip to product information
1Set 4/5 Pin Automotive Relay 12V DC 24V 40A Waterproof Relay For Motorcycle Headlight Air Conditioner With Socket
$15.39
Sale price
$15.39
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: JINHF
Choice: yes
High-concerned chemical: none
Is It Charged: No
Mounting Type: Others
Origin: Mainland China
Description

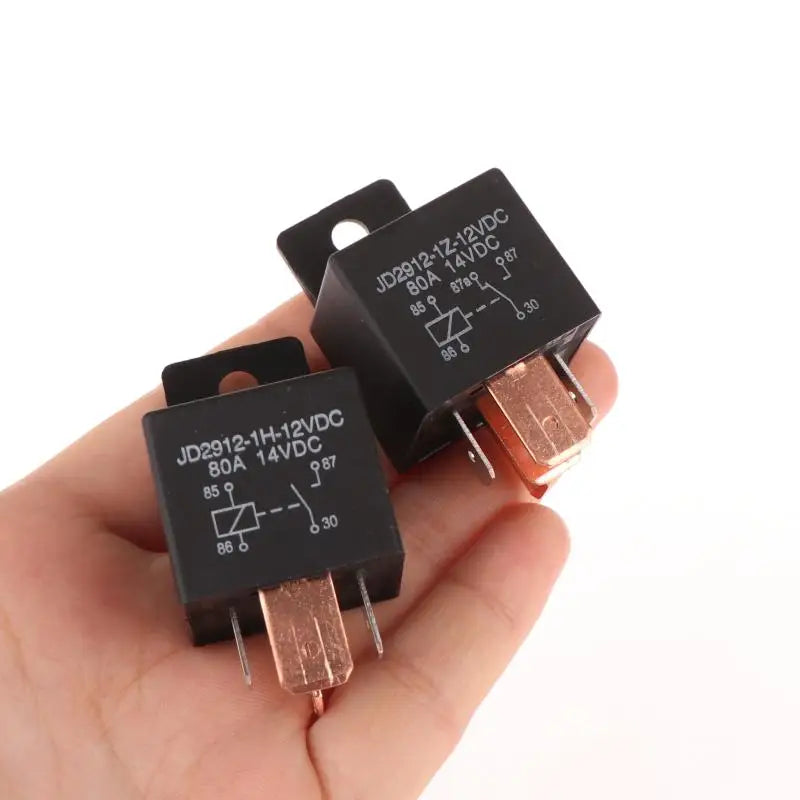

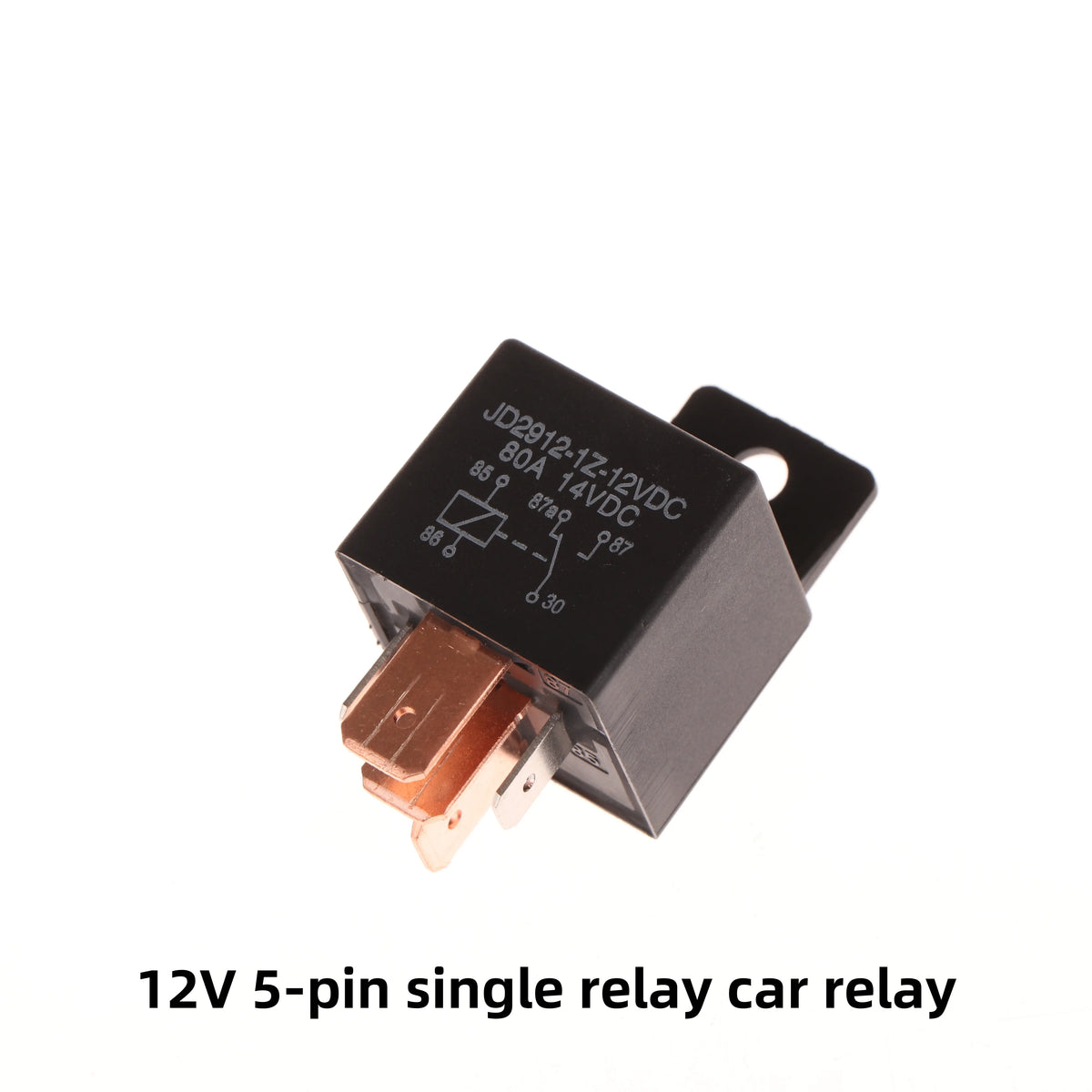

Product Name: Automotive Relay
Color: Black
Product features: Large capacity, switchable 80 ampere current; Contact form: a set of conversions
Working temperature: -40 to+125 ℃
Product use: Automotive control device
External dimensions (length * width * height) (mm): 28.0 * 28.0 * 25.0

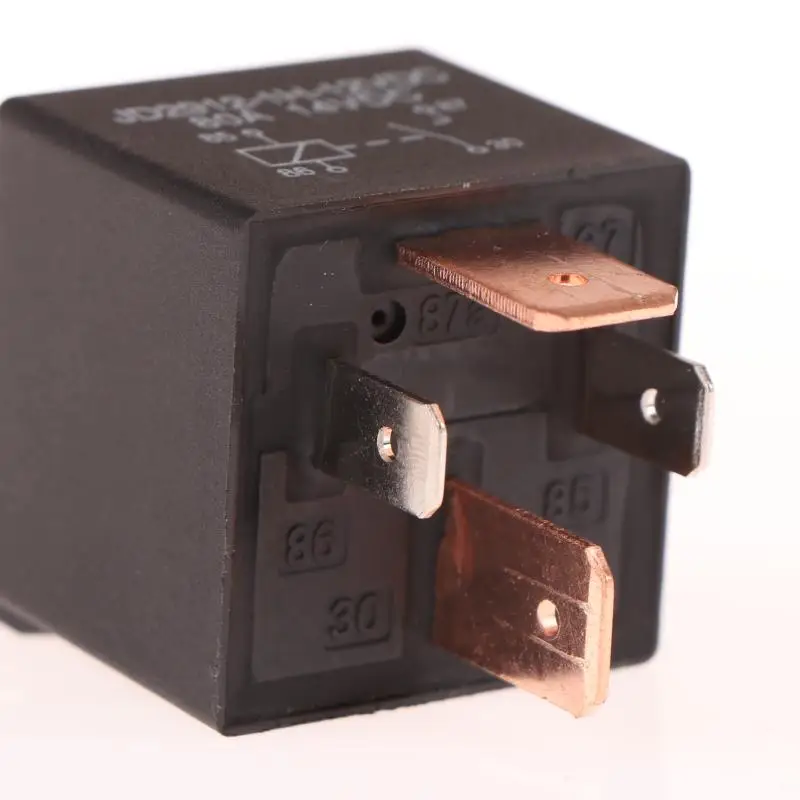

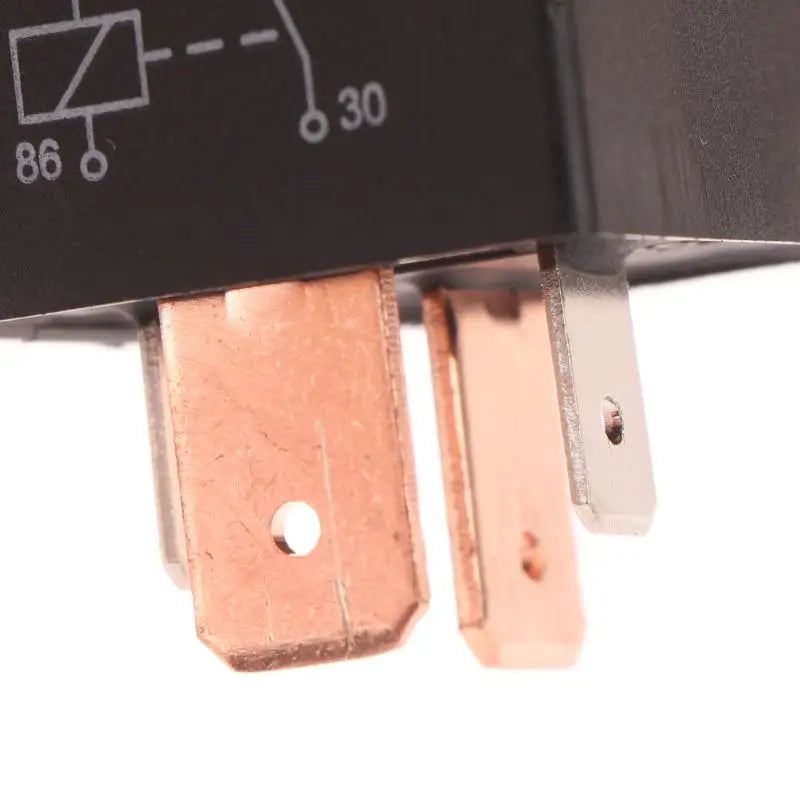

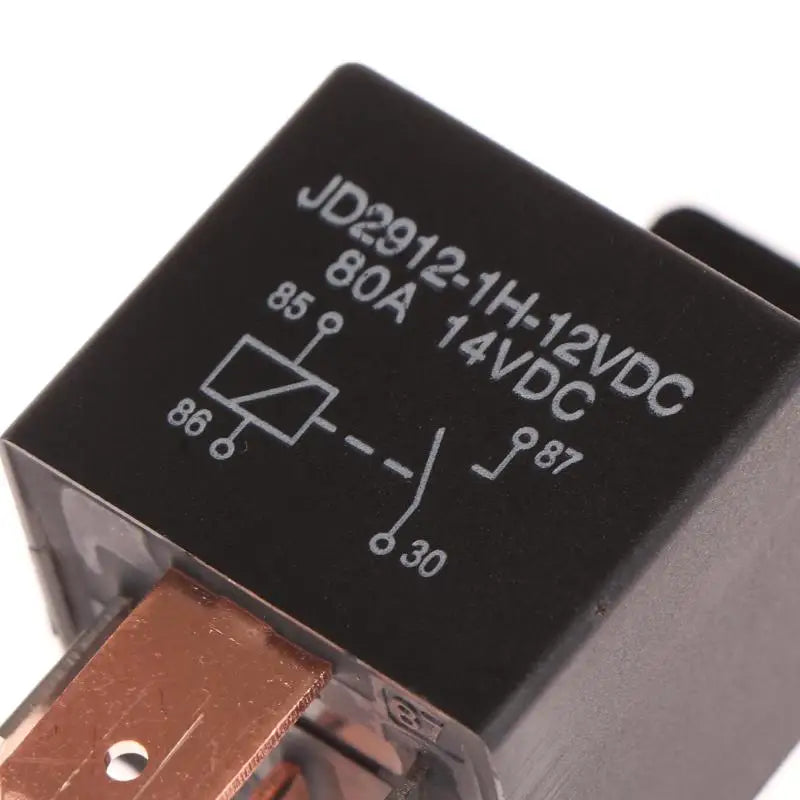

Contact form: 1c
1c: 40A/30A 14VDC
Coil voltage: 12VDC, 24VDC
Coil power (W): 1.80
Contact resistance: ≤ 50m Ω
Insulation resistance: ≥ 1,00M Ω
Service life (times): Electrical 1 * 100000
Mechanical 1 * 10000000
Dielectric withstand voltage: 500VAC between open circuit contacts
500VAC between coil contacts
Environmental temperature: -40 ℃~+125 ℃

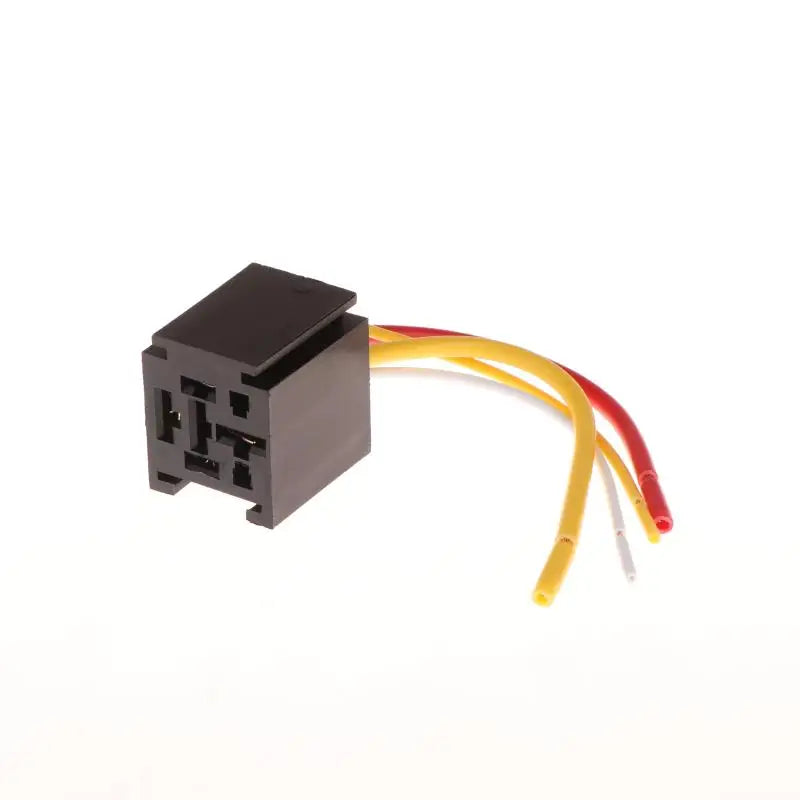

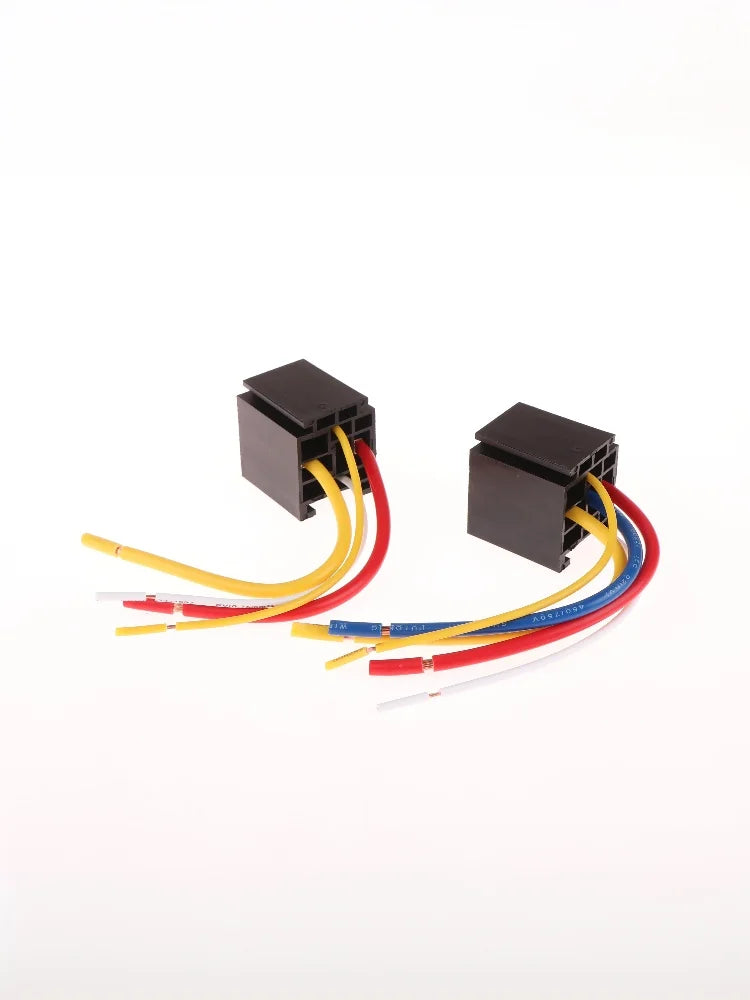

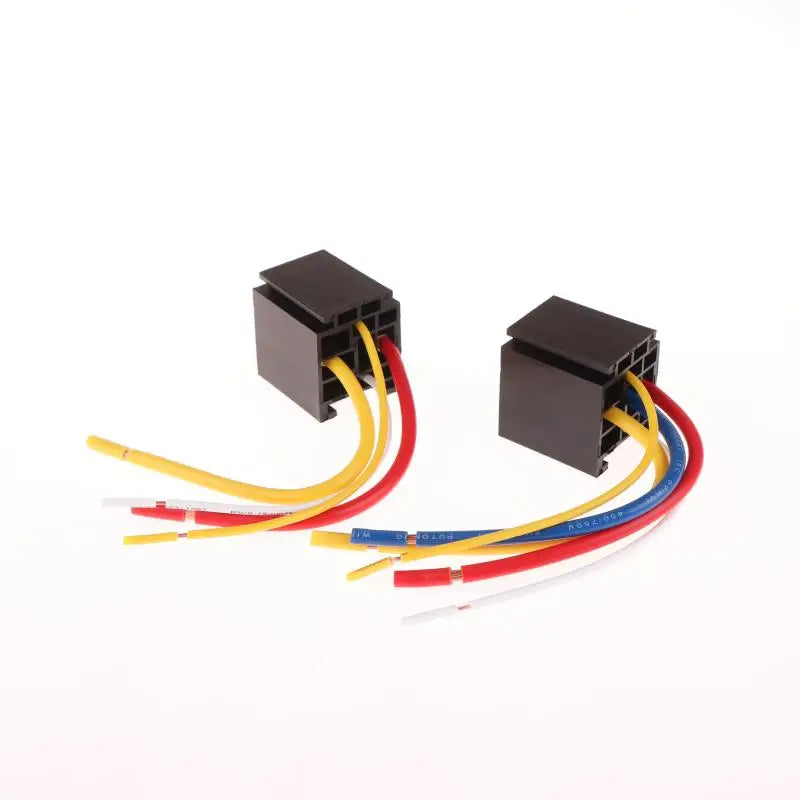

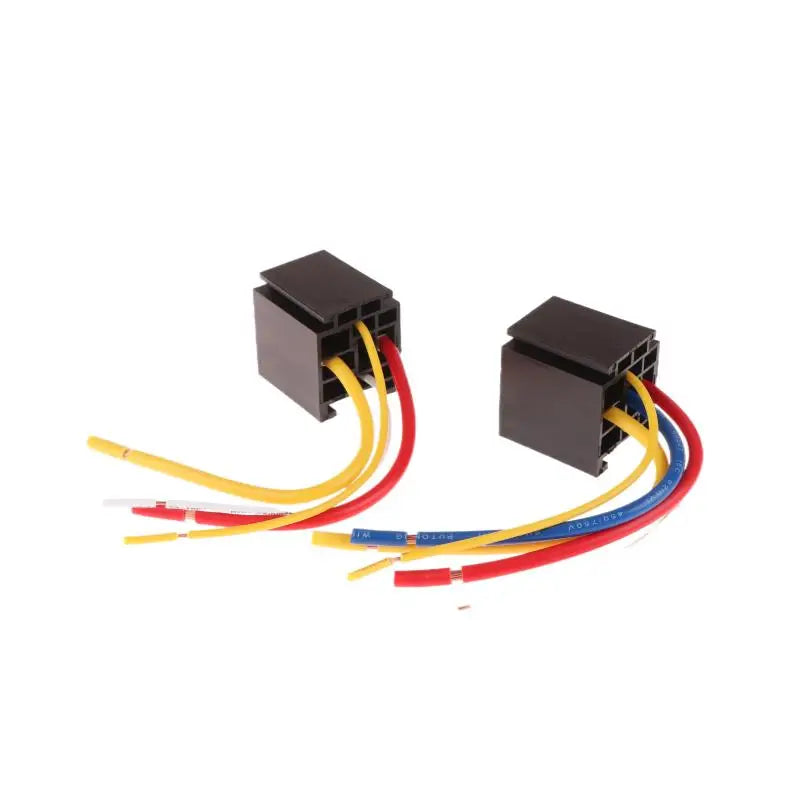

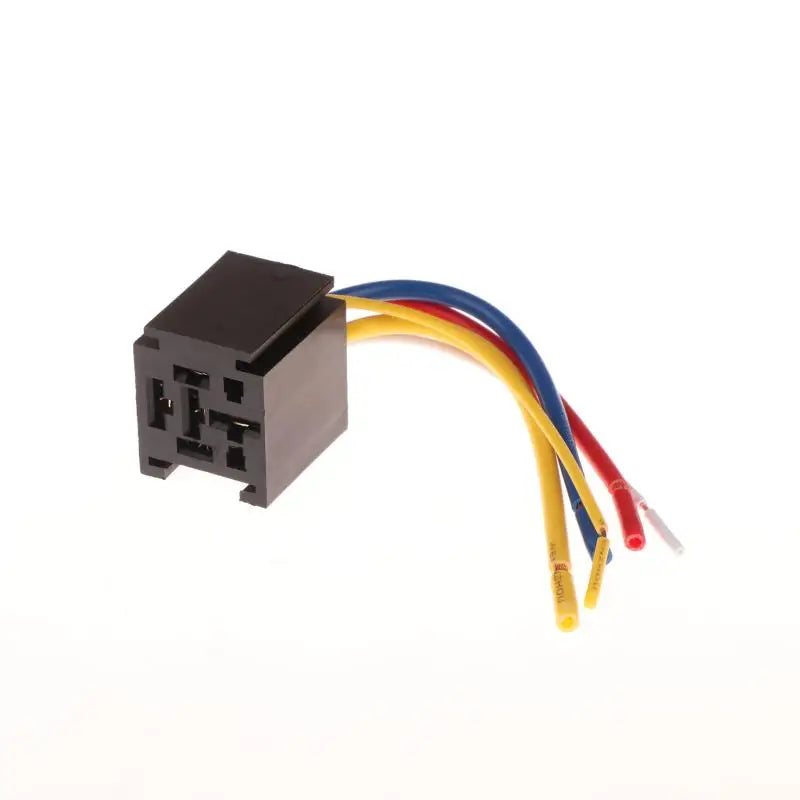

Installation form: quick connect type, socket type

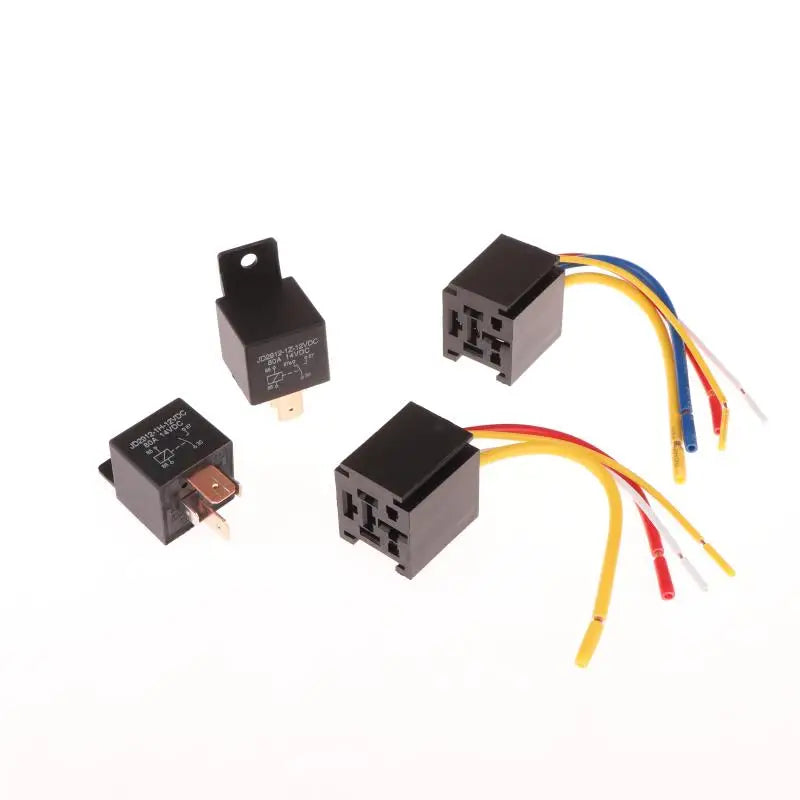

Package included:
1*Relay
or
1* Socket
or

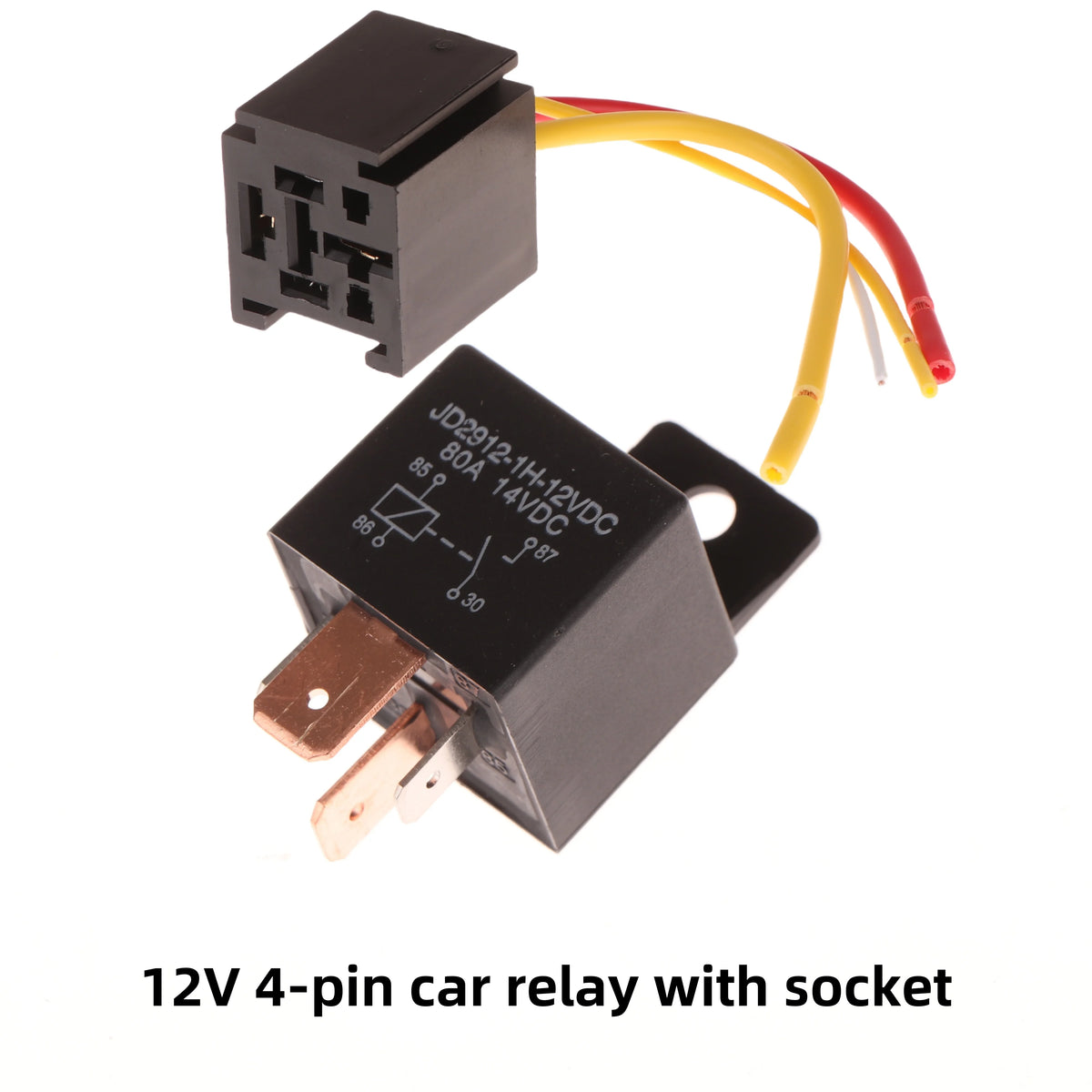

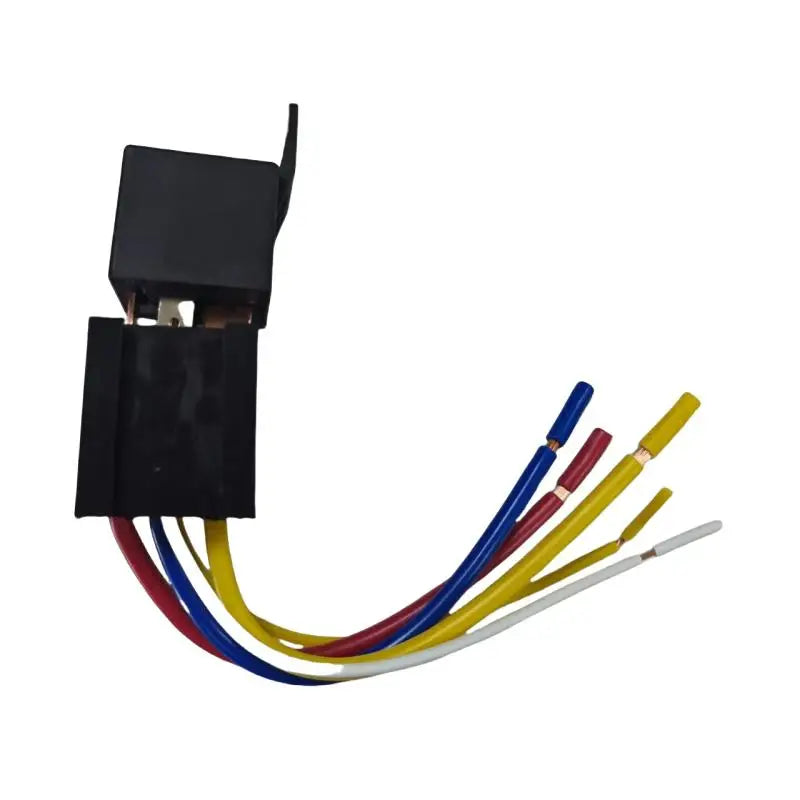

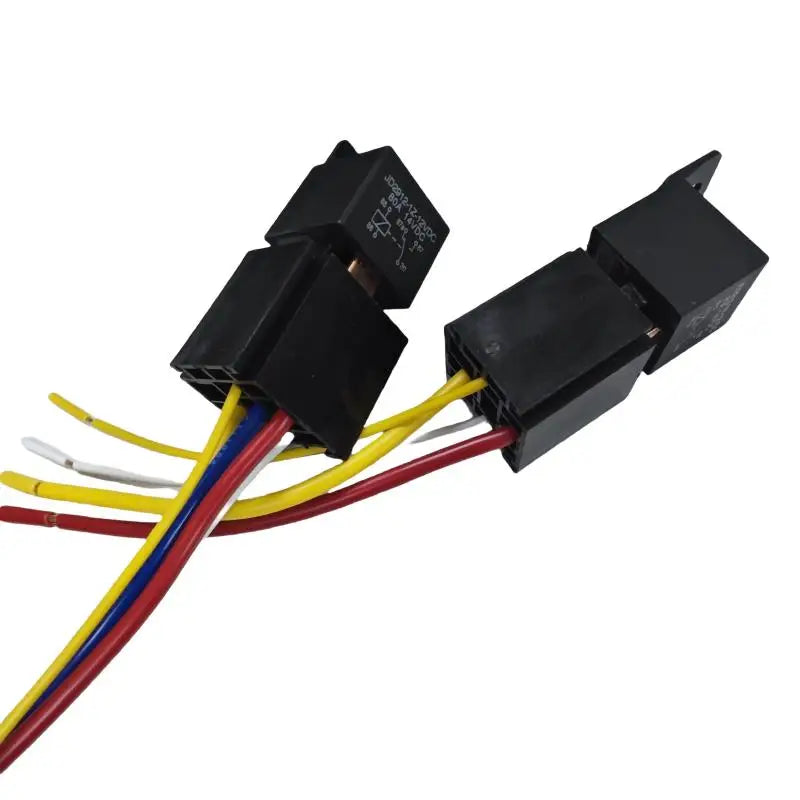

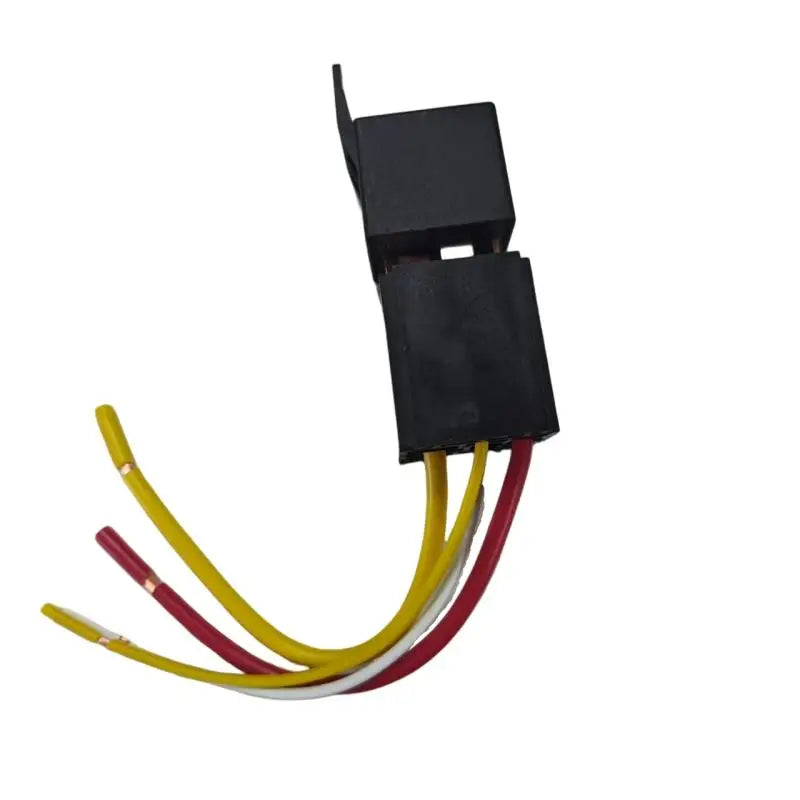

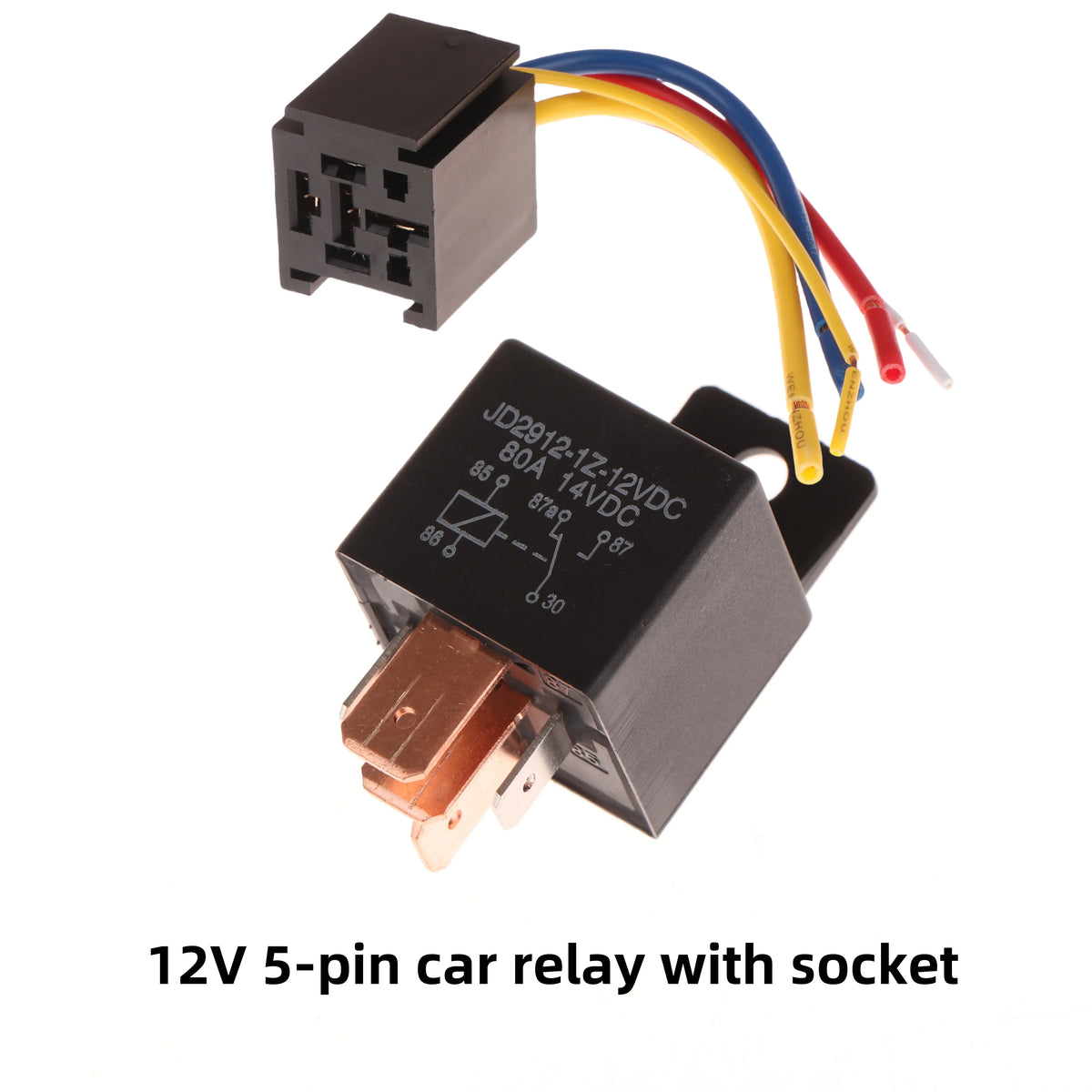

1*Relay+1*Socket
Note:
1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.
2. Please allow slight manual measurement deviation for the data.
