SPECIFICATIONS

Brand Name: ZSDZFYLLK

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Material: Zinc Alloy / Copper Alloy

Model Number: GX16 Butting Plug

Origin: Mainland China

Packing: Female + Male Connector

Pin Number: 2/3/4/5/6/7/8 pins

Rated current: 5A

Voltage: 220 V

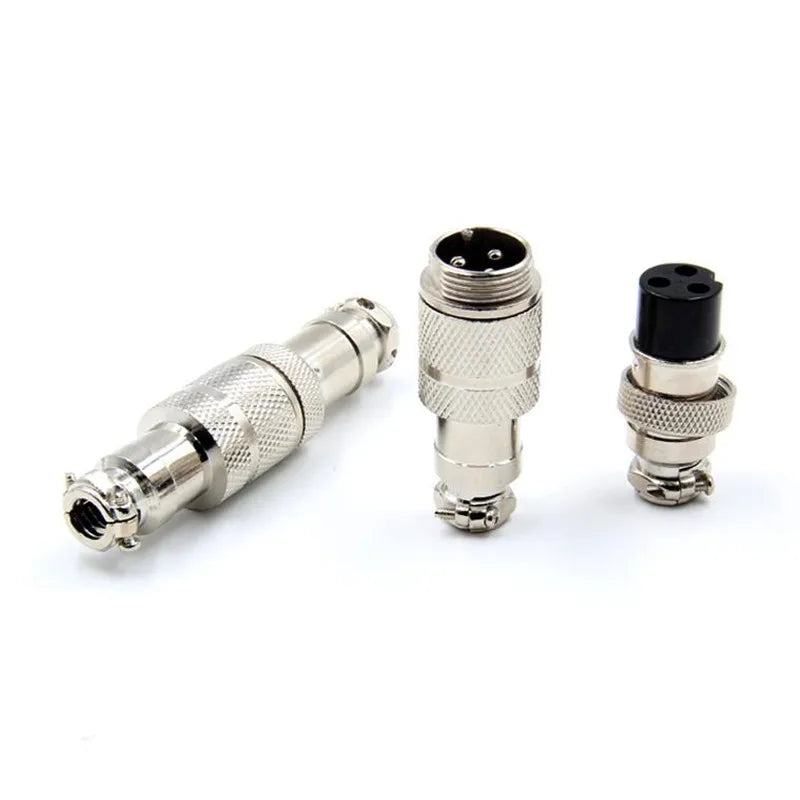

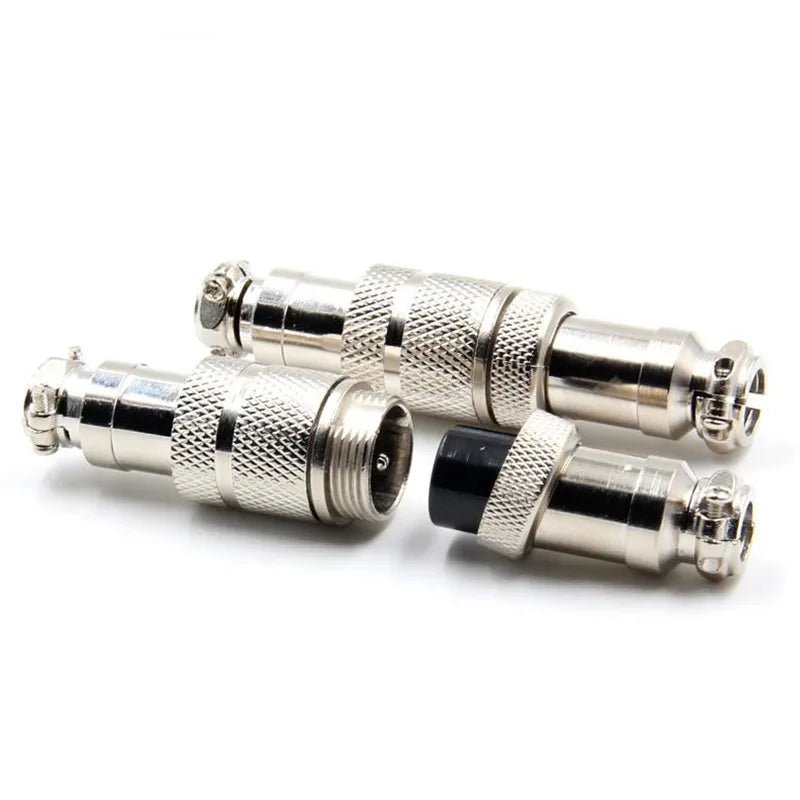

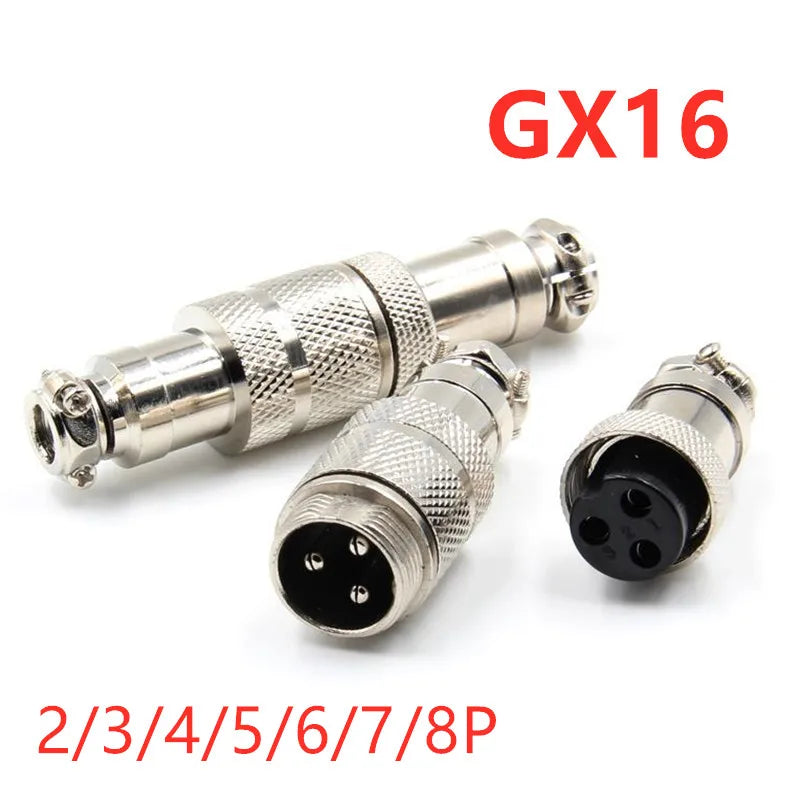

1Set Docking type GX16 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin Male & Female Docking Aviator Aviation Plug Socket Circular Connector

Features:

Made of soild material, more durable.
One set which includes one male and one female Connector.
Straight and unshielded type, P series circular connector
Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems, audio/video, test and measurement, communications, etc.

Specifications:

Rated voltage: 2 pin 3 pin 4 pin is 400V, 5 pin 6 pin 7 pin 8 pin is 250V
Rated current: 5A
Contact resistance: The contact resistance of each contact pair is not greater than 0.005 oh
Environment Temperature: -50~+70℃.
Relative Humidity: The temperature is + 40 ℃ could reach 98%.
Insulation Resistance:Normal conditions no less than 1000 m Ω, Not less than 200 m Ω after the constant temperature test.
Testing Voltage: (50 Hz, RMS) Normal conditions 1500V, After constant temperature test 1200V.
Atmospheric Pressure: 4.4kpa.
Vibration: frequency is 10 ~ 100 Hz,accelerated speed is 100 m/s2.
Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2.
Centrifugal: Acceleration is 250 m/s2.

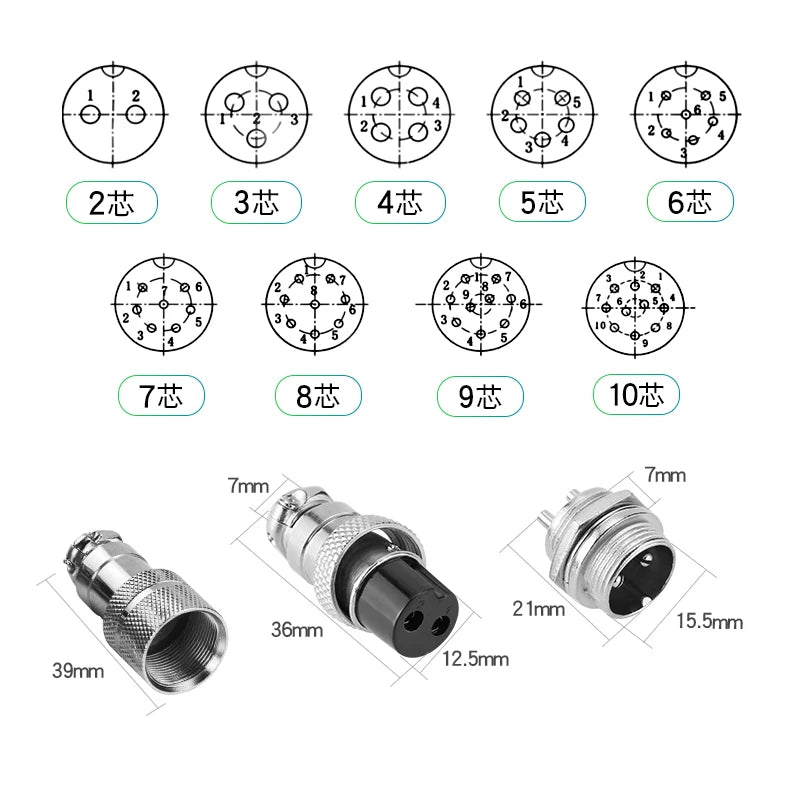

Type: 2/3/4/5/6/7/8 pin
Material: Metal
Color: silver
