SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

Feature :

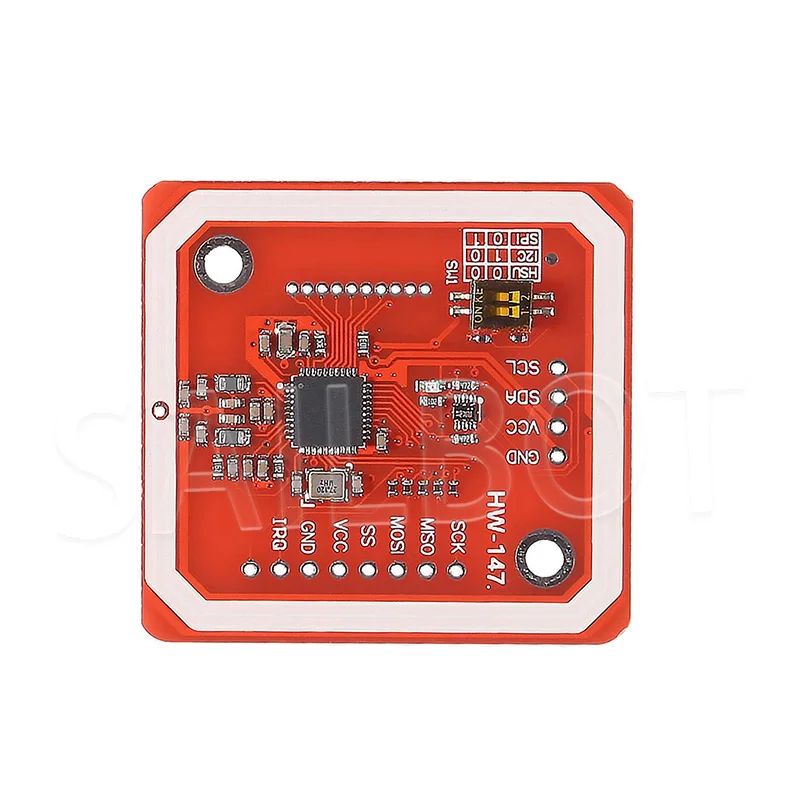

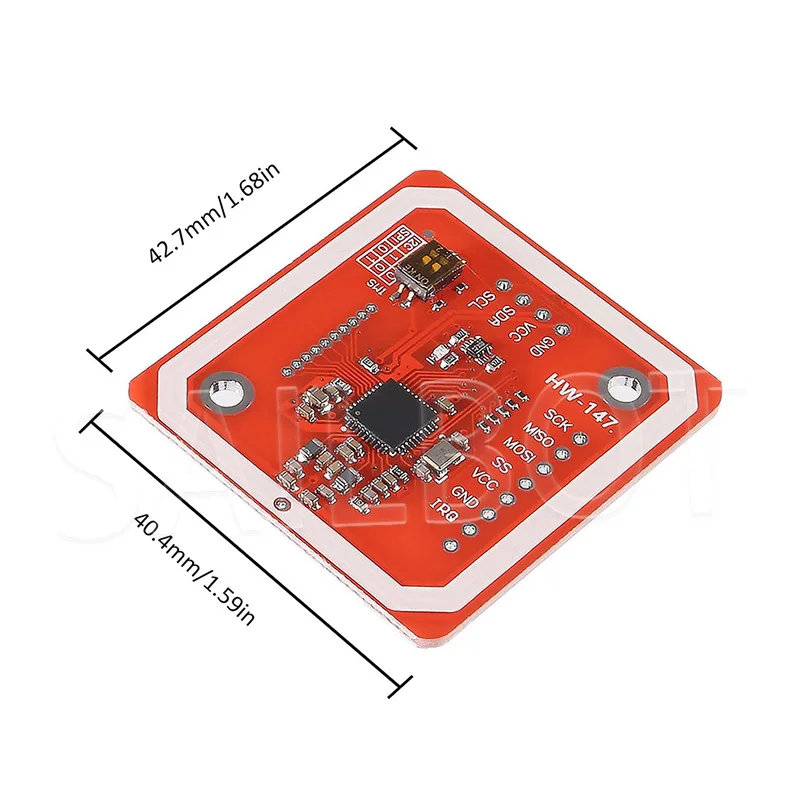

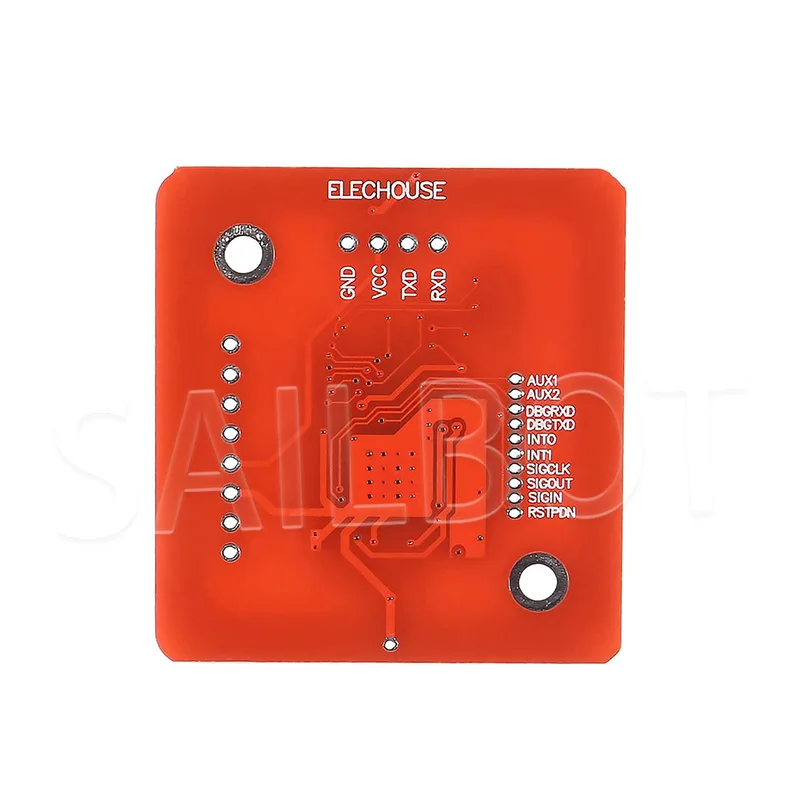

1. Gilt PCB and Small dimension and easy to embed into your project

2. Support I2C. SPI and HSU (High Speed UART), Change between those modes

3. Support RFID reading and writing

SupportP2P communication with peers

Support NFC with for Android phone

4. Typical Operating Distance have been updated to 5cm~7cm reading distance

5. Work in NFC Mode or RFID reader/writer Mode

6. RFID reader/writer supports:

1) 1k, 4k, Ultralight, and DesFire cards

2) ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)

3) Innovision Jewel cards such as IRT5001 card

4) FeliCa cards such as RCS_860 and RCS_854

7. Plug and play, for compatible

8. Built in PCB Antenna, with 4cm~6cm communication distance

9. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI

10. Work as RFID reader/writer

11. Work as 1443-A card or a virtual card

12. Exchange data with other NFC devices such as smartphone

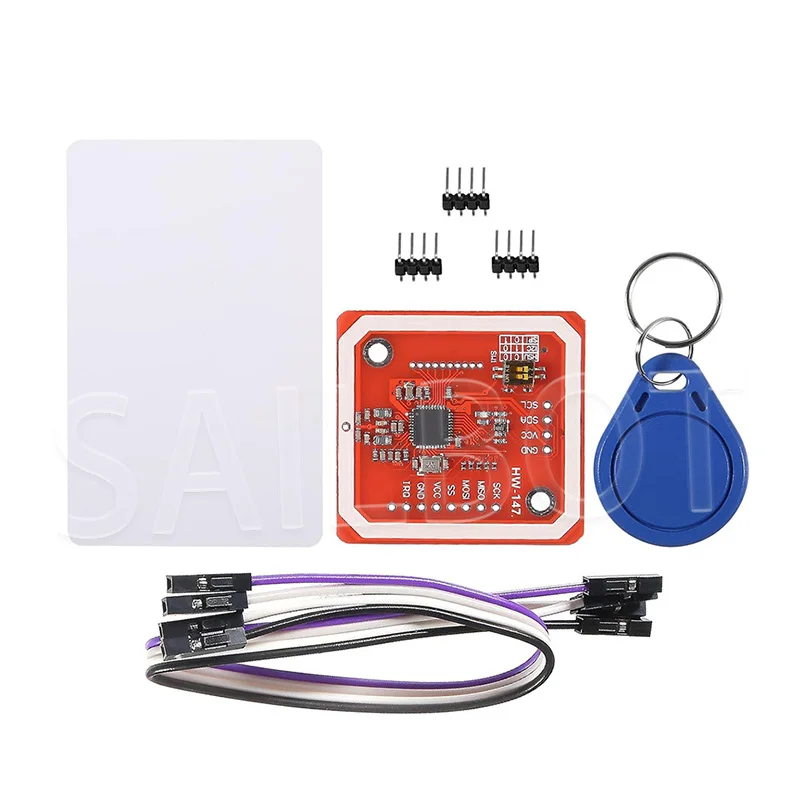

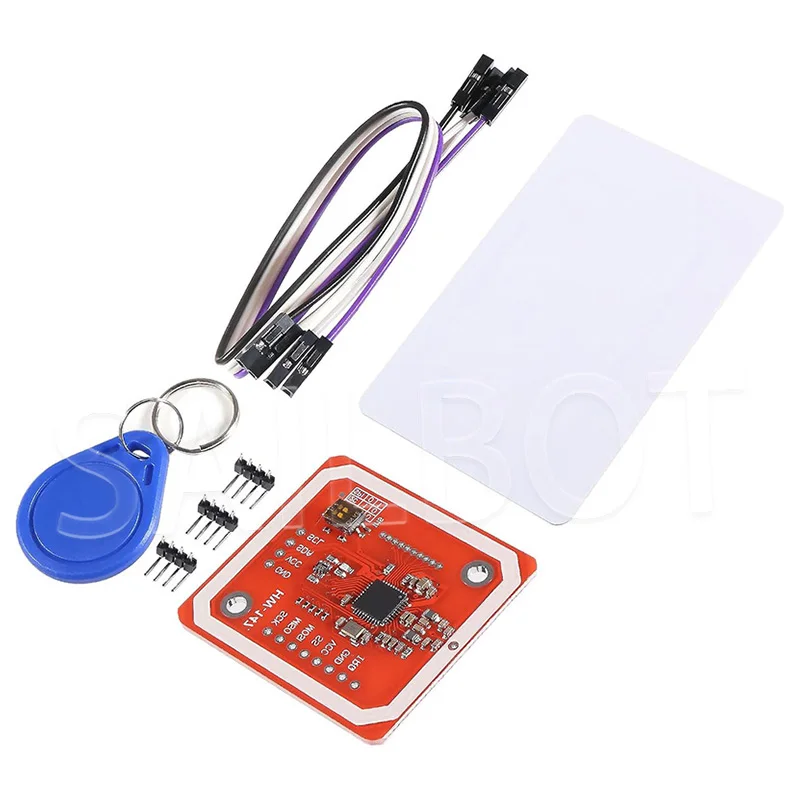

Package Included:

1 x1PCS*PN532 NFC RFID Module

1x 2.54mm spacing 4pin Cable

1x White Card

1x Key Car
