Description

SPECIFICATIONS

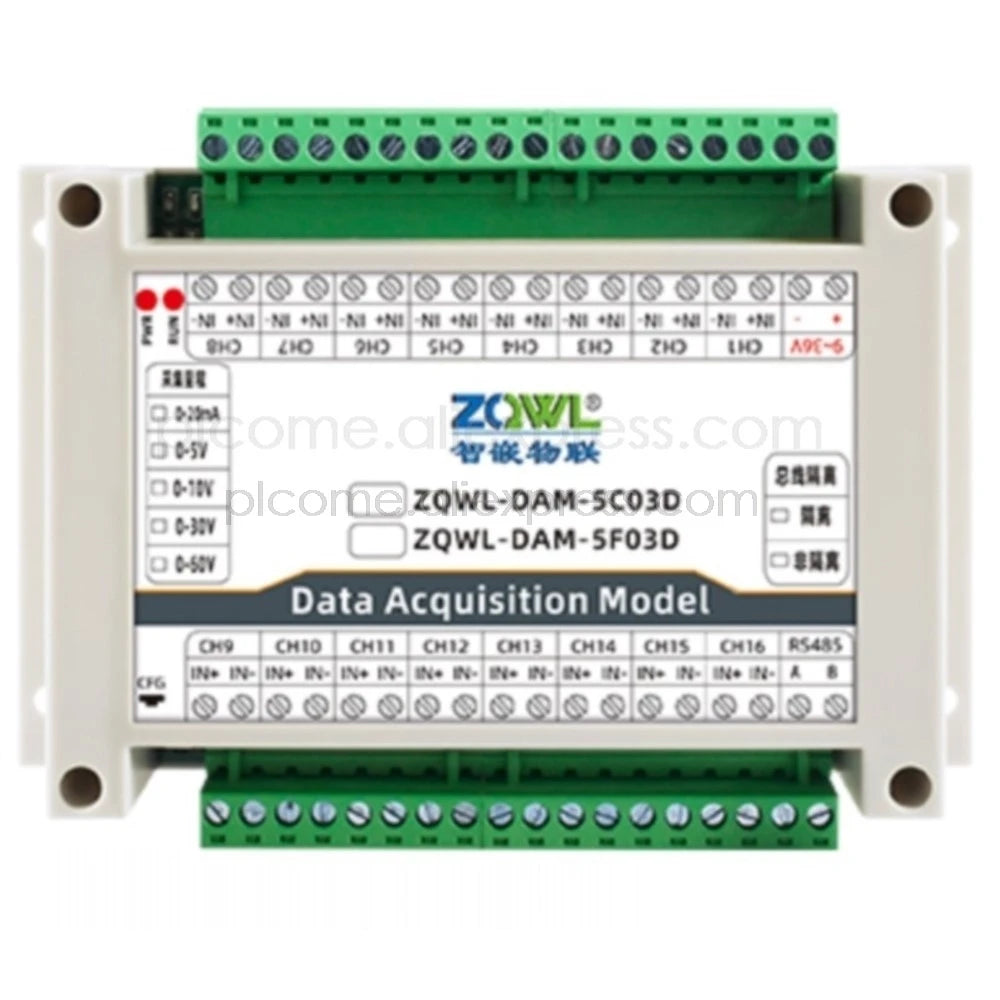

Brand Name: Mt-Viki

Model Number: DAM-xx03D

Origin: Mainland China

is_customized: Yes



Specifications

  • Product model:DAM-xxx3D

  • OPTIONAL 2-16 channel analog inputs

  • powered by 9~36VDC (12V/30mA)

  • CPU 32-bit high performance

  • ADC resolution 16 bit

  • Acquisition accuracy 0.1% (FS)

  • Analog input range optional

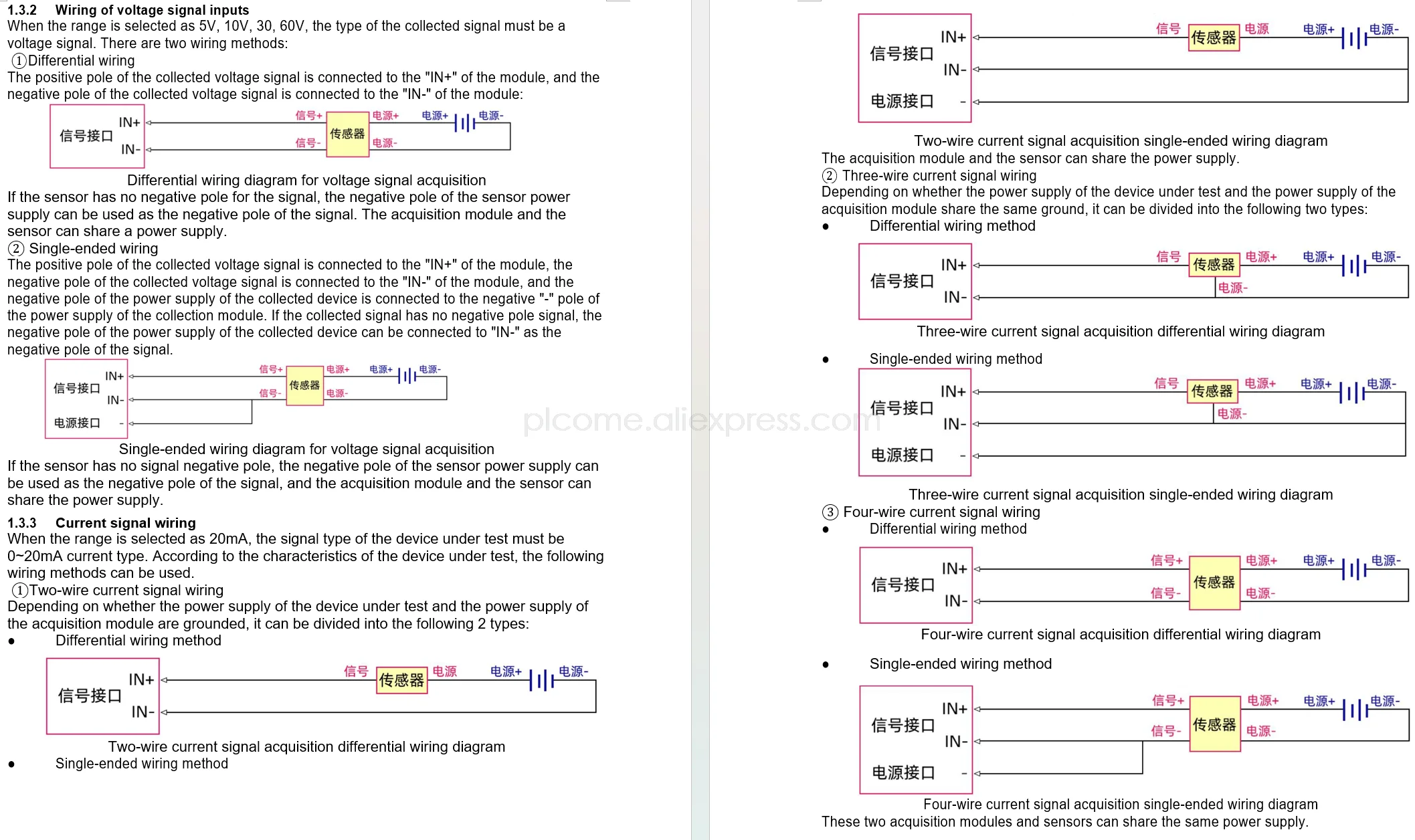

  • Analog wiring method: Differential wiring/single-ended wiring

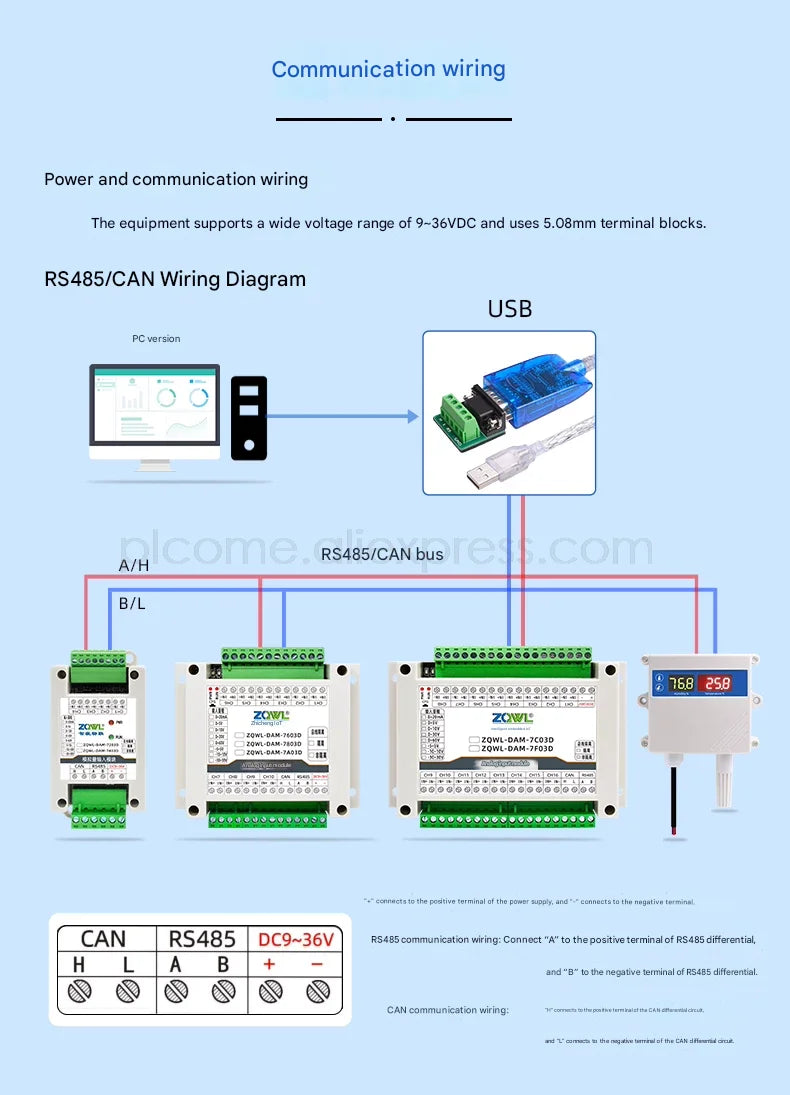

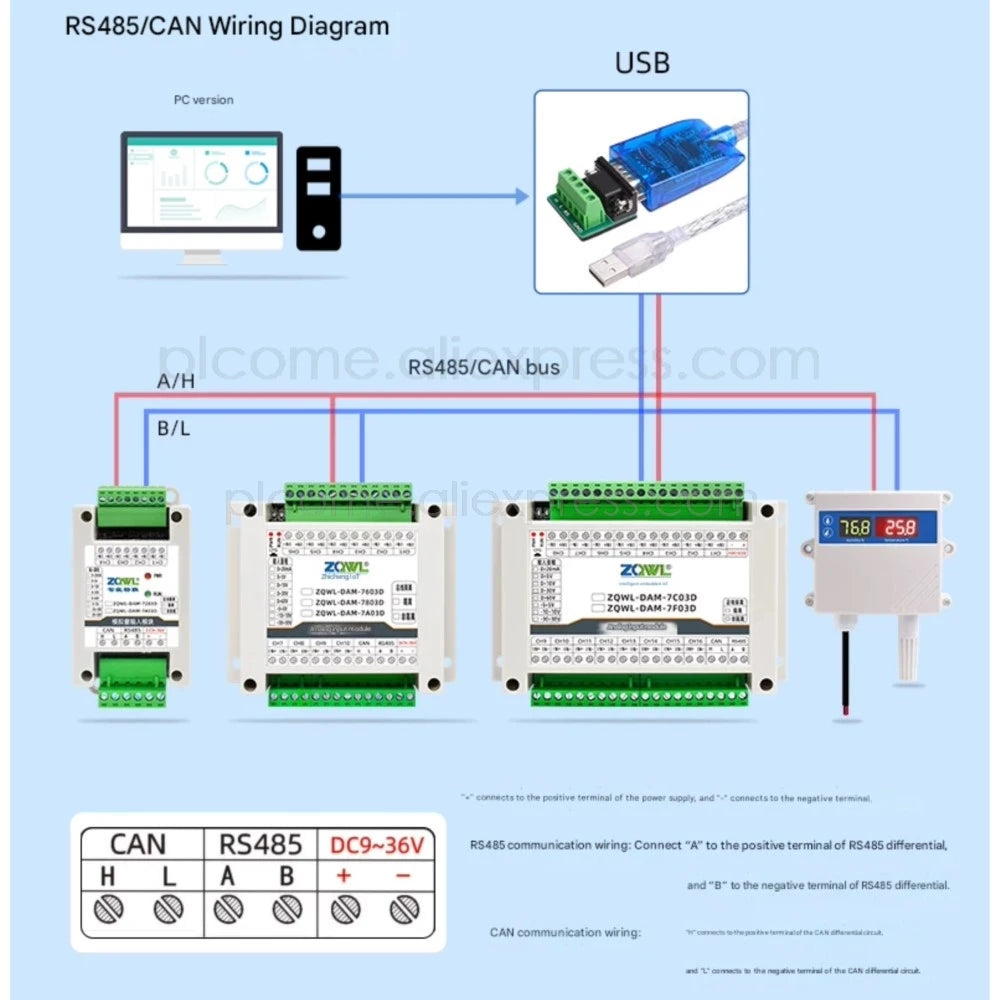

  • Optional RS485/CAN communication, Isolation optional

  • Power isolation, signal isolation; isolation withstand voltage 2500V

  • RS485 baud rate: Supports 600~460800

  • CAN baud rate : Supports 5K~1000Kbps

  • temperature drift:  ±0.005%/°C

  • ADC refresh cycle: 10ms

  • working temperature: -40°C ~ 85°C

  • reset button:1-5 seconds: Reset; >5 seconds: Restore factory settings

  • Factory parameters: Module address: 1; RS485: 9600, 8, N, 1

  • Firmware upgrade: Supports RS485 online firmware upgrade

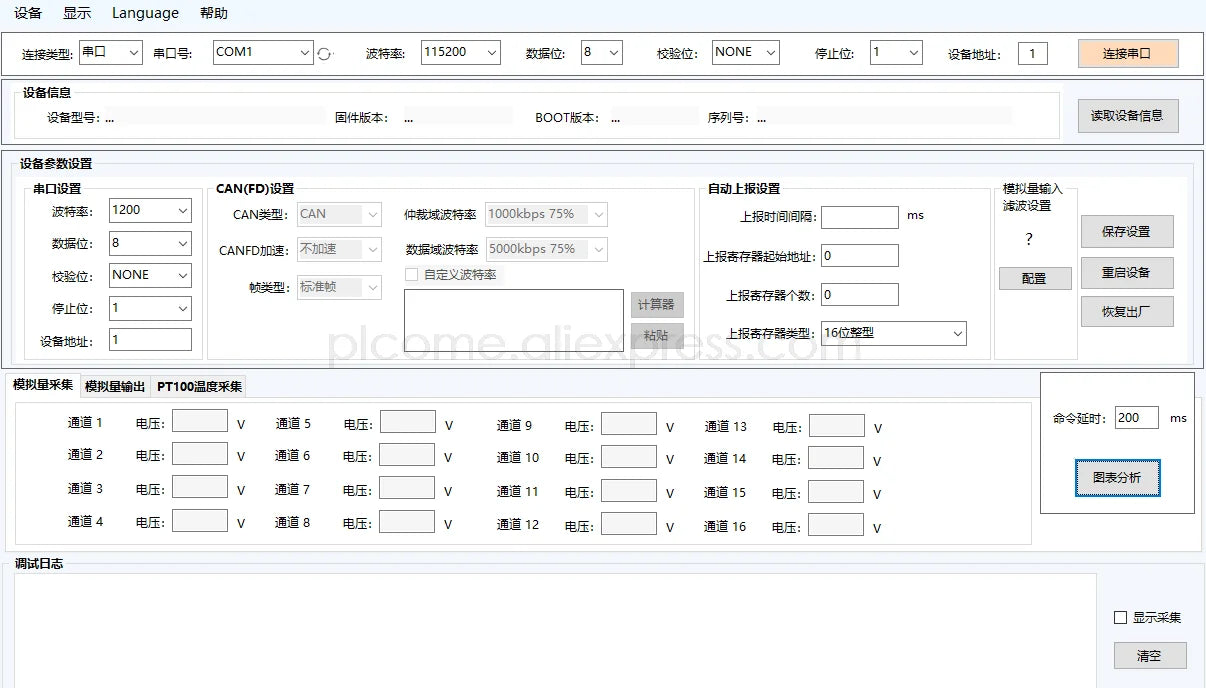

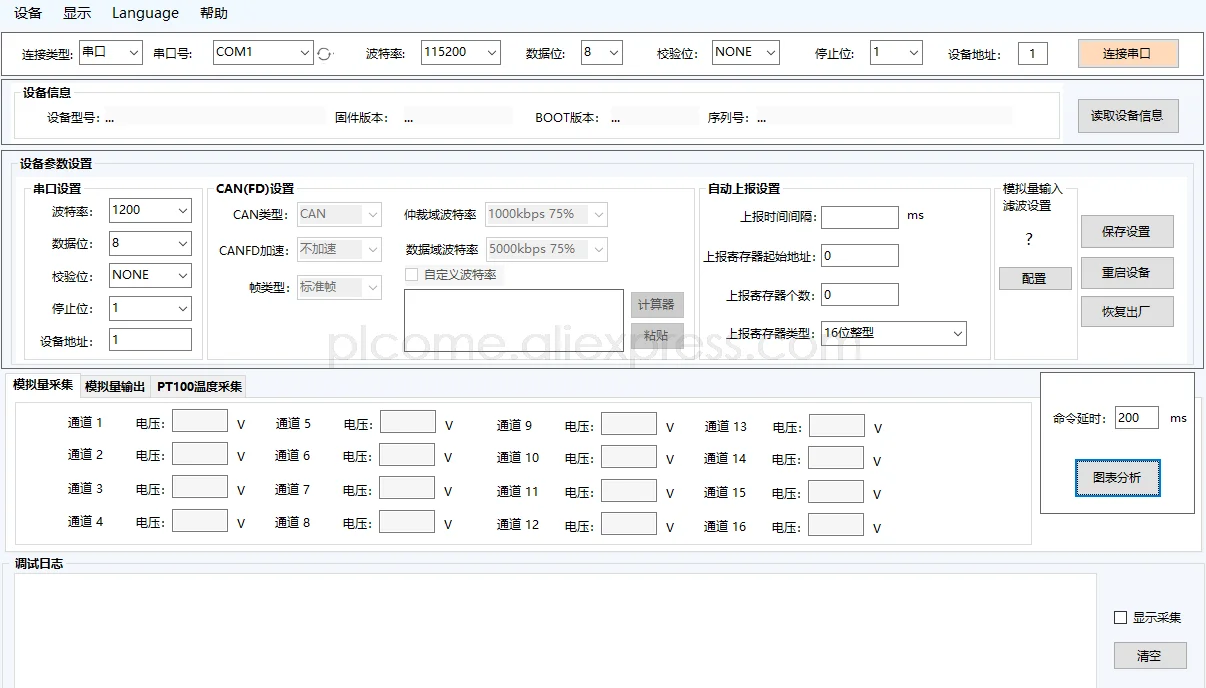

Free debugging software ( in chinese only by now)

Device parameter configuration, Active reporting, Chart analysis, real-time saving of collected data (Excel format) and viewing of records.

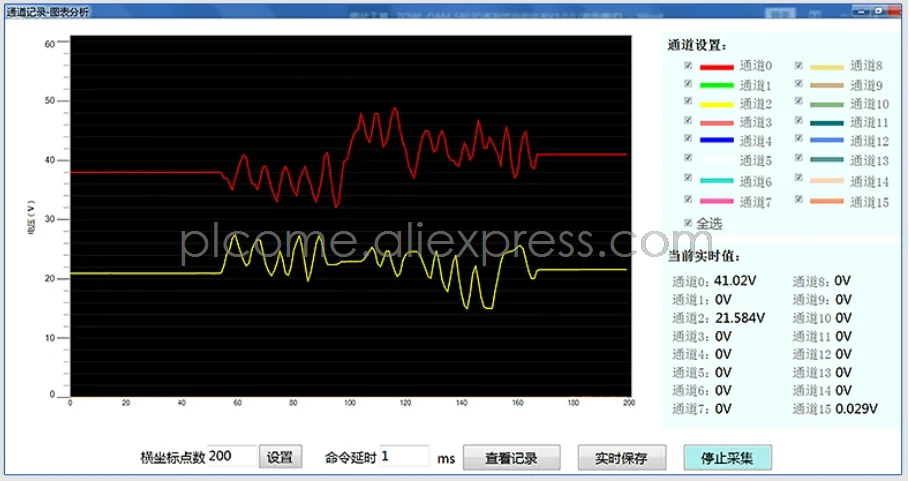

Curve display

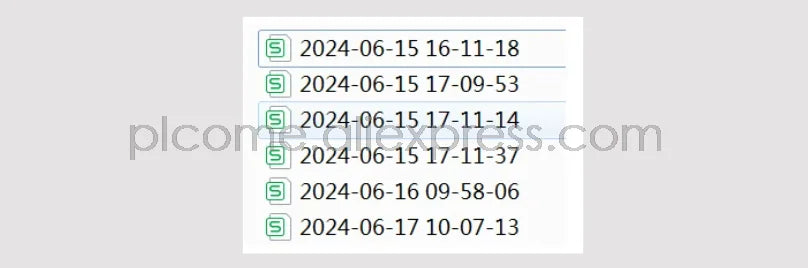

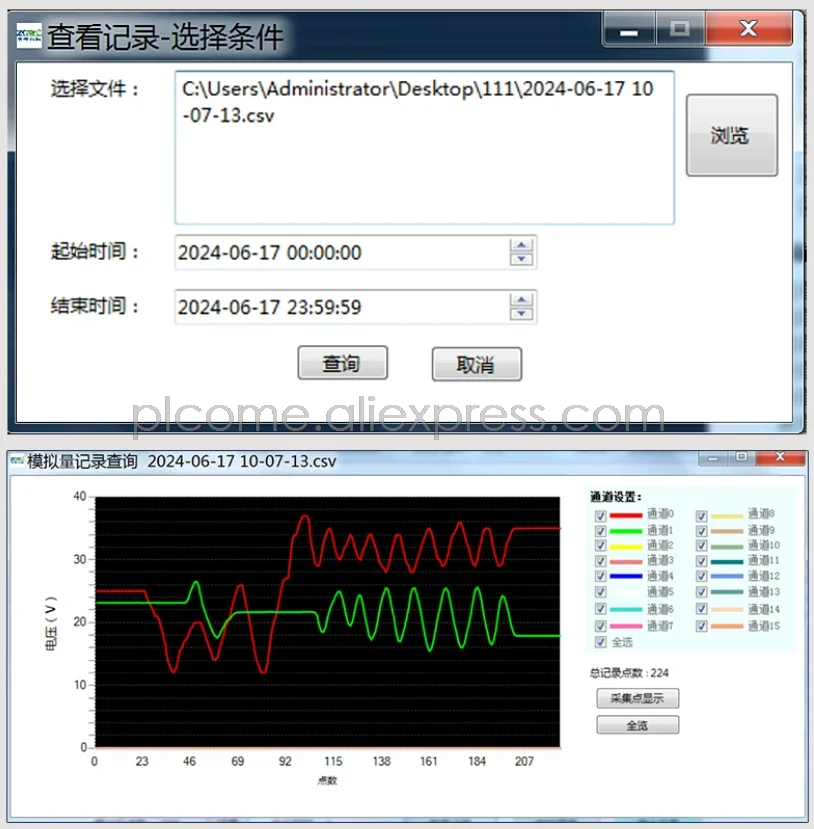

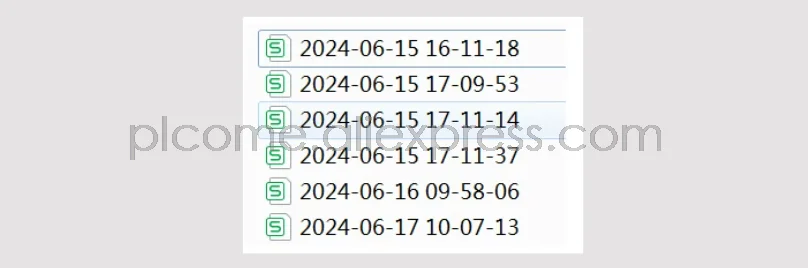

Real time data logging and query
