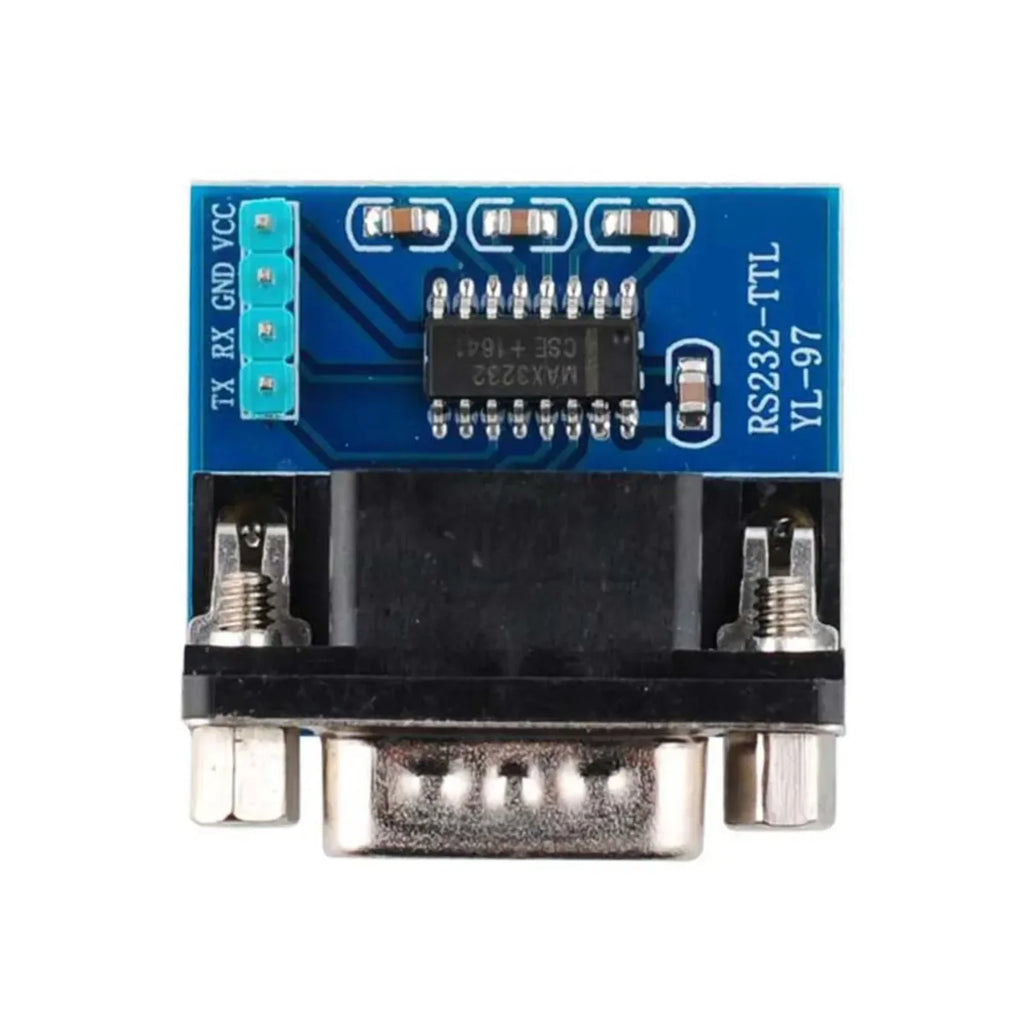

2/3/6 PCS MAX3232 RS232 to TTL Serial Converter Module DB9 Male Connector for Arduino/STM32 Programming
6 PCS
$59.08
Sale price
$59.08
Regular price
$0.00
Skip to product information
2/3/6 PCS MAX3232 RS232 to TTL Serial Converter Module DB9 Male Connector for Arduino/STM32 Programming
$59.08
Sale price
$59.08
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: wishiot
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Switch
RS232 serial port to TTL serial port male connector module flash board DB9 male connector suitable for Arduino and Windows
Interface type: DB9 connector (male)
Interface: TX RX VCC GND (TTL)
Chip: MAX3232
Dimensions: 30x26x15mm
Communication method: 232 communication
Working voltage: 3.3V-5V
Weight of each serial port board: 15.5g
Scope of application:
(1) Can be used to program various types of microcontrollers: such as STM32\STC\NXP\Renesas\NEC
(2) Mobile phone flashing, DVD flashing, hard drive repair, set-top box upgrade, etc.
Serial port small board and STC microcontroller ISP
Serial port--------STC
VCC-------------5V
Ground------------- Ground
RXD-------------RXD (P3.O)
TXD-------------TXD (P3.1)
Serial port small board and STM32 microcontroller ISP
Serial port------STM32
VCC -------------- 3.3V
Ground wire -------------- Ground wire
RXD -------------- RX1 (A10)
TXD -------------- TX1 (A9)
