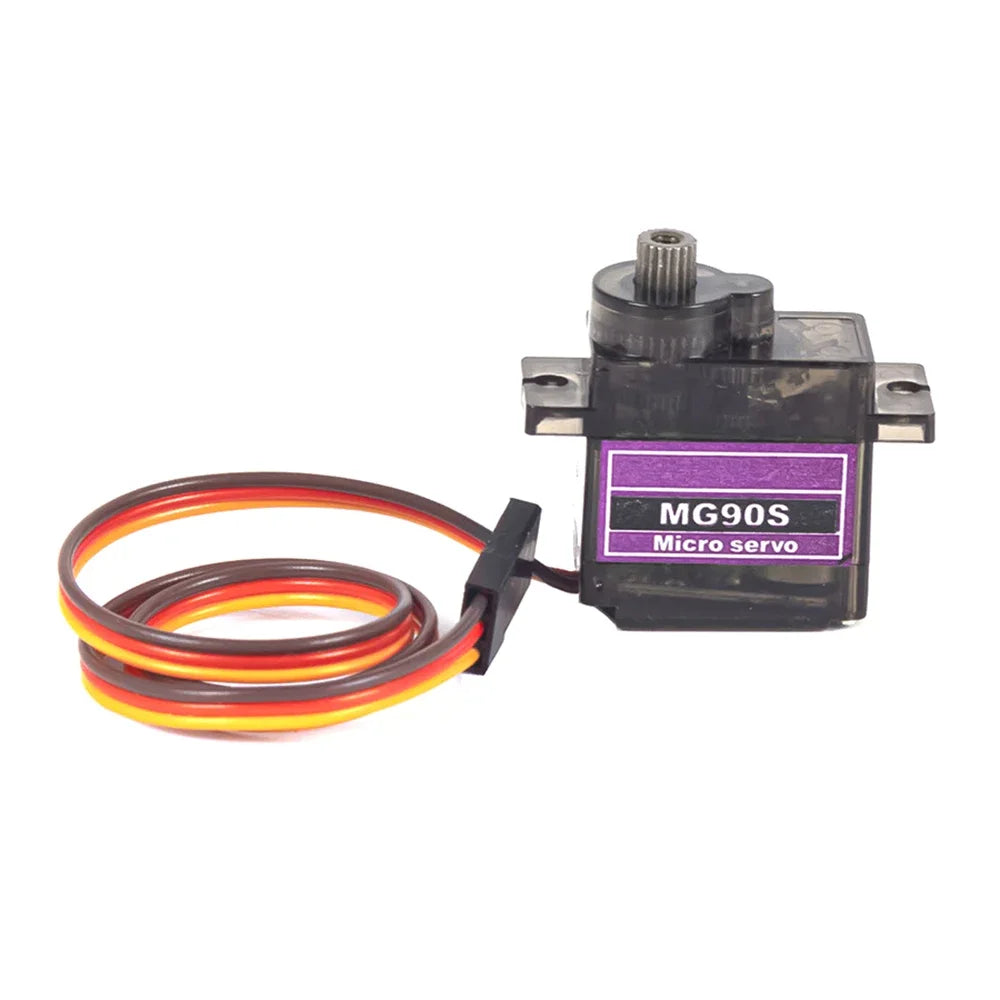

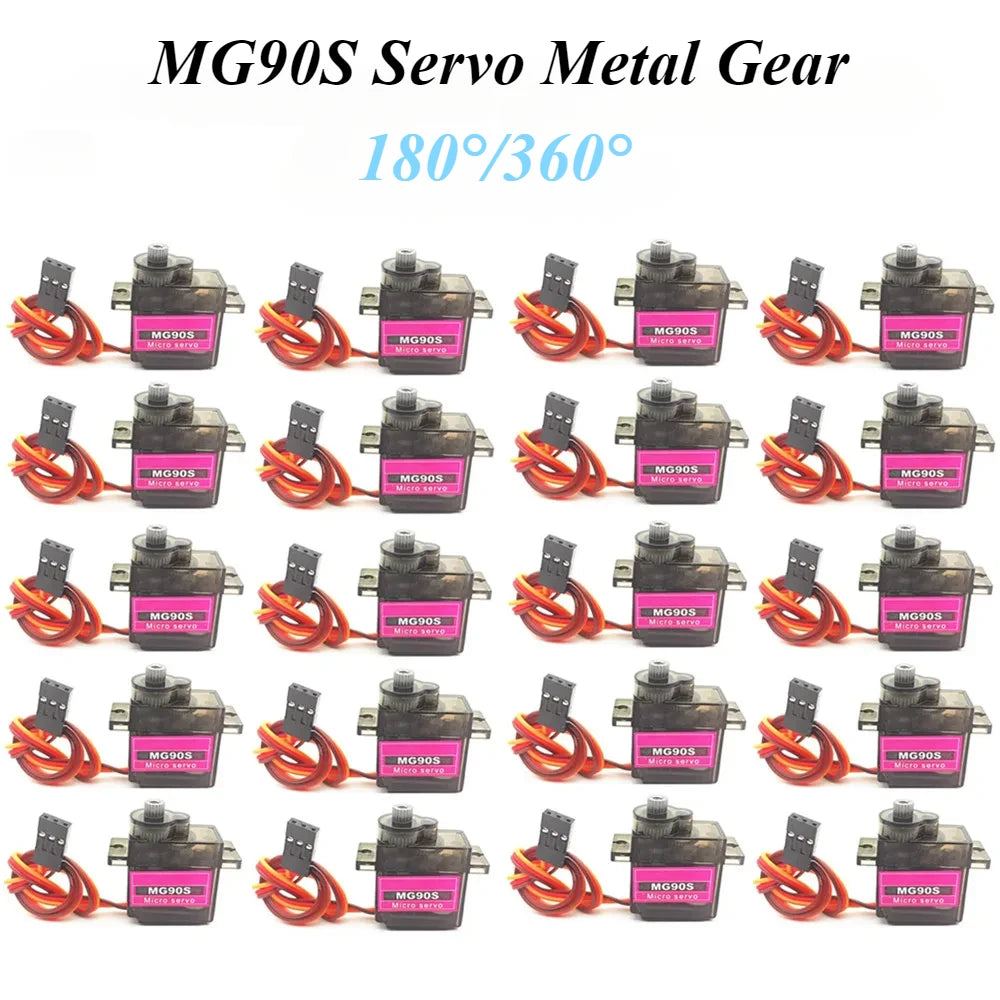

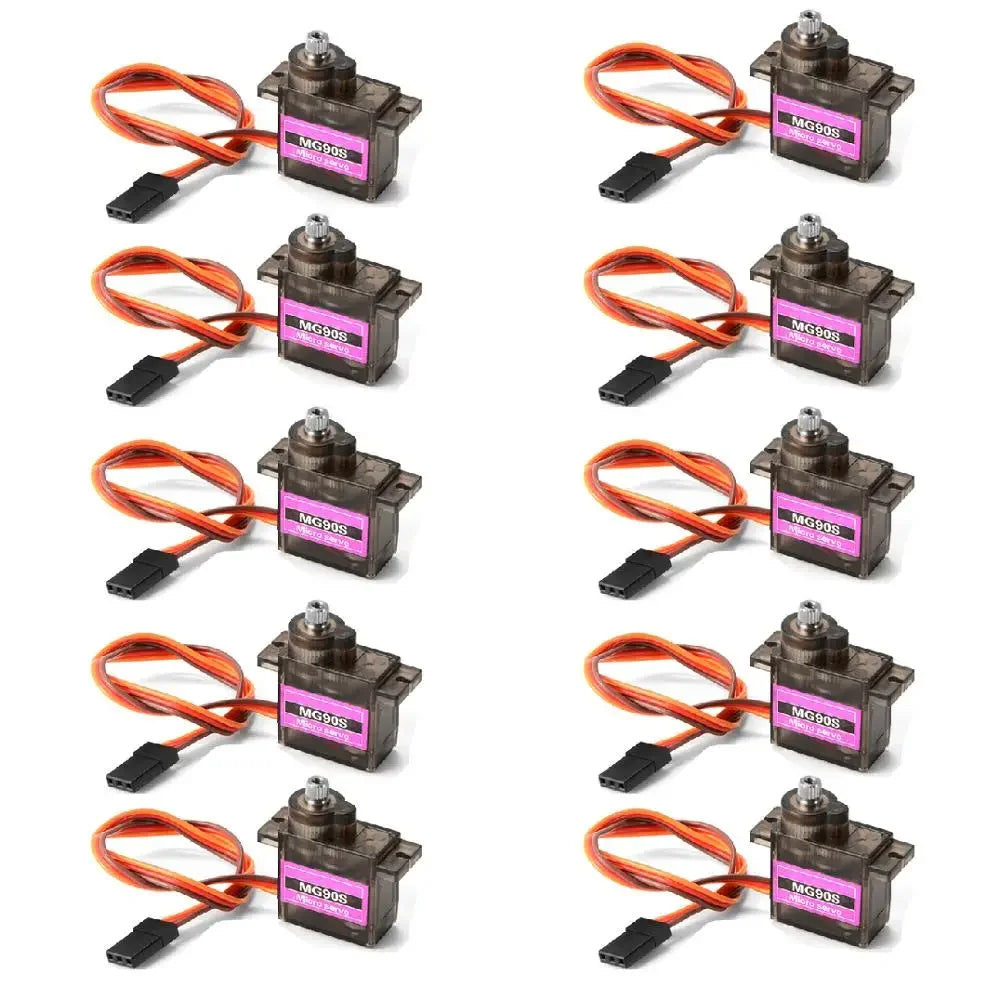

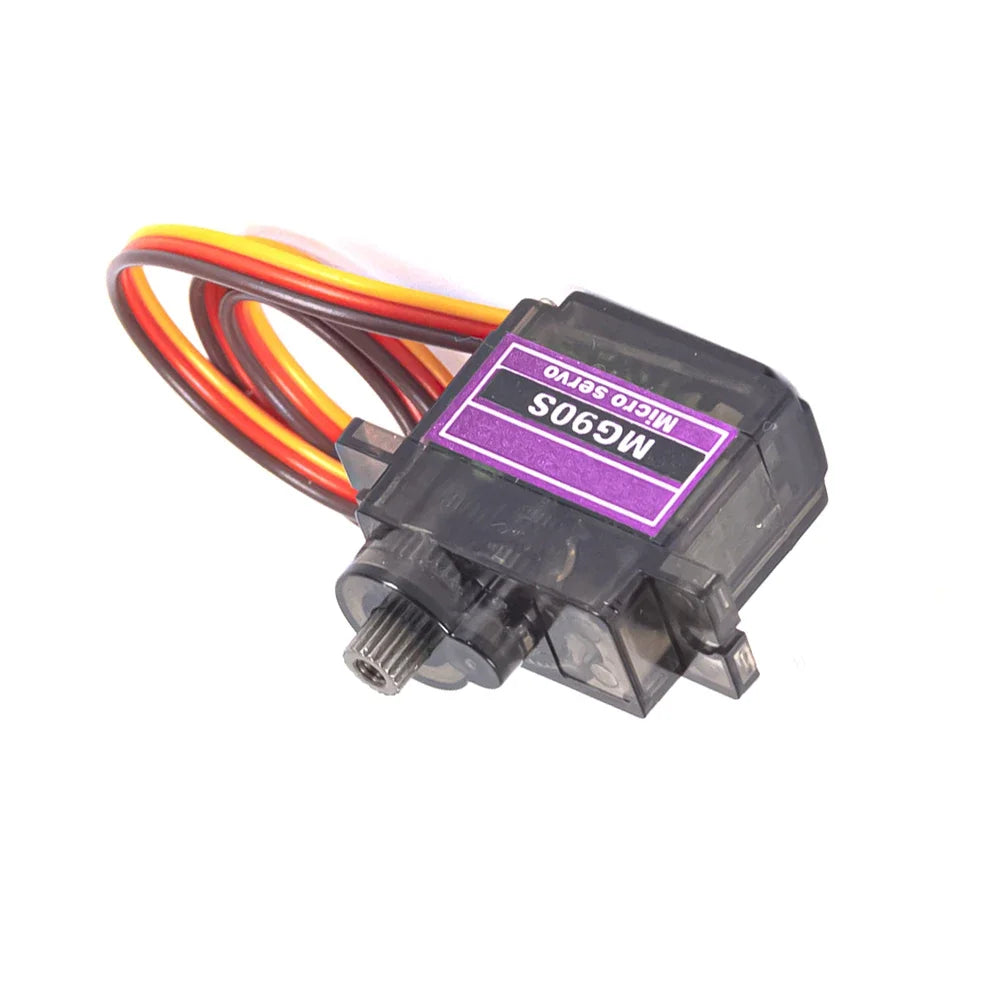

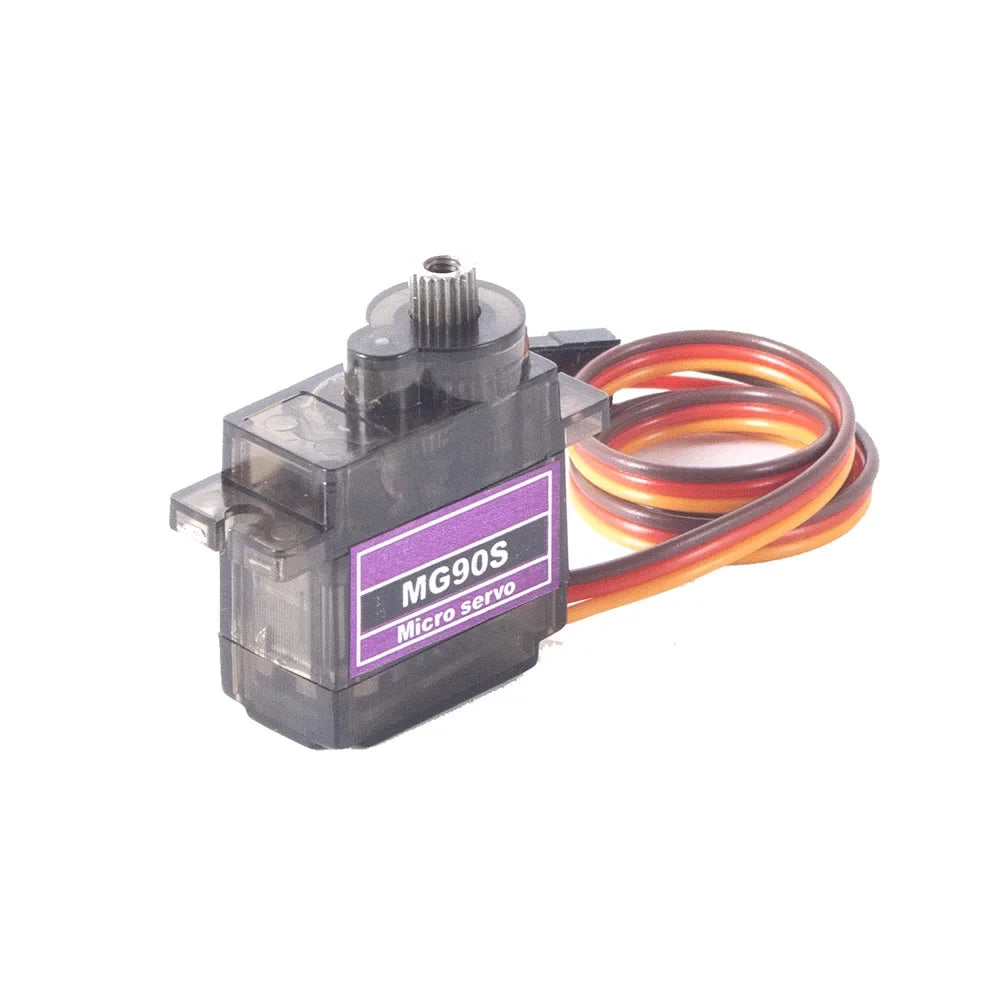

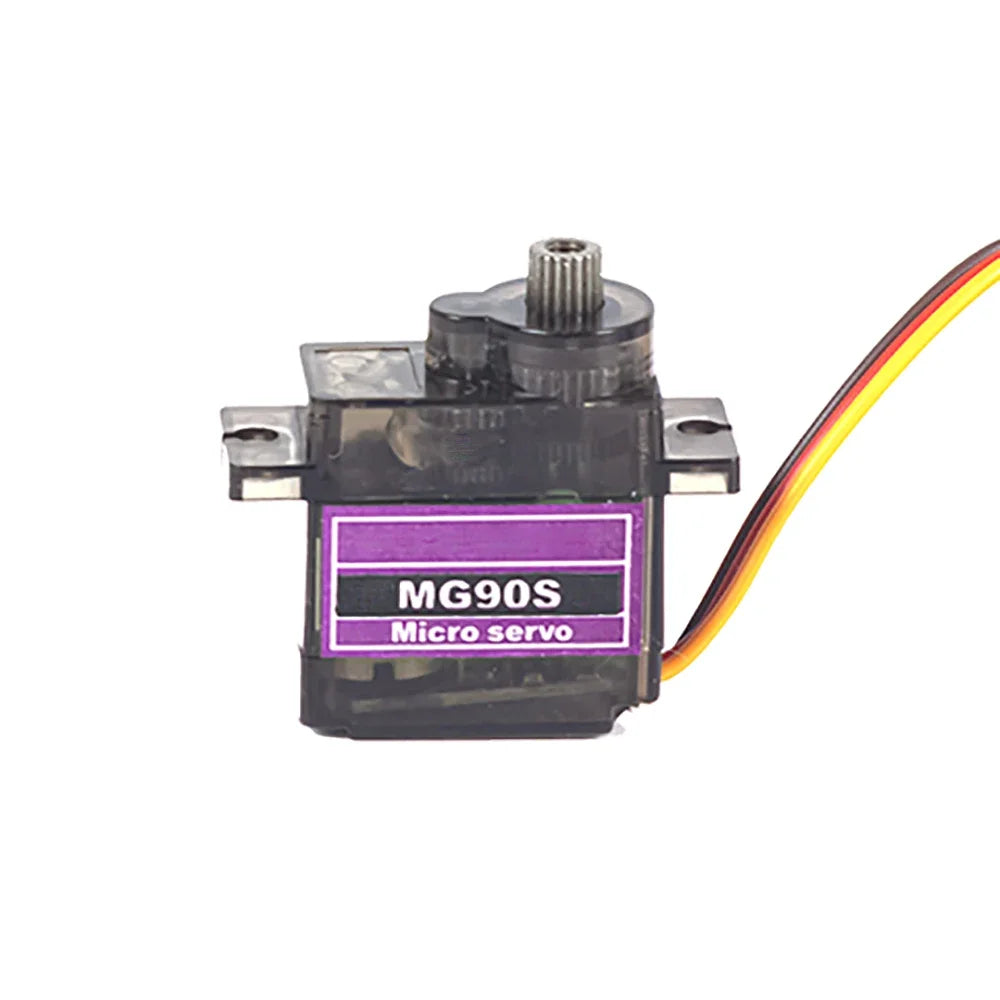

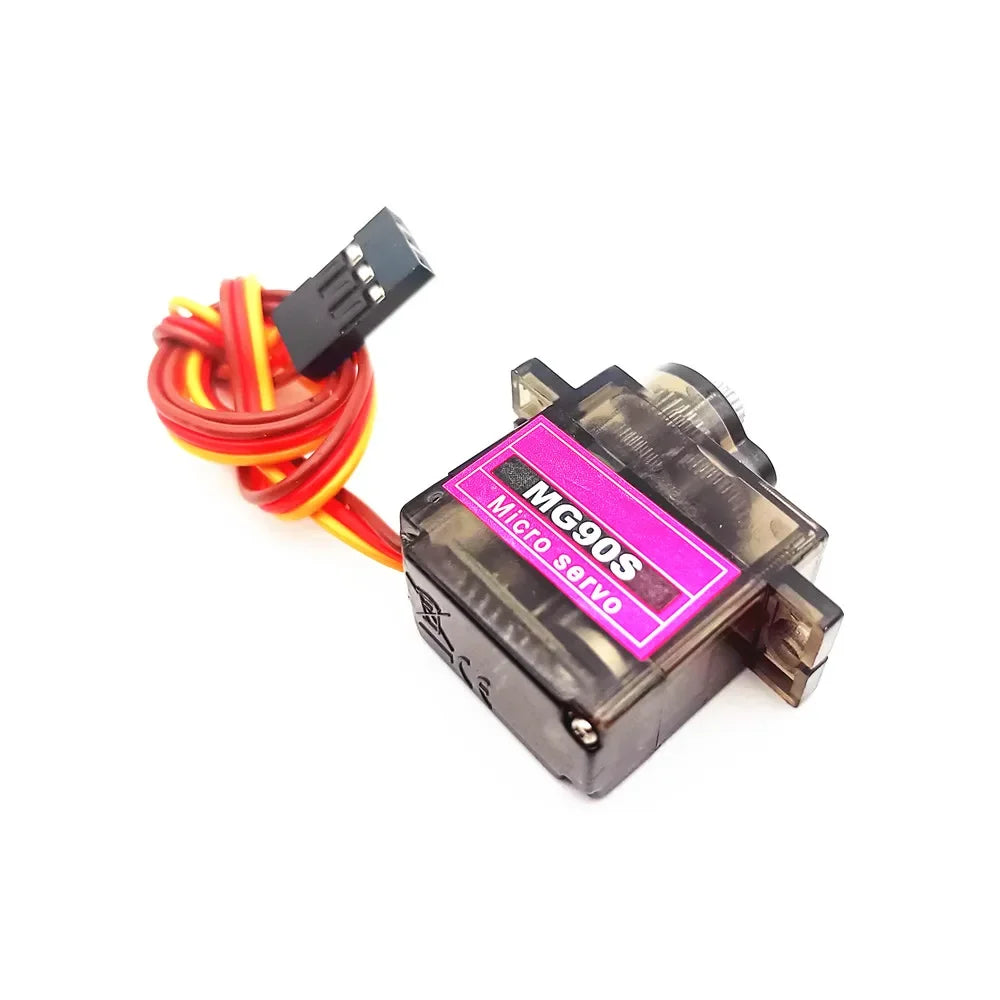

2/4/10/20/50Pcs MG90S Servo All Metal Gear 9g 180 360 SG90 Upgraded Version For Helicopter Plane Boat Car MG90 Trex 450 RC Robot
10pcs MG90S-360
$217.84
Sale price
$217.84
Regular price
$0.00
Skip to product information
Feature
2/4/10/20/50Pcs MG90S Servo All Metal Gear 9g 180 360 SG90 Upgraded Version For Helicopter Plane Boat Car MG90 Trex 450 RC Robot
$217.84
Sale price
$217.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: none
Material: Metal
Model Number: MG90S
Origin: Mainland China
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Technical parameters: value 3
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Gear
Use: Vehicles & Remote Control Toys
semi_Choice: yes
Feature
Full Ball Bearing
Light Weight
Less Noise
Connector Wire Length 250mm
Products Description:
For: Mini Car / Mini Ship / Helicopter & Airplane
Model: MG90S SG90 upgraded version
Weight: 12G
Speed: 4.8V&0.10sec/60 degrees; 6.0V&0.09sec/60 degree
Torque: 4.8V&1.6KG-cm; 6.0V&1.8kg-cm
Voltage: 4.8V6.0V
Connector Wire Length 250mm

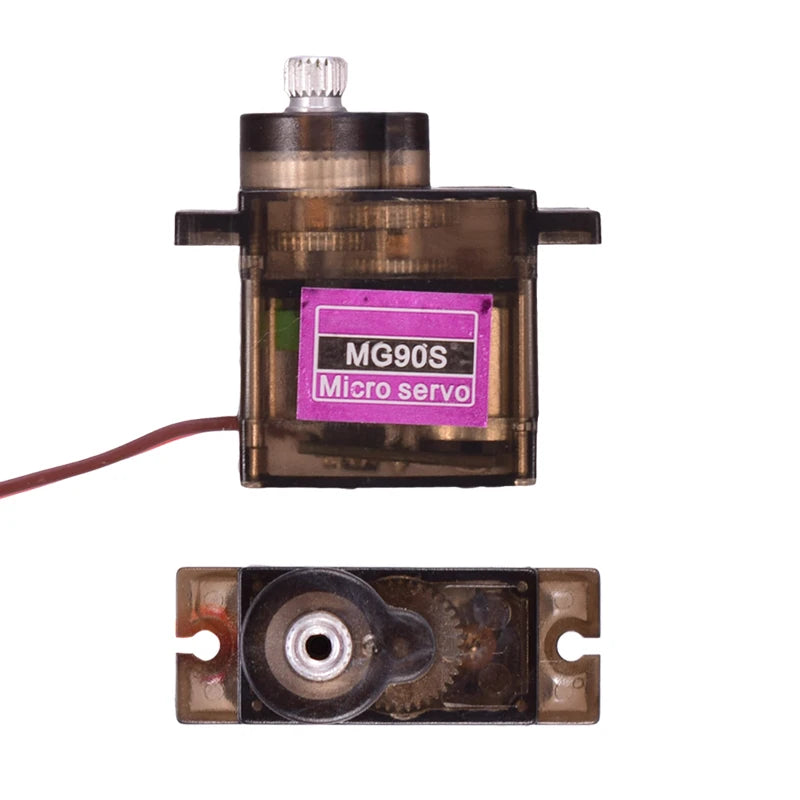

Dimension: 22.6mm x 12.1mm x 22.5mm
Dead Band Width: 5 usec
Interface Specifications: JR / FP General
Gear Material: All metal

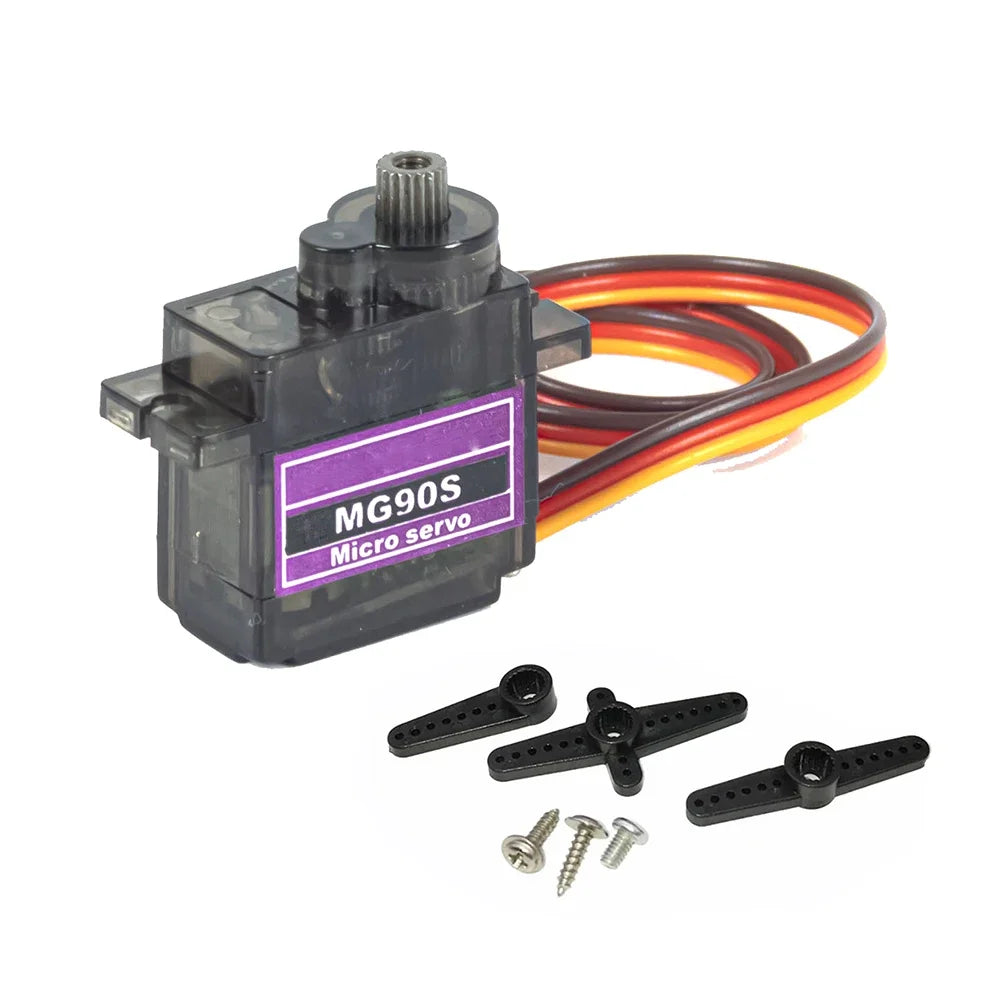

Accessories: Multi-arm, fixing screws
Scope: Helicopters KT, fluttering, gliding, small robots, and other models
Recommend Model: Mini Car / Mini Ship / Helicopter & Airplane
Note:

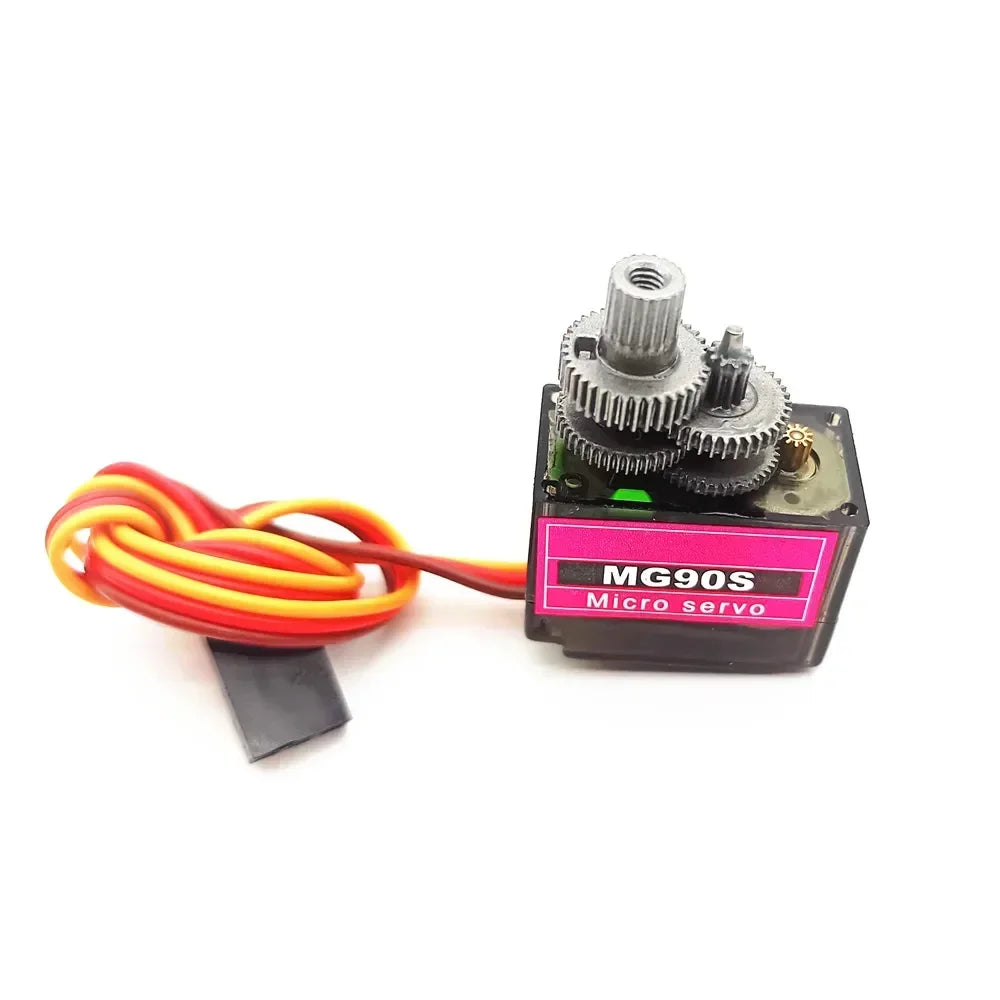

Servo all metal means spindle and gearwheel all is iron made
Attention：
If you are using RC car, ship,drones, and steering control, please choose a 180 degree servo.
360 degrees are continuous rotations and can only adjust speed, not angle.
The difference between 180 degrees and 360 degrees:180 degree servo can control the angle360 degree servo can only control forward, reverse, and speed
Driver logic:
180 degrees:
T=0.5ms ---- Rotate 0 。
T=1.0ms ---- Rotate 45 °
T=1.5ms ---- Rotate 90。
T=2.0ms ---- Rotate 135
T=2.5ms ---- Rotate 180。
360 degrees:
T=0.5ms ---- Maximum forward rotation speed;
T=1.5ms ---- No rotation;
T=2.5ms ----Maximum reverse speed
Package included
2/4/10/20 * MG90S All metal Mini Micro Servo
The difference between 180 degrees and 360 degrees:180 degree servo can control the angle360 degree servo can only control forward, reverse, and speed
Driver logic:
180 degrees:
T=0.5ms ---- Rotate 0 。
T=1.0ms ---- Rotate 45 °
T=1.5ms ---- Rotate 90。
T=2.0ms ---- Rotate 135
T=2.5ms ---- Rotate 180。
360 degrees:
T=0.5ms ---- Maximum forward rotation speed;
T=1.5ms ---- No rotation;
T=2.5ms ----Maximum reverse speed
Package included
2/4/10/20 * MG90S All metal Mini Micro Servo
