SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Display Mode: 128x64

High-concerned chemical: none

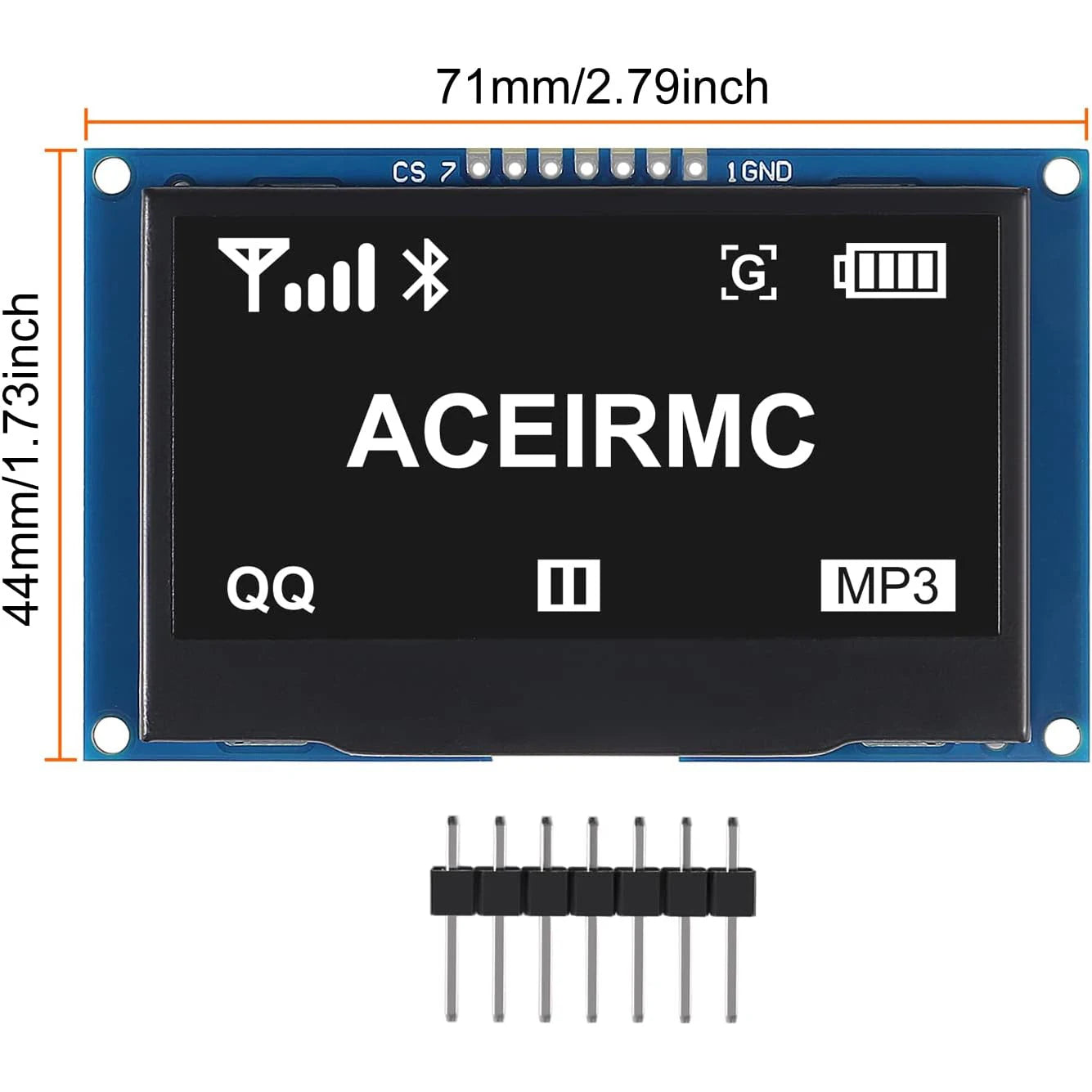

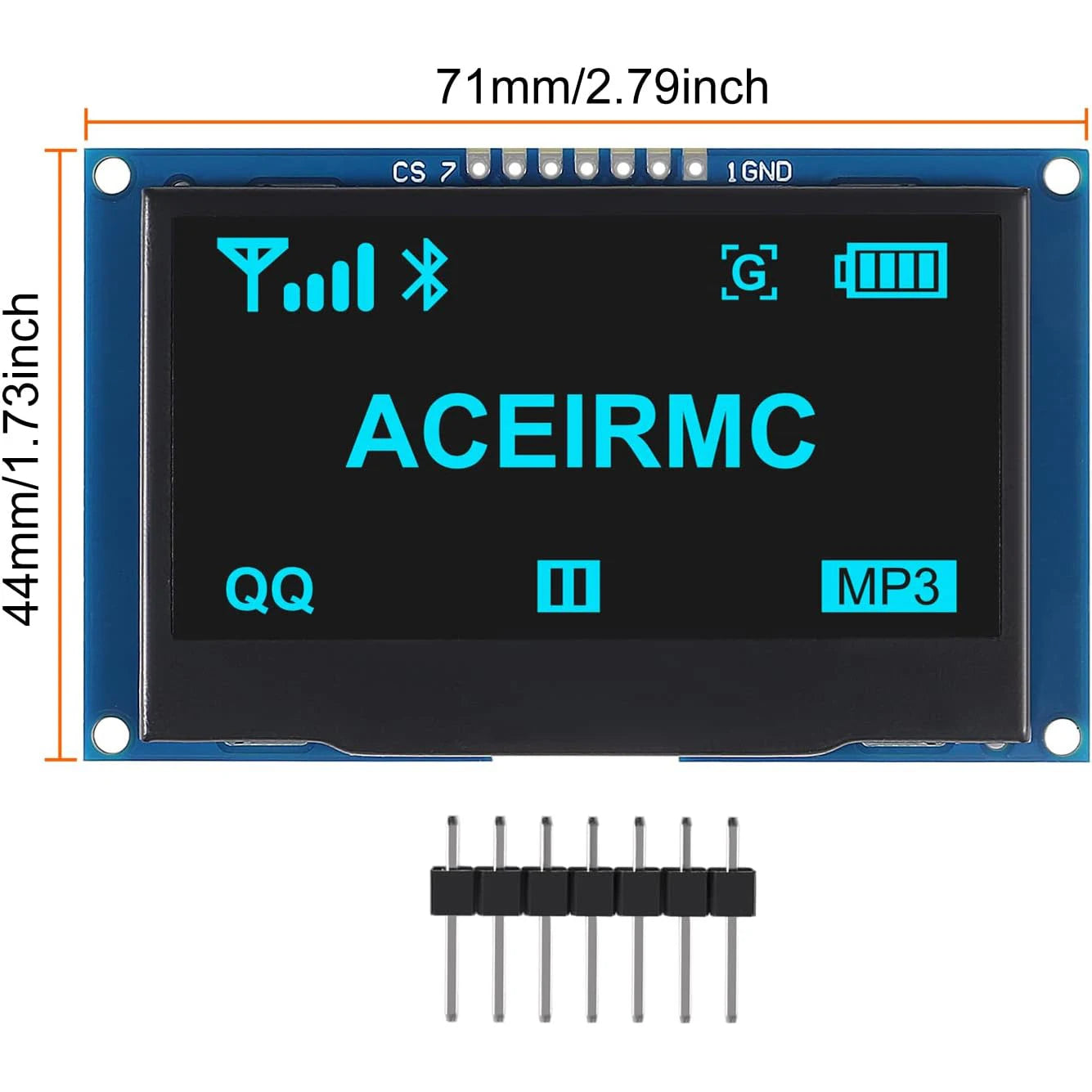

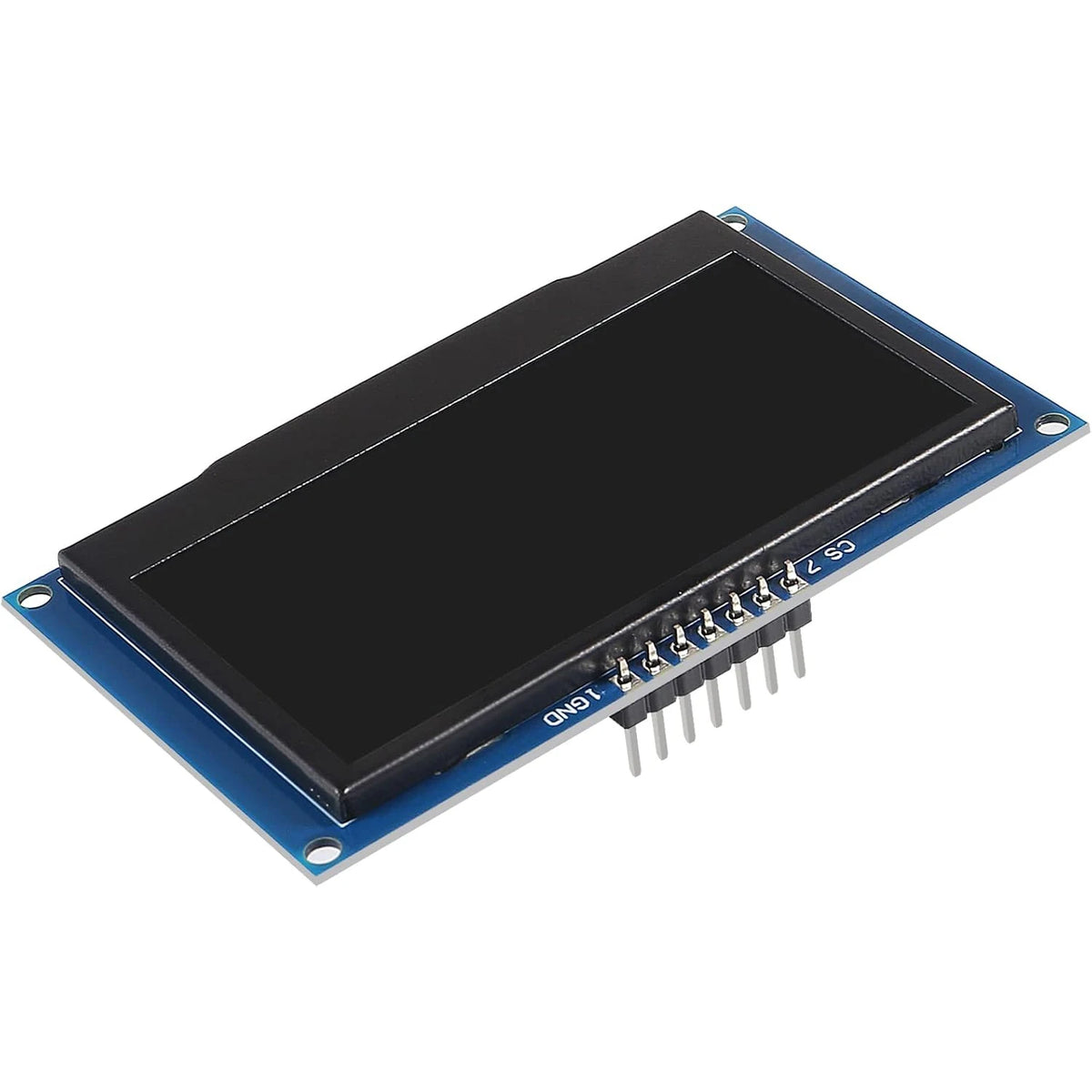

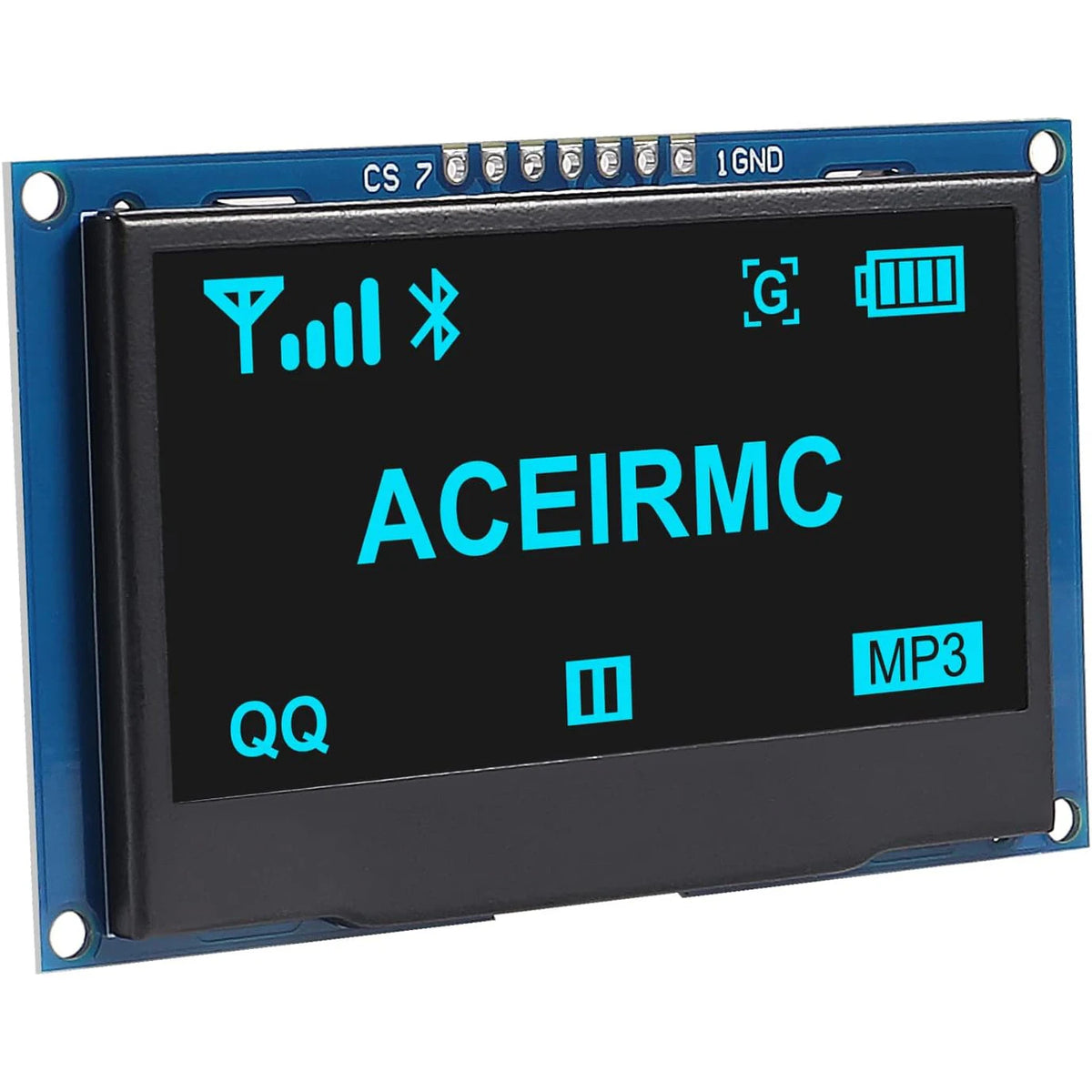

Model Number: 2.4" 2.42 inch 128x64 OLED LCD Display Module

Origin: Mainland China

Resolution: 128*64

Type: TFT

Feature:

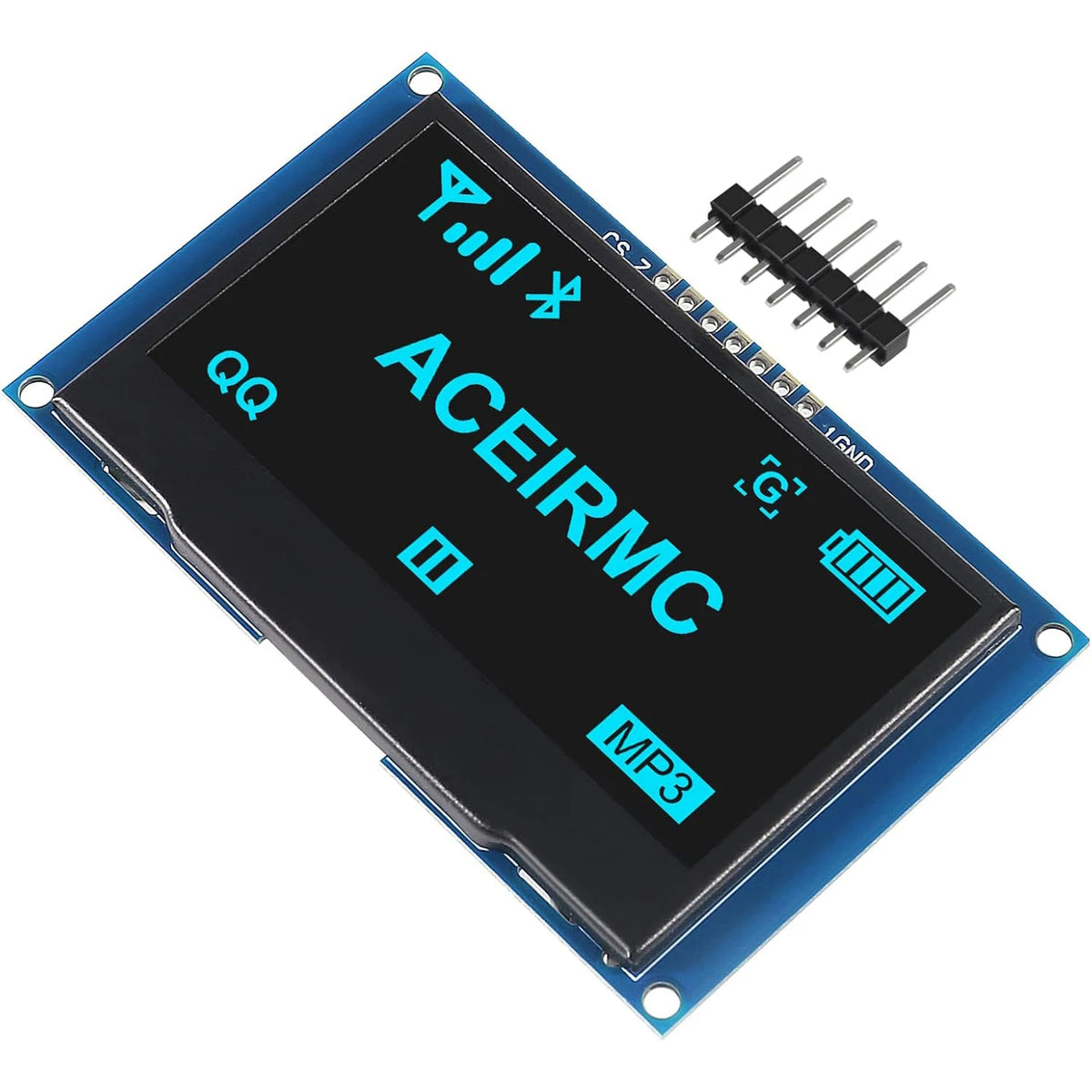

• This is a 2.42 inch OLED display module of 128x64 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current

• Working without backlight, the OLED display module could give out light by itself

• In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD

• OLED display module also has a much faster response time than an LCD

• The display with small dimension is suitable for MP3, function cellphone, smart health device, etc

Features:

• Diagonal Screen Size: 2.42"

• Resolution: 128 * 64

• Driver IC: SSD1309

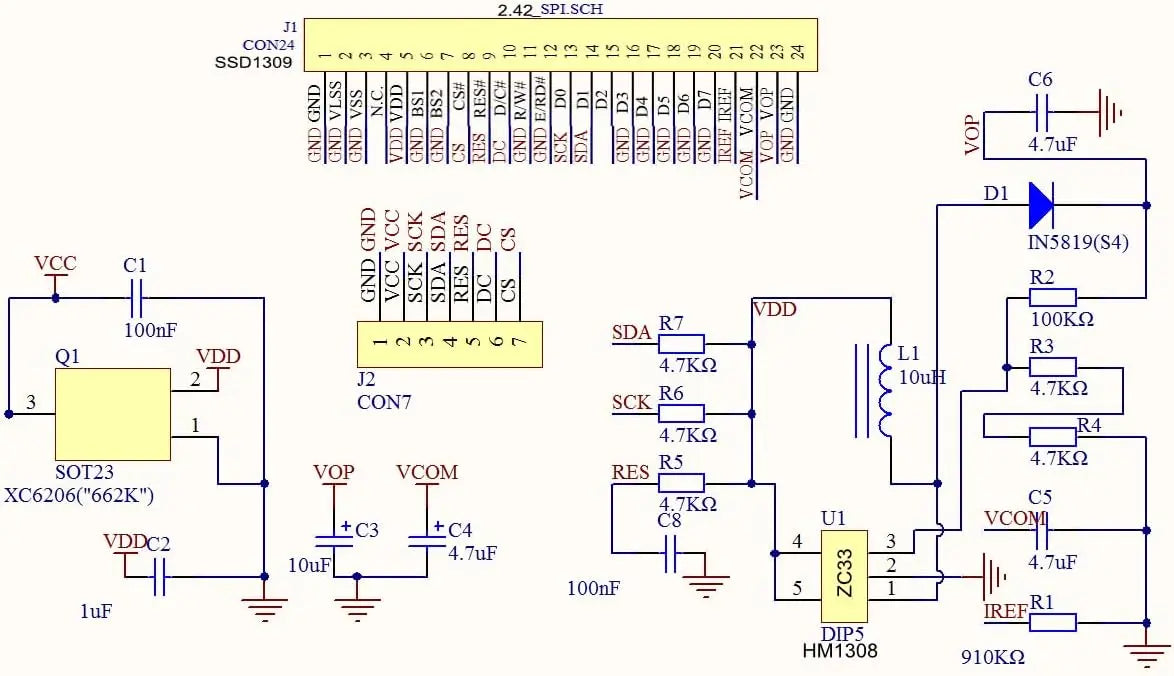

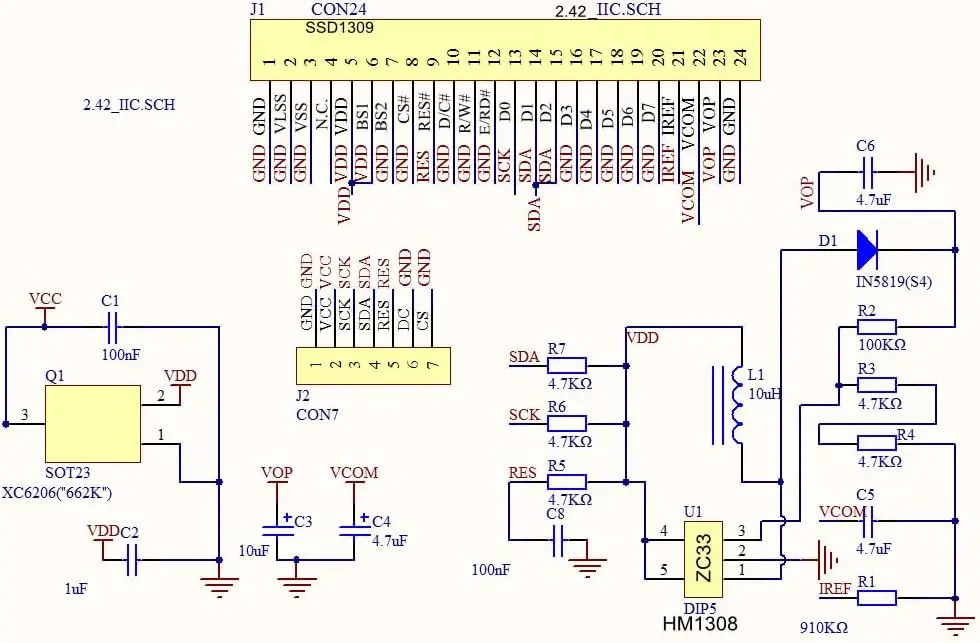

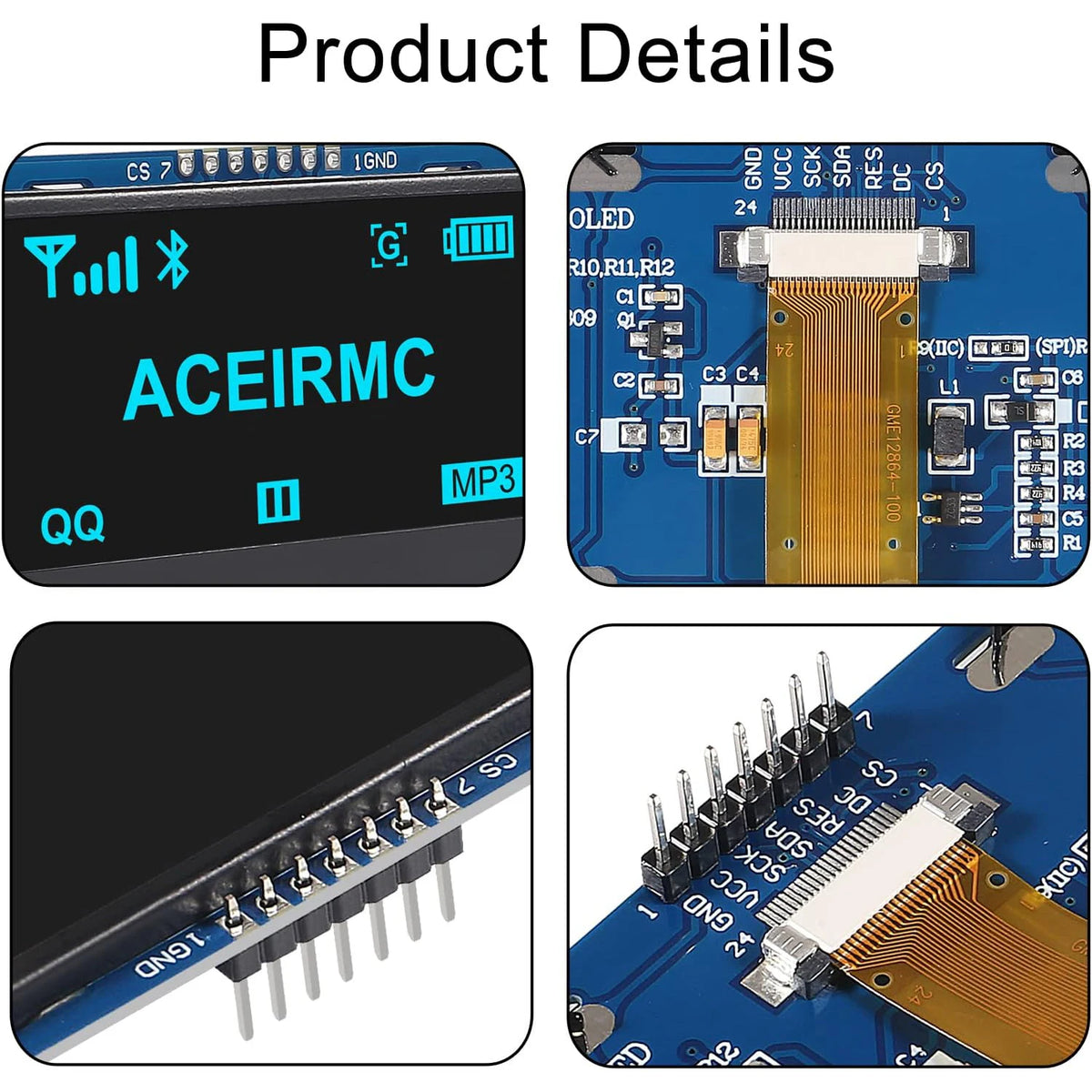

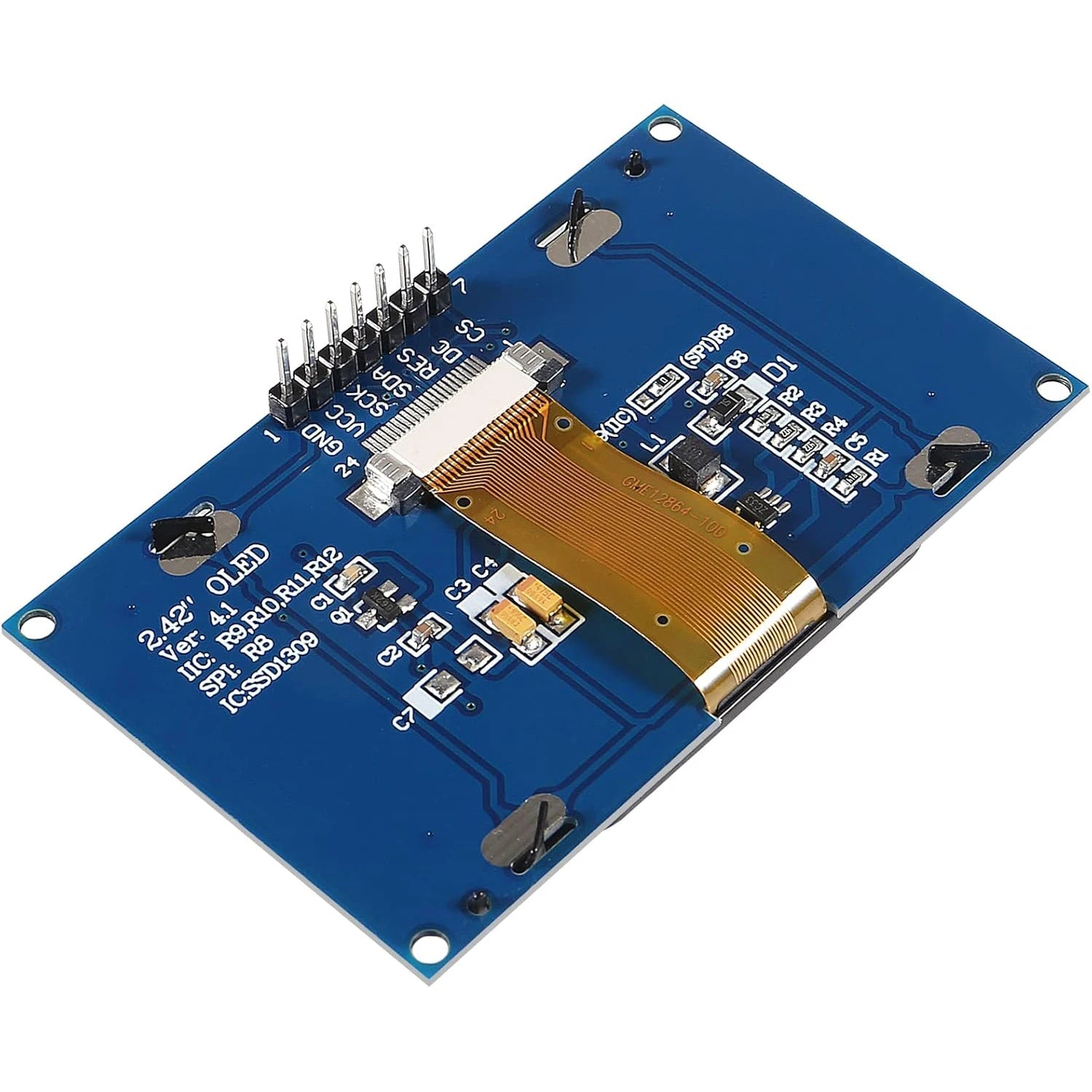

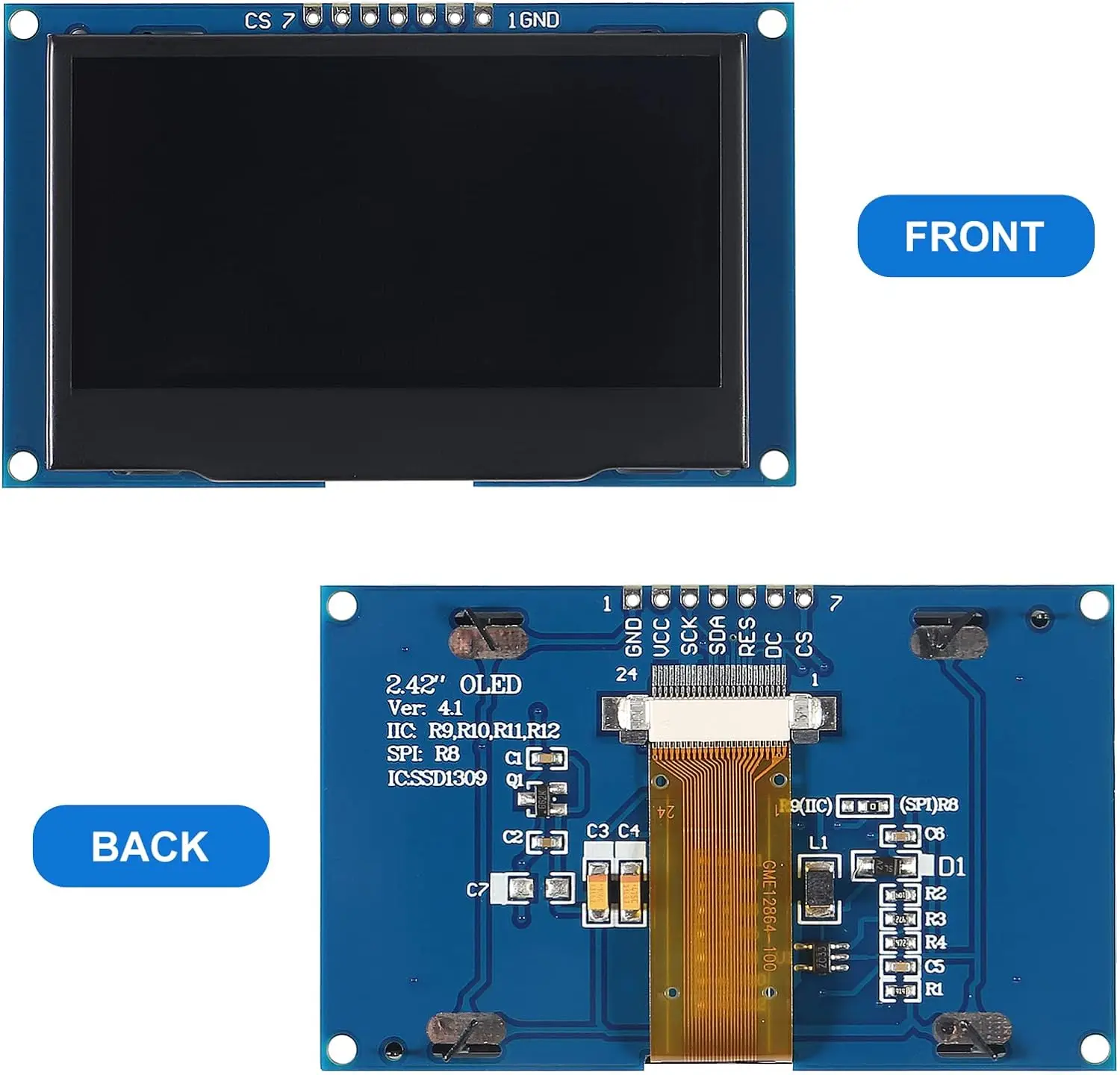

SPI interface definition:

1.GND (power ground)

2.VCC (power supply positive)

3.SCL (clock line)

4.SDA (data line)

5.RES (reset line)

6.DC (data / command)

7.CS (chip select)

Package Included:

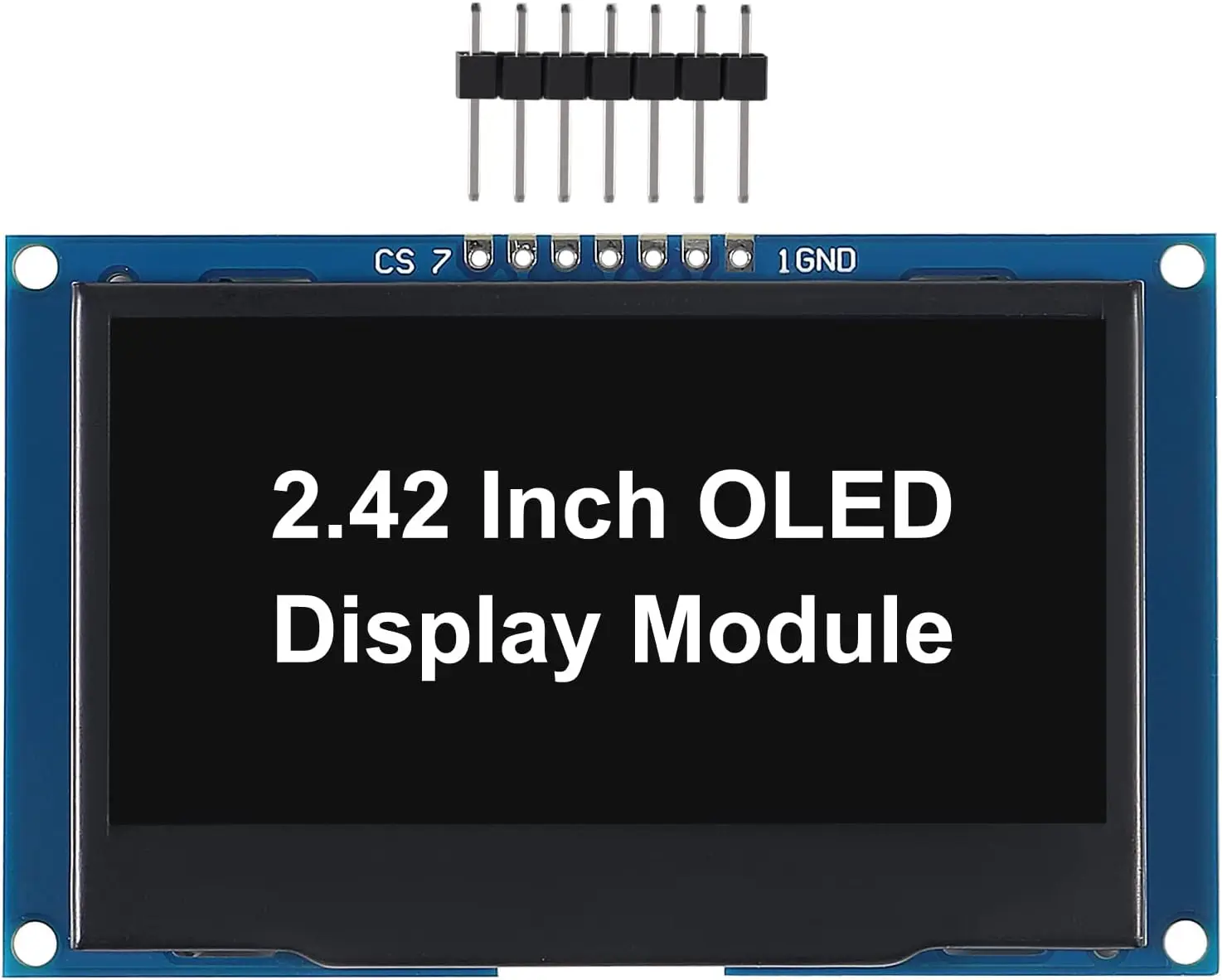

1 * 2.4inch OLED LCD Display Module for Arduino
