2/4/6PCS 50A 120A 175A 350A DC Plug Battery Quick Connect Disconnect Connector 600V Towing Winch Quick Connect Wire Harness Plug
Gray / 175A / 4PCS
$117.44
Sale price
$117.44
Regular price
$0.00
Skip to product information
Specification:
2/4/6PCS 50A 120A 175A 350A DC Plug Battery Quick Connect Disconnect Connector 600V Towing Winch Quick Connect Wire Harness Plug
$117.44
Sale price
$117.44
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: TAKORI
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: 50A/120A/175A/350A Anderson Connector
Origin: Mainland China
Rated currrent: 50A/120A/175A/350A
Rated voltage: 600V
Terminal material: Silver-plated Copper
Voltage: 415 V
semi_Choice: yes
2/4/6PCS 50A 120A 175A 350A DC Plug Battery Quick Connect Disconnect Connector 600V Towing Winch Quick Connect Wire Harness Plug
>> Features
1. Genderless design,no male and female design, quick to connect or disconnect
The connectors are genderless, 2 pieces are equal to one pair
(flip one 180 degrees and they will mate to each other)
2.Easy to Connect and disconnect,good conductivity
3.Will not heat up while use.
4.Charging process is safe,easy,quick.
Please note:
1. This connector can be connected for andersons connector
2. This connector is genderless design, 2pcs is equal to one pair. but different color has different port, so pls buy the same color and amperage for pairing
>> PRODUCT DESCRIPTION
Specification:
Condition: New and High qaulity
Voltage: 600V (Max)
Voltage: 600V (Max)
Interface type: AC/DC
Material: Shell: flame retardant PC, stainless steel. Terminal pins: Silver plated pure copper.
Vibration Resistance: Excellent
Impact Resistance: High
Fire resistance: UL94V-0
Fire resistance: UL94V-0
Operating temperature: -20 to 105°C
Color: Gray/Red/(optional)
Rated current: 50A/120A/175A/350A (optional)
Terminals pin size: (optional)
50A: 6AWG, (suit for 6-12AWG cable )
120A:2AWG (suit for 2-6AWG cable )
175A: 1/0AWG (suit for 1/0-4 AWG cable )
350A: 2/0AWG
Package:
1pcs = 1* Connector plug + 2* Terminal Pins
1pcs = 1* Connector plug + 2* Terminal Pins
TECHNICAL PARAMETER
Model No |
50A |
120A |
175A |
350A |
Color |
Grey/Red |
Grey/Red |
Grey/Red |
Grey/Red |
Rated current |
50A(AC/DC) |
120A(AC/DC) |
175A(AC/DC) |
350A(AC/DC) |
Rated Voltage |
600V |
|||
Contact Materials |
Copper Plating Silver |
|||
Shell Materials |
PC |
|||
Fire rating |
UL94V0 |
|||
Size(L*W*H)(mm) |
48.2*35.2*18mm |
64*46.5*21mm |
79*53.6*25mm |
108*67*33.3mm |
Cable Size(AWG) |
10-6AWG |
6-2AWG |
4-0AWG |
0-00AWG |
Cable Size(mm²) |
6-16mm² |
16-35mm² |
25-50mm² |
50-70mm² |
Genderless design
The connectors are genderless, 2 pieces are equal to one pair
(flip one 180 degrees and they will mate to each other)

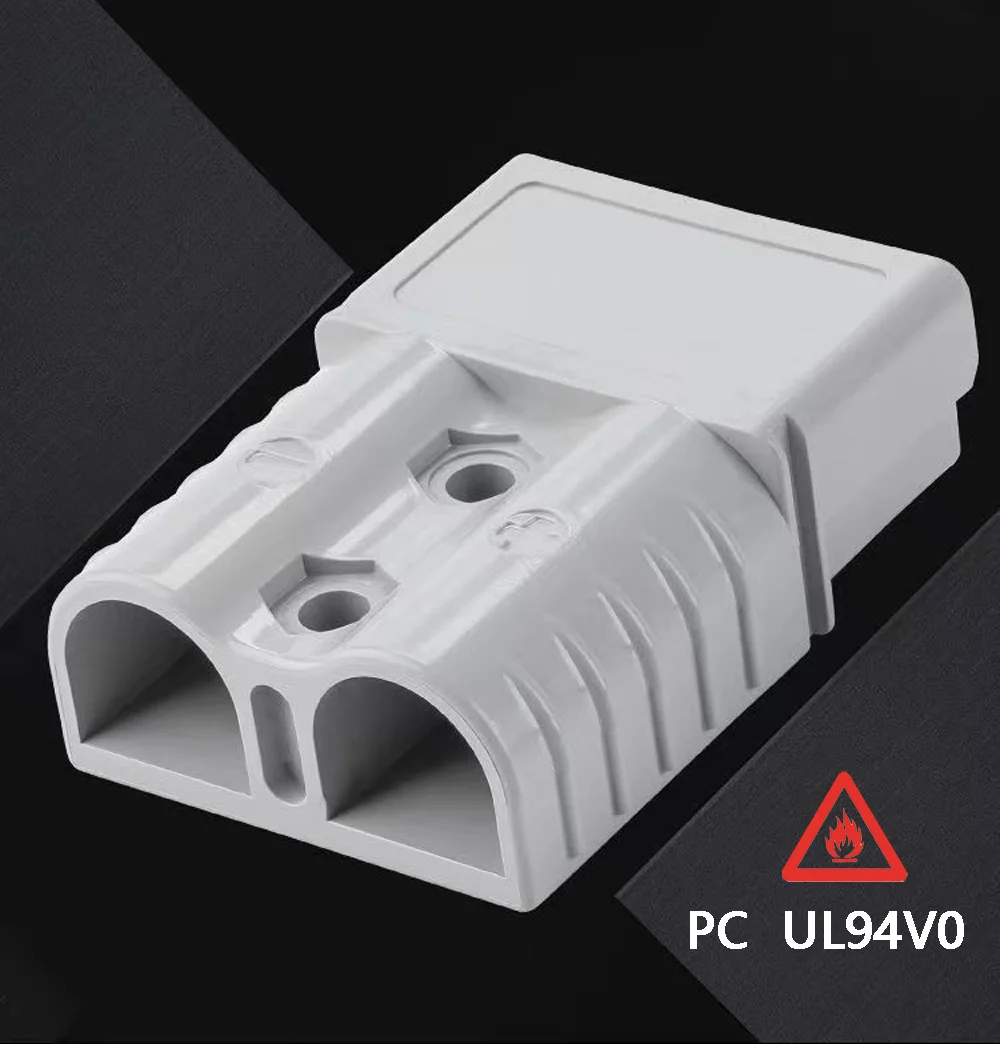

Flame retardant PC shell
Made of high-quality UL94V-0 flame retardant material, lightweight, durable, safe, wear-resistant and pressure-resistant.

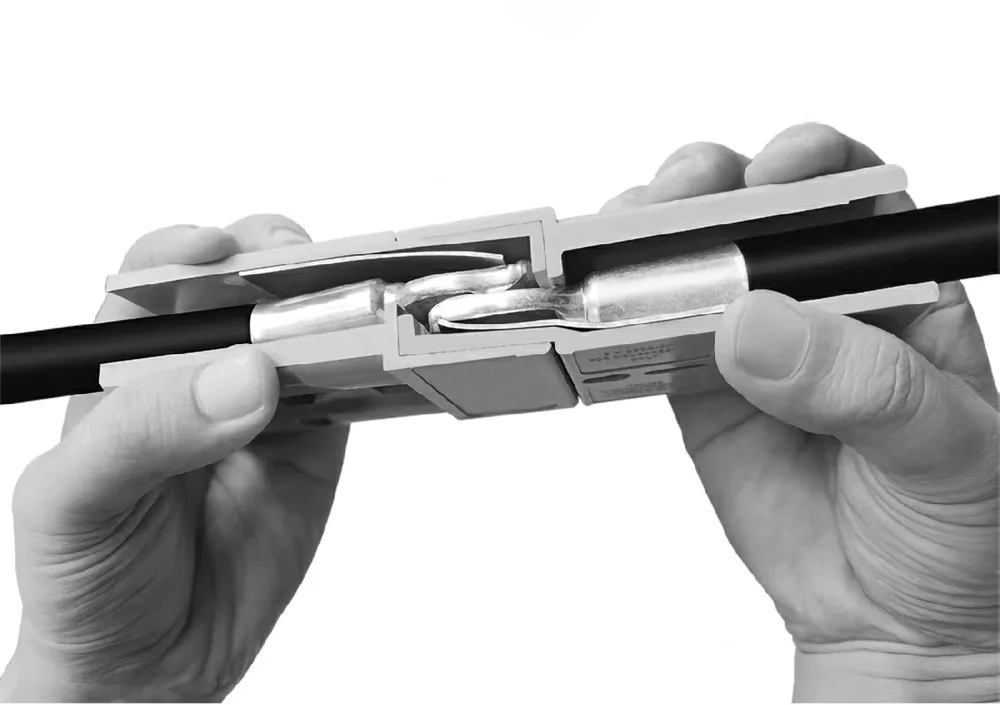

Silver-plated Copper Termina
Thickened silver-plated copper terminal
greatly enhances electrical conductivity
❤
