SPECIFICATIONS

Brand Name: NONE

Choice: yes

Compatible Audio & Video Equipment Style: Display Equipment

Electronic: no

High-concerned chemical: none

Model Number: FZ6468

Origin: Mainland China

Type: Bluetooth,WIFI

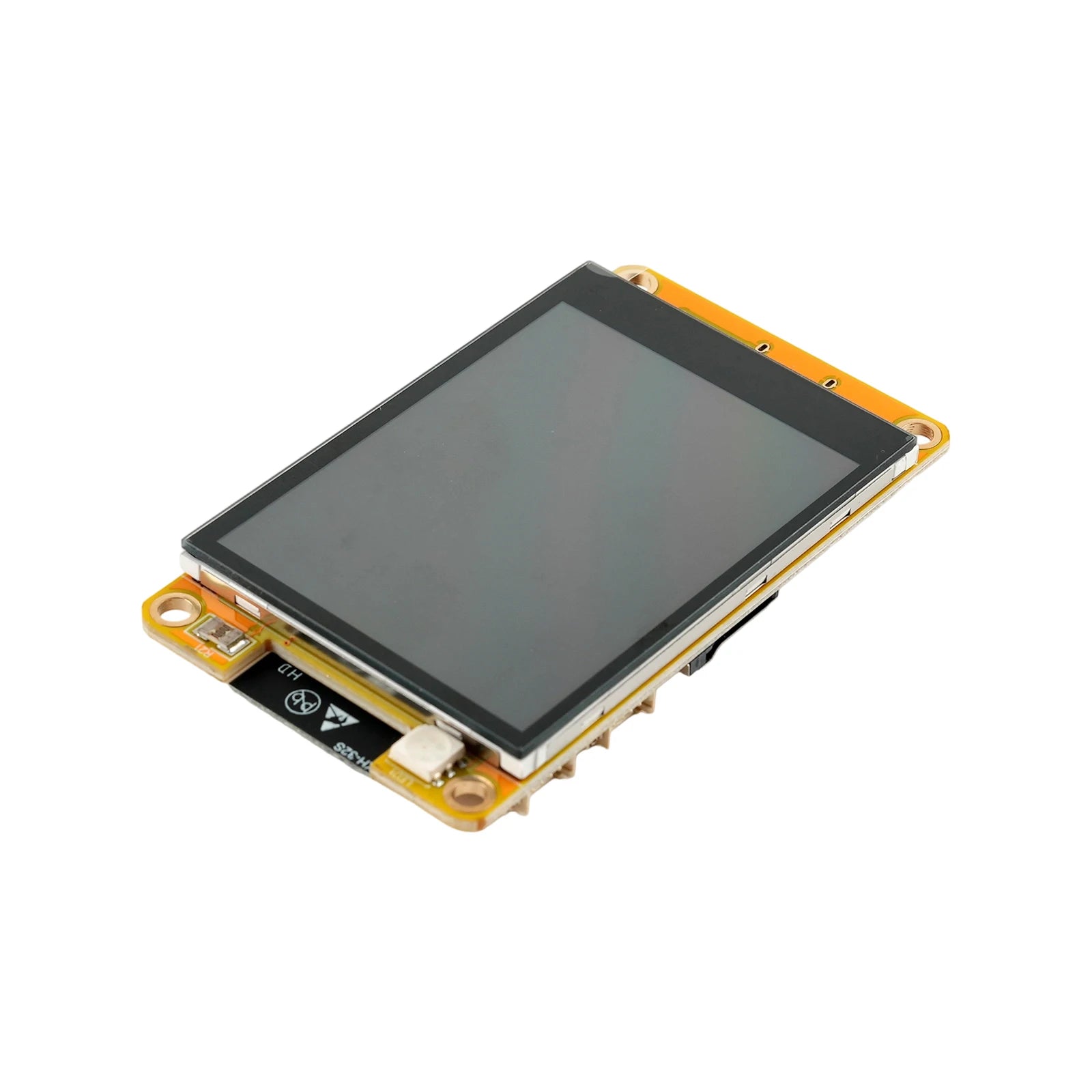

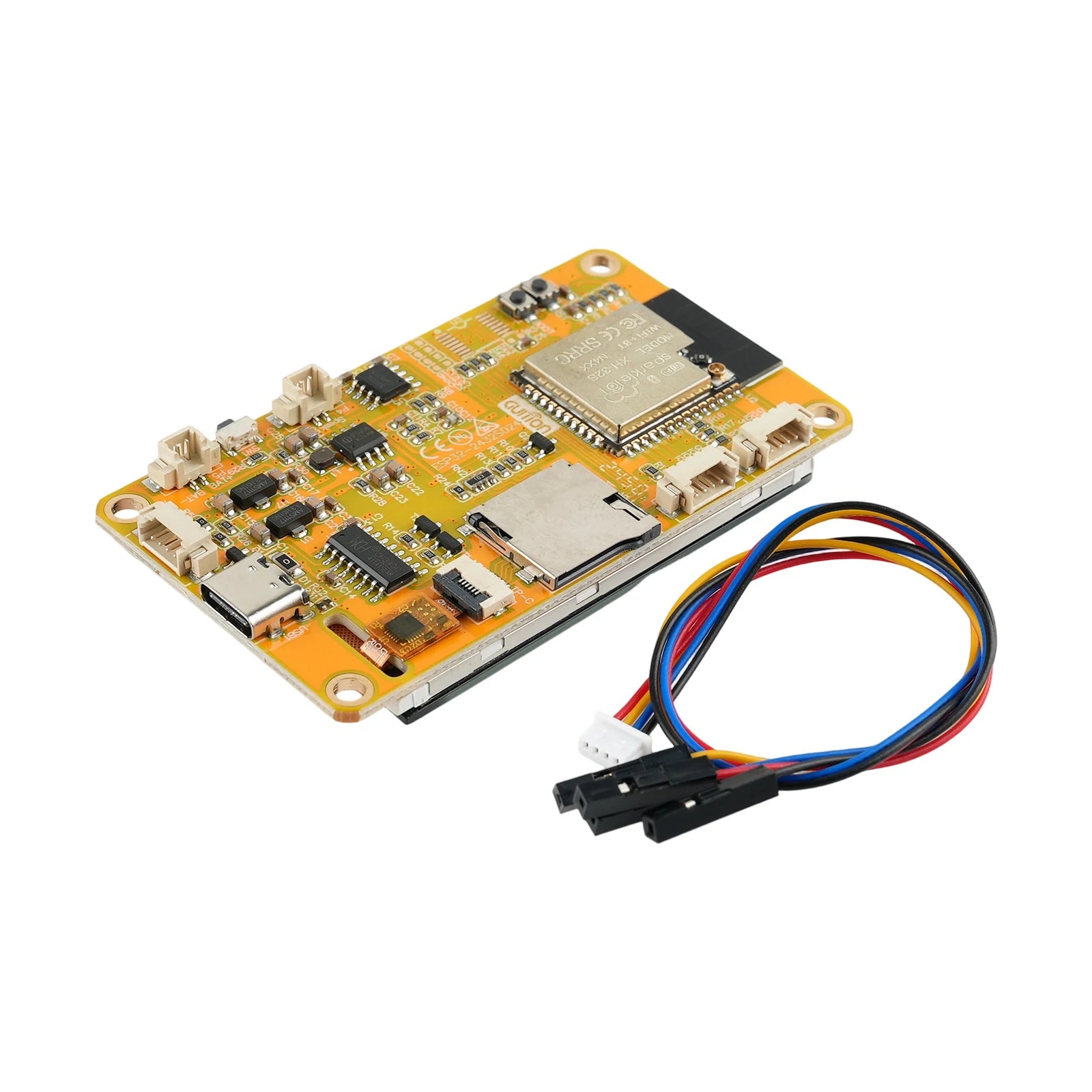

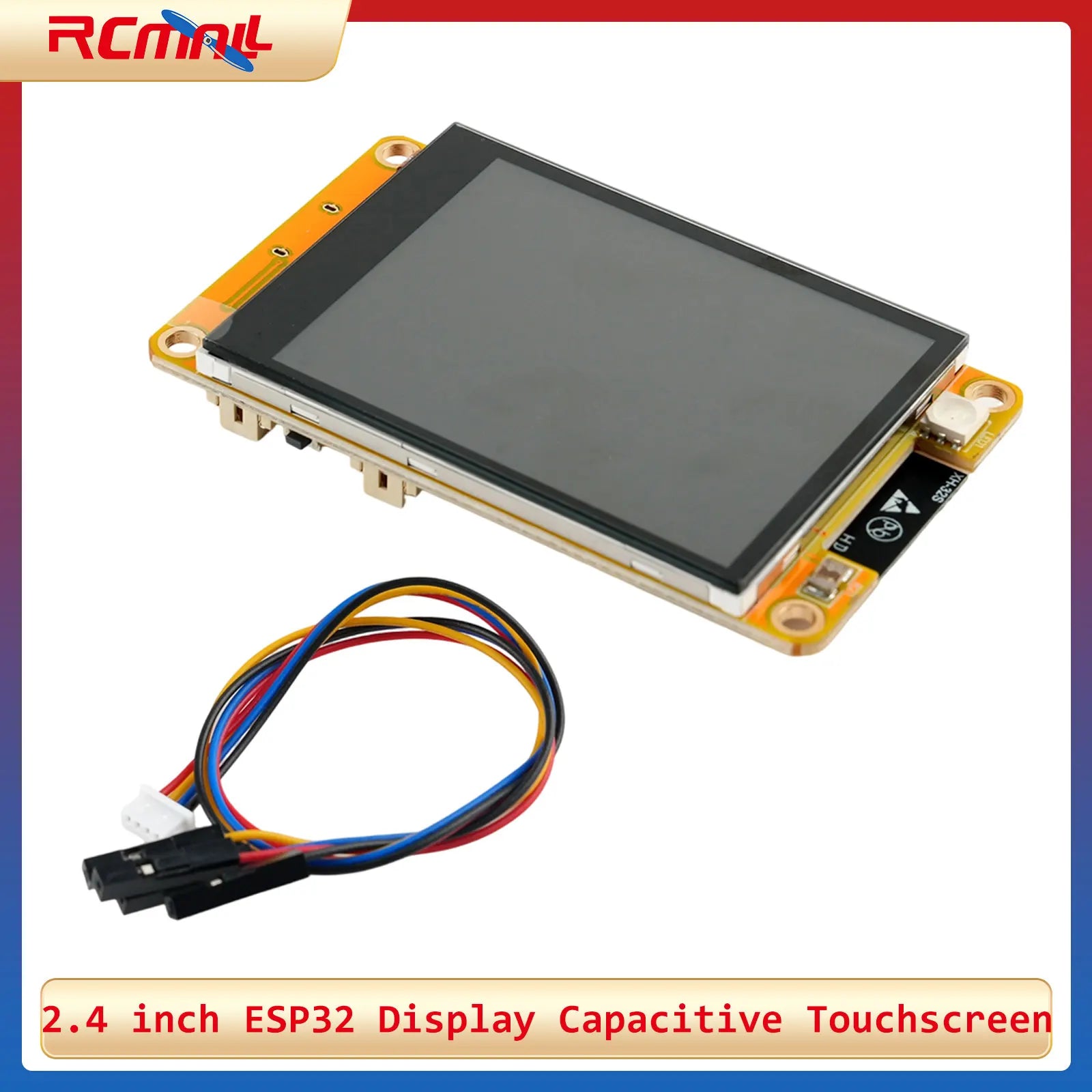

2.4 inch ESP32 Display WiFi+BT ESP32 Module ESP32-2432S024 240X320 ILI9341 Driver 2.4" Capacitive Touchscreen for Arduino IoT

Product description

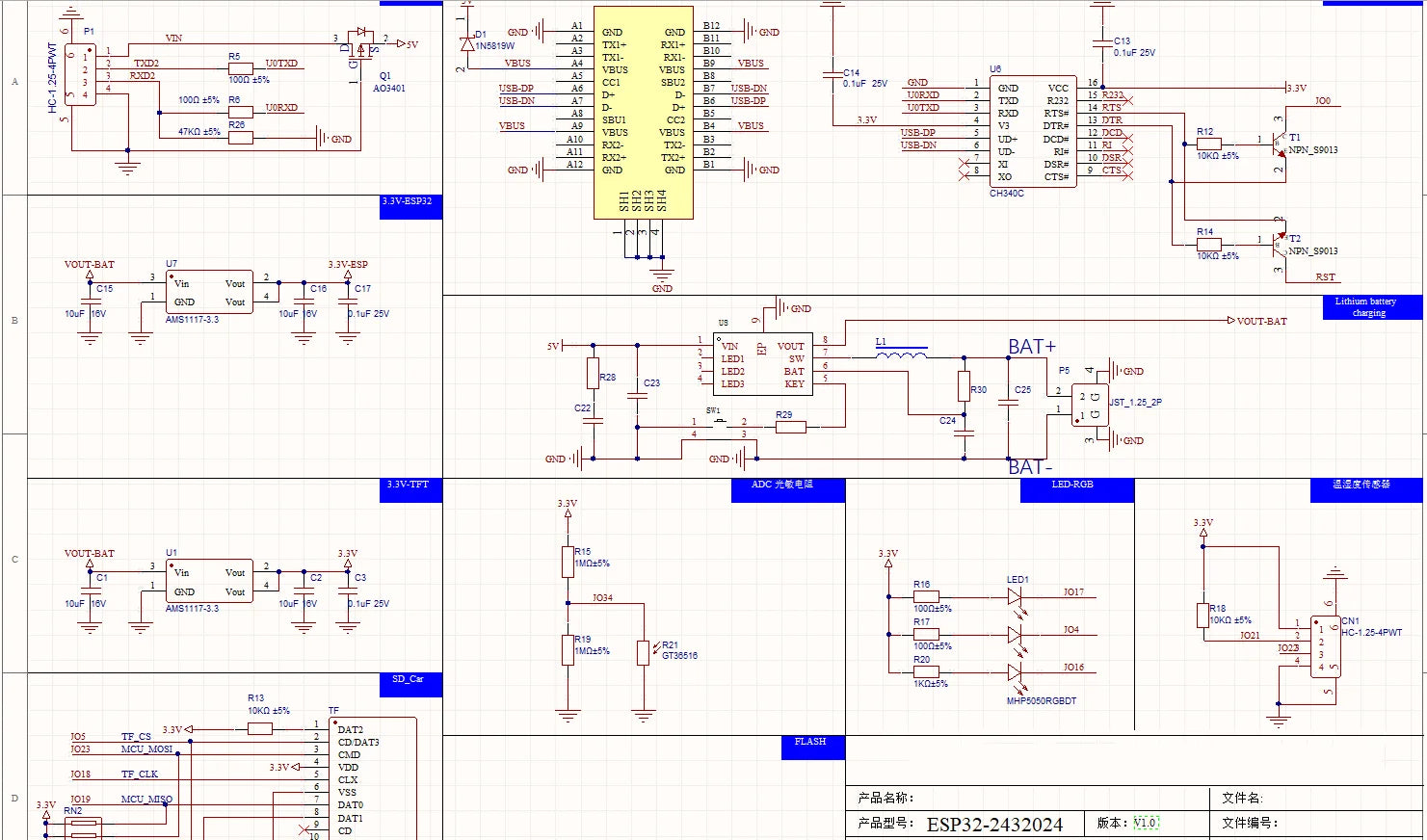

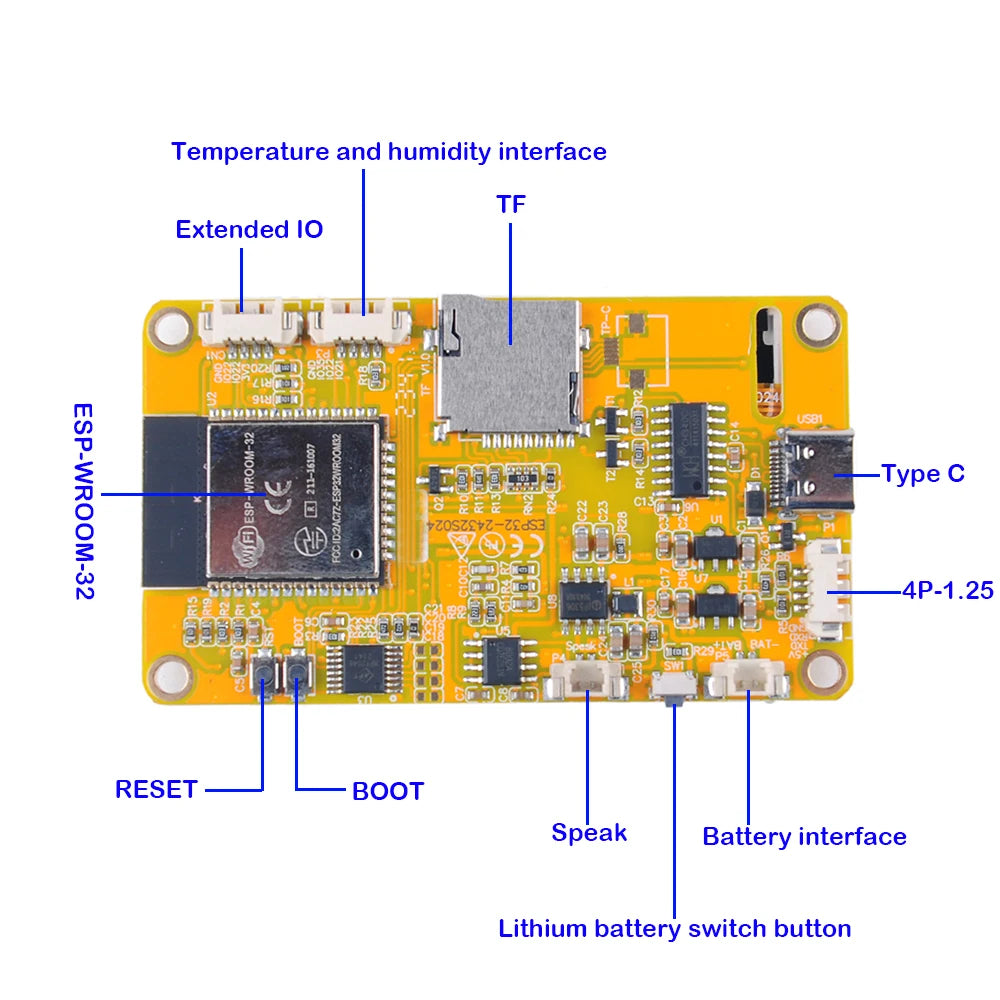

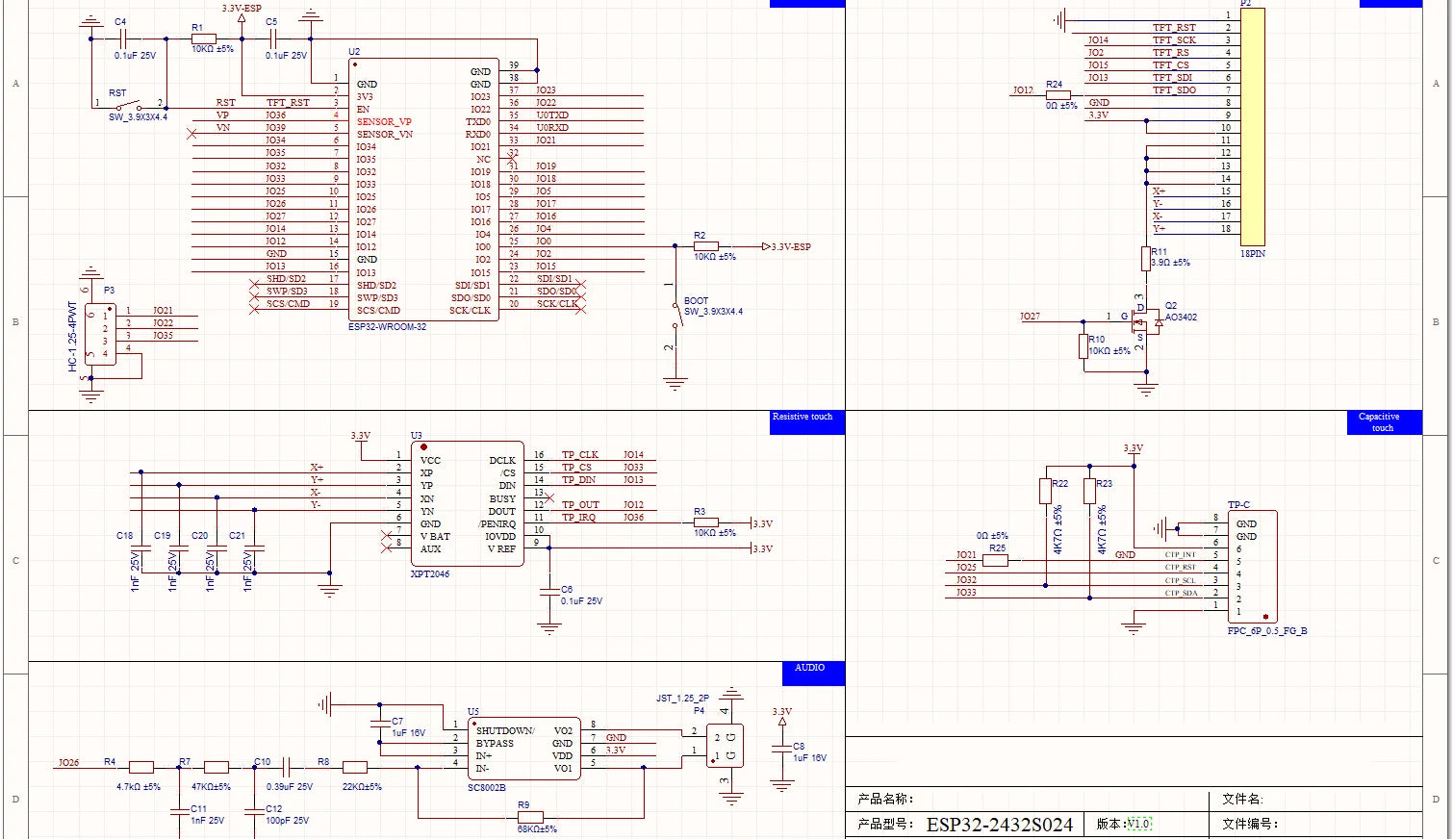

This LCD module uses ESP32 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Blue-tooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB, The display resolution is 240x320, resistive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit. TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface, this module supports development in arduino-IDE, ESP IDE, Micropython-and-Mixly.

Features
● 2.4-inch color screen, support 16 BIT RGB 65K color display, display rich colors
● 240X320 resolution
● The sample program has been programmed in the factory and can be plugged in
● With TF card slot for easy expansion storage
● Provide arduino library functions and sample programs to facilitate rapid secondary development
● Support one-click download program
● Military-grade process standards, long-term stable work
● Supports lithium battery power supply, supports both charging and discharging, and has over charging and over discharging protection

Product parameters:
Name	Describe
Display color	RGB 65K color

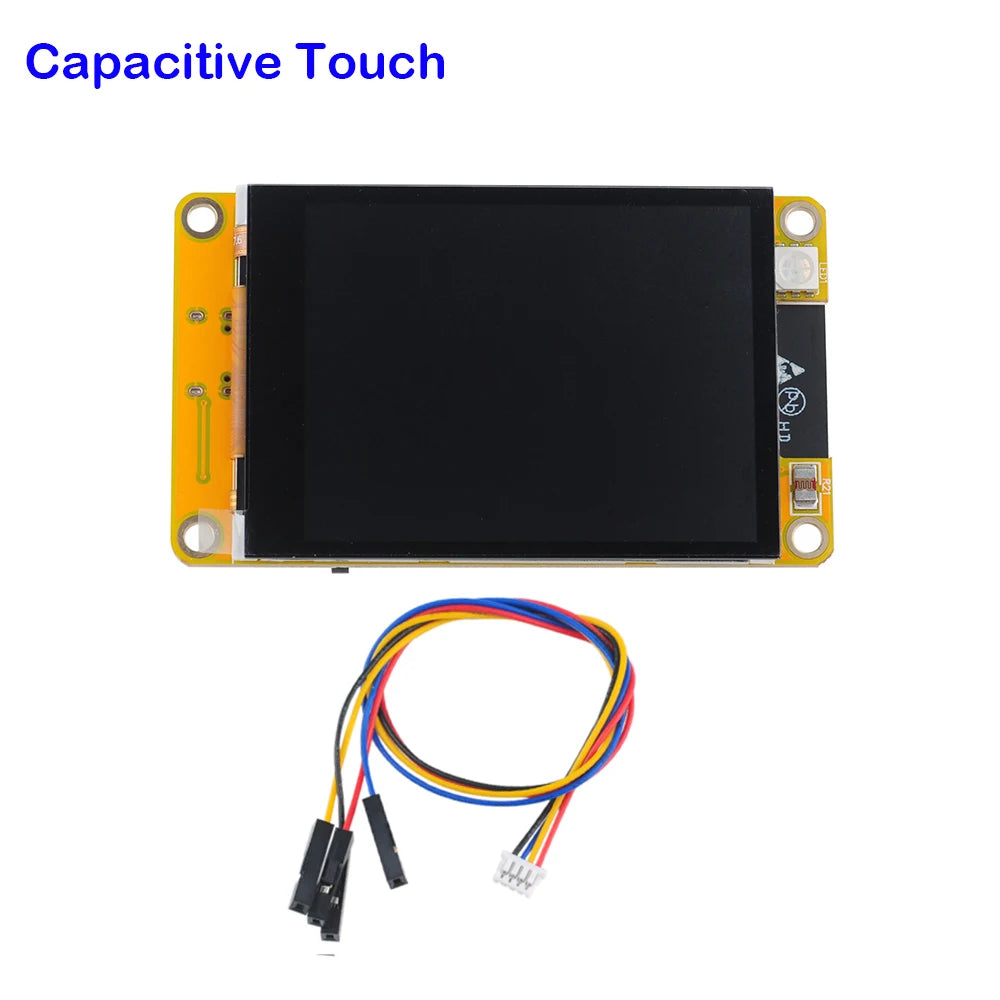

	Capacitive touch:ESP32-2432S024C
Size	2.4 inch
Type	TFT
Driver chip	ILI9341
Resolution	240*320(Pixel)
Effective display area	48.96*36.72(mm)

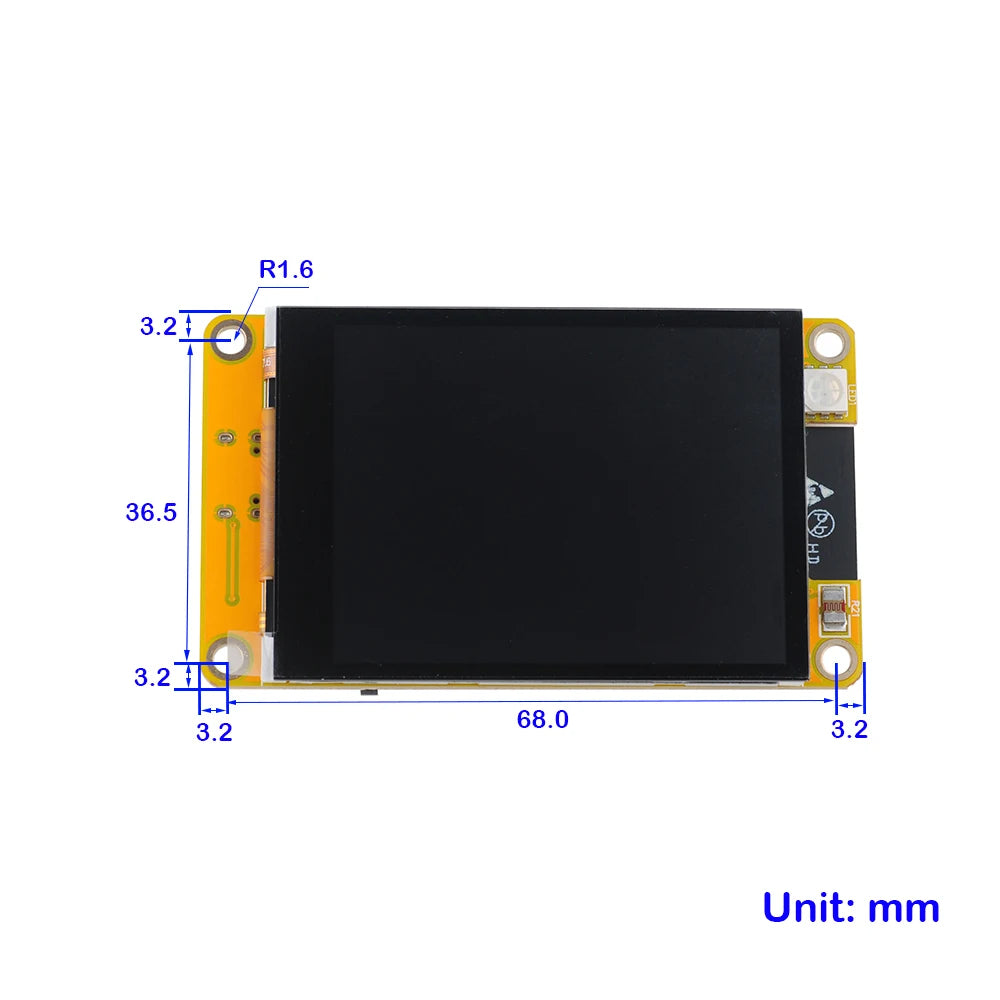

Module size	74.4*42.9(mm)
View	>60°
Operating temperature	-20℃~70℃
storage temperature	-30℃~80℃
Operating Voltage	5V
Power consumption	About 100mA
Product weight	About 40g
