SPECIFICATIONS

Description

For the touch sreen, the area about 0.5 cm from the edge of sreen may not be touched.

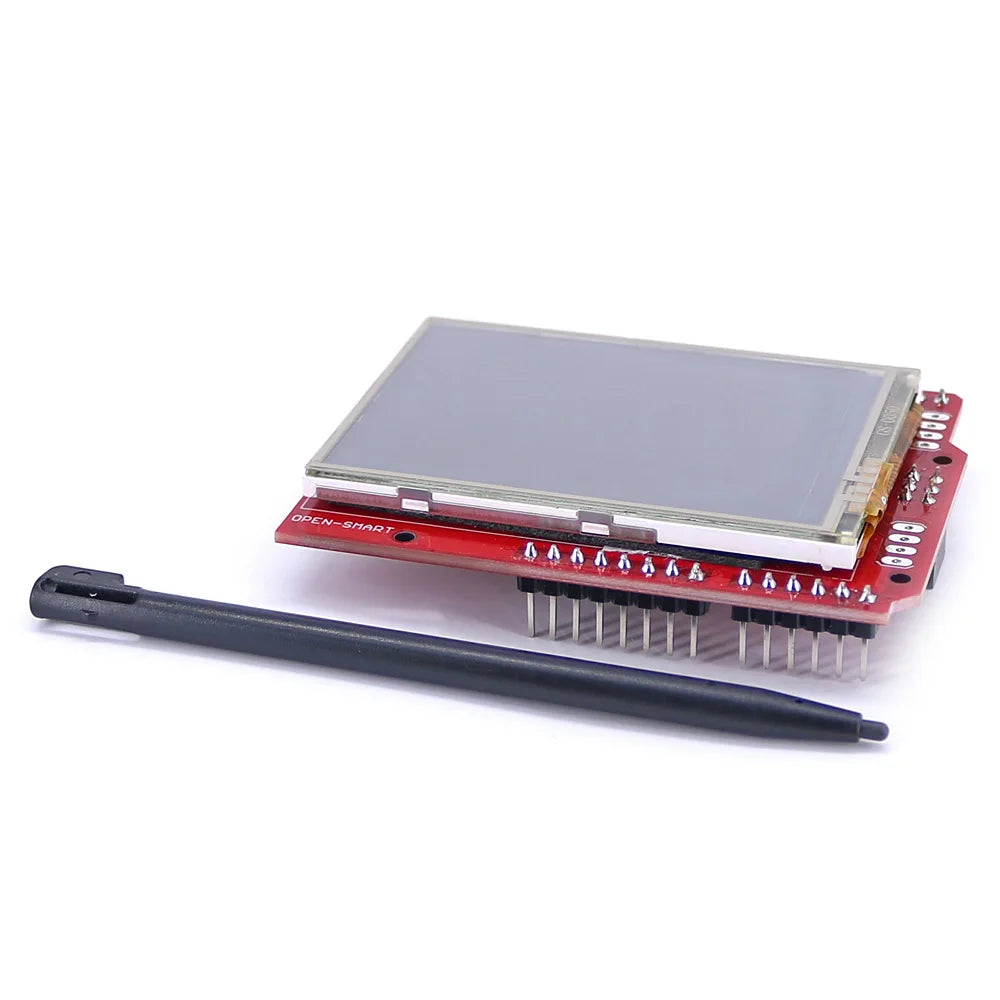

This is a 2.4 inch TFT touch screen expansion board using standard Shield interface and it has good compatibility for Arduino.

It integrates a 2.4-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is less difficult.

With GPRS module, you can design your DIY phone.

With NFC reader module, you can create access control systems with the photos show.

- Can use it directly to display characters, graphics and BMP format images. And touch controlling is available;

- Compatibility: As the SD card is connected to SPI pins of ICSP interface, compatible for the Board.

-  library: TFTLib and Adafruit_GFX;

- Touch screen type: resistive touchscreen.

- Touch Pen: length is 9cm;

- Resolution: 240X320;

- Display size: 2.4 inch;

- Operating voltage: 5V;

- Logic level: 5V / 3.3V;

- On-board 3.3V / 300mA regulator circuit;

- Operating current: the maximum is 150mA

- Use the A0 ~ A3 pins, D4 ~ D13 pins. And I2C interface, D0 / D1 / D2 / D3 is available, please refer to the product schematics for the details.

- Onboard Micro SD slot, support Micro SD / TF Card;

- Onboard LM75 temperature sensor: default I2C address is 0X48, scale is -55 ~ 125'C

- Great for DIY

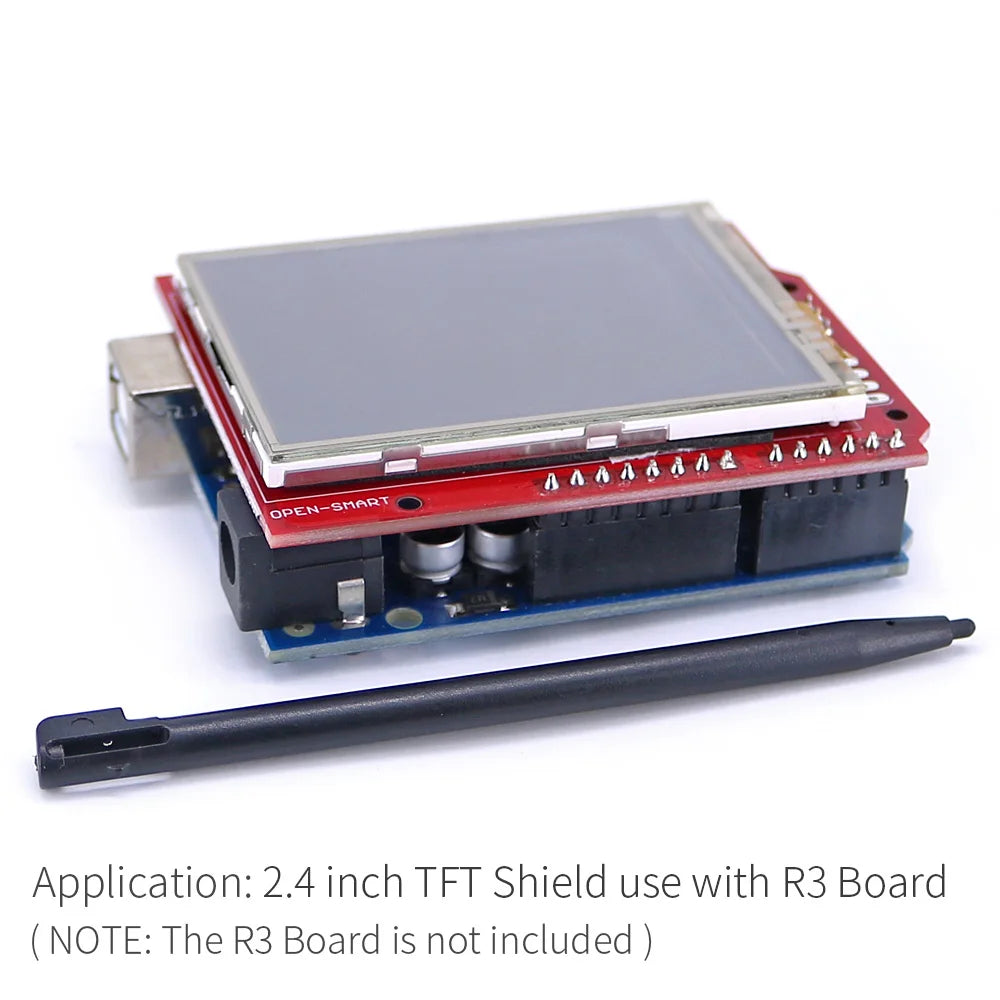

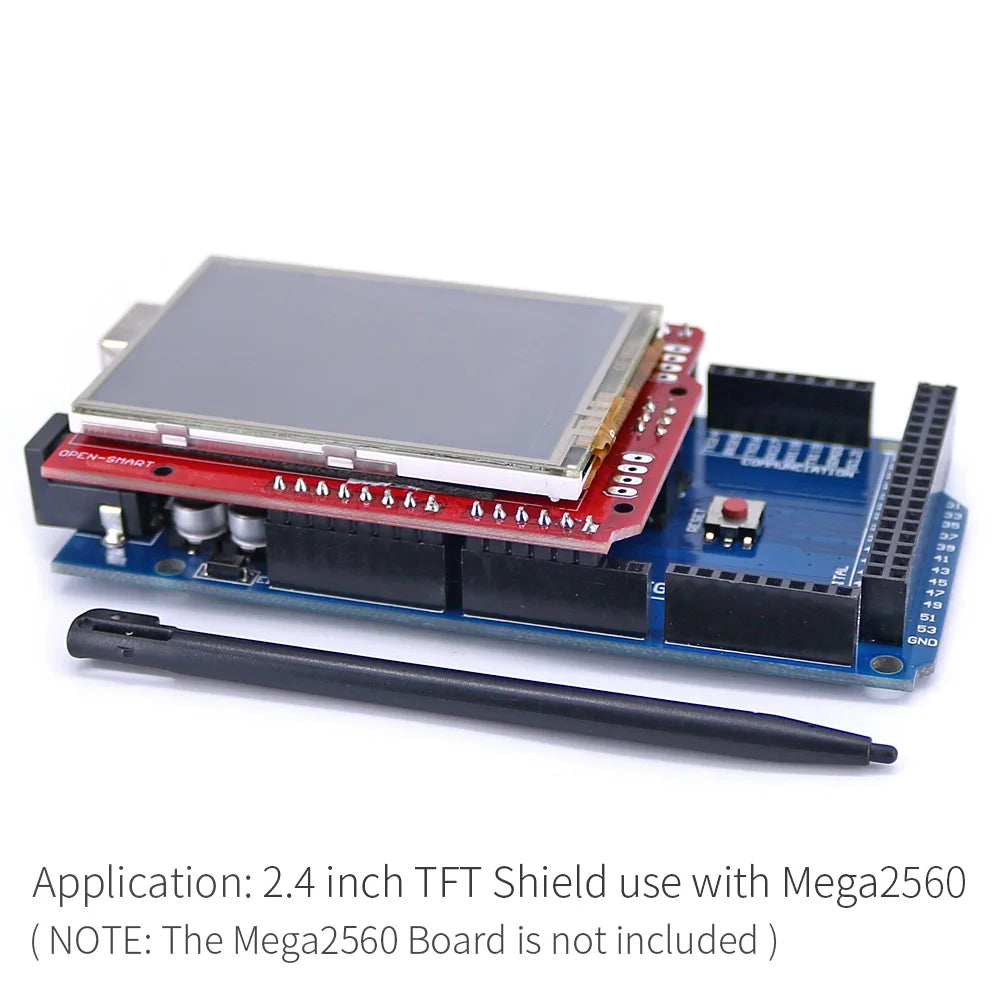

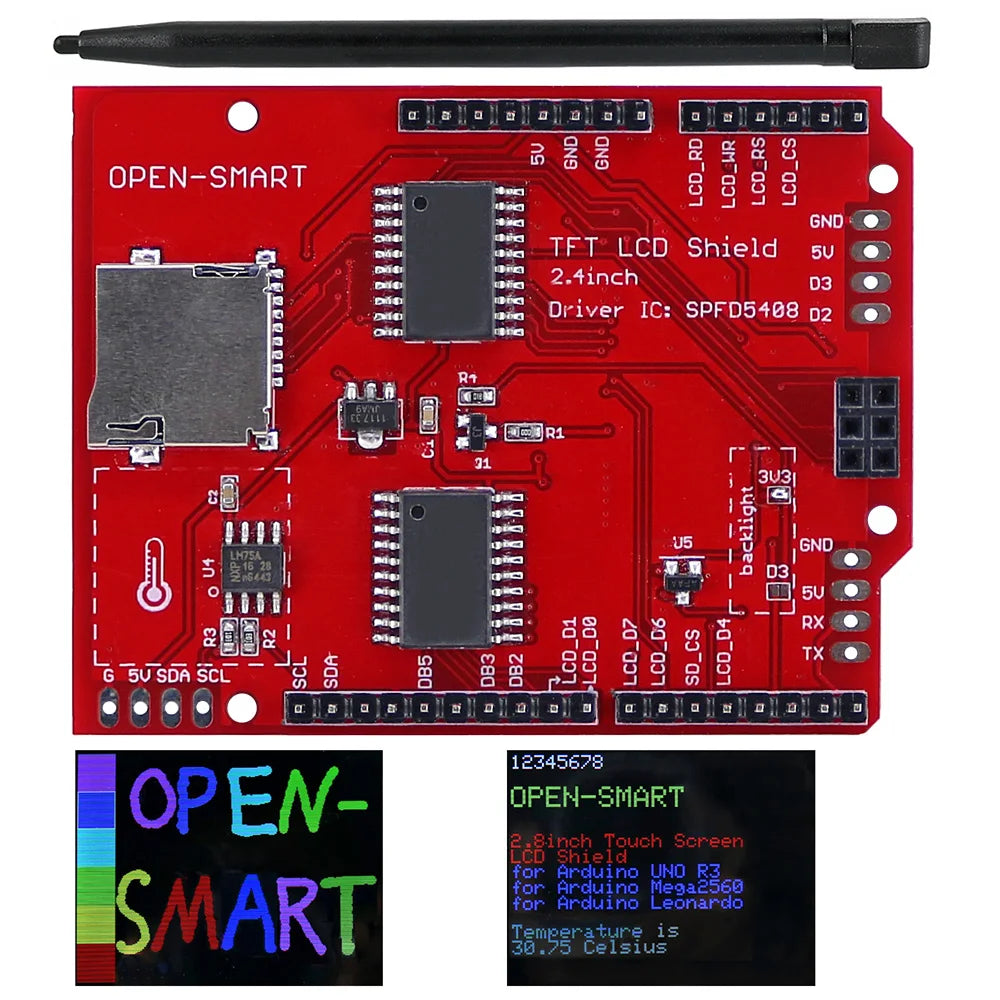

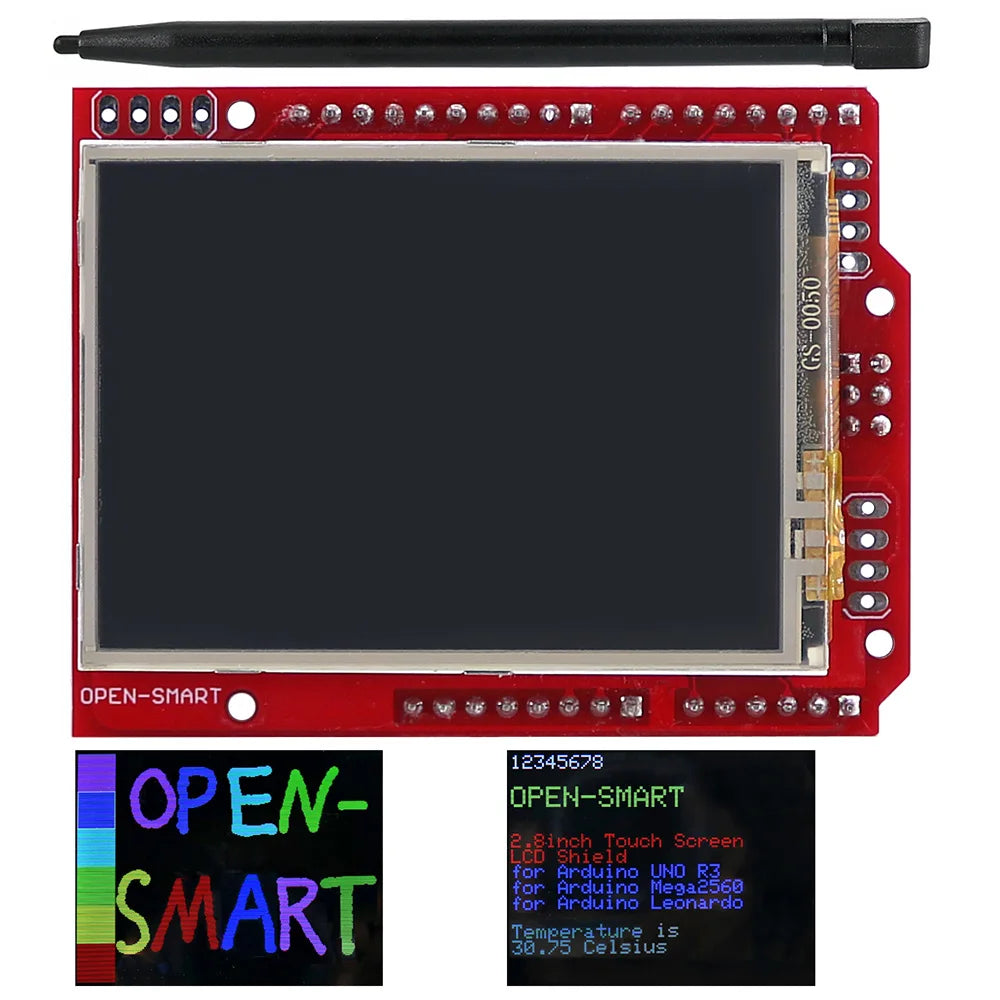

Photos

Part List(Schematics and program can be sent, Please contact us)

1 x TFT Shield
