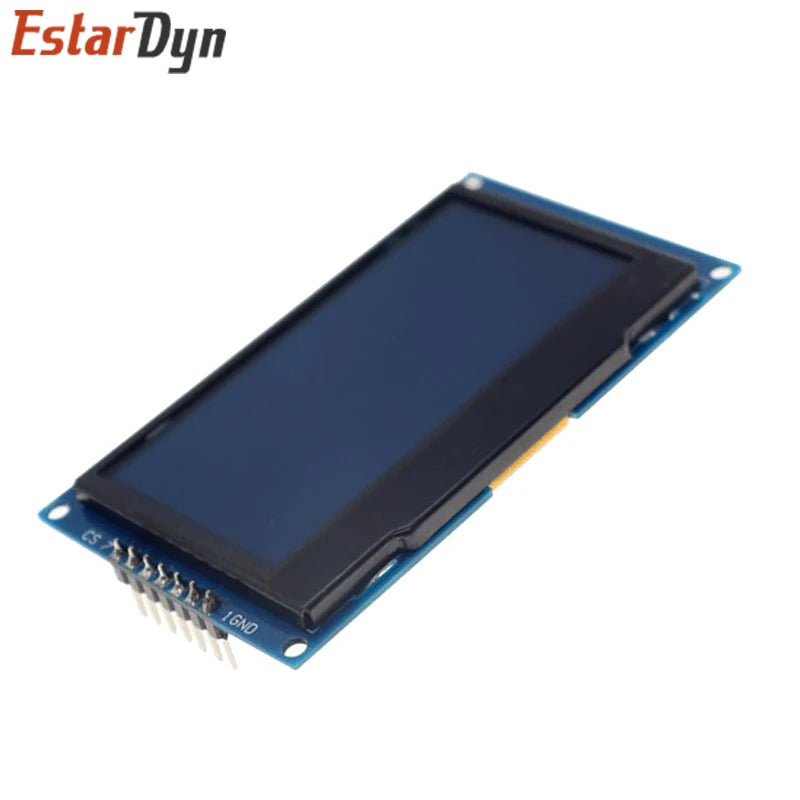

2.42 inch 2.42" OLED Display Module 128x64 LCD HD Screen Module SSD1309 7 Pin SPI/IIC I2C Serial Interface for UNO R3
White
$43.20
Sale price
$43.20
Regular price
$0.00
Skip to product information
2.42 inch 2.42" OLED Display Module 128x64 LCD HD Screen Module SSD1309 7 Pin SPI/IIC I2C Serial Interface for UNO R3
$43.20
Sale price
$43.20
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Estardyn
Display Mode: 128x64
High-concerned chemical: none
Model Number: 2.42 inch
Origin: Mainland China
Resolution: 128*64
Type: Standard
is_customized: Yes

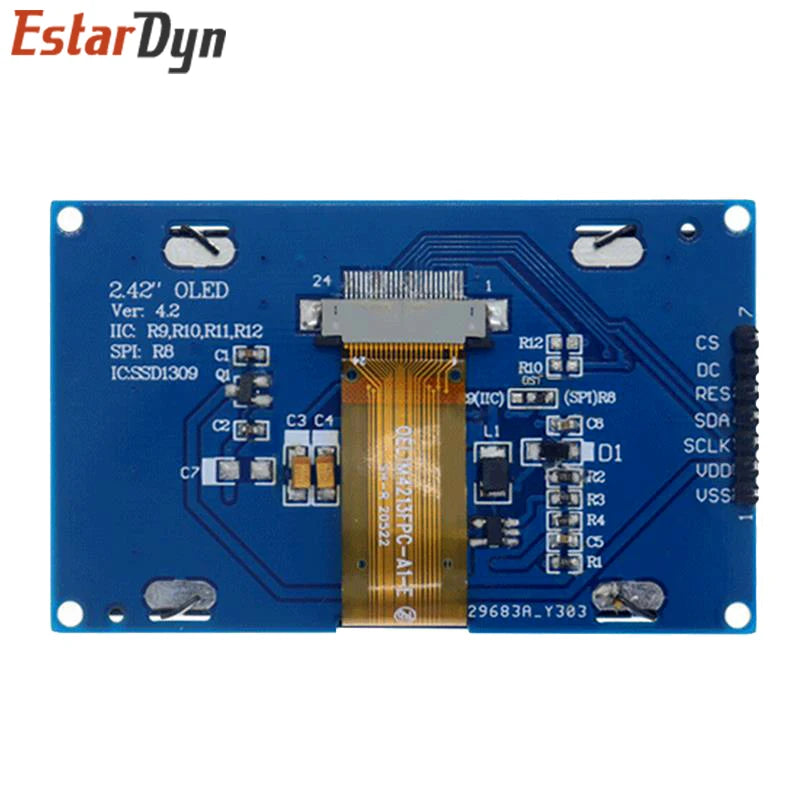

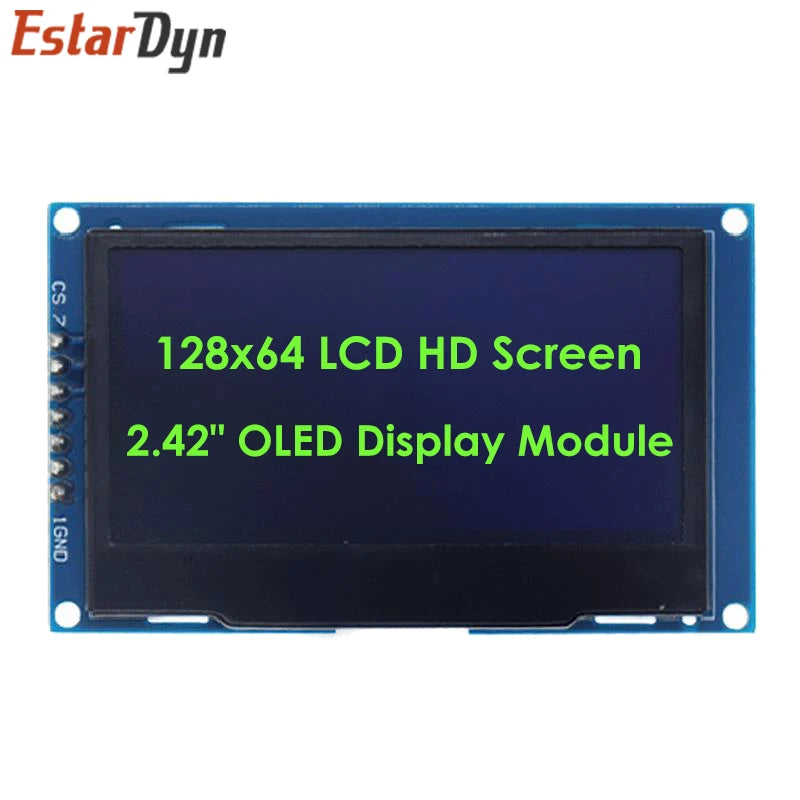

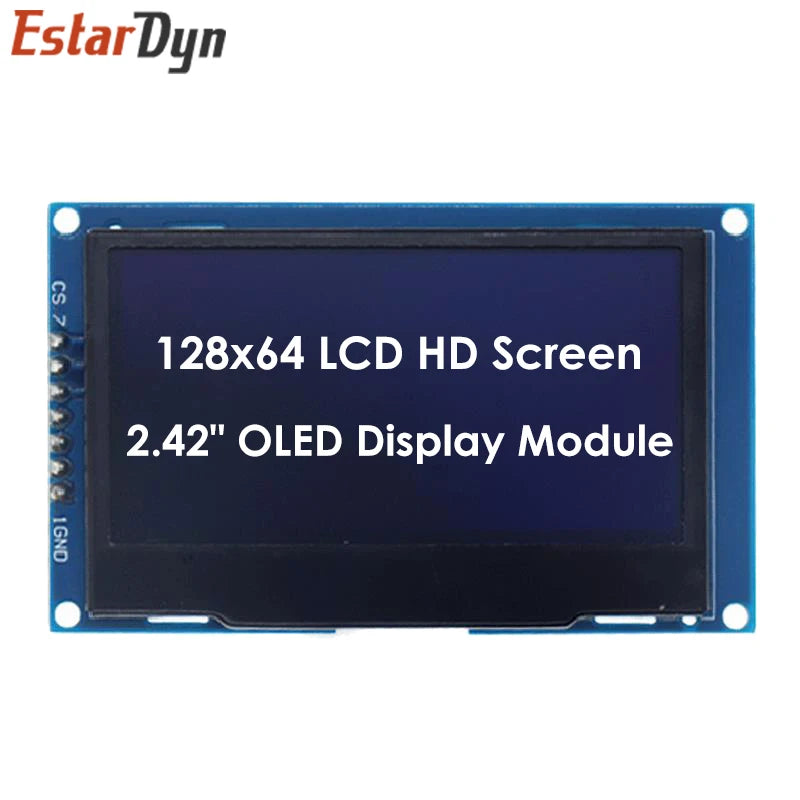

2.42" OLED Display Module
Driver chip SSD1309
Support interface IIC/SPI
Resolution 128×64
Display size 2.42 inches

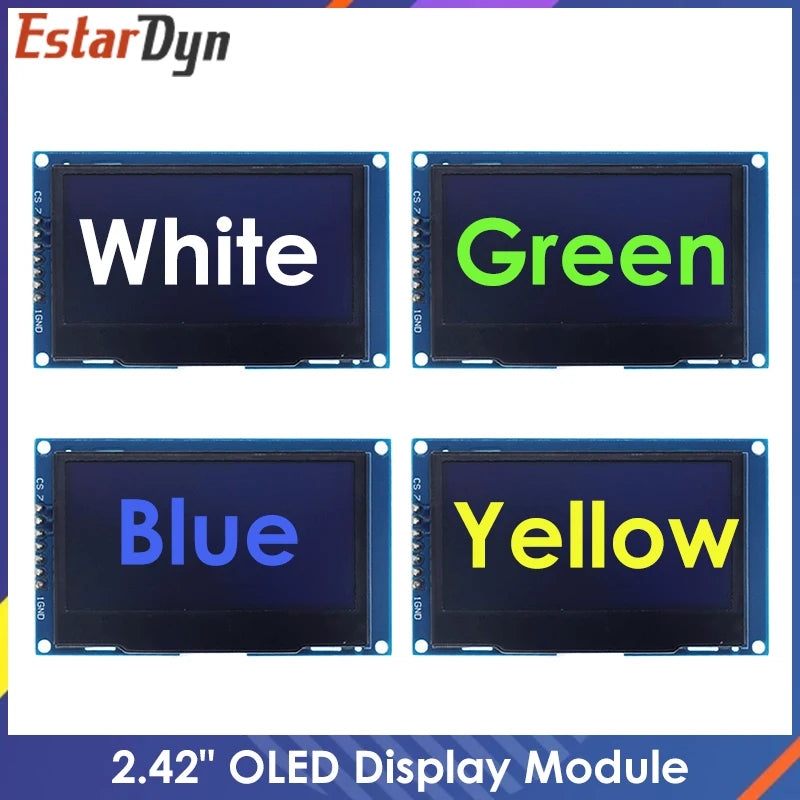

Display color: white/blue/yellow/green
Module size 71×43.5 (mm)
Glass size 60.5×37.00× (mm)
Display area 55.02×27.49 (mm)
Drive voltage 3.3-5V
Number of pins 7PIN
Viewing angle >160°
Working temperature -40℃~70℃
Storage temperature -40℃~80℃

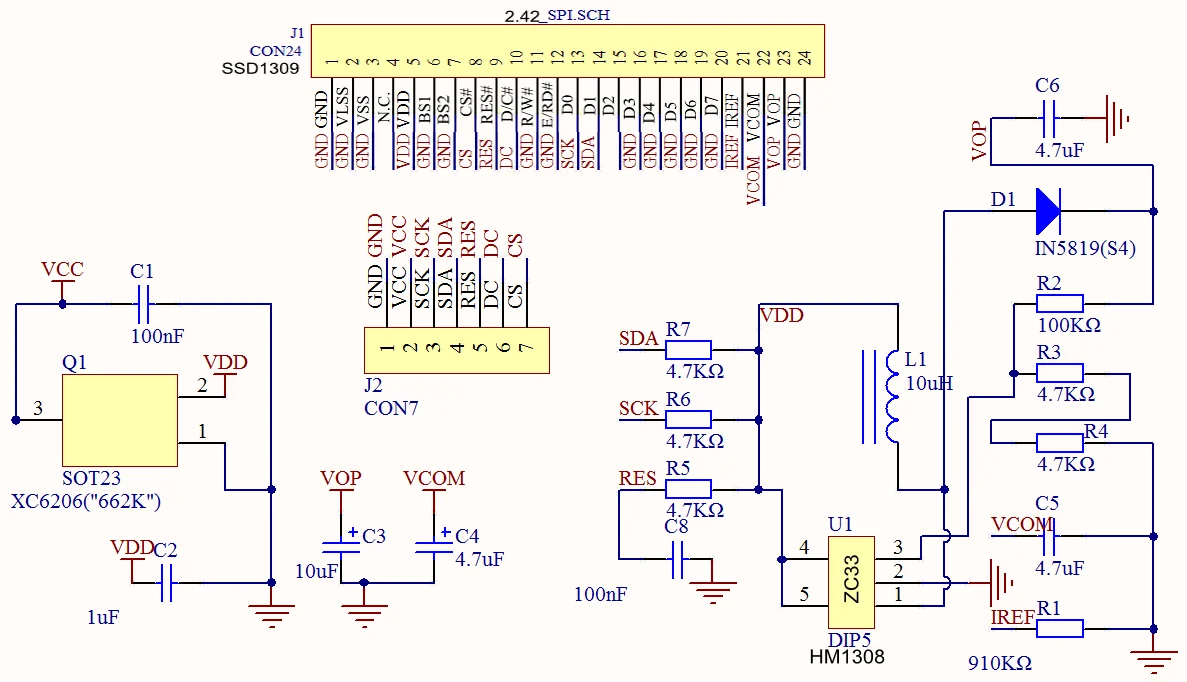

SPI Interface Definition:
1 GND - Power Ground
2 VDD - Power Supply Positive (2.8-5.5V)
3 SCK - Clock Line
4 SDA - Data Line
5 RES - Reset Line
6 DC - Data/Command
7 CS - Chip Select
