SPECIFICATIONS

Brand Name: NONE

Electrified: No

High-concerned chemical: none

Origin: Mainland China

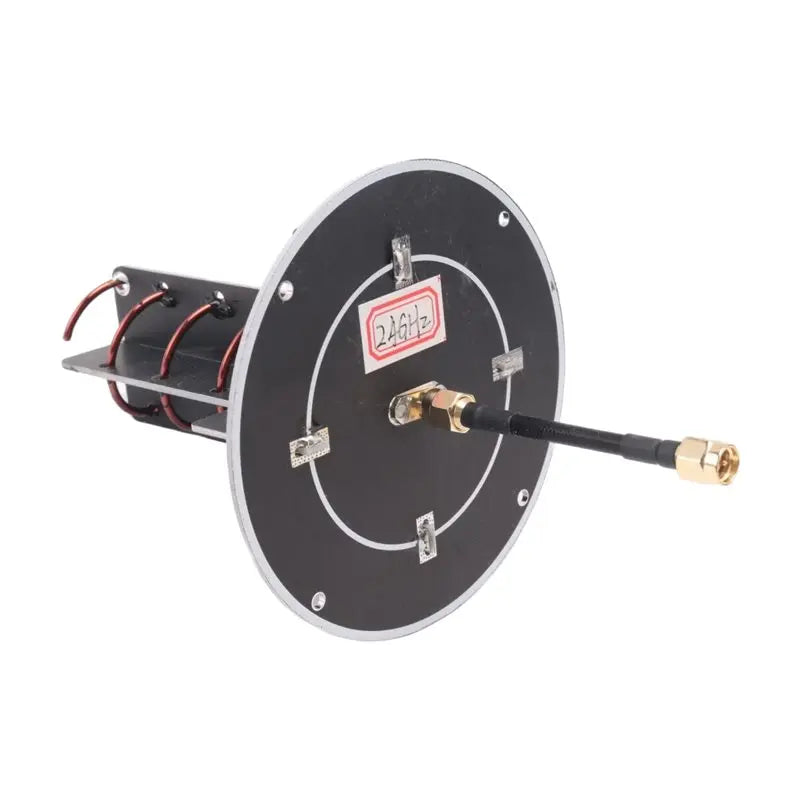

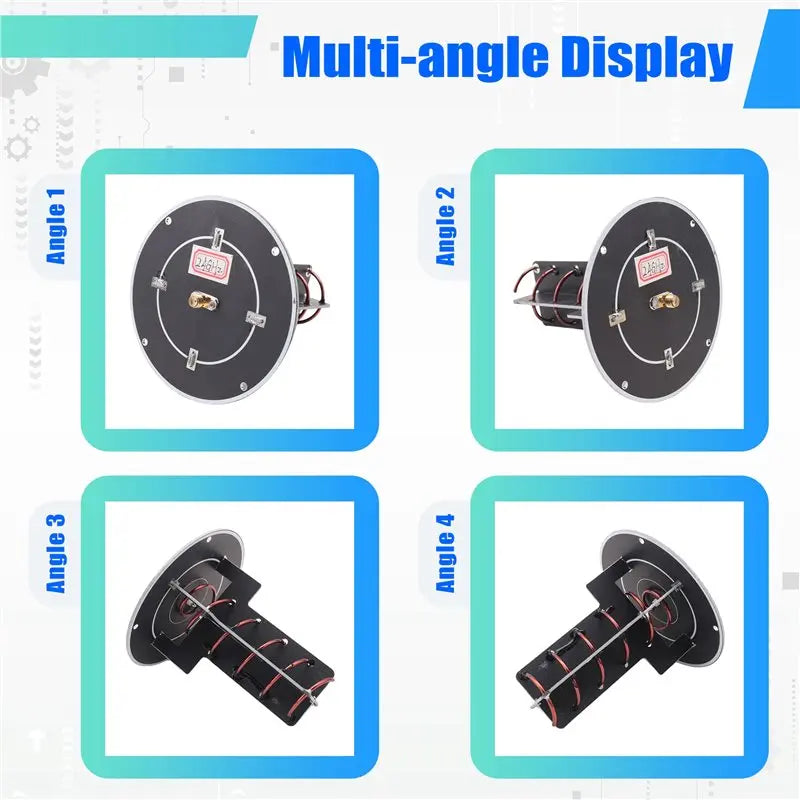

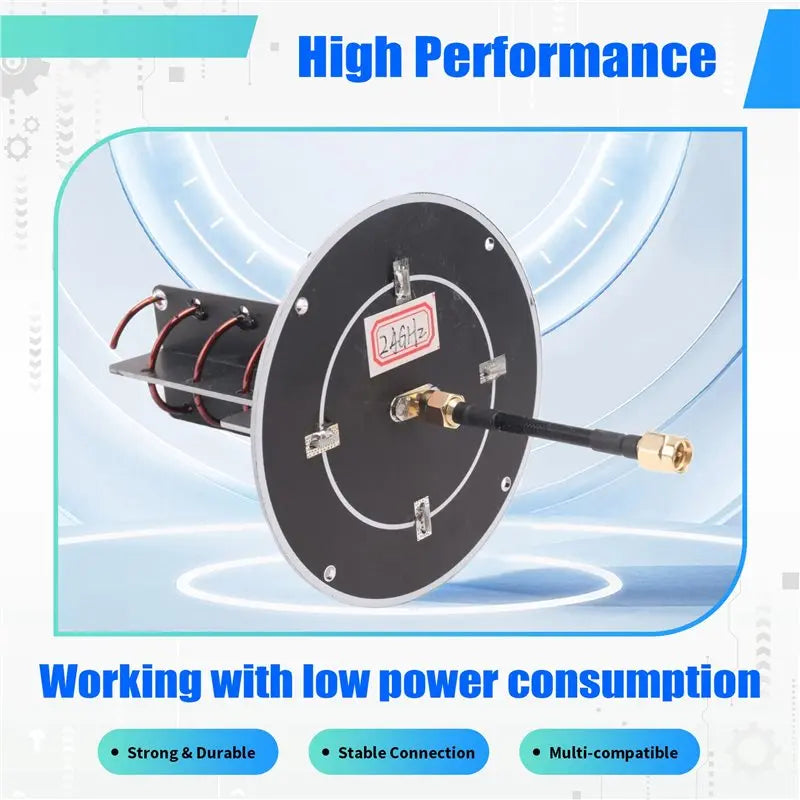

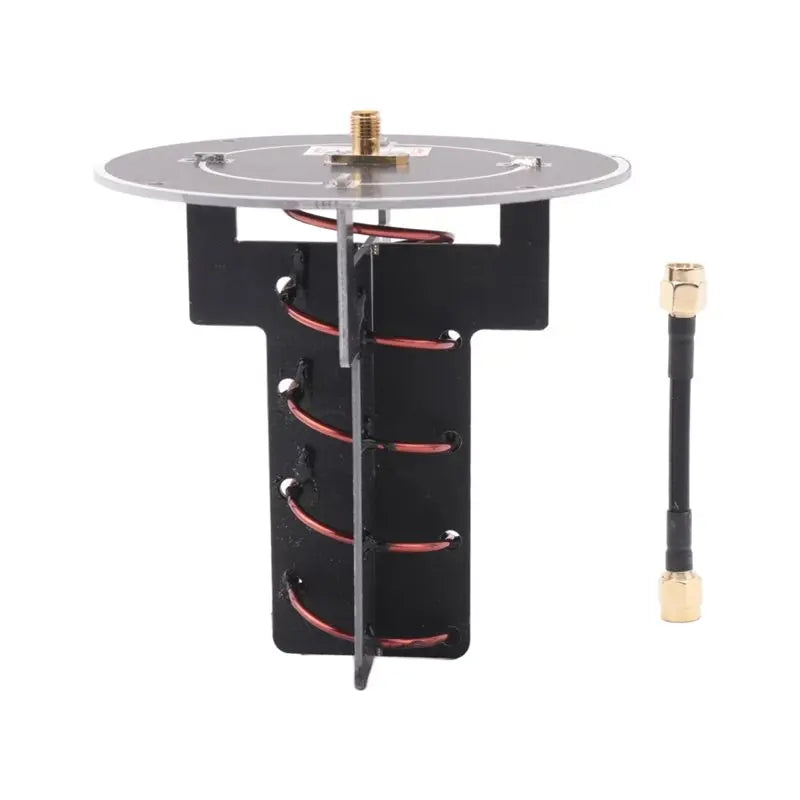

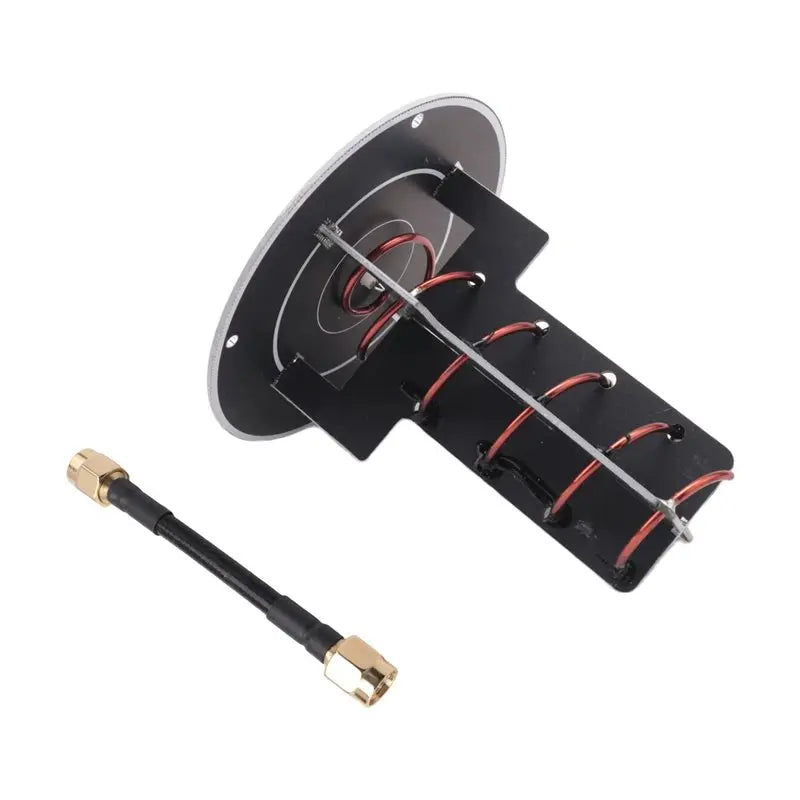

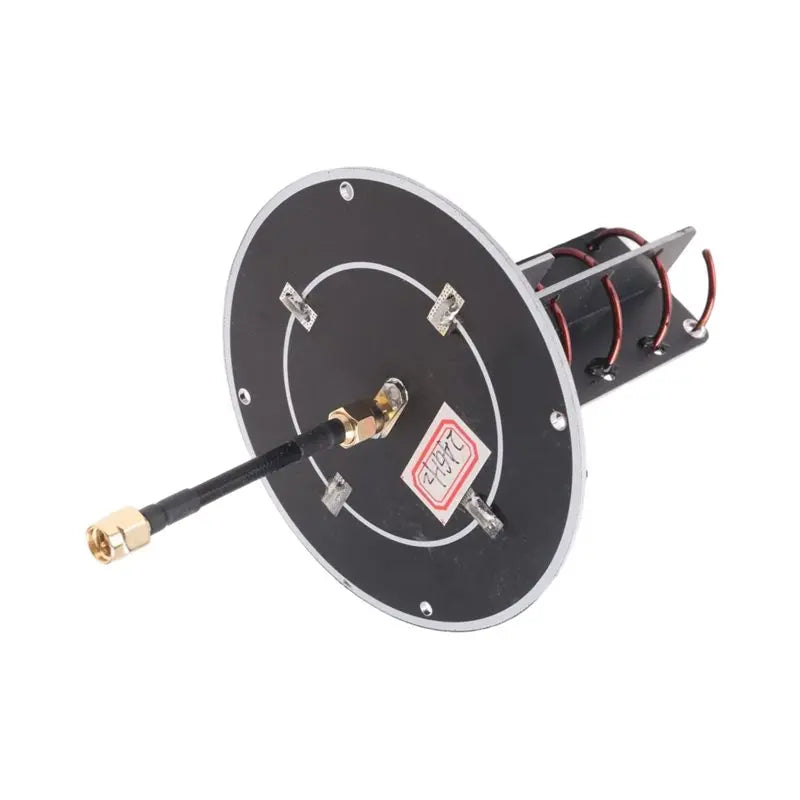

Specification 1: Directional Spiral Antenna

Specification 2: Image Transmission Antenna

Specification 3: Helical antenna

Specification 4: Directional antenna

Specification 5: 2.4GHz Directional antenna

1). Frequency bandwidth: 2.3GHz-2.65GHz
2). Polarization mode: circularly polarized antenna (Left-hand - internal thread internal needle)
3). Impedance: 50Ω
4). Gain: 13dBi
5). Radiation angle: 50°

6). Maximum wave ratio: (2.4GHz-2.5GHz) Less than 1.2
7). Maximum withstand power: 50W
8). Connector type: SMA female (external thread inner hole)
This antenna has a narrow radiation angle due to its high gain, so it is suitable for long-distance communication. For short-distance communication, the transmitting antenna and the receiving antenna must be aligned. Deviating from the radiation range will not achieve the communication effect. Suitable for long-distance cross-country image transmission remote control.
Colour:black
Material:plastic
Due to different product batches, the appearance may vary, which does not affect the use

Package Contents:
1 x Directional Spiral Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
