2.4GHz WIFI Yagi Directional Antenna 12dBi PCB Drone Remote Control BT 2.4G USB PCIE Wireless Network Adapter SMA

2.4GHz WIFI Yagi Directional Antenna 12dBi PCB Drone Remote Control BT 2.4G USB PCIE Wireless Network Adapter SMA

$61.48

$61.48 $0.00

Color 1PCS RP SMA Female 1PCS SMA Female 1PCS RP SMA Male 1PCS SMA Male

Description

SPECIFICATIONS

Brand Name: AOSIYANT

Frequency range: 2400~2500MHz/5600~5900MHz

Gain: 12dBi

Gain(dB): 12dBi

High-concerned chemical: none

Impedance: 50,50 Ohm

Material: Cu+PCB

Model Number: A-019-02

Name: WIFI Yagi Directional Antenna

Origin: Mainland China

Polarization type: Vertical Or Horizontal

Radiation: directional

2.4GHz WIFI Yagi Directional Antenna 12dBi PCB Drone Remote Control BT 2.4G USB PCIE Wireless Network Adapter SMA

Model	A-019-2.4G-02
Name	WIFI Antenna
Frequency range	2400~2500MHz / 5600~5900MHz
Gain	2.4G 12dBi / 5.8G 3dBi
SWR	<2.0
Polarization type	Vertical Or Horizontal
Radiation	Directional
Impedance	50 ohm
Material	Cu + PCB
Working Temperature	temperature -40℃~85℃
Connector	SMA
Max withstand power	6W

Suitable for: WiFi IP security cameras; Wireless video surveillance DVR recorders; Truck RV Van Trail rear view cameras, reversing cameras, reversing cameras, industrial routers WIFI gateway modems, M2M terminals, remote monitoring, wireless video,; mini PCIe wireless cards routers/repeaters/range extenders/desktop computers/mini ITX builds/PCI cards/FPV UAV drones/PS4 computers / camera / wireless network router / wifi antenna Bluetooth and wireless LAN, etc. 5GHz 5.8GHz FPV camera monitor, FPV drone racing quadcopter controller. HomeRF HiperLAN 4 Bluetooth technology IrDA technology 6 Wi-Fi

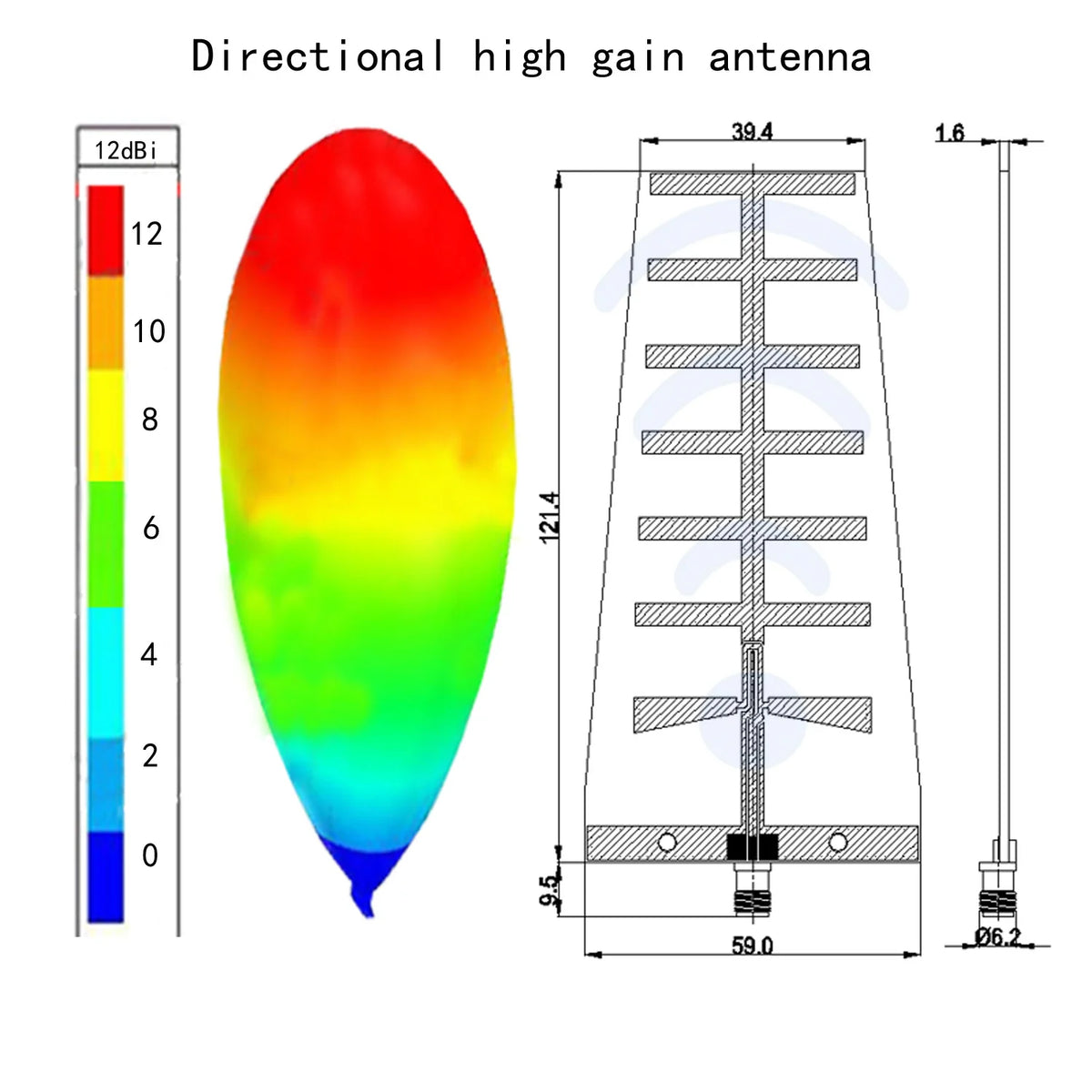

Product Images
