SPECIFICATIONS

Average Life (hrs): More than 50000Hours

Brand Name: TNALANT

Certification: CCC,ce,FCC,ROHS

Color Temp(K): 3000-6500k

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD2020

LEDs Number/M: 160leds/m

Luminous Flux: <60

Model Number: WS2812B WS2812

Nominal Voltage: 5V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 5.76W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 160

Strip type: SMD

Voltage: 5V/12V

Waterproof: No

Pay Attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.

2.Since the light strip is super narrow, don't bend it sharply to avoid breaking

3.The DC5V light strip needs a DC5V power supply, if it is greater than DC5.5V, the light strip will be damaged!

The DC12V light strip needs a DC12V power supply, if it is greater than DC12.5V, the light strip will be damaged!

4.When the light strip is in white light, it will gradually change from white light to orange light. This is caused by insufficient voltage. You only need to increase the voltage to solve it.

5.The led strip need a WS2812B data Controller(not include) and led power supply(not include) to light up!

Products Description:

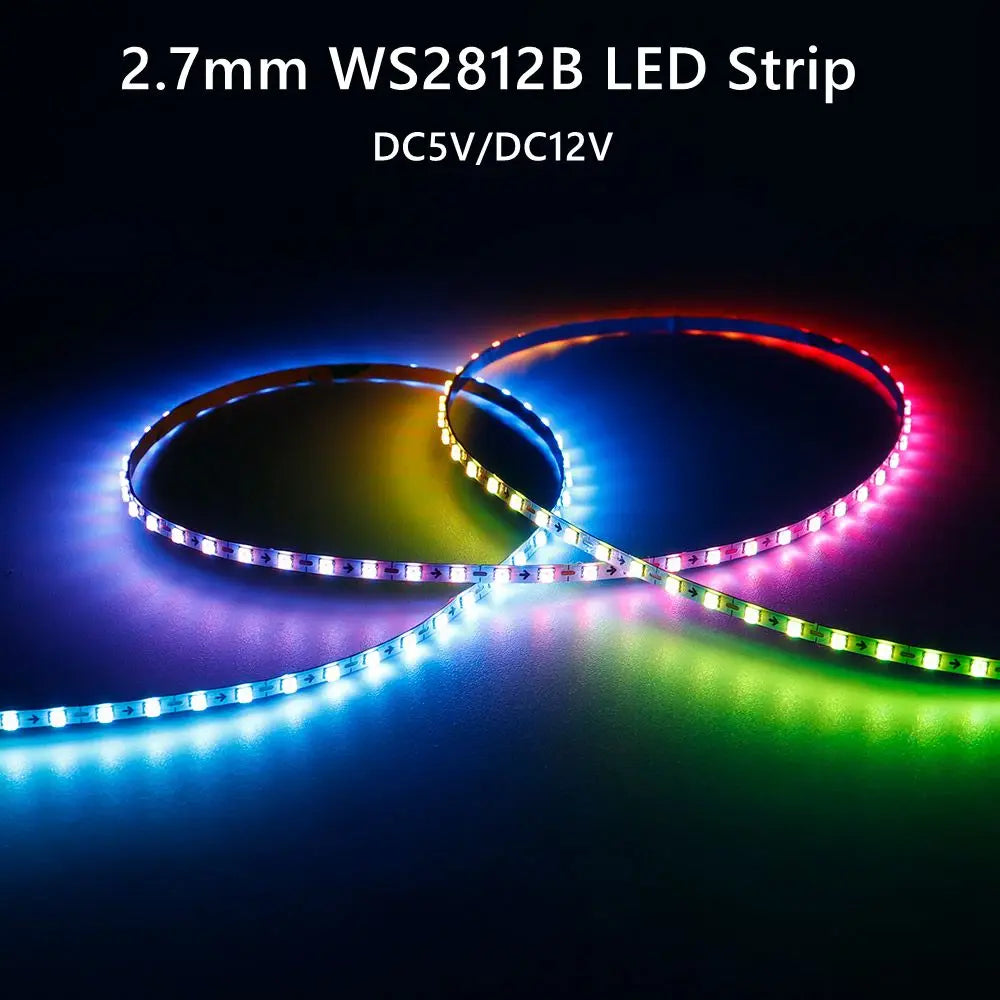

Product Name：Ultra Narrow WS2812 Smart Digital LED Strip

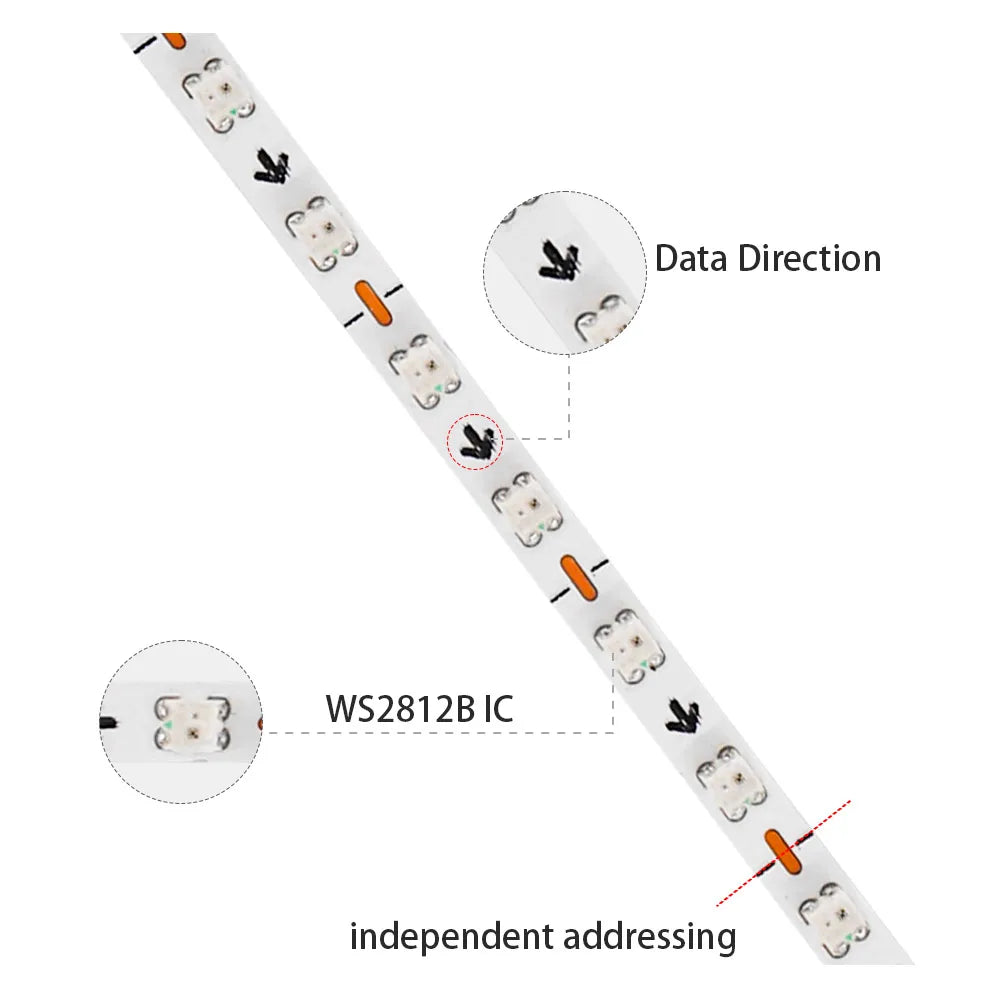

IC Chip：WS2812B

SMD Size: 2020SMD

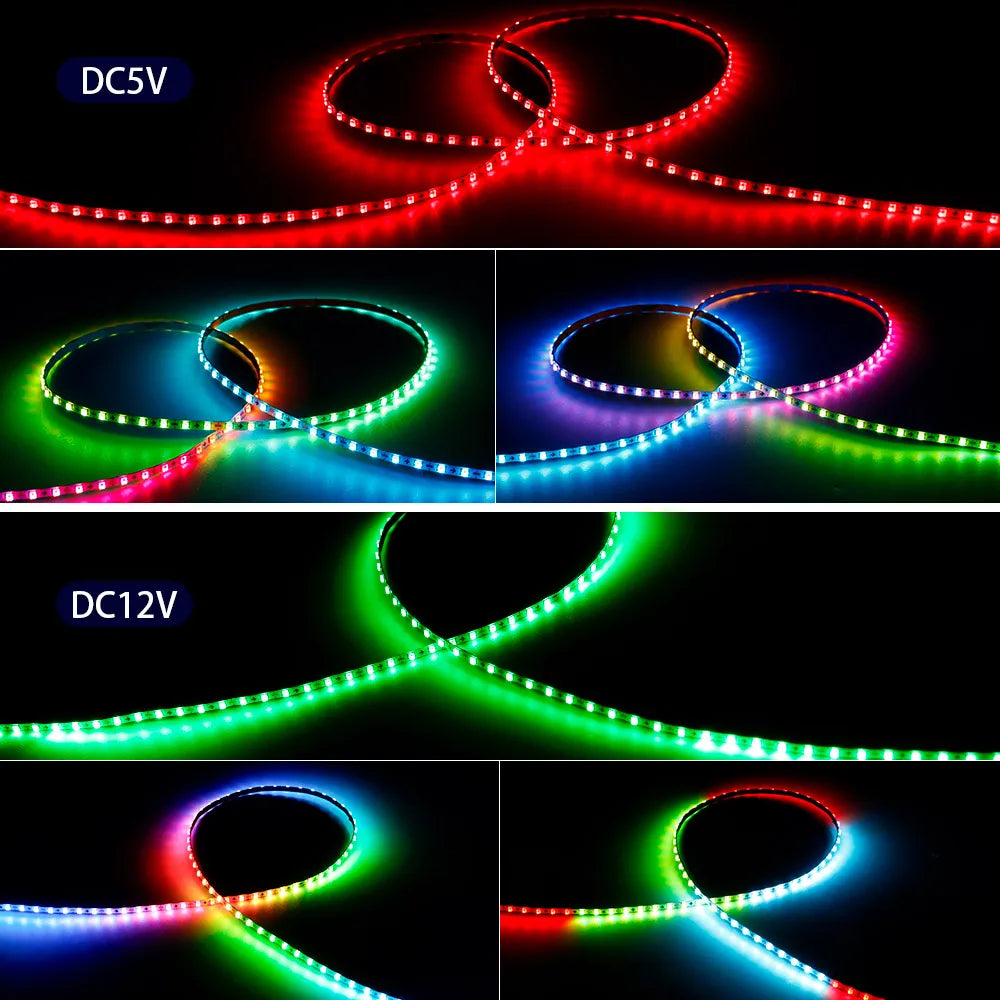

Voltage ：DC5V/DC12V

Color：Addressable RGB full color

LED Qty：160 LEDs/m

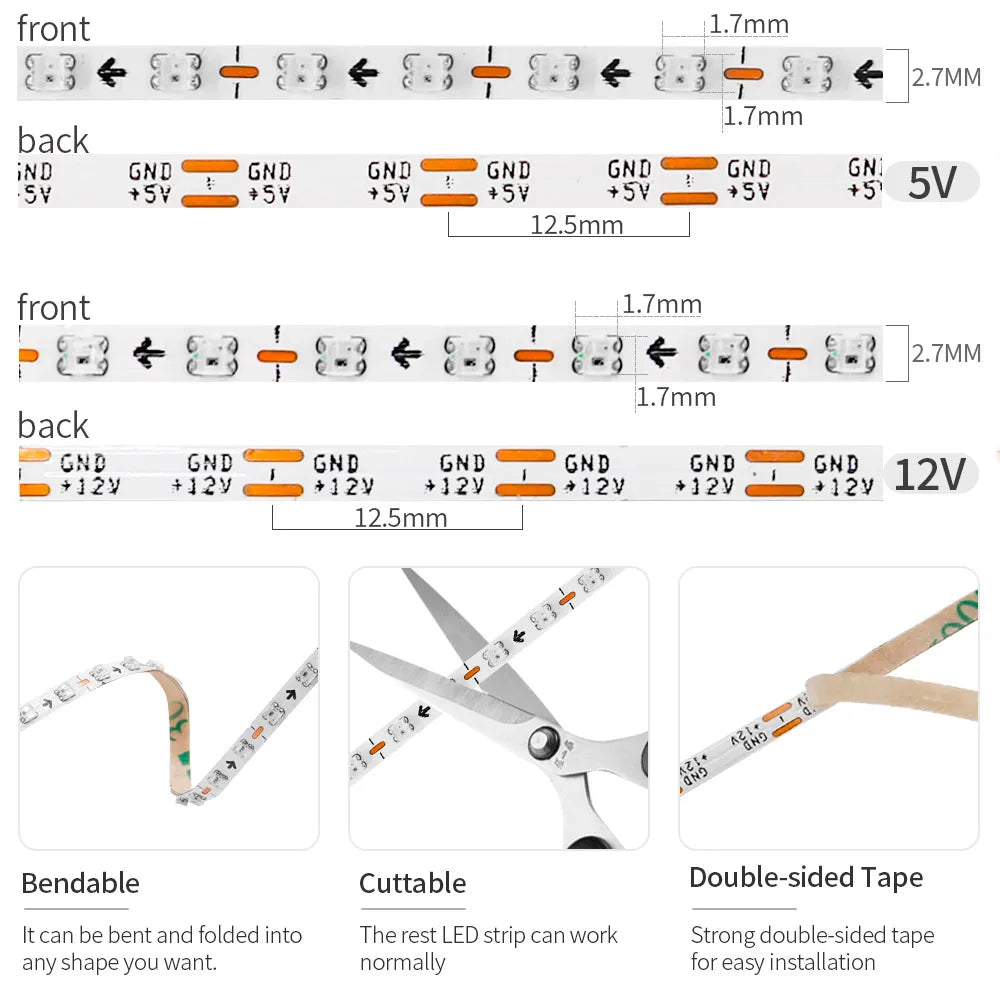

PCB width：2.7mm

Watts：6w/m

Cutted：Per 2 led

PCB color：White

IP rated：IP20;non-waterproof

Pins：3 Wires = 5V+(Red wire), DATA(Green wire), GND(White wire)

Length：1m/2m/3m/4m/5m(According to your choice）

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°
