SPECIFICATIONS

3.5-inch color screen, upgraded IPS full view panel, excellent viewing angle
320X480 resolution 65K colors, optional capacitive touch function
Onboard level conversion chip, compatible with 5V/3.3V microcontroller
Can be directly connected to a 5V microcontroller (such as Arduino UNO/Mega2560)
Adopting 4W-SPI serial bus, it only requires a few IOs to light up the display
Convenient expansion storage with Micro TF card slot
Rich examples (STM32/CH32/C51/Aruino/ESP32) constantly updated
Multiple aging testing of military grade process standards, long-term stable operation

Screen size: 3.5 inches
Screen type: IPS
Resolution: 320xRGBx480 (pixels)
Effective display area: 48.96 (W) x 73.44 (H) (mm)
Maximum color effect: 16.7M
Drive IC: ST7796U
Display interface: 4-Line SPI
Pixel size: 0.153 (H) x 0.153 (mm)
Visual angle: ALL O'CLOCK
Backlight brightness (typical value): 300 (cd/mz)
Backlight type: white LED * 6
Working temperature: -10~50 (- C)
Storage temperature: -20~60 (° C)
Touch type: capacitive touch screen
Touch screen resolution: 320x480 (pixels)
Driver IC: FT6336u
Visual window size: 49.56 (w) x 74.04 (H) (mm)
Communication interface: lIC
Structural material: G+F
Working temperature: -20~70 (Rc)
Storage temperature: -30~80 (C)

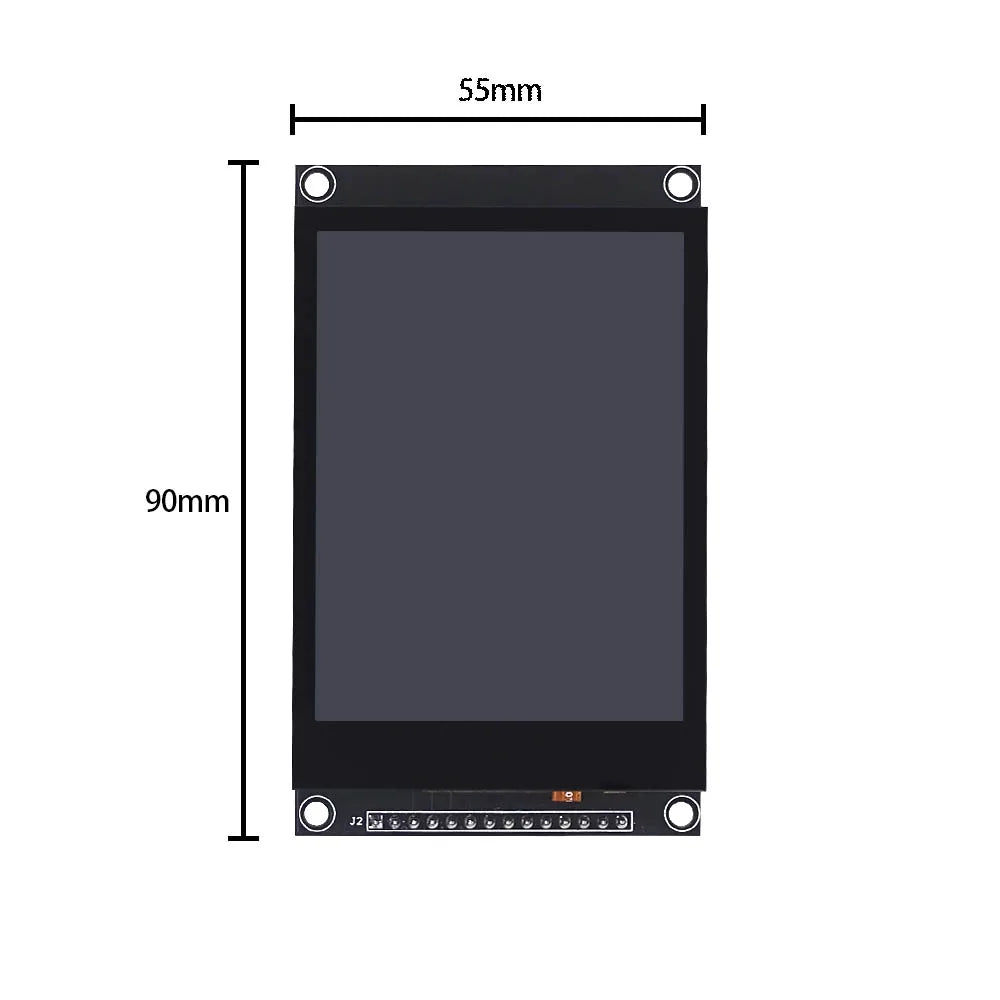

Dimensional parameters
Outline dimensions of LCD screen: 55.50 ± 0.2 (W) x 84.96 ± 0.2 (H) x 2.5 ± 0.1 (D) (mm) (excluding cable and adhesive)
Touch screen dimensions: 55.50 ± 0.2 (W) x 84.96 ± 0.2 (H) x 0.8 (D) Xmm (excluding cable and adhesive)
Working voltage: 5.0 V
Backlight current: 95 mA
Power consumption: 0.5 w
External interface: 14P 2.54mm pin and 0.5mm FPC
