SPECIFICATIONS

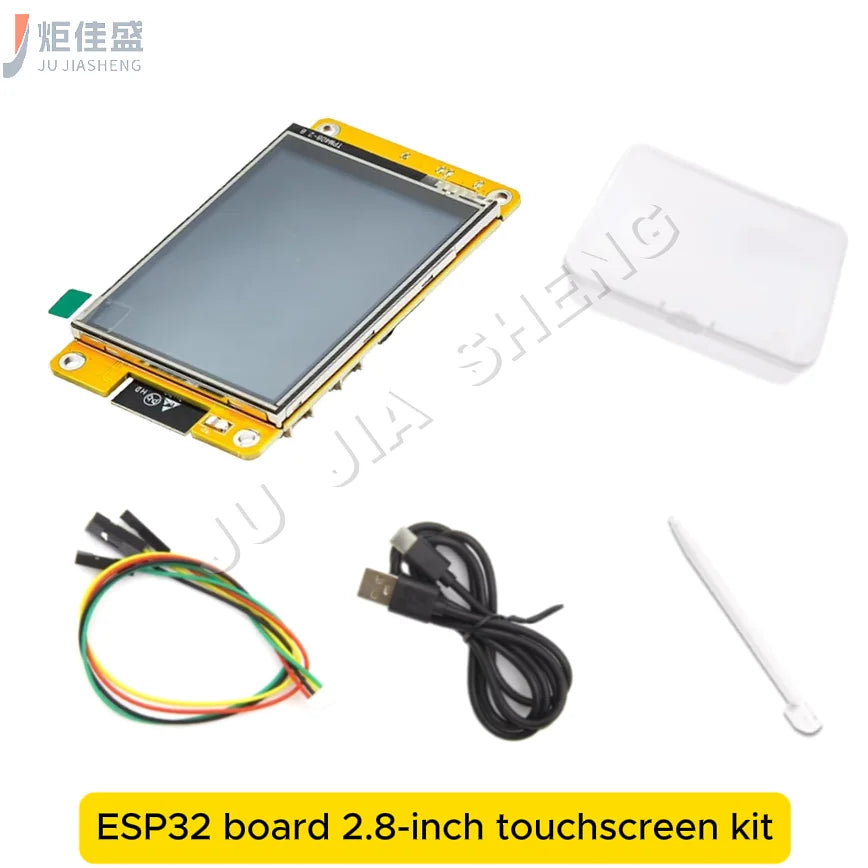

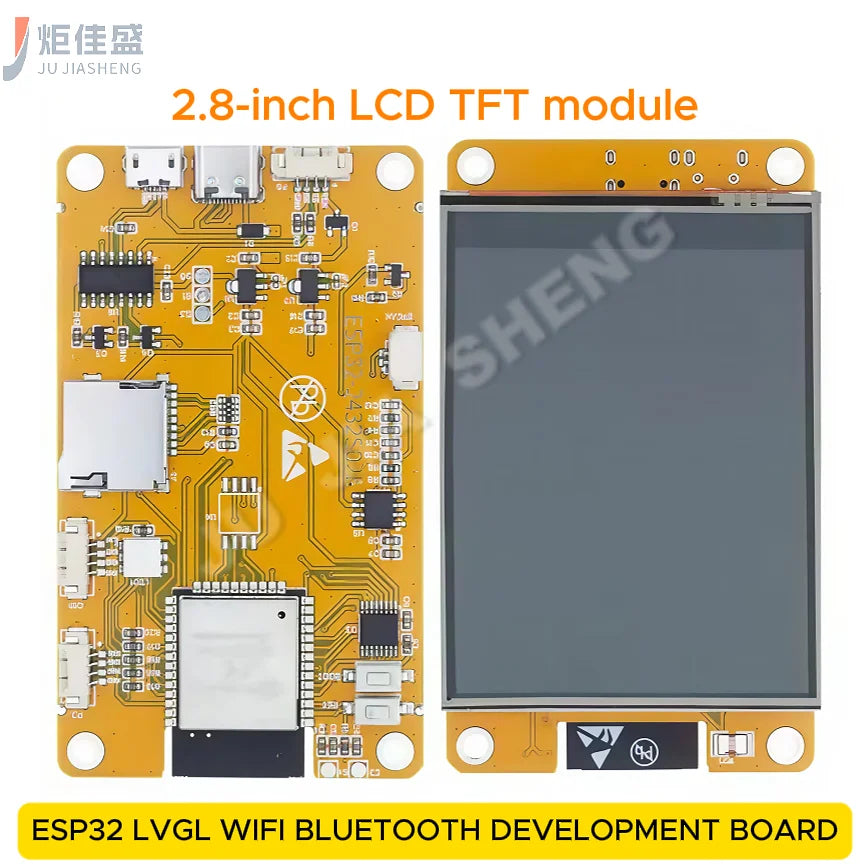

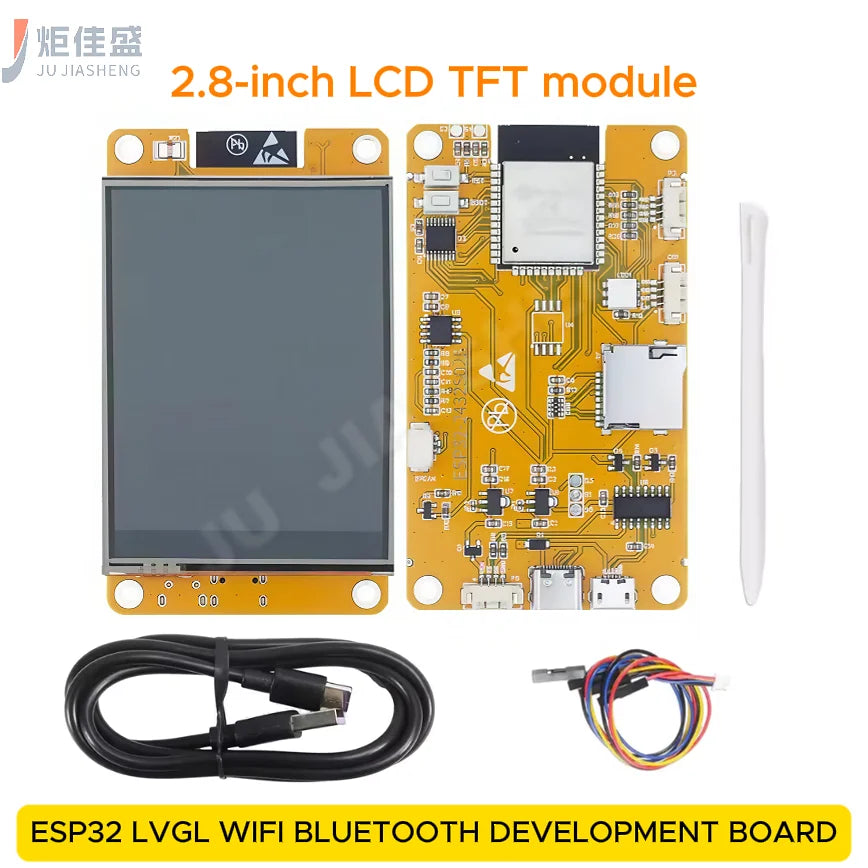

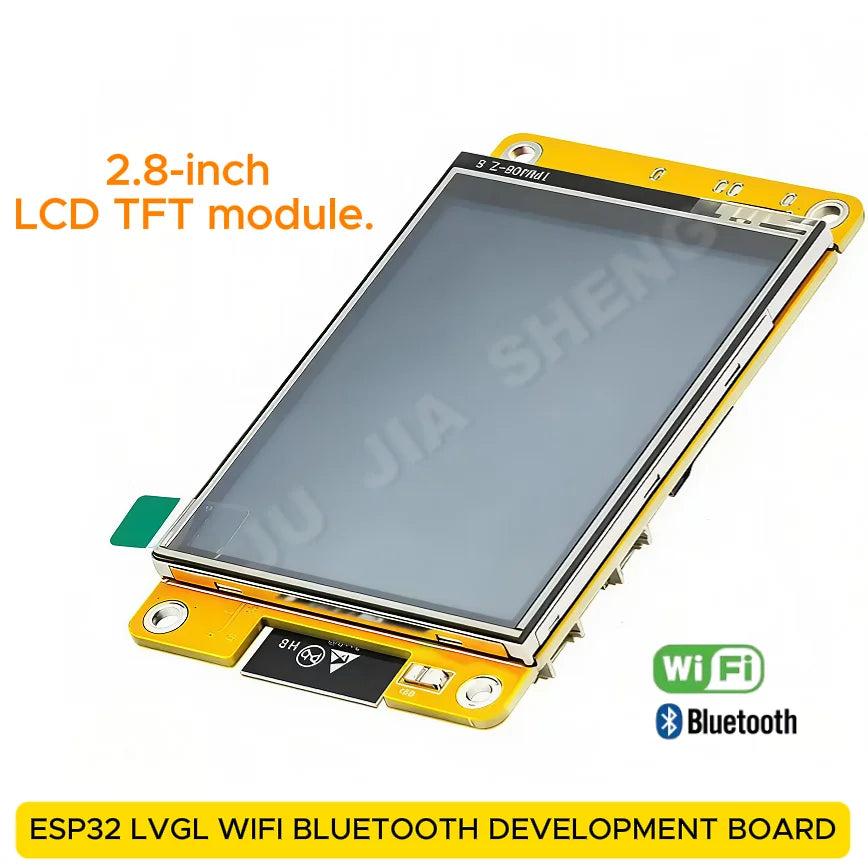

ESP32 development board with WiFi, Bluetooth, and a 2.8-inch screen.

Introduction：

ESP32 = MCU + WiFi + Bluetooth.
The ESP32 development board is based on the ESP32-DOWDQ6 controller, featuring a dual-core CPU with a clock frequency up to 240MHz. It integrates rich peripheral resources, including high-speed SDI0, SPI, and UART functions, and supports automatic downloading.
The ESP32 development board fully leverages the advantages of IoT development, making it a true IoT development tool. The display is controllable and can be used for remote control via an app, remote environmental data acquisition, remote data fusion, remote parameter setting, and other batch development applications.

Parameter:

Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM

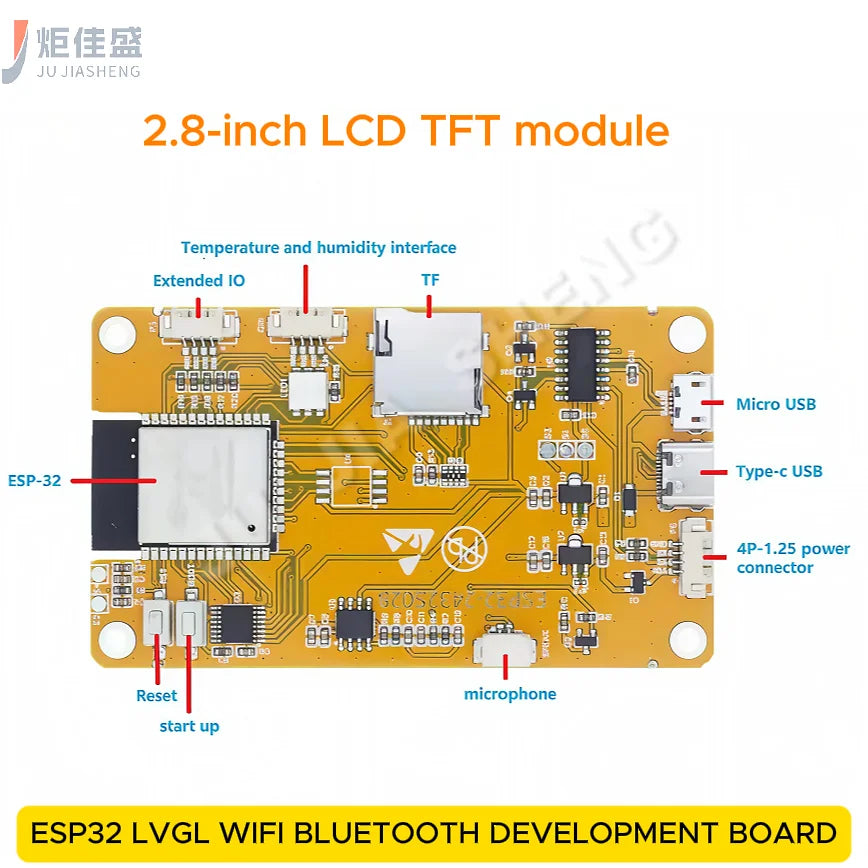

Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development

Specifications:

Operating Voltage: 4.75-5.25V
SPI Flash Default Capacity: 32Mbit
RAM Built-in Capacity: 520KB
Wi-Fi: 802.11b/g/n/e/i
Bluetooth: Bluetooth 4.2BR/EDR and BLE standards
Supported Interfaces (2Mbps): UART, SPI, I2C, PWM
Supports TF Card, maximum support 4G
I/O Ports: 9
Serial Port Rate Default: 115200bps
Spectrum Range: 2400~2483.5MHz
Antenna Type: Onboard PCB Antenna, Gain: 2dBi
Image Output Format: JPEG (OV2640 only), BMP, Grayscale
Package: DIP-16
Transmit Power: 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiver Sensitivity: CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps (1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power Consumption: Flash Off: 180mA@5V
Flash On and Maximum Brightness: 310mA@5V
Deep Sleep: Minimum Power Consumption 6mA@5V
Modern Sleep: Minimum Power Consumption 20mA@5V
Light Sleep: Minimum Power Consumption 6.7mA@5V
Security: WPA/WPA2/WPA2-Enterprise/WPS
Operating Temperature: -20℃～70℃
Storage Environment: -40℃～125℃, Relative Humidity <90%RH

Application:

Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
