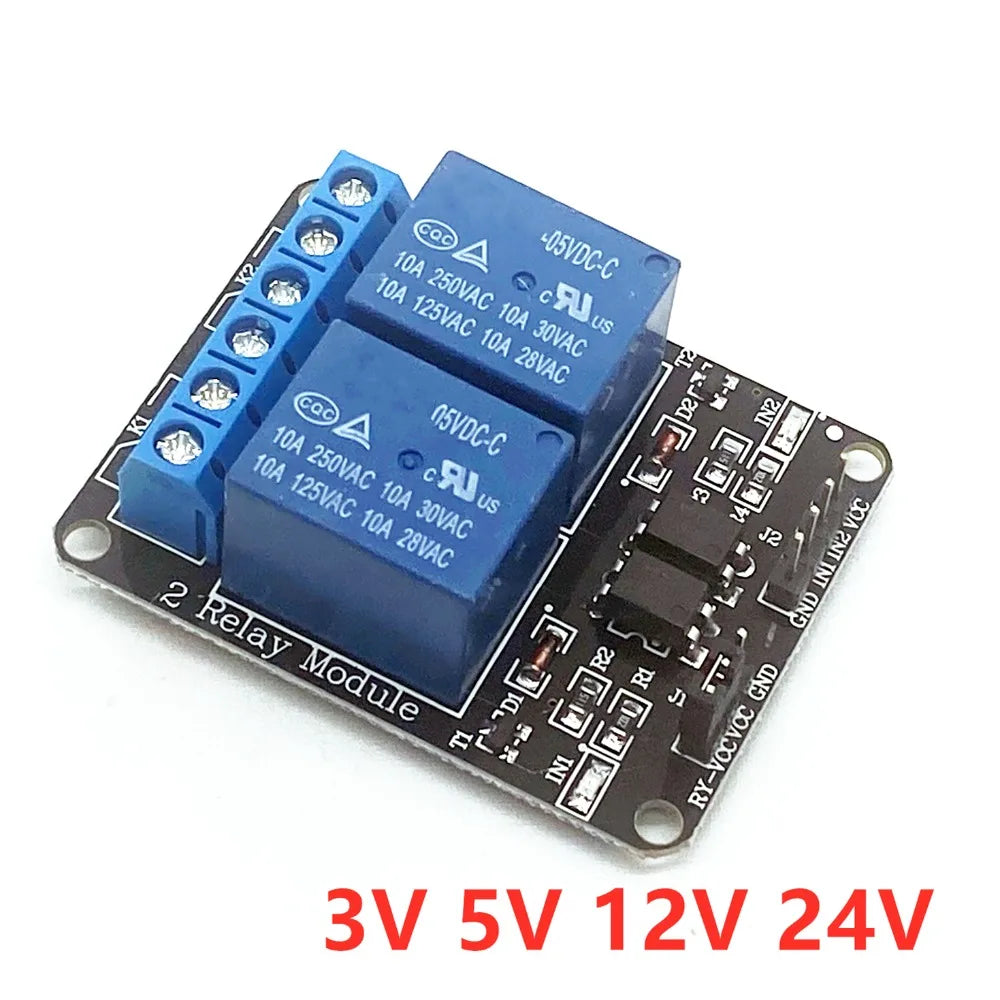

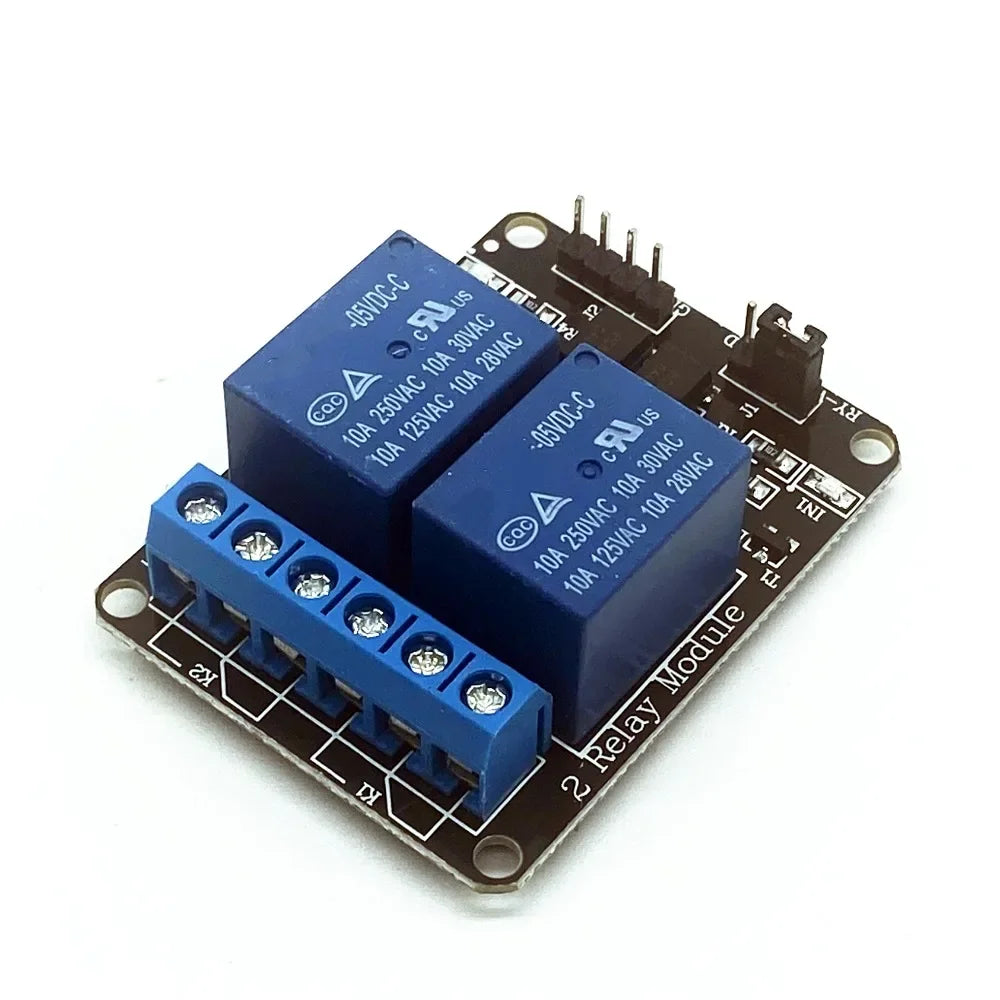

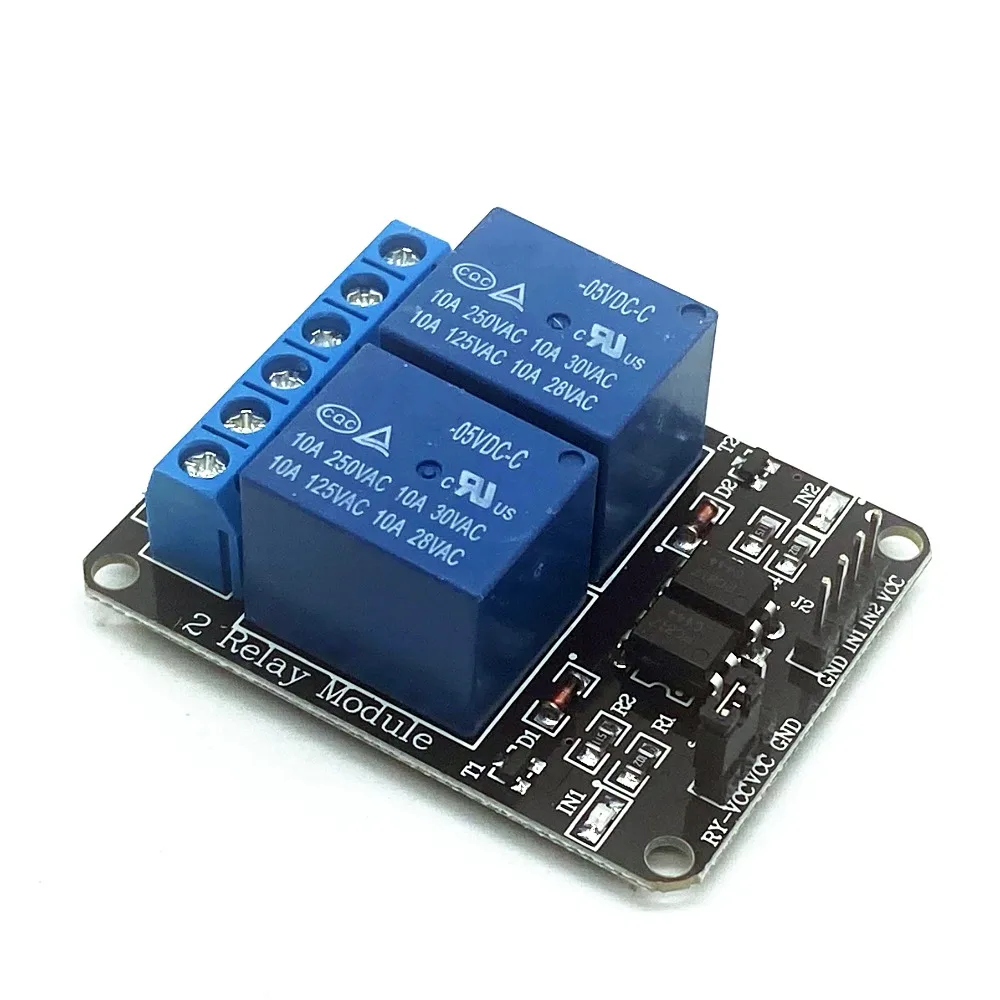

2 Channel Relay Module 3V 5V 12V 24V High and Low Level Trigger Optocoupler Isolation Relay for Industrial Control DIY Electroni
24V
$11.34
Sale price
$11.34
Regular price
$0.00
Skip to product information
2 Channel Relay Module 3V 5V 12V 24V High and Low Level Trigger Optocoupler Isolation Relay for Industrial Control DIY Electroni
$11.34
Sale price
$11.34
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New
Dissipation Power: standard
High-concerned chemical: none
Operating Temperature: standard
Origin: Mainland China
Quantity: 1
Supply Voltage: 3V 5V 12V 24V
Type: Relay
is_customized: Yes
Module parameters:
1.Size: 50.5mm(L)*38.5mm(W)*18.5(H)
2.Weight: 31g
3.PCB color: black
4.Board with 4 fixed screw holes around, hole diameter 3.1mm, easy to install and fixed
5.Relay choose high quality Songle relay, single-pole double-throw. A public terminal, a normally open terminal, a normally closed terminal
6. Optocoupler isolation, good anti-interference.
7. Low level suction, high level release. The status indicator light is on when it is absorbed and off when it is released.
Electrical Parameters:
Supply Voltage: 5VDC, 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC

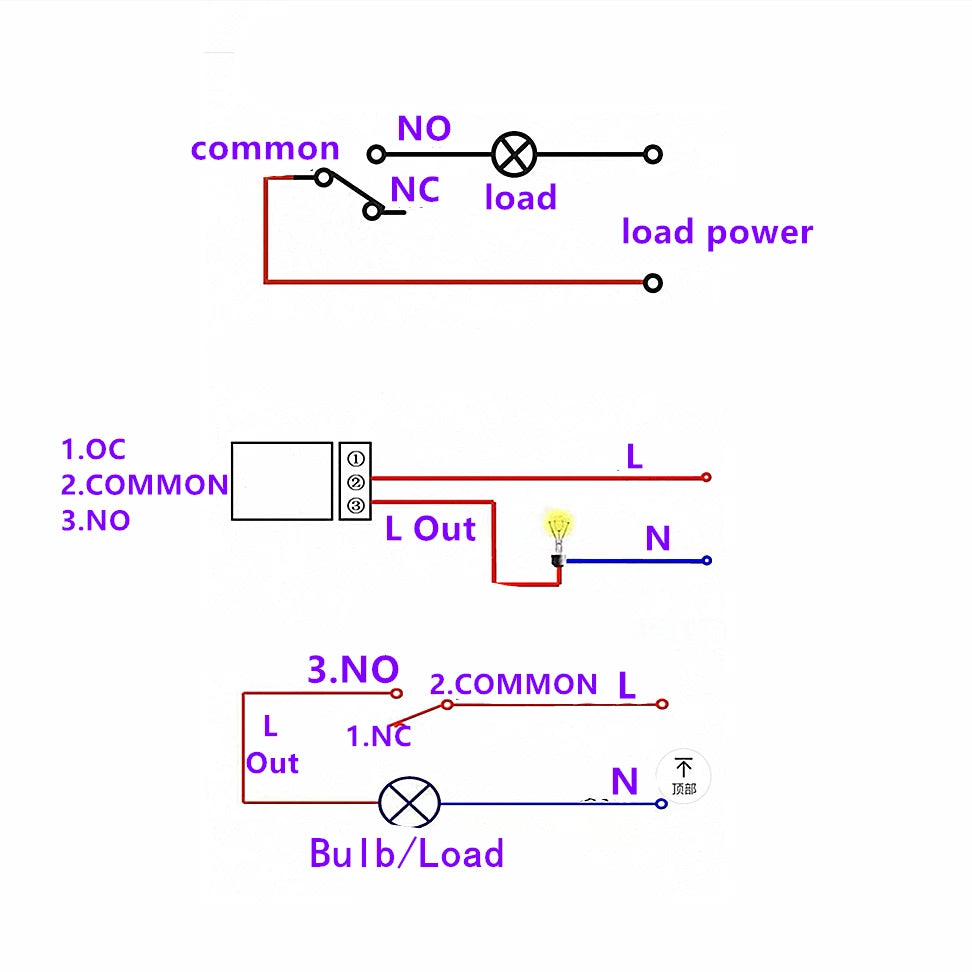

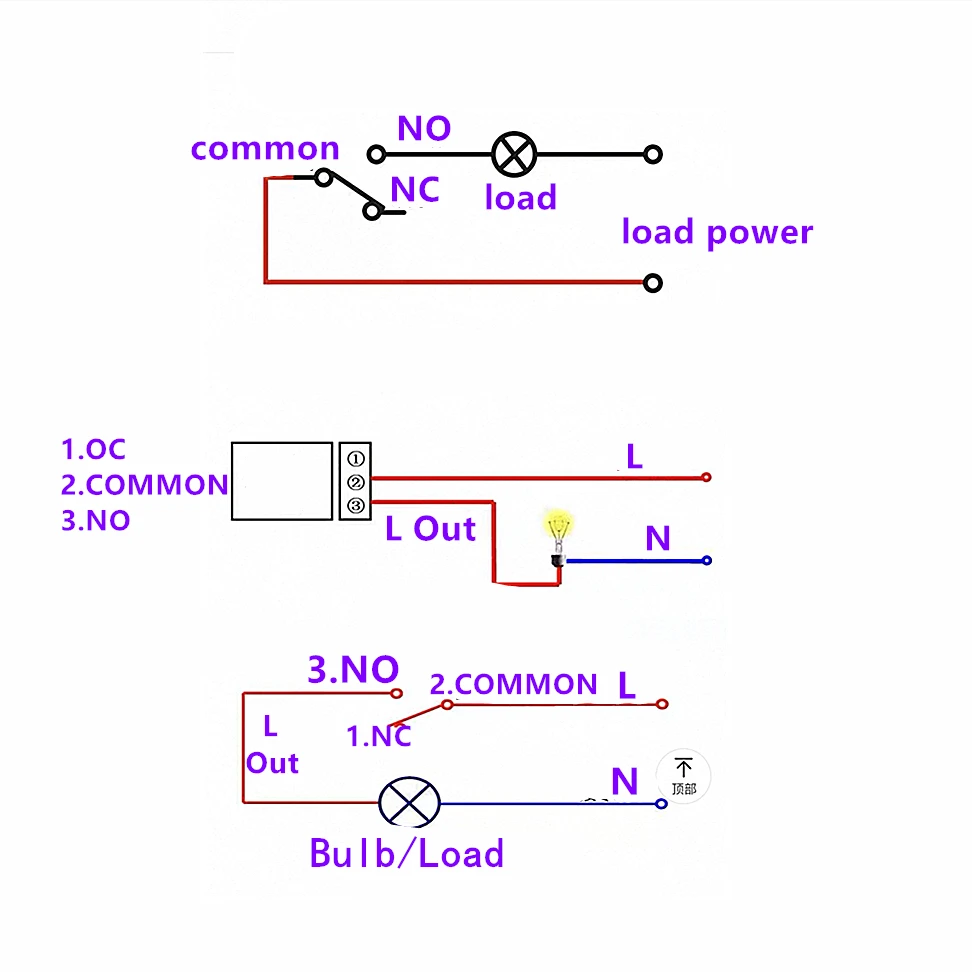

Wiring Instructions:
VCC:System Power Positive Pole
GND:System Power Negative Pole
IN1--IN2: Relay Control Ports
1.Size: 50.5mm(L)*38.5mm(W)*18.5(H)
2.Weight: 31g
3.PCB color: black
4.Board with 4 fixed screw holes around, hole diameter 3.1mm, easy to install and fixed
5.Relay choose high quality Songle relay, single-pole double-throw. A public terminal, a normally open terminal, a normally closed terminal
6. Optocoupler isolation, good anti-interference.
7. Low level suction, high level release. The status indicator light is on when it is absorbed and off when it is released.
Electrical Parameters:
Supply Voltage: 5VDC, 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC
Wiring Instructions:
VCC:System Power Positive Pole
GND:System Power Negative Pole
IN1--IN2: Relay Control Ports
