2 IN 1 8Ch Network Ethernet RS485 Relay Modbus RTU Slave TCP/IP UDP UART Switch Module PLC Industrial Control Board

2 IN 1 8Ch Network Ethernet RS485 Relay Modbus RTU Slave TCP/IP UDP UART Switch Module PLC Industrial Control Board

$141.24

$141.24 $0.00

Description

SPECIFICATIONS

Application: Electric Toy

Brand Name: eletechsup

Choice: yes

Condition: New

Dissipation Power: 0.2

High-concerned chemical: none

Operating Temperature: -40-85

Origin: Mainland China

Package: SMD

Supply Voltage: DC 12V

Type: Drive IC

is_customized: Yes

Product Name: 2 IN 1 8Ch Network Ethernet RS485 Relay Modbus RTU Slave TCP/IP UDP UART Switch Module PLC Industrial Control Board

Package inlcuded:

1 PCS DC 12V 8 Channel RS485/TCP Modbus Slave Relay Module

Description:

1: Working voltage : DC 12V

2: Standby current (All relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 226MA

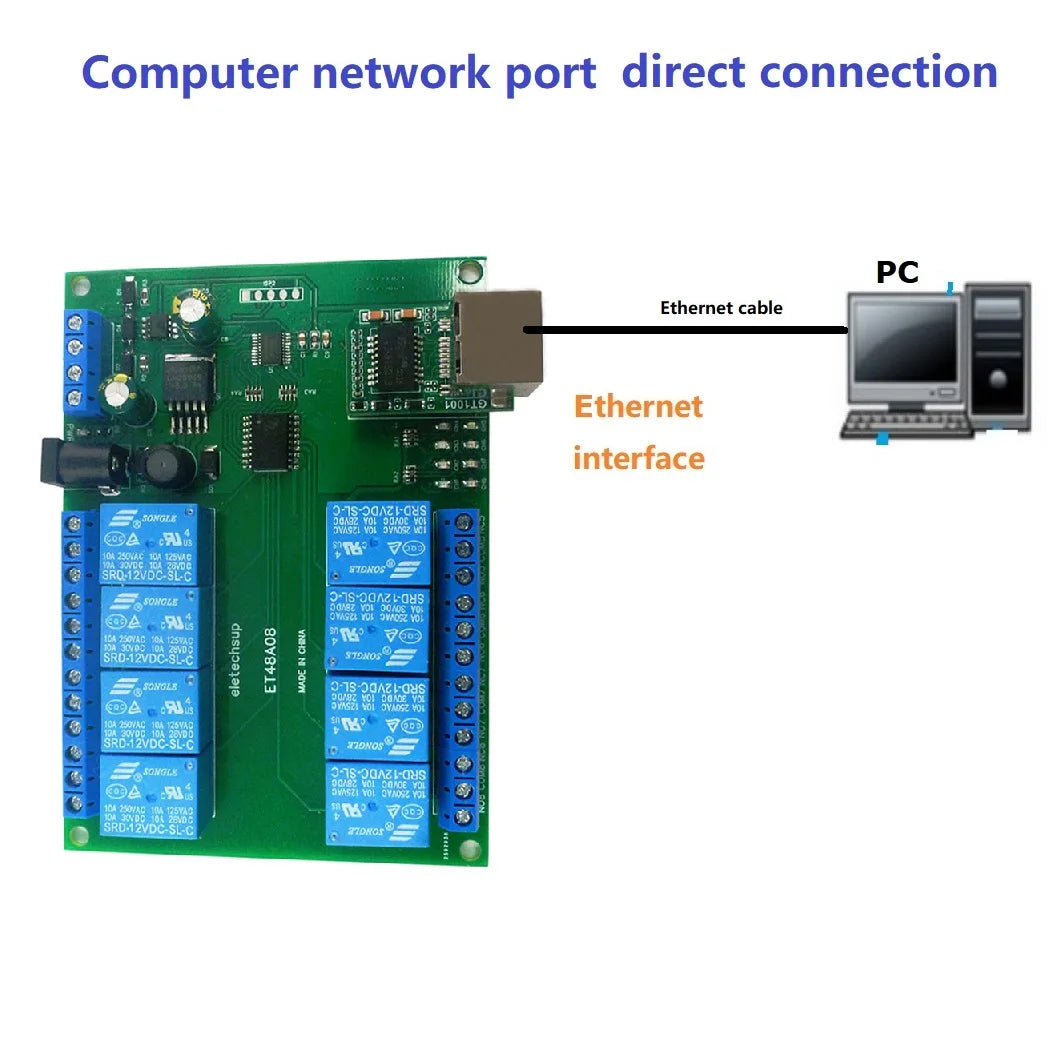

3:Communication interface: RS485 interface / network interface (optional)

4: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

5: MODBUS RTU command, Support 03 06 16 function code

6: Under the ''Delay'' command ,the maximum delay is 255 seconds;

7 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

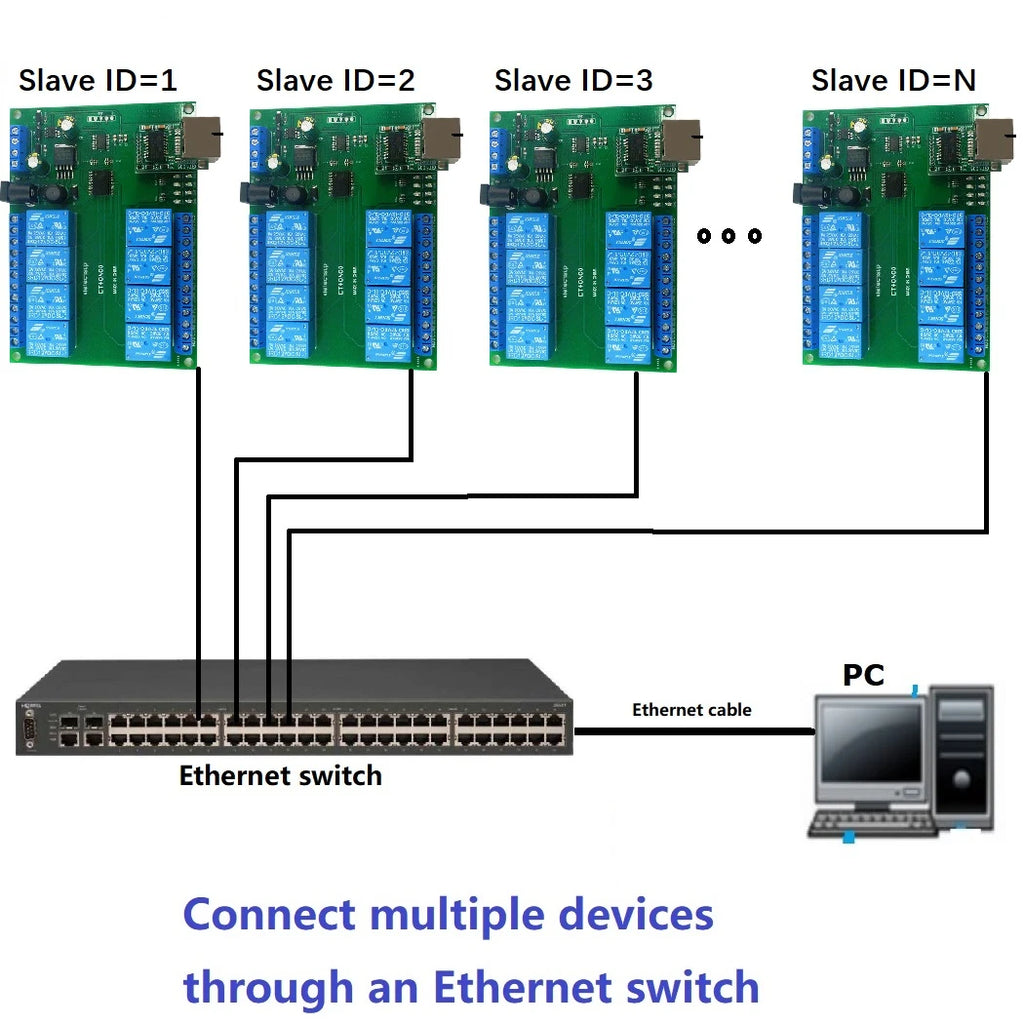

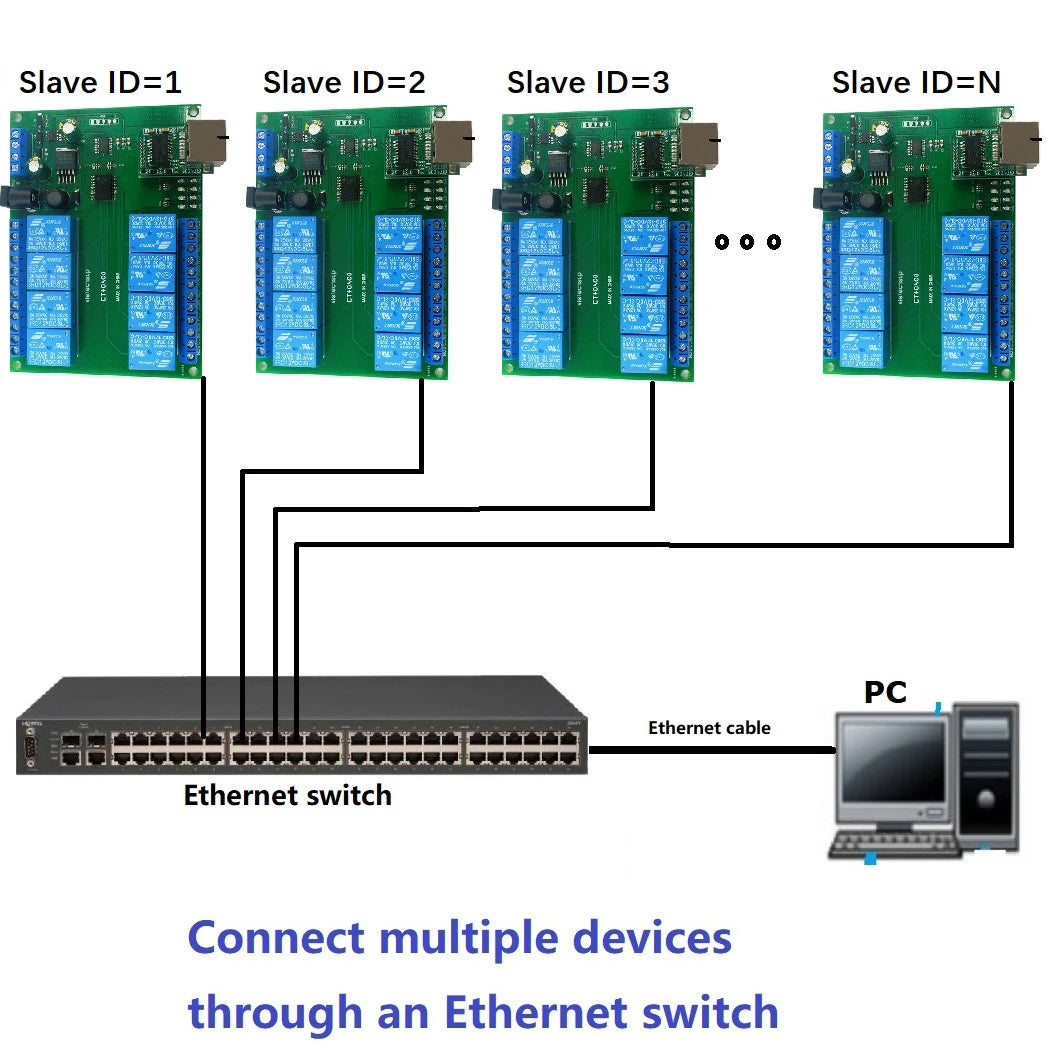

8 :Under the MODBUS command mode, it can support up to 64 devices in parallel

9 :The default baud rate is 9600BPS. The baud rate can be set by command: 1200 2400 4800 9600 19200BPS

10 :The data sending and returning time can be set, with a maximum value of 1000ms

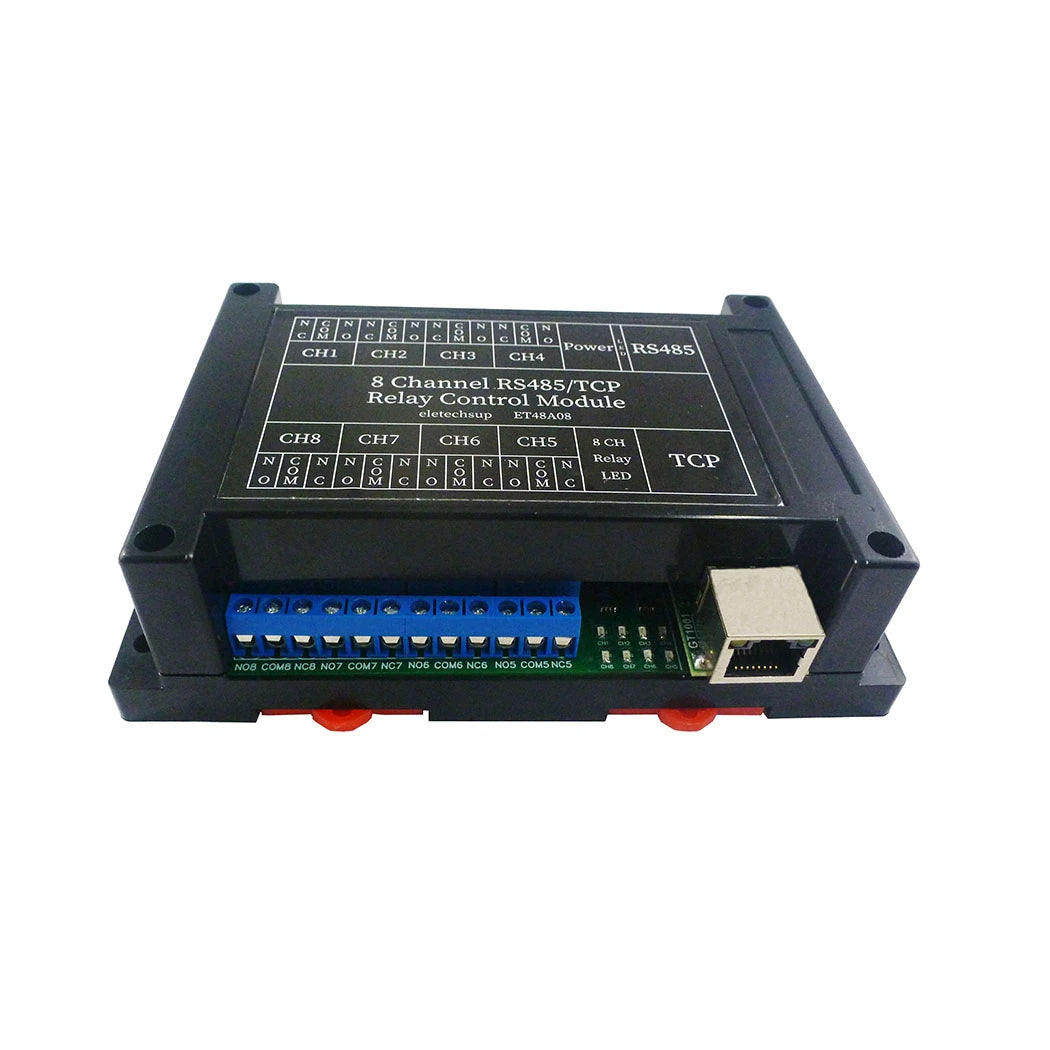

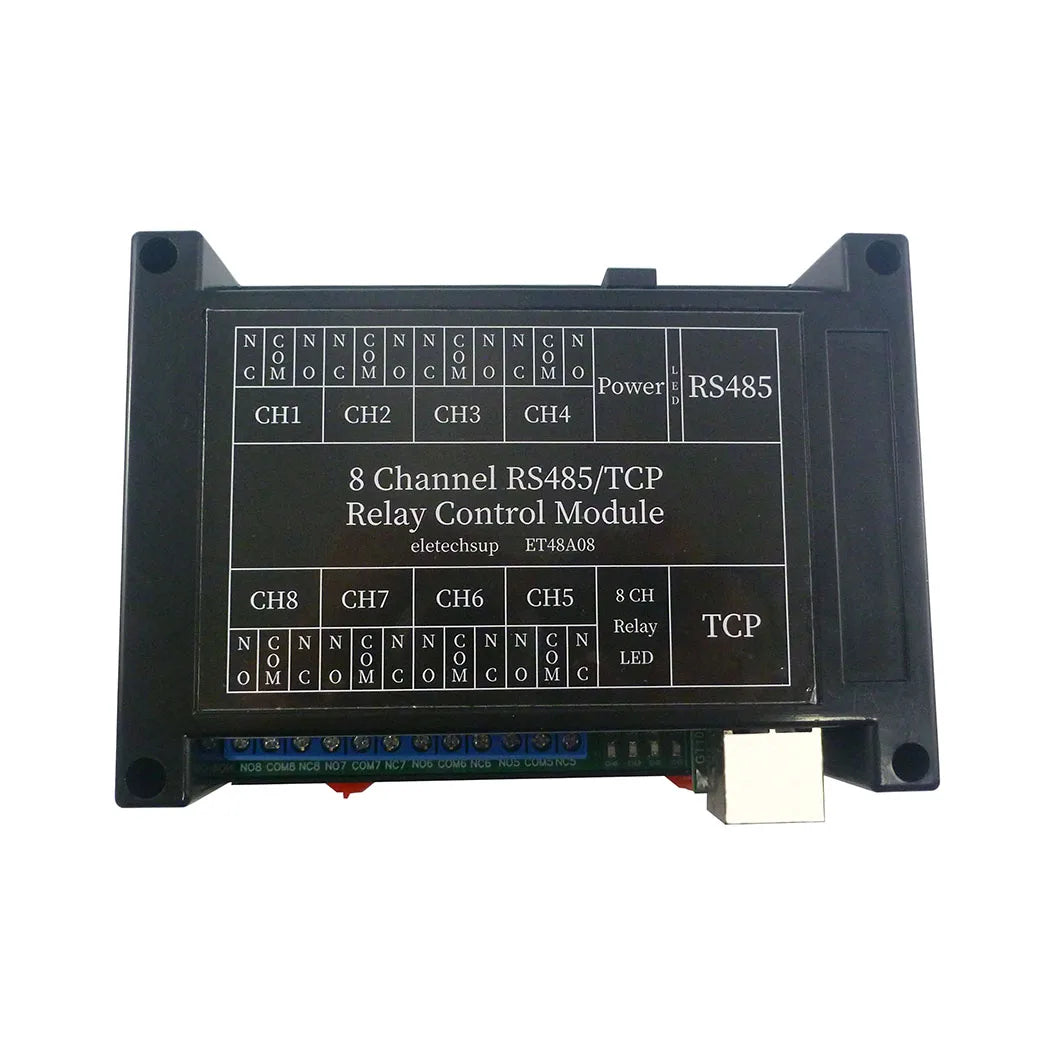

11 :Size: 145 * 90 * 40mm(with shell)
12: Weight: 230g(with shell)

13: Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

For more information, Please download this link:

https://1drv.ms/u/s!Av4PLxH_z8f1h3ZxYsTQ3GfbNymP?e=1811l3

Application

PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;

PTZ CCTV Camera

Security Monitoring

Identification system;

Motor FW & BW
Automatic curtain control
Ethernet Controller, TCP/IP Controller

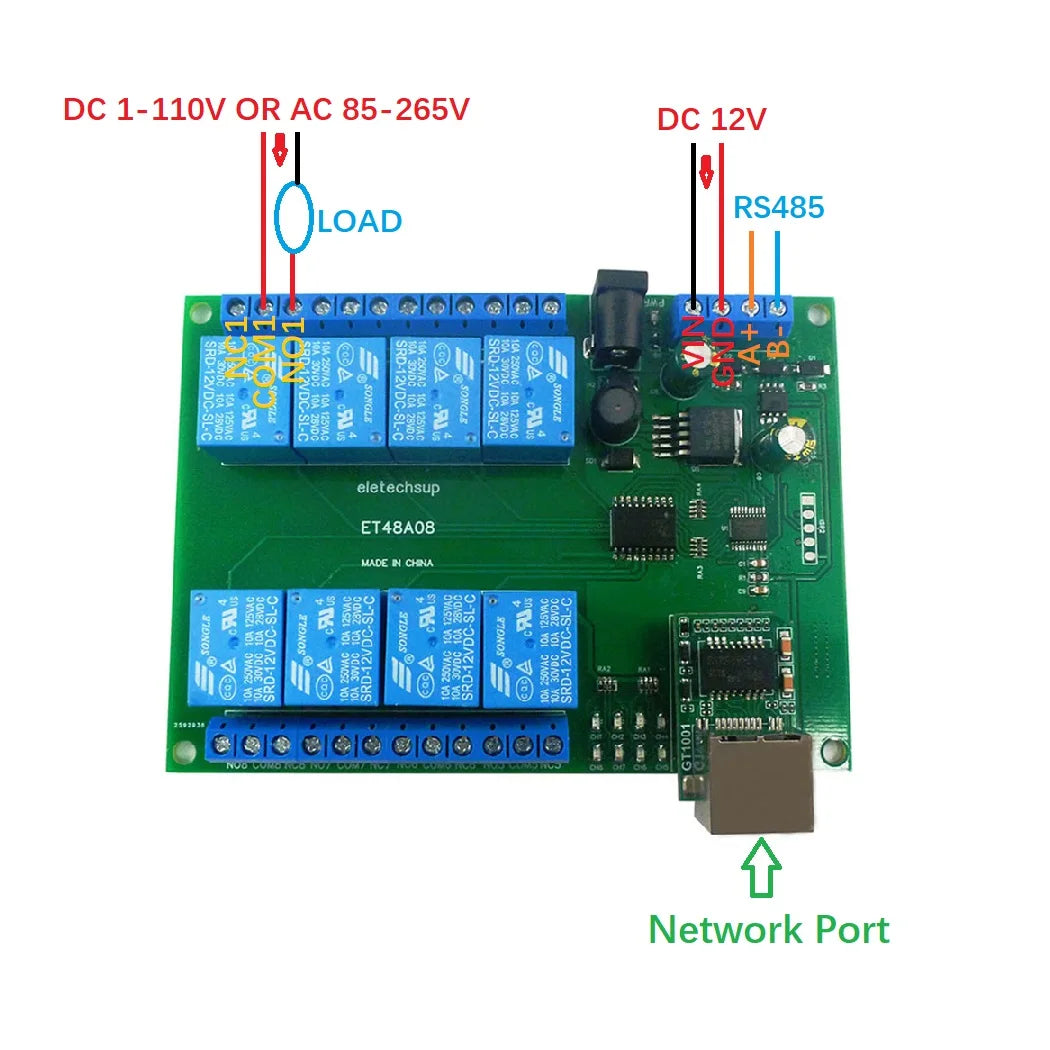

Wiring diagram
