SPECIFICATIONS

2 IN 1 Serial Adapter: DB9 male to 5pin Terminal Block

Assembly Required: no

Brand Name: PremierCable

Capacity: 5A

Certification: RoHS

Choice: yes

High-concerned chemical: none

Model Number: PCM-KW-475

Origin: Mainland China

Package: Yes

RS232 to TTL converter: RS232 to RS485 converter

Type: Cable Adapter

semi_Choice: yes

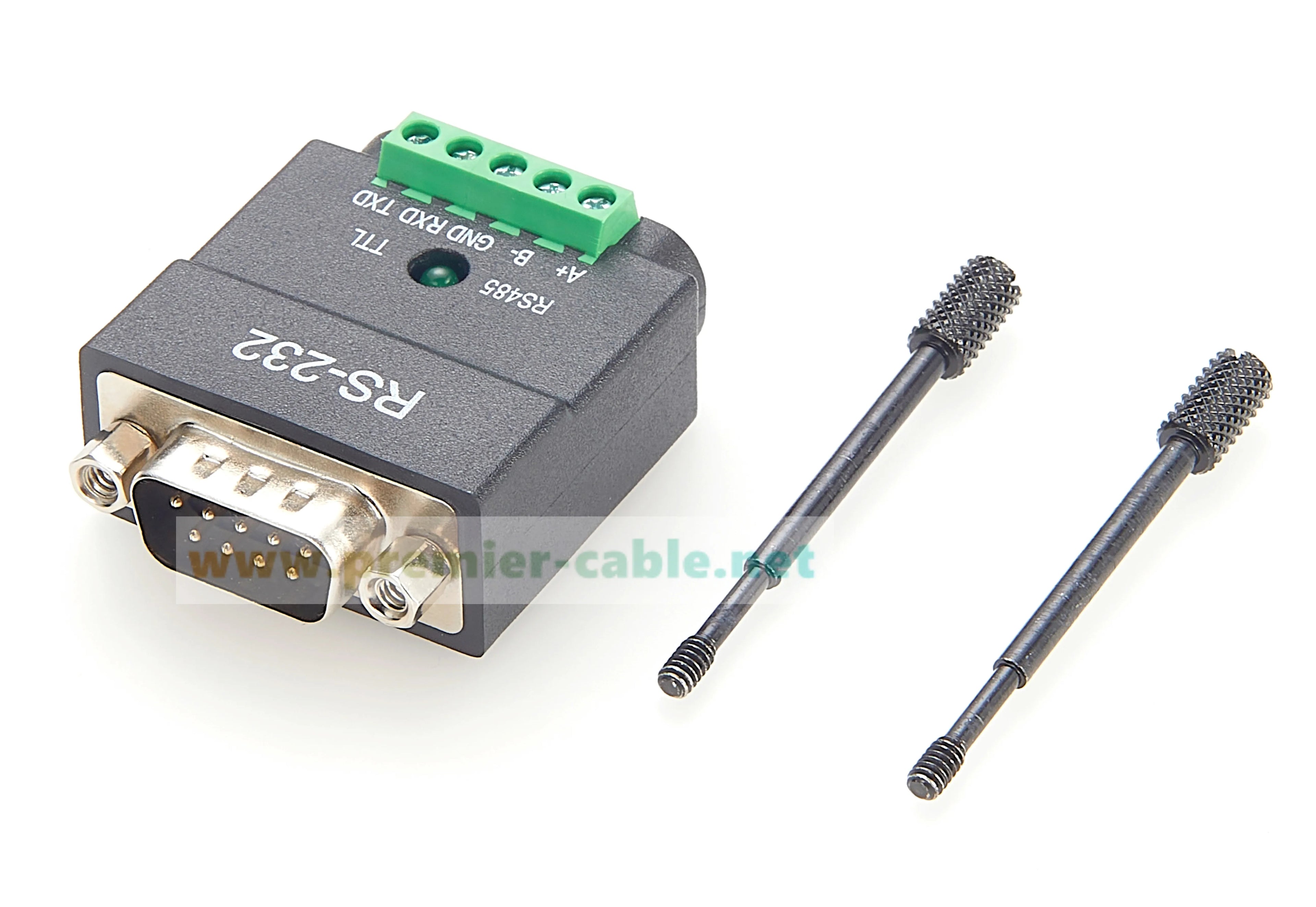

The product is compatible with two lock fixing methods: front riveted nut and rear lock screw, which can be switched at will.

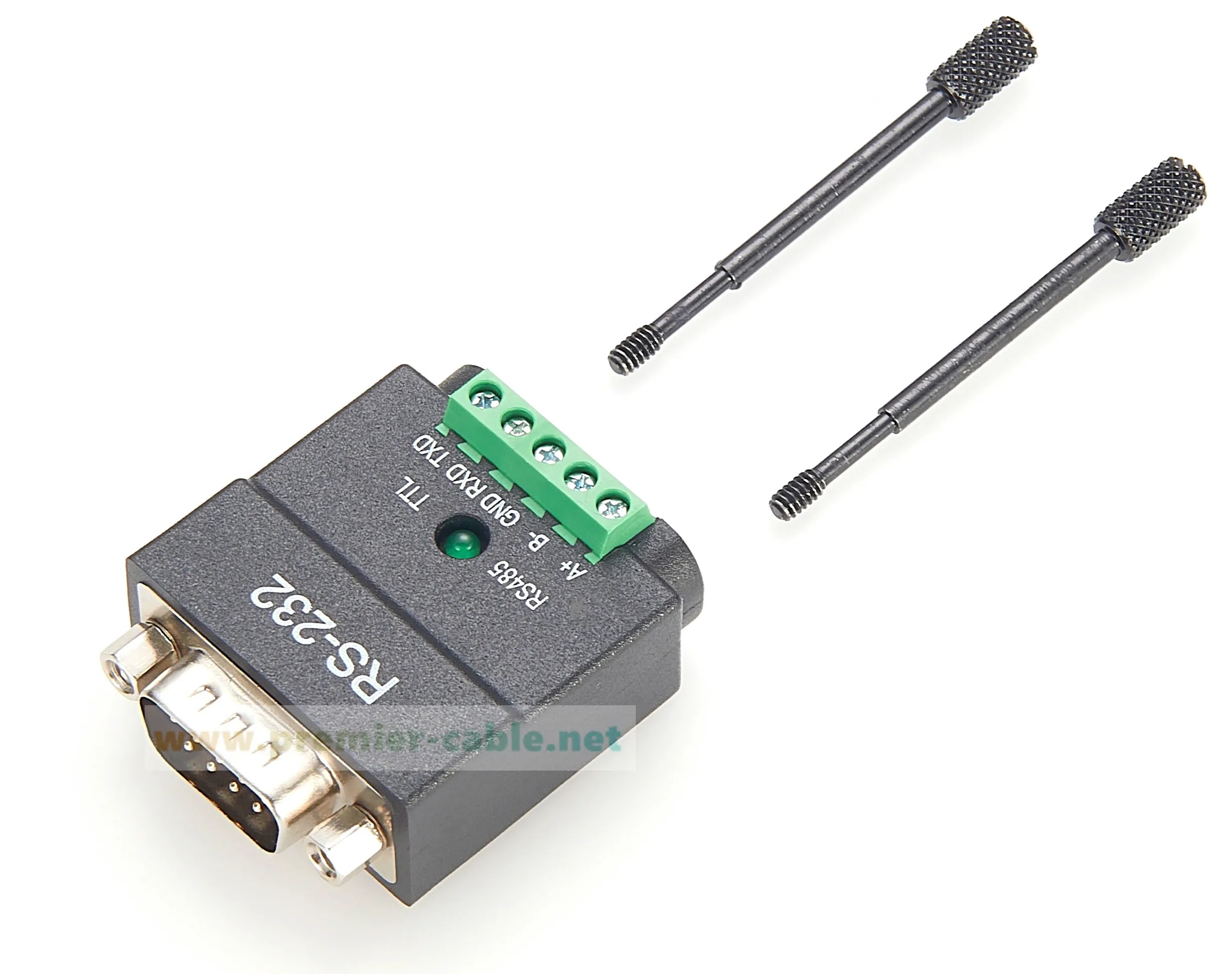

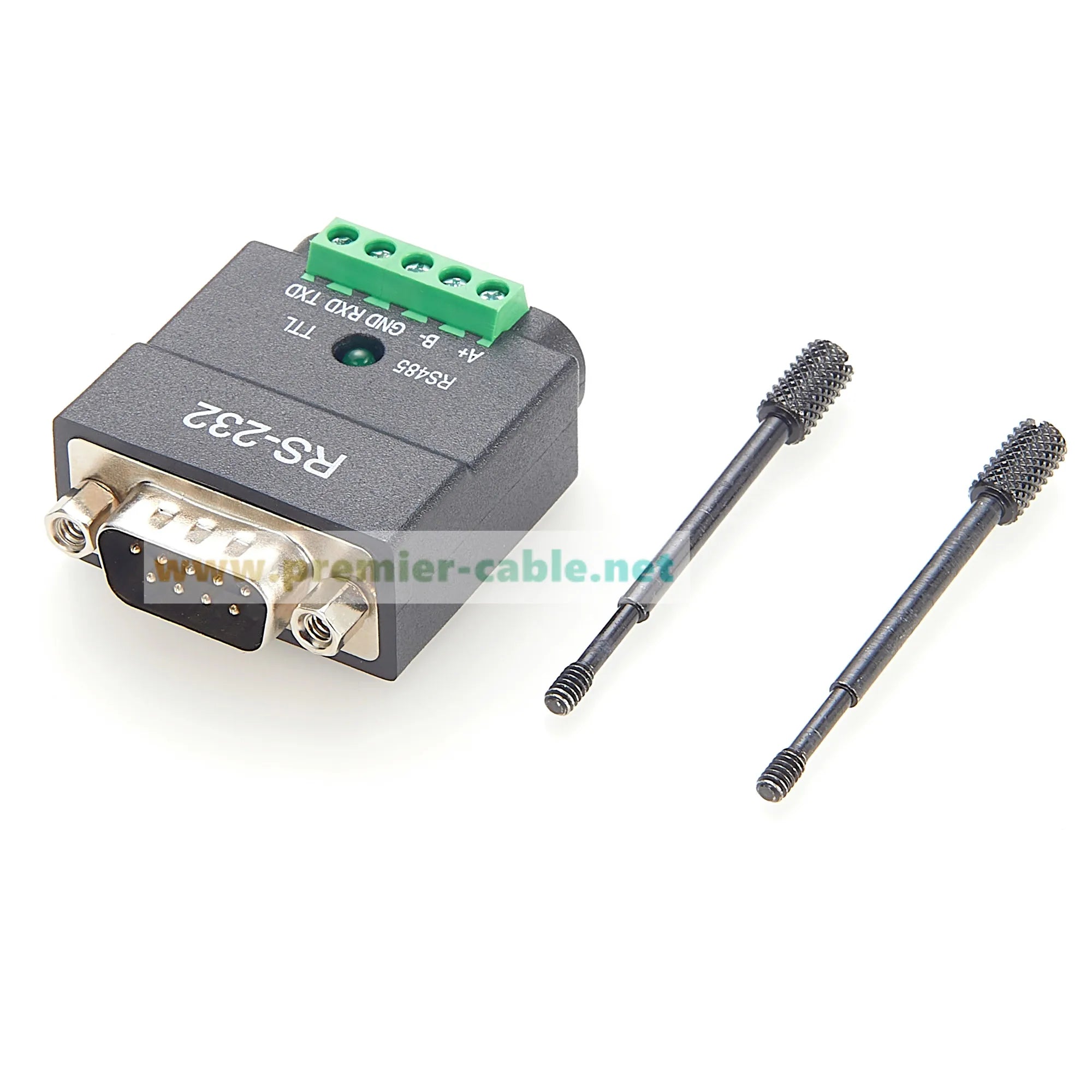

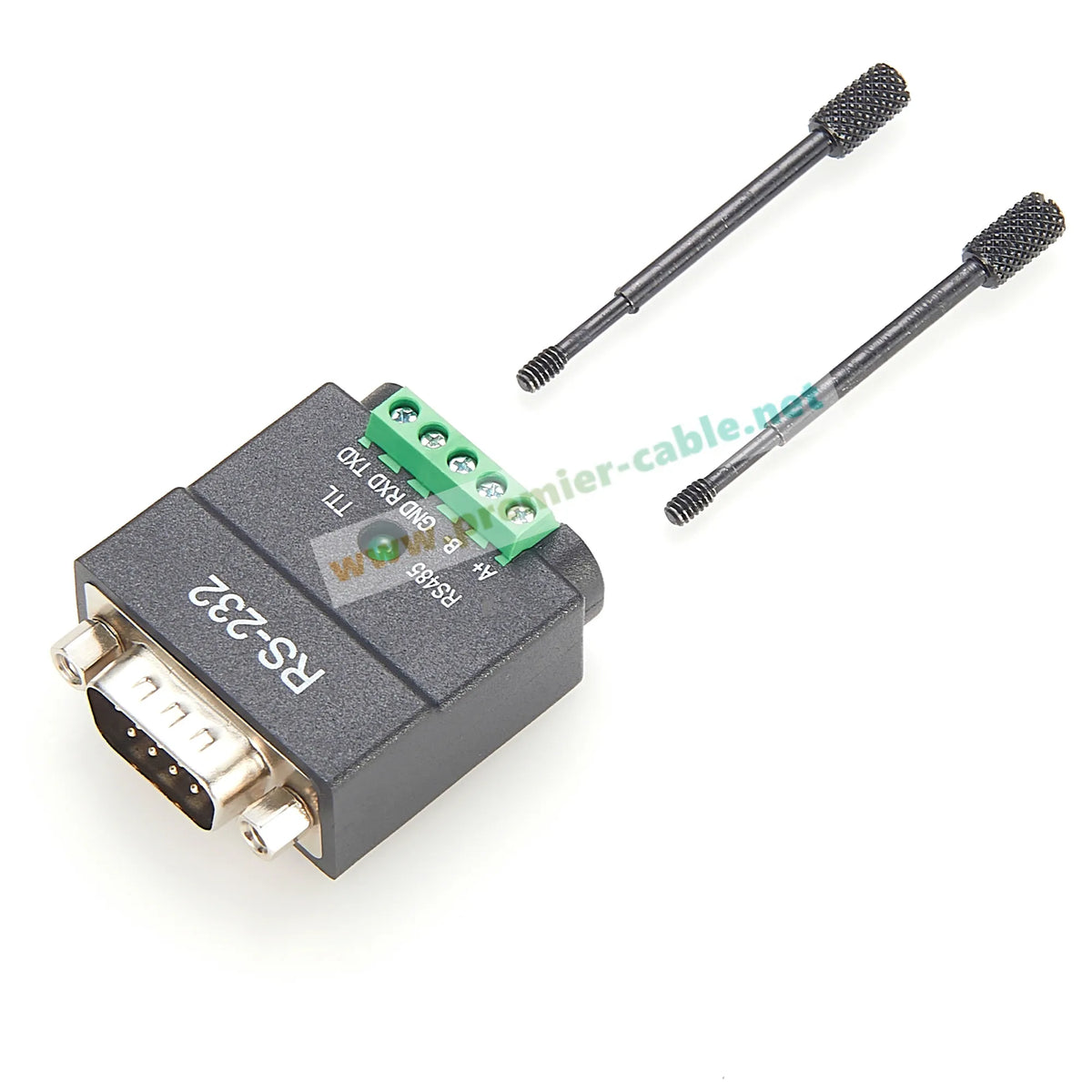

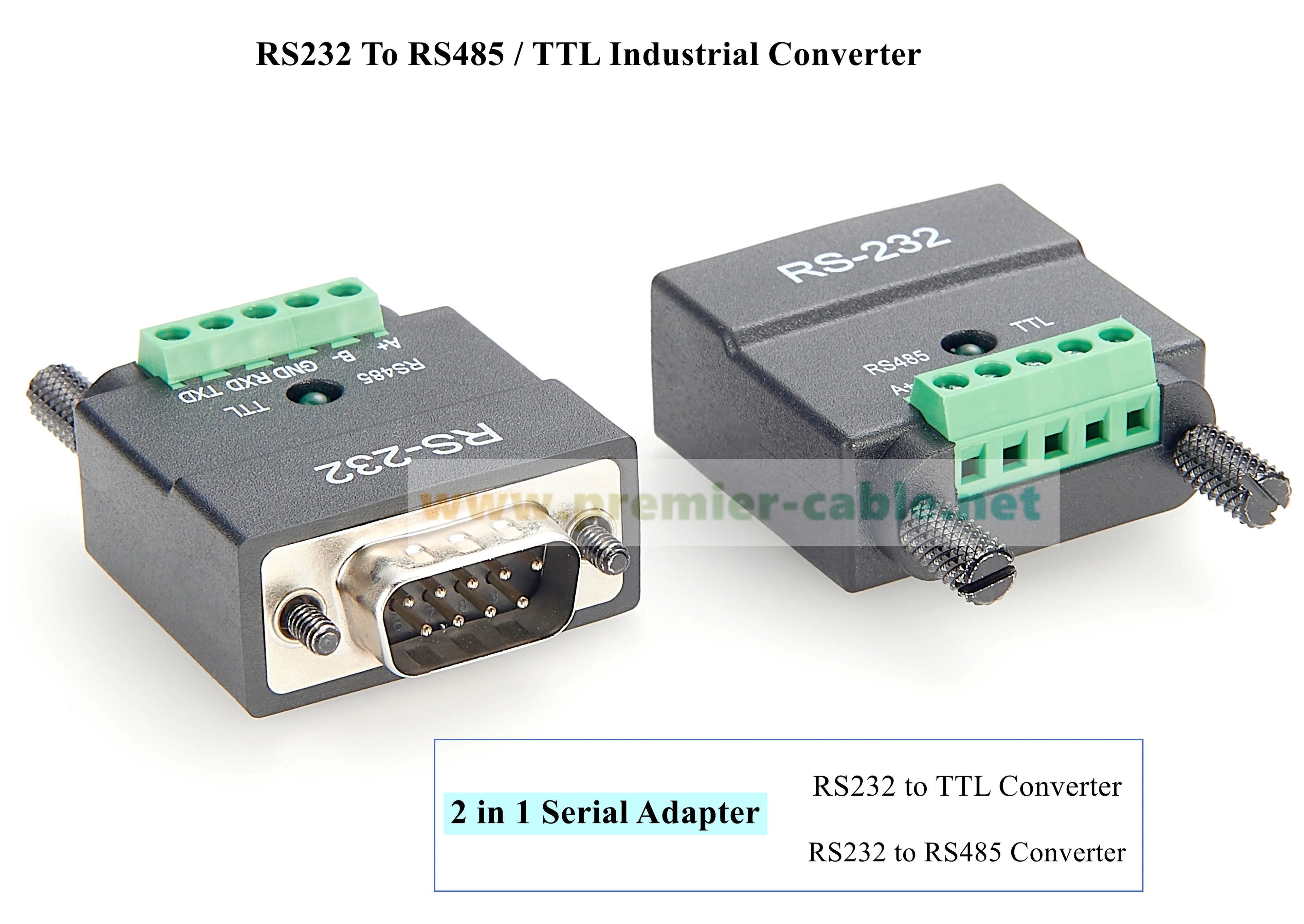

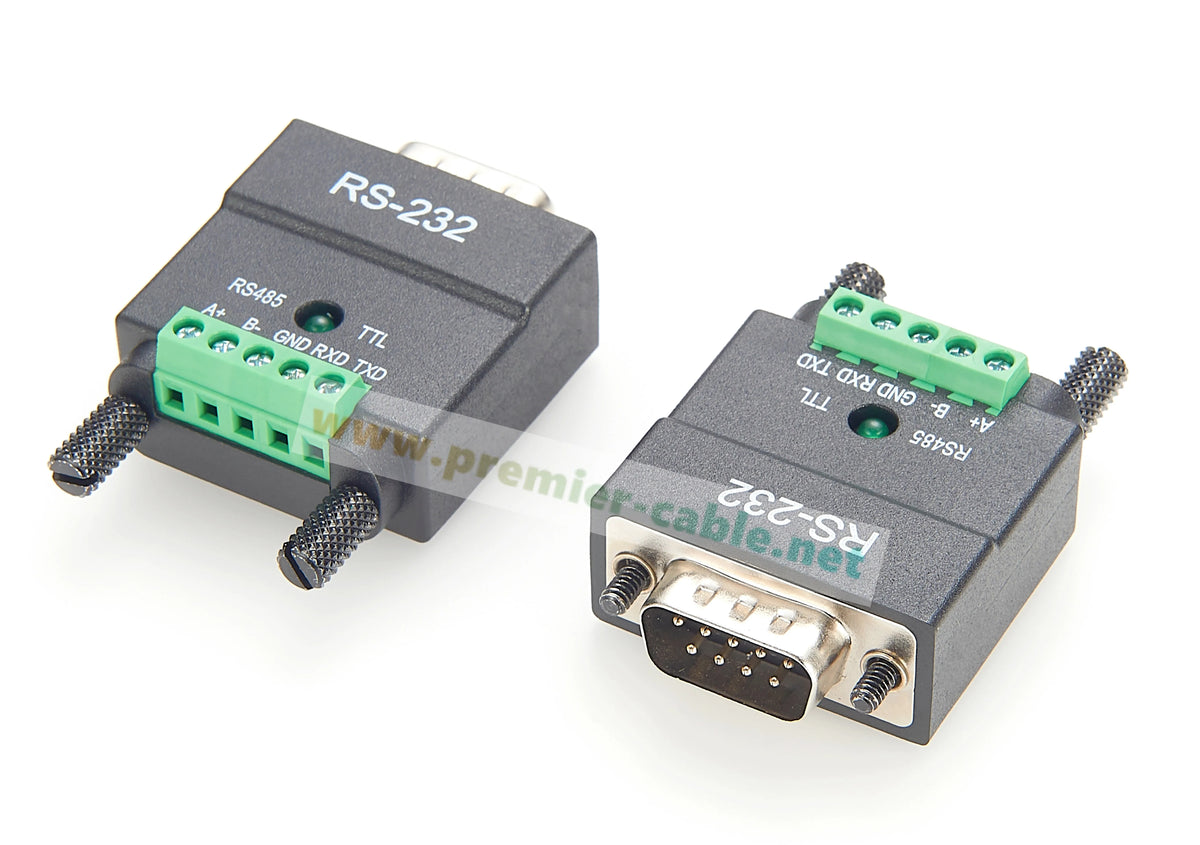

DB9 RS232 to RS485/TTL converter: This converter typically has a DB9 RS232 male connector for RS232 signal input and provides both RS485 and TTL level signal output ports.They usually contain a level conversion circuit and corresponding serial communication chip in order to realize the conversion of signal format.

Features：

Input signal: RS232

Output signal: RS485, TTL

Drawing number: PCM-KW-475

Input connector:DB9 male

Output connector: Terminal block, pitch 3.81

Terminal block wiring specifications: 16-28AWG

Application description:

1.Industrial Automation:

RS485 is a serial communication standard commonly used in industrial environment, which has the characteristics of strong anti-interference ability and long transmission distance, and is suitable for scenarios that require reliable data communication in industrial control systems.

2.Internet of Things (IoT) applications:

In iot devices, there may be a variety of different types of sensors and control devices, which may use different serial port standards.

3.Serial communication device connection:

Allows RS232 devices (such as computers, serial terminals, modems, etc.) to communicate with RS485 or TTL devices (such as sensors, embedded systems, industrial control devices, etc.) to facilitate interconnection between different types of devices.+

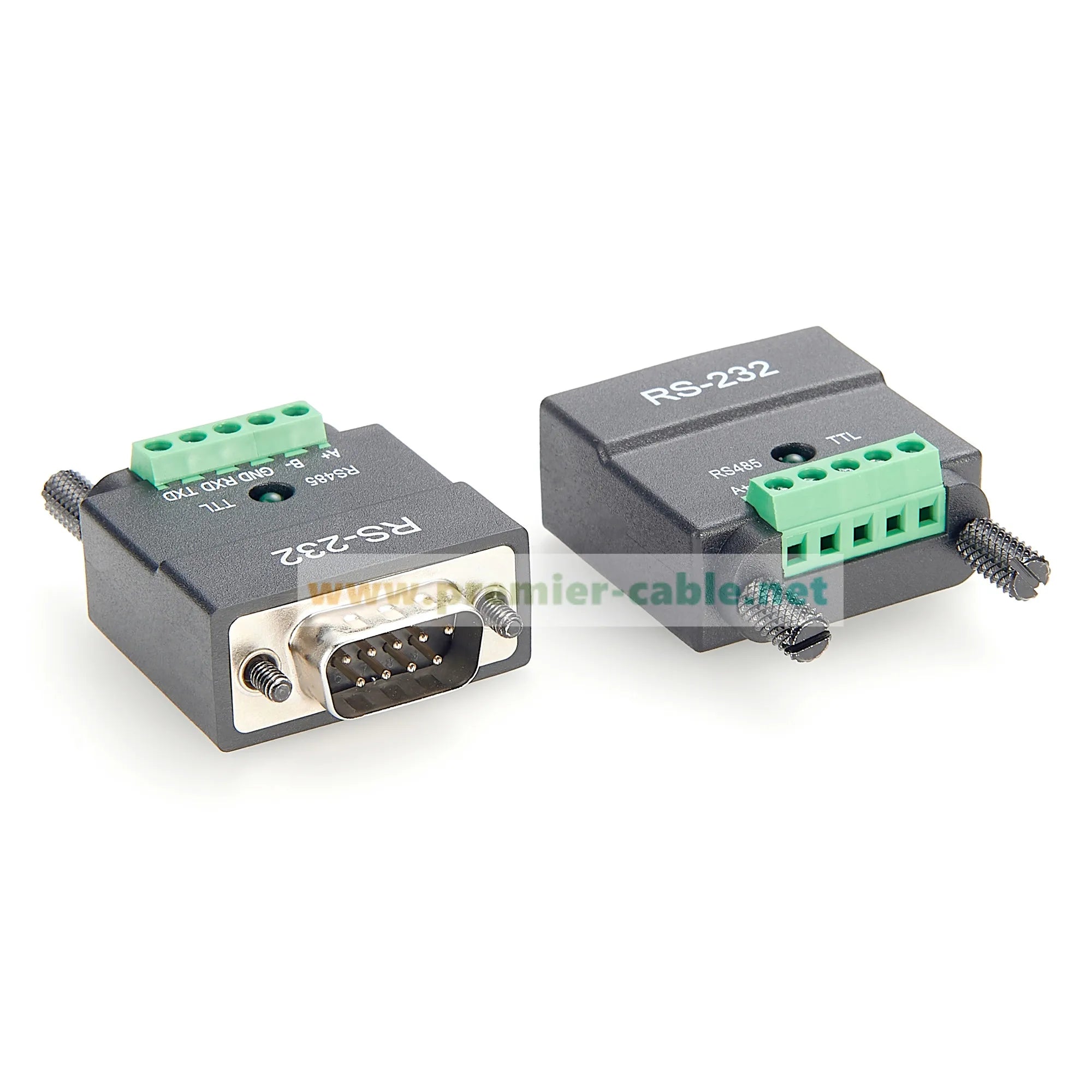

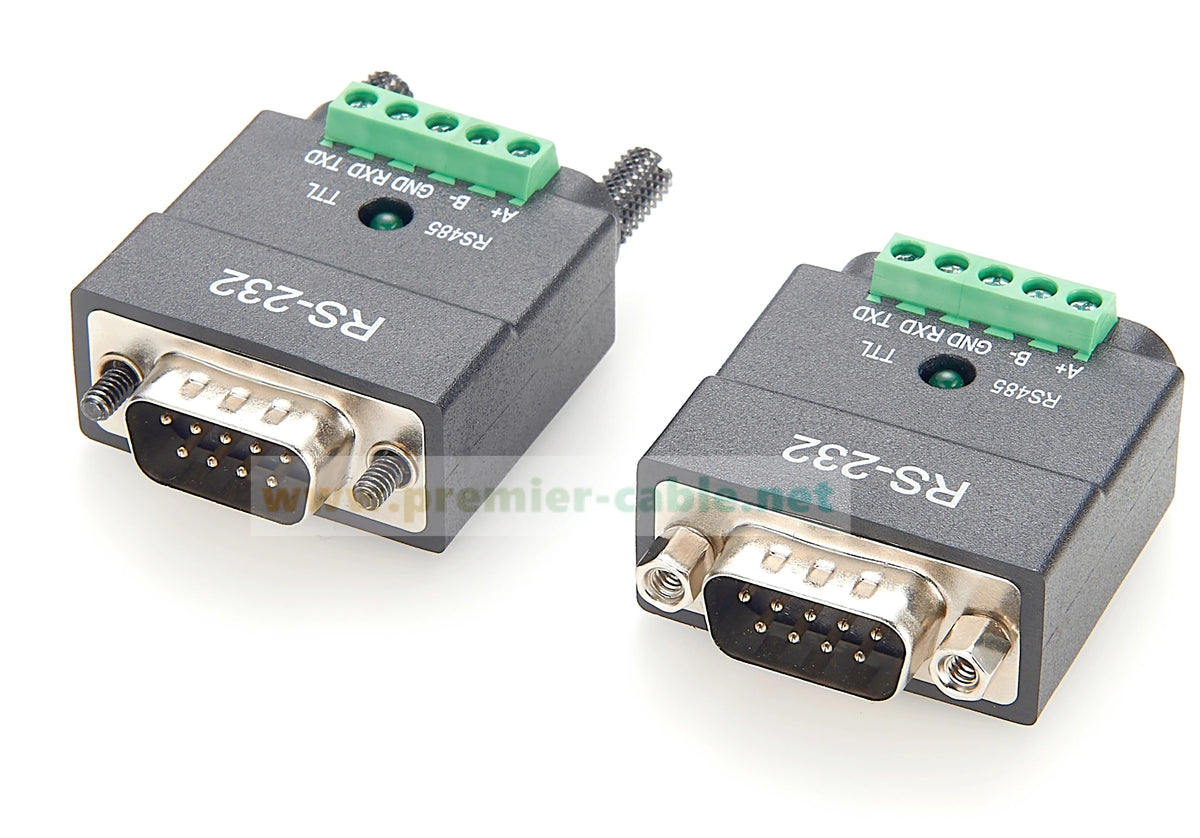

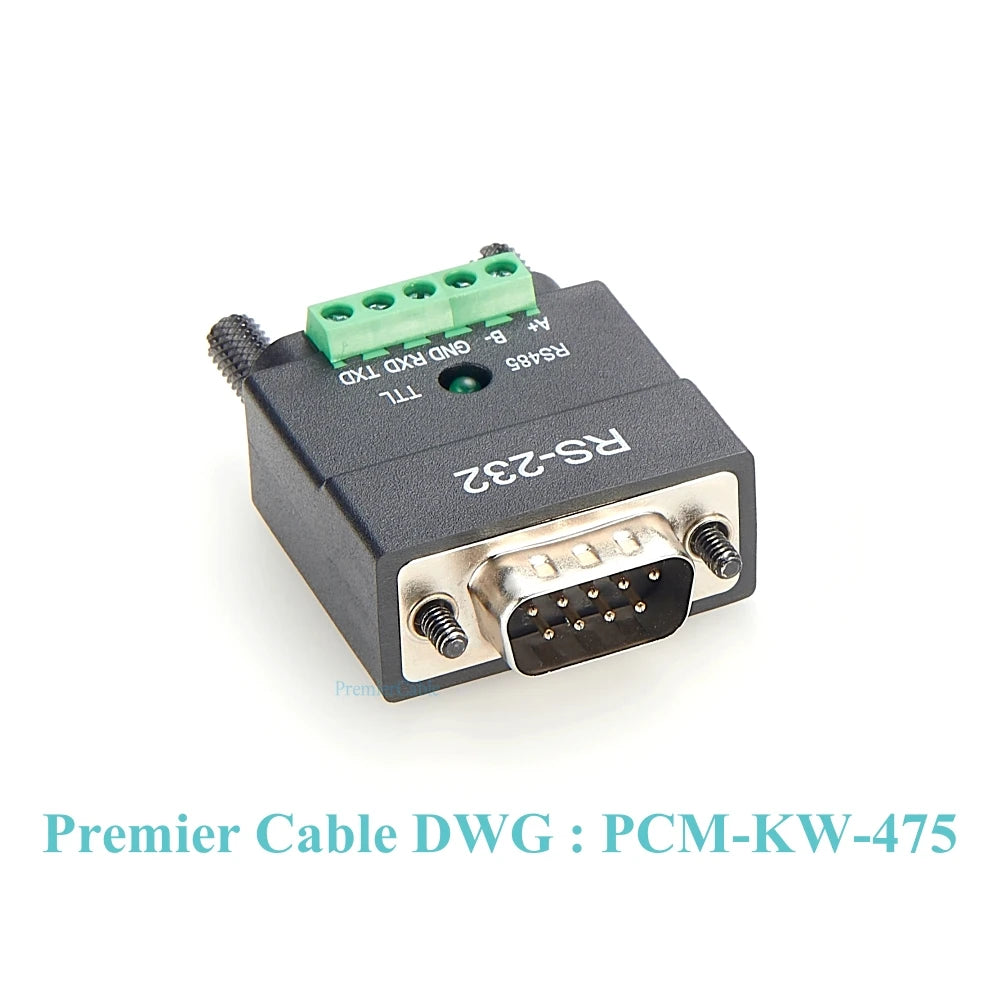

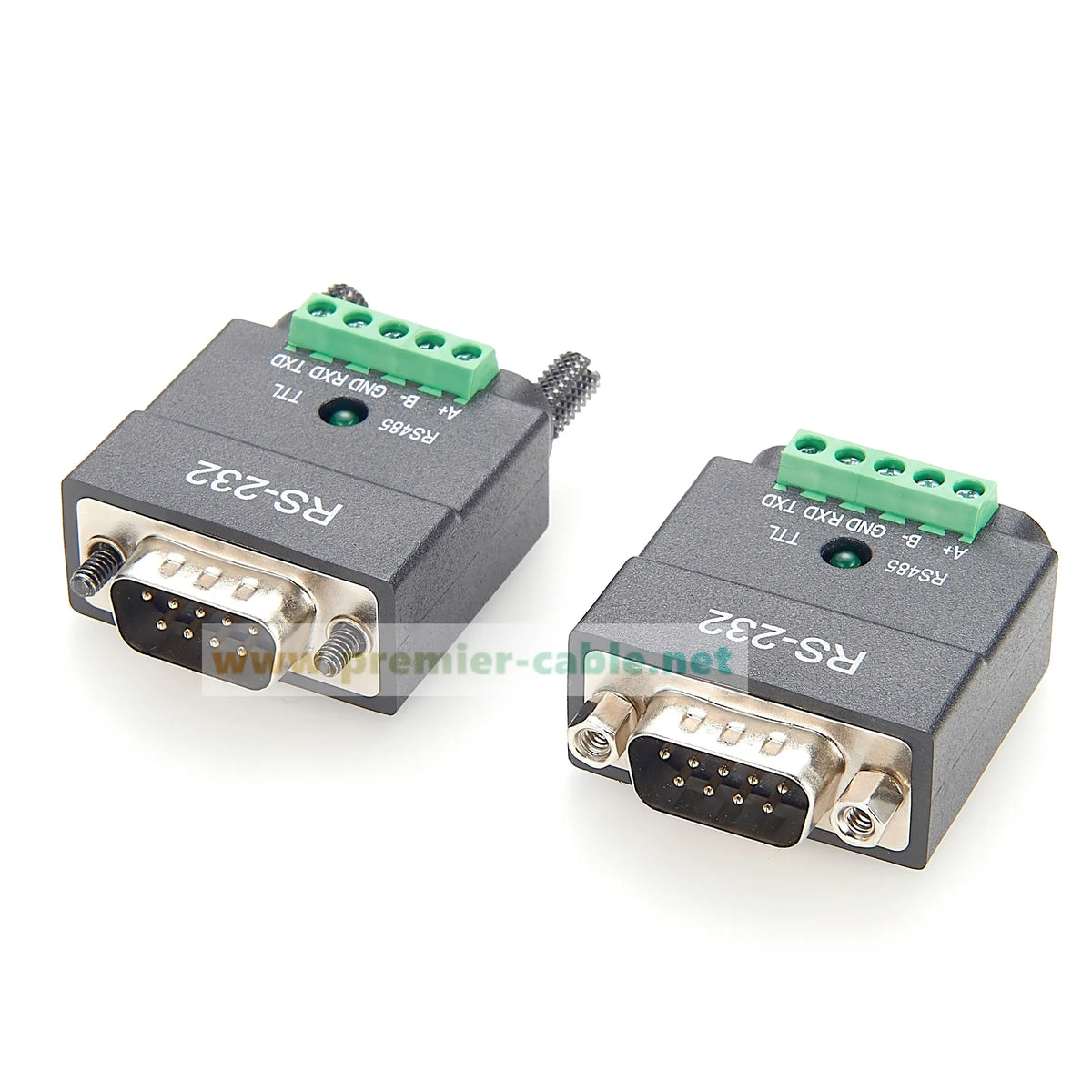

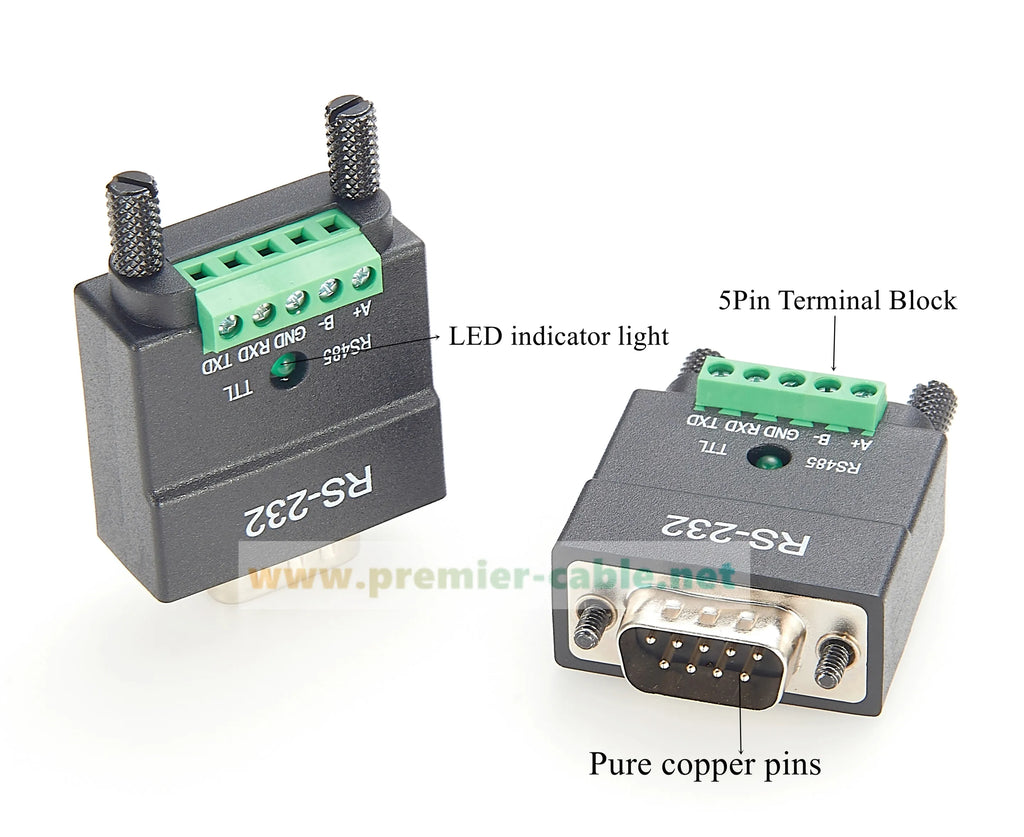

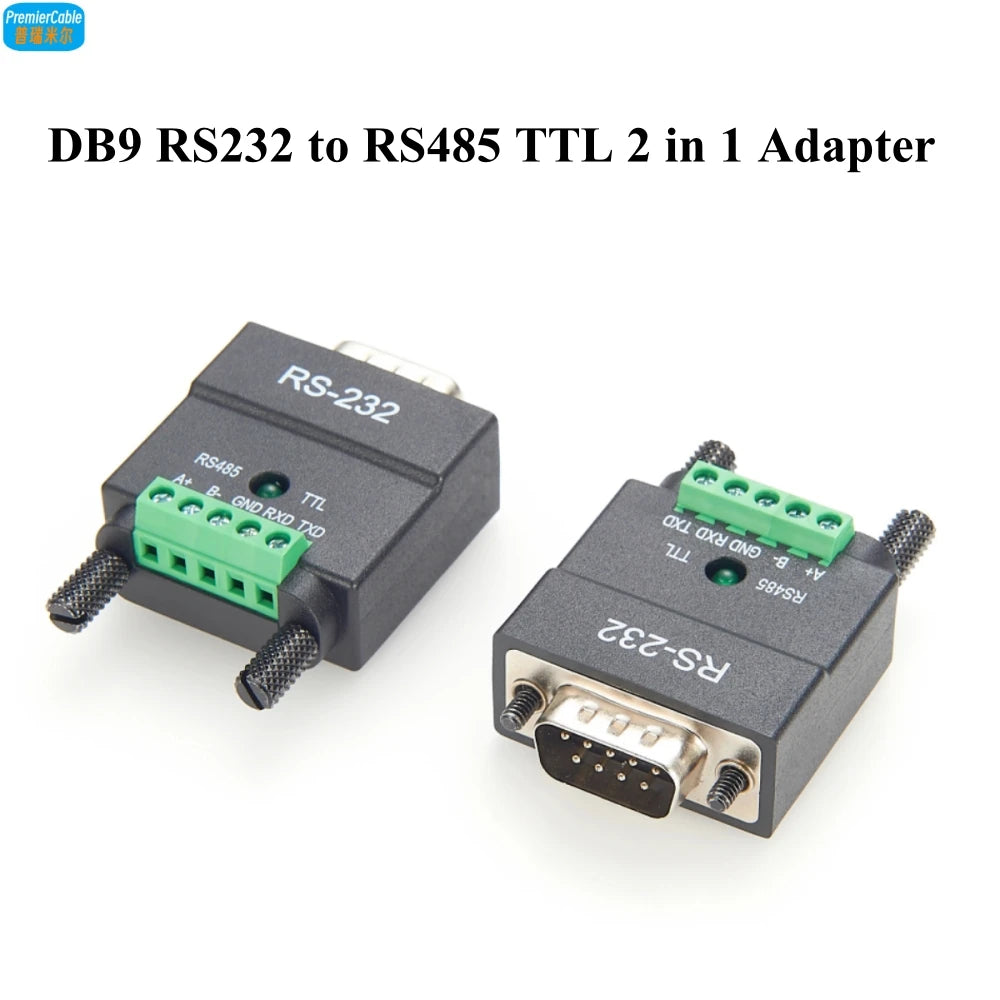

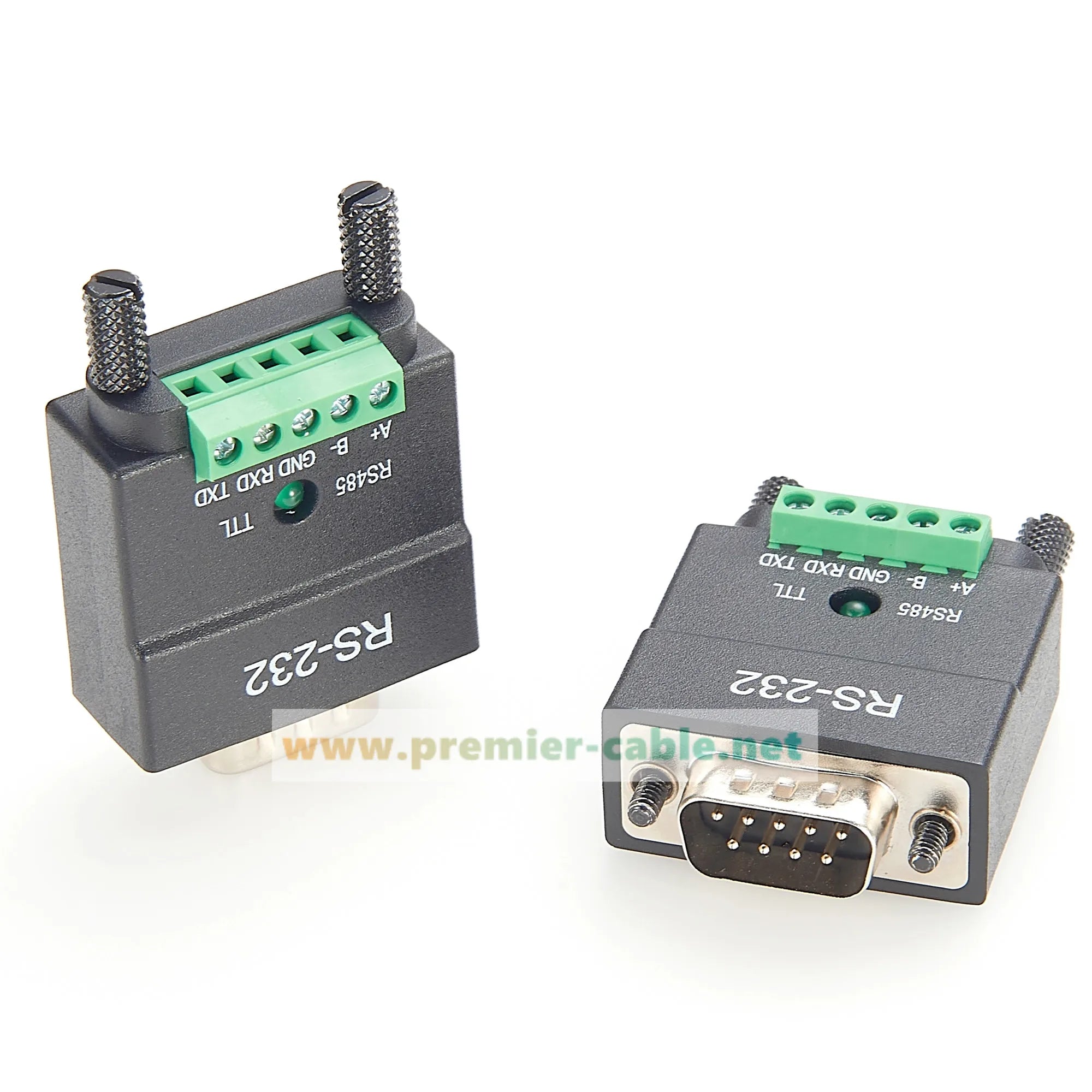

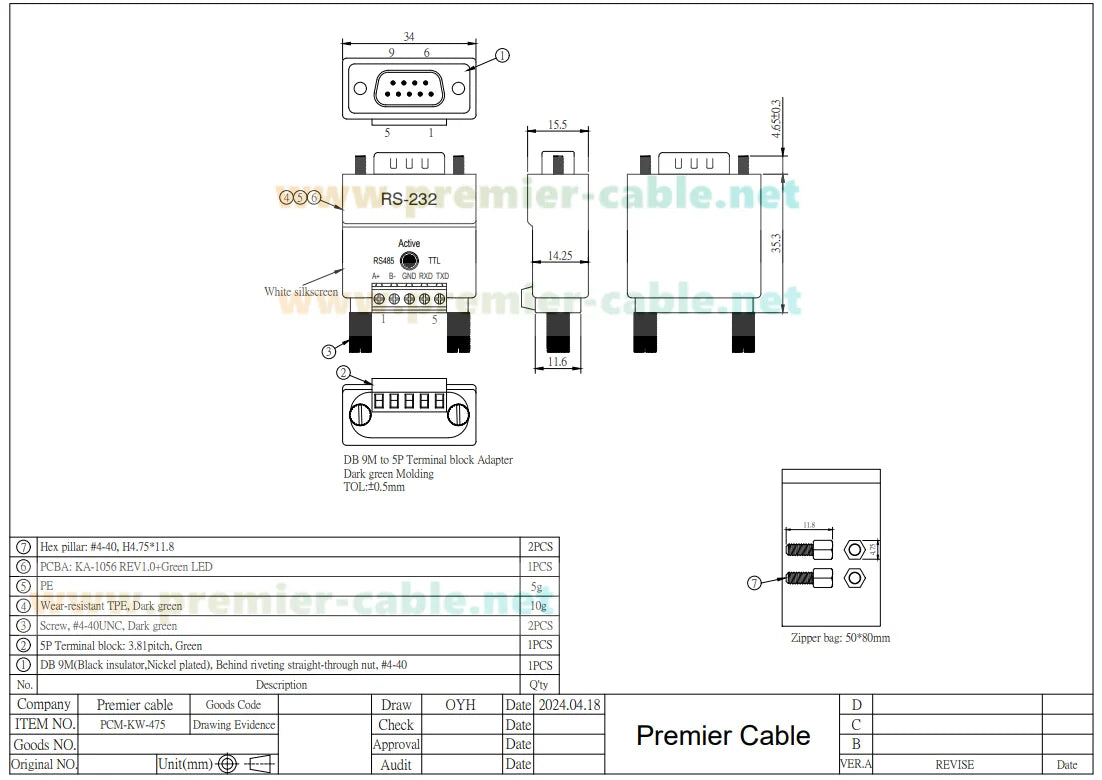

Product  DisplayPlease refer to the drawings below for dimensions
