SPECIFICATIONS

Brand Name: YanYunDZ

Certification: CE

Choice: yes

Contact resistance: 40mq

Current: 3A for VBUS; 1.25A for GND PIN0.25A for others

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Maximum insulation resistance: 100MQ

Maximum withstand voltage: 100V AC R.M.S

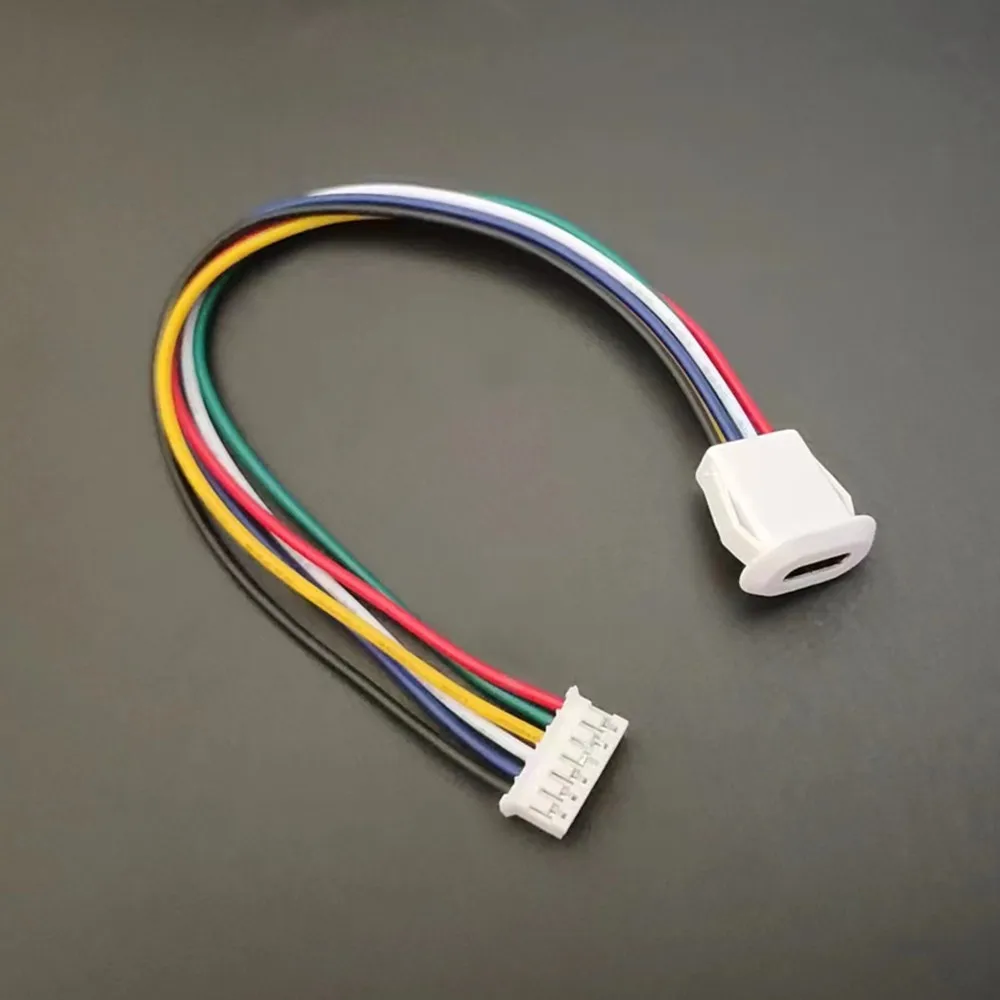

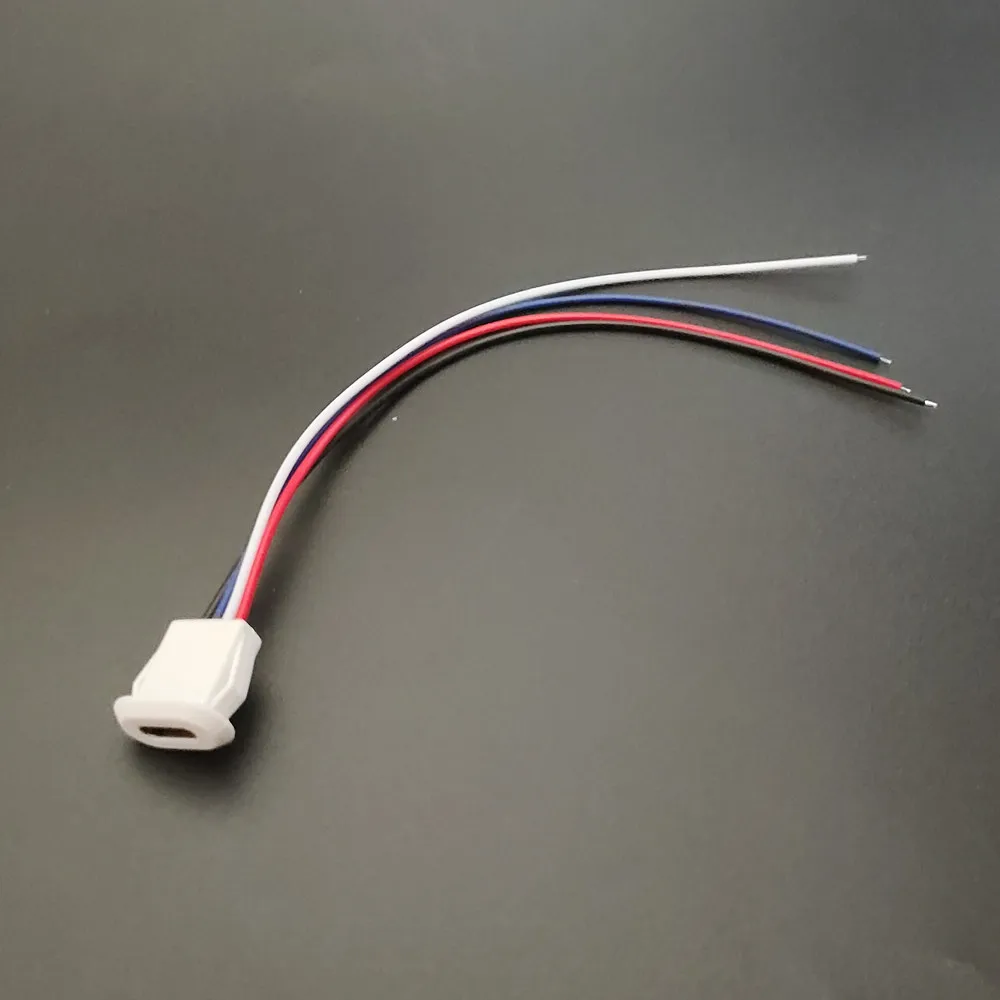

Model Number: USB Type C Connector

Origin: Mainland China

Temperature range: -25℃ +85℃

Voltage: 110V,20V

Wire size: 1007-24AWG

semi_Choice: yes

Product Description

1. Waterproof ring material silica gel, Contacts: minimum copper alloy gold plating on the contact area, minimum tin plating on the soldering area 100uMin (lead-free)

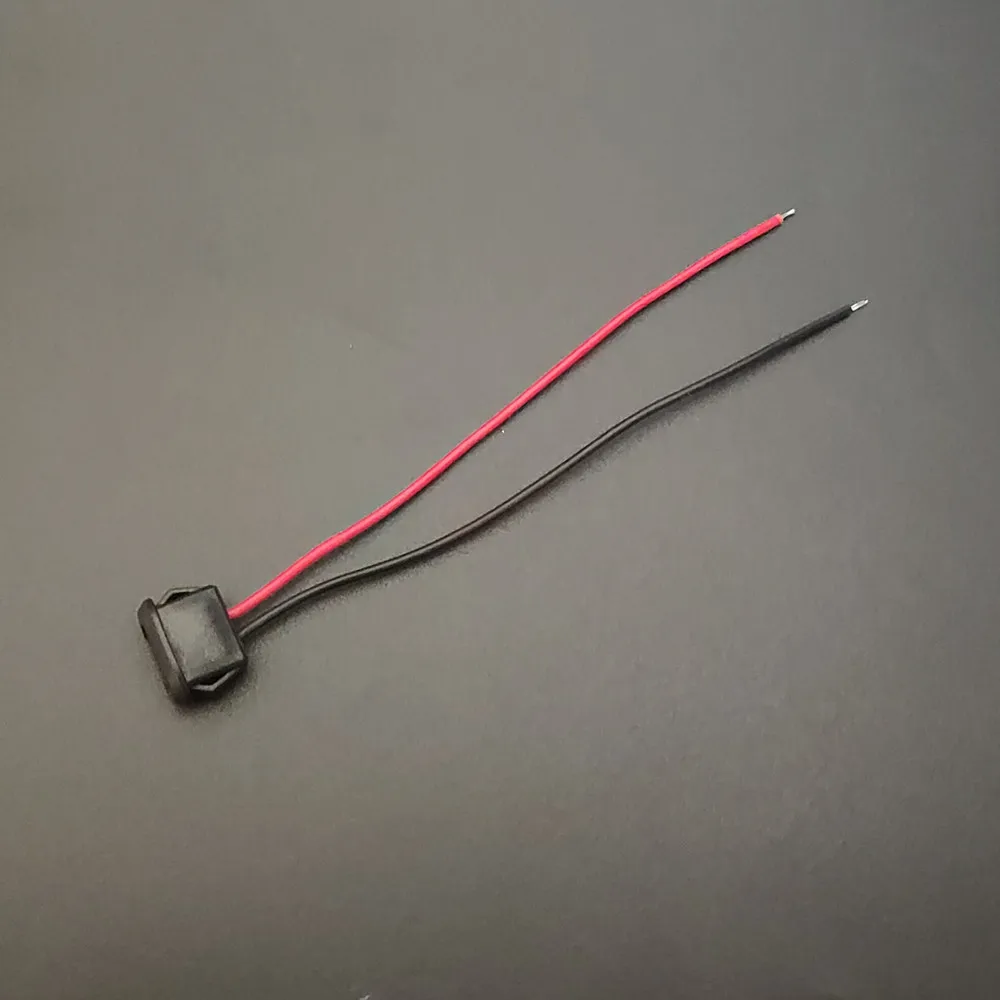

2. Red is positive, Black is negative.

3.The contact resistance is less than 30 milliohms, and the insulation resistance is greater than 1M ohms.

4.The insertion force is 5-20N, the pull-out force is 5-20N, and the contact performance is guaranteed to be inserted 1000 times.

Waterproof grade: IP67

Rubber core: PA9T

Material: plastic

Contacts: minimum copper alloy gold plating on the contact area, minimum tin plating on the soldering area 100uMin (lead-free)

Rated current: 3A

Durability: 1000 times+

Operating temperature: -25℃ +85℃

Applications:

PCB boards, toys, power banks, clamped batteries, desk lamps, electronic products, mobile devices, 3C digital,Electronic instruments, electric toothbrushes, industrial equipment, security equipment, etc.

Package include:

2/5/10PCS x USB Type C Connector
