SPECIFICATIONS

Available Pin Configurations: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Pin

Brand Name: NONE

Certification: CE

Choice: yes

Connection Type: Screw Clamp / Wire-to-Board

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 15EDGRK-3.81

Origin: Mainland China

Pitch (Spacing): 3.81mm

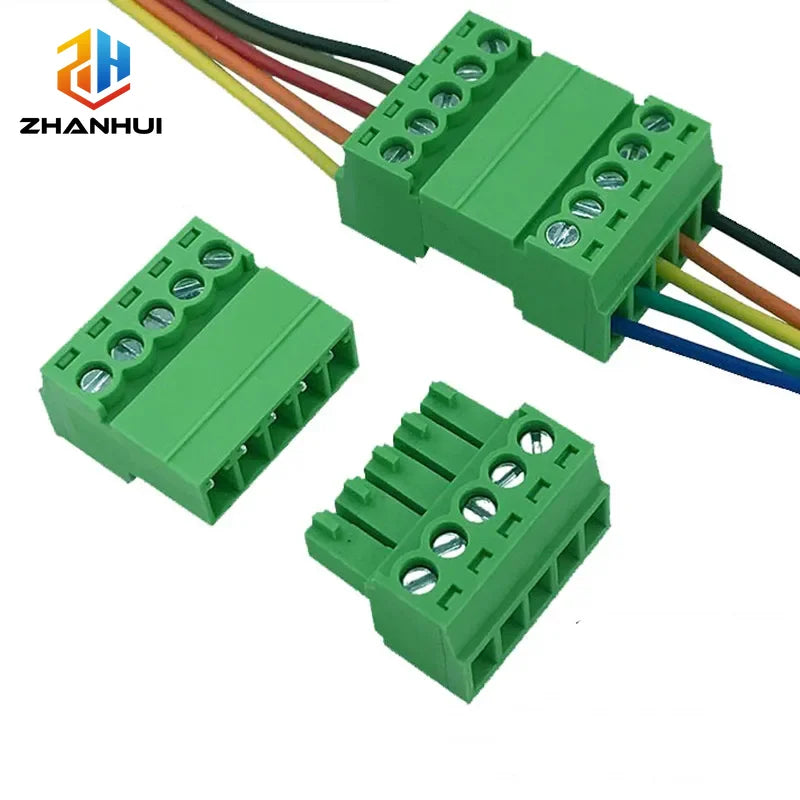

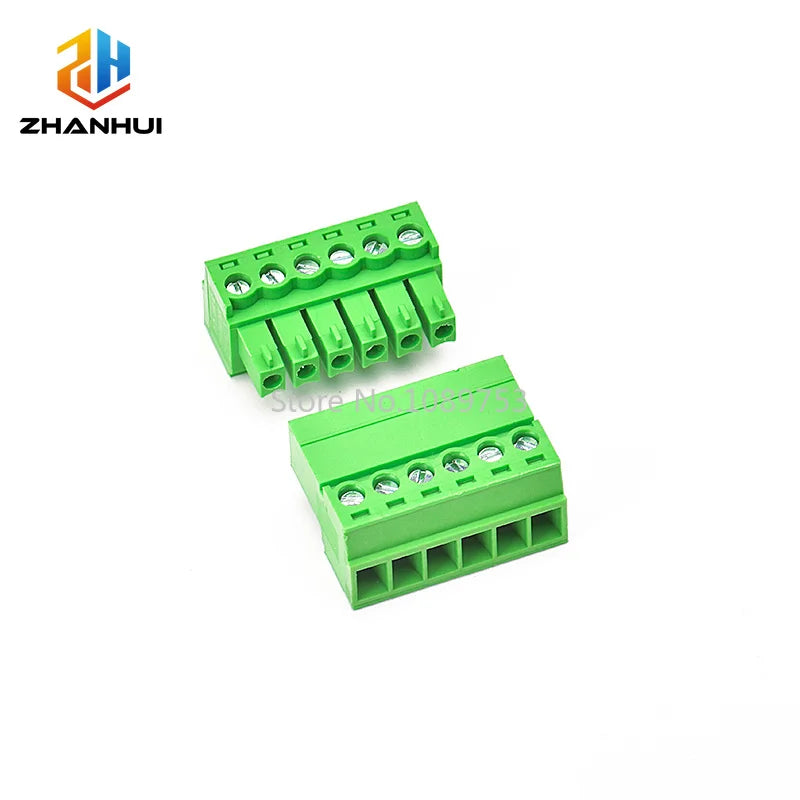

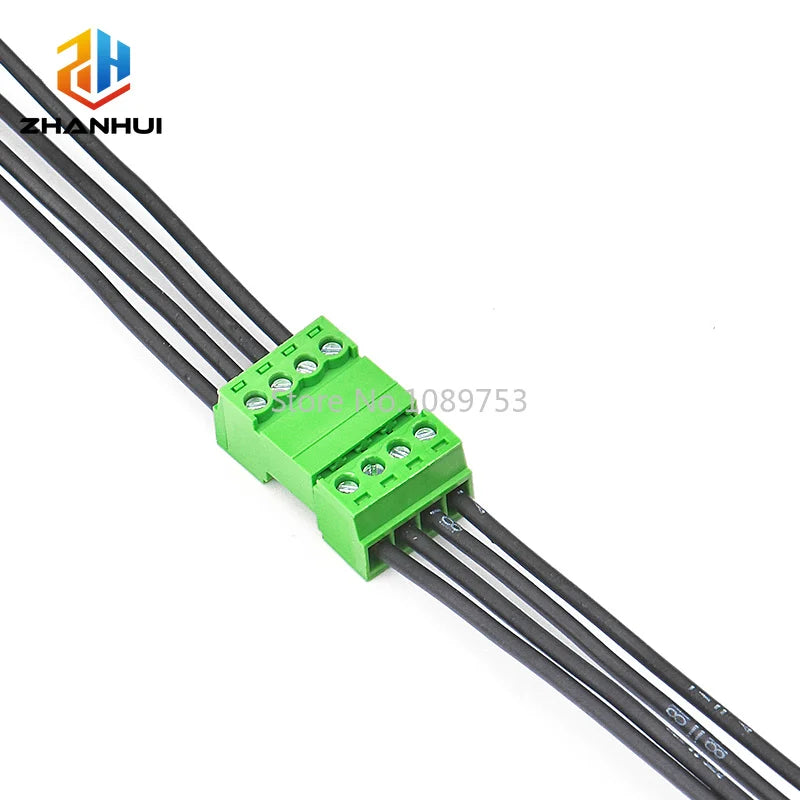

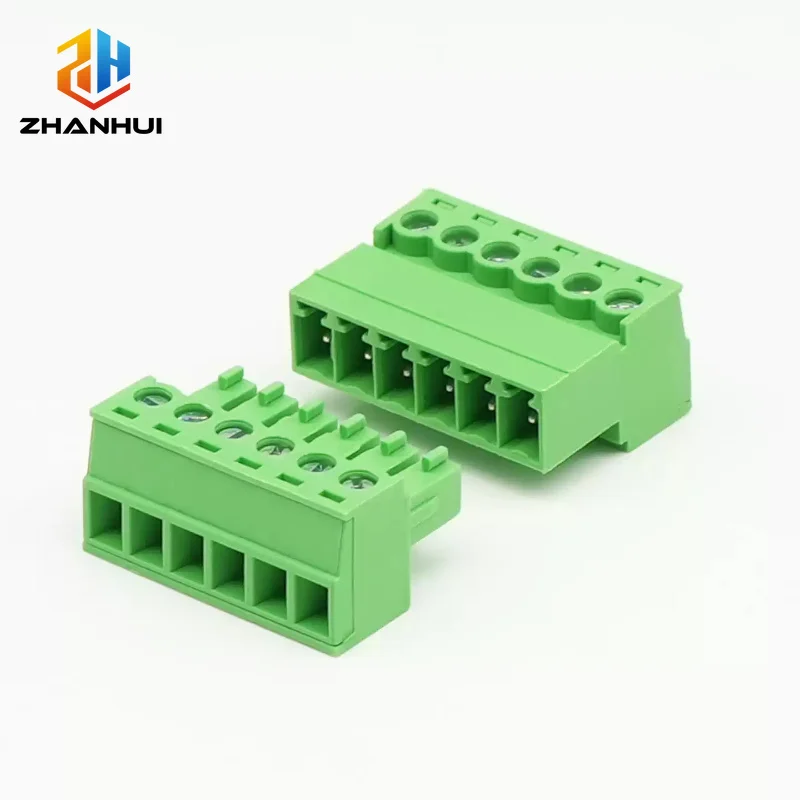

Product Name: Plug-in Screw Terminal Block Connector

Voltage: none

Wire Range: Typically 16-28 AWG (0.5 - 1.5 mm²)

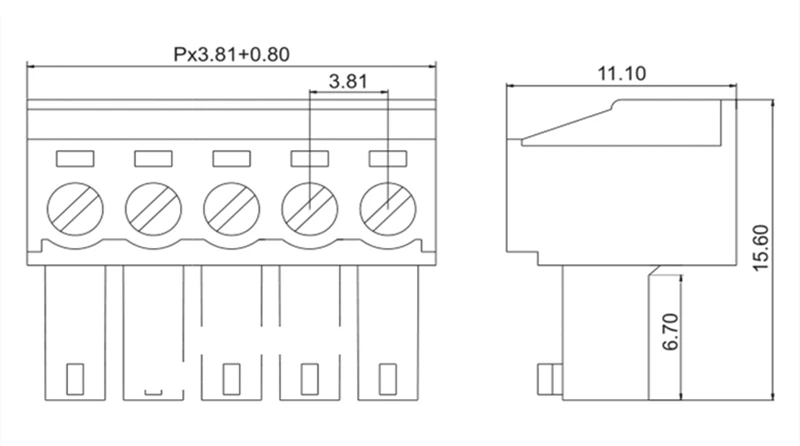

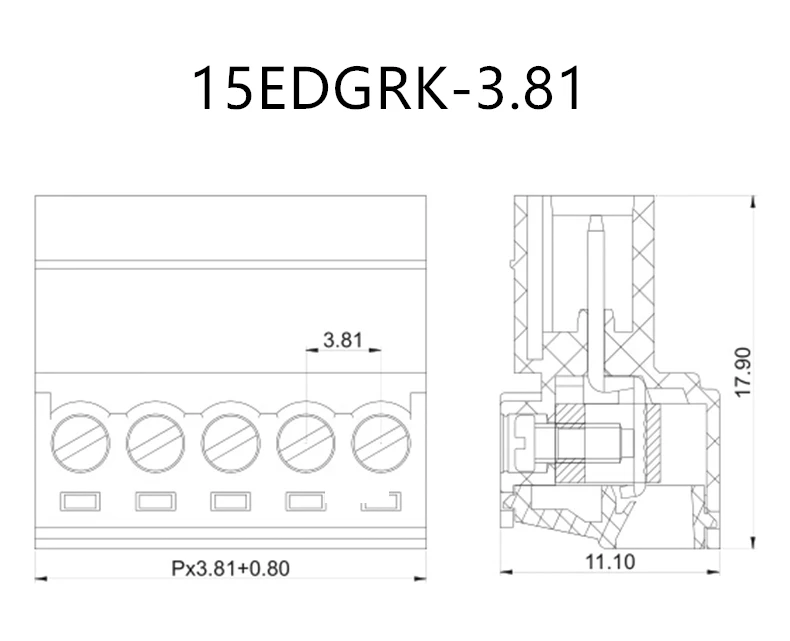

Technical Specifications

1. Pitch: 3.81mm (0.15")

2. Poles (Positions): 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Pin

3. Connection Type: Screw Clamp

4. Wire Size: 16-28 AWG (0.5 - 1.5 mm²)

5. Screw Size: M2

Electrical Parameters

1. Rated Current: 8A

2. Rated Voltage: 250V

3. Withstand Voltage: 1500V AC/1min

4. Insulation Resistance: ≥500MΩ / 500V DC
