SPECIFICATIONS

Brand Name: NONE

Collector Dark Current: <100 nA

Collector Emitter Breakdown Voltage: >30 V

Collector Emitter Saturation Voltage: <=0.3 V

Condition: New

DC Current Amplification Factor: 1000---1800

Emitter Collector Breakdown Voltage: >6 V

High-concerned chemical: none

Model Number: SGPT524C

On State Collector Current: 2.0 mA

Origin: Mainland China

Package Type: Throught Hole

Range of Spectral Bandwidth: 400---1100 nm

Rise/Fall Time: 15/15 μS

Wavelength of Peak Sensitivity: 940 nm

English is the original language, other languages are automatically translated, there may be translation errors.

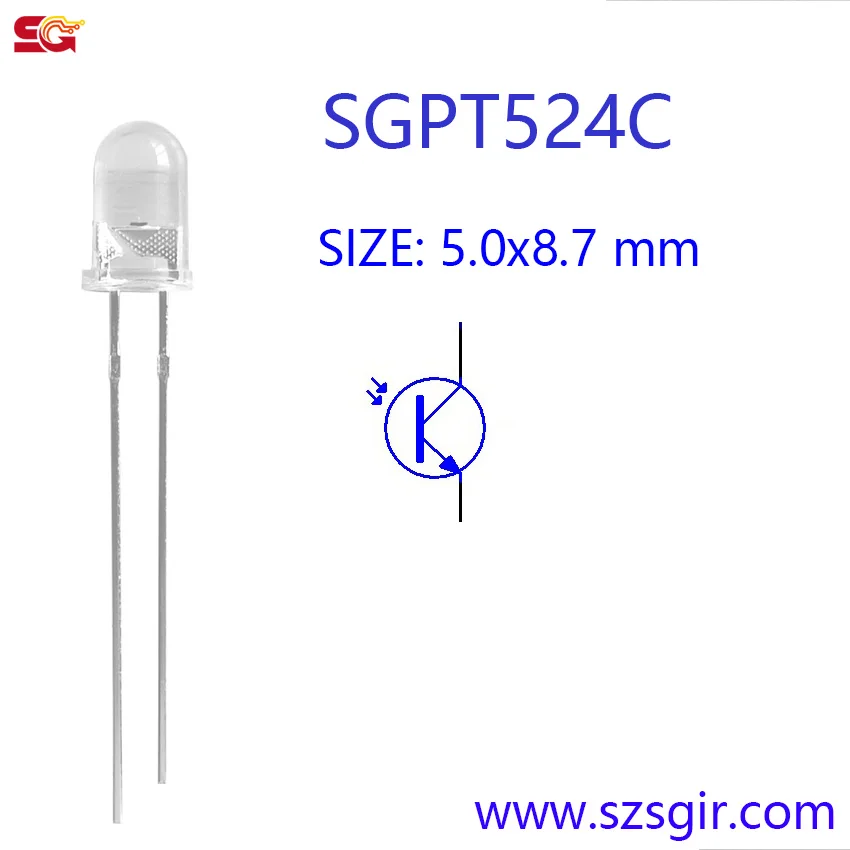

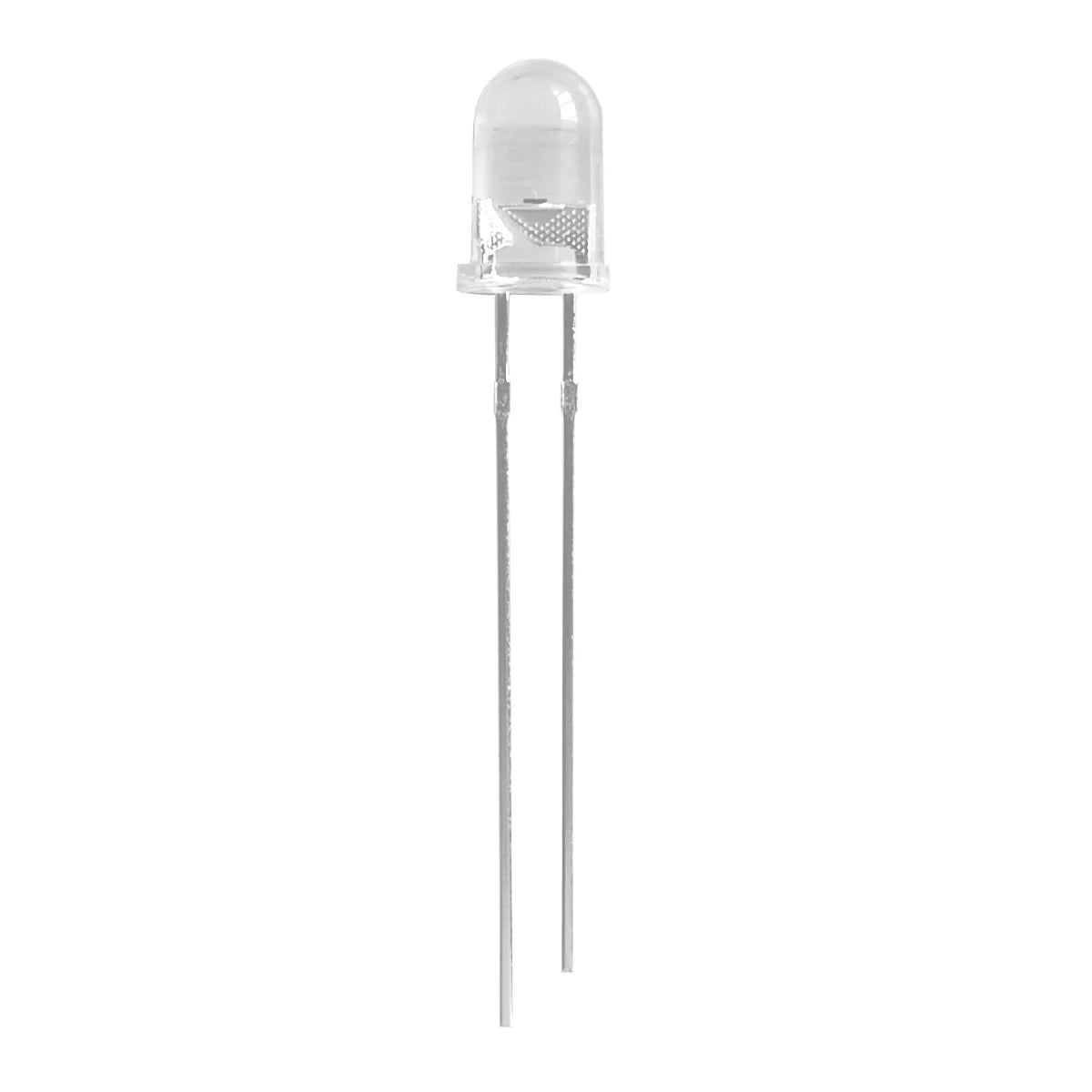

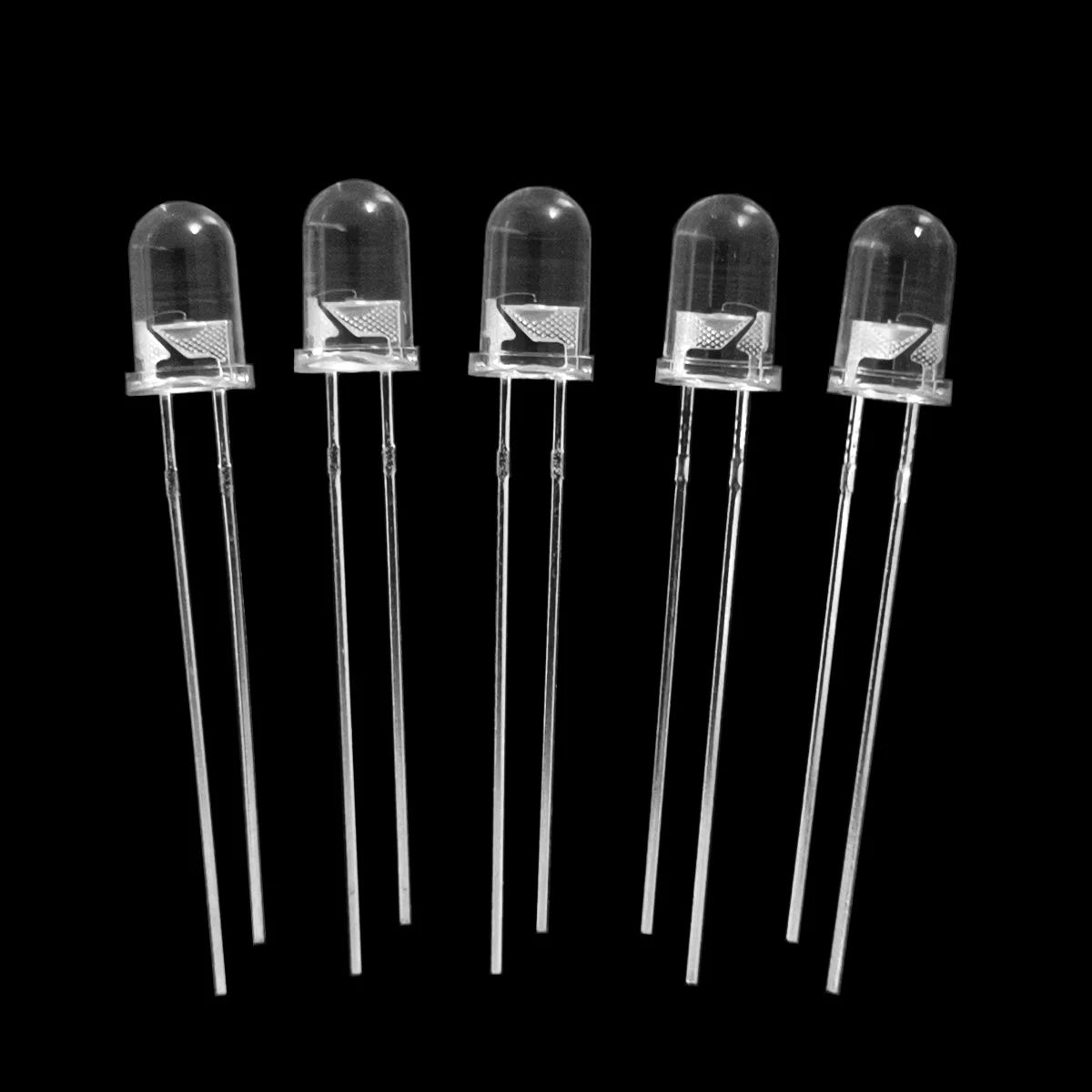

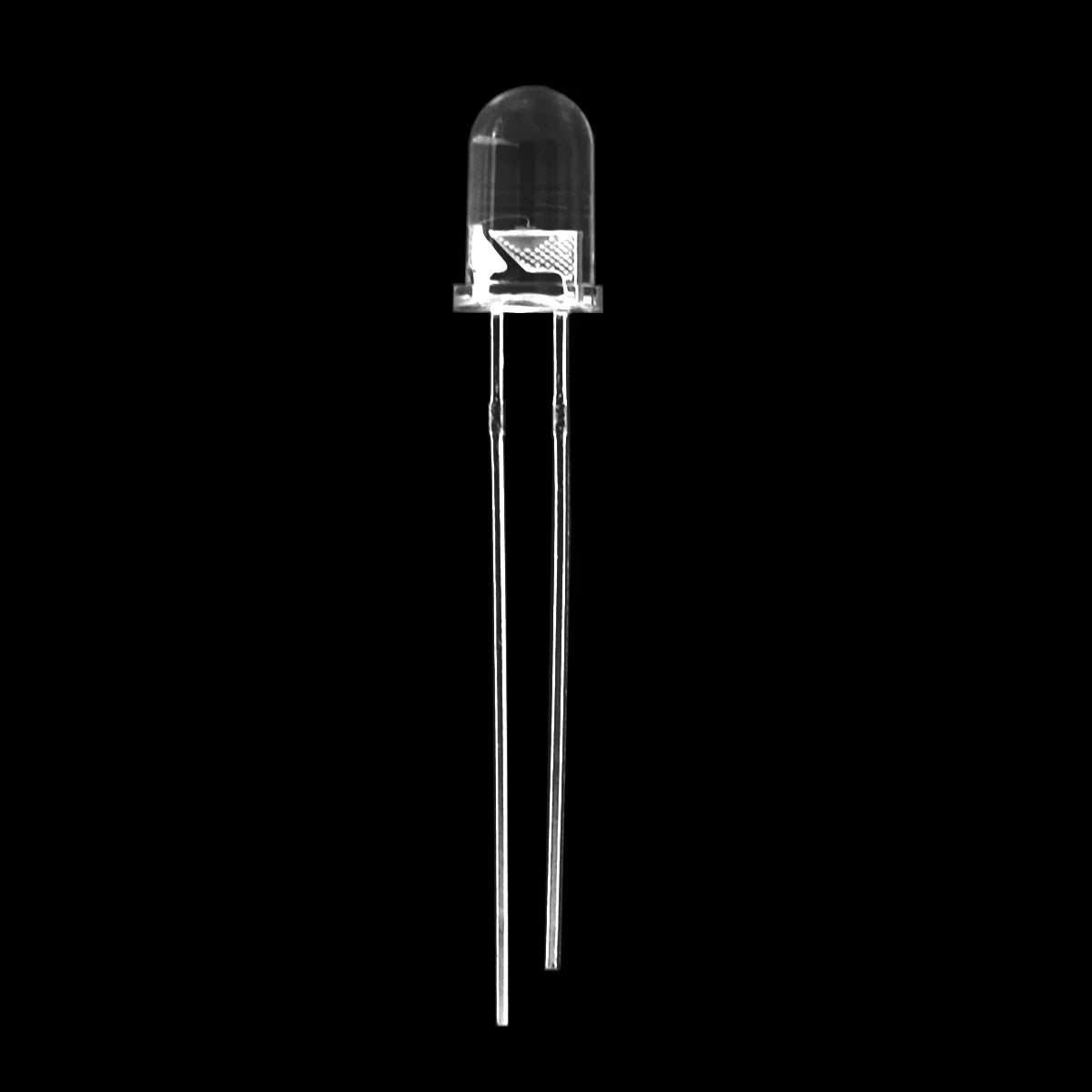

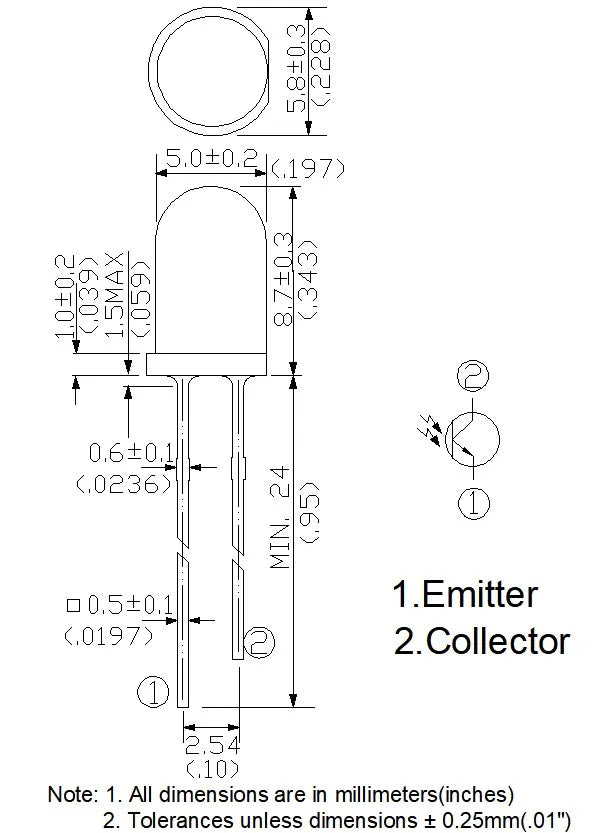

5mm(0.197") NPN Phototransistor: SGPT524C

Colour: Transparent

Range of Spectral Bandwidth：400---1100 nm

Wavelength of Peak Sensitivity: 940 nm

Collector Emitter Breakdown Voltage: >30 V

Emitter Collector Breakdown Voltage: >6 V

Collector Dark Current: <100 nA

Collector Emitter Saturation Voltage: <=0. V

On State Collector Current: 2.0 mA

Rise/Fall Time: 15/15 μS

For detailed product parameters, please check the specifications and download the specifications from the company's website.

Factory direct sales, batch purchase customers can contact the seller to arrange production.

1000 pcs/bag, The whole package purchase is more favorable.

Similar products:

SGPT524A: Suitable for receiving 940nm and above infrared rays

SGPT524B: Suitable for receiving 850nm and above infrared rays

SGPT524C: Suitable for visible light receiving, also can receive infrared rays

SGPT524D: Suitable for receiving 940nm and above infrared rays. Short pins.

SGPT524G2: Suitable for receiving 940nm and above infrared rays

Difference between Photodiode and Phototransistor

A.  Abbreviation:  Photodiode---PD /  Phototransistor---PT

B.  PIN Name: Photodiode---Anode and Cathode  / Phototransistor---Emitter and Collector

C.  Chip Structure: Photodiode---PN  / Phototransistor---NPN(or PNP)

D.  Response speed：Photodiode---fast /Phototransistor---slow

E.  Amplification characteristics： Photodiode---No / Phototransistor---Yes

F.  Output Linearity:   Photodiode---Good / Phototransistor---Bad

G.  Circuit symbol：Photodiode

Phototransistor

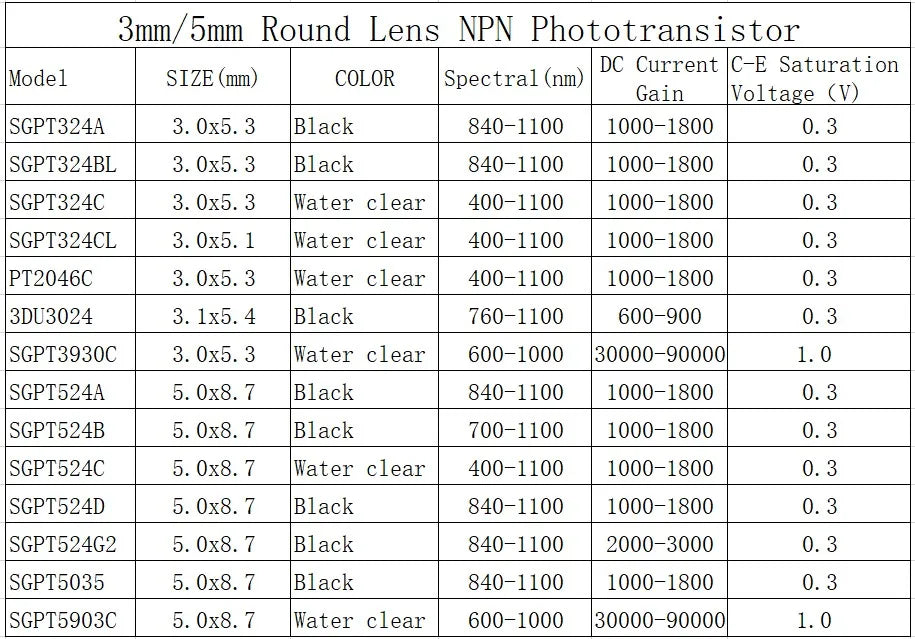

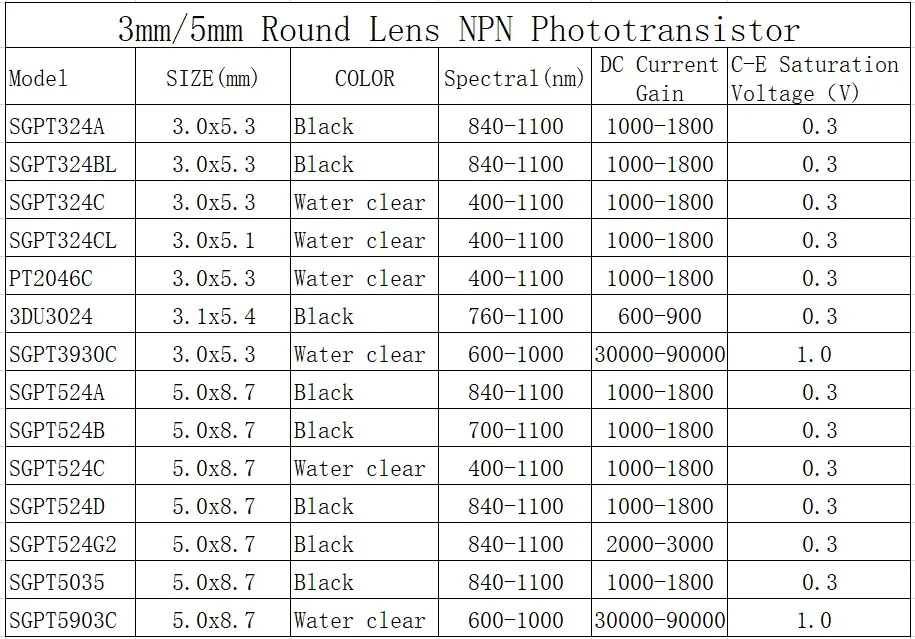

Round Lens NPN Phototransistor

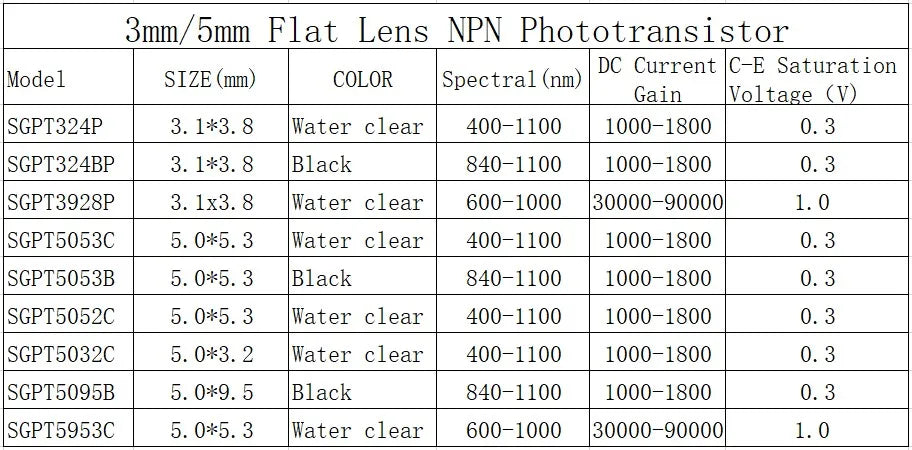

Flat Lens NPN Phototransistor

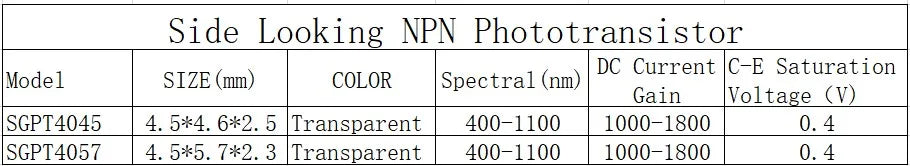

Side Looking NPN Phototransistor

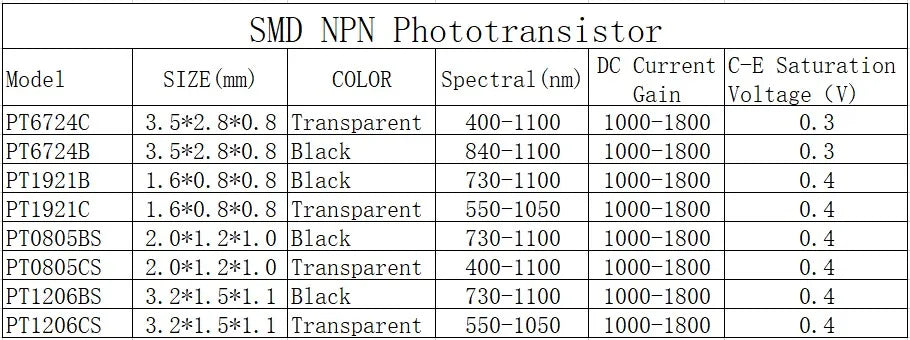

SMD NPN Phototransistor

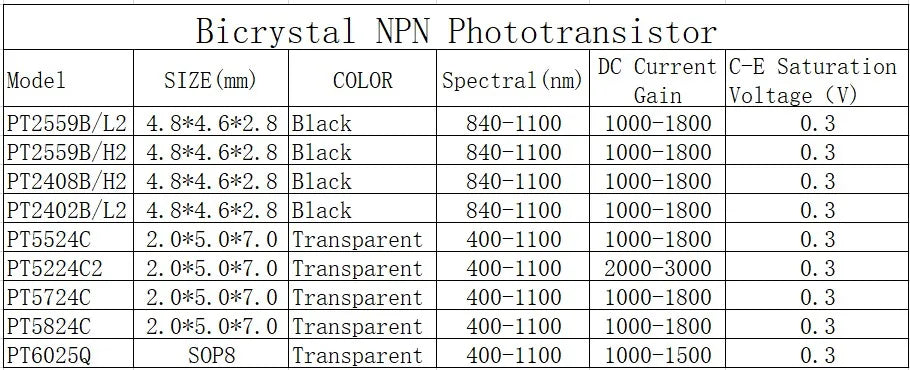

Bicrystal NPN Phototransistor

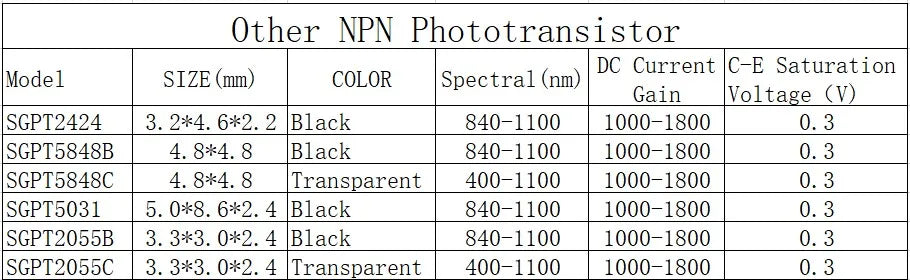

Other NPN Phototransistor
