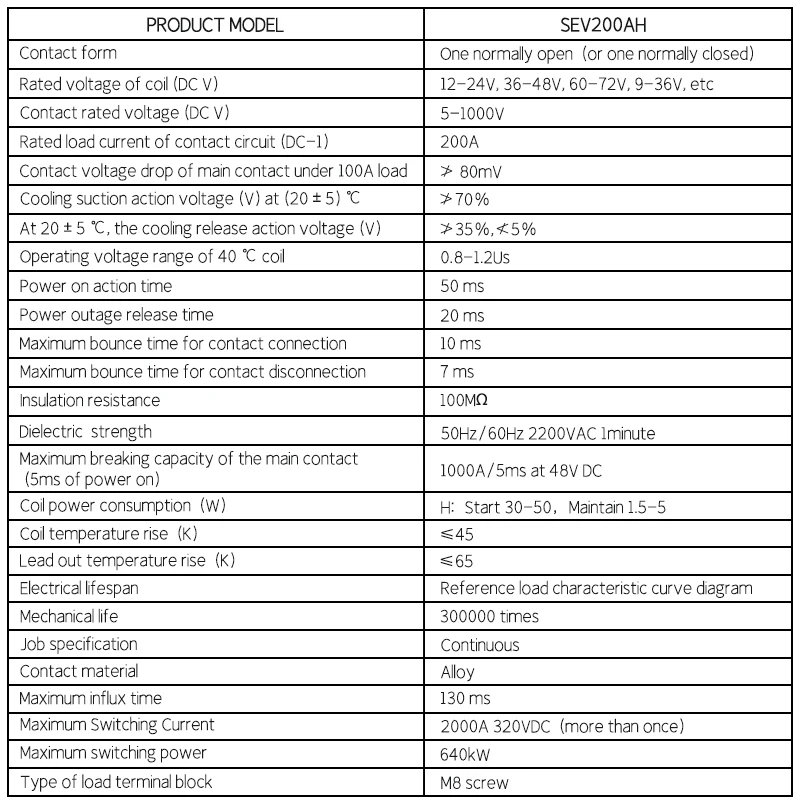

SPECIFICATIONS

Brand Name: TAIYEDQ

Certification: NONE

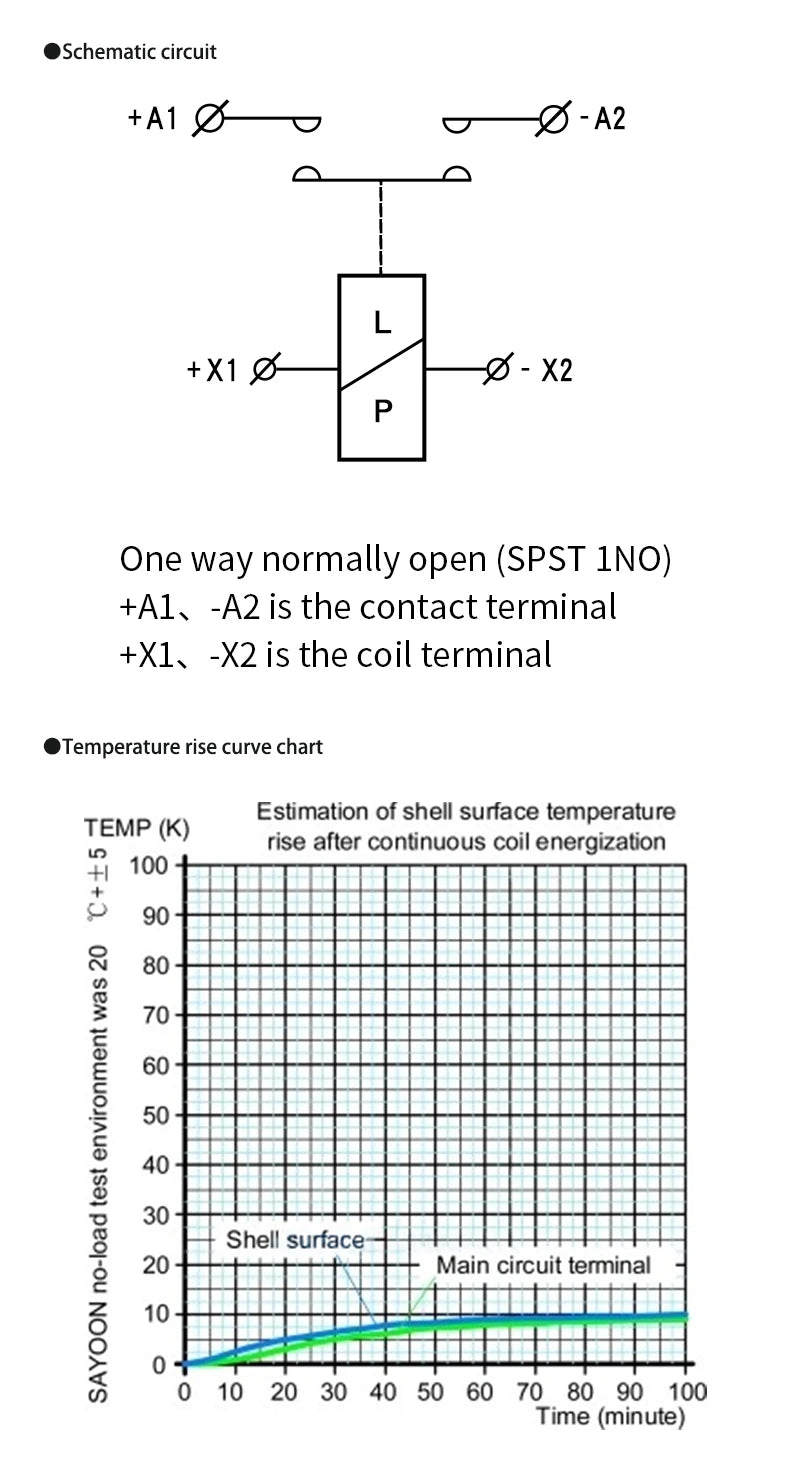

Contact Form: 1NO or 1NC

Contact Material: Alloy

Does it include a Battery?: No

Does it include wireless functionality?: No

Electricity Type: DC

High-concerned chemical: none

Main Circuit Rating Current: 200A

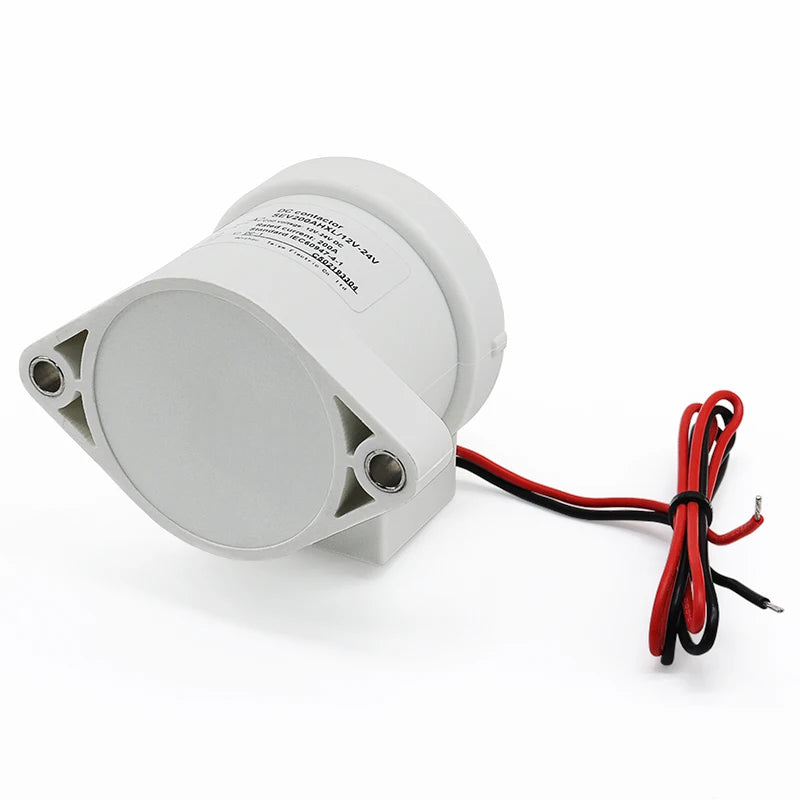

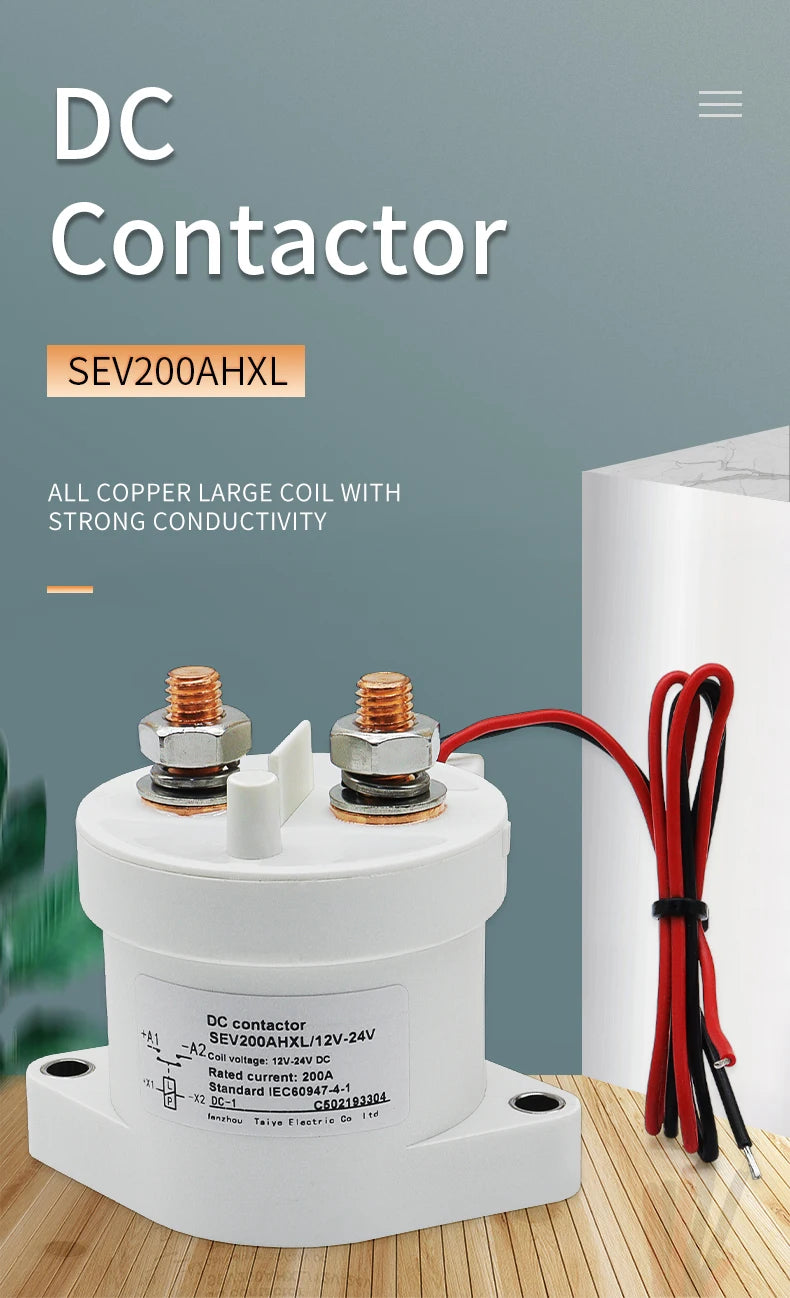

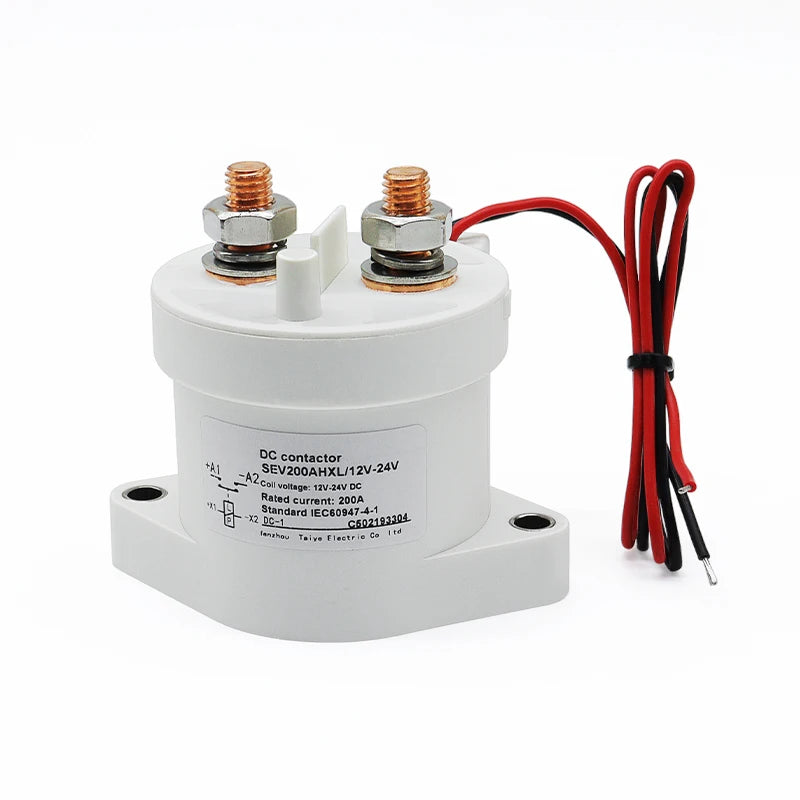

Model Number: SEV200AH

Number of Pole: 1

Origin: Mainland China

Phase: 1

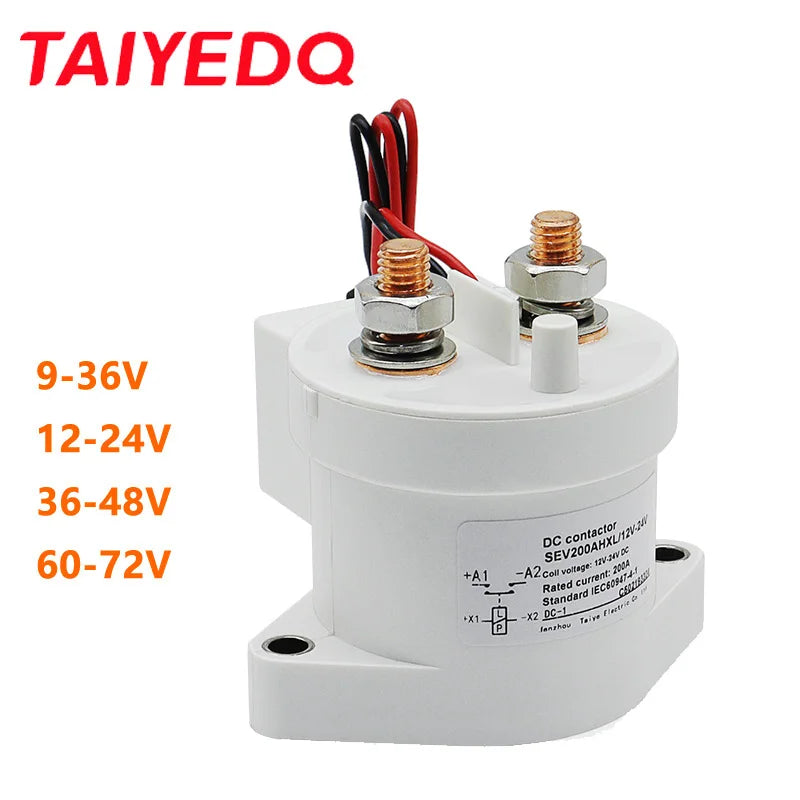

Voltage: 12-24V,36-48V,60-72V,9-36V

Working System: Continuous

is_customized: Yes

Functional features:

Suitable for switch control of electronic control circuits in new energy electric vehicles, charging equipment, photovoltaic, wind power generation systems, automotive air conditioning, communication power supplies, uninterruptible power supplies, electroplating power supplies and other systems. It has the characteristics of small size, large load capacity, no sparks, long service life, and simple maintenance

1. The ability to cut off high DC voltage: The product cavity is filled with a rare mixed gas, and the arc cooling capacity is high;

2. Strong load control capability: With a load capacity of 30A-600A and a working voltage range of 5-1000VDC;

3. Safety: The insulation sealed structure can work Ignition Risk or hazardous environments, and the coils and contacts will not oxidize or contaminate;

4. Compared to similar products, it has a smaller volume, lighter weight, and lower power consumption.
