SPECIFICATIONS

Accessory Type: USB To DC Cable

Battery: 3.7V lithium battery power supply and charging

Battery Included: no

Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh

Brand Name: Heltec Automation

Compatible With: Lora 32

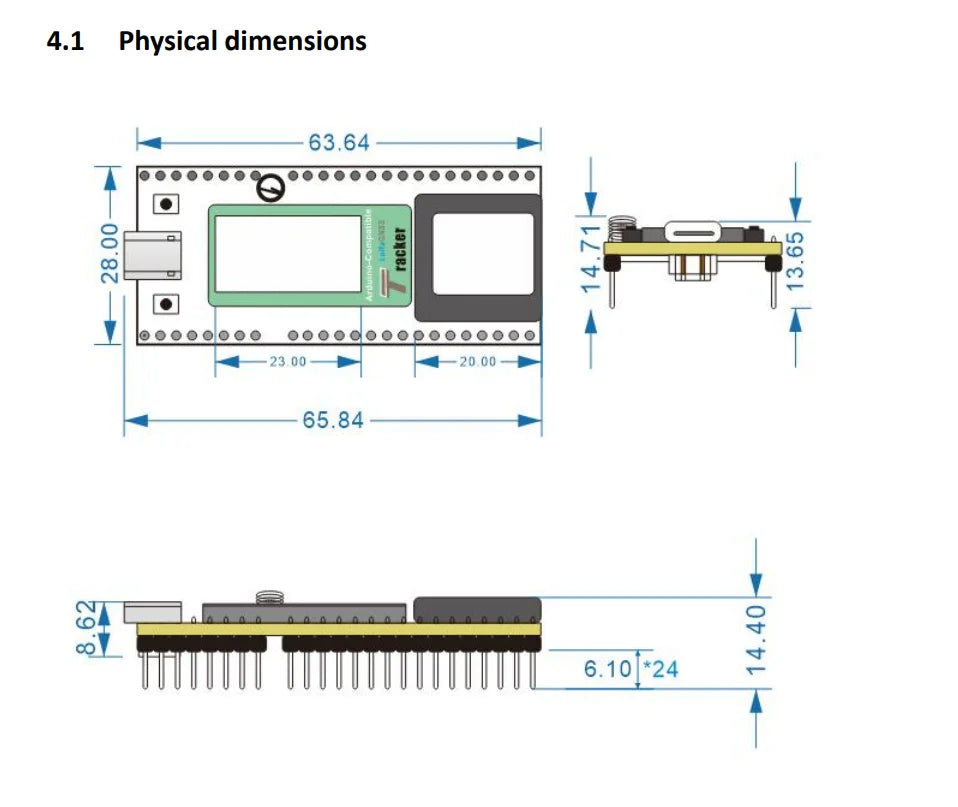

Dimensions: 65.48*28.06*13.52mm

Frequency: 470-510MHz, 863-923MHz

GNSS Chipset: UC6580

Heltec Dev-board: Wireless Tracker GNSS LoRa BLE

High-concerned chemical: none

LoRa Chipset: SX1262

Master Chip: ESP32-S3FN8

Max TX Power: 21±1dBm

Model Number: Wireless Tracker

Operating Temperature: -20-70℃

Origin: Mainland China

Receiving Sensitivity: -134dBm

Support: Meshtastic

Typical Application Fields: Internet of Things (IoT)

WiFi: 802.22b/g/n, up to 150Mbps

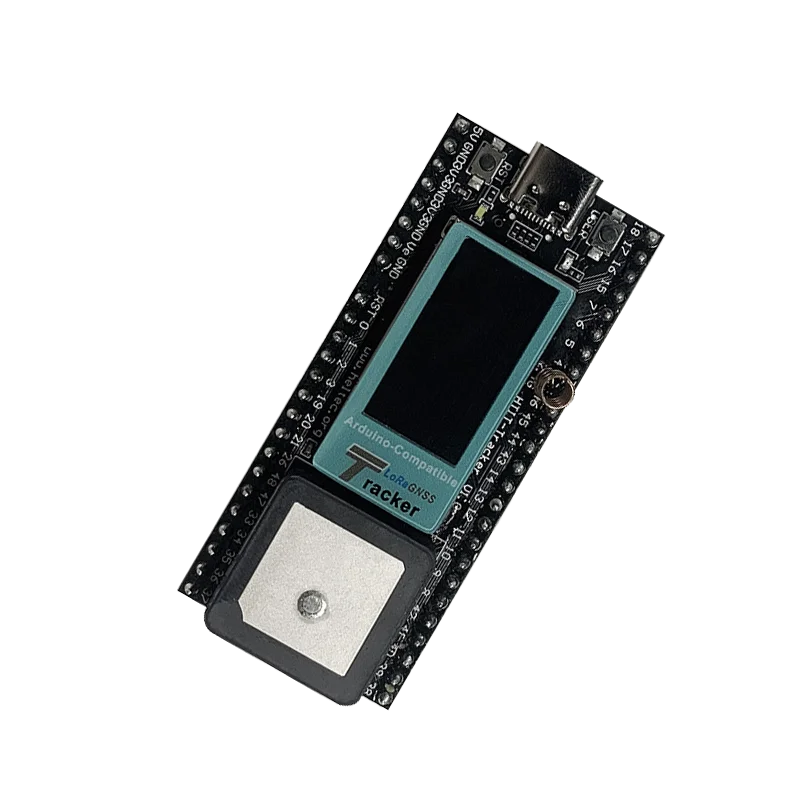

Description

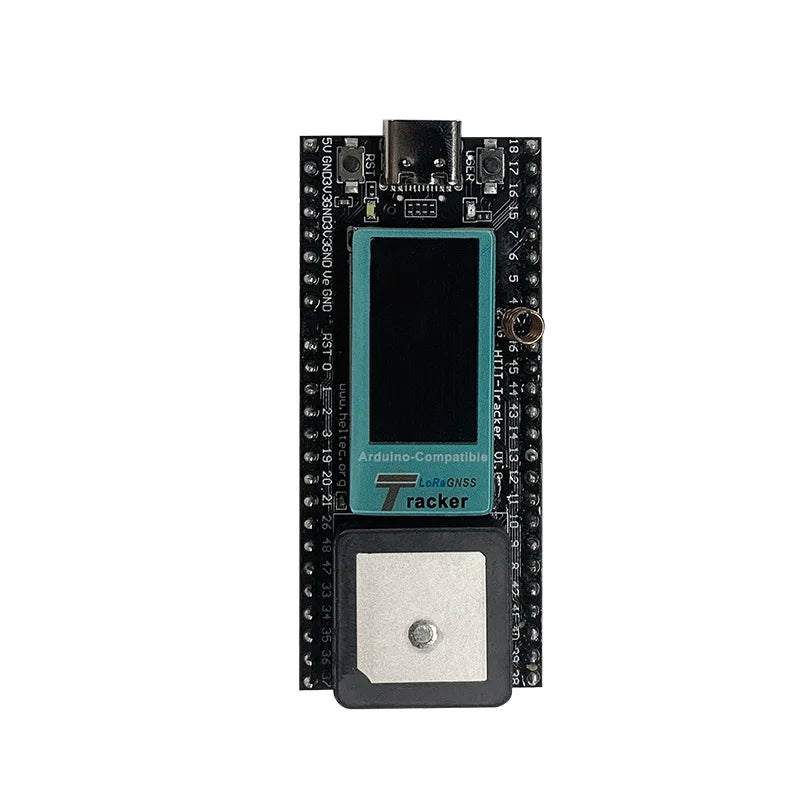

Summary

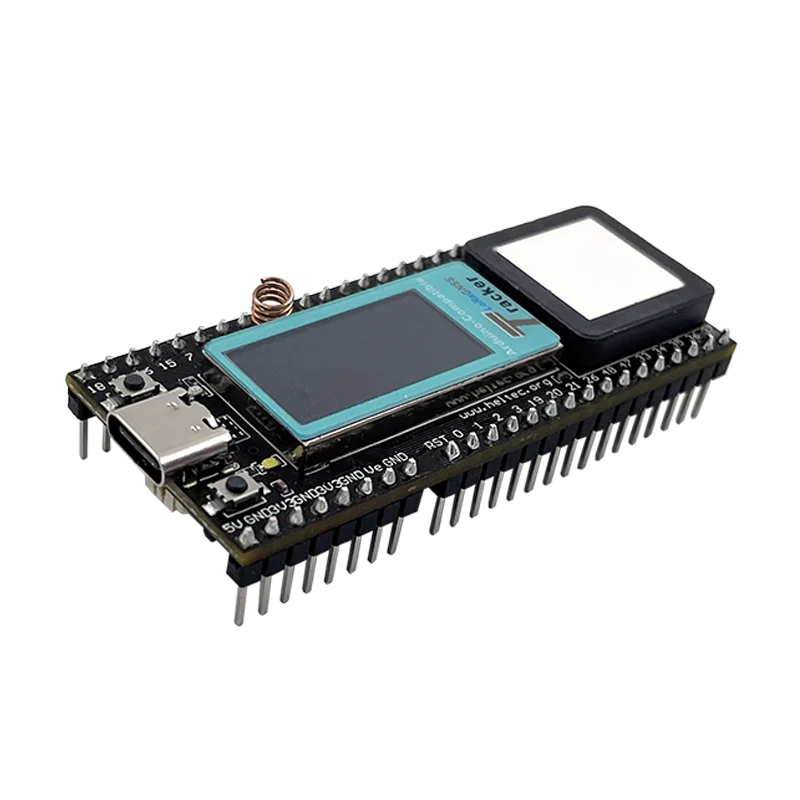

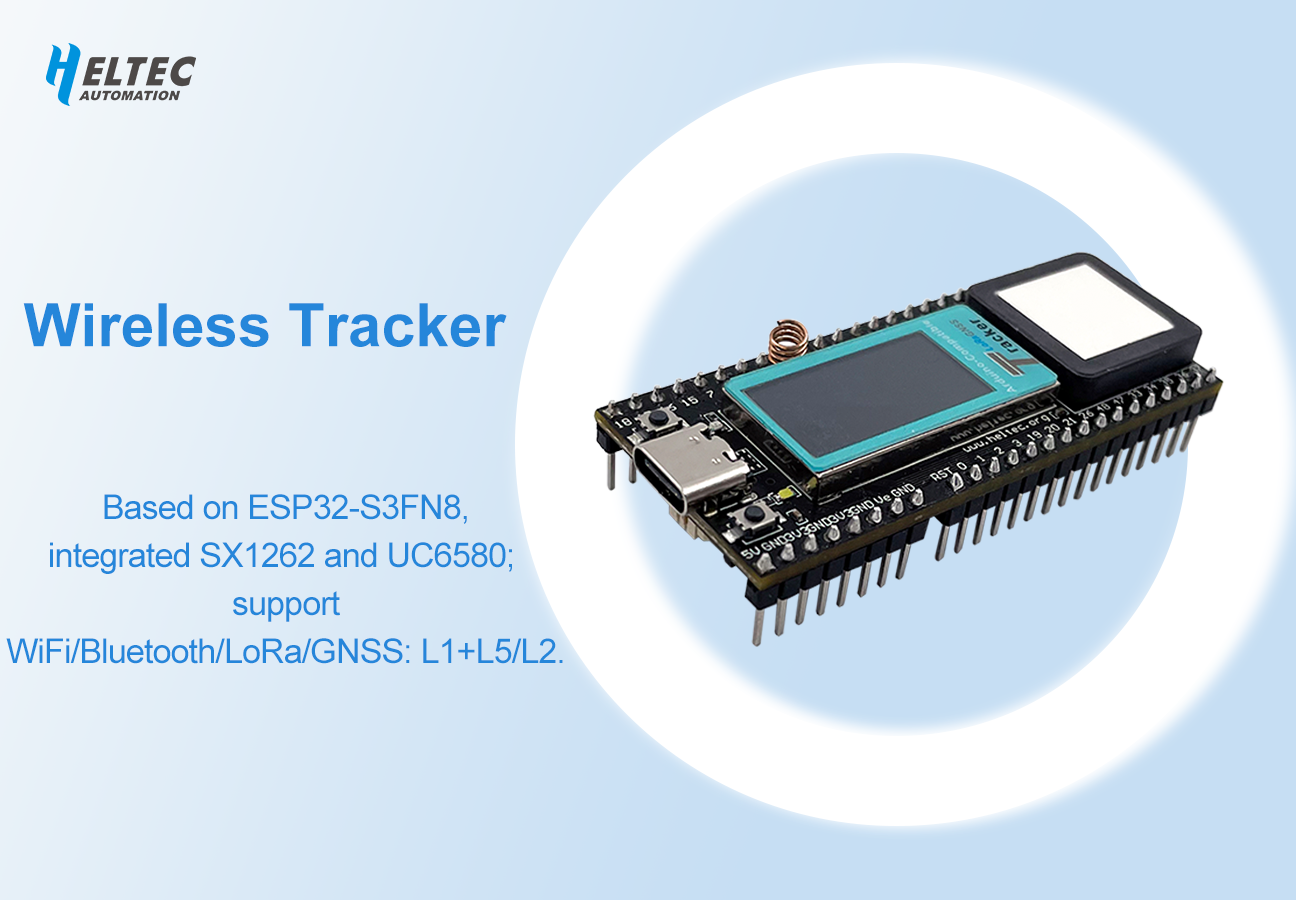

●Wireless Tracker is a development kit based on ESP32-S3FN8.

●It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT.

●It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa.

●Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.

●It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.

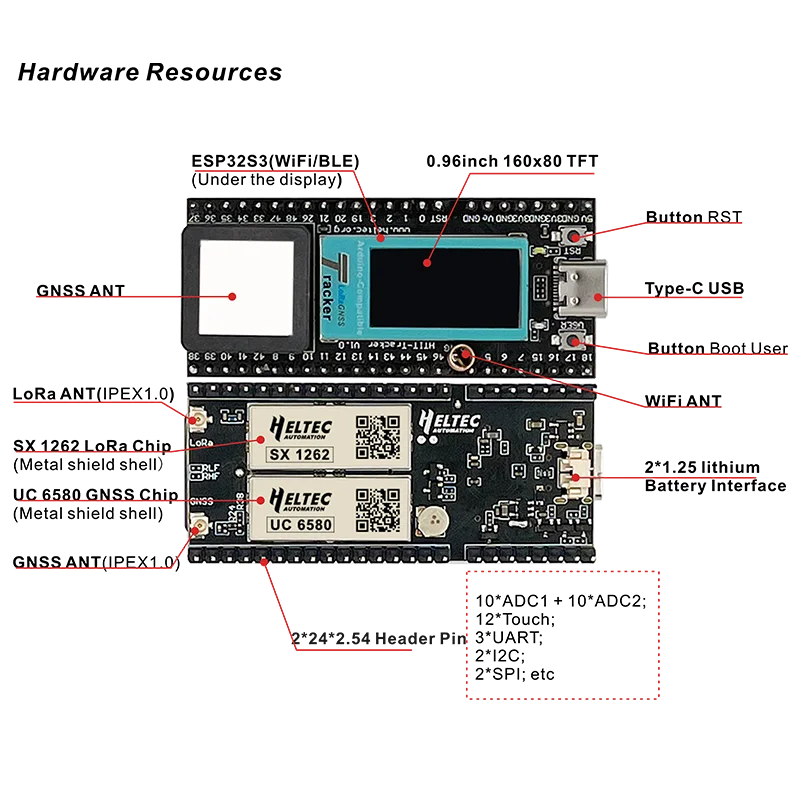

Main Features

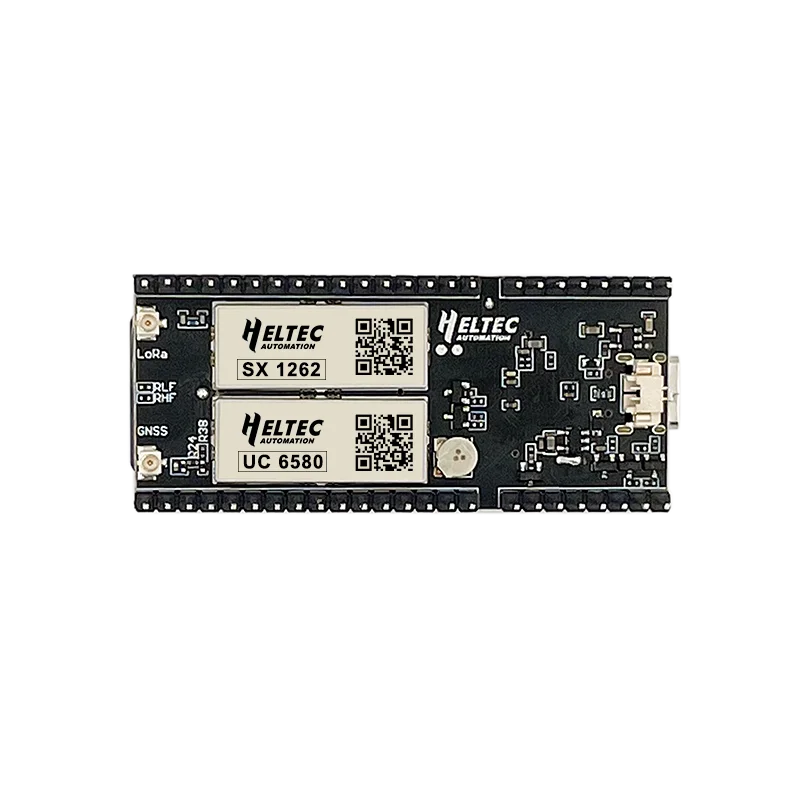

●ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.

●Low power design of dual-frequency multi-system based on 22nm technology.

●Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.

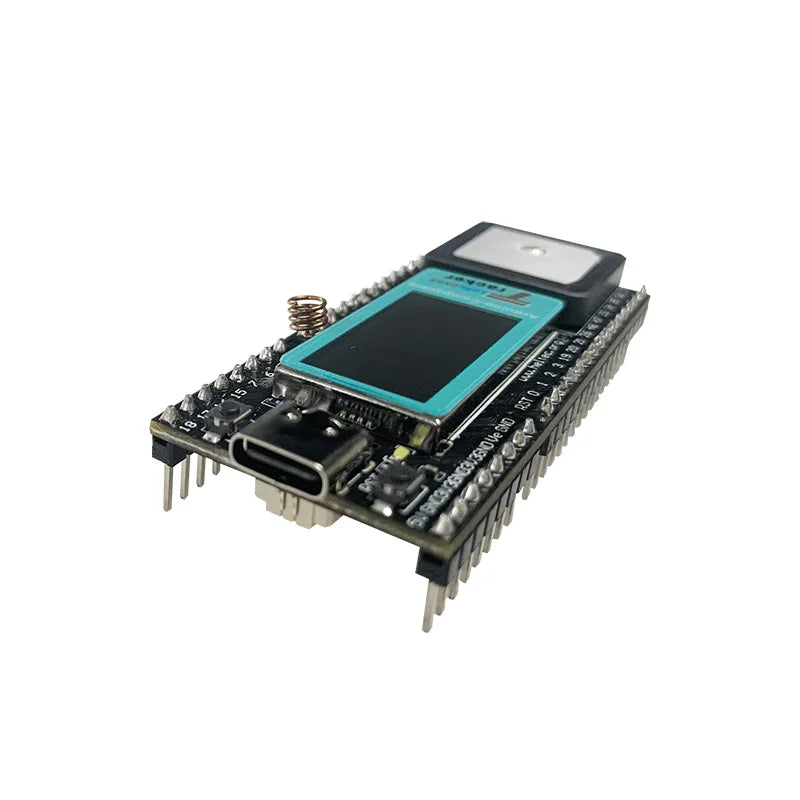

●Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

●Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

●Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.

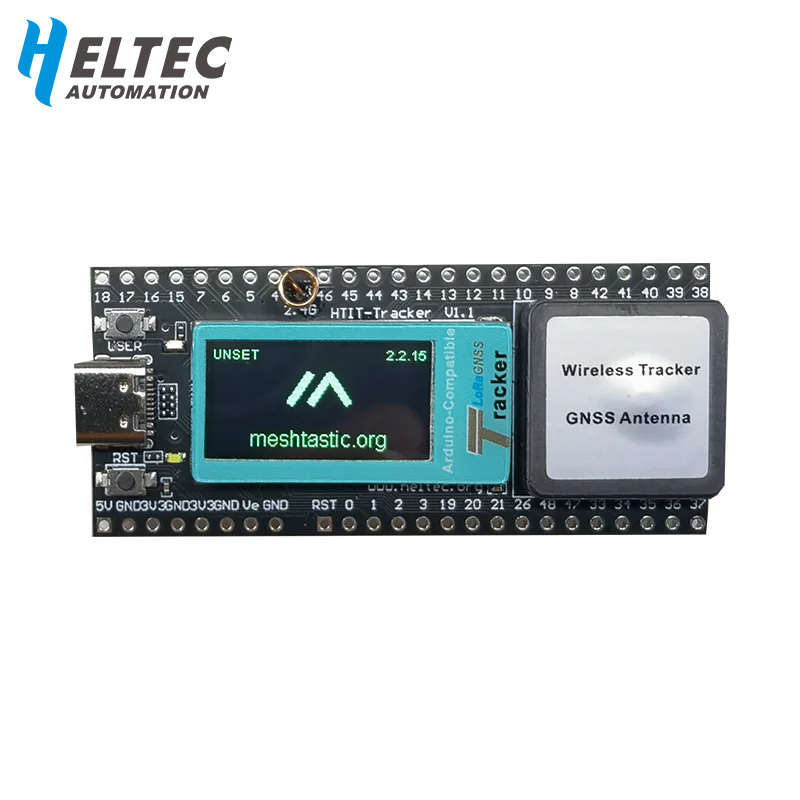

●Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information.

●Support the Arduino development environment.

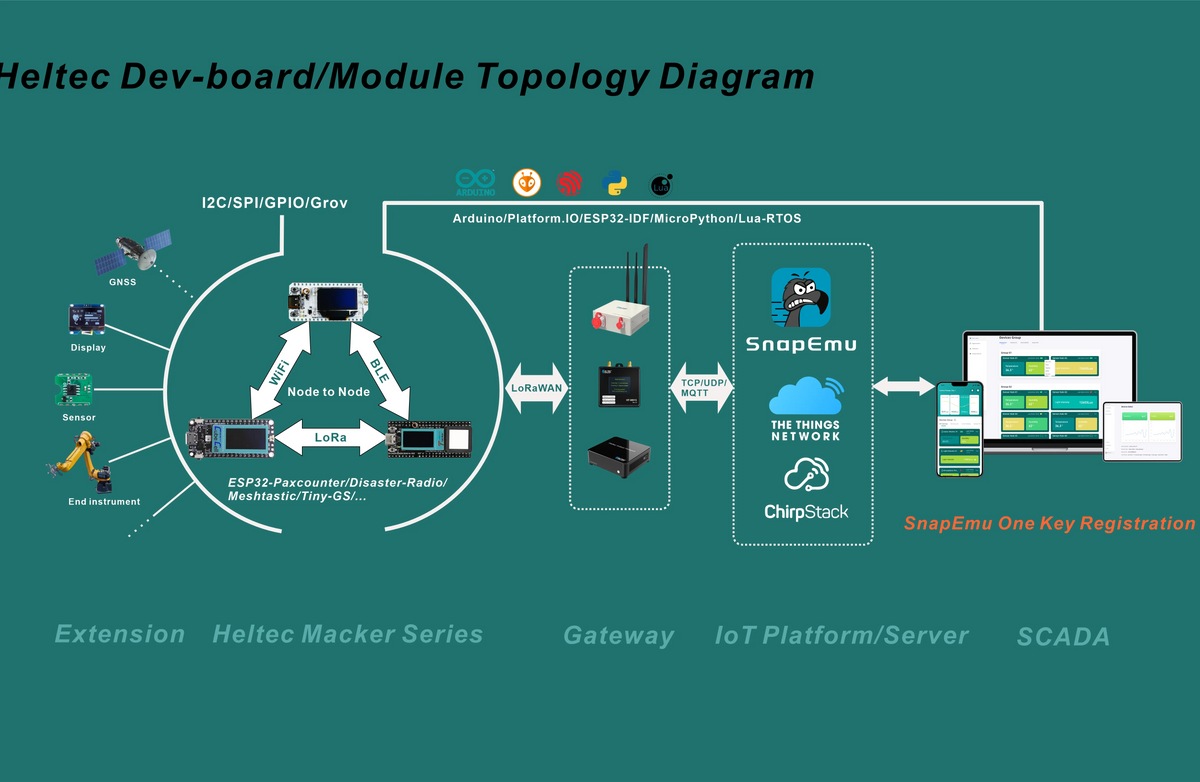

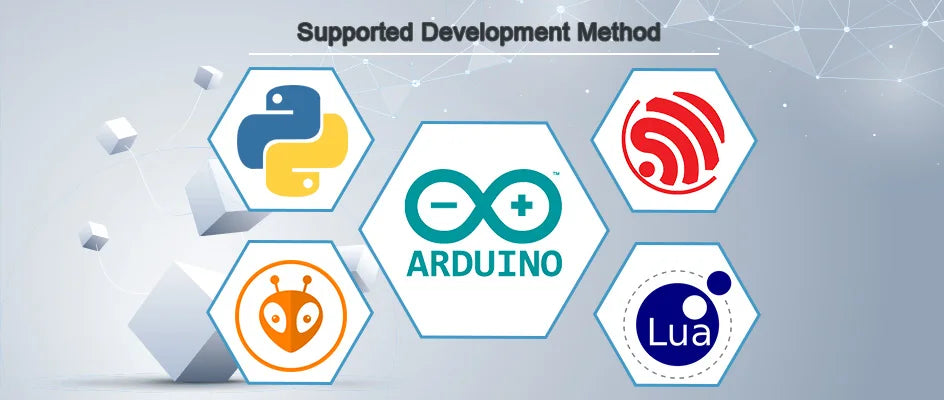

Wireless Tracker supports the following development methods:

Wireless Tracker is compatible with the following open-source projects:

●ESP32 Paxcounter

●Disaster Radio

●Meshtastic

●Tiny GS

●...

We also provide a standard ESP32 Arduino LoRaWAN library:

●Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

Resource

●Heltec ESP32 Arduino Framework(Include ESP32 Arduino LoRaWAN library)

●Heltec LoRaWAN test server based on TTS V3

●user manual document

●Hardware update logs

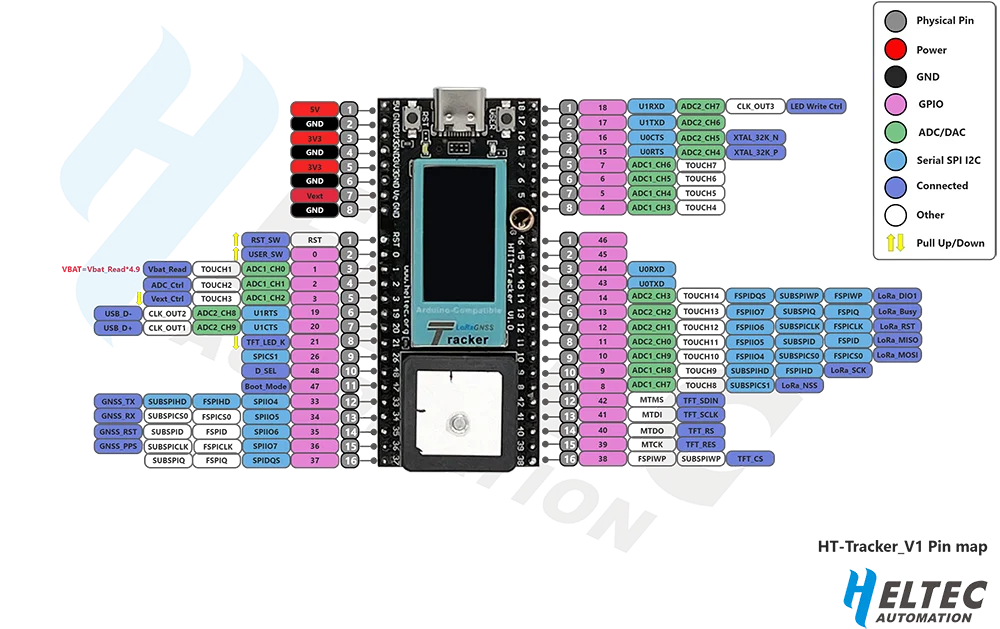

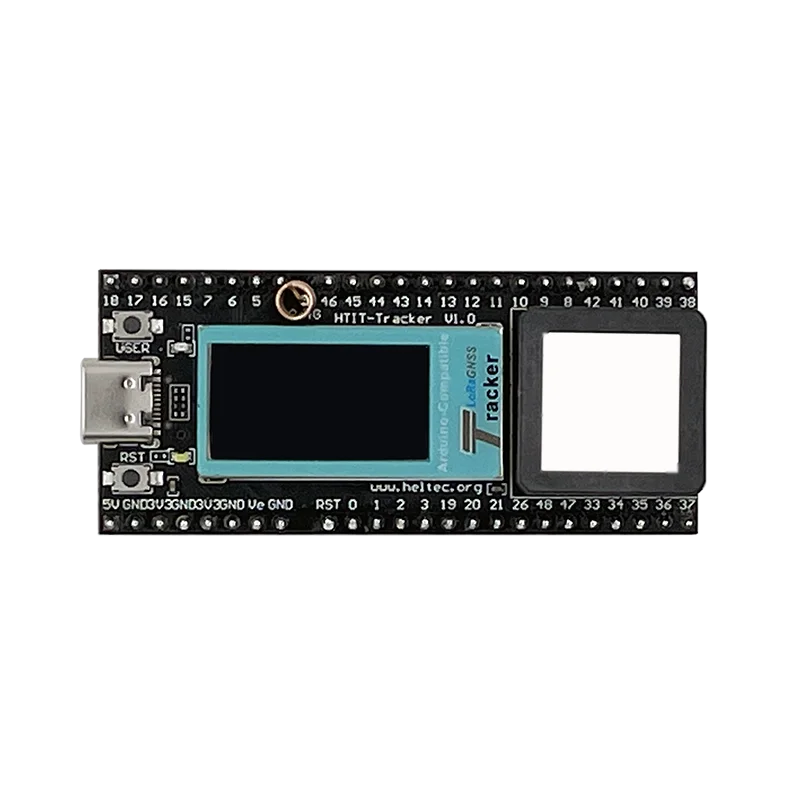

Pin Map
