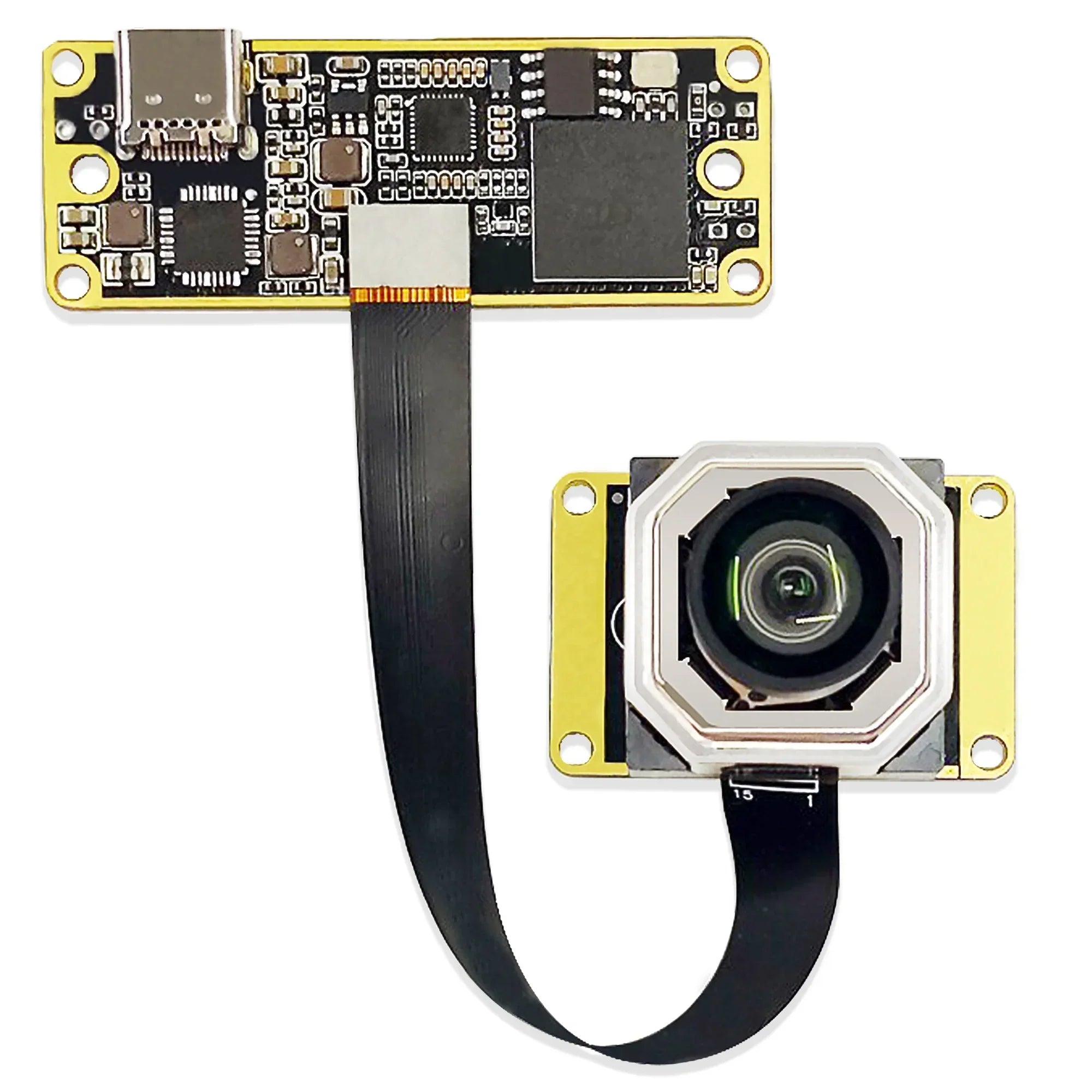

2025 In Stock OEM H.264 YUV MJPEG IMX577 IMX477 1/2.3inch 12MP CMOS Sensor Autofocus Fixedfocus RGB Mini Usb UVC Camera Module 4
$612.16
Sale price
$612.16
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Haozhou / OEM,NONE
Data Storage Options: Full HD
FOV: 100 Degree (Optional)
Function: Wide Angle
Image Sensor: 1/2.3" CMOS Sensor
Interface: MIPI / USB2.0 / Type C
Maximum resolution: 4000 (H) x 3000 (V)
Maximum resolution frame rate: 20fps
Model Number: HZ-IMX577 S2.0
Network: SDK
Origin: Mainland China
Output image format: MJPEG /YUY2(YUYV)/H.264
Pixel: 12.3 Mega-pixel
Place of Origin: Guangdong, China
Sensor: IMX577
Special Features: NIGHT VISION
Storage temperature: -20°C to 70°C
Video Compression Format: H.264, MJPEG / YUV
Warranty: 2 years

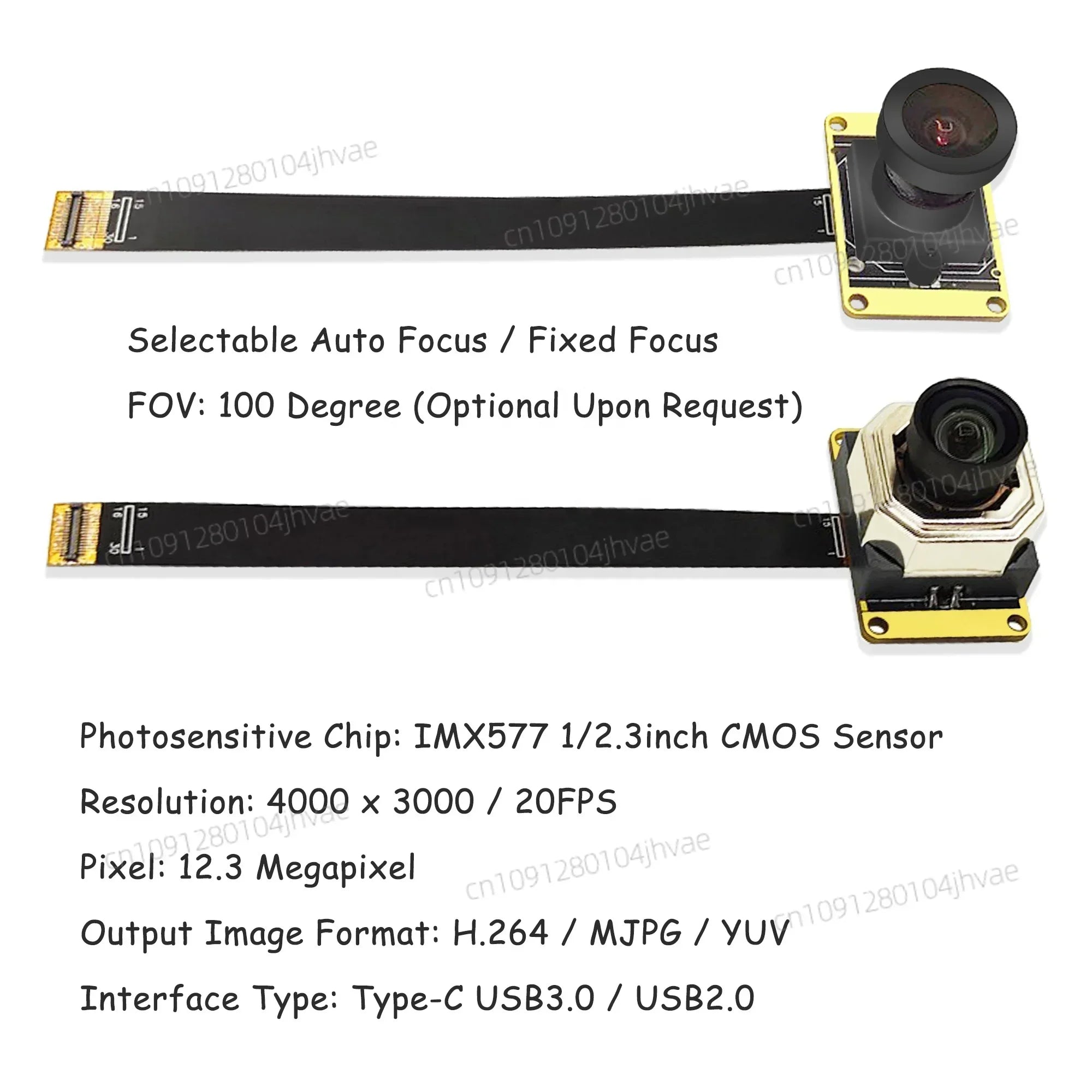

Product parameters
1. Product name: 12 megapixel cmos image sensor modules (HZ-IMX577 S2.0) 2. Focusing method: Auto Focus / Fixed Focus / Manual Focus (twist the lens) 3. Photosensitive chip: IMX577@1/2.3" 4. Maximum resolution: 4000*3000 5. Photosensitive type: CMOS 6. Interface : Type-C USB3.0 / USB2.0 / Mipi (OEM) 7. Maximum resolution frame rate: 4000*3000 @ 20 frames 8. Material: Immersion Gold Plate 9. Cable length: ( oem ) 10. System support: Win XP/Vista/Win7/Win8 /Win10/ Linux with UVC/MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
Customize Factory Price High quality
IMX577 4K H.264 Autofocus FF 12 Mega-Pixel CMOS Image Sensor Mini USB UVC HD Industrial Camera Modules
haozhou provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, IMX, Samsung, Hynix, GalaxyCore...
The main application areas: mobile phone, digital still camera, laptop, DV, PDA/handheld, toy, PC camera, security camera, automotive camera, tablet pc, visual doorbell, medical system, smart home, industrial image, recognition system, fingerprint identification system ...
|
Product model
|
HZ-IMX577-S2.0
|
|
|
||
|
Photosensitive chip
|
1/2.3”
|
|
|
||
|
Focusing
|
Auto Focus / Fixed Focus
|
|
|
||
|
Maximum effective pixel
|
H4000xV3000
|
|
|
||
|
Sensitivity
|
1000mV/Lux-sec
|
|
|
||
|
Image area
|
6100umx4524um
|
|
|
||
|
Output image format
|
MJPEG /YUY2(YUYV)/H.264
|
|
|
||
|
Supported resolution and frame rate
|
MJPG (FPS)
|
YUY2 (FPS)
|
H.264 (FPS)
|
||
|
4000x3000
|
20
|
10
|
|
||
|
3840x2160
|
30
|
15
|
|
||
|
2592x1944
|
30
|
25
|
|
||
|
2688x1512
|
30
|
15
|
|
||
|
2048x1536
|
30
|
30
|
|
||
|
1600x1200
|
30
|
30
|
|
||
|
1920x1080
|
30
|
30
|
30
|
||
|
1280x960
|
30
|
30
|
|
||
|
1280x720
|
30
|
30
|
30
|
||
|
960x540
|
30
|
30
|
|
||
|
800x600
|
30
|
30
|
|
||
|
640x480
|
30
|
30
|
30
|
||
|
640x360
|
30
|
30
|
|
||
|
Center clarity
|
1000LW/PH (Center)
|
|
|
||
|
Signal-to-noise ratio
|
26dB
|
|
|
||
|
Sensitivity
|
0.65V/lux-sec@550nm
|
|
|
||
|
Minimum illumination
|
0.2lux
|
|
|
||
|
Shutter type
|
Electronic rolling shutter/Frame exposure
|
|
|
||
|
Interface type
|
USB3.0 High Speed /UsB 2.0
|
|
|
||
|
Automatic exposure control AEC
|
support
|
|
|
||
|
Automatic white balance AEB
|
support
|
|
|
||
|
Automatic gain control AGC
|
support
|
|
|
||
|
Adjustable parameters
|
Brightness / Contrast / Color Saturation / Hue / Sharpness / Gamma / White Balance / Backlight Contrast / Exposure
|
|
|
||
|
Lens specifications
|
Size: 1/2.3, FOV: 100Degree
|
|
|
||
|
Relative lllumination (Sensor)
|
70%
|
|
|
||
|
Infrared filter
|
650±10nm
|
|
|
||
|
Power supply and interface
|
1.25 5PIN USB 2.0 interface/Type-c USB 3.0 interface
|
|
|
||
|
Voltage
|
DC5V
|
|
|
||
|
Current
|
200mA
|
|
|
||
|
Storage temperature
|
-20°C to 70°C
|
|
|
||
|
Operating temperature
|
0°Cto 60°C
|
|
|
||
|
USB cable
|
1M(2M/3M/5M optional)
|
|
|
||
|

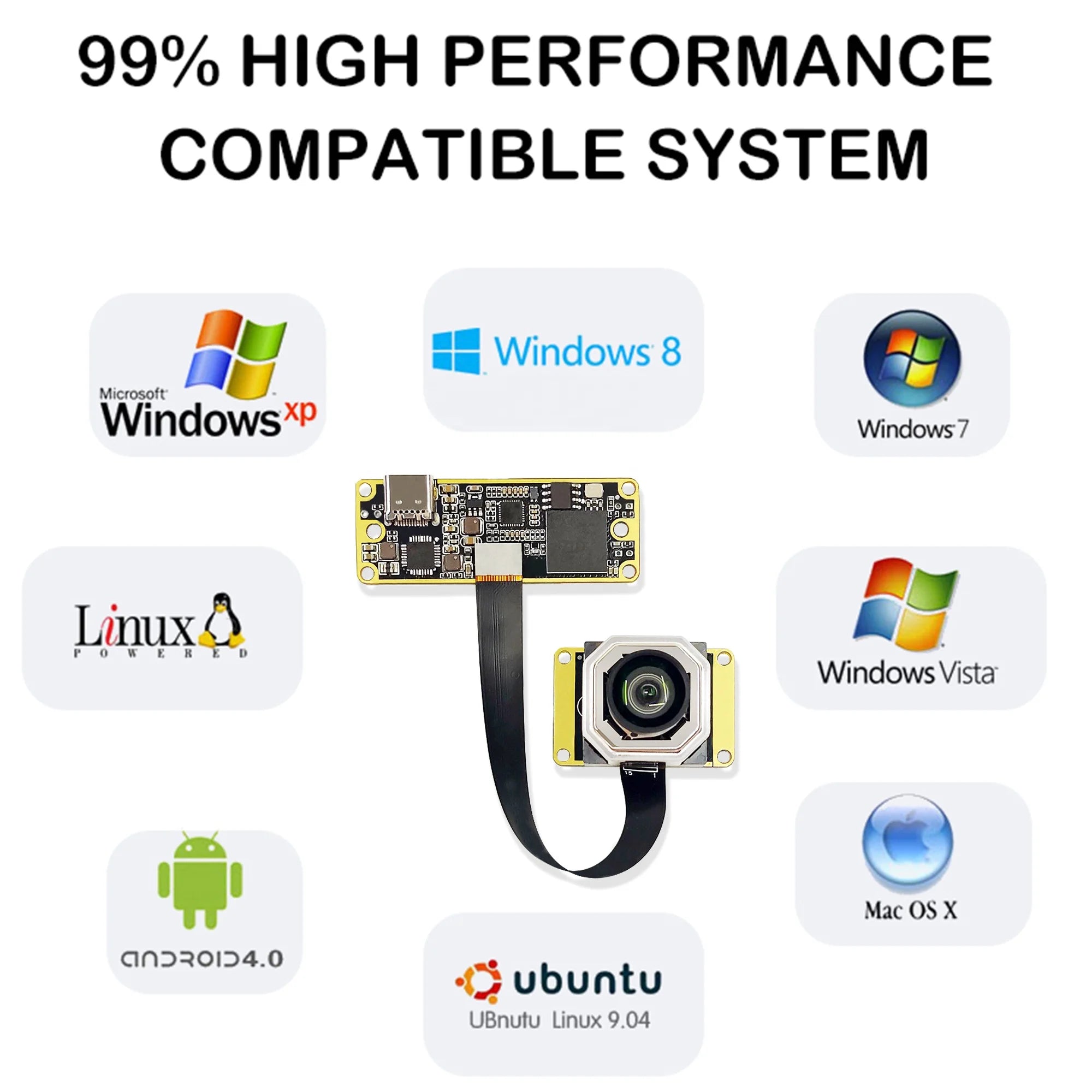

System support
|
Win XP/Vista/Win7/Win8 /Win10/ Linux with UVC/MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
|
|
|
||
OEM&ODM
Customizable usb2.0 & usb3.0 camera module / mipi camera module / binocular camera module / endoscope camera module / HDMI camera module / infrared camera module / global shutter camera module etc.
Application Field
More Applications: bar code scanning machine, license plate recognition, eye tracking, smart home, access control system, driving recorder, notebook computer, all-in-one machine, iris scanning, AR, VR, robot, machine vision, industrial inspection, ATM machine, automatic vending machine, face recognition, unmanned aerial vehicle, security gate machine, pc multimedia, attendance machine, endoscope, security monitoring, pos machine, conference camera, video doorbell, motion camera, 3D vision, arcade game machine, automatic terminal equipment Wait for more applications
Main Pixel
3mp ( VGA ) pixels, 1mp ( 720P) pixels, 1.3mp (960P) pixels 2mp(1080P)pixels, 3mp (1080P)pixels, 4mp (2KP) pixels 5mp ( 2KP) pixels, 8mp ( 4KP ) pixels, 12mp (4KP) pixels, 13mp (4KP) pixels, 16mp (4KP) pixels, 20mp pixels
Interface
·FPC interface: DVP, MIPI; Using CSP (BGA chip technology), COB, PLCC, CLCC process AV output interface: CVBS, AHD analog signal output ·USB output interface: free drive, plug and play, monocular, binocular; Starlight level, wide dynamic H.264, IR-CUT infrared, global exposure, AF focus, high-speed frame, and other USB camera modules for various applications
Lens / Angle
Composition material: 2P3P 4P 5P 6P IG2P 2G2P 4G 5G 6G7G 8G 9G.etc Focus: FF MFAF. (according to customer demand) Angle of view: 5 degrees -240 degrees panorama

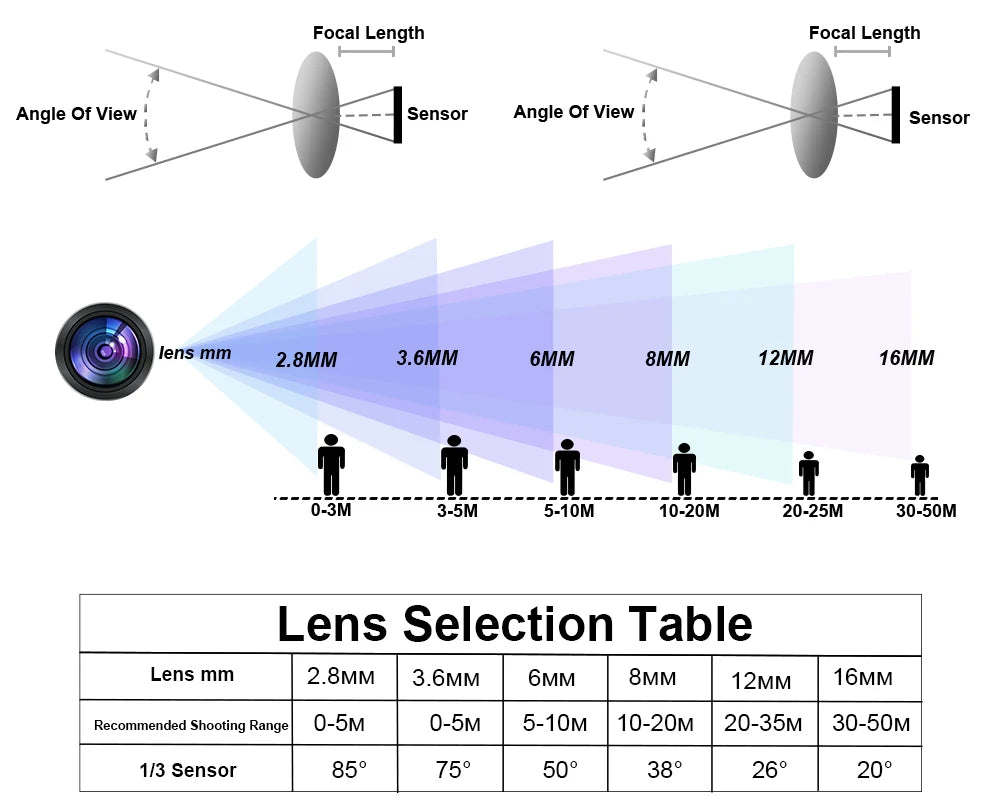

HOW TO CHOOSE THE LENS
It is a close-focus lens; in a camera, the smaller the focal length, the larger the imaging range, the smaller the image of the object in the screen, the larger the focal length, the smaller the imaging range, and the larger and clearer the image of the object in the screen, this is a far-focus lens
Shenzhen Haozhou Technology Co., Ltd. was established in 2014. It is a high-tech company specializing in R&D, design, production, sales, CMOS camera module, USB camera module, analog camera module, endoscope camera module, sensor chip and other high-quality camera modules technology enterprise. Passed IS09001 CE ROHS quality system certification. Products are widely used in nearly a hundred fields such as face recognition, biometrics, artificial intelligence, machine vision, drones, self-service terminals, smart homes, security monitoring, and medical applications.Warmly welcome OEM and ODM. We can design according to the drawings provided by customers. All of our products have a 2-year warranty, we are willing to provide customers with products that carry corporate culture and convey brand ideas to end users, we believe that success is built on a solid foundation and commitment to delivery.
Packing&Shipping
OUR CERTIFICATION
OUR SERVICE
1. Good quality products and low factory direct price 2.Free technical support and professional advice,timely communication and after-sale service 3.24-hour aging process, 1-year warranty, CE/FCC/RoHS compliant 4.OEM/ODM service a) Customized camera housingb) Print logo on the camera c)Any your idea on camera we can help you design and put it into production 5.Fast delivery, 3-7 days for production 6.Accept paypal, T/T, western union payment 7.Delivery by DHL/EMS/FedEx/UPS/TNT, by air or by sea etc
FAQ
A1: Please contact us first to confrim.We do not provide fee sample and the cost and shipping fee for sample shoudbe paid by buyers.Usually we can offer it in about 3 working days. Q2:What is your acceptable payment term? A2: Trade assurance is our first choice. Then T谢T, Western Union,and so on.If you prefer other ways, please contact us. Q3:What is your guranree for quality? A3: We have 12 months warranty and we will take responsibility for our quanlity and free to repair. Q4:Could you give me a discount? A4: It depends on quantity. Large quantity equal best price. Q5:How long is your delivery time? A5: After receiving your payment, 1-3days for stock goods and 3-21 days forother goods according to the quantity. Q6:Can you accept small orders? A6: Yes. We enjoy growing up together with all of our clients whether big or small. Q7:How about your after-saleservice? A7: First, we guarantee the quality of our products. Any problem, please contactwith uS and we would solve it as soon as possible.
