SPECIFICATIONS

Ambient light resistance: Max.70Klux

Brand Name: HAMBERS

Certification: CE,RoHS

Channel: 1

Description: Detecting objects through infrared radiation

Form-factor: Cover

Frequency: 433 MHz

High-concerned chemical: none

Keywords: Reflective Laser Photocell Beam Saferty Sensor

Material: ABS

Model Number: Reflective Laser Photocell Beam Saferty Senso

Mounting Type: Fixed

Operating temperature: -10℃ ~ +60℃

Origin: Mainland China

Package: Yes

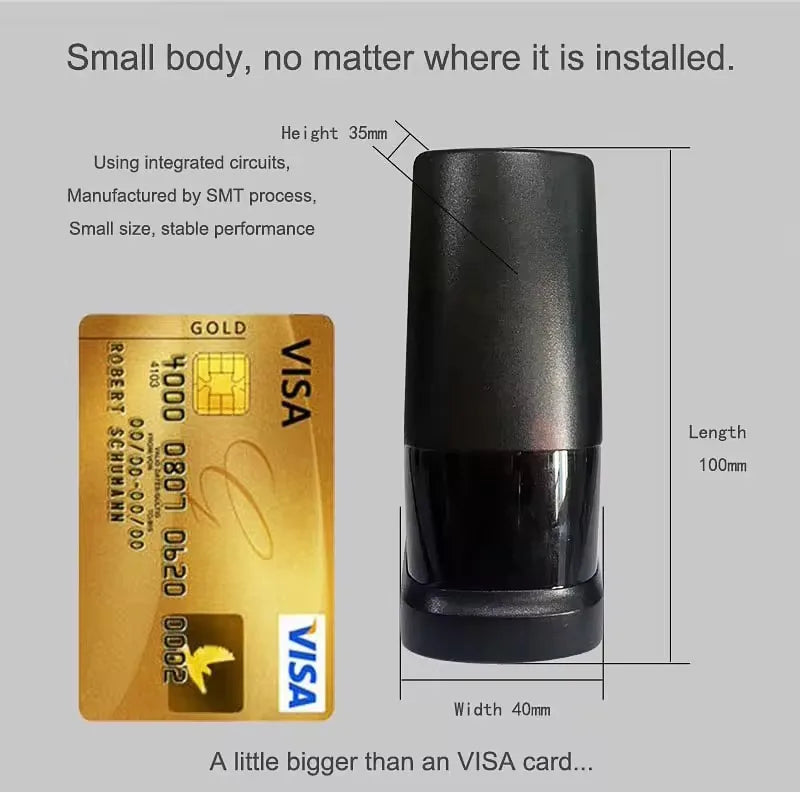

Product Size(LxWxH): 100 * 40 * 35mm

Product Standard: One photocell sensor, one manual, one hood (optional)

Product Weight: 61g (bare metal)

Reaction time: ≥ 100mS

Sensing Distance: 0.3m~ 8m @ reflectivity (10%-90%)

Signal reception angle: 2°

Storage temperature: -20℃ ~ +75℃

Support APP: No

Use: Universal

Wireless Communication: RF

Working Current: ≤80mA@12V (Imax =150mA)

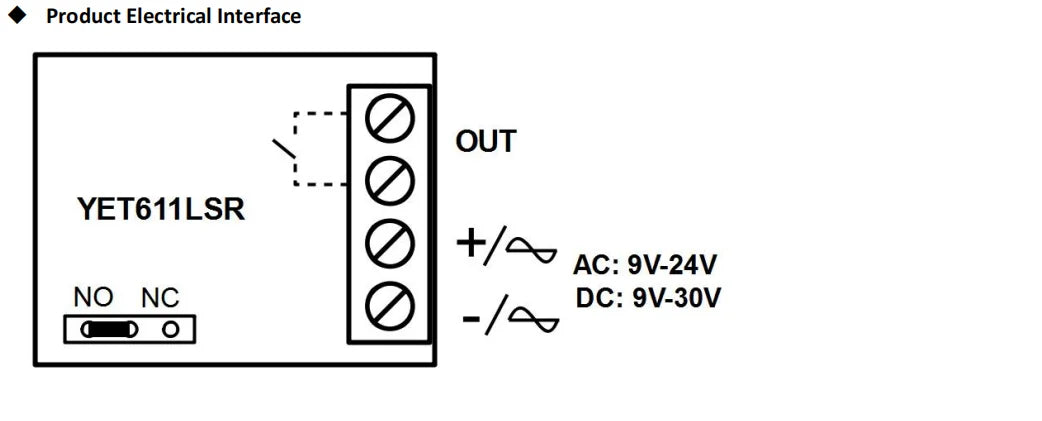

working voltage: 9-24v AC 9-30V DC

2024 new arrival Reflective Laser Photocell Beam Saferty Sensor for automatic door

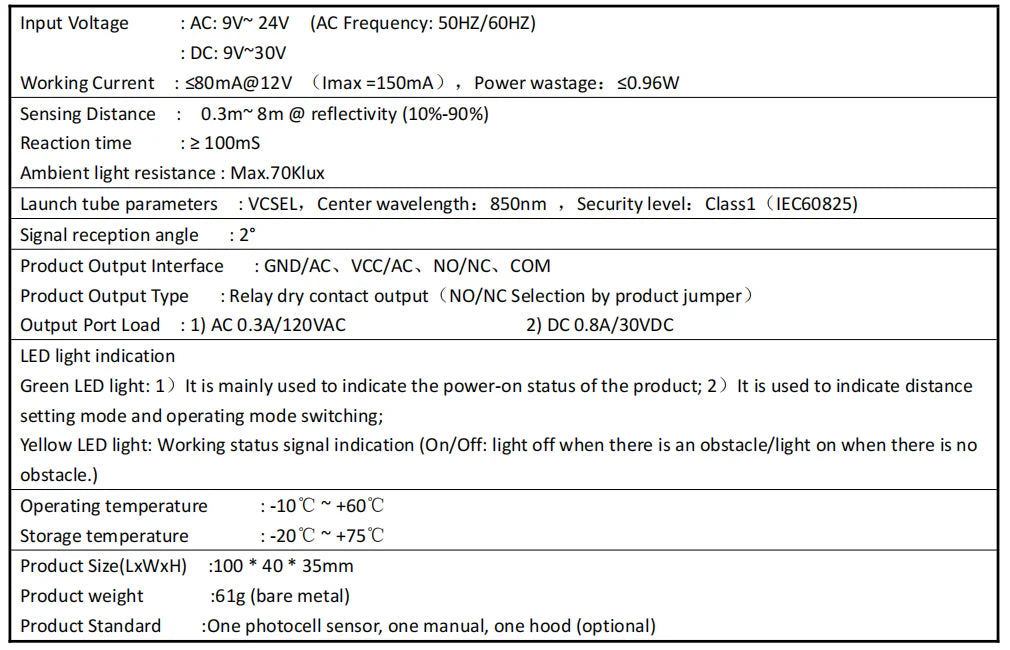

Specification :

Main Functions & Features:

1.This product using laser as the light source and through the principle of light reflection, to achieve the presence of sensing objects or obstacles；

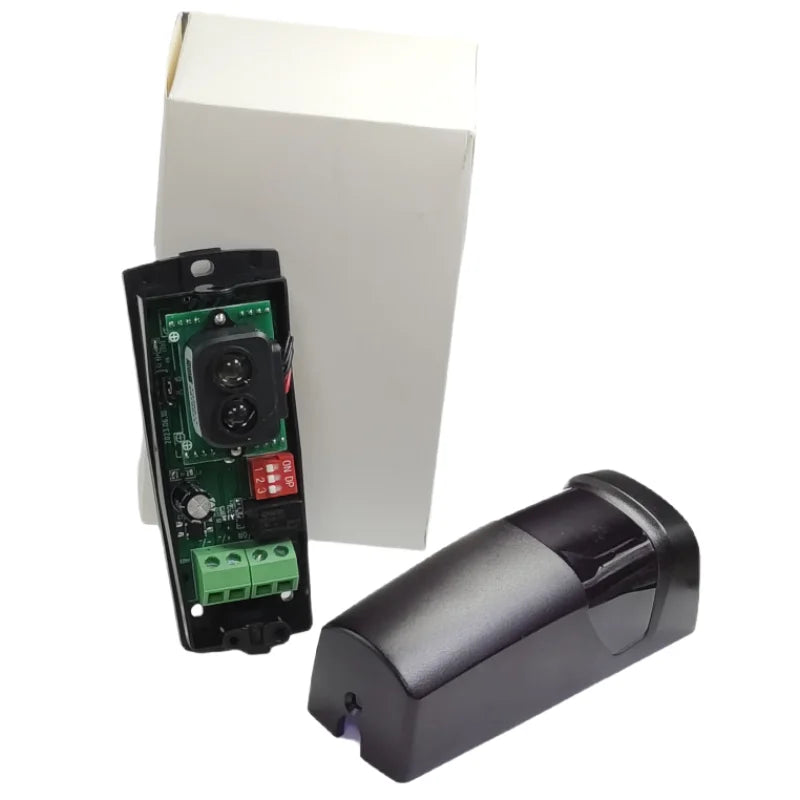

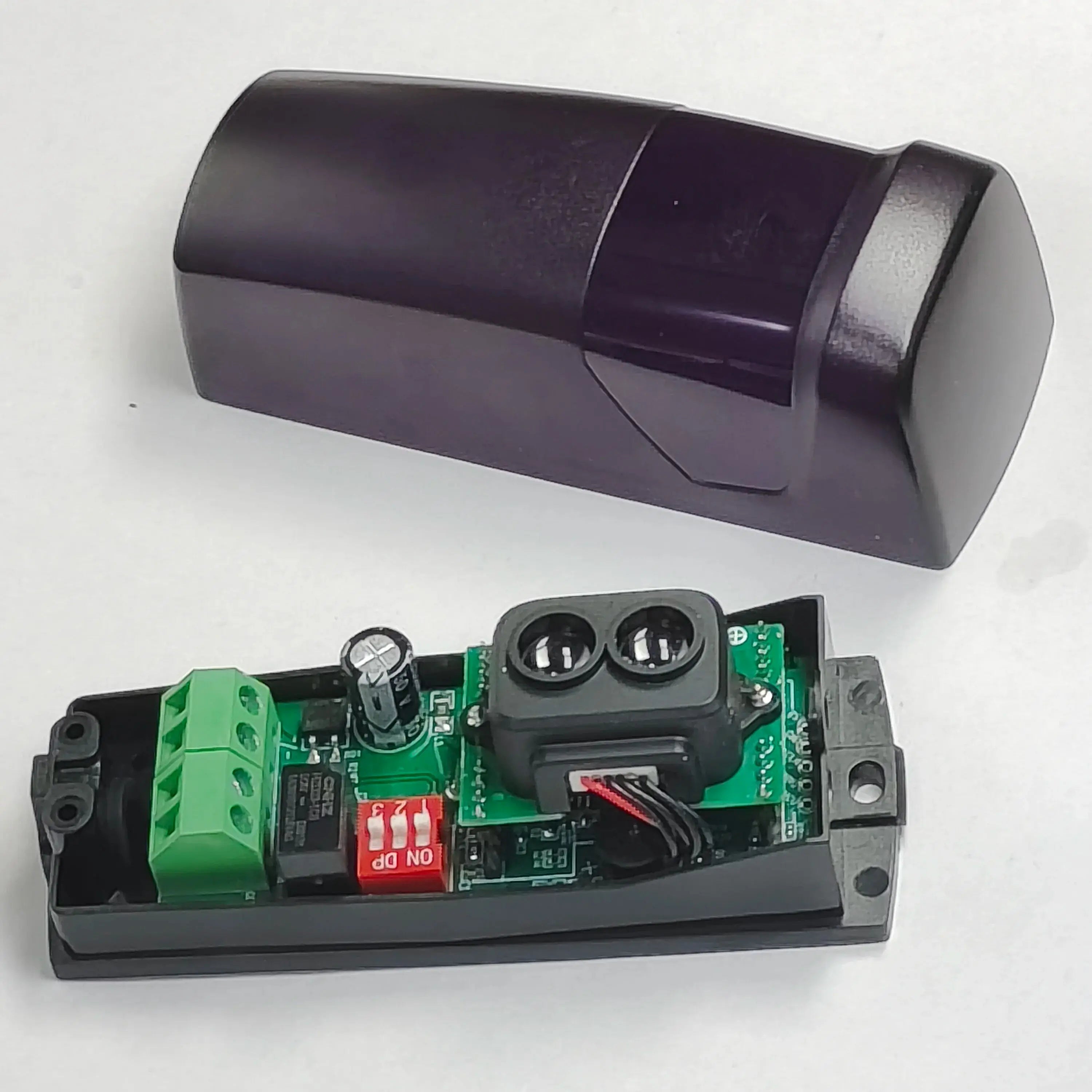

2.The product adopts transmitting and receiving in one design, which simplifies the installation for users；

3.The product calculates the position of the object by reflecting from the surface of the object, which can be done without installing a reflector plate;

4.Products with buzzer prompts for user-friendly distance positioning or testing during installation;

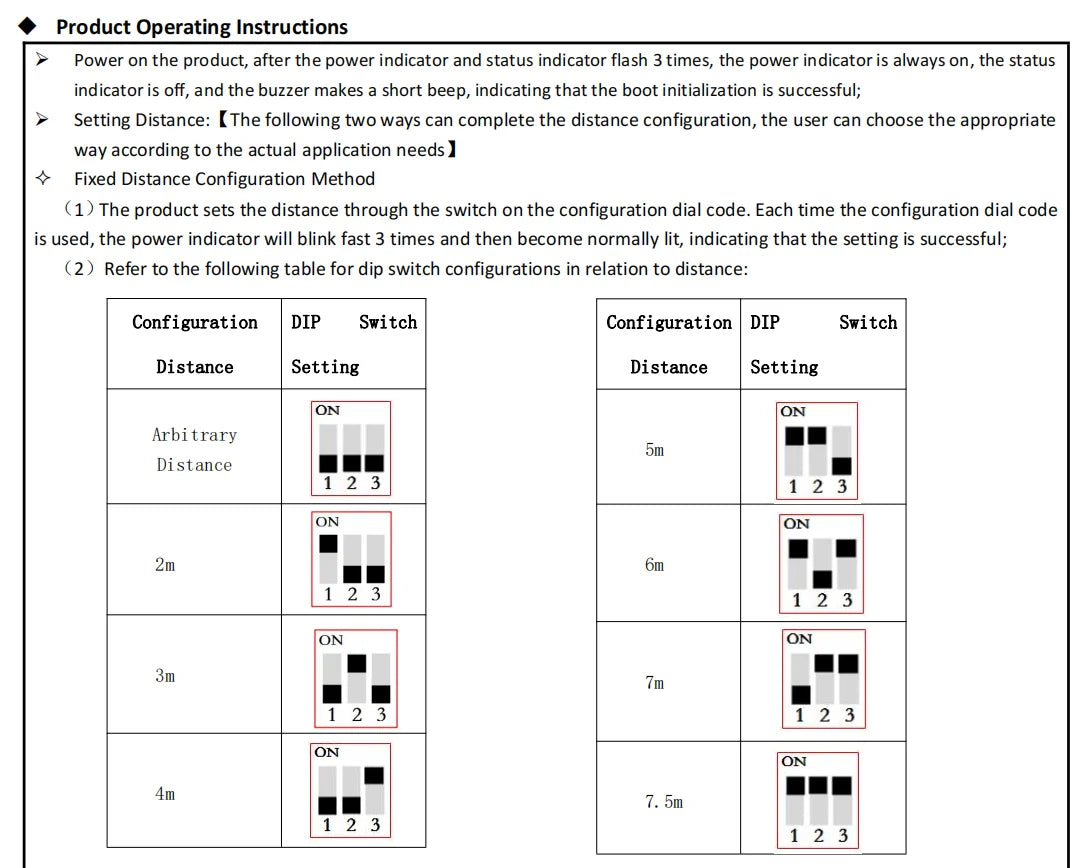

5.Products with power-down save the current distance setting value function, the user can use normally as long as the configuration once; 6.The product can set the sensing range before installation, which greatly facilitates the user's experience.

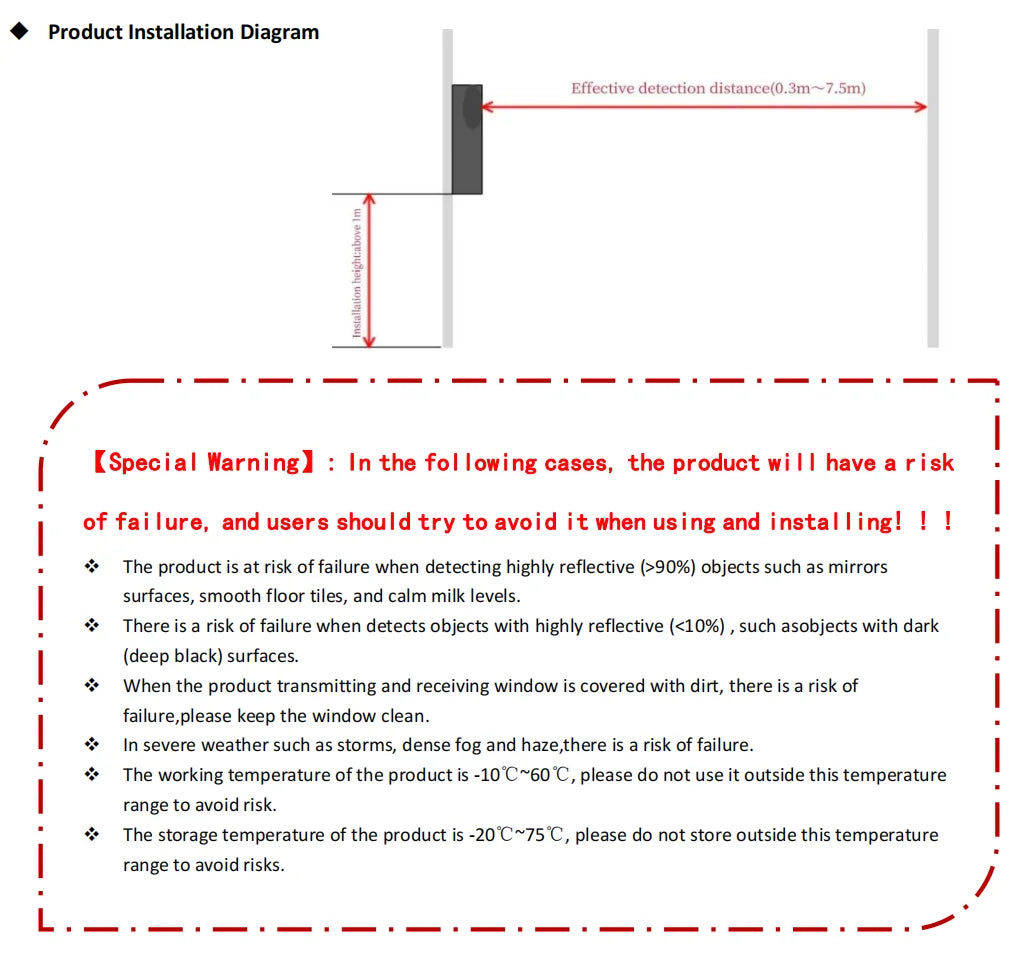

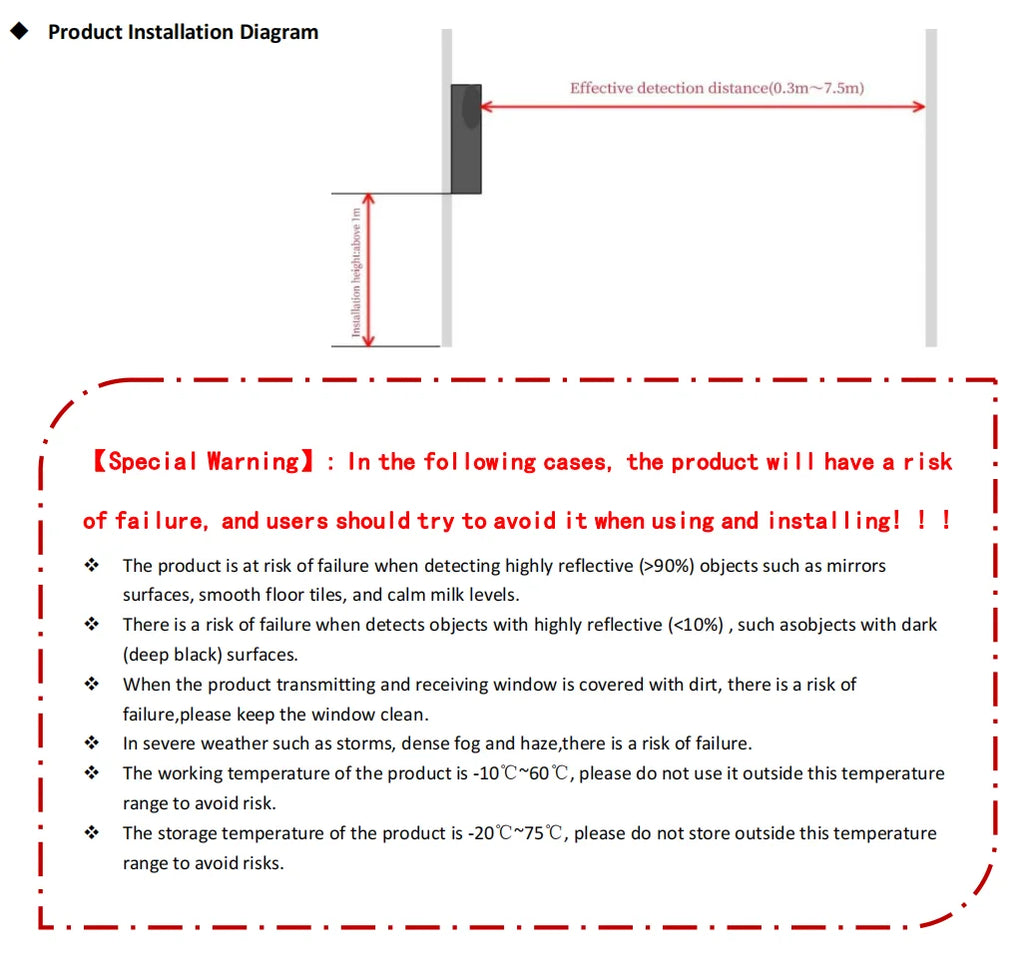

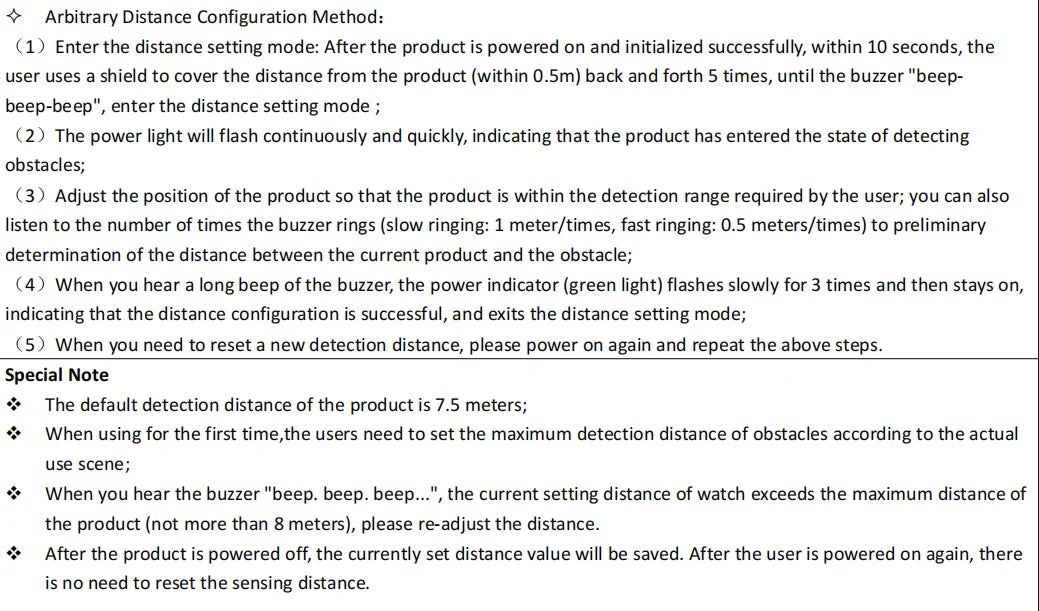

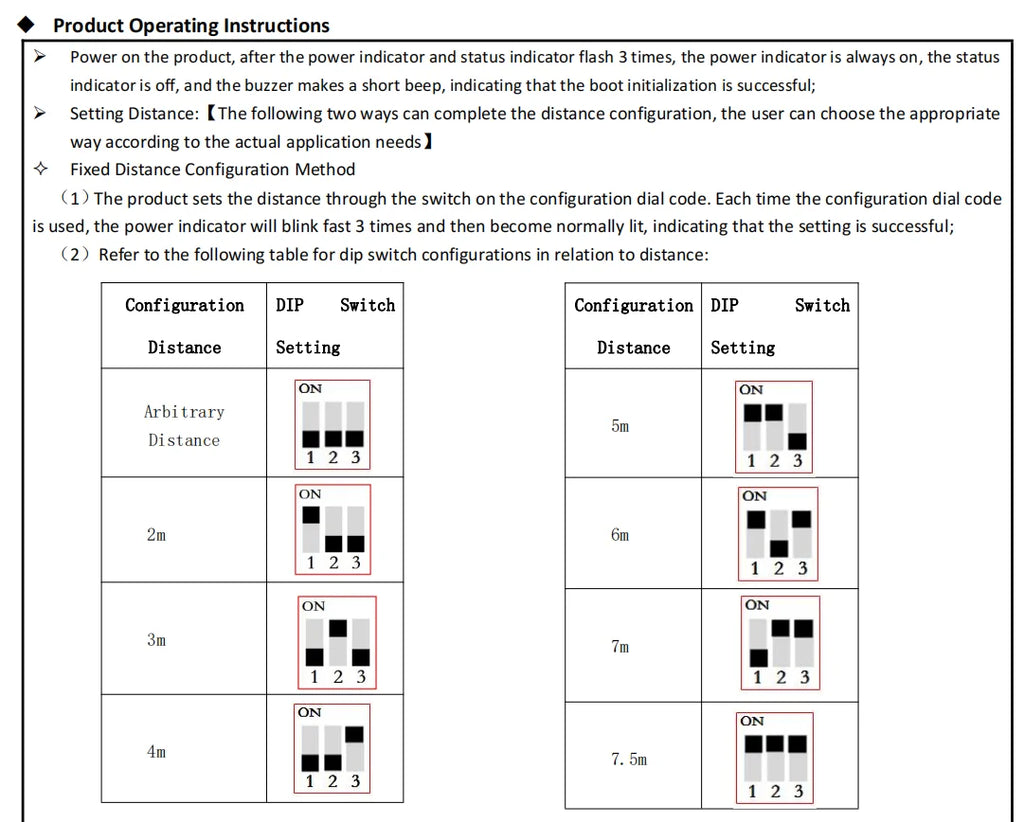

1、Before using the product for the first time, please set the sensing distance for the product according to the

actual application needs!!!

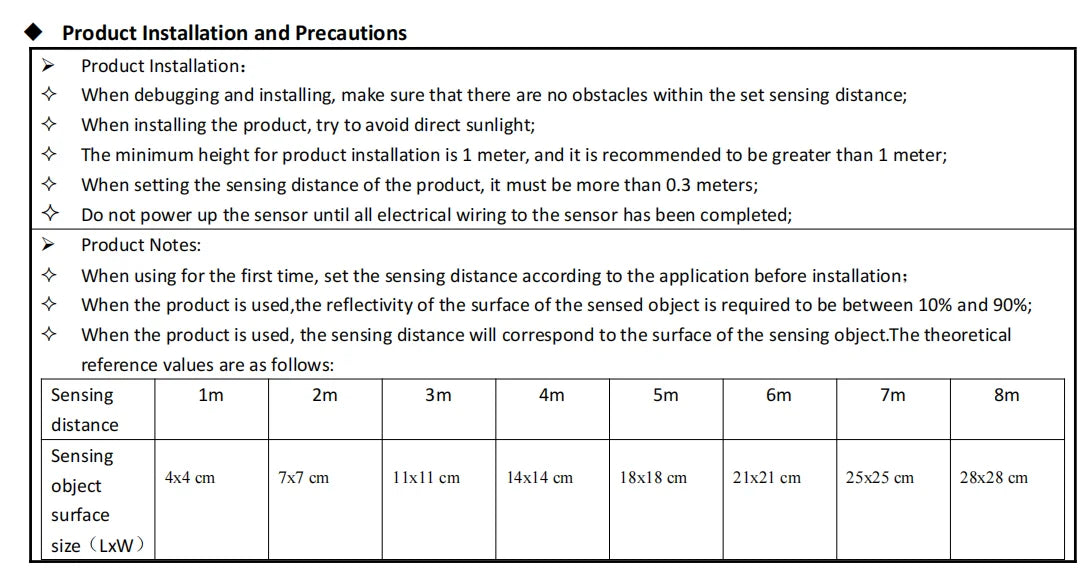

2、The sensing distance of the product is required to be more than 0.3 metres!!!

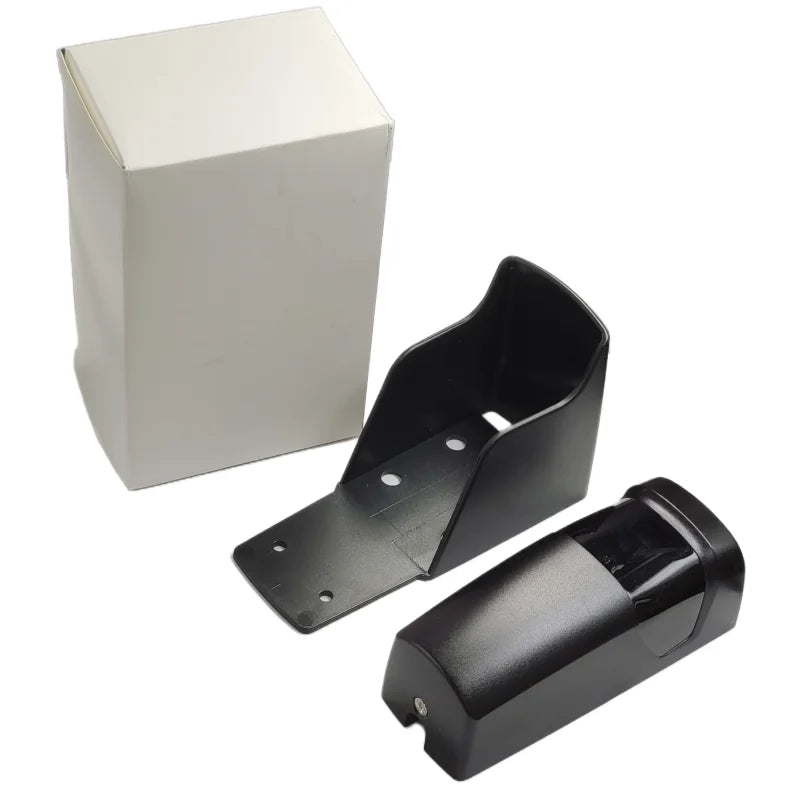

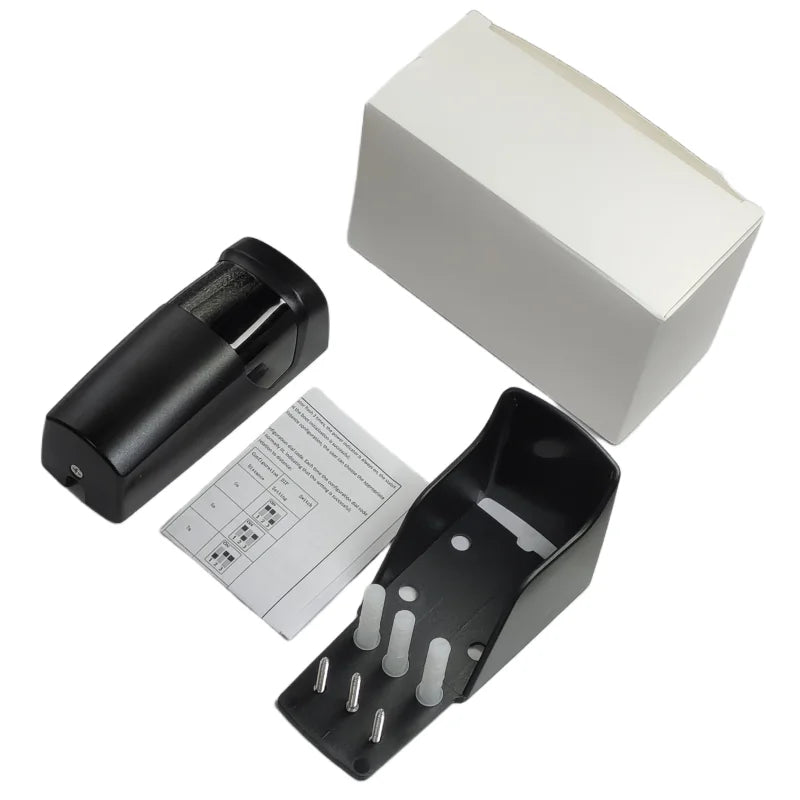

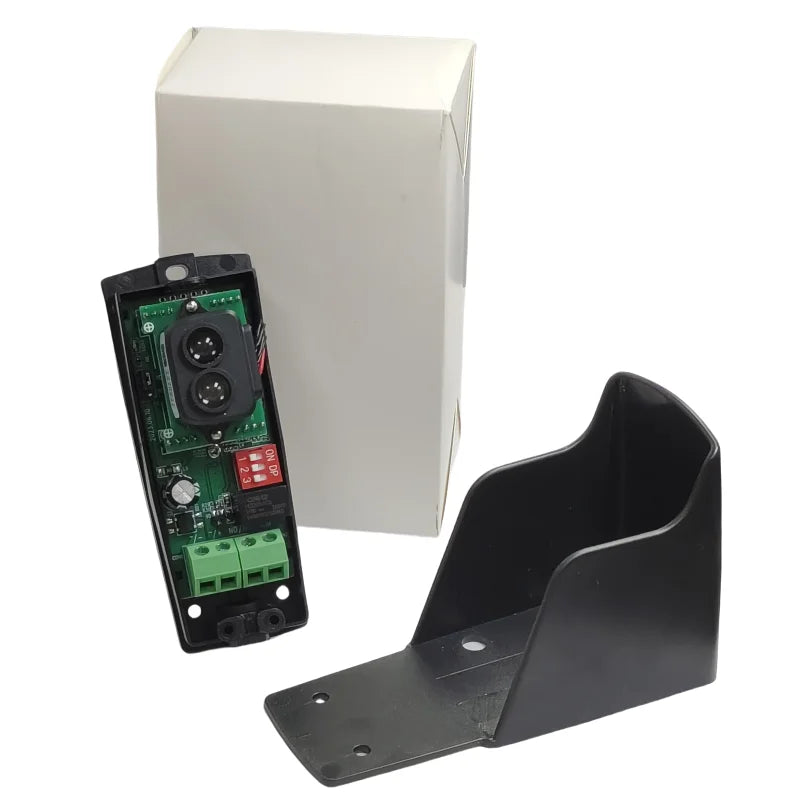

Package include:

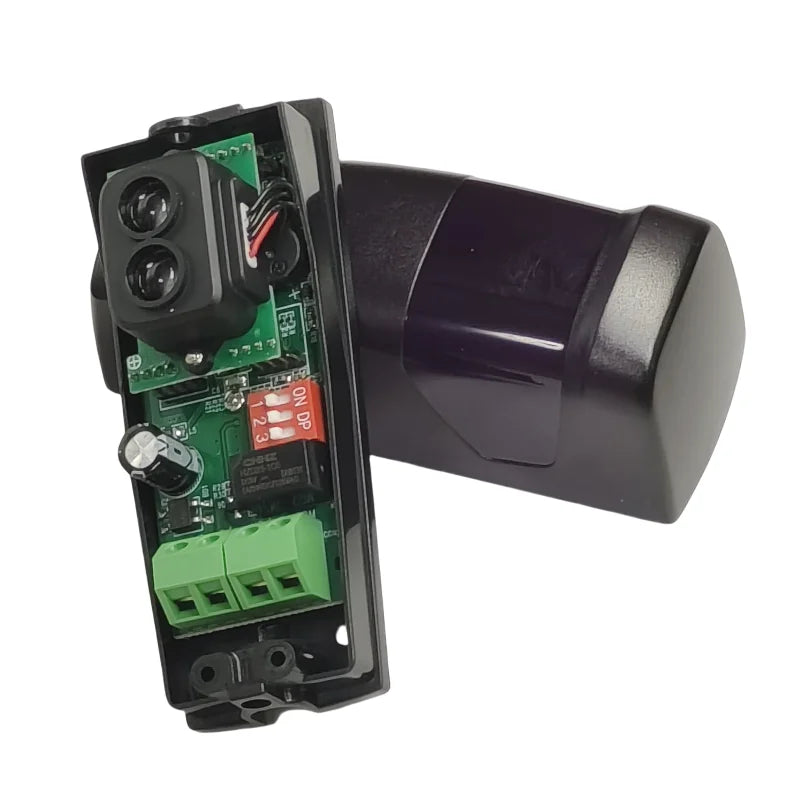

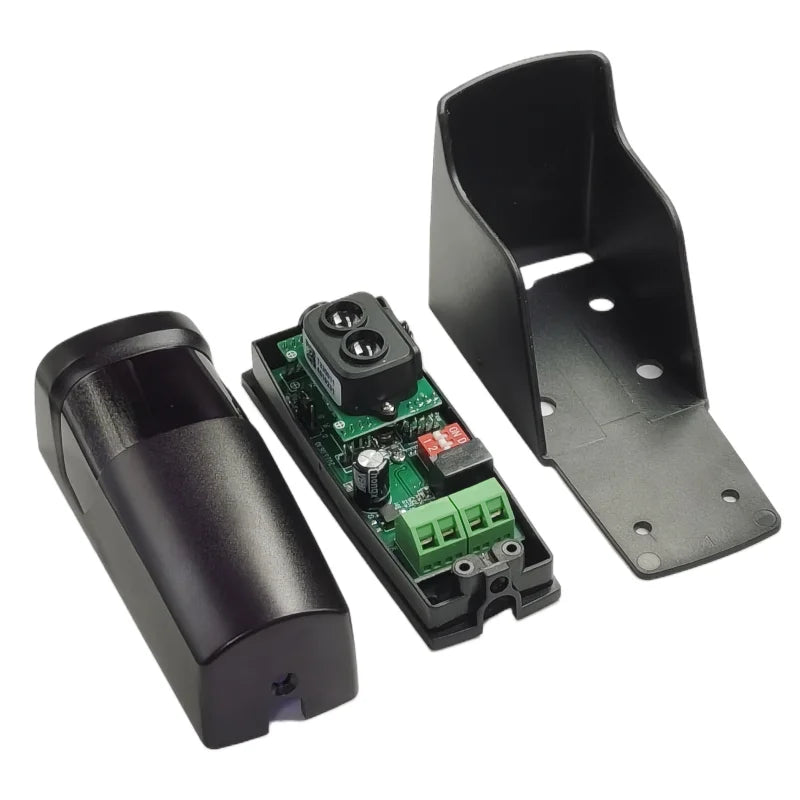

*1 x Reflective Laser infrared sensor (transmitter & receiver)

*Some Mounting screws

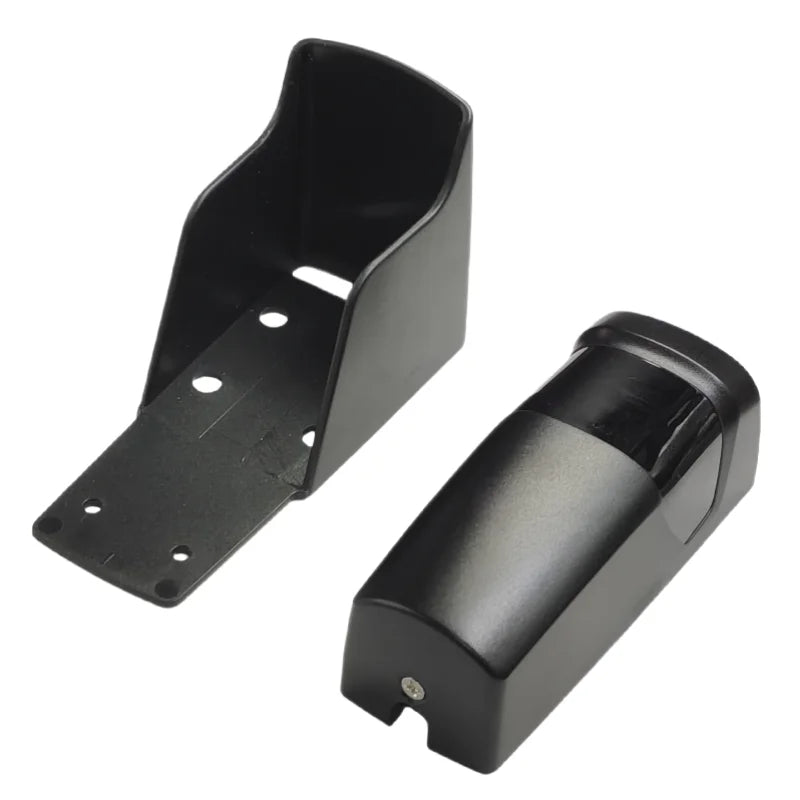

*1x Hood

*1x Manual

*Gross Weight :0.12KG

If you still have any questions ,please kindly contact us ,we will offer you video and manual ;
