SPECIFICATIONS

Brand Name: NONE

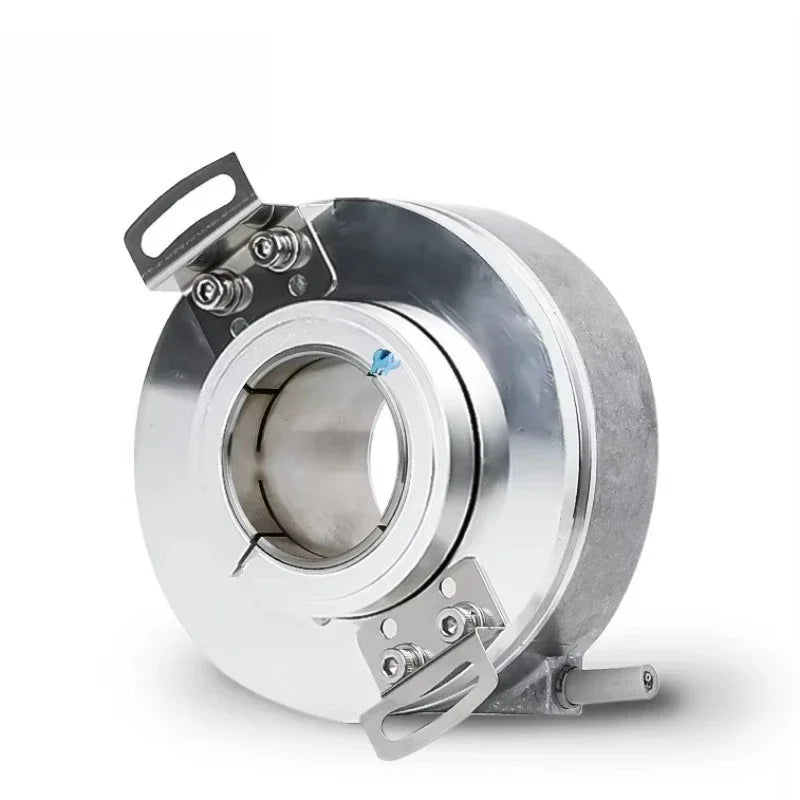

Description: Hollow Shaft Ring Encoder, K76 encoder

External diameter: 76.5mm

Features: Incremental Optical Encoder

Manufacturing Date Code: 2024

Model Number: K76 encoder

Mounting Type: Fixed installation

Optional: DC5V & DC8V-30V

Origin: Mainland China

Outlet type: wire out from side

Output: square-wave signal

Output mode: NPN & voltage output & push-pull output & difference output

Place of Origin: Shanghai, China

Protection grade: IP50

Resolution: up to 65536ppr

Series: k76

Shaft diameter: 30/28/25/22/20/18mm

Theory: opcition sensor, Optical sensor

Thickness: 28mm

Type: Incremental Encoder

Usage: opcition sensor

Weight: about 370g

Friends, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! You can also add my WA 86+15874218309 to contact me. Tel: 86+15874218309 Email: 1774176902@qq.com Wechat: 15874218309

Products Description

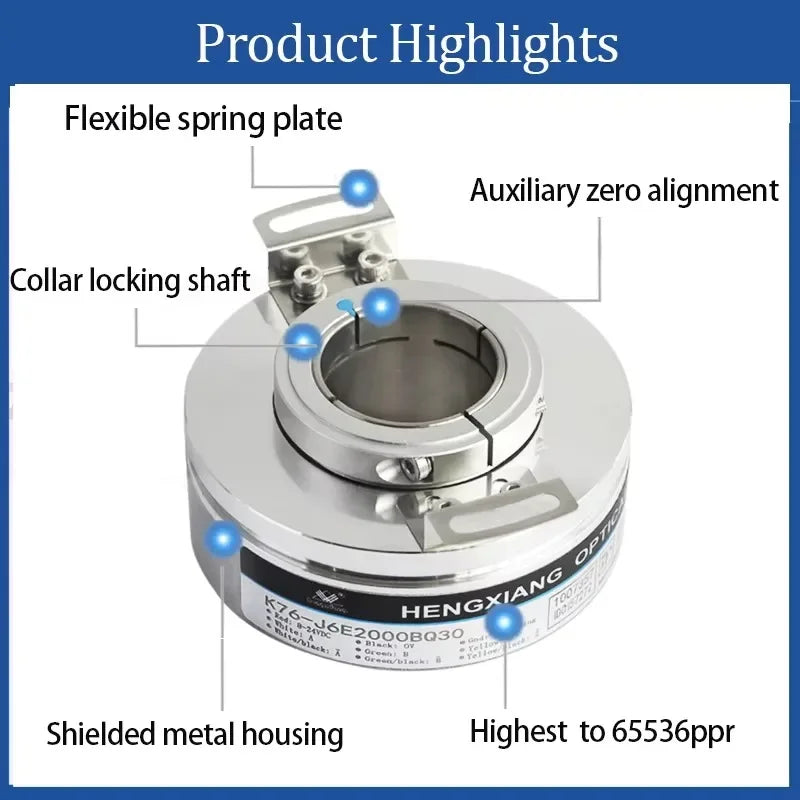

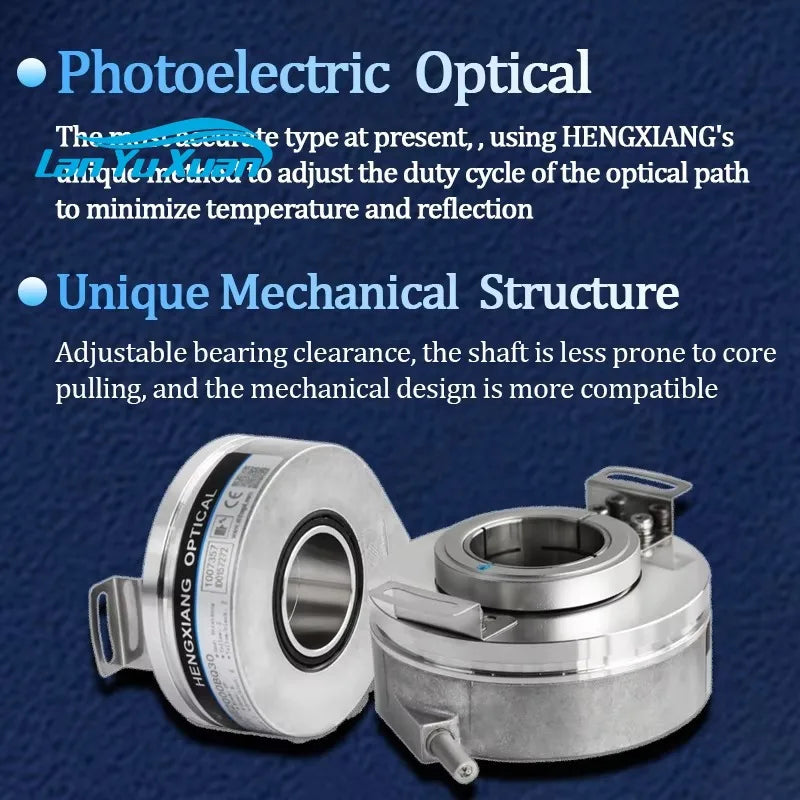

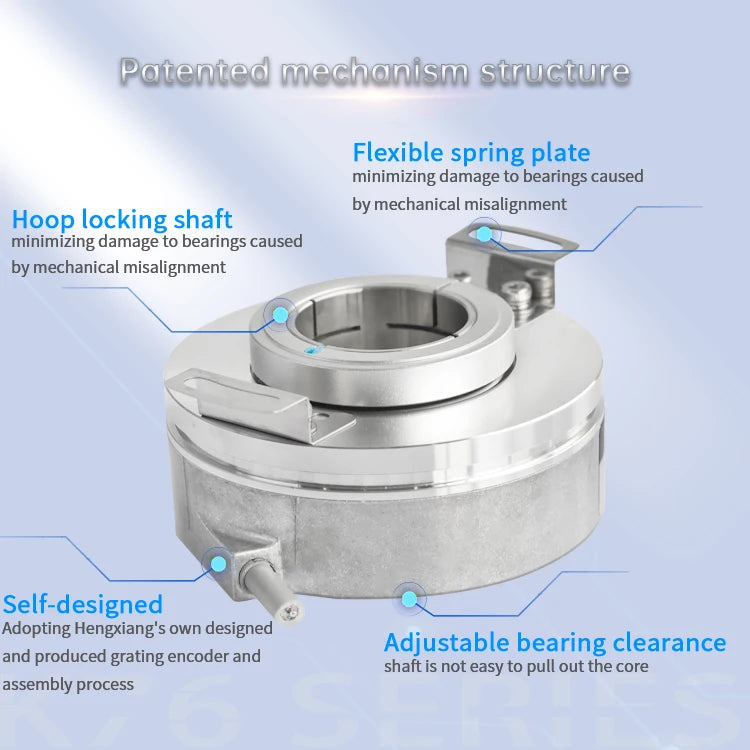

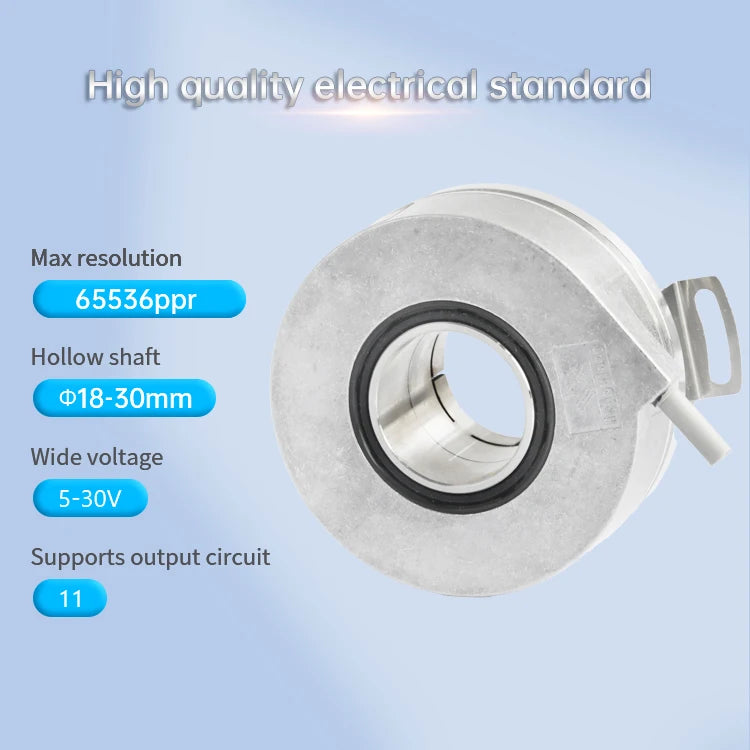

1.Highlights of K76 encoder

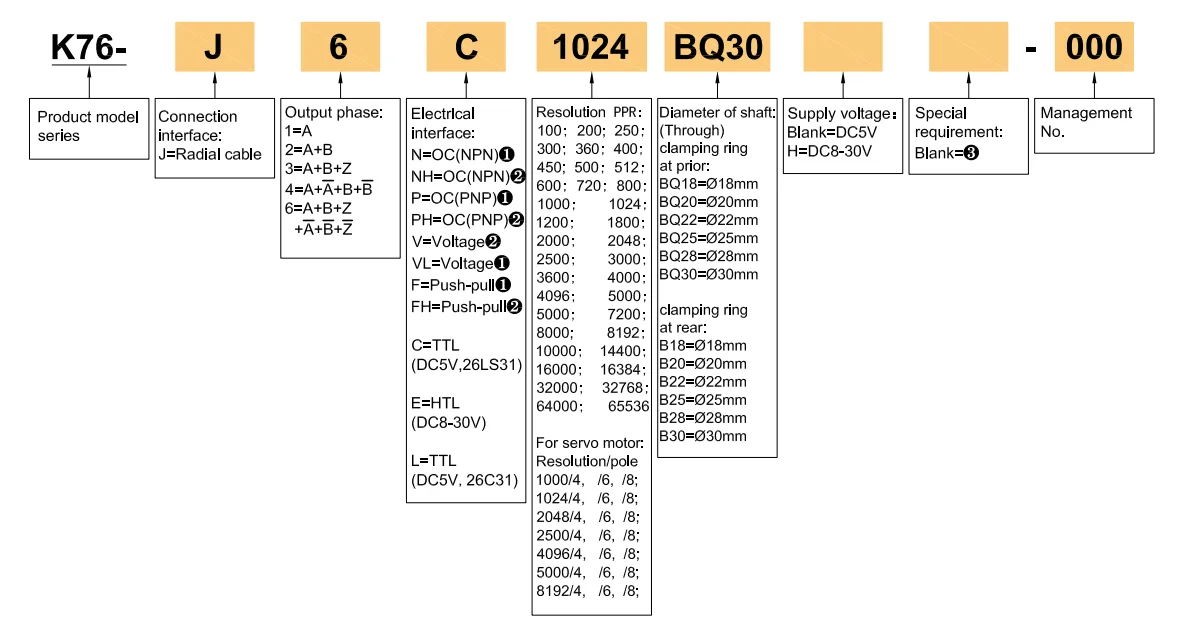

Model Selection Guide

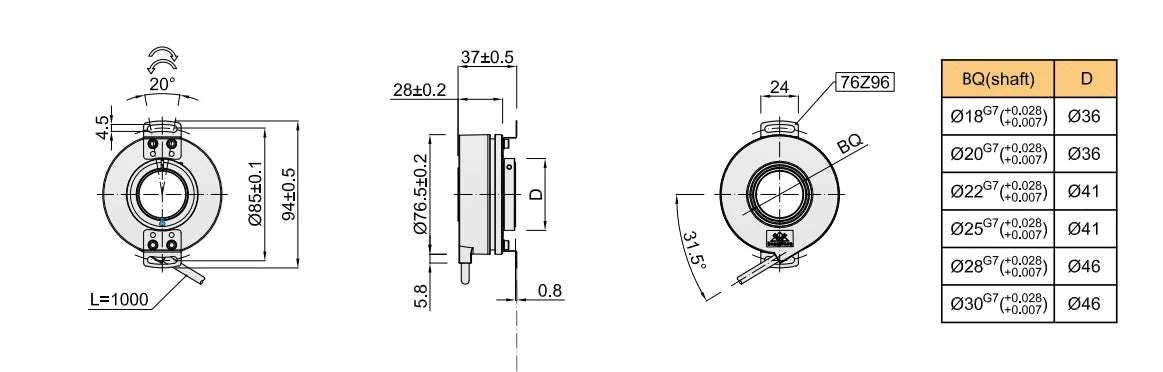

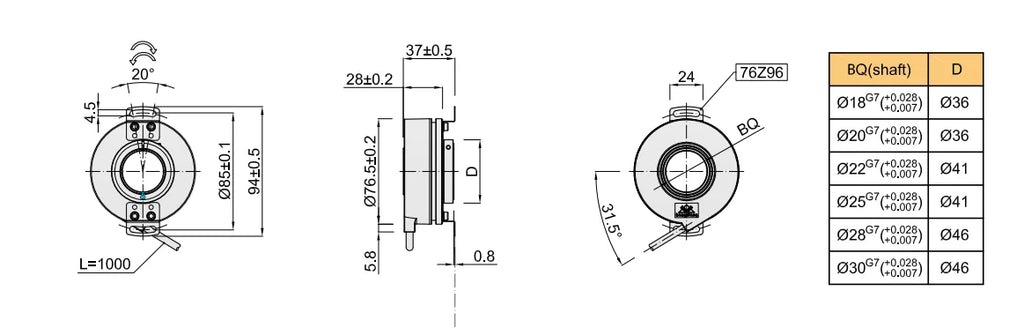

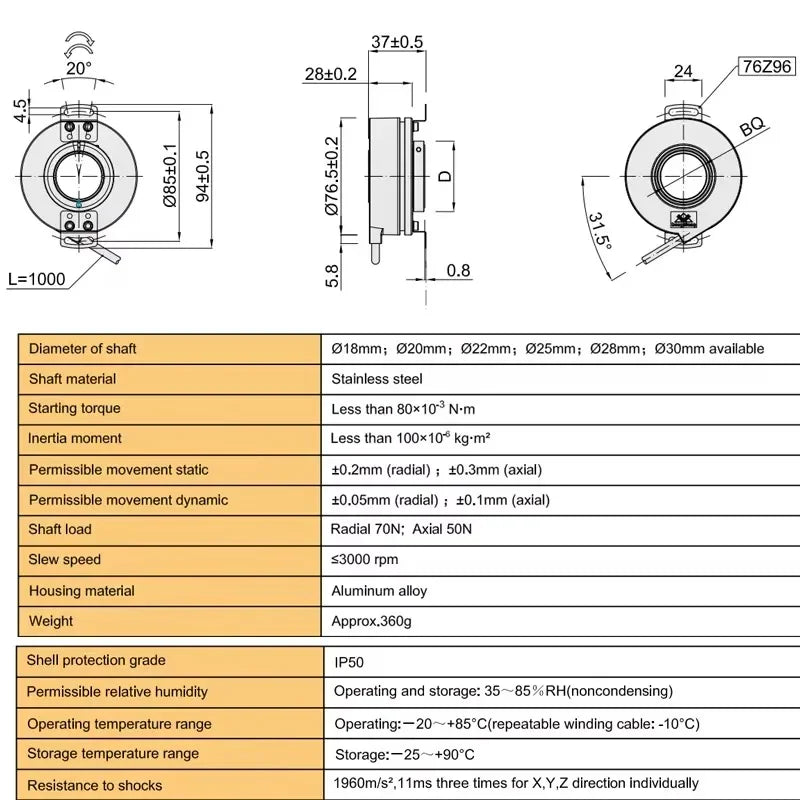

2.Dimension

3.Electrical parameters

Items	Basic parameters
Encoder type	Incremental encoder
Brand	HENGXIANG
External diameter	76.5mm
Thickness	37mm
Installation dimension	69mm; 96mm

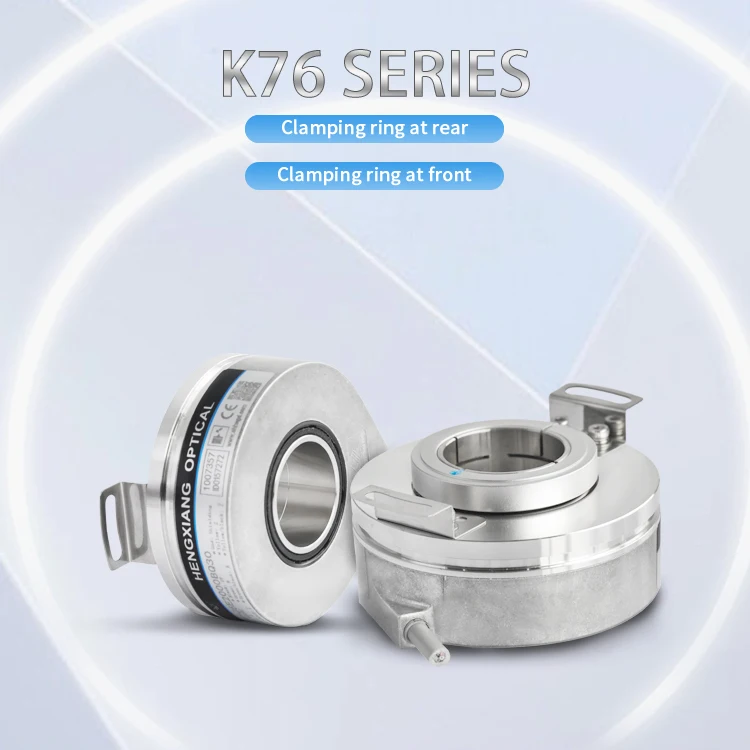

Hollow shaft type	through hole (clamping ring at prior and clamping ring at rear)
Hollow shaft diameter	18mm,20mm,22mm,25mm,28mm,30mm
Resolution	100;200;250;300;360;400;450;500;512;600;720;800;1000;
		1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
		7200;8192;10000;14400;16384;28800;32768;64000;65536
		1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;
		2500/8;4096/8;4096/6;4096/16;5000/4;5000/6;5000/8;5000/10;5000/12;5000/16;
		8192/8;8192/10;/8192/16;10000/8;10000/10;10000/16
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Reverse polarity protection	√
Short circuit protection	√
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
		Voltage output
		Push-pull output
		line drive (DC5V, 26LS31/26C31) TTL
		line drive(DC8-30V) HTL
Consumption current	120mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
GND	not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 80 x 10-3 N.m
Intertia moment	less than 100x 10-6kg.m2
Shaft load	Radial 70N; Axial 50N
Top REV	≤3000RPM
Environmental temperature	Operating:-20 ～+85°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	1960m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Aluminium alloy
Cable length	1000mm(cable with shielding)
Protection grade	IP50
Certification	CE
package	Carton box
Net weight	About 360g (with package)
