2026 NEW High Quality Rogowski Coil 333mV Split Core CT Connected RS485 RTU Energy Meter

2026 NEW High Quality Rogowski Coil 333mV Split Core CT Connected RS485 RTU Energy Meter

$353.61

$353.61 $0.00

Description

SPECIFICATIONS

Accuracy Class: 0.1%

Application: Energy Consumption Monitoring

Brand Name: NONE,MRATROL

Communication: RS485 Port MODBUS-RTU Protocol

Communication protocol: MODBUS-RTU

Current sensor: Rogowski coil/ 333mV CT

DIY Supplies: Electrical

Dimensions: 9.45*7.25*6.6CM

Display: 1.77 inch TFT screen display

Display Type: Digital Only

Electronic: No

Frequency: 45~65Hz

High-concerned chemical: none

Measuring Energy Range: 0 to 999.9GWh

Model Number: ME231

Operating Temperature: -25℃~+60℃

Origin: Mainland China

Output Voltage: 95~265VAC/110~260VDC

Phase: Three Phase

Place of Origin: Shanghai, China

Primary current: 1-999999A

Product name: DIN RAIL Smart Energy meter

Type: Three phase / Single phase

Voltage range: 0~600VAC Phase Voltage

Hi there! Thanks for stopping by our store. We're a dedicated team from China, excited to share our quality products with you. Due to the time difference, we might be sleeping when you're awake. Please feel free to leave us a message, and we'll get back to you as soon as possible. For a quick chat or to ask about discounts, you can also add us on WhatsApp: +86 19897629901. A little exclusive treat for you: the first two customers who add our WhatsApp each day are eligible to apply for a special discount! We believe in honest business and stand behind our products. Our goal is 100% customer satisfaction, so please feel free to place your order with confidence. Have a great day!

Product Description

Specification

item	value
Place of Origin	China
	Shanghai
Brand Name	MRATROL
Model Number	ME231
Display Type	Digital Only
Phase	Three Phase
Measuring Energy Range	0 to 999.9GWh
Accuracy Class	0.1%
Output Voltage	95~265VAC/110~260VDC
Operating Temperature	-25℃~+60℃
Dimensions	9.457.256.6CM
Product name	DIN RAIL Smart Energy meter
Type	Three phase / Single phase
Current sensor	Rogowski coil/ 333mV CT
Display	1.77 inch TFT screen display
Primary current	1-999999A
Voltage range	0~600VAC Phase Voltage
Communication protocol	MODBUS-RTU
Frequency	45~65Hz
Application	Energy Consumption Monitoring
Communication	RS485 Port MODBUS-RTU Protocol

Packing & Delivery

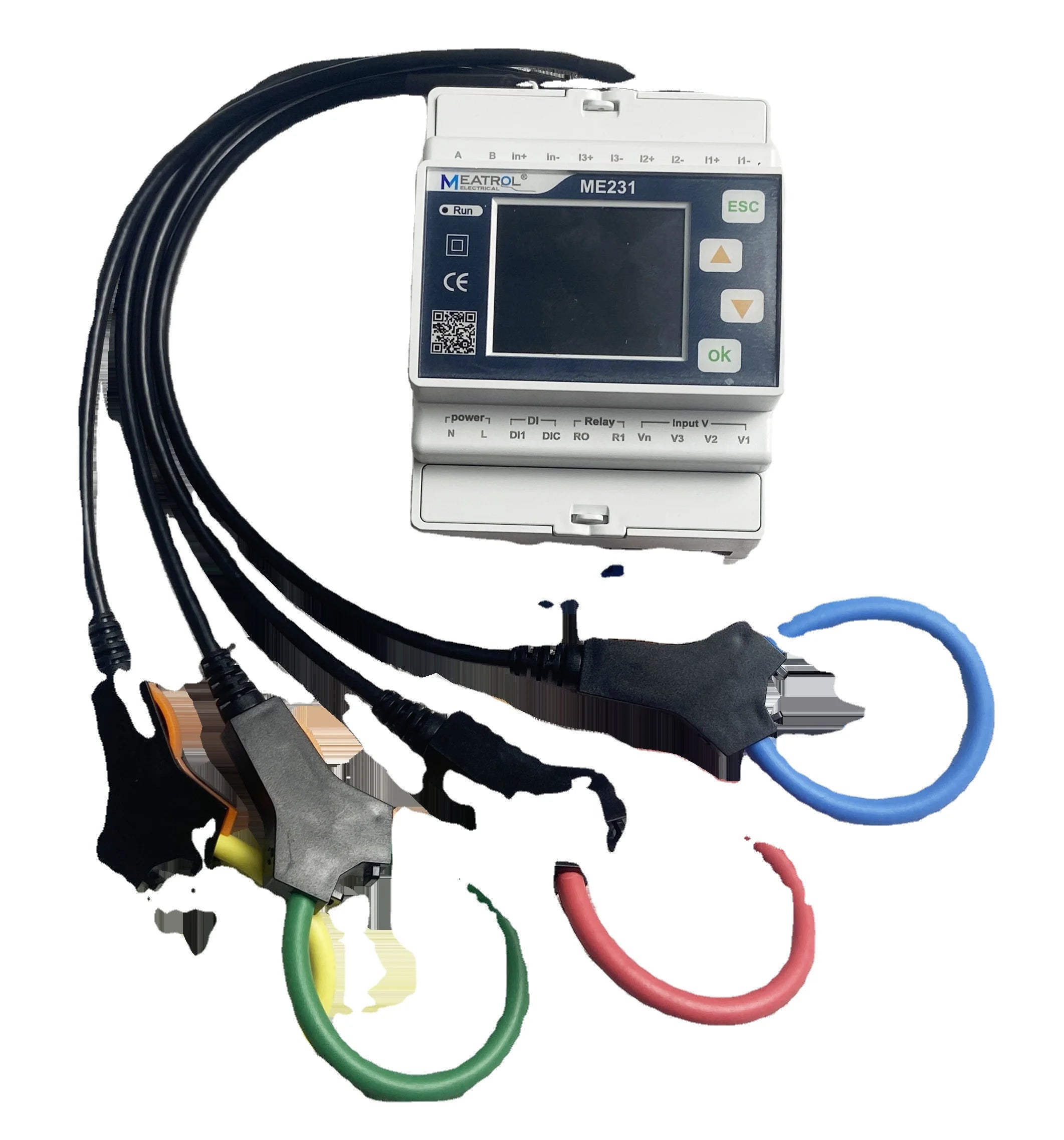

1set/carton Including accessories: 5pcs voltage clamp, adaptor 5pcs magnetic probe Optional:ABS Box Optional:Rogowski coil sensor: 600ATRC-36 1000A NRC-100 3000A NRC-150 6000A NRC-200 10A(100mA~10A): ST08 Current clamp
