2026 Raspberry Pi 4G LTE CAT4 HAT with Quectel EG25-GL, Plug-and-Play, Global Bands

2026 Raspberry Pi 4G LTE CAT4 HAT with Quectel EG25-GL, Plug-and-Play, Global Bands

$498.56

$498.56 $0.00

Description

SPECIFICATIONS

After-sales Service: -

Brand Name: NONE

Hard Drive Type: -

Origin: Mainland China

Video Memory: -

Warranty(Year): -

brand name: seeedstudio

graphics card chipset: -

hdd rotation speed: -

model number: 114993408

operating system: -

place of origin: Guangdong, China

processor series: -

processor type: -

products status: New

use: For Business

video card: -

Hello, dear customer, welcome to our store. Please check before ordering: 1. The price on our website is the EXW factory price without shipping cost. Some equipment in our store cannot be shipped free of charge due to their large size. The shipping price displayed on the AliExpress platform is inaccurate. 2. The machine can be shipped by express or sea (to seaport or door-to-door delivery). The shipping time and freight will vary in different countries, please contact us to calculate the freight. If I don't reply to you in time，you can contact my Whatsapp: +86 18900786512 Email: 3509534322@qq.com WeChat：+8618900786512 Finally, dear friend, if you feel the price and shipping costs are unreasonable, please feel free to contact me to discuss it. I guarantee you will be satisfied.

Feature

Complete Kit: Includes 2x LTE antennas and all essential mounting accessories, requiring no additional purchases
Global Frequency Support: Supports worldwide frequency bands without regional limitations
Plug-and-Play: Seamlessly work with Raspberry Pi, no extra drivers needed
High-Speed LTE CAT4: Quectel EG25 module delivers 150Mbps(DL)/50Mbps(UL) speeds
Extensive Protocol Support: Dial-up, SMS, TCP, UDP, PPP, FTP, HTTP, and more
Precise Positioning: Built-in GPS/GLONASS/BDS/Galileo/QZSS for accurate location tracking
USB 2.0 High-Speed Interface: Facilitates rapid 4G communication with Raspberry Pi or PC via USB
Dedicated Power Supply: Additional USB-C power interface that supports PD protocol can provide up to 27W of power separately for the 4G hat and Raspberry Pi, offering higher load capacity.
AT Command Set: Supports Quectel Enhanced AT commands for control and configuration of the 4G module
Flexible Control: On-board UART, PWR, RST pins manageable via DIP Switch

Specification

Attribute	Details
Region/Operator	Global
LTE-FDD	B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
LTE-TDD	B34/38/39/40/41
WCDMA	B1/2/4/5/6/8/19
TD-SCDMA	Not supported
GSM/EDGE	B2/3/5/8
GNSS	GPS/GLONASS/BDS/Galileo/QZSS
Enhanced Features	DTMF , DFOTA, QMI/RmNet,QuecOpen®, QuecLocator®, QuecFile®, (U)SIM Card Detection
Max. Data Rates	LTE-FDD (Mbps): 150 (DL)/50 (UL) LTE-TDD (Mbps): 130 (DL)/30 (UL) DC-HSPA+ (Mbps): 42 (DL)/5.76 (UL) WCDMA (kbps): 384 (DL)/384 (UL) EDGE (kbps): 296 (DL)/236.8 (UL) GPRS (kbps): 107 (DL)/85.6 (UL)
Protocols Supported	TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE
Supply Voltage Range	3.3–4.3 V, typical 3.8 V
Power supply	5V via USB-C1; 5-15V DC power via USB-C2, with USB Power Delivery support

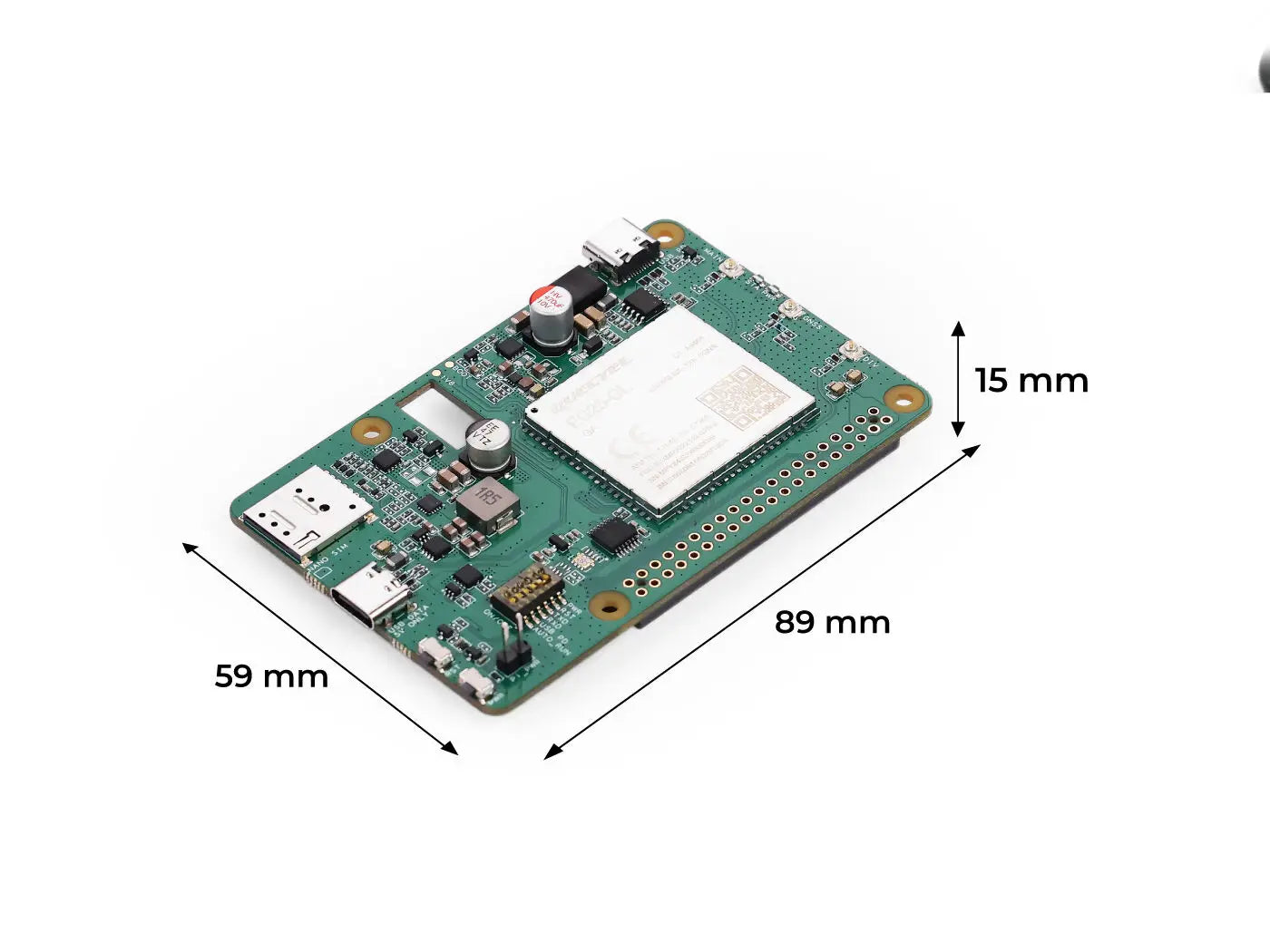

Dimensions	59mm x 89mm x 15mm

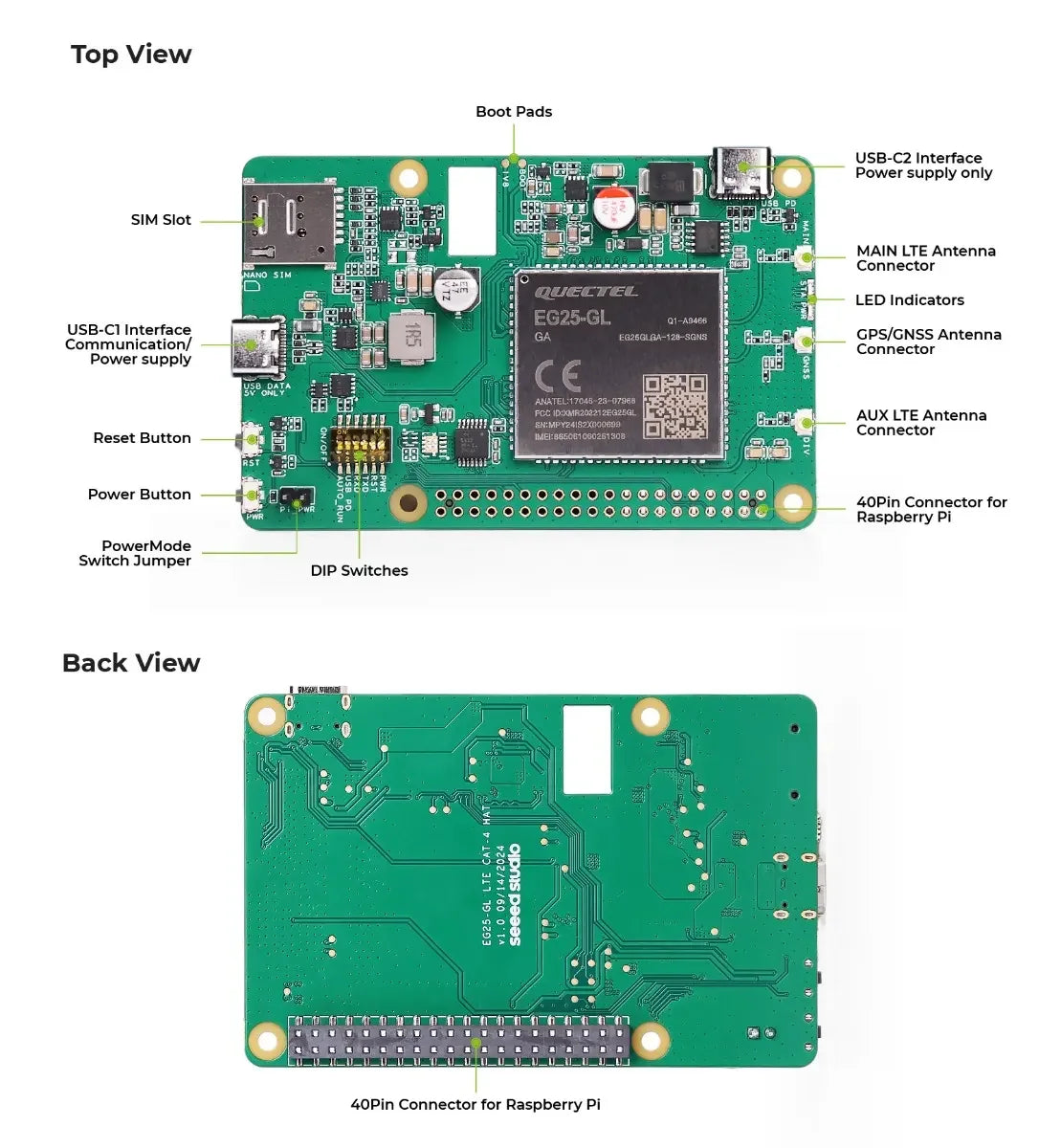

Hardware Overview

Application

Remote Data Monitoring
IoT Gateway
LTE Router/Adapter
Video/Music Streaming

Documents

Quectel_EG25-GL_AT_Commands_Manual_V2.0.pdf
Quectel_EG25-GL_QCFG_AT_Commands_Manual_V1.1.pdf
Quectel_EG25-GL_LTE_Standard_Specification_V1.1.pdf
LTE EG25-G | Quectel

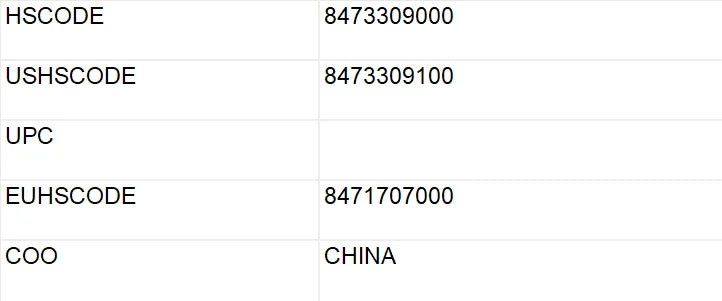

ECCN/HTS

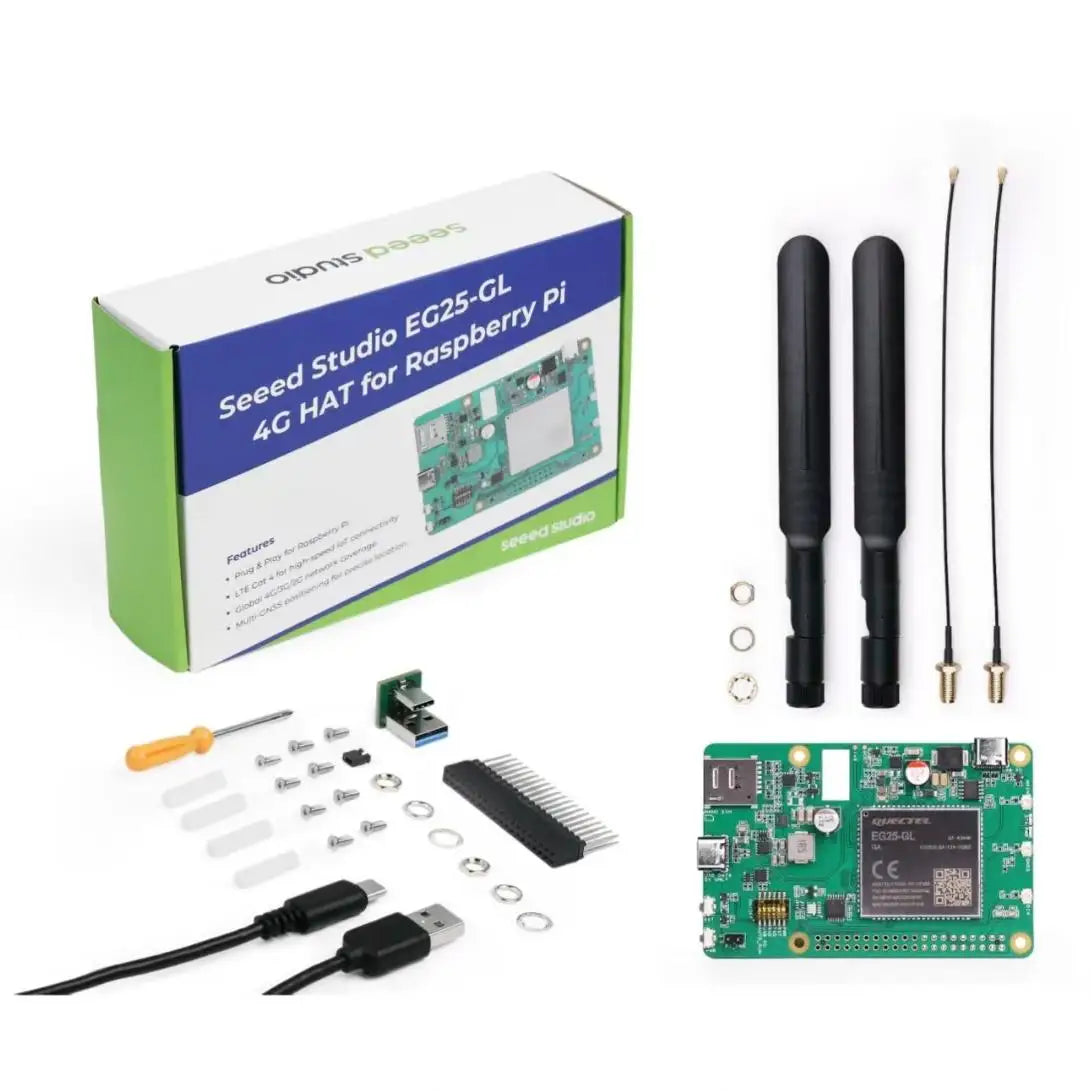

Part List

EG25-GL LTE Cat4 HAT	X1
USB Type-A to Type-C Cable	X1
USB Type-A to Type-C Adapter	X1
2*20PIN DIP Black Female Header	X1
External Antenna	X2
IPEX Adapter Cable	X2
Screws Pack	X1
