Description

SPECIFICATIONS

Brand Name: NONE,HENGXIANG

Description: incremental encoder, TRD-NA720RPW5M Absolute encoder

External diameter: 50mm

Features: incremental encoder

ITEM: SJ50 Absolute encoder

Manufacturing Date Code: 2024

Model Number: TRD-NA720RPW5M Absolute encoder

Mounting Type: Fixed Mounted

Origin: Mainland China

Outlet type: wire out from side

Output: OTHER

Output mode: gray code without reading error

Place of Origin: Shanghai, China

Protection Grade: IP50&IP65

Resolution: up to 12bit(4096)

Series: incremental encoder

Shaft diameter: 8mm (D type)

Supply voltage: DC12-24V

Theory: Optical Encoder

Type: ABSOLUTE ENCODER

Usage: Auto Machine Control

Weight: about 150g (with package)

Friends, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! You can also add my WA 86+15874218309 to contact me. Tel: 86+15874218309 Email: 1774176902@qq.com Wechat: 15874218309

Four Advantages of us

① Focused on encoders for24years;

② Over200 encoder options;

③ Professional technical team serves you and supports OEM&ODM;

④One-stand design, R&D, manufacturing, combined with 40+ years experience in optical industry

Products Description

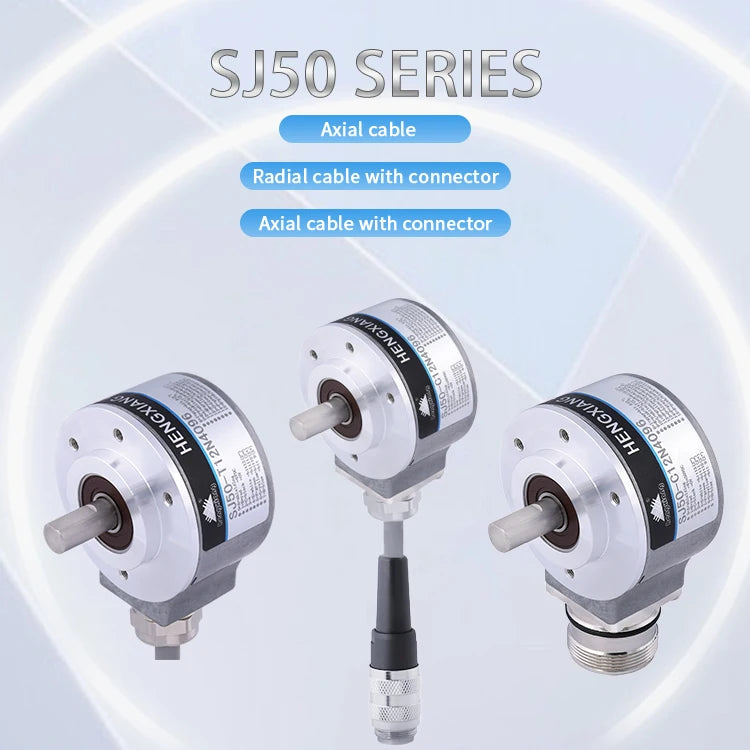

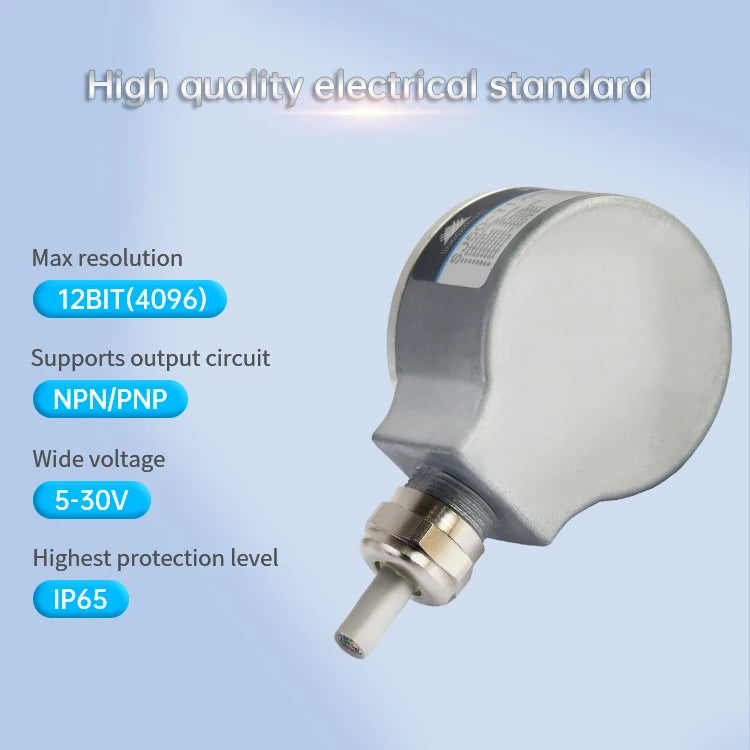

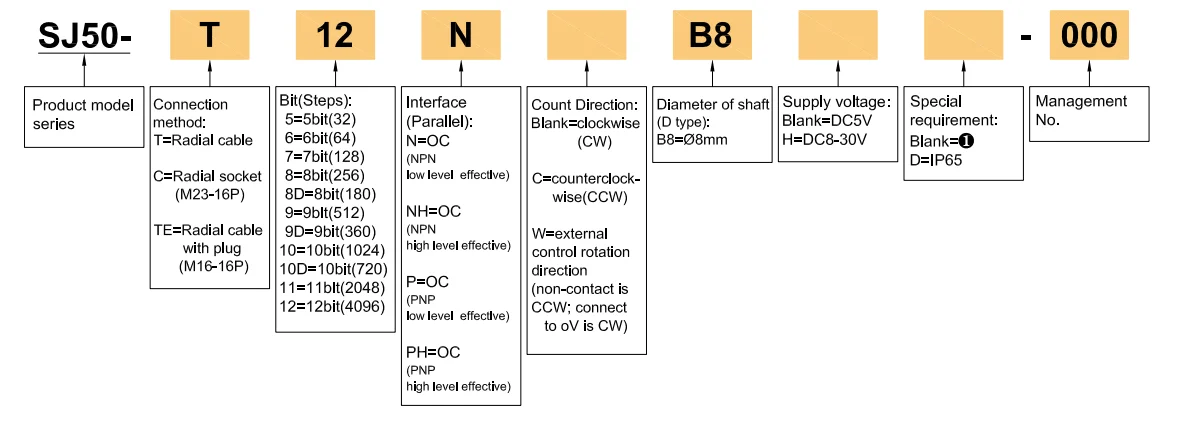

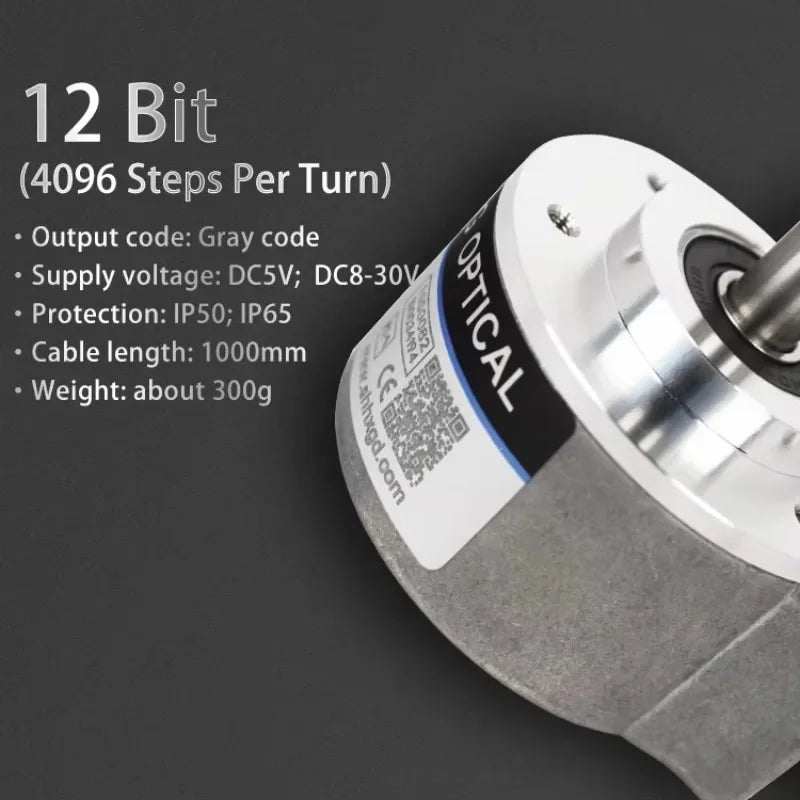

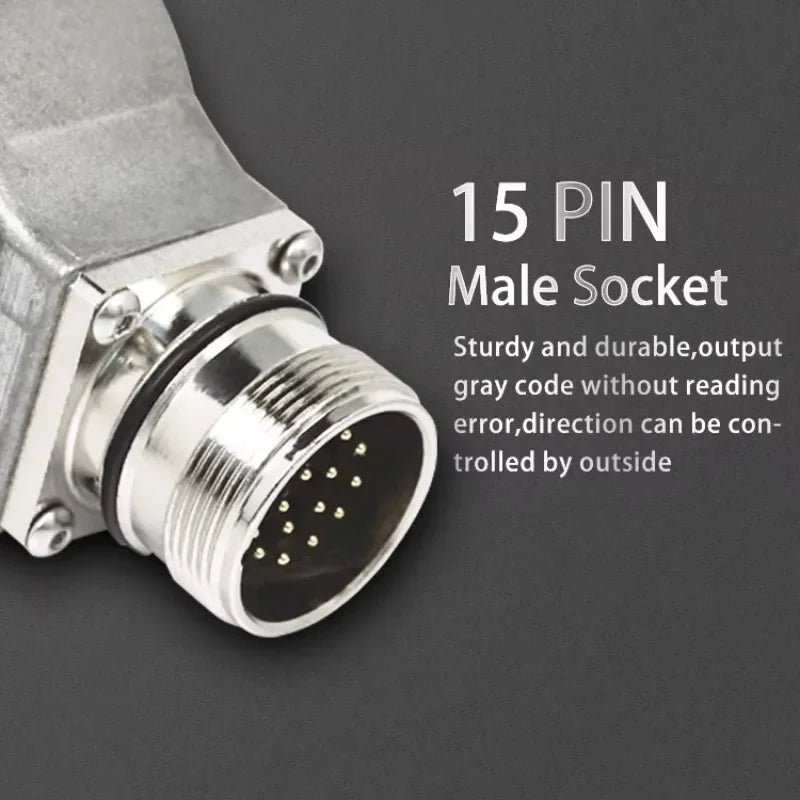

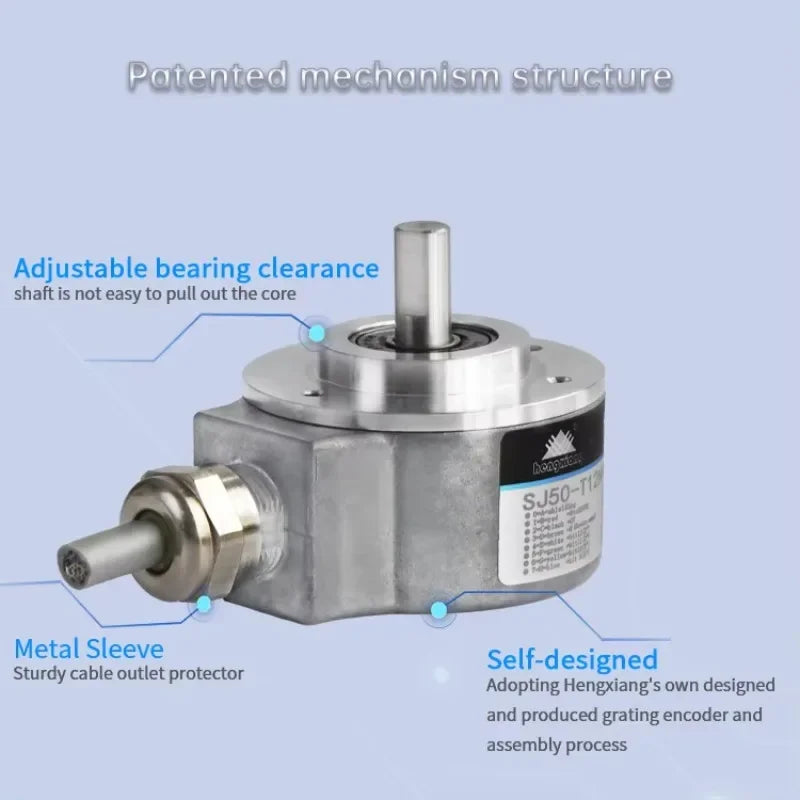

1.Highlights of SJ50 encoder

Model Selection Guide

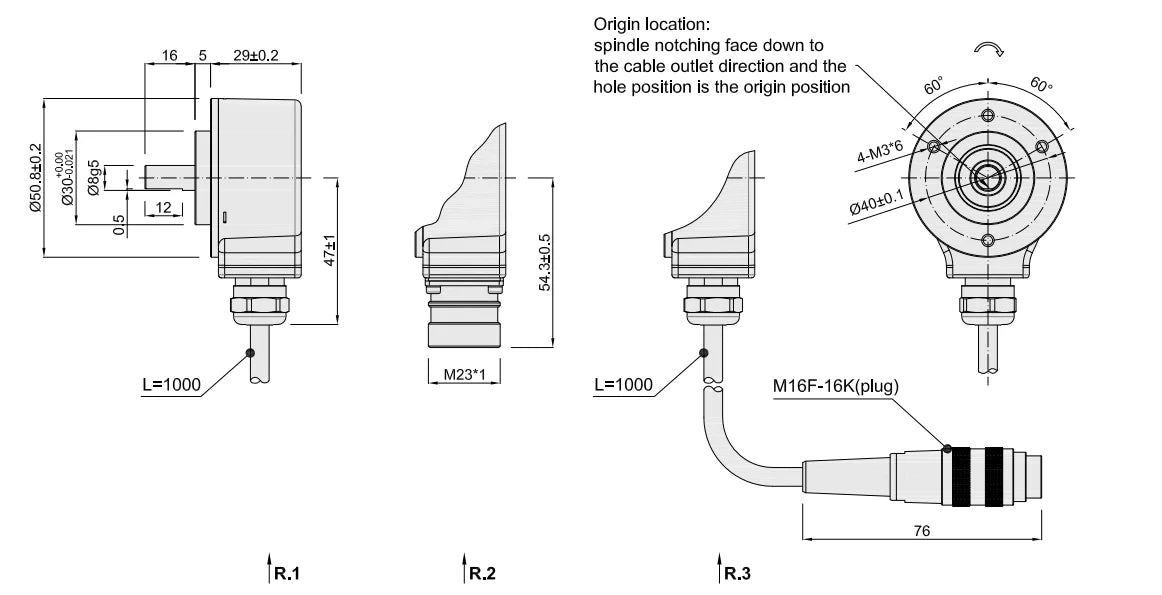

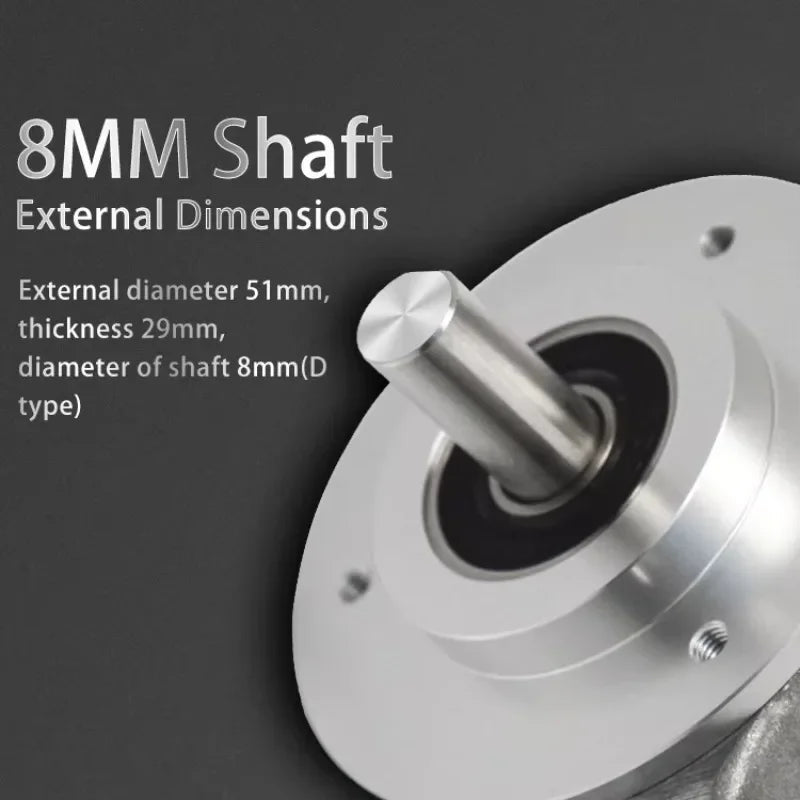

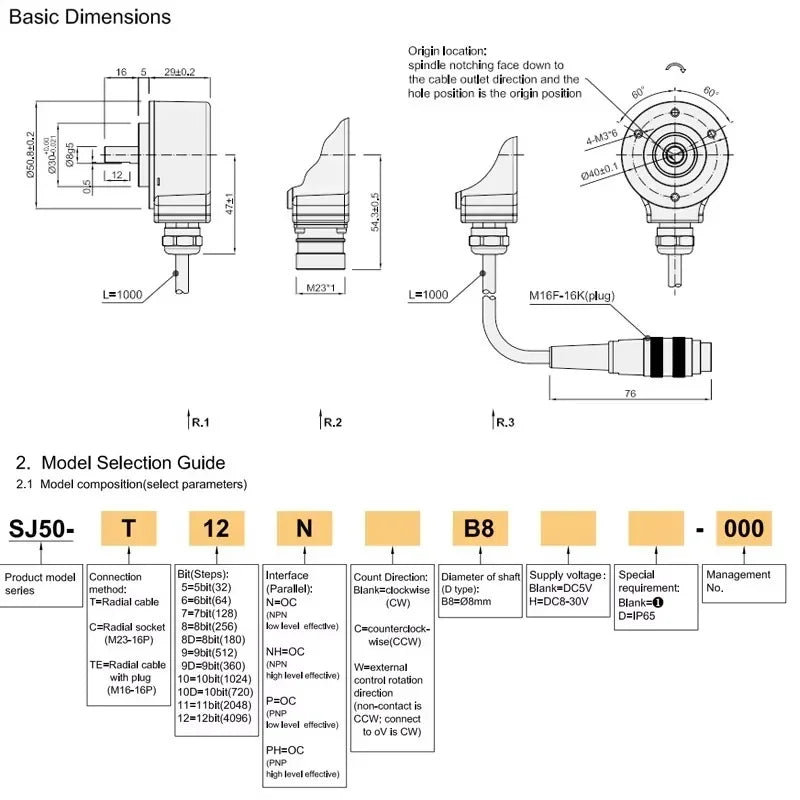

2.Dimension

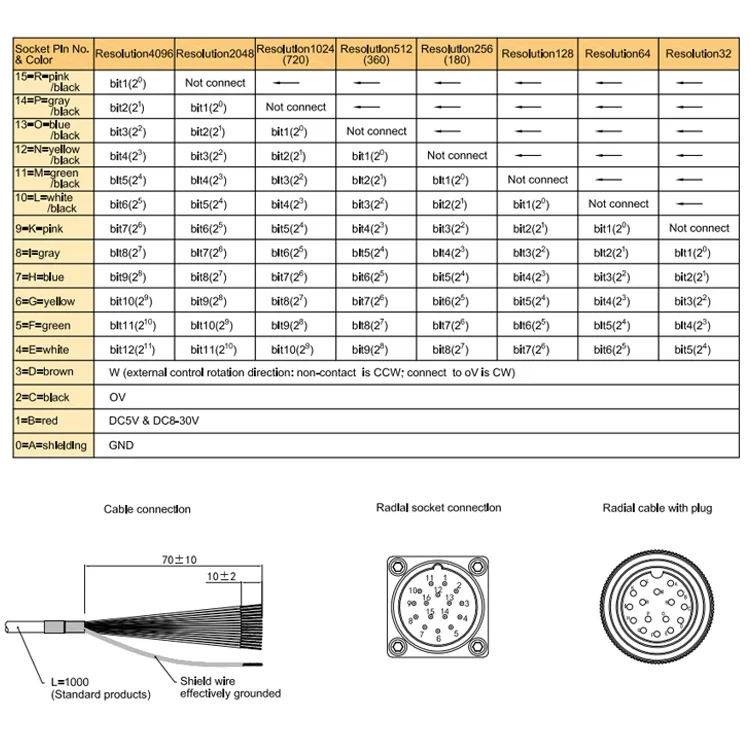

3.Connection

4.Electrical parameters

Items	Basic parameters
Brand	HENGXIANG
Encoder type	absolute encoder
External diameter	51mm
Thickness	29mm
Shaft length	16mm
Solid Shaft diameter	8mm D shape
Bit(steps)	5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage	DC5V ； DC8-30V
Outlettype	radial cable
		radial socket
		radial cable with plug
Count direction	counterclockwise
		outside control direction
		clockwise
Interface	NPN/PNP low level effective
Interface		NPN/PNP high level effetive
Protection grade	IP50 ; IP65
Cable length	1M (cable length could be added appropriately by
Cable length		require, but it need payment individually)
Consumption current	100mA MAX
Top response frenquency	100KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Output code	gray code
Precision	360/(resolution x 4)
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
starting torque	less than 5x 10-3N.m
Intertia moment	less than 3x 10-6kg.m2
Shaft load	Radial 50N; Axial 30N
Top REV	4000RPM ;IP65≤3000r rpm
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+85°C；storage:-25 ～+90°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	49m/s2 , three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE
package	Carton box
Net weight	About 300g (with package)
