2026 ZED-F9P High-Precision Differential Positioning Four-star Dual-Frequency RTK Integrated Module Centimeter-level F9P Module

2026 ZED-F9P High-Precision Differential Positioning Four-star Dual-Frequency RTK Integrated Module Centimeter-level F9P Module

$1,673.96

$1,673.96 $0.00

Description

SPECIFICATIONS

Brand: A-SKY

Brand Name: NONE

Country of Origin: China

Custom made: support

Delivery date: 10 Days

Logo: support

MOQ: 1 Pieces

Model Number: AK712

Origin: Mainland China,China

Package: paper box

Place of Origin: Guangdong, China

Size: 40.2*25mm

Type: RTK module

Weight: 13.2g

connector: GH1.25mm 8pin

Products Description 1

Product name	RTK Module
Place of origin	China Guangdong
Delivery date	14 Days
MOQ	1 Pieces

Details Images 2

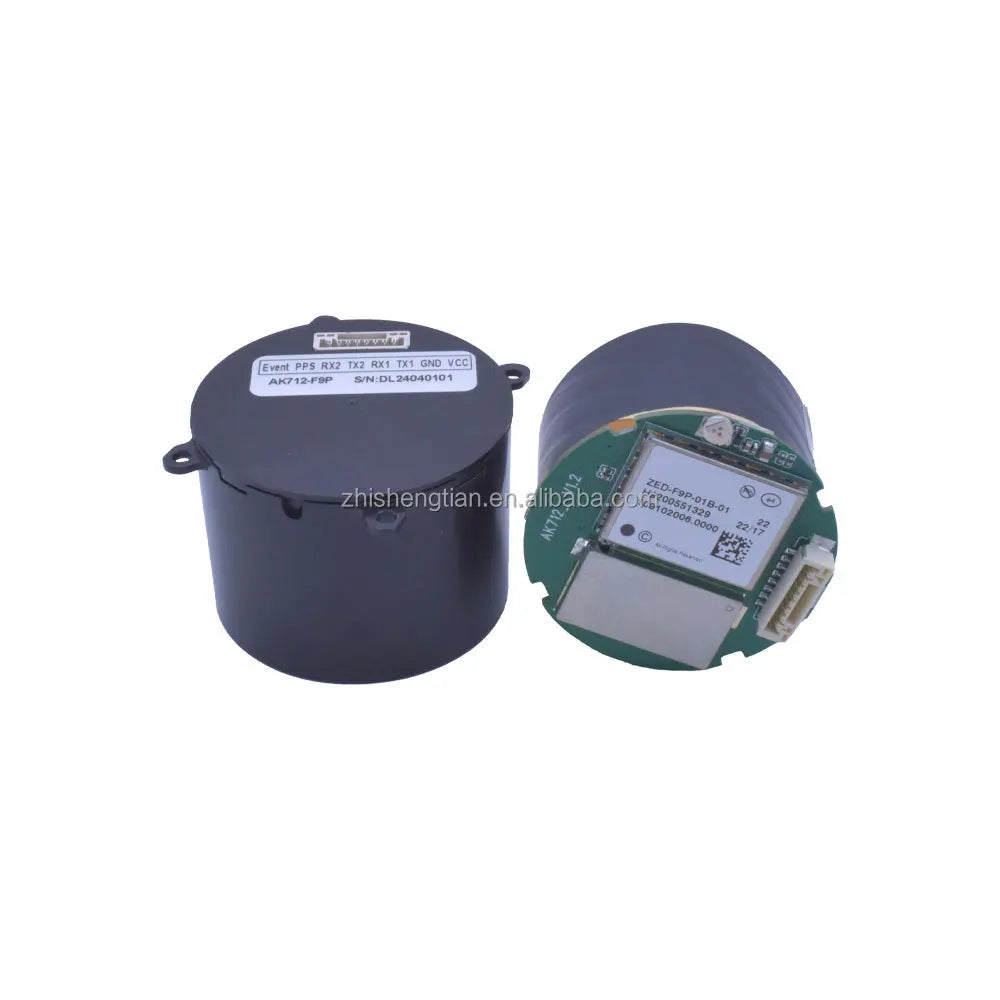

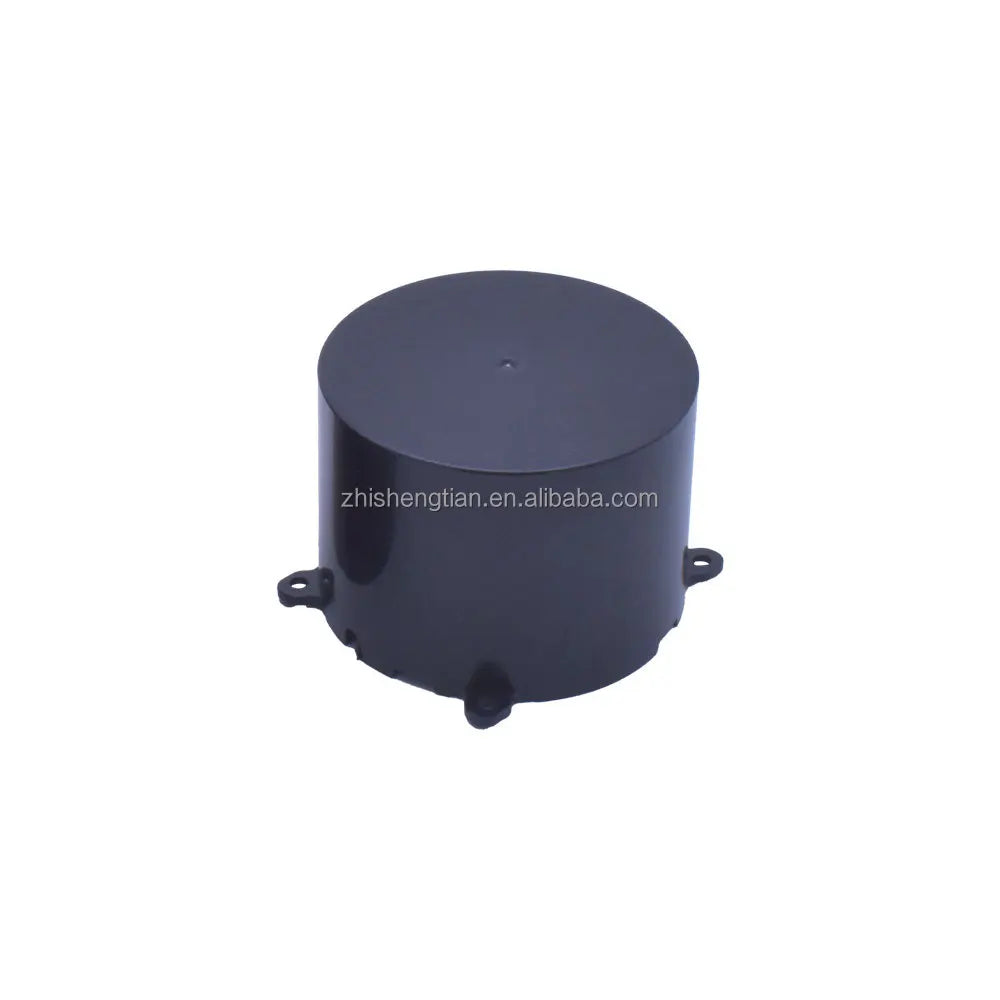

Product introduction

The company's AK712 Beidou/GPS/Galileo/GLONASS four-star dual-frequency RTK integrated module (hereinafter referred to as the module) is an ultra-low-cost, low-power, high-performance real-time dynamic differential positioning module. The module's highly reliable carrier phase difference technology can provide real-time centimeter-level positioning accuracy for drones, automobiles, and surveying and mapping users. The module can be configured as "mobile station" or "base station" working mode, through the common view observation between "mobile station" and "base station", using carrier phase difference technology to eliminate ephemeris error, ionospheric error, troposphere error Errors, inter-satellite clock errors and other measurement errors, and finally obtain high-precision positioning results. Configured as a "base station" module, the differential interface outputs RTCM2.x/3.x standard data streams, which are compatible with most commercial mobile stations on the market. At the same time, a reference design of network RTK is provided, which can distribute differential data streams to all mobile stations through the network. The board configured as a "mobile station", the differential interface supports RTCM2.x/3.x differential data format, which can be connected to the user's existing base stations of other brands or access to the national Beidou ground-based enhancement system. The static relative positioning accuracy of the module is <1cm, the medium dynamic relative positioning accuracy is <2cm, and the output rate is 1~10Hz. It can be used in a variety of scenarios and has a very high cost performance.

Product characteristics

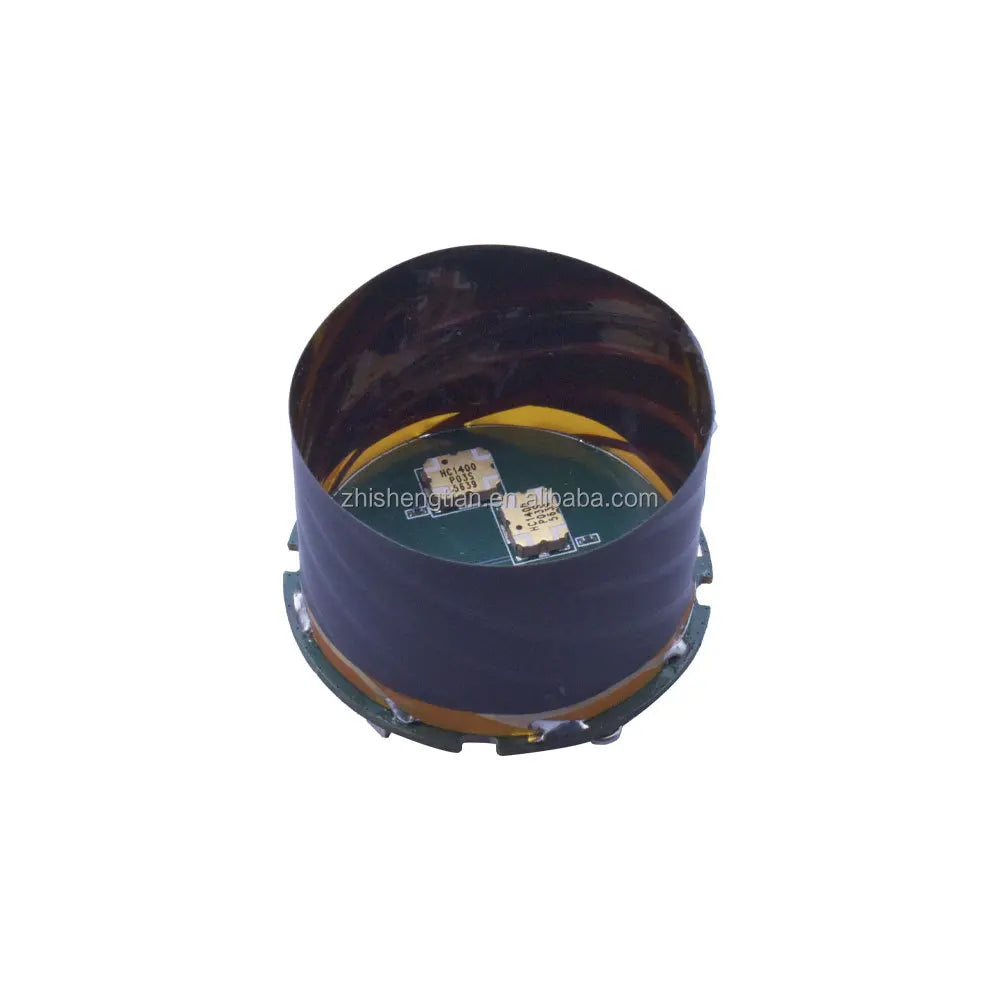

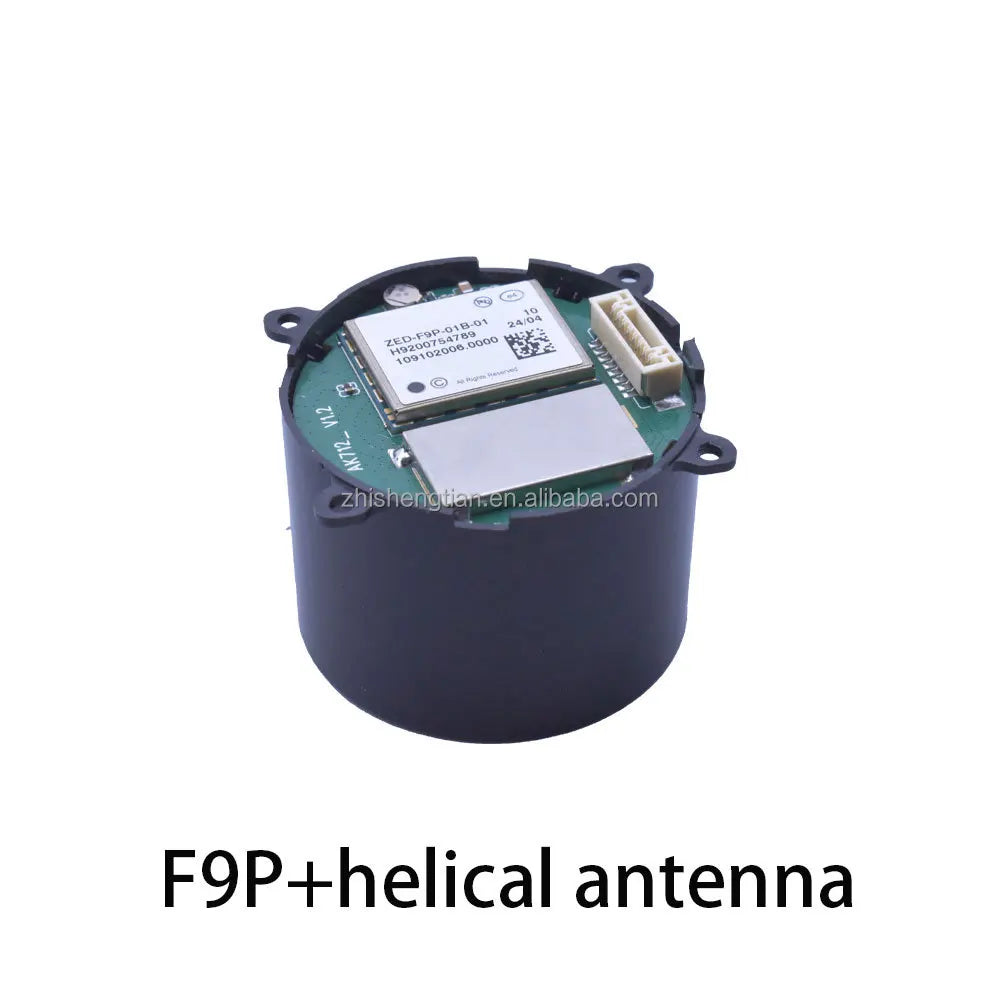

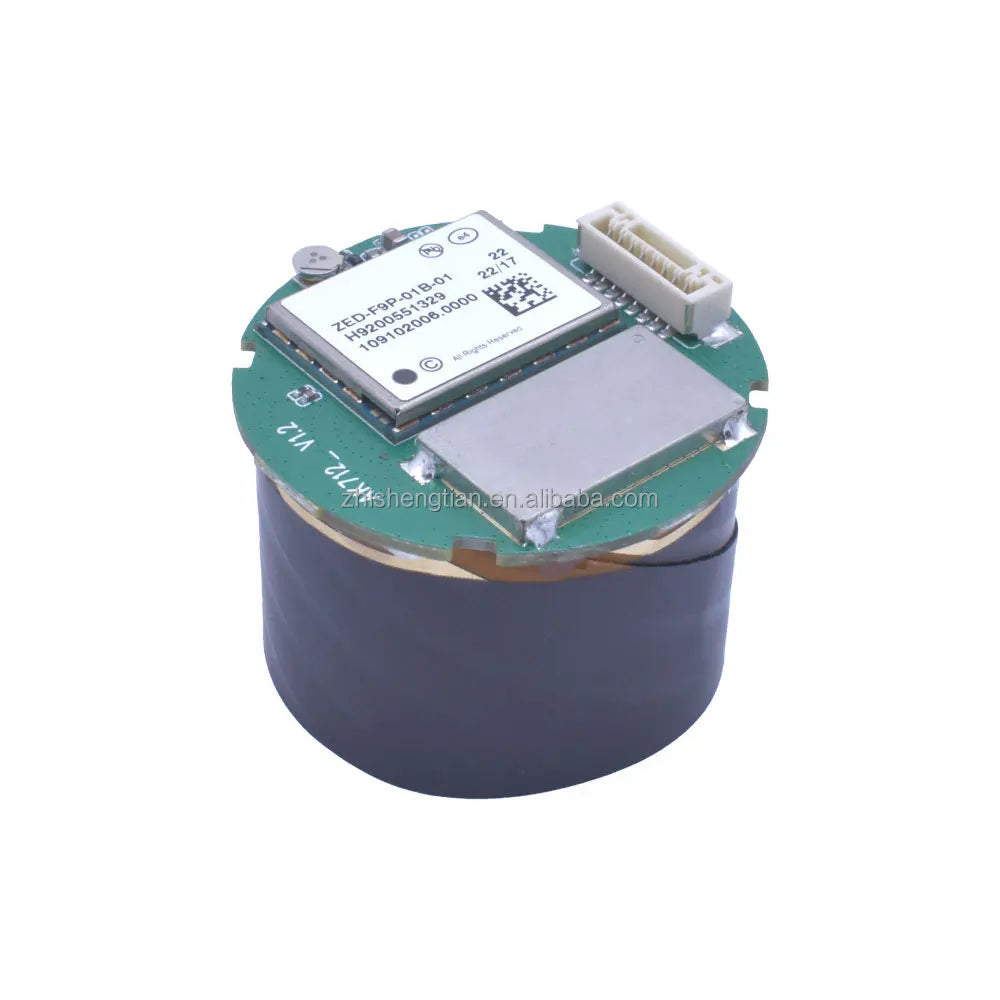

1. Based on the U-blox F9P series product design, the module can obtain stable and high-precision positioning results even in harsh environments. 2. Support Beidou/GPS/Galileo/GLONASS four-mode joint RTK solution, with fast and reliable initialization capability. 3. Support up to 10Hz data output to meet the application in the dynamic situation of the drone. 4. The module can be flexibly configured as a base station or a mobile station. 5. It supports two modes of differential positioning and vector attitude measurement, and can output high-precision positioning and orientation results at the same time. 6. Fully compatible with other automatic flight control systems such as Pixhawk and APM. 7. Built-in four-arm helix antenna combination, with light weight, high gain, high precision and strong anti-interference ability. 8. Adopt industrial-grade low-noise radio frequency circuit, strong anti-multipath suppression.

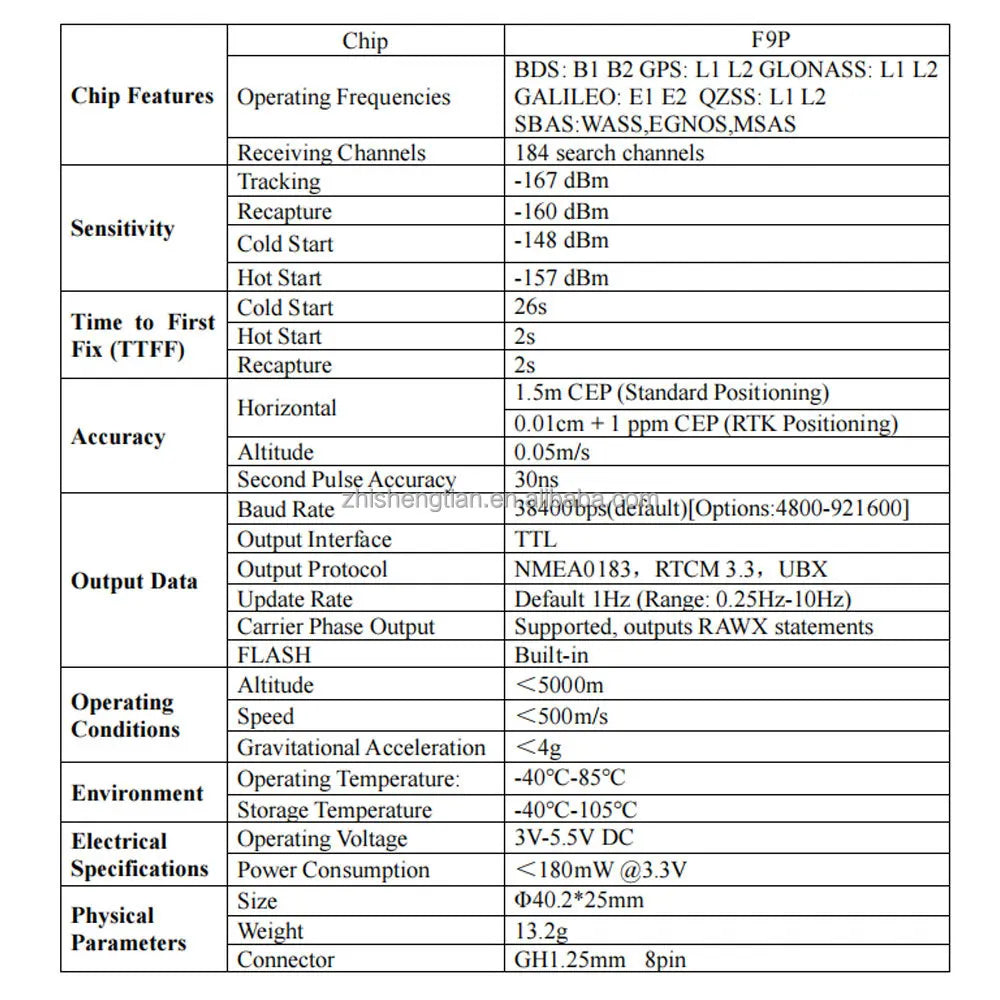

The main technical parameters
Chip characteristics	Chip	F9P
		working frequency	GPS L1 L2 、BDS B1 B2、Galileo E1 E2、 GLONASS L1 L2 、QZSS L1 L2 SBAS: WASS, EGNOS, MSAS
		receive channel	184 search channel
Sensitivity	Tracking	-167 dBm
		Reacquisition	-160 dBm
		Cold start	-148 dBm
		Warm Start	-157 dBm
Time to first fix TTFF	Cold start	26s
		hot start	2s
		Recapture	2s
Precision	Horizontal accuracy	Ordinary positioning: 1.5m CEP
	Horizontal accuracy			RTK positioning: 0.01 m + 1 ppm CEP
		Height accuracy	0.05m/s
		Second pulse accuracy	30ns
Output Data	baud rate	38400bps (default) [Optional: 4800-921600]
		Output interface	TTL
		Output protocol	NMEA、RTCM 3.3、UBX
		Update frequency	Default 1Hz ( 0.25Hz-10Hz)
		Carrier phase output	Support, output RAWX statement
		FLASH	built-in
Working conditions	Height	＜5000m
		Speed	＜500m/s
		Gravitational acceleration	<4g
Surroundings	Working temperature	-40℃-85℃
Surroundings		Storage temperature	-40℃-105℃
Electrical indicators	Working voltage	3V-5.5V DC
Electrical indicators		Power consumption	<180mW @3.3V
Physical parameters	Size	Φ40.2*25mm
		Weight	13.2g
		Connector	GH1.25mm 8pin

Module pinout
Pin number	Signal name	Signal description
1	VCC	Mains power input
2	GND	Module ground
3	TX1	The main serial port (com1) receives data and configures the command input port.
4	RX1	The main serial port (com1) sends data. When it is configured as "rover station", it outputs the positioning result in NMEA0183 format, and when it is configured as "base station", it outputs the differential data stream in RTCM2.x/3.x format.
5	TX2	The main serial port (com1) receives data and configures the command input port.
6	RX2	The main serial port (com1) sends data. When it is configured as "rover station", it outputs the positioning result in NMEA0183 format, and when it is configured as "base station", it outputs the differential data stream in RTCM2.x/3.x format.
7	PPS	Time standard pulse output
8	GND	Module ground
