20pair 2.54mm PH3.5 Single Row Low Profile Straight 1x2/3/4/5/8/10P Rohs Goldplate PCB Female + Male Pin Header Socket Connector

20pair 2.54mm PH3.5 Single Row Low Profile Straight 1x2/3/4/5/8/10P Rohs Goldplate PCB Female + Male Pin Header Socket Connector

$23.49

$23.49 $0.00

Pins 5Pin male female 6P male female 3P male female 4P male female 10P male female 20P male female 7P male female 8P male female 2P male female

Description

SPECIFICATIONS

Application: PCB, Lighting

Brand Name: E-SIMPO

Certification: RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Gender: Female

High-concerned chemical: None

Keyword: 2.54mm Female Header, Single Row, 5PIn, short version,

Model Number: short version 1*3P/5P/8P/10P

Origin: Mainland China

Place of Origin: China (Mainland)

Type: 2.54mm Female Header

Voltage: 5 V 12 V 20 V 30 V

is_customized: Yes

semi_Choice: yes

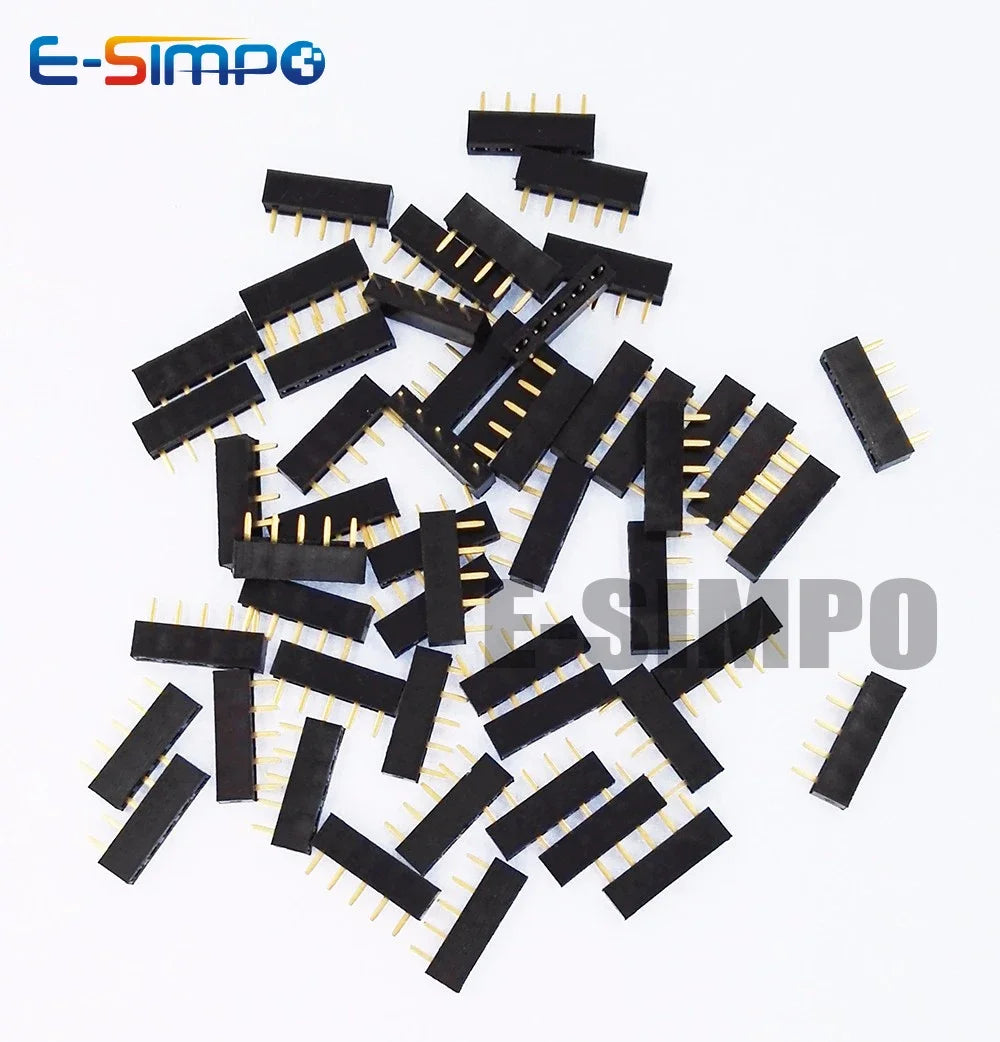

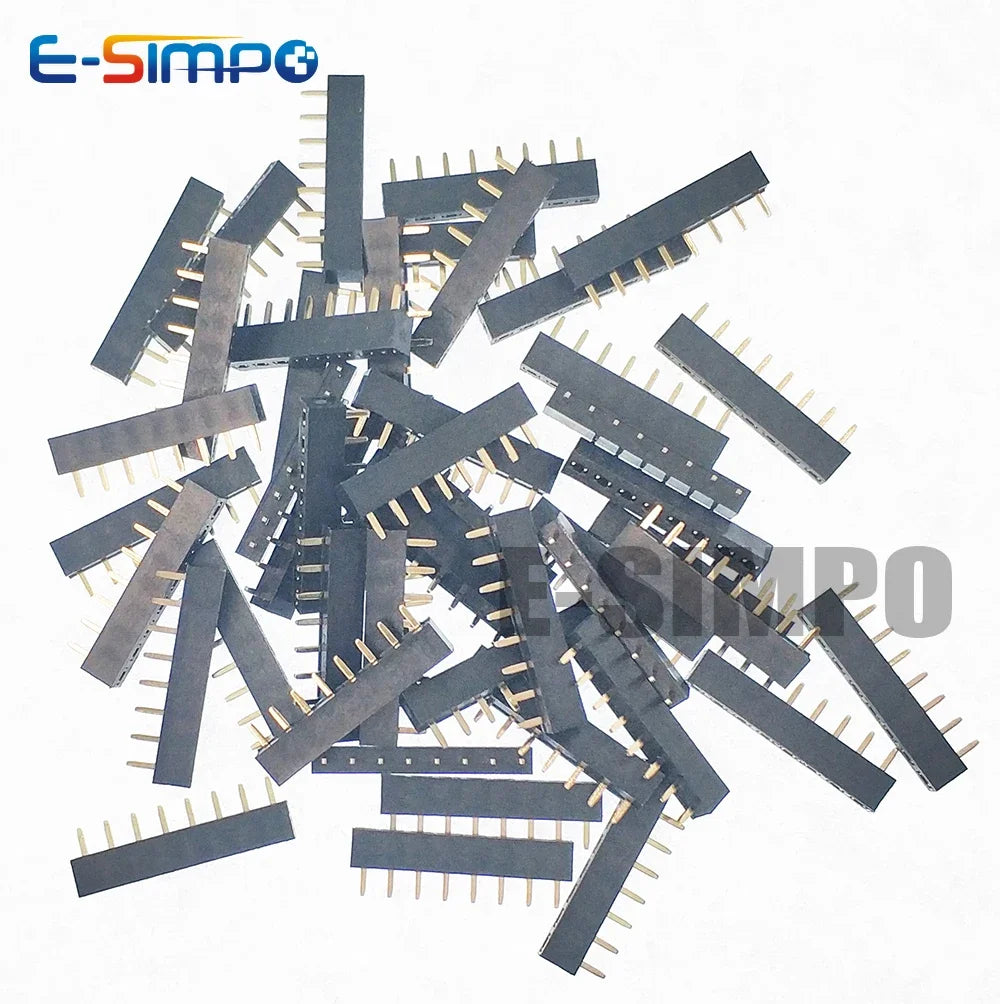

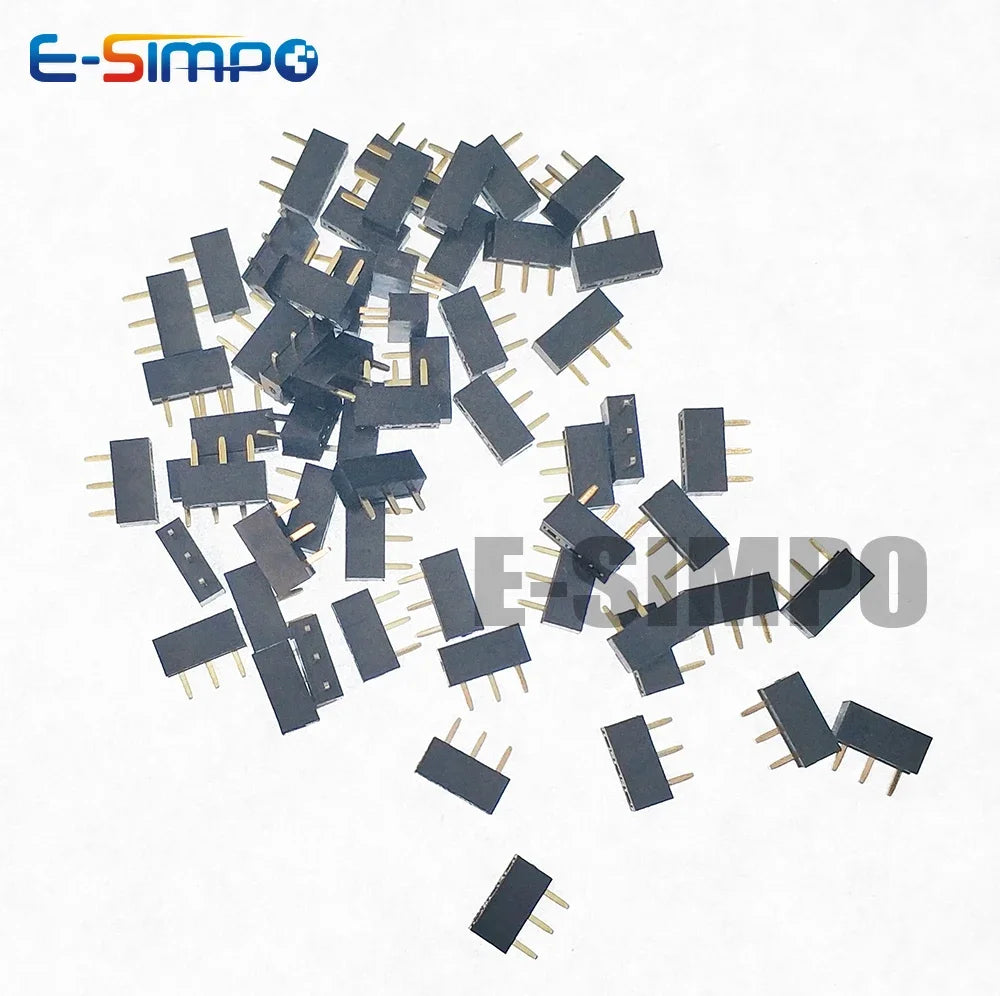

20pairs 2.54mm PH3.5 Single Row Low Profile Straight Female 1x3P/5P/8P/10P Rohs Goldplated PCB Female Pin Header Socket Connector

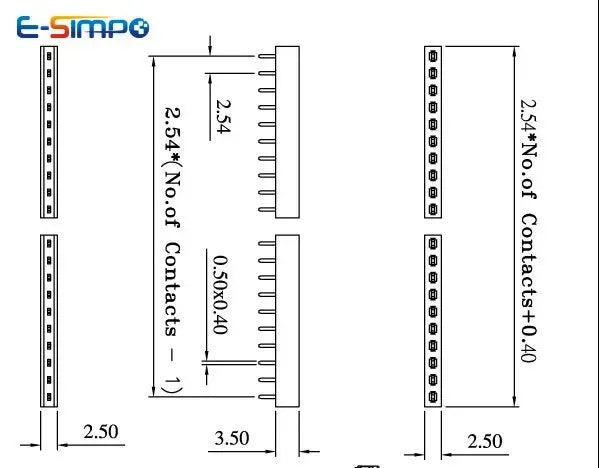

Pin-Pin Distance/Pitch: 2.54mm
Row Qty: Single Row
Pin Quantity: 3/5/8/10Pins Optional, if you need other pin , please contact us for customize
Pin Length: 3.0mm
Plastic Heiht: 3.5mm
Current Rating: 3Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm

If you need lower profile, Plastic height 3.5mm, please check: https://www.aliexpress.com/item/622209657.html

If you need standard plastic height 8.5mm, please check: https://www.aliexpress.com/item/32392631192.html

If you want double row female header PH5.0,Please check: https://www.aliexpress.com/item/4000147221999.html

Before Order

For male pin header, it is designed to use with PH3.5 female headers,

It is L7.5mm, PA=3 PC=2, OR PA=PC=2.5mm

Package Content

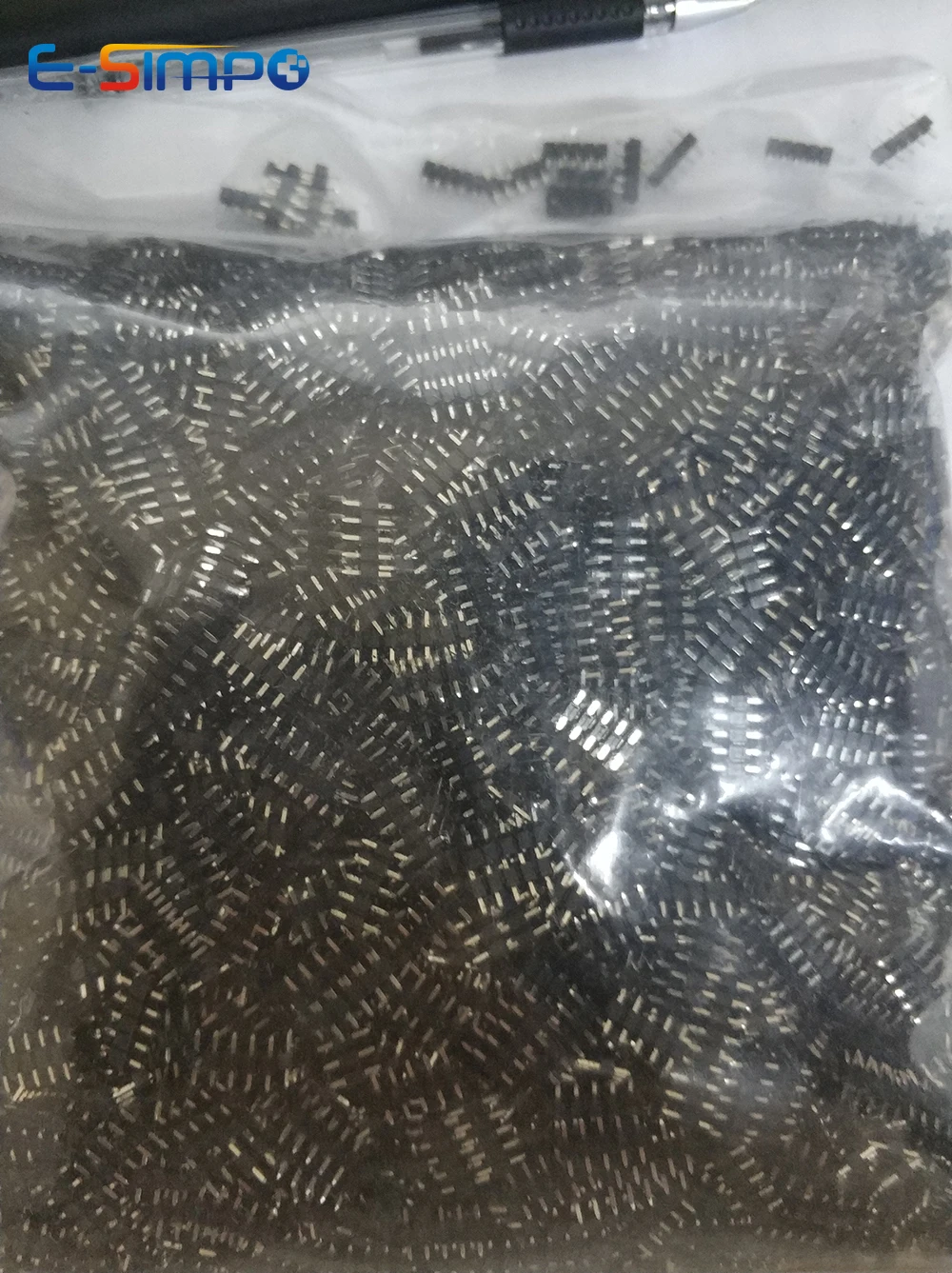

20pairs male pin header, + PH3.5 female header

Pictures:
