Description

SPECIFICATIONS

Brand Name: Your Cee

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Digital Sensor

Theory: Hall Sensor

Type: Magnetic Sensor

Use: Speed Sensor

is_customized: Yes

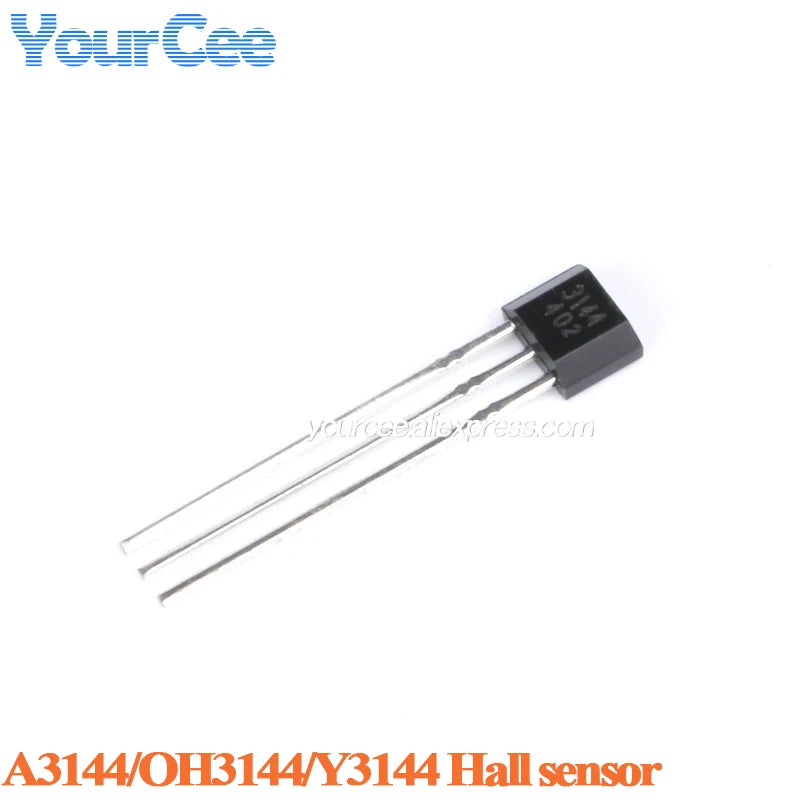

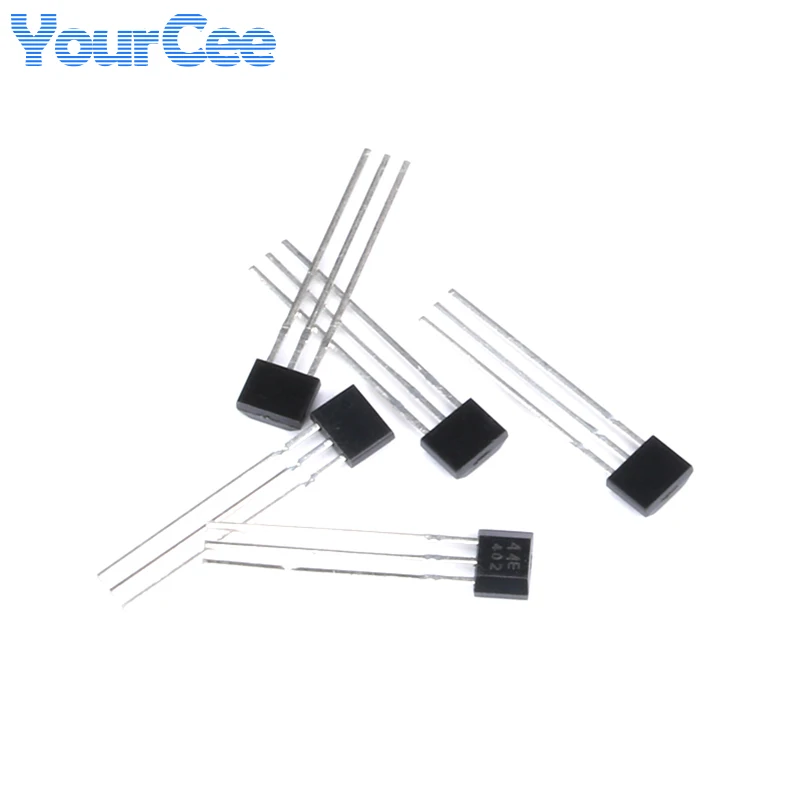

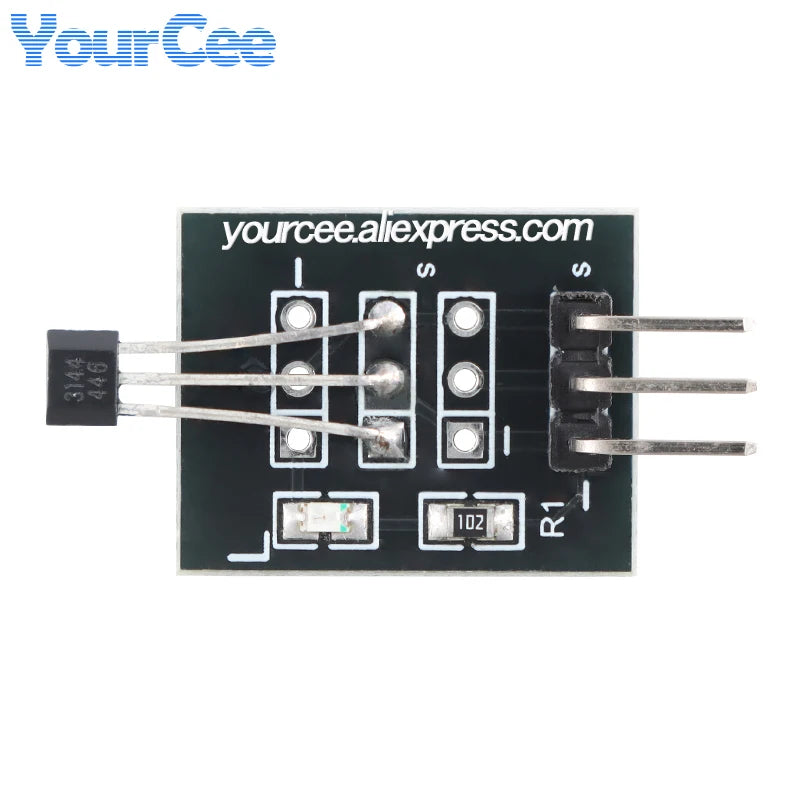

3144 series Hall switch integrated circuit application Hall effect principle, the use of semiconductor integrated technology to manufacture the magnetic circuit, it is by the voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger, temperature compensation circuit and open collector output stage composed of magnetic sensing circuit, its input for magnetic induction intensity, the output is a digital voltage signal.

This circuit tube leg is made of pure tin, and the complete product model is 3144EUA-S or 3144LUA-S.
Product Features
Small size, high sensitivity, fast response, good temperature performance. High accuracy:
high reliability

Typical applications
Non-contact switch
car igniter
Brake circuit
Position and speed detection and control
Safety alarm device
textile control system
