Description

SPECIFICATIONS

Brand Name: E-SIMPO

Certification: RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: 2.54 Pin Header

Origin: Mainland China

Voltage: 5 V 12 V 20 V 30 V

semi_Choice: yes

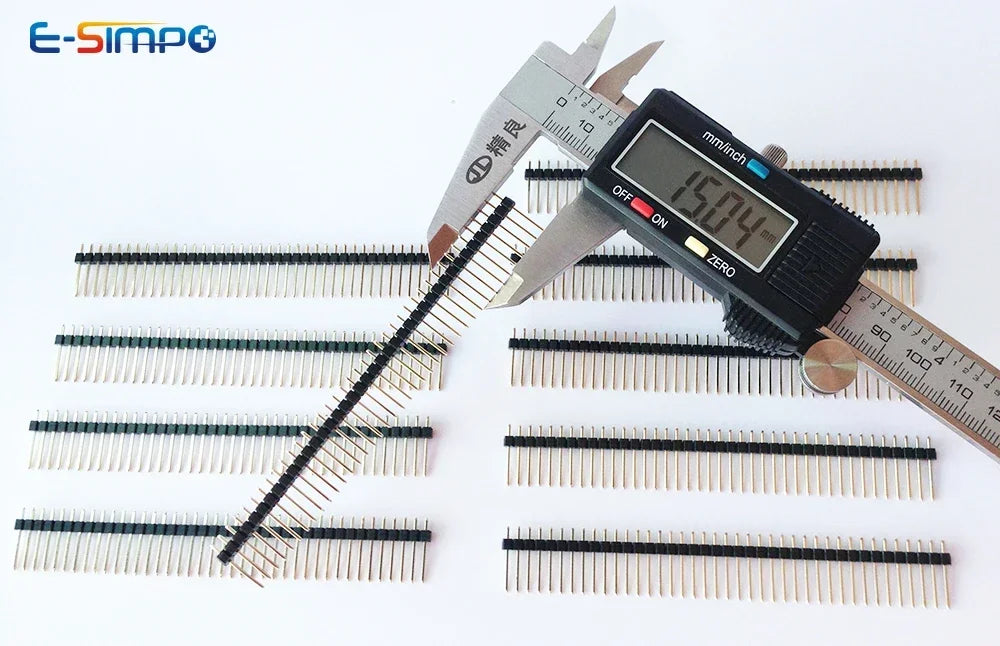

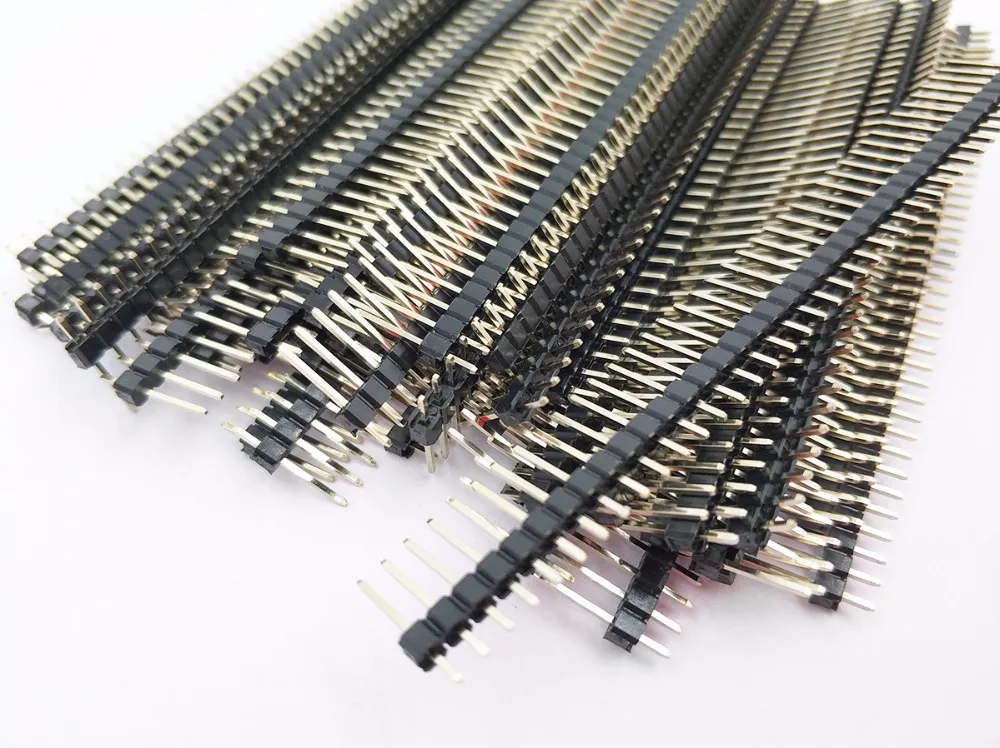

20pcs 2.54mm Pin Header 1X40P L7.5/11.4/13/15/17/19/21/23/25/30mm Straight Board Spacer Single row single plastic Gold-plated

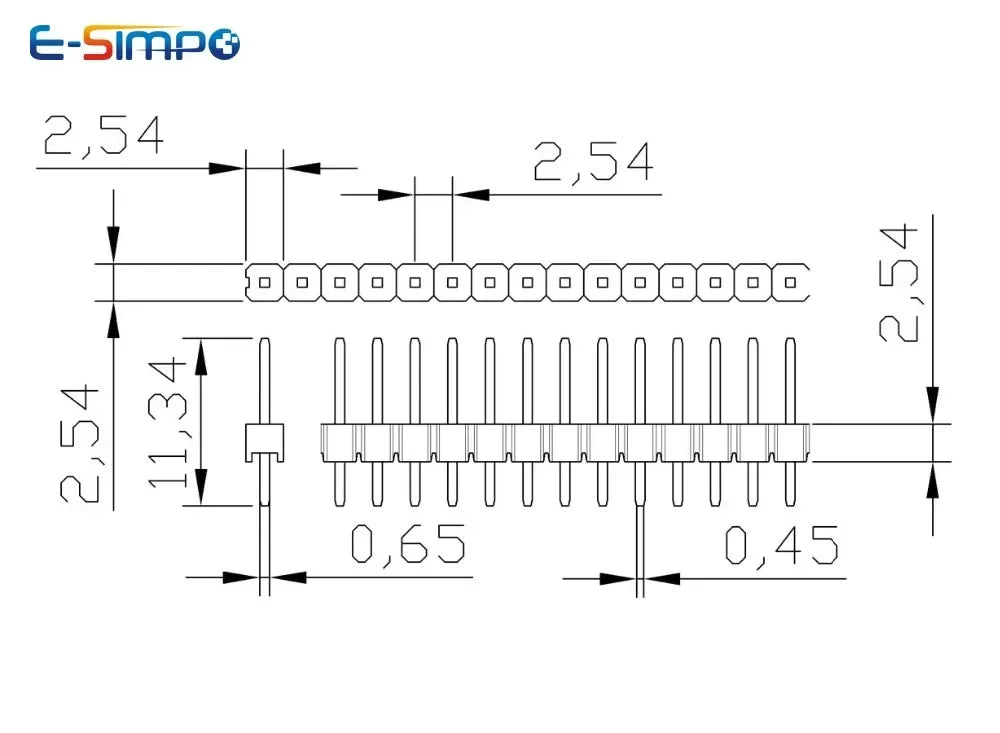

Pin-Pin Distance/Pitch: 2.54mm
Row Qty: Single Row, 40Positions, cuttable to any pin you need
180o Straight
Current Rating: 3Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm

L7.5mm Pin headers for PH3.5 Short Verstion Female Header

L9.5mm Pin headers for PH5 Short Verstion Female Header
L11.4-35mm Pin headers for PH8.5 Female Header

wholesale Link: https://www.aliexpress.com/item/32357316559.html

Mating Female Header:
PH3.5: https://www.aliexpress.com/item/622209657.html

PH5: https://www.aliexpress.com/item/4000147221999.html

PH8.5: https://www.aliexpress.com/item/32392631192.html

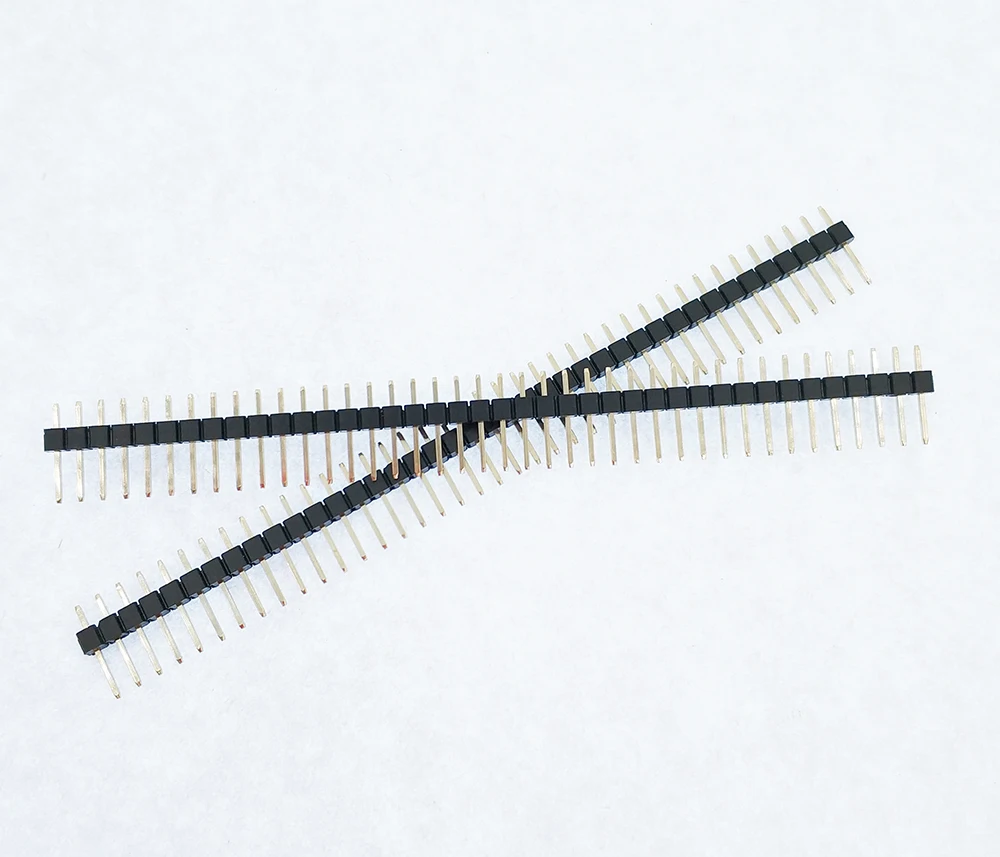

Pictures:L7.5mm Pin headers for PH3.5 Short Verstion Female Header:
L9.5mm Pin headers for PH5 Short Verstion Female Header:
