Description

SPECIFICATIONS

Brand Name: E-SIMPO

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Model Number: SMT female header

Origin: Mainland China

Package: SMD SMT Surface Mount Type

Pins: 1x2P 3P 4P 5P 6P 7P 8P 9P 10P 12P 14P 15P 16P 20P~40P

Pitch: 2.54mm

Voltage: 220 V

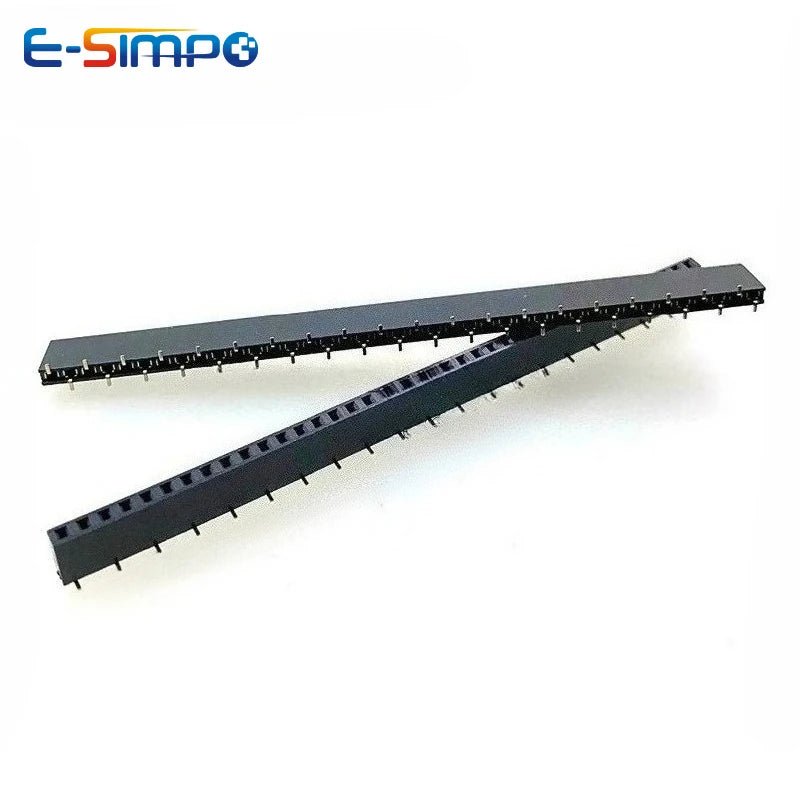

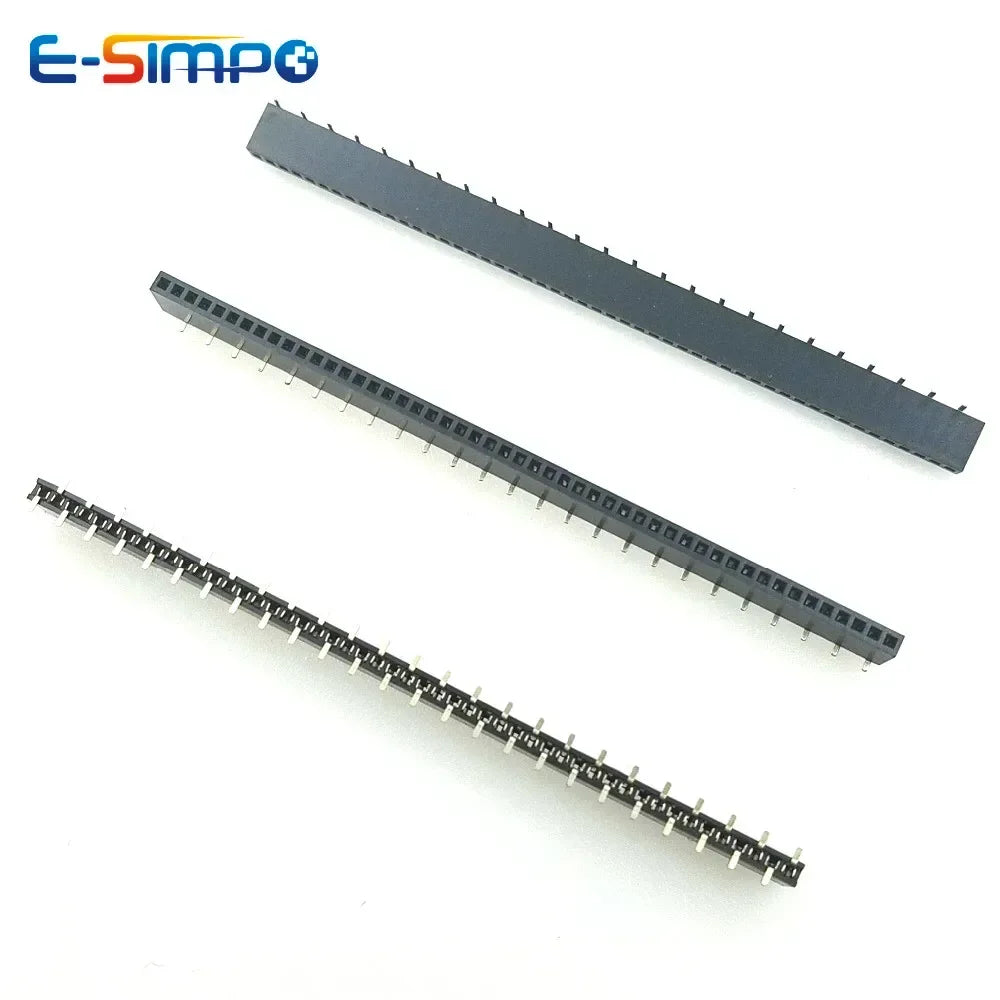

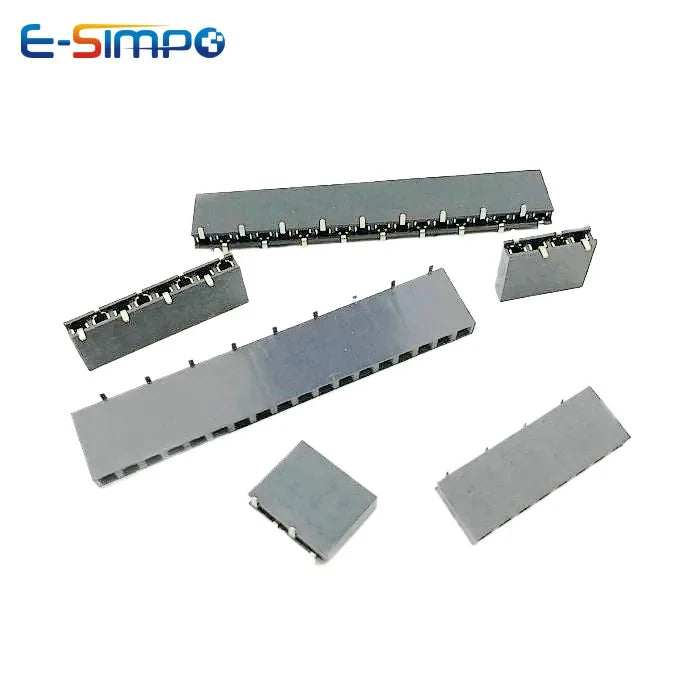

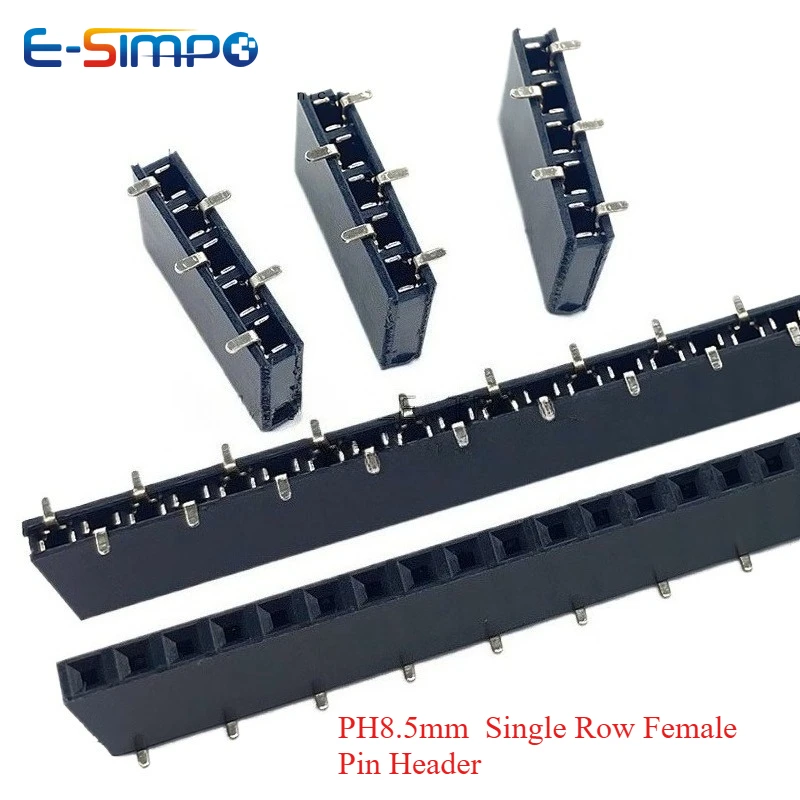

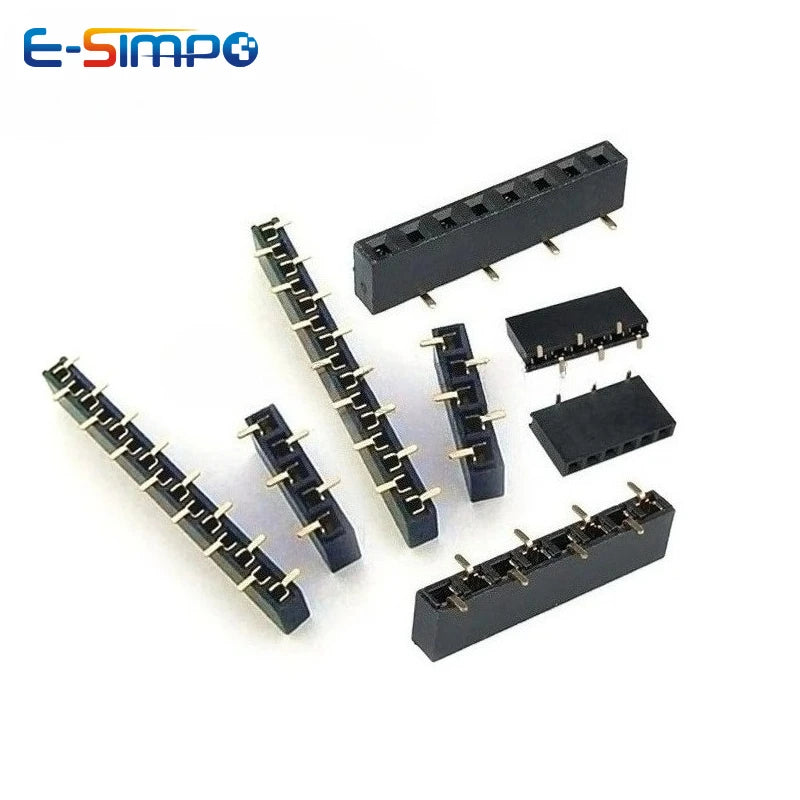

20PCS 2.54mm SMD Socket Stackable 1x2-10P 12P 14P 15P 16P 20P 24P 25P 30P 40P PH8.5 Single Row SMT Female Pin Header Connector

Specifications:
Current Rating: 3Amp
Operation Temperture: -40 to 105 celsuis degree
Contact Resistance: 20mOHM Max
Insulation Resistance: 1000M ohm Min
Withstanding Voltage: AC1000V
Insulation Material: Polyester UL94V-0
Standard Nylon-6T
Contact Material: Phosphor Brone
Contact Plating: 0.8U Gold plated

Package Content
20PCS 2.54mm SMD Socket Stackable 1x2-10P 12P 14P 15P 16P 20P 24P 25P 30P 40P PH8.5

Please choose the pin you need.

For Option Mate 1X40P Pin Header,

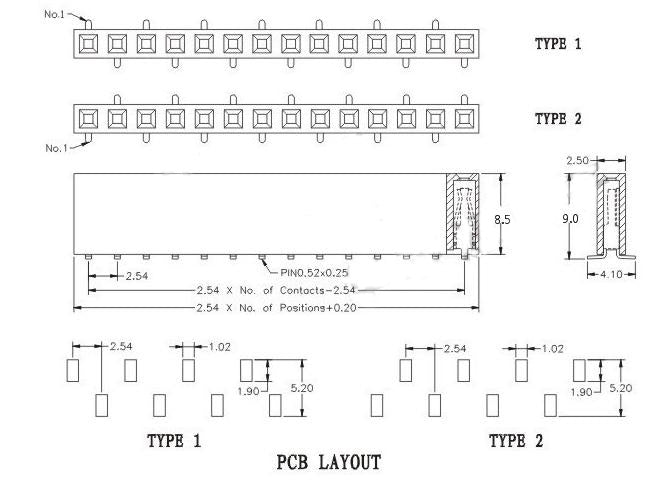

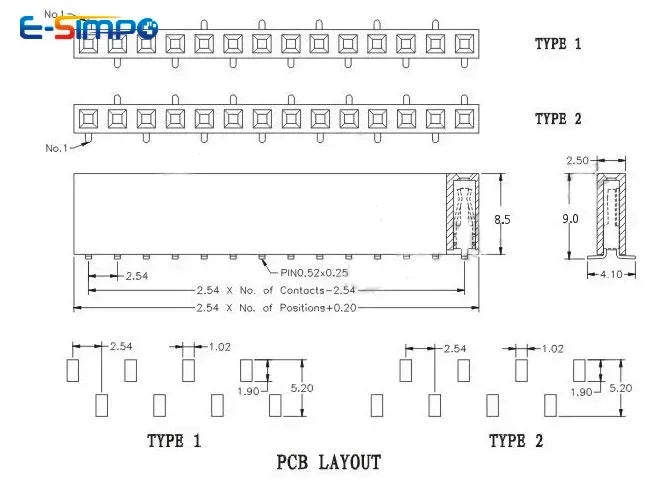

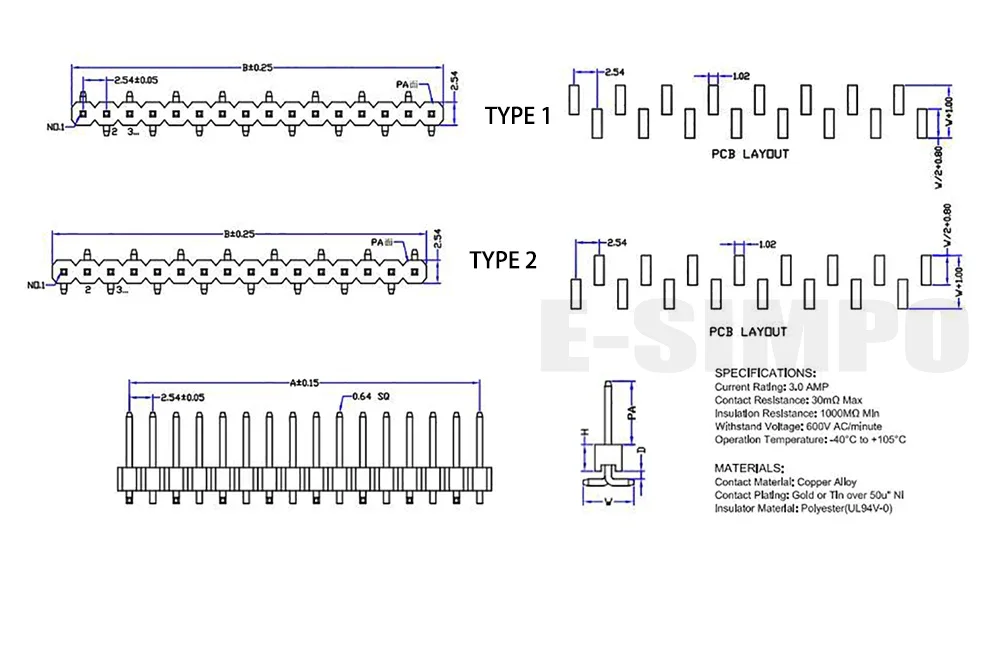

it is mating smd pin header, with PA=6mm, see drawing below
