Description

SPECIFICATIONS

Brand Name: YTTSQC

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Each pack: 20

High-concerned chemical: none

Measurement unit: piece/pieces

Model Number: SMT female header,SMD PH3.5

Origin: Mainland China

Package: SMD SMT Surface Mount Type

Pins: PH3.5 1x2P 3P 4P 5P 6P 7P 8P 9P 10P 20P~40p

Pitch: 2.54mm

Voltage: none

semi_Choice: yes

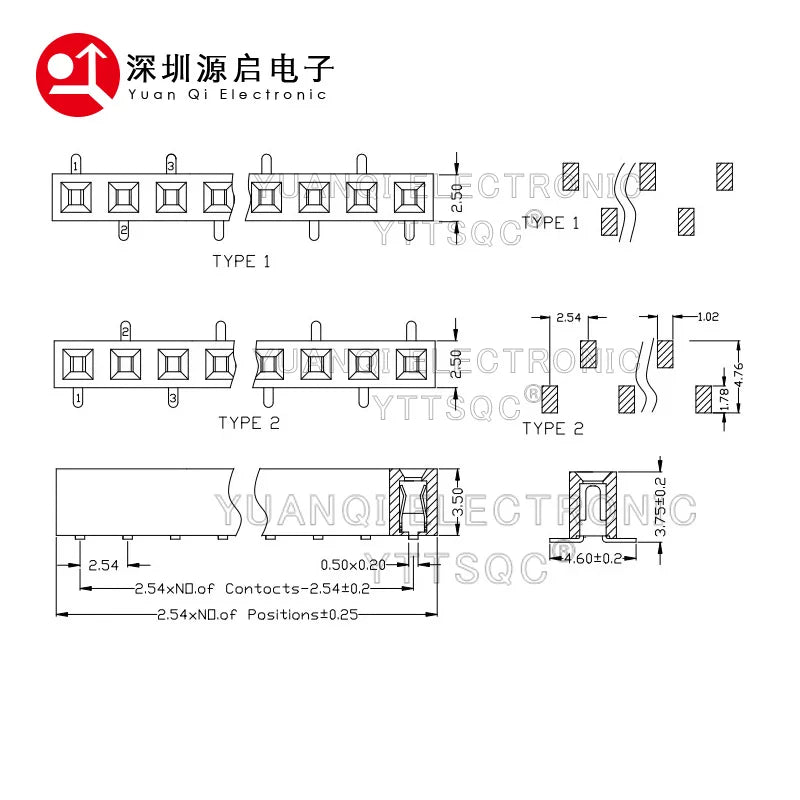

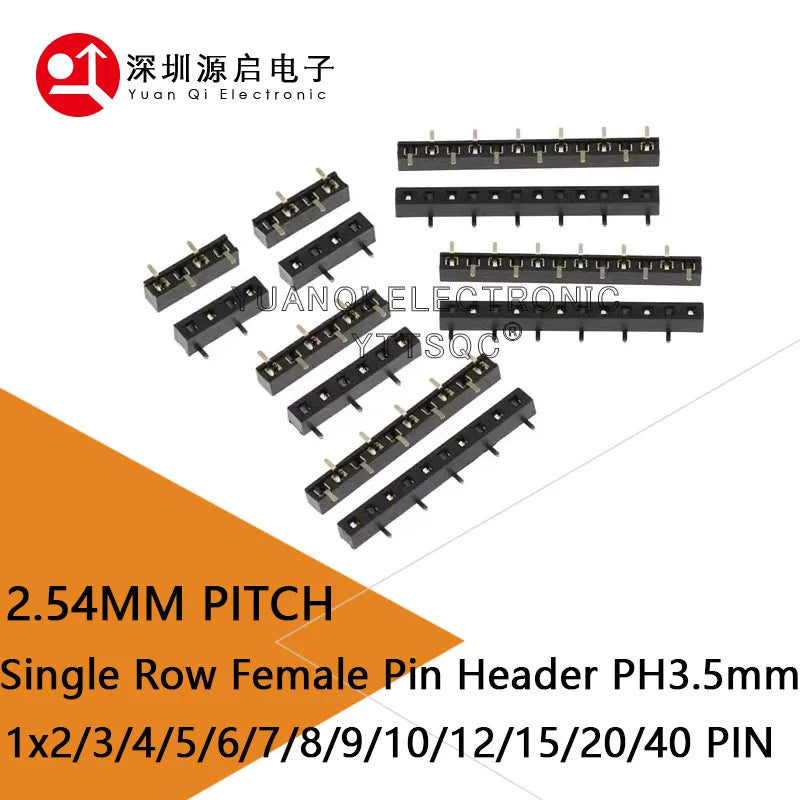

20pcs 2.54mm SMD Stackable 1x2/3/4/5P 6P 7P 8P 10P 20P-40P Short Low Profile PH3.5 Single Row Rohs SMT Female Header Connector

Specifications:

Current Rating: 3Amp
Operation Temperture: -40 to 105 celsuis degree
Contact Resistance: 20mOHM Max
Insulation Resistance: 1000M ohm Min
Withstanding Voltage: AC1000V
Insulation Material: Polyester UL94V-0
Standard Nylon-6T
Contact Material: Phosphor Brone
Contact Plating: 0.8U Gold plated

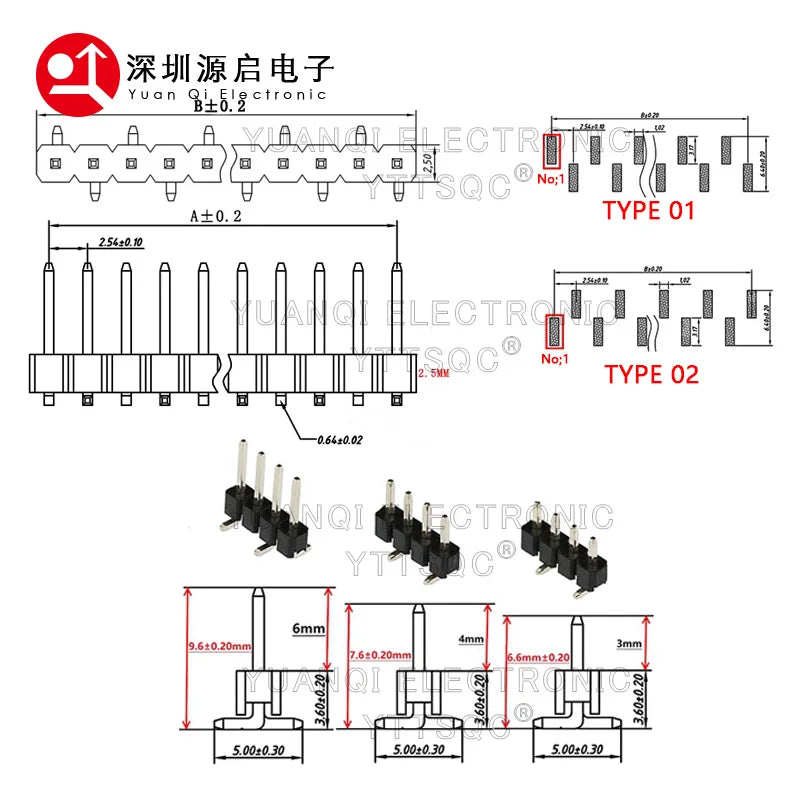

For mating male 1X40P, it is breakable, you can cut into any pin you need:
