20pcs/lot 1812 0.05A 0.1A/0.2A/0.5A/0.75A/1.1A/1.5A/1.6A/2A/2.6A/3A/3.5A SMD Resettable Fuse PPTC PolySwitch Self-Recovery Fuse
1100MA
$6.80
Sale price
$6.80
Regular price
$0.00
Skip to product information
20pcs/lot 1812 0.05A 0.1A/0.2A/0.5A/0.75A/1.1A/1.5A/1.6A/2A/2.6A/3A/3.5A SMD Resettable Fuse PPTC PolySwitch Self-Recovery Fuse
$6.80
Sale price
$6.80
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Your Cee
Breaking Capacity: High
Certification: NONE
Does it include a Battery?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: SMD Resettable Fuse
Origin: Mainland China
Safety Standards: IEC
Use: Resettable
is_customized: Yes

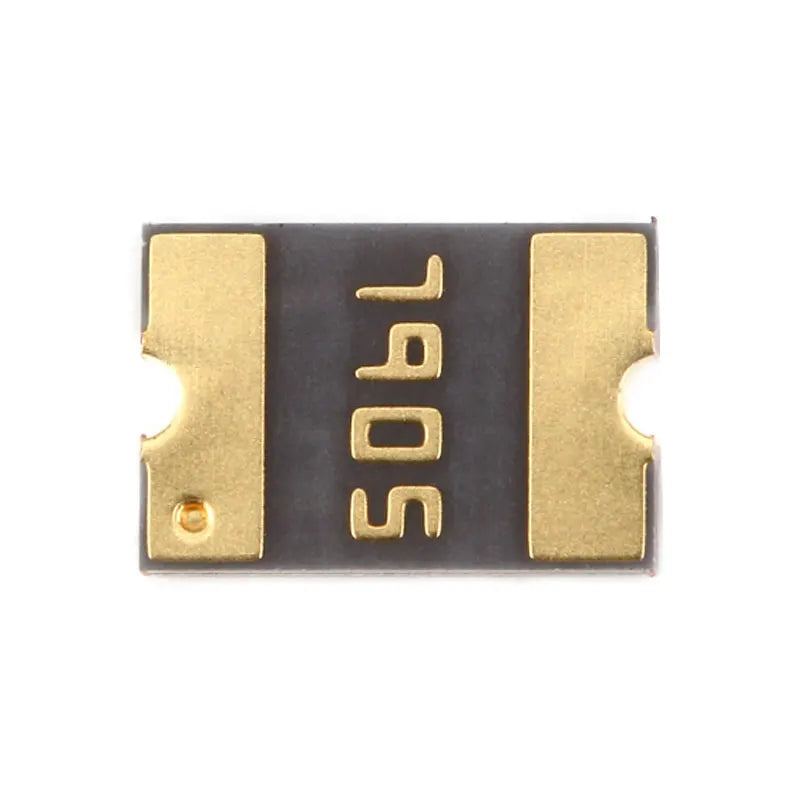

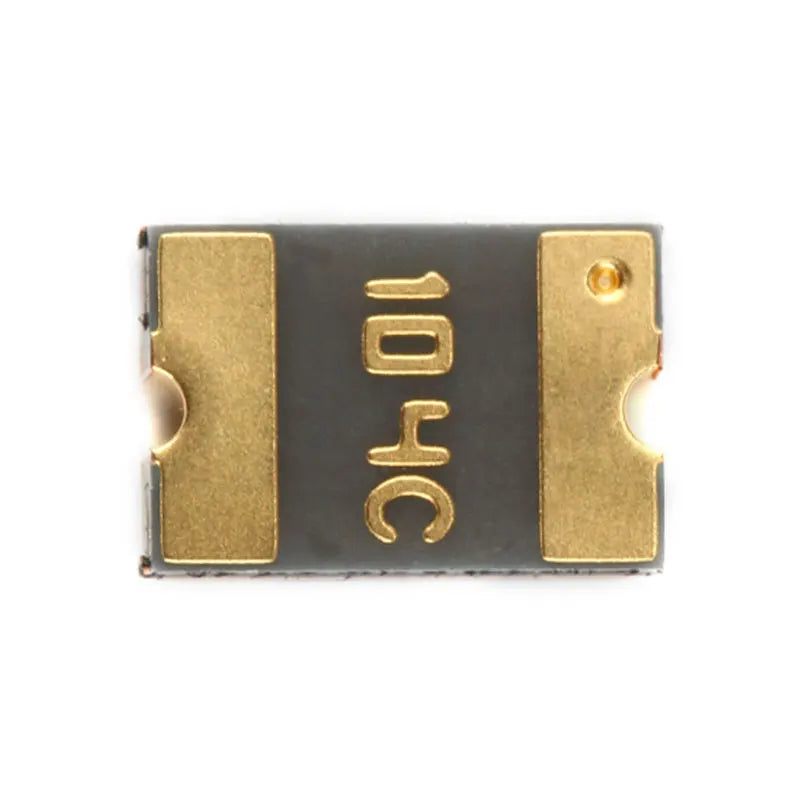

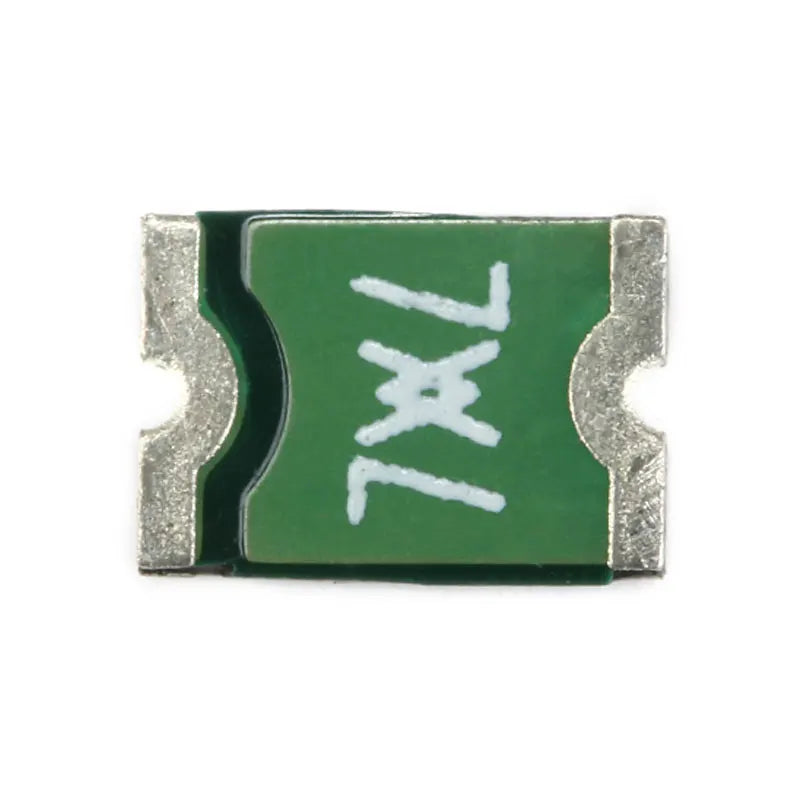

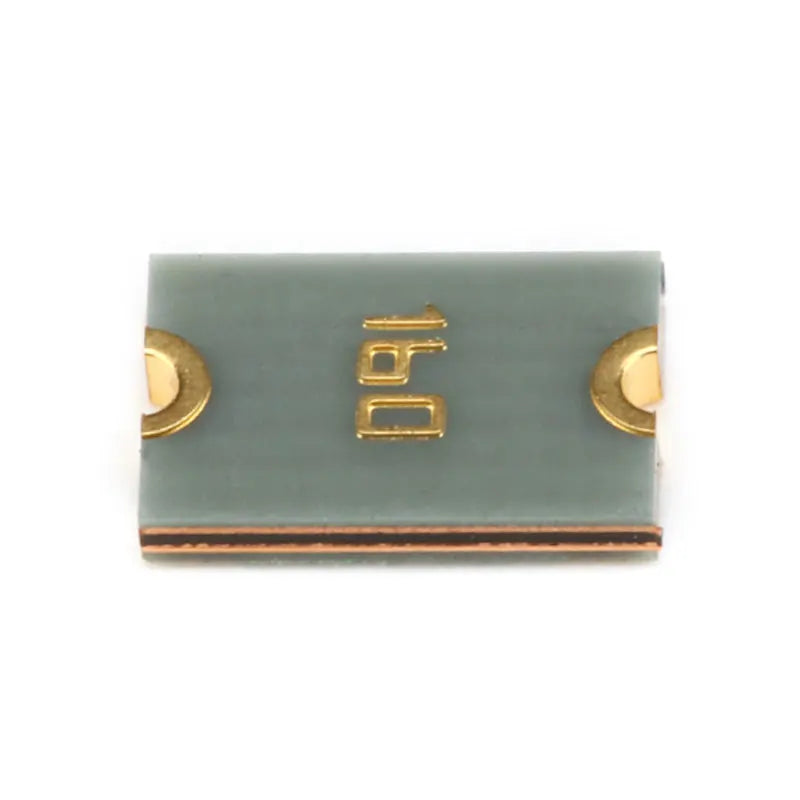

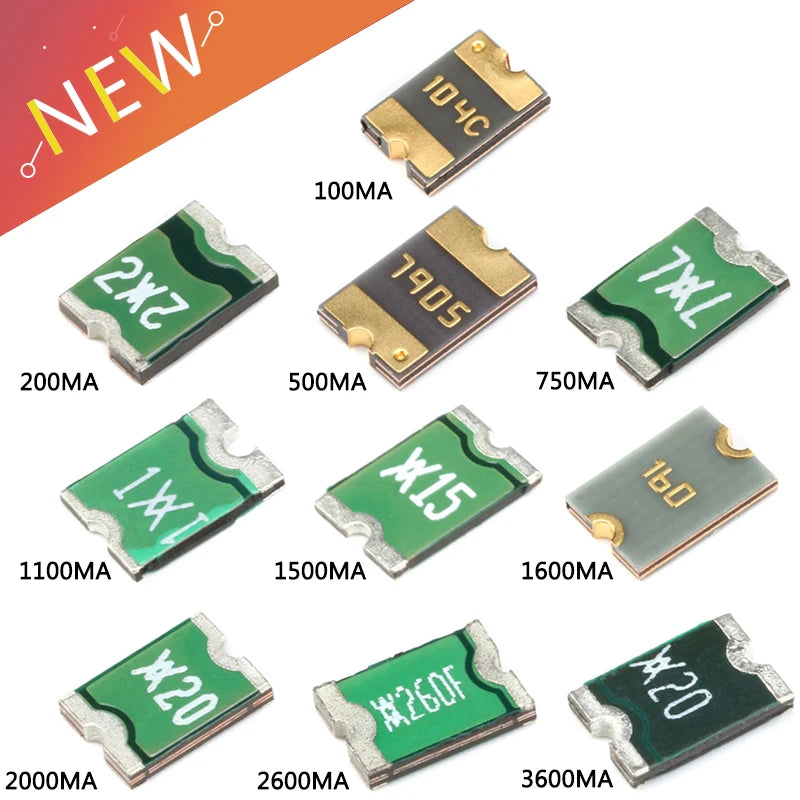

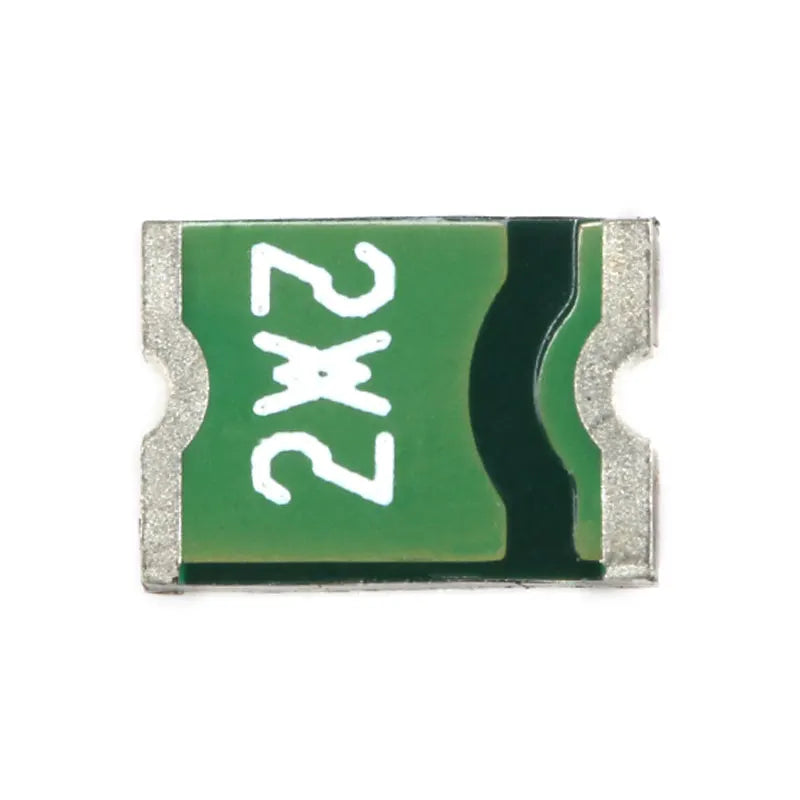

Note: the appearance may be different depending on the current value
All Resettable Fuse:
Self-Recovery Fuses:
Low power resistance: self-recovery the fuse itself is low impedance, the normal work of the power loss is small, the surface temperature is low
Overcurrent protection speed: Self-recovery fuses Due to their material properties, the overcurrent response is much faster than other overcurrent protectors
Self-locking operation: self-recovery the fuse in the over-current protection state, with a very small current locked in the high-impedance state, only cut off the power or over-current disappears, will restore the low resistance state
Automatic reset: self-recovery fuse after the over-current protection (troubleshooting) self-reset, no need to replace
High current: self-recovery fuse has excellent resistance to high current capability, some specifications can withstand 100A current impact
Application: PPTC wide range of applications, can be used in a variety of electronic products, communications products, power supplies, etc.
model |
rated current and rated voltage |
Quantity |
|
0805 |
0.1A 15V |
|
0.2A 9V |
||
0.35A 6V |
||
0.5A 6V |
||
0.75A 6V |
||
1.1A 6V |
||
|
1206 |
0.05A 60V |
|
0.1A 48V |
||
0.2A 30V |
||
0.5A 8V |
||
0.75A 6V |
||
1.1A 6V |
||
2A 6V |
||
3A 32V |
||
|
1812 |
0.1A 60V |
|
0.2A 30V |
||
0.5A 15V |
||
0.75A 13.2V |
||
1.1A 8V |
||
1.5A 6V |
||
1.6A 9V |
||
2A 8V |
||
2.6A 8V |
||
3A 6V |
||
3.5A 6V |
