20Pcs Micro USB Type B 5Pin Female Socket 4 Legs Fixed PCB Solder Jack Connector
Default Title
$4.84
Sale price
$4.84
Regular price
$0.00
Skip to product information
20Pcs Micro USB Type B 5Pin Female Socket 4 Legs Fixed PCB Solder Jack Connector
$4.84
Sale price
$4.84
Regular price
$0.00
Description

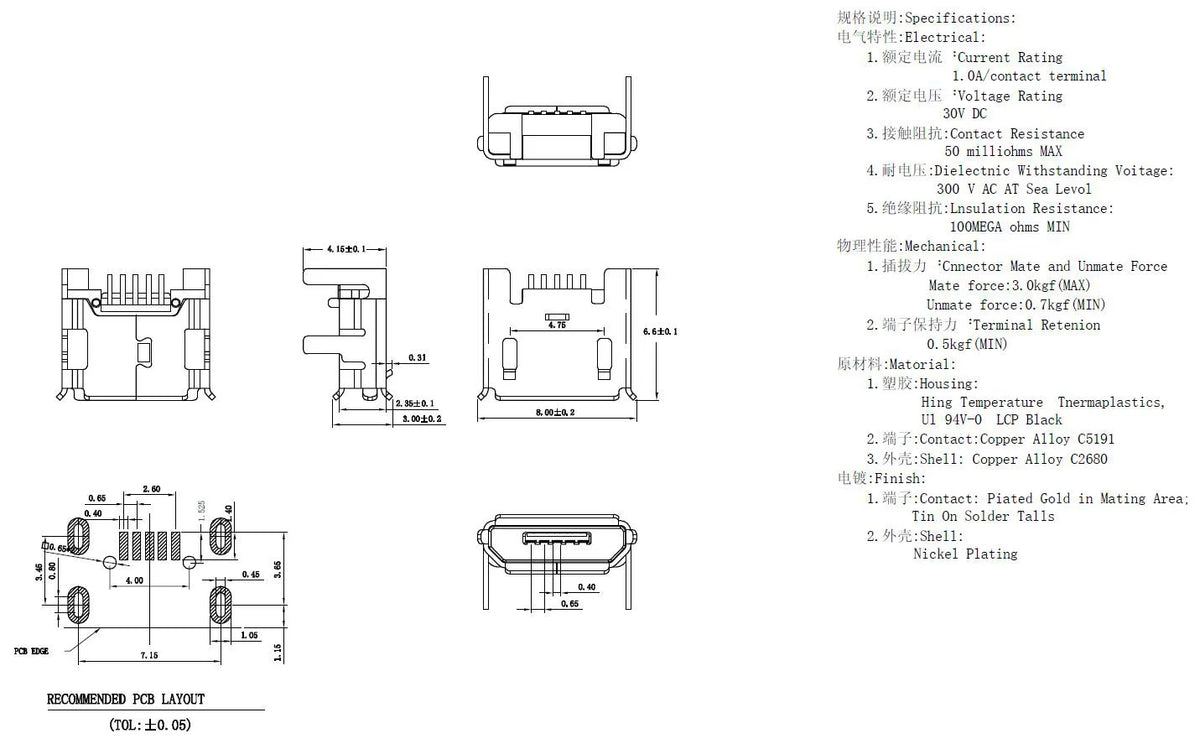

SPECIFICATIONS
Brand Name: NONE
Certification: RoHS
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: Micro USB
Origin: Mainland China
Voltage: 5 V 12 V 20 V 30 V
Feature
Type:Micro USB 5Pin Female Socket (4 Vertical Legs fixed)
Temperature Range:-20℃~80℃
Contact Resistance:50mΩ max
Insulation Resistance:100MΩ min
Plastic Material:LCP
Shell:Copper Alloy
Contact Material:Copper Alloy
Package Included
1 Lot = 20Pcs
