Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Features: Red vertical dip switch

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

Material: Copper

Model Number: Spacing 2.54MM Toggle DIP Switch

Name1: 20PCS Switch

Name2: Red Toggle Switch

Name3: DIP Switch

Name4: Spacing 2.54MM Switch

Name5: 24V Switch

Name6: Inline Switch

Name7: Module Switch

Name8: 1-12 pin Switch

Name9: Quick Dial The Code Switch

Origin: Mainland China

Switch Type: Toggle Switch

Warranty: 50000 times

semi_Choice: yes

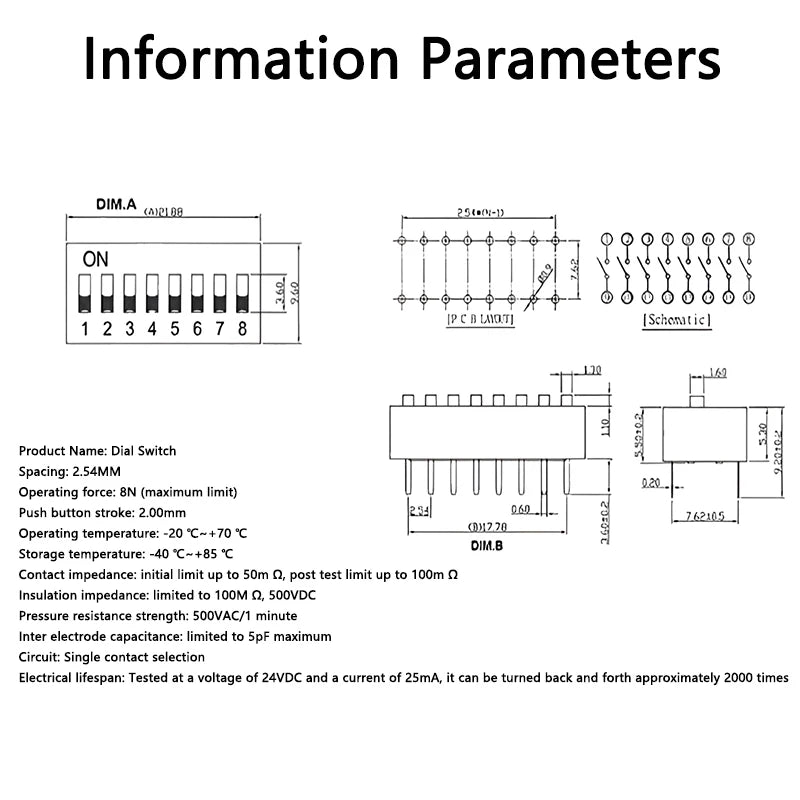

Main Technical Specifications Of Red Vertical Toggle DIP Switch

Product Name: Dial Switch

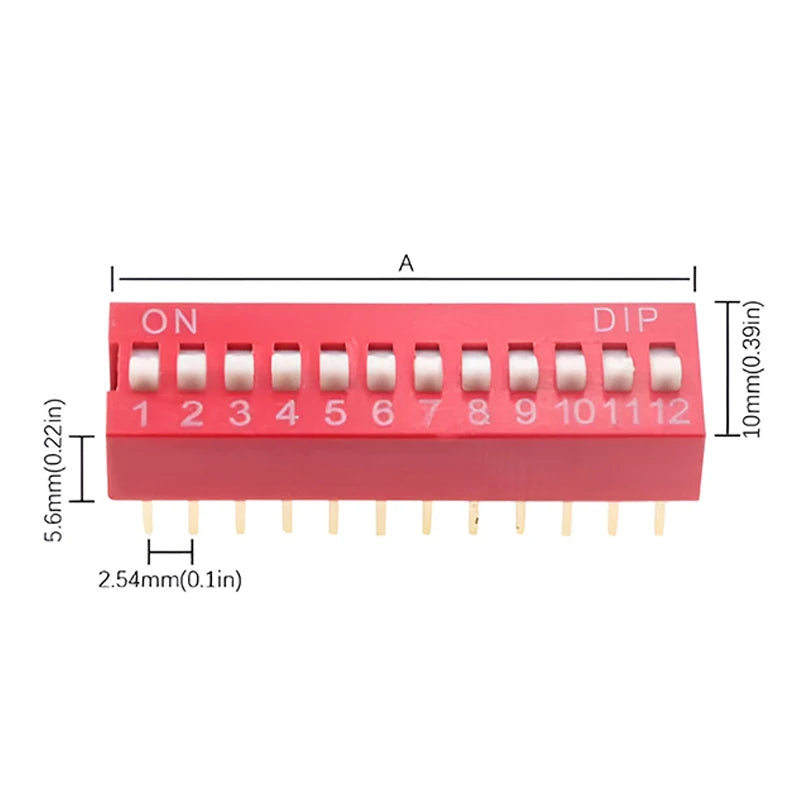

Spacing: 2.54MM
Operating force: 8N (maximum limit)
Push button stroke: 2.00mm
Operating temperature: -20 ℃~+70 ℃
Storage temperature: -40 ℃~+85 ℃
Contact impedance: initial limit up to 50m Ω, post test limit up to 100m Ω
Insulation impedance: limited to 100M Ω, 500VDC
Pressure resistance strength: 500VAC/1 minute
Inter electrode capacitance: limited to 5pF maximum
Circuit: Single contact selection
Electrical lifespan: Tested at a voltage of 24VDC and a current of 25mA, it can be turned back and forth approximately 2000 times

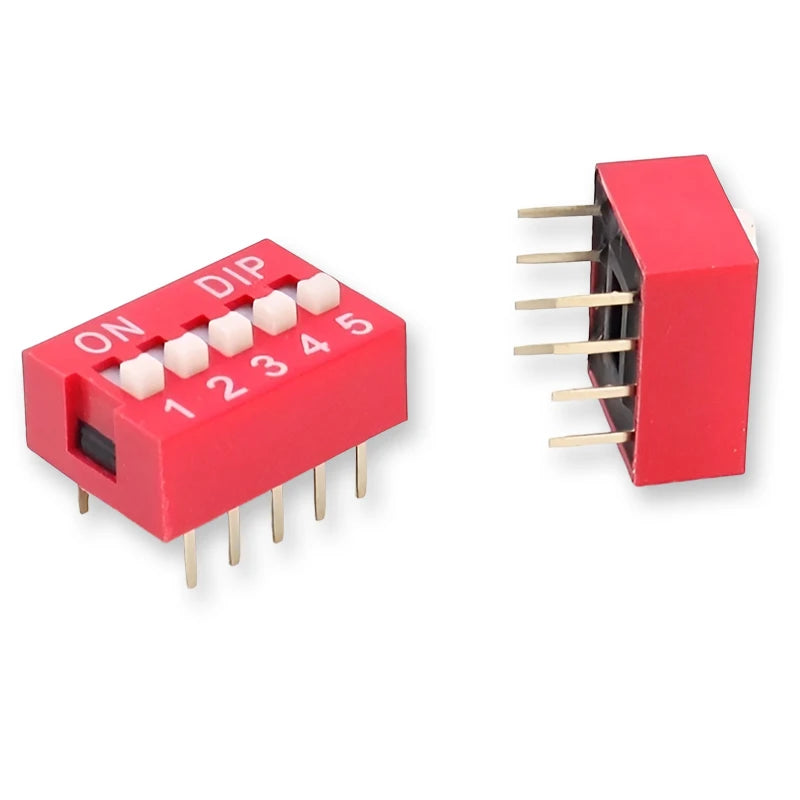

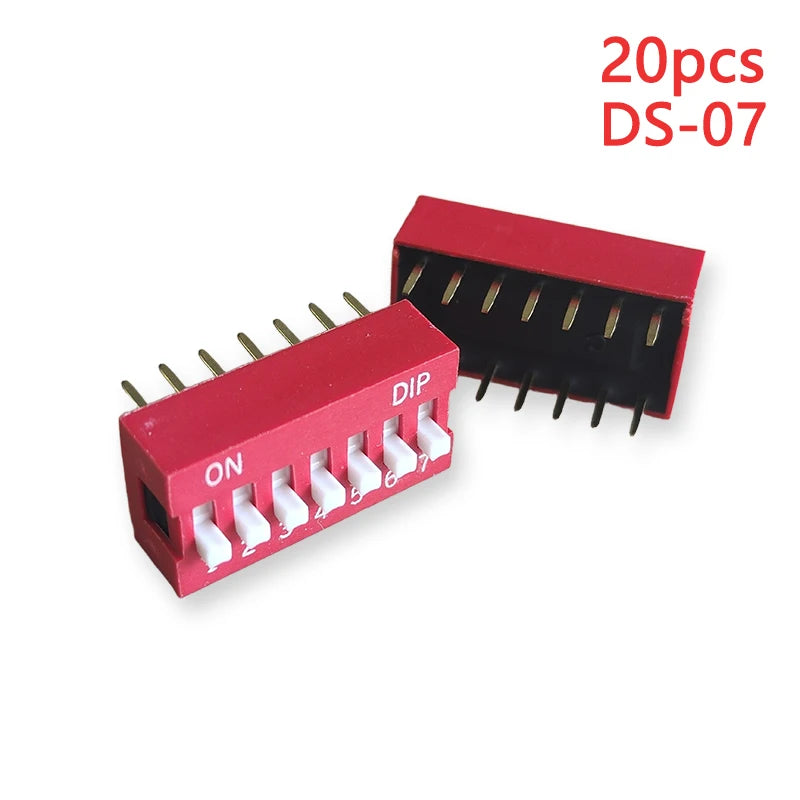

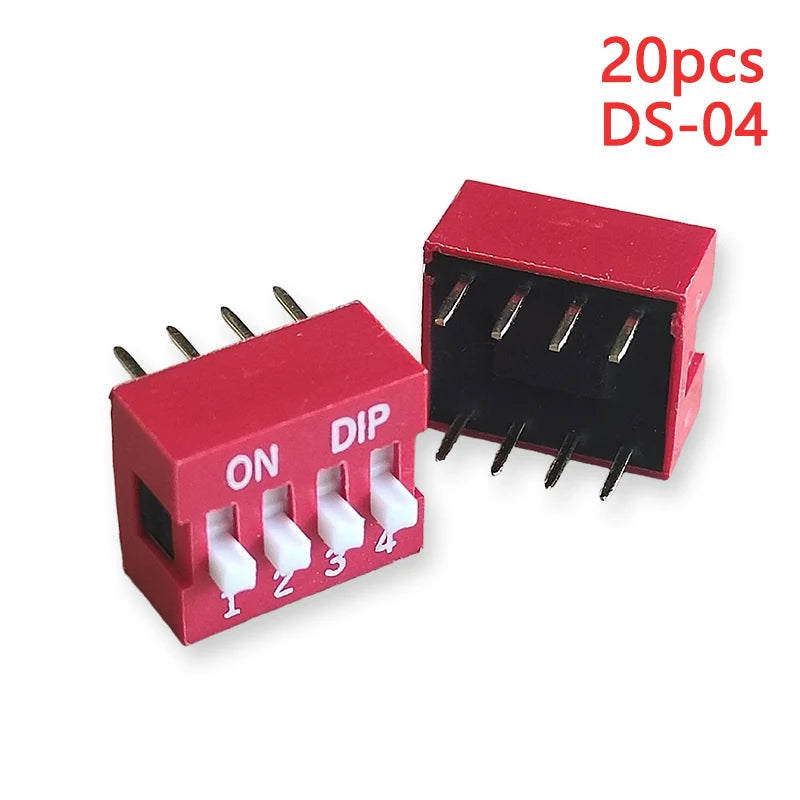

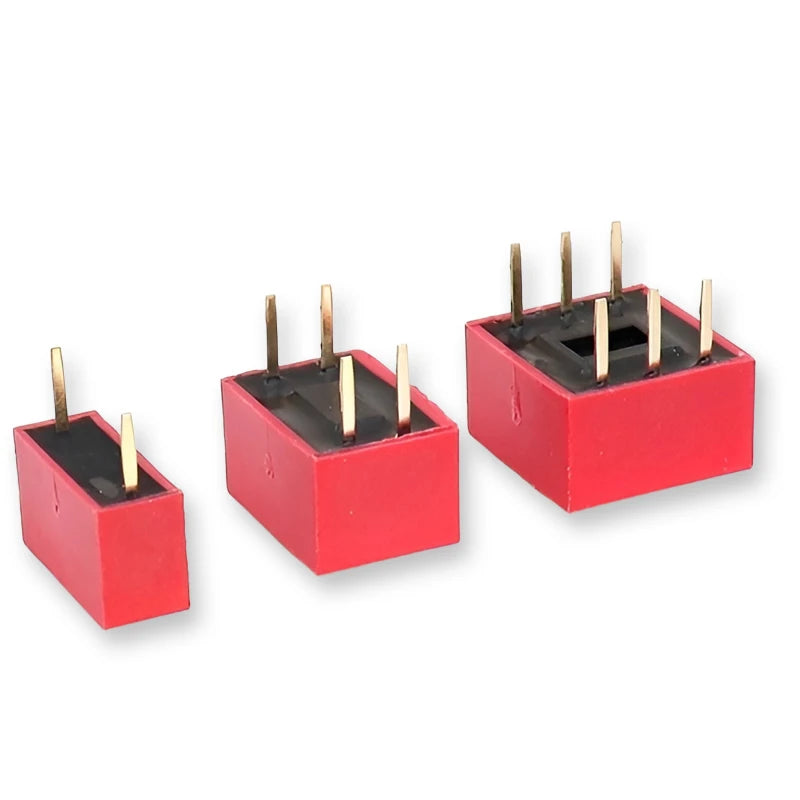

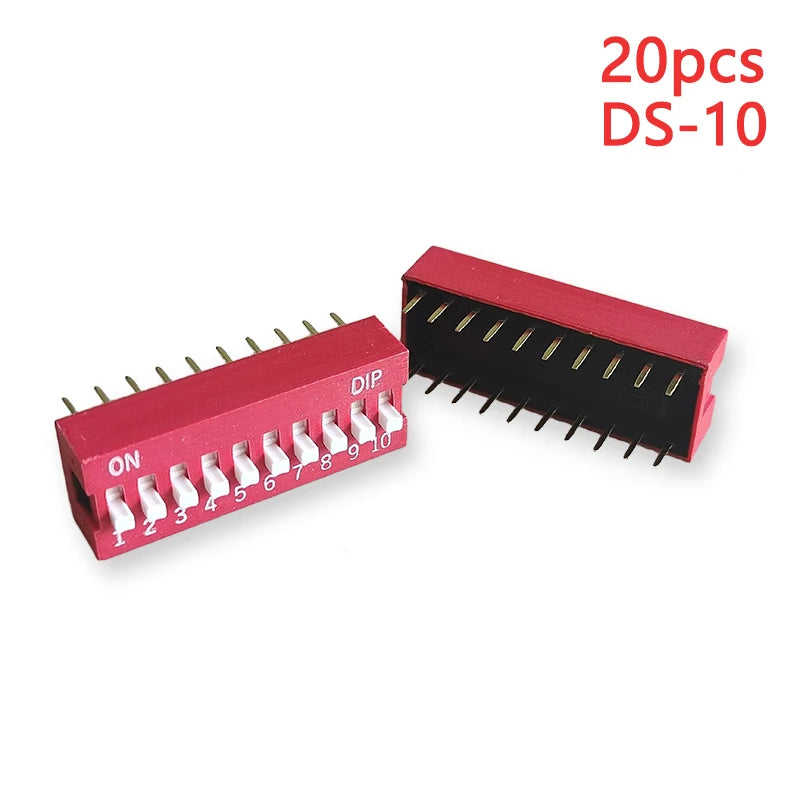

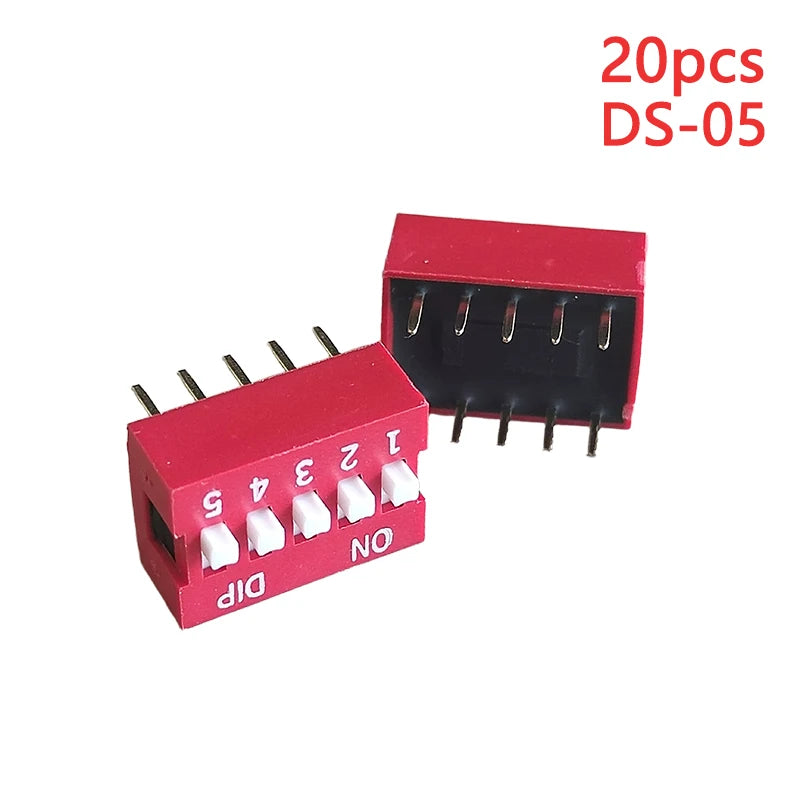

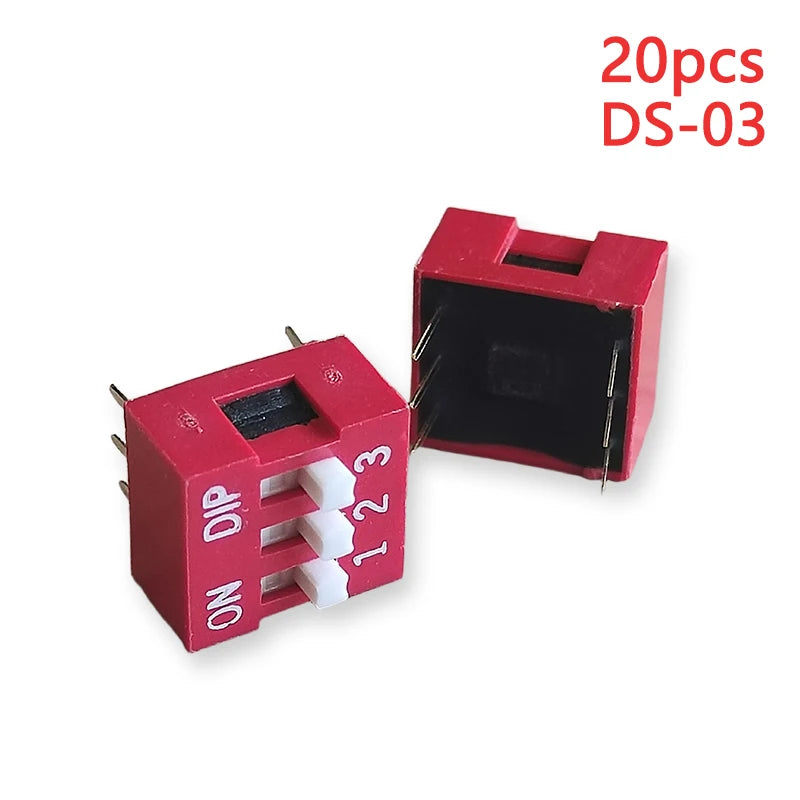

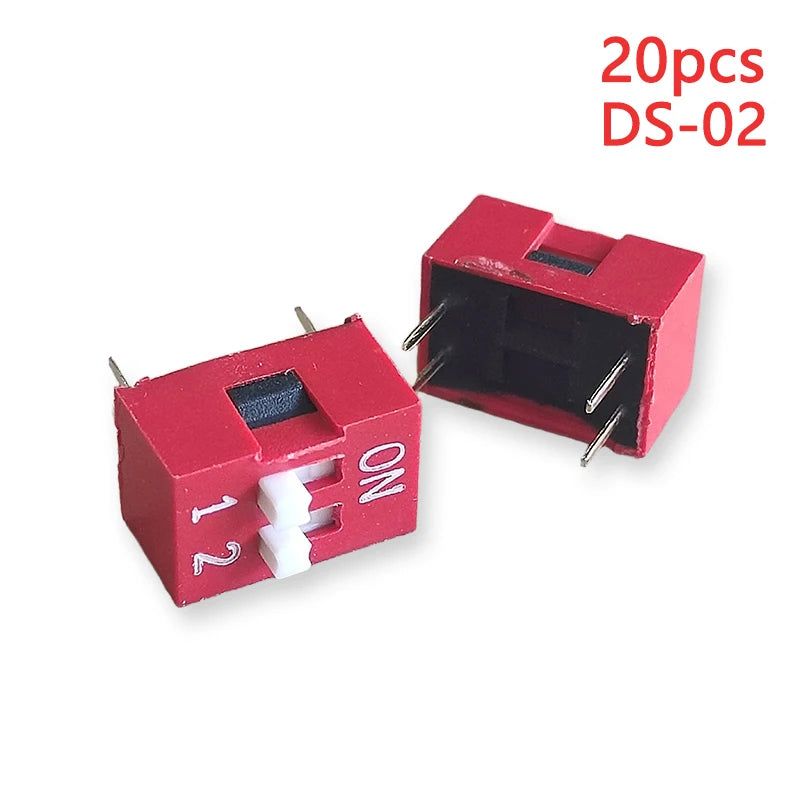

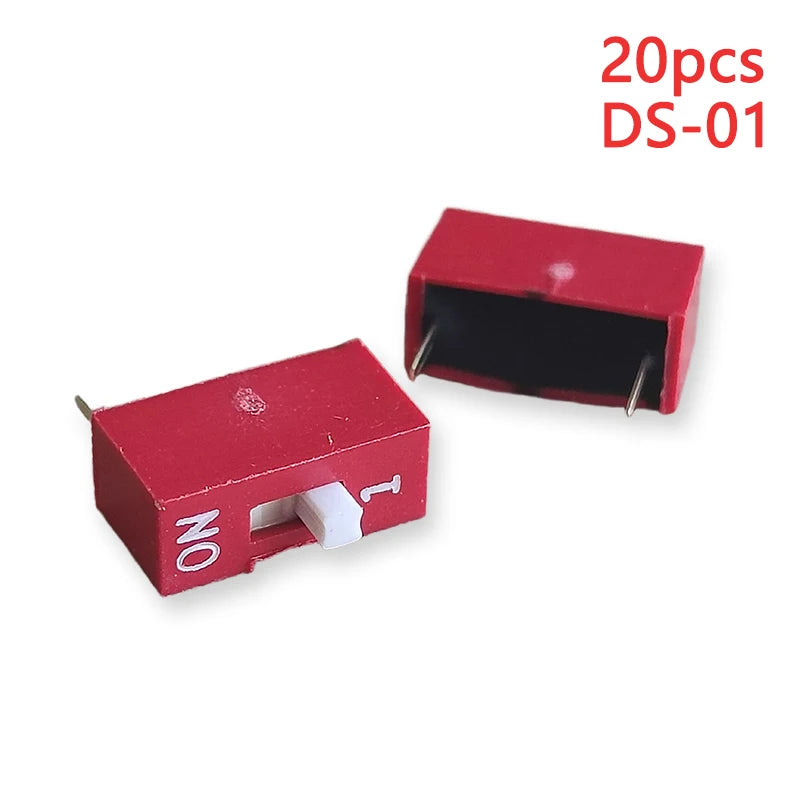

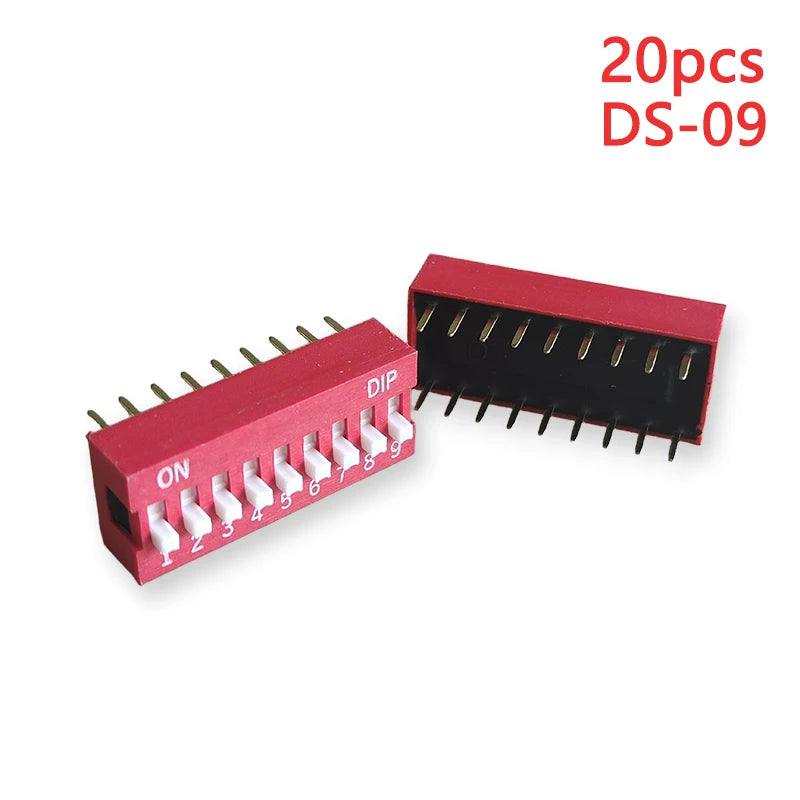

Red Vertical Toggle DIP Switch

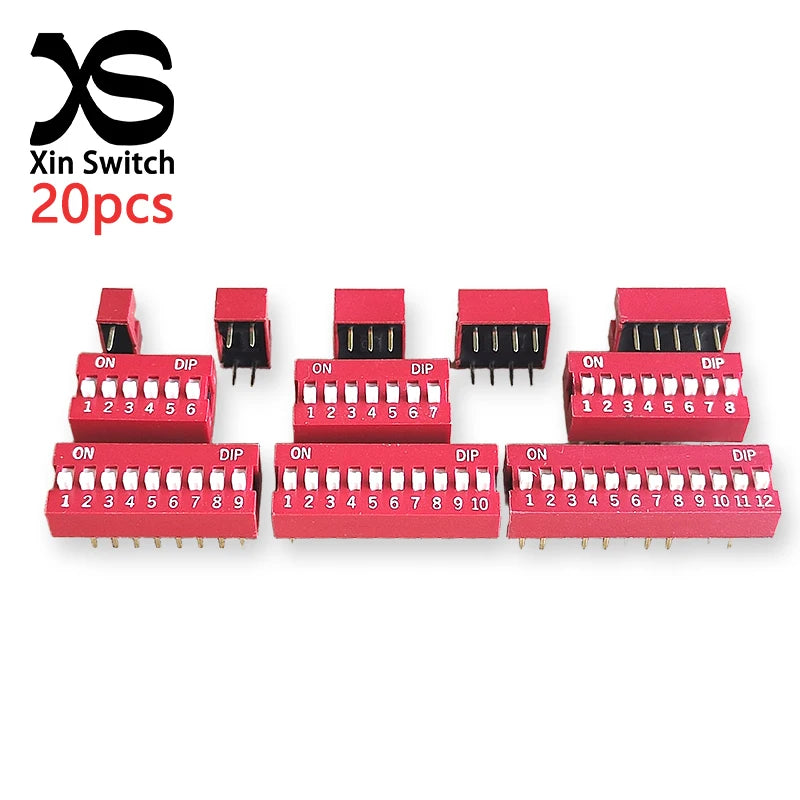

20PCS Red Toggle DIP Switch Module Spacing 2.54MM 24V Inline 1 2 3 4 5 6 7 8 9 10 12 PIN Quick Dial The Code Switch
