20W 22W Car Wireless Charging Mobile Phone Wireless Charger Module with Three Coil Transmission End 24V 12V Wide Voltage

20W 22W Car Wireless Charging Mobile Phone Wireless Charger Module with Three Coil Transmission End 24V 12V Wide Voltage

$142.24

$142.24 $0.00

Color 20W 20W 0-8mm 22W 0-8mm 20W 0-10mm

Description

SPECIFICATIONS

Brand Name: LYPZUX

Certification: NONE

Choice: yes

Compatible Brand: Apple iPhone

Compatible Devices: Phones

Connector Type: Type C

Features: With Charging Indicator

High-concerned chemical: none

Isitwithchargingcable: No

Max. Output Power: 20W

Origin: Mainland China

semi_Choice: yes

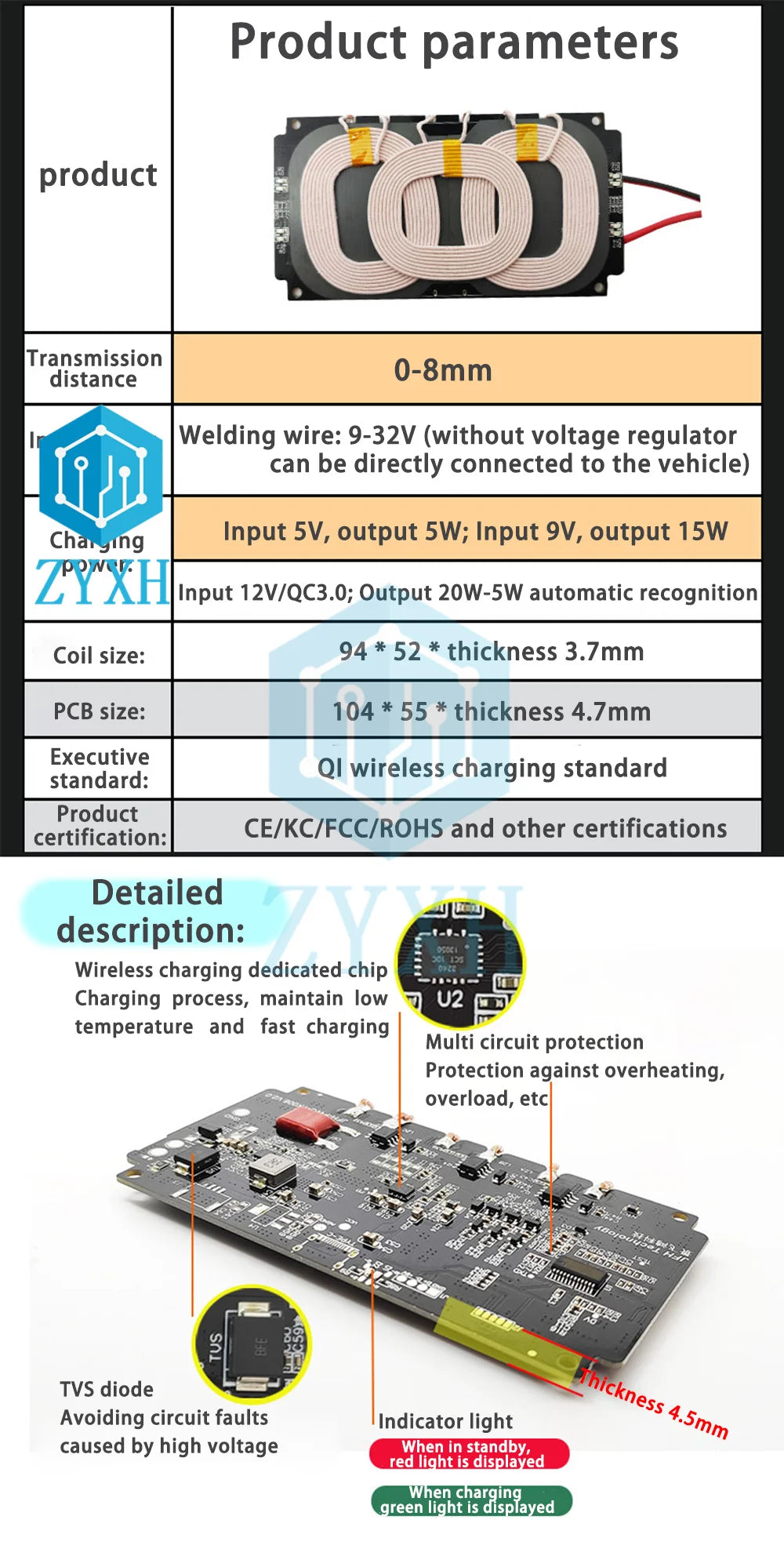

Product parameters:
Transmission distance: 0-8mm

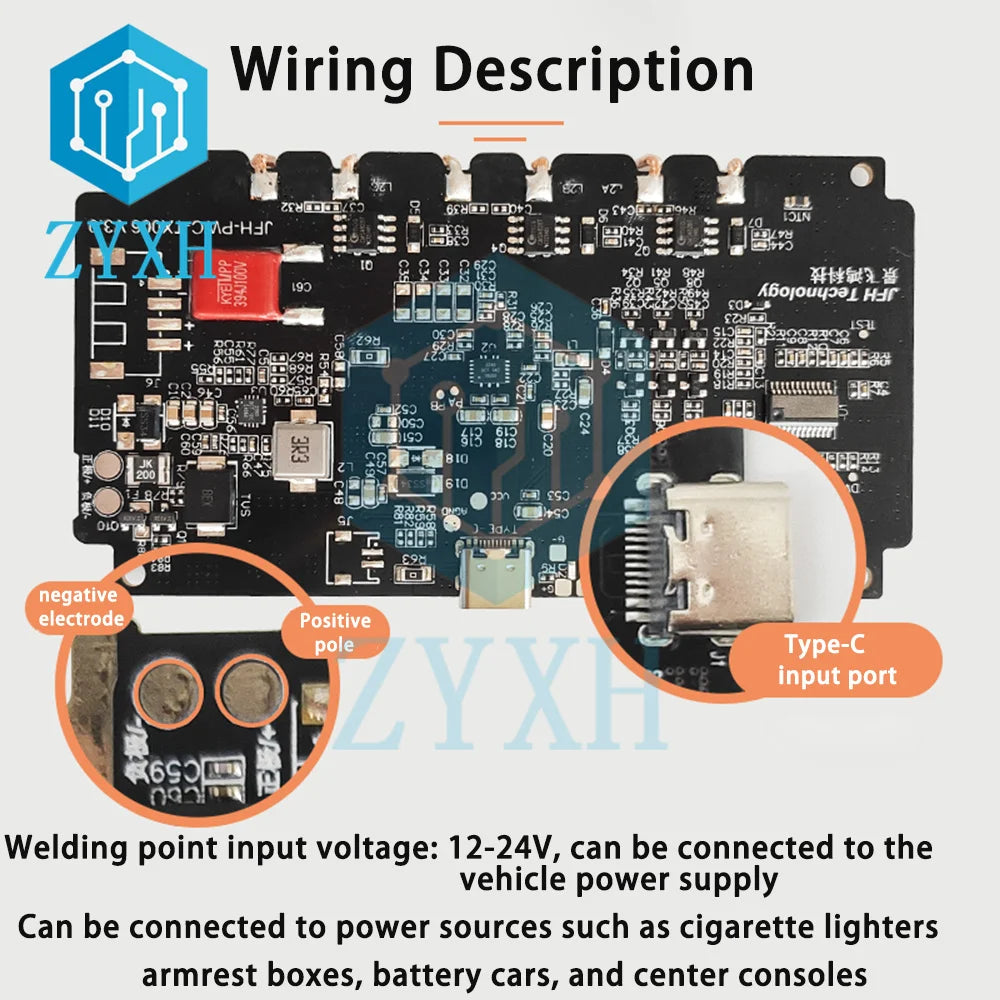

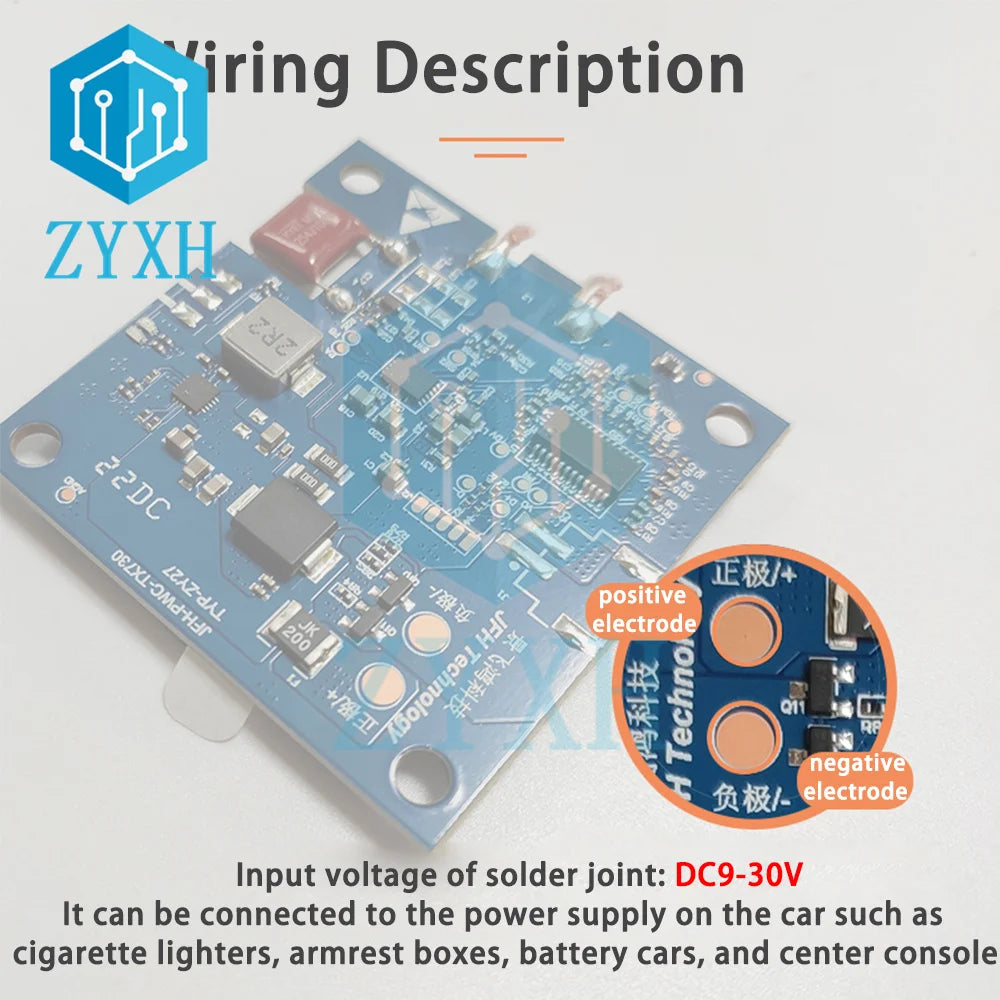

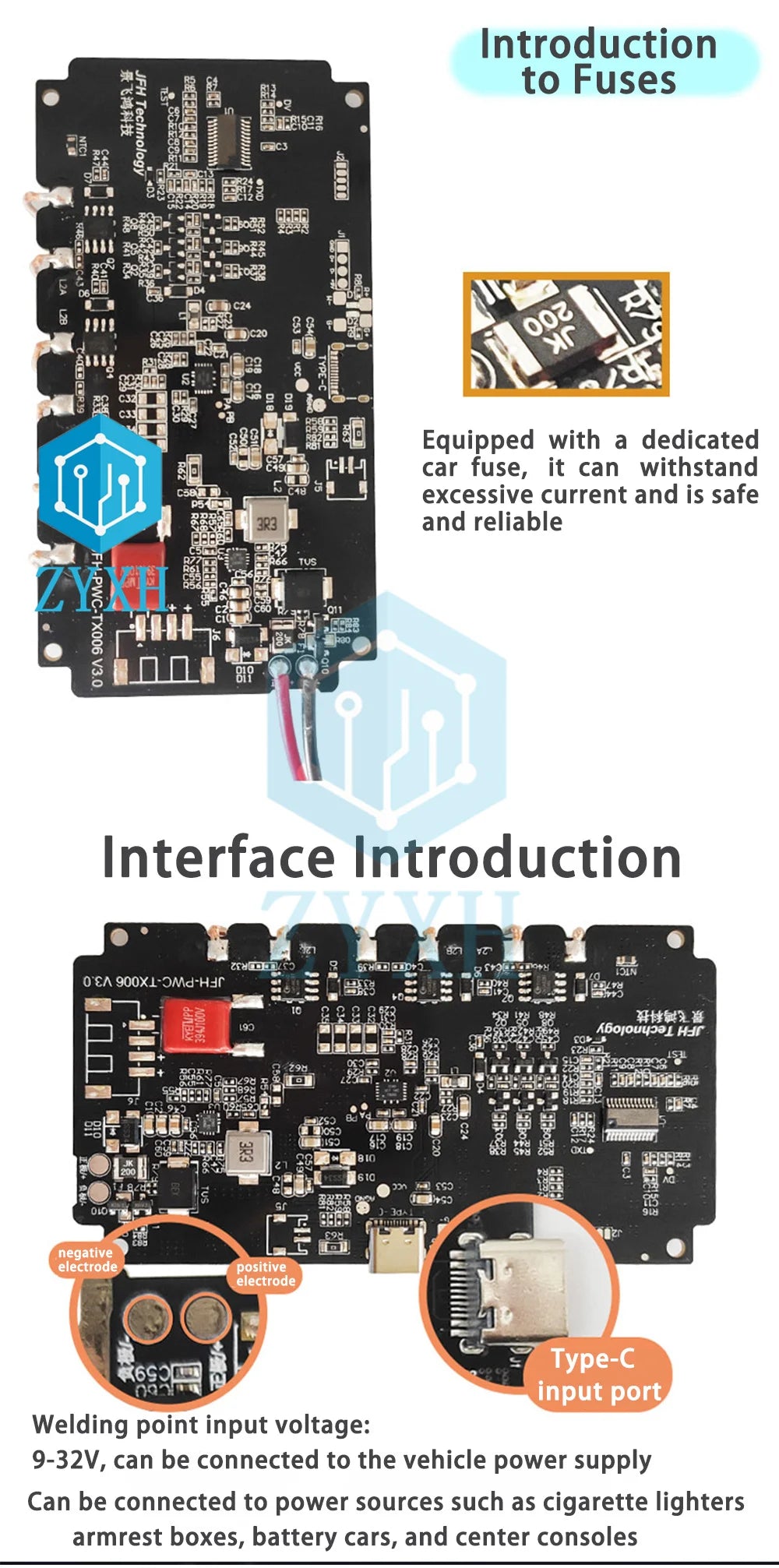

Input power supply: Welding wire: 9-32V (without voltage regulator, can be directly connected to the vehicle)
Charging power:
Input 5V, output 5W; Input 9V, output 15W
Input 12V/QC3.0; Output 20W-5W automatic recognition

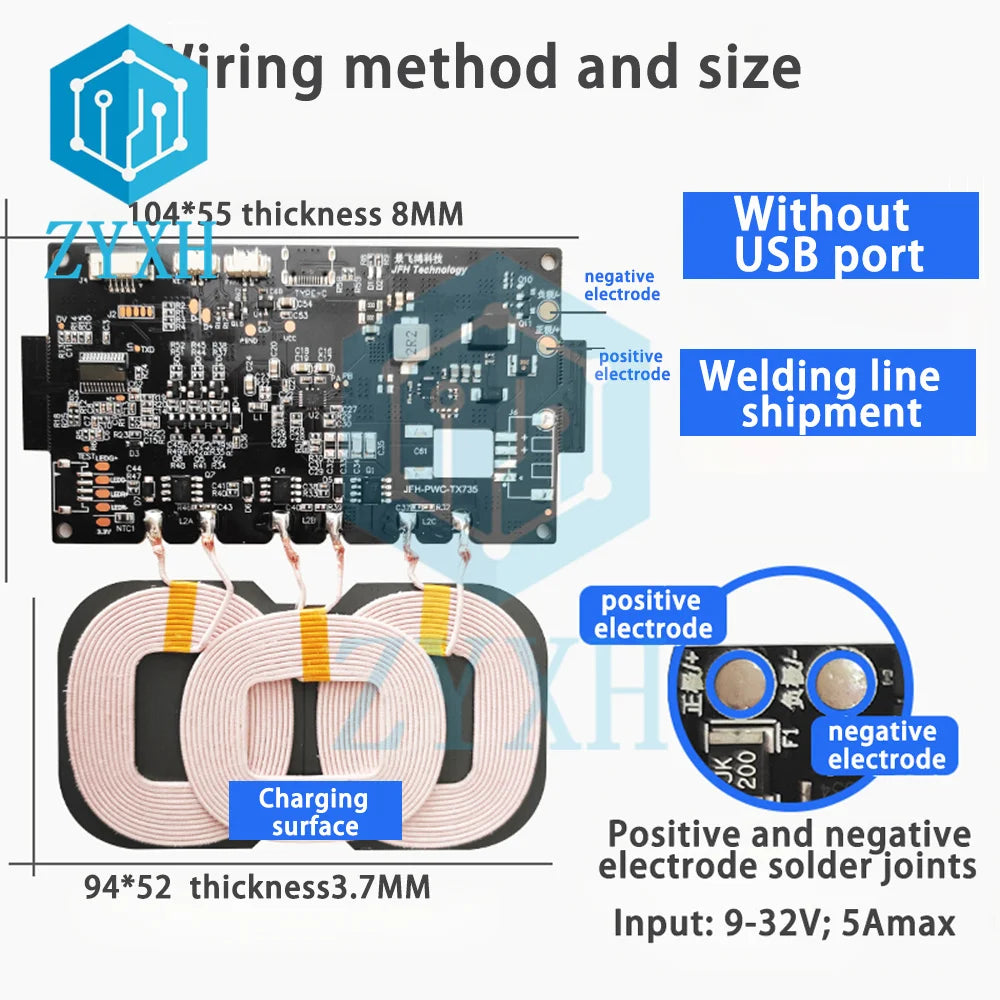

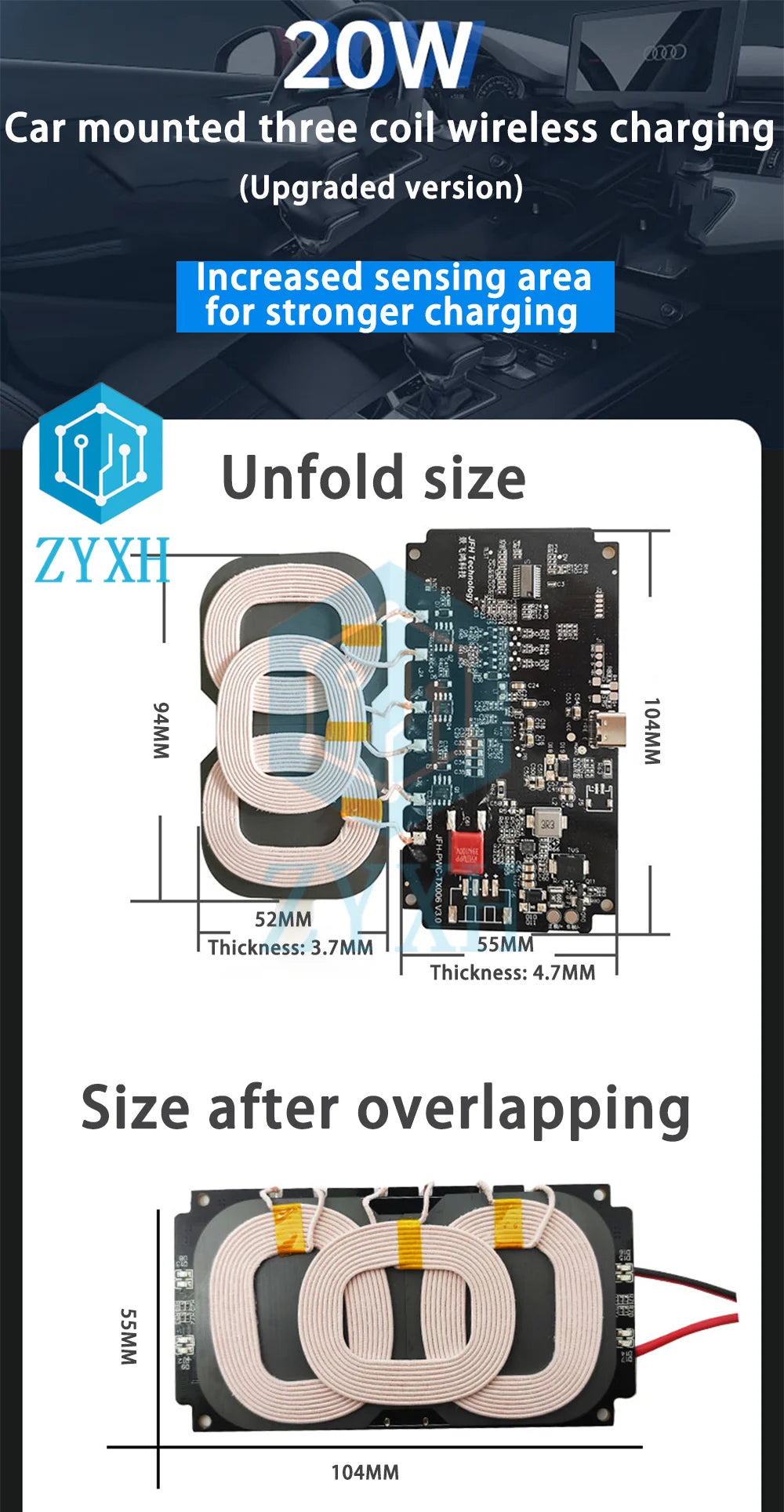

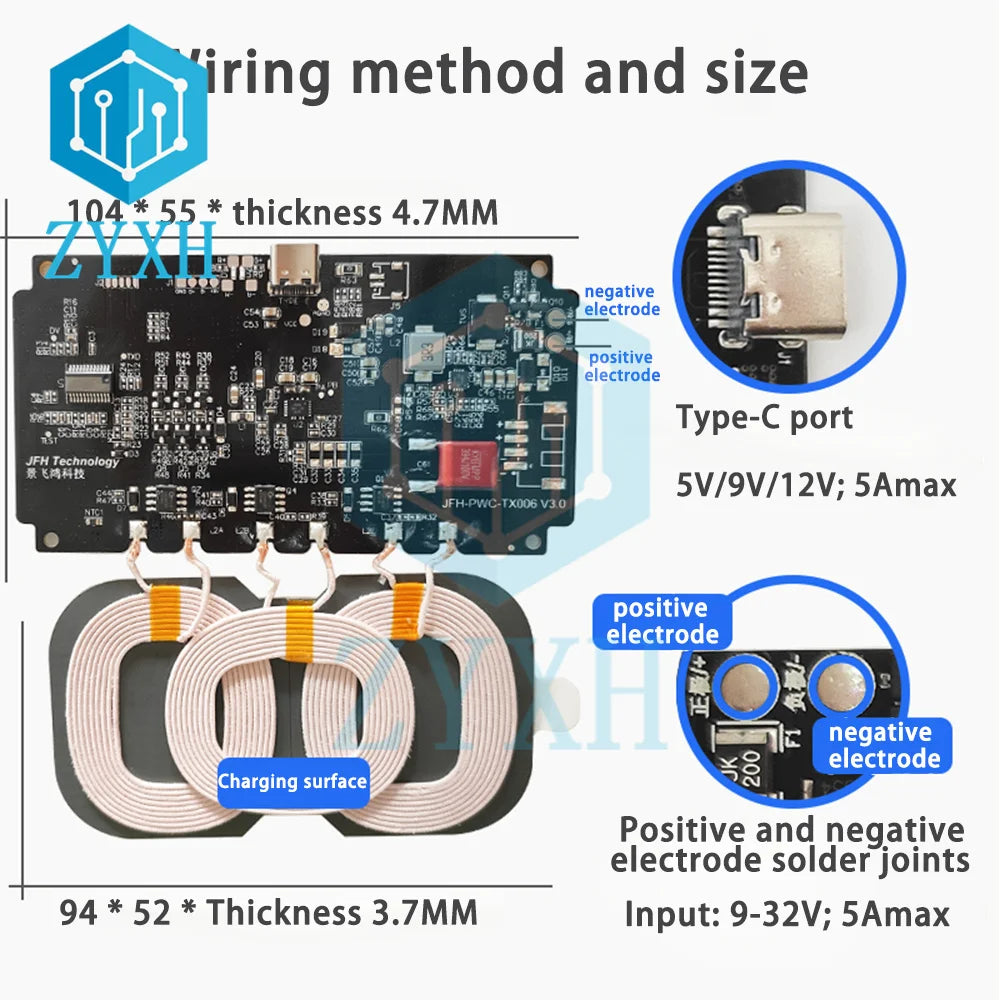

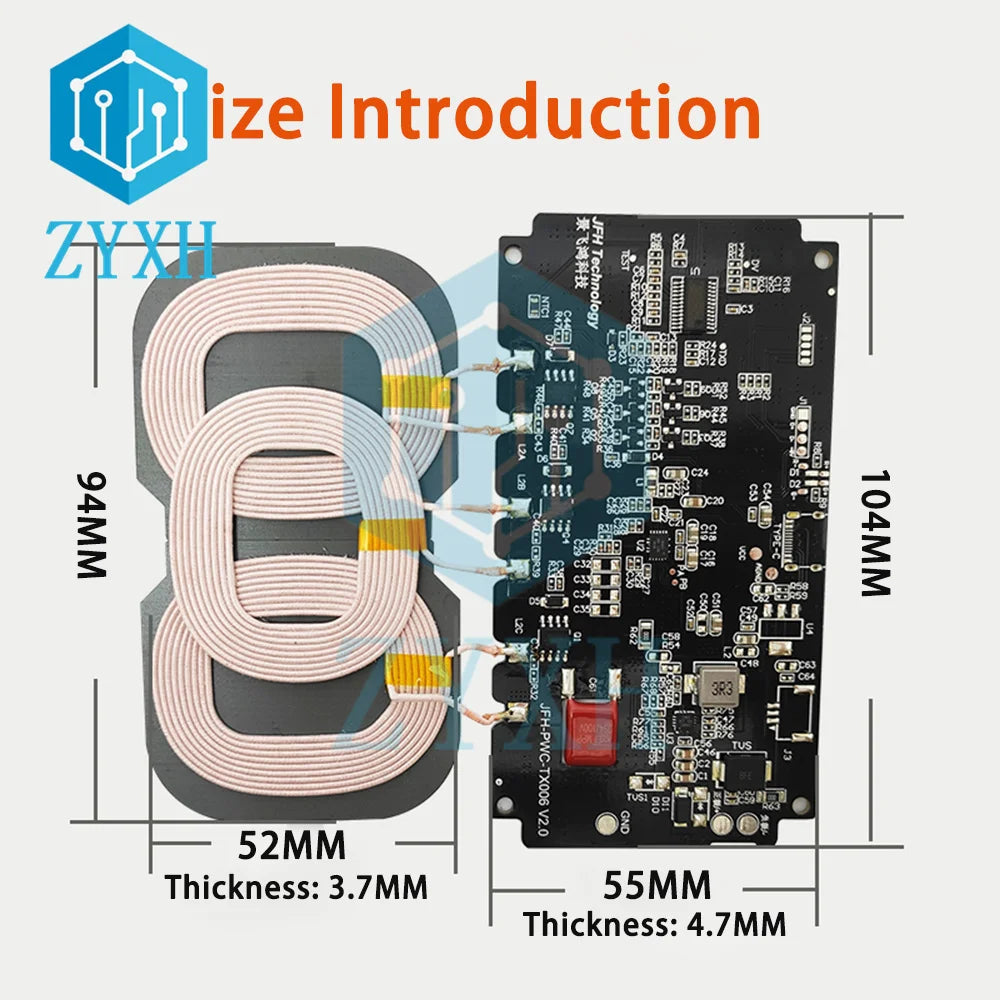

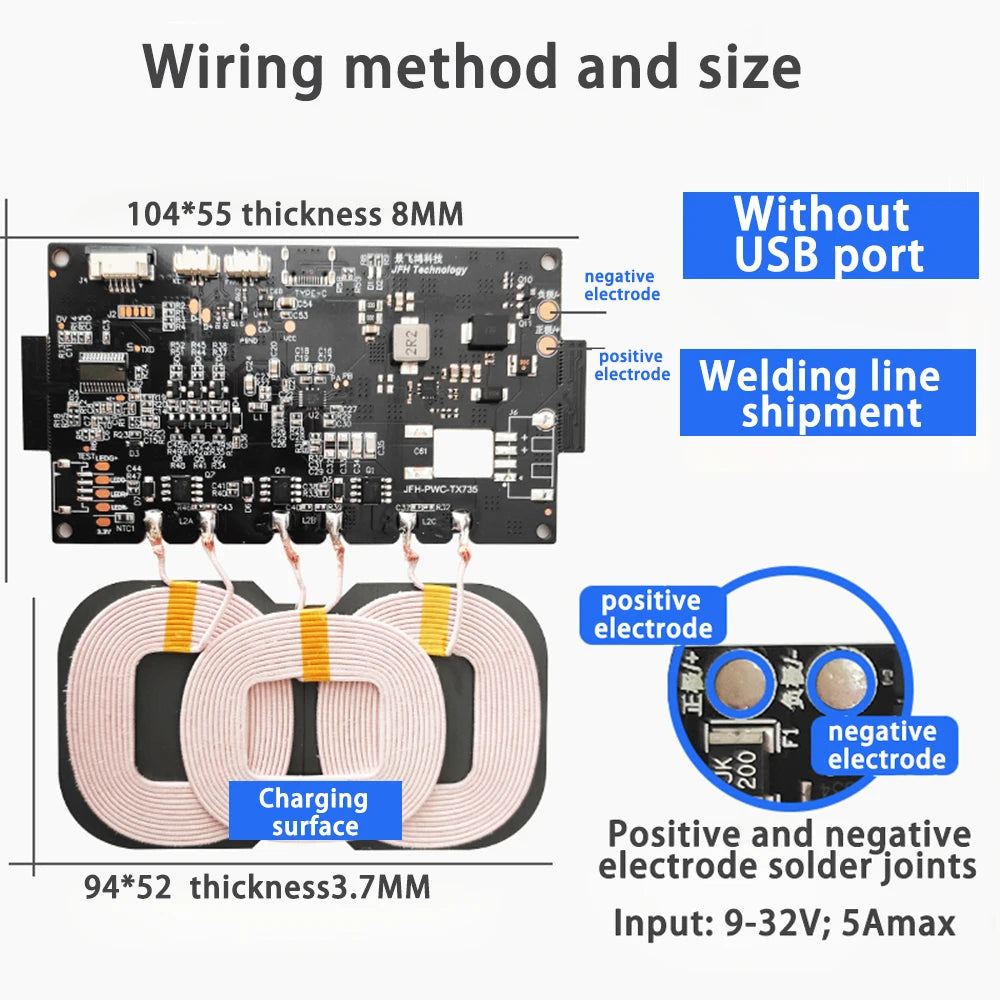

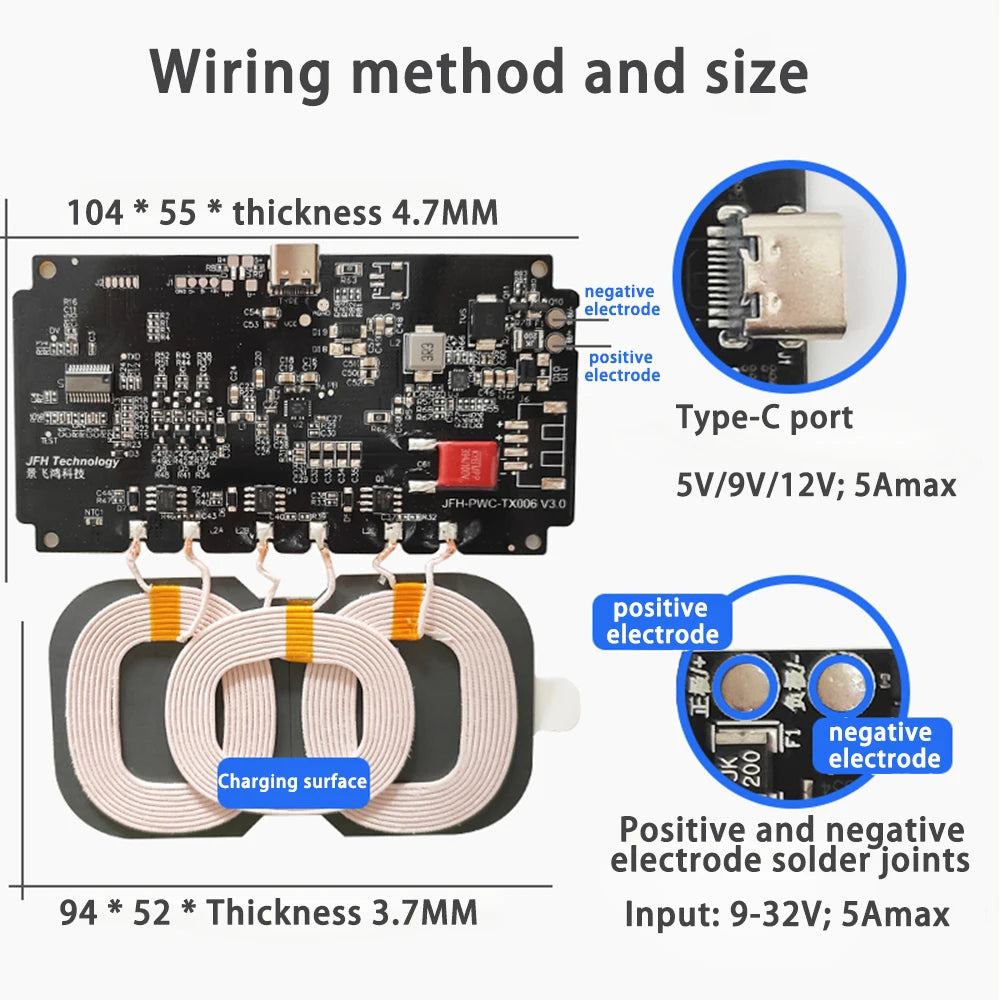

Coil size: 94 * 52 * thickness 3.7mm
PCB size: 104 * 55 * thickness 4.7mm
Executive standard: QI wireless charging standard
Product certification: CE/KC/FCC/ROHS and other certifications

Detailed description:
Wireless charging dedicated chip charging process, maintaining low temperature and fast charging

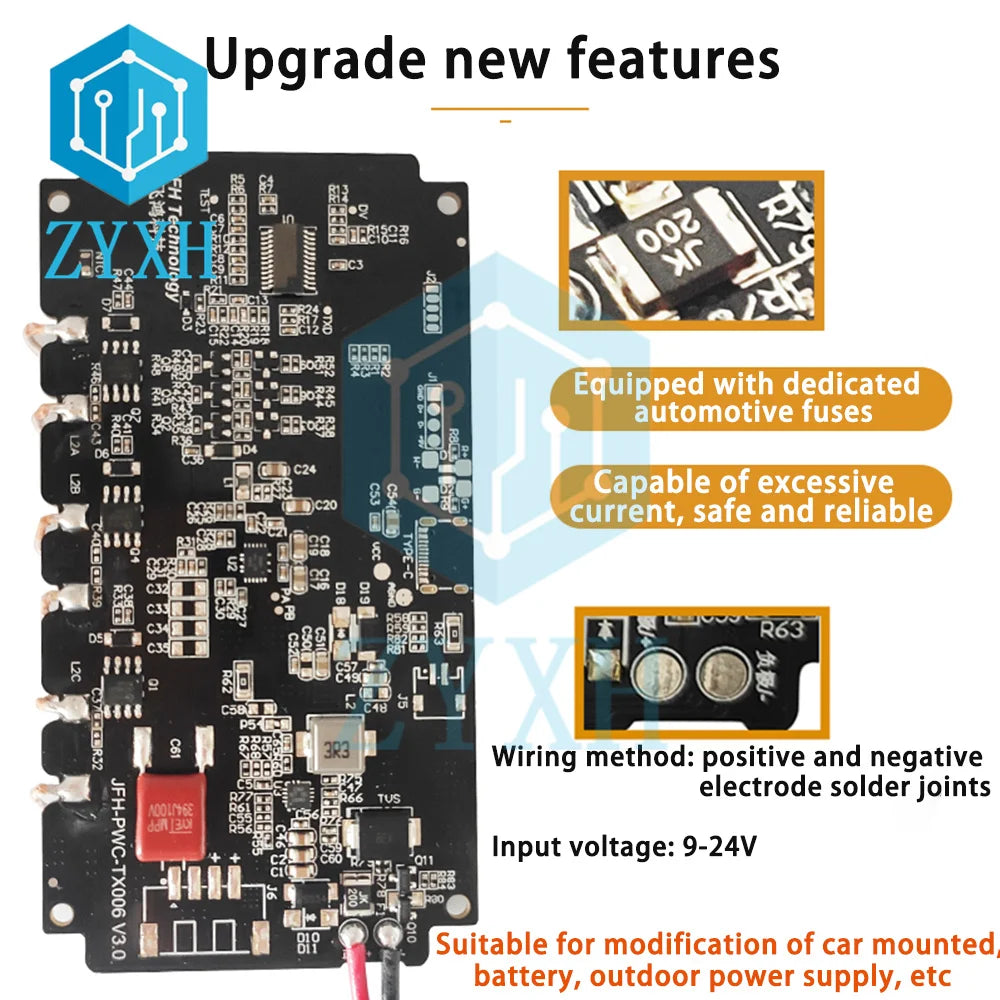

Multi circuit protection
Protection against overheating, overload, etc
TVS diode can avoid circuit faults caused by high voltage

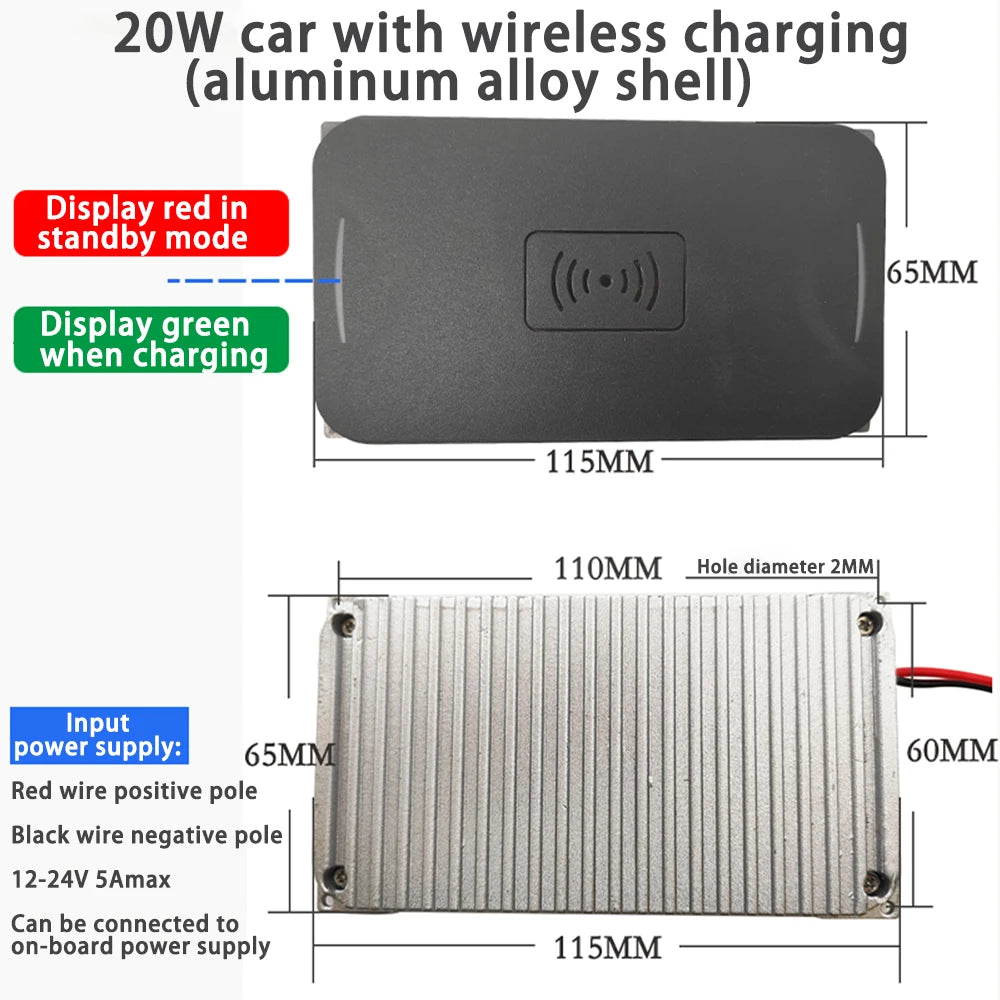

Indicator light:
When in standby, red light is displayed
When charging, green light is displayed

As long as any coil is sensed, it can work
(Not all three coils working simultaneously)

Frequently asked questions:
Q: Is the coil divided into front and back sides? How is the correct placement?
Answer: The transmitting coil is facing the receiving end of the phone (placed on the back)

Q: What is the charging speed of 5V input?
Answer: The 5V input is a 5W output, and fast charging is only available for 9/12V input. After the car starts, the power supply is 12-14V, which can be directly connected without a voltage regulator.

Q:Can the black porcelain chip on the back of the wireless charging coil be removed?
Answer: No, the black porcelain plate on the back of the coil is a magnetic separator. Removing it will cause the wireless charger to malfunction. Micro cracking of ceramic tiles does not affect charging.
