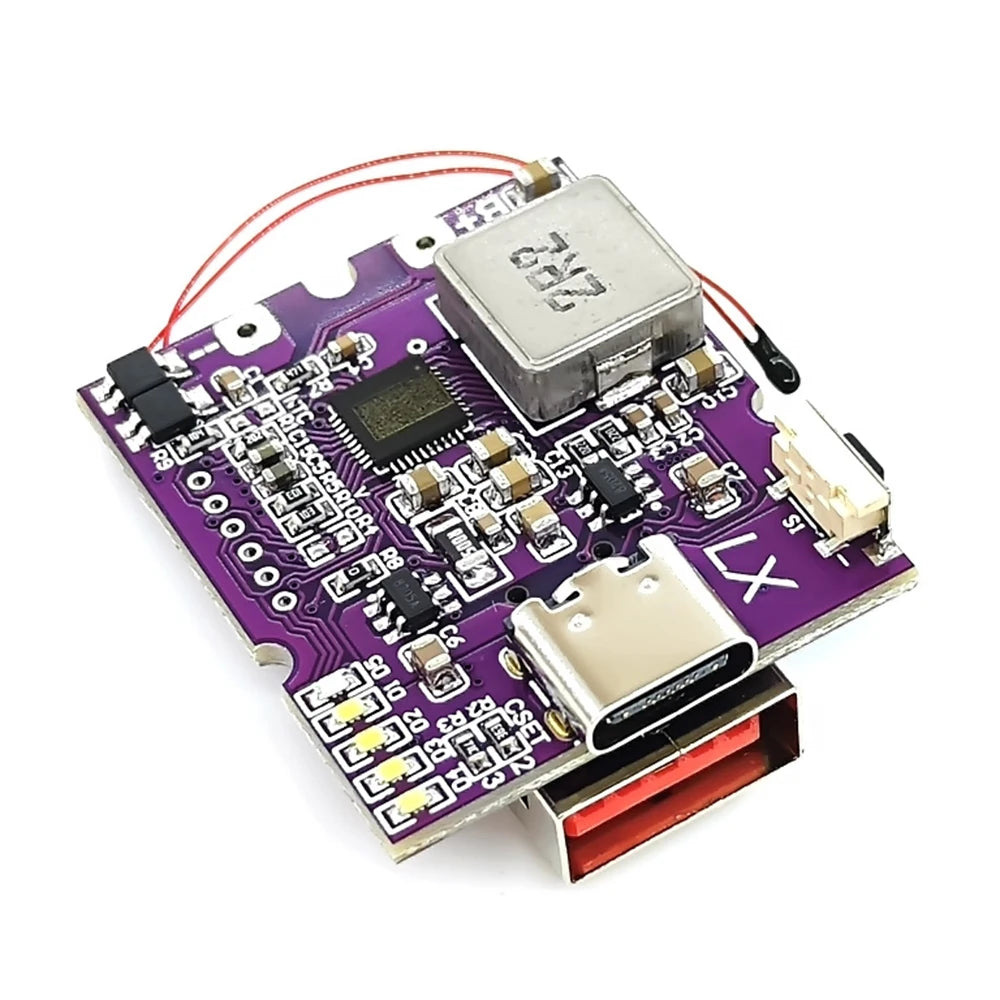

22.5W Power Bank Bidirectional Fast Charging Mobile Power Module Circuit Board With Digital/Light Type-C USB Suppor PD/QC3.0 2.0

22.5W Power Bank Bidirectional Fast Charging Mobile Power Module Circuit Board With Digital/Light Type-C USB Suppor PD/QC3.0 2.0

$15.72

$15.72 $0.00

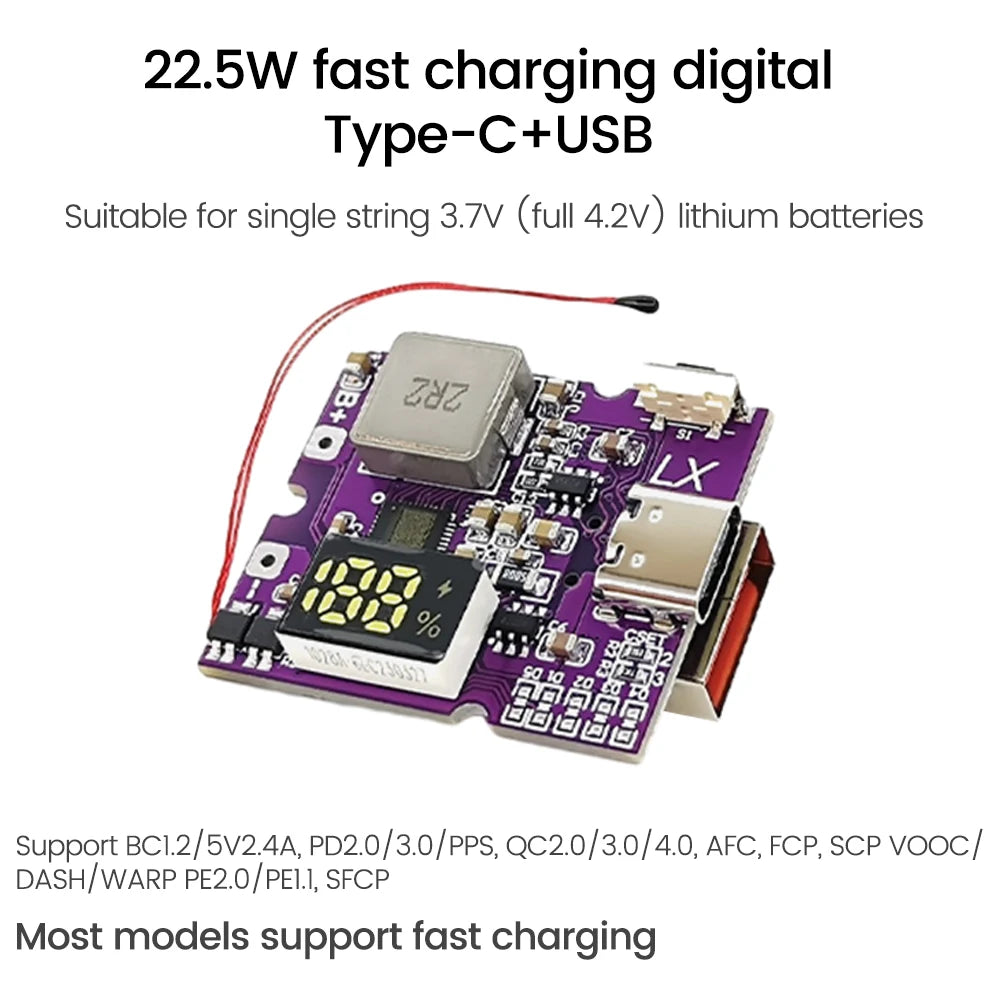

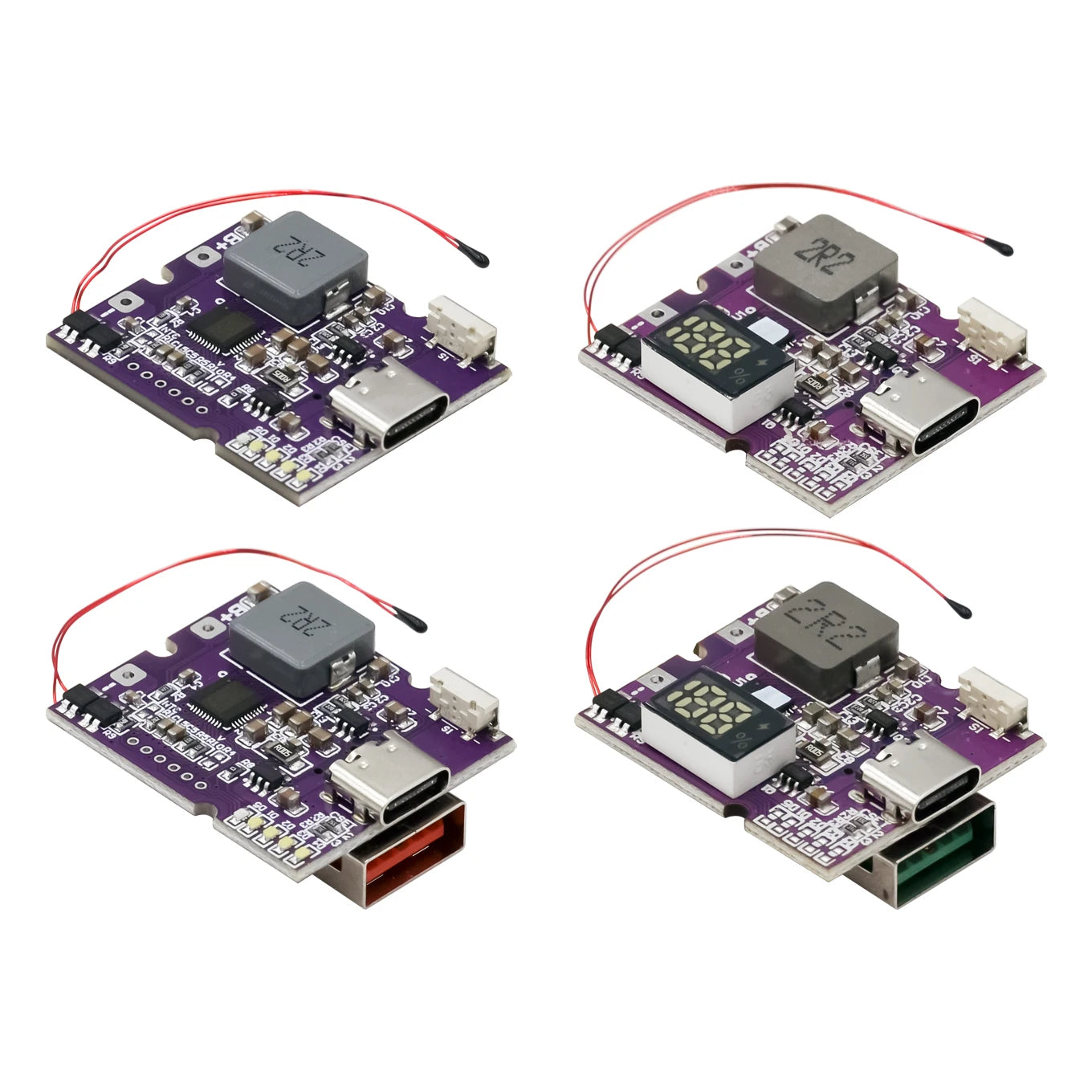

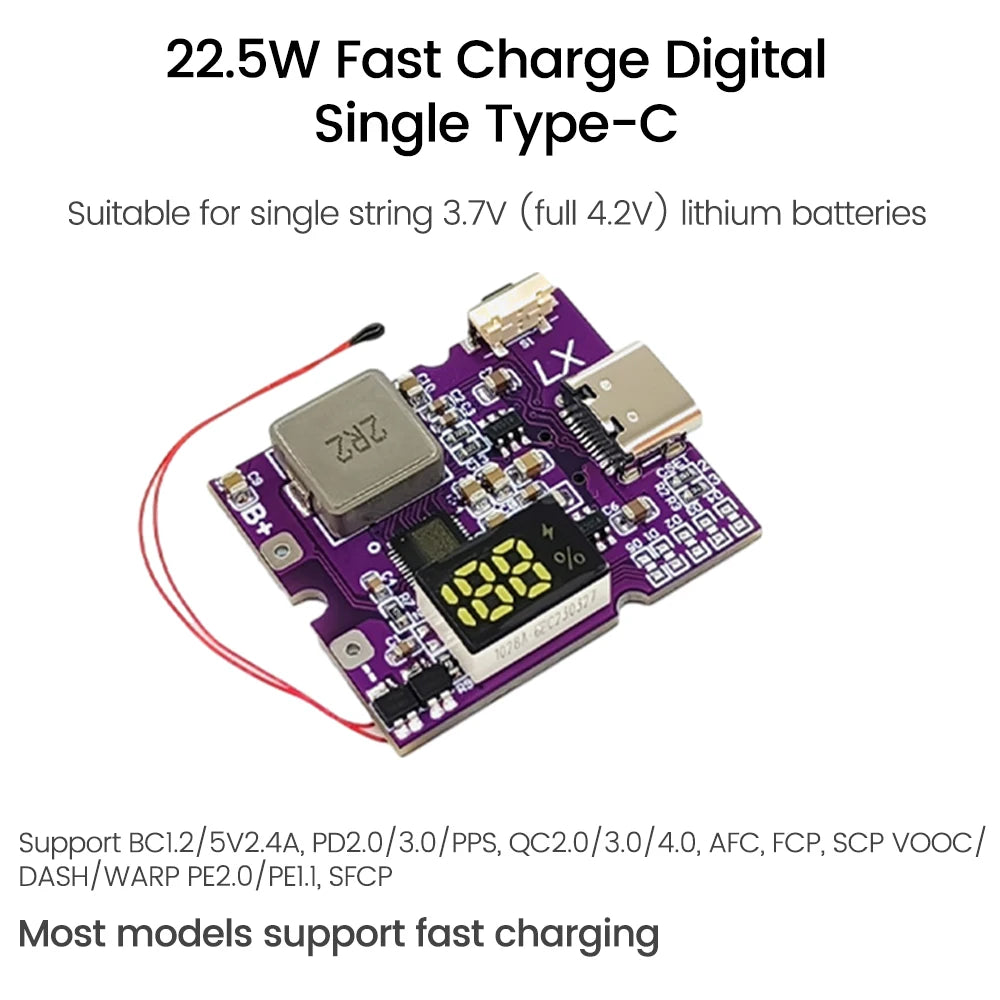

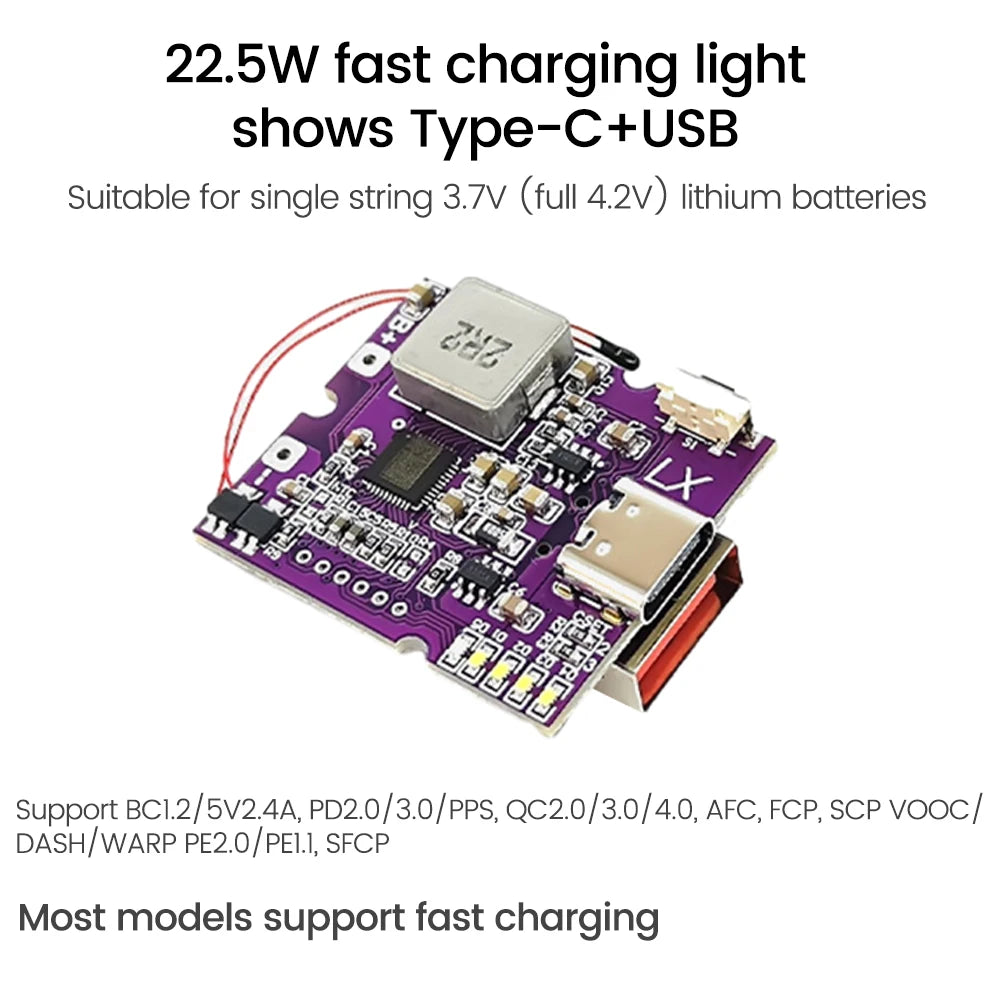

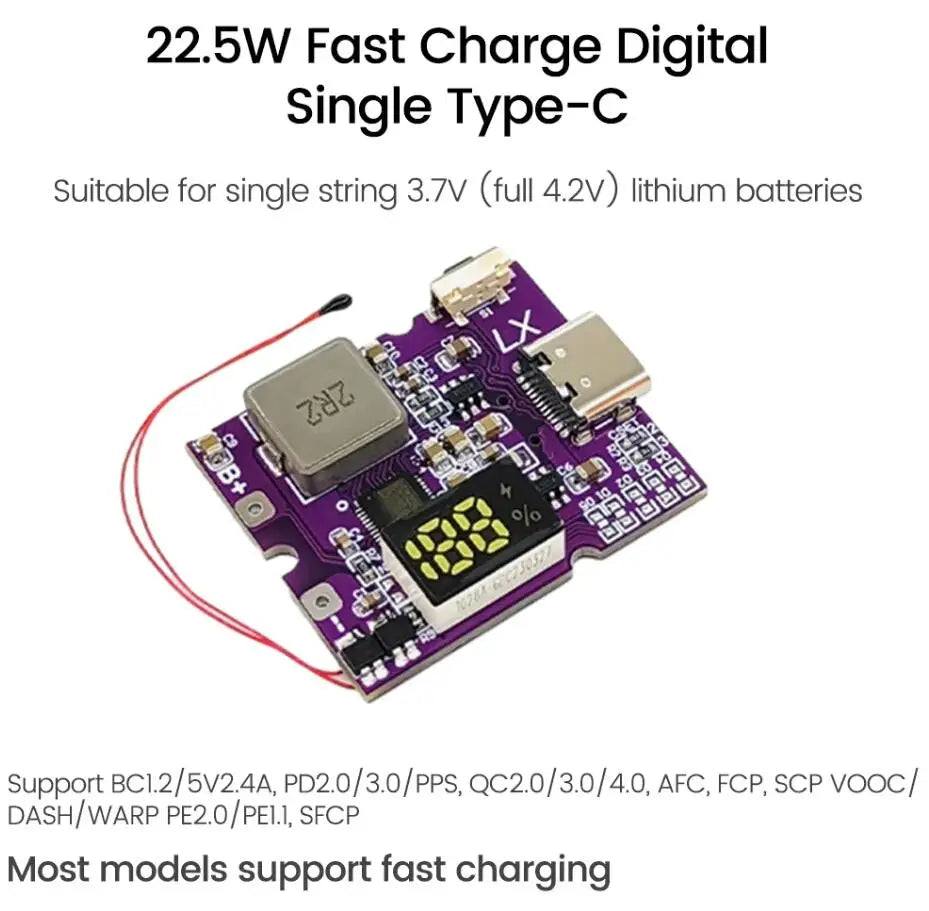

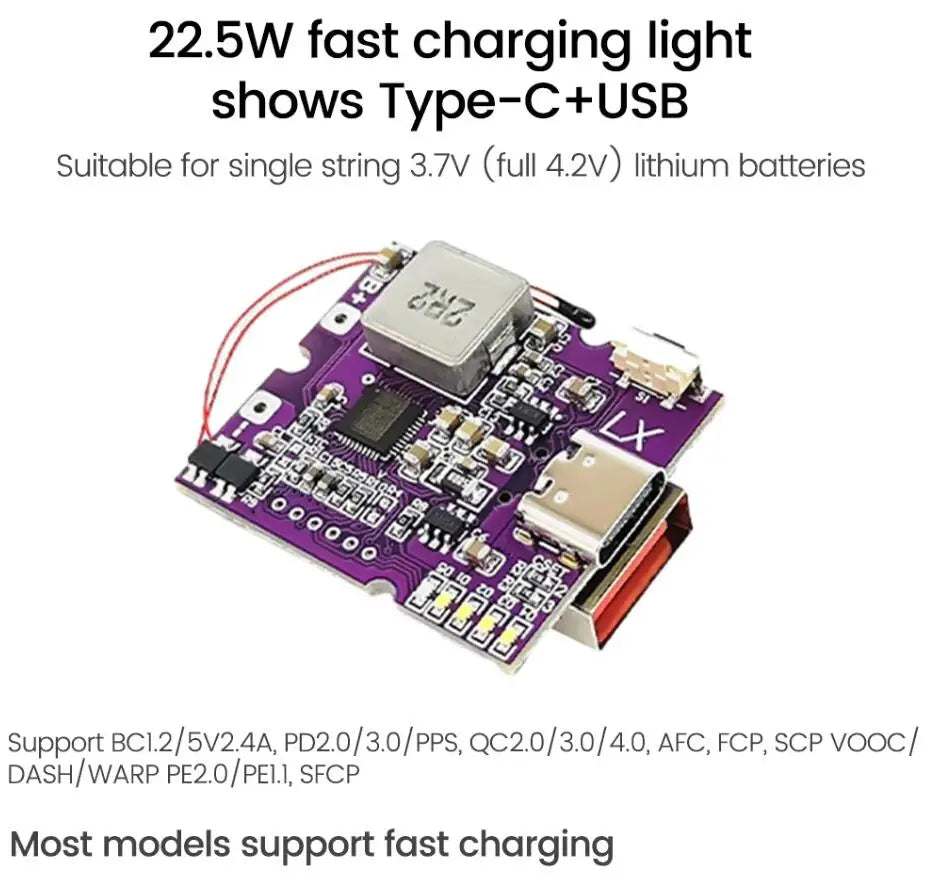

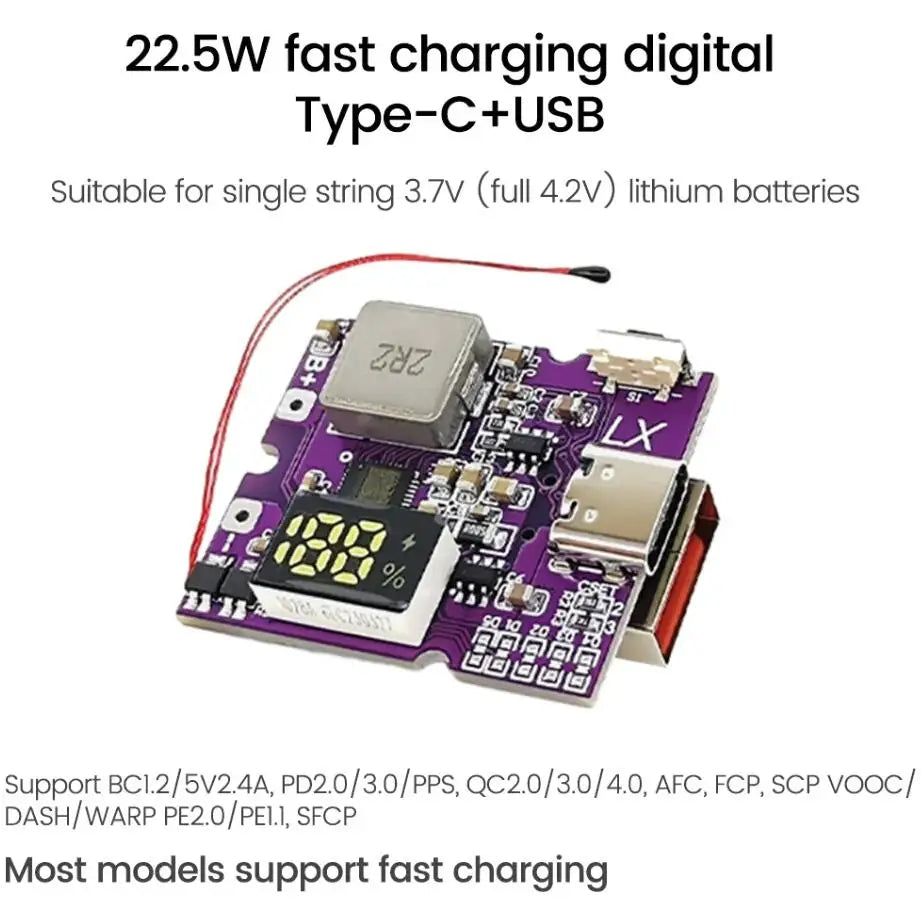

Color A C Digital display C Lamp display A C Lamp display C Digital display

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Model Number: 22.5W Power Bank

Origin: Mainland China

Type: Drive IC

Features:
1. Use of high-quality materials, product quality is guaranteed
2. Small volume, high power, high efficiency, complete protocols, mainstream open protocols are basically supported

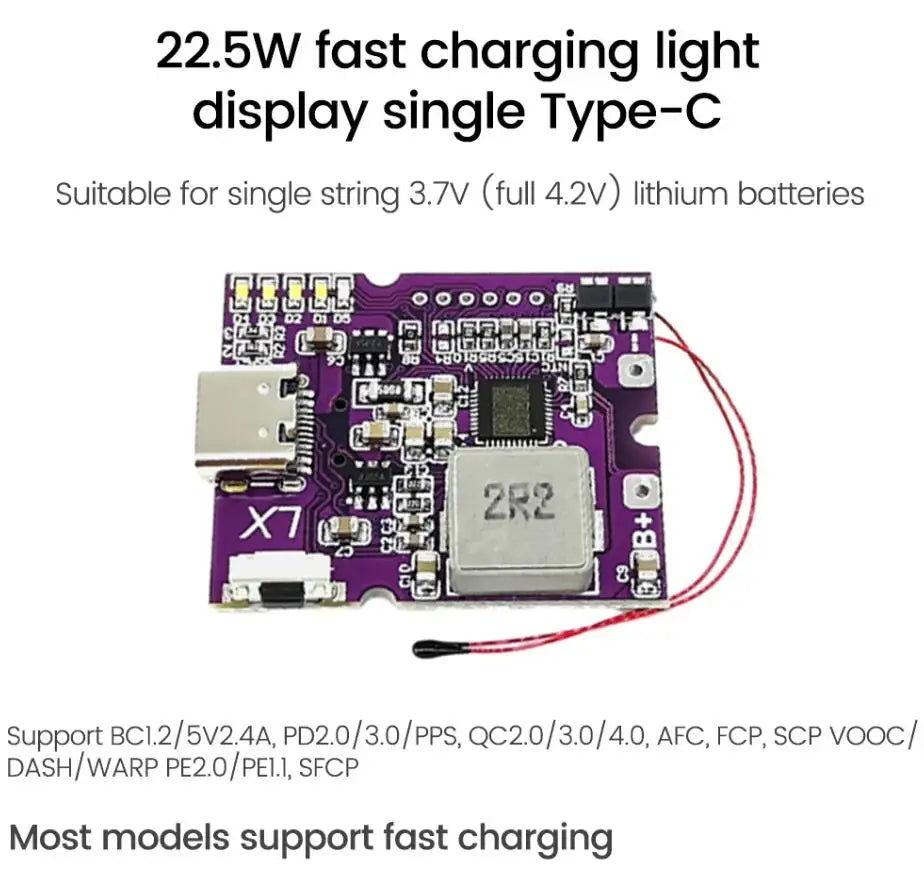

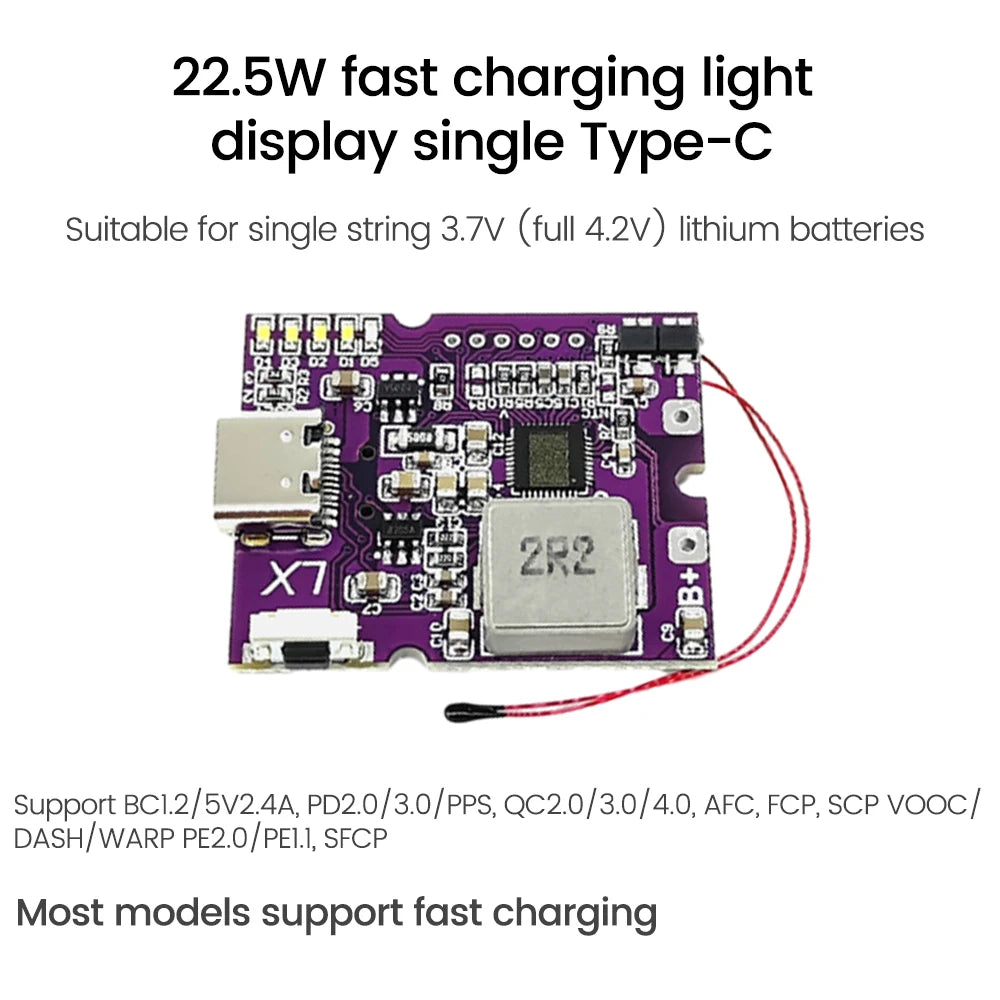

3.Module for 3.7V lithium batteries, including polymer, 18650, 21700 lithium batteries; to ensure that the battery is not aging, the battery can be connected in parallel can not be connected in series
4. Module volume is relatively small, the heat dissipation area is limited, high-power output heat is a normal phenomenon
5. Wide range of product applications, suitable for a variety of industrial DIY occasions

Parameter:
full protocol, the mainstream open protocol basically support the charging current up to 5A, efficiency up to 96% output power up to 22.5W, efficiency up to 95%.
Automatic load detection / light load detection
High-current USB output interface
Support small current mode

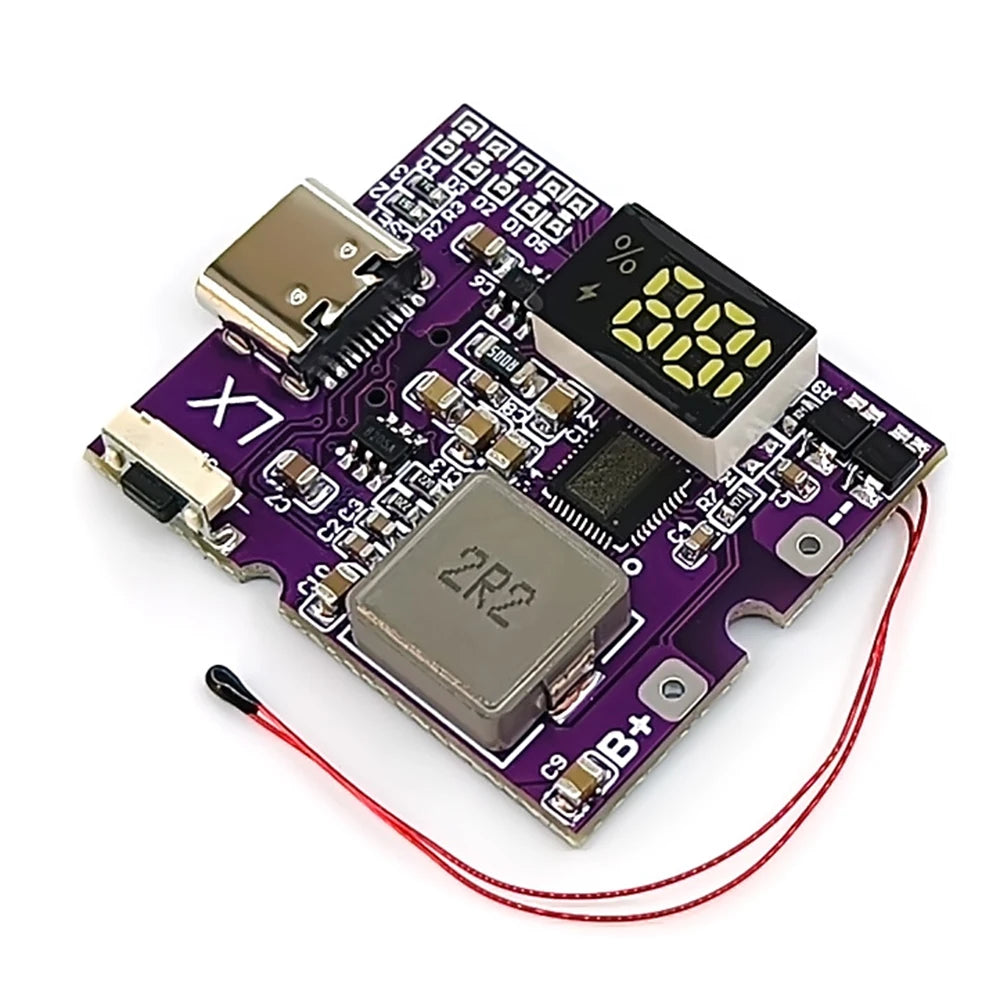

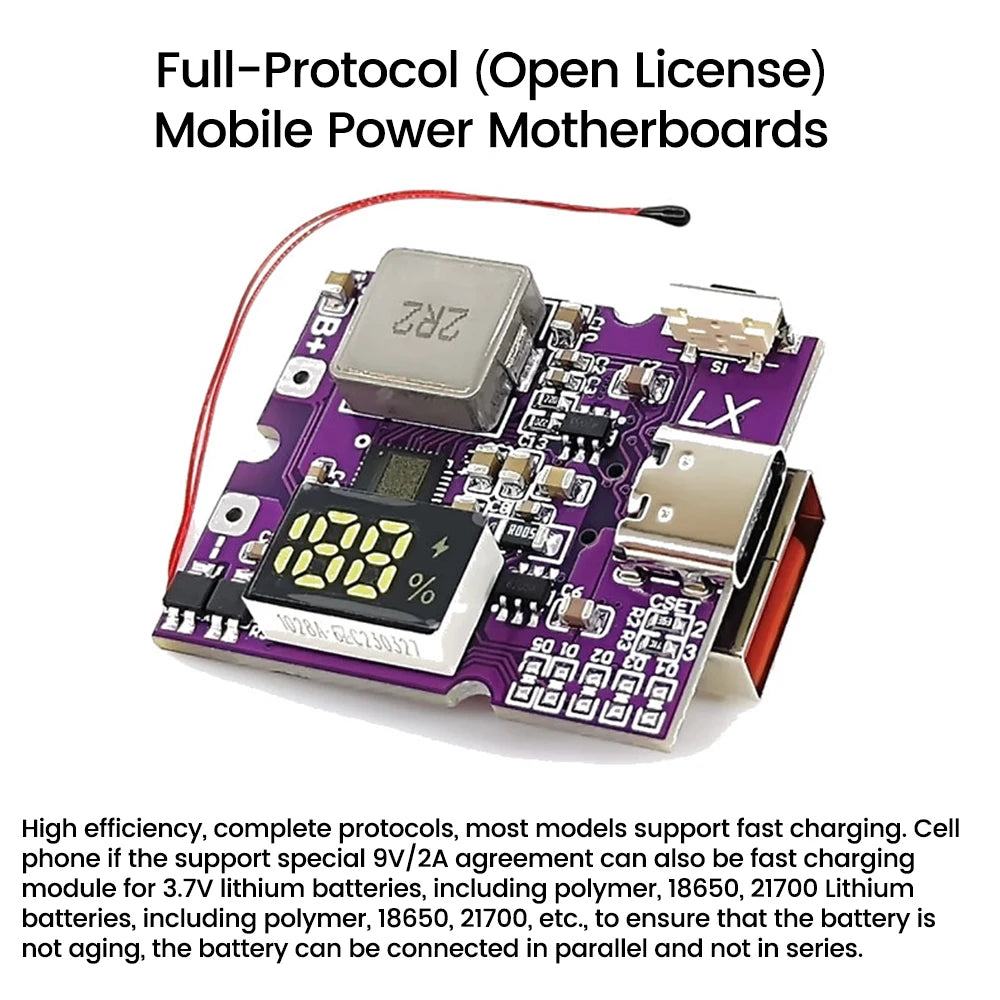

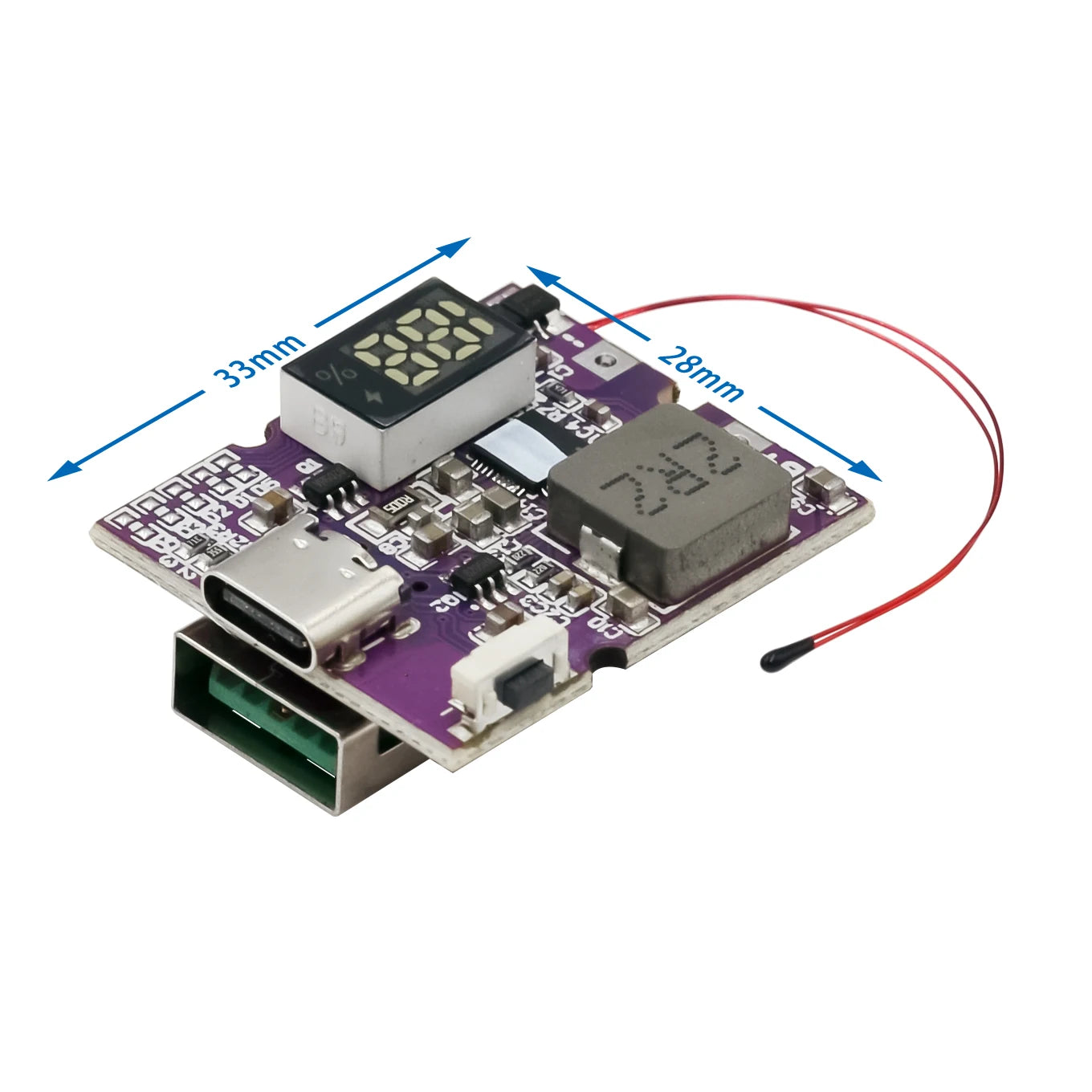

Support digital tube display and LED power indicator
Output overcurrent/short circuit protection
Charge timeout/over-voltage protection
Support PPS/PD3.0/PD2.0
Support QC4+/QC4/QC3.0/QC2.0
Support FCP, SCP (5V4.5A or 4.5V/5A)
Support FCP, SCP, HSCP
Support SFCP to charge battery
Support PD3.0/PD2.0, AFCFCP, SCP , PE1.1

Precautions for use:
1. Battery and motherboard cable can not be too thin, try to be thicker. Fast charging board requirements can pass 10A current non-fast charging board should also be able to pass 7A current. Can not be too long, the interface needs to be welded.
2. Batteries can only be connected in parallel (parallel number is not limited), not in series, series must burn the motherboard.
3. Normal application, the battery must be welded, (wire twisting will be insufficient power supply), the battery reverse motherboard must burn. Never pay attention. Line as thick and short.
4. Access to the battery to determine access to the 3.7V battery, not other batteries. Ensure that the battery is not connected in series, otherwise the battery terminal access voltage higher than 4.5V may burn the board.

Package include:
Mini fast charging module *1
