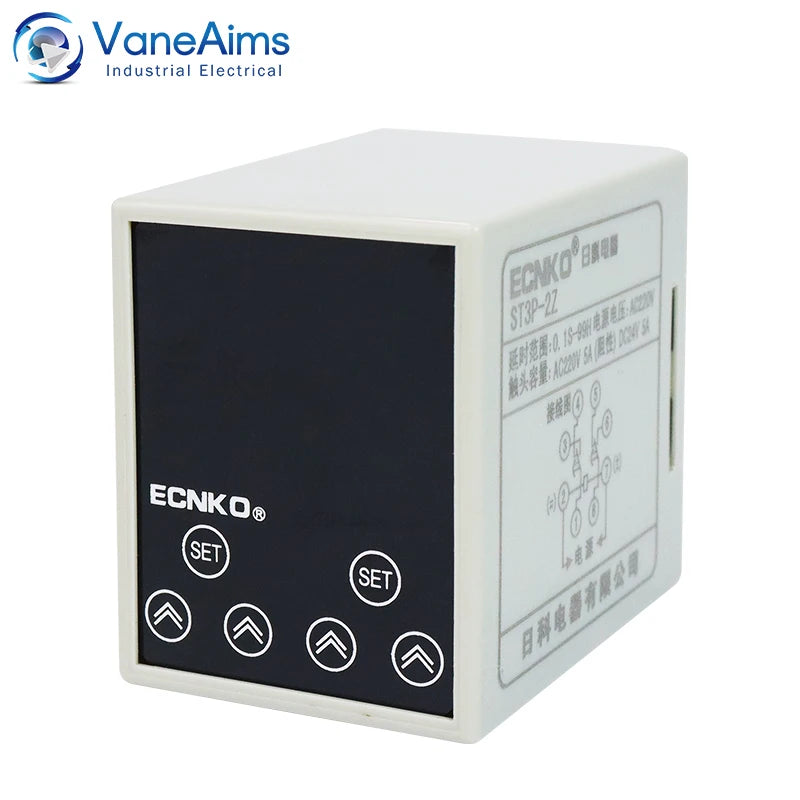

220v Programmable Timer Relay ST3P-2Z Time Relay LCD Digital display cycle Power-on Delay Digital Small Timer 12V/24V/110V/380V
AC380V
$71.01
Sale price
$71.01
Regular price
$0.00
Skip to product information

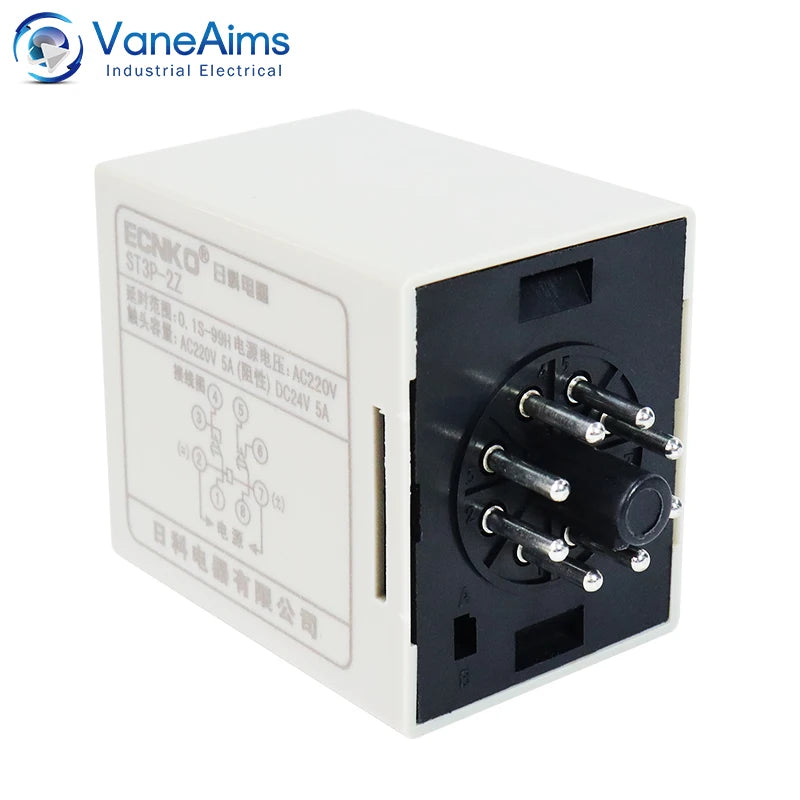

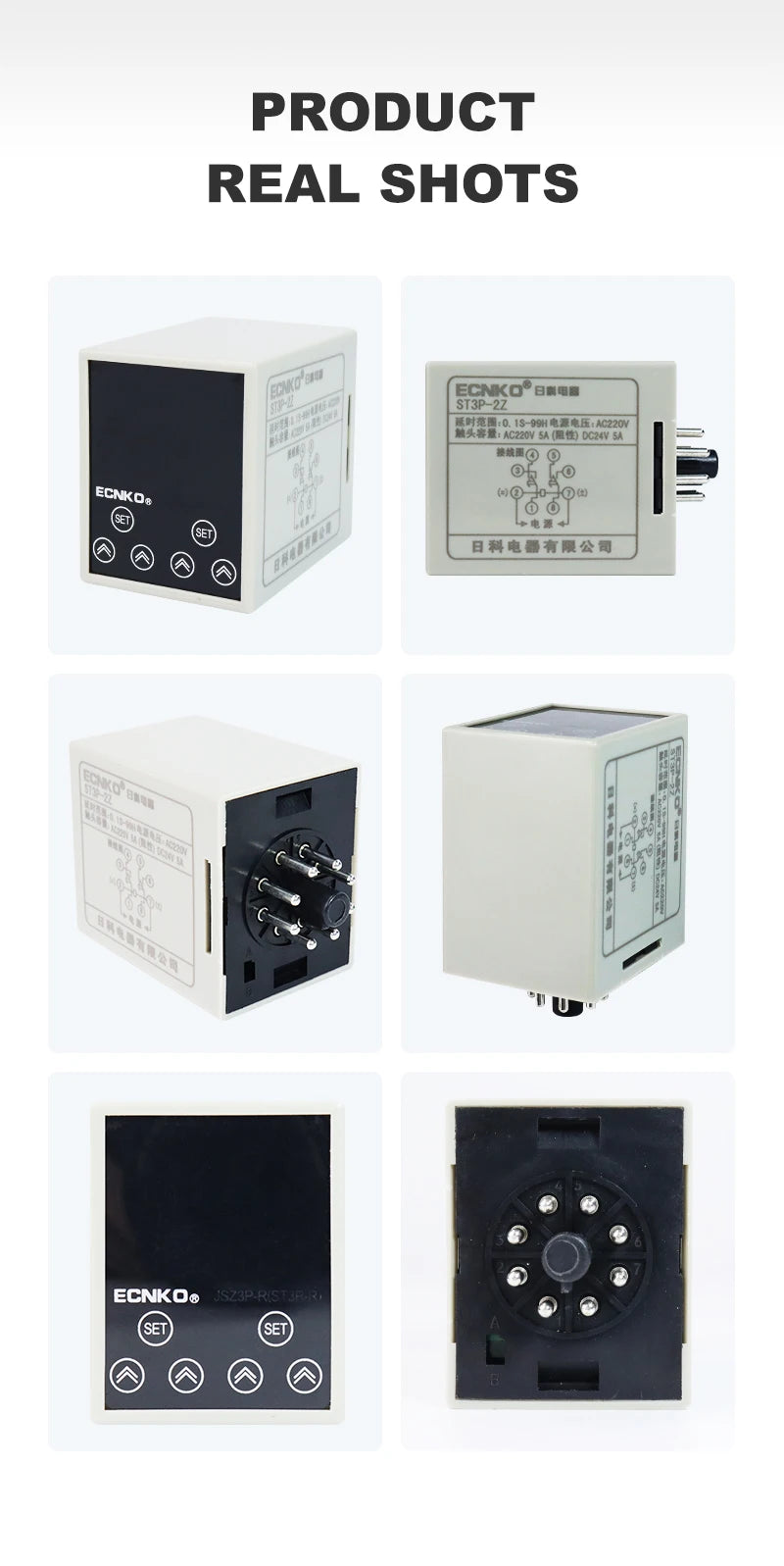

220v Programmable Timer Relay ST3P-2Z Time Relay LCD Digital display cycle Power-on Delay Digital Small Timer 12V/24V/110V/380V
$71.01
Sale price
$71.01
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: VaneAims
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: ST3P-2Z
Origin: Mainland China
Power Source: Ac
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
is_customized: Yes
Time range: 0.1S-99H
Four working modes
Power-on delay
Delayed disconnect
Cycle delay
Signal off delay
Specification：
Product Name: Digital Display Time Relay
Product model: ST3P
Delay accuracy: ≤0.5%
Product power consumption: ≤1.3W
Contact capacity: AC220V 5A (resistive) DC24V 5A
Operating temperature: -10~50℃
Use scene: no corrosive gas occasion
NOTE: This model doesn't include base socket.
Please click here to purchase corresponding base socket>>>
