SPECIFICATIONS

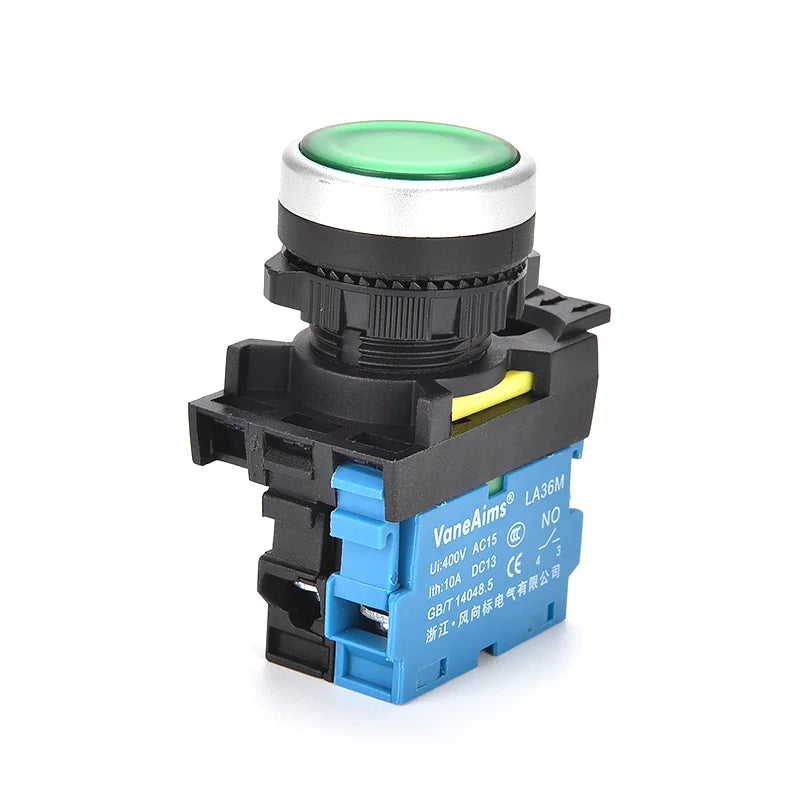

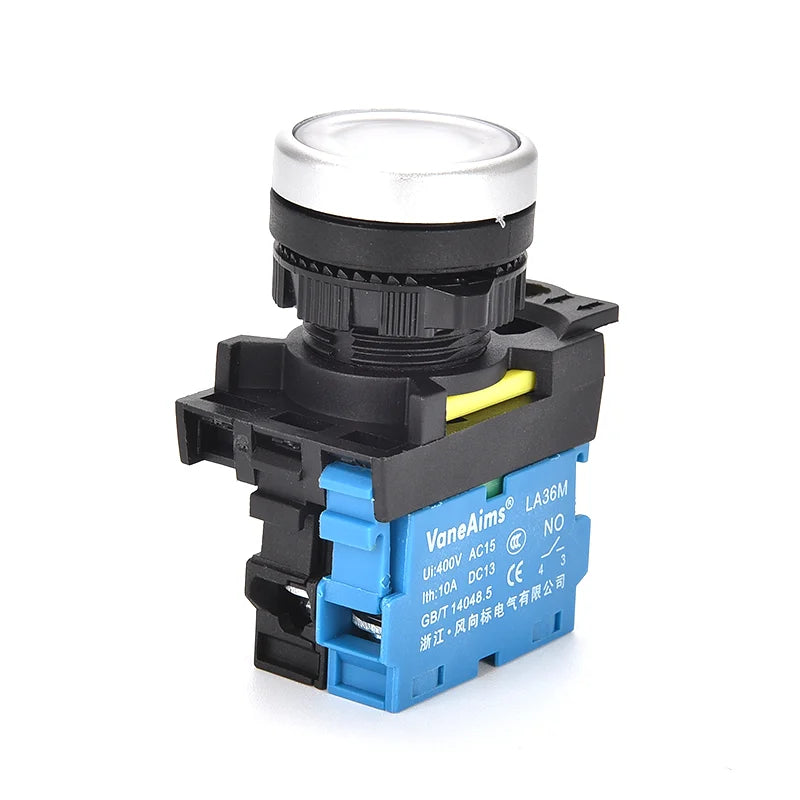

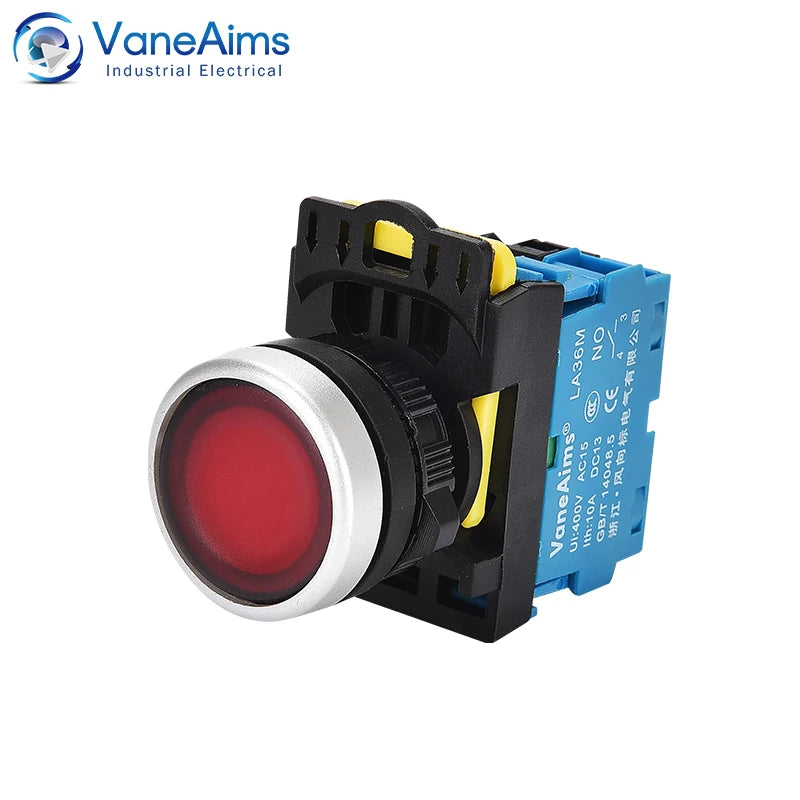

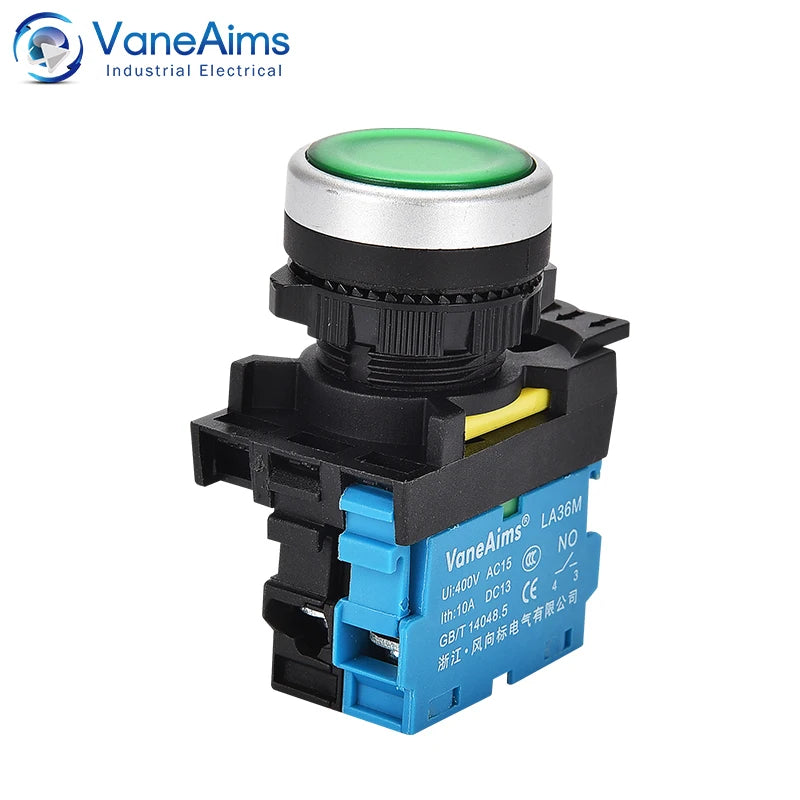

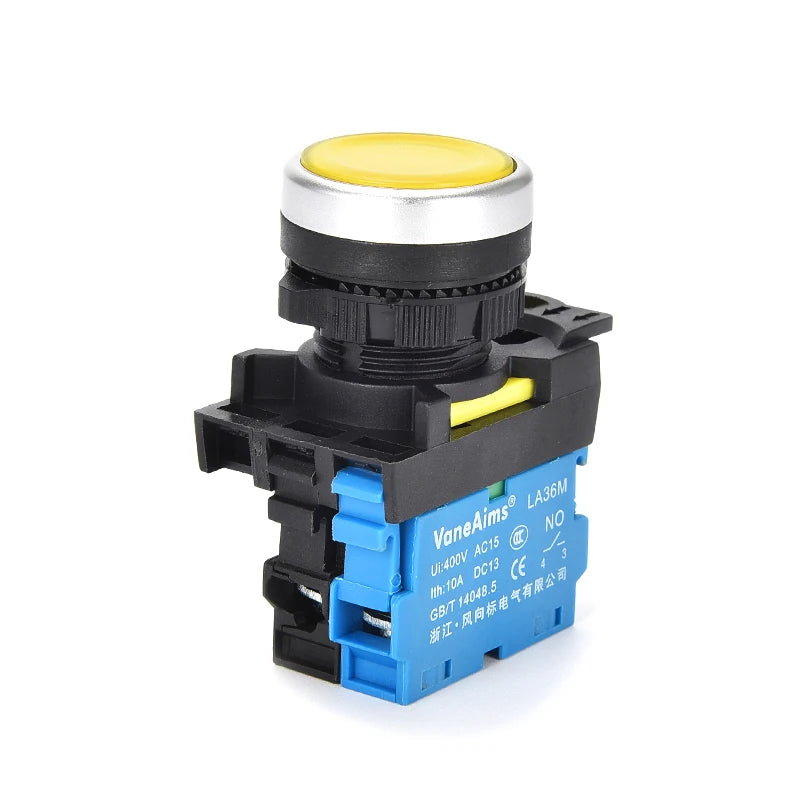

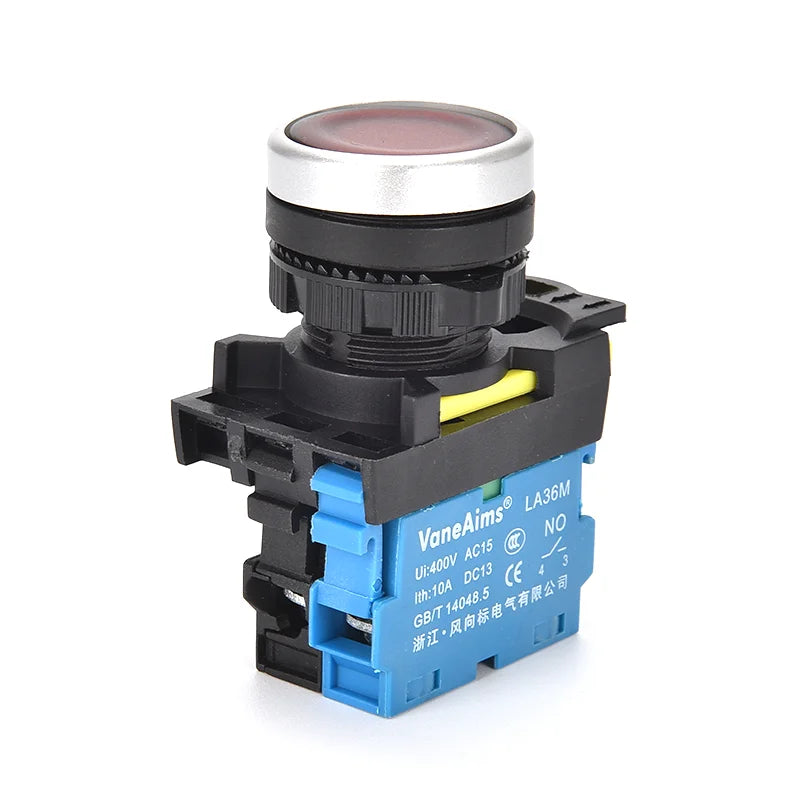

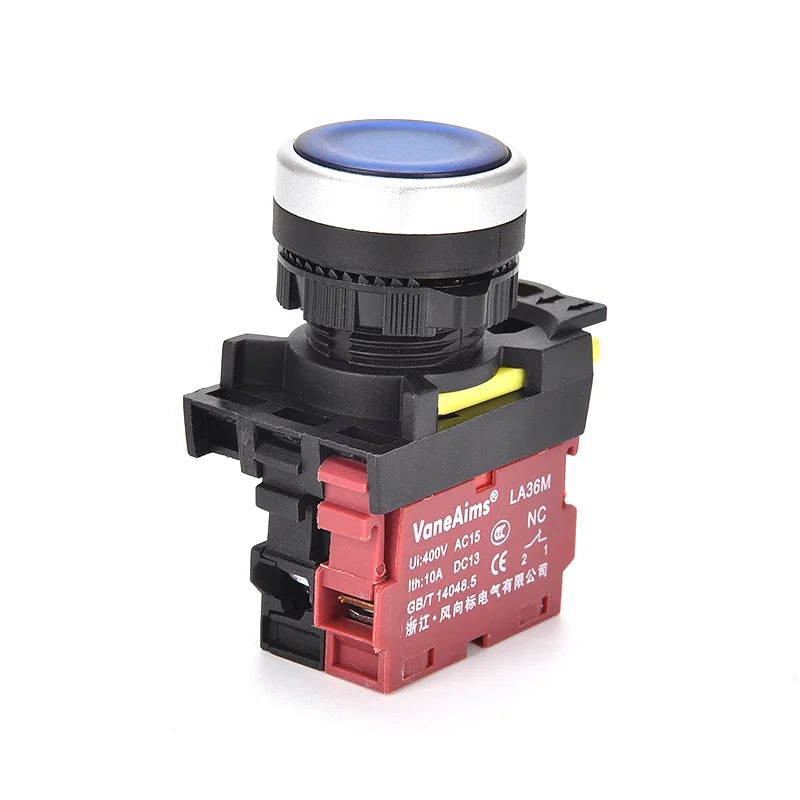

Product name: Push Button Switch with led light

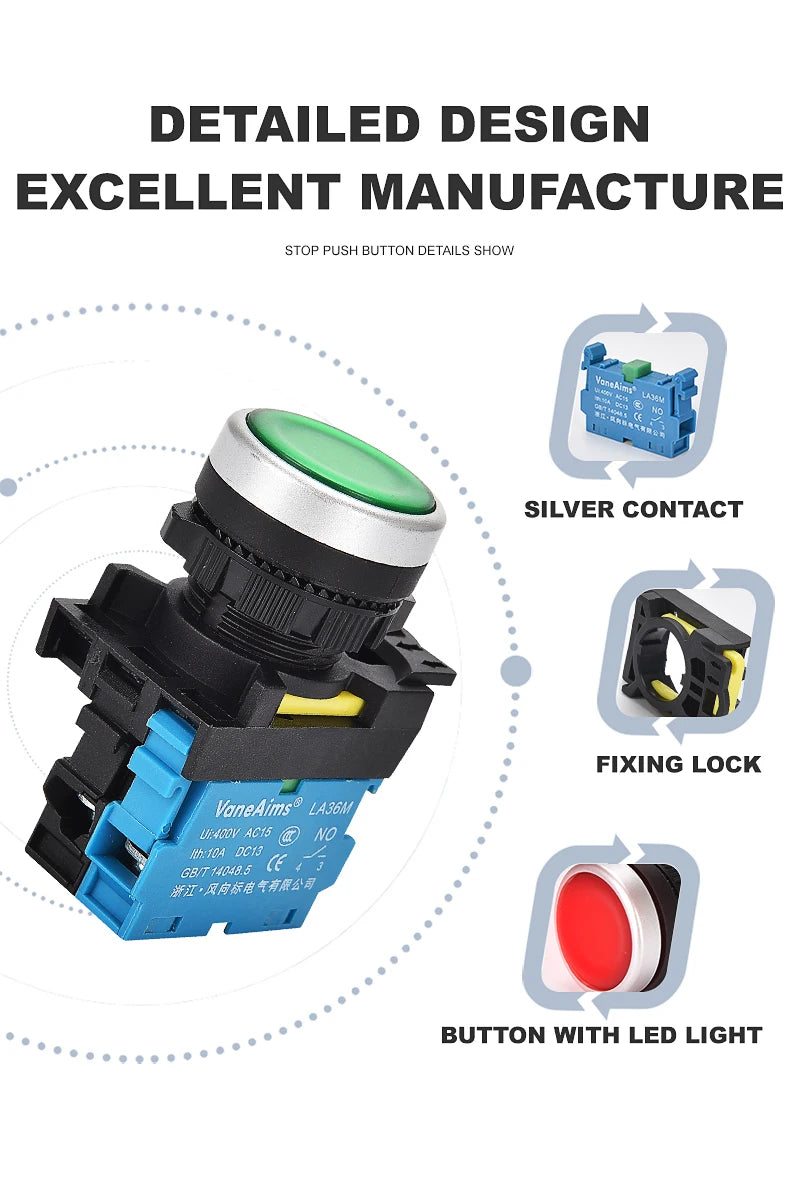

Contact material: Silver contact
Rated current: 10A

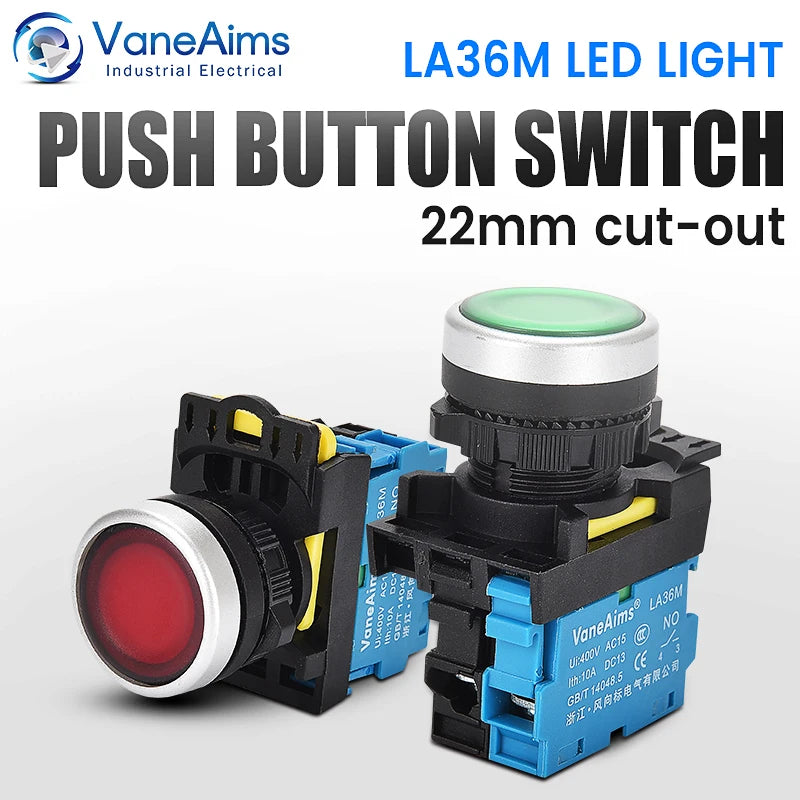

Opening diameter: 22MM
Button contact: 1NO/1NC
Operation mode: Momentary self-reset / fixed self-locking

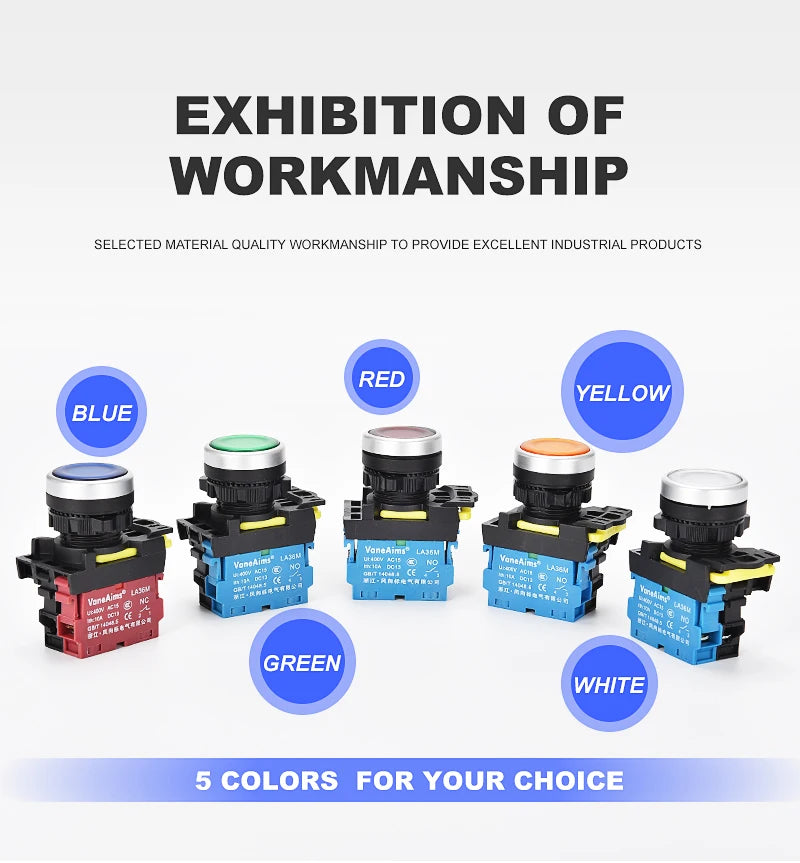

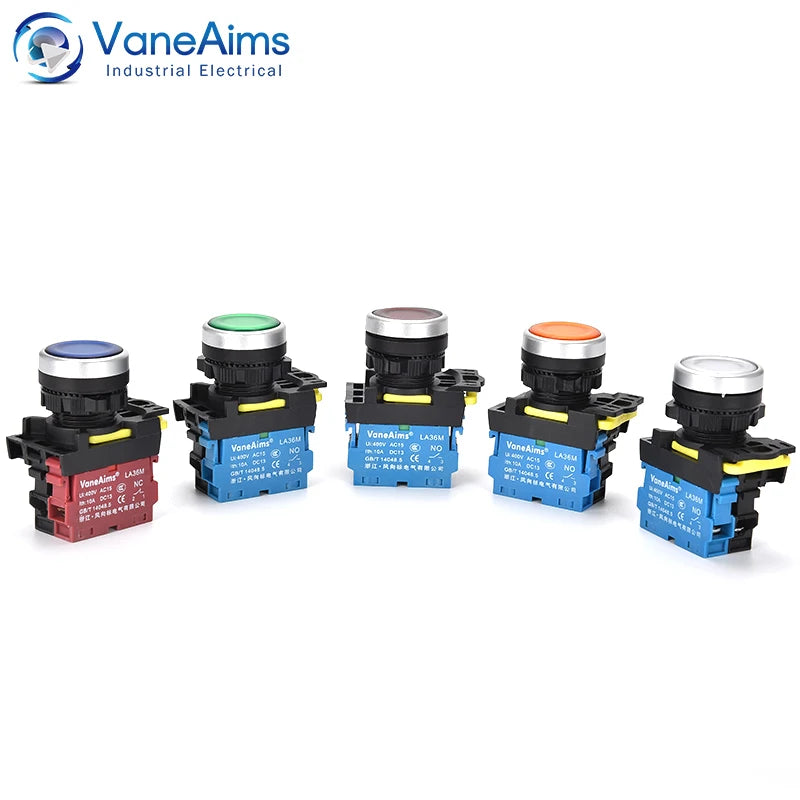

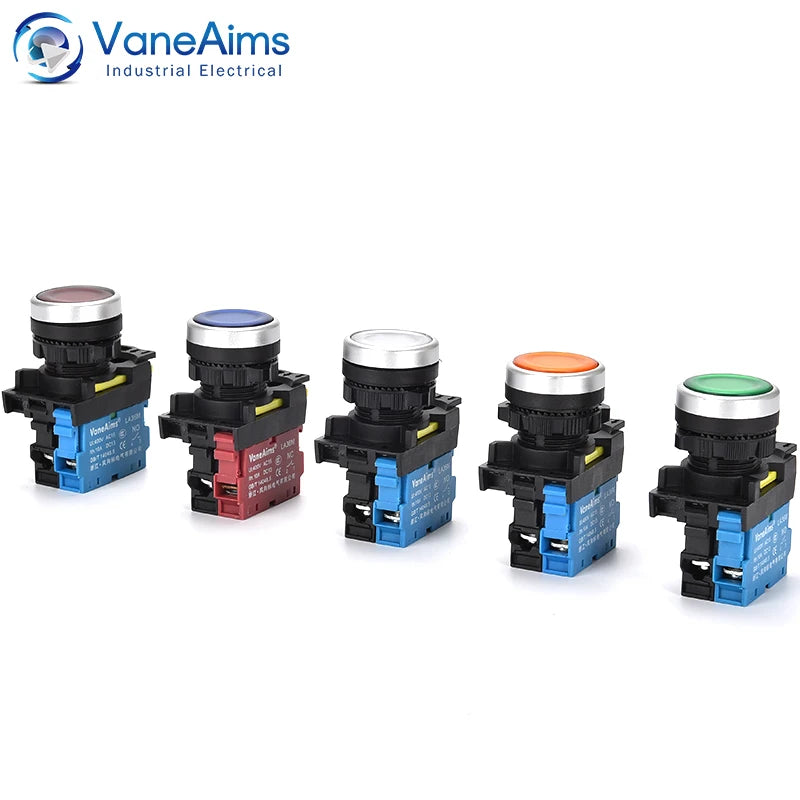

Illuminated color: Red Yellow Blue Green White
Product model: LA36M
Voltage Available: 12V,24V,220V,110V

Package Content
1pcs Push Button Switch with Light

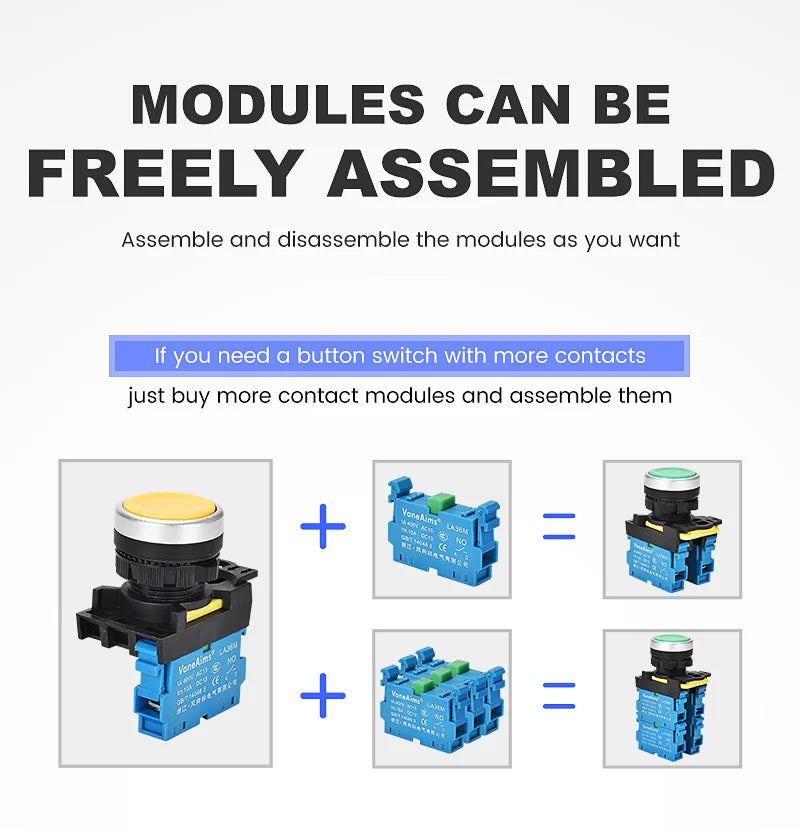

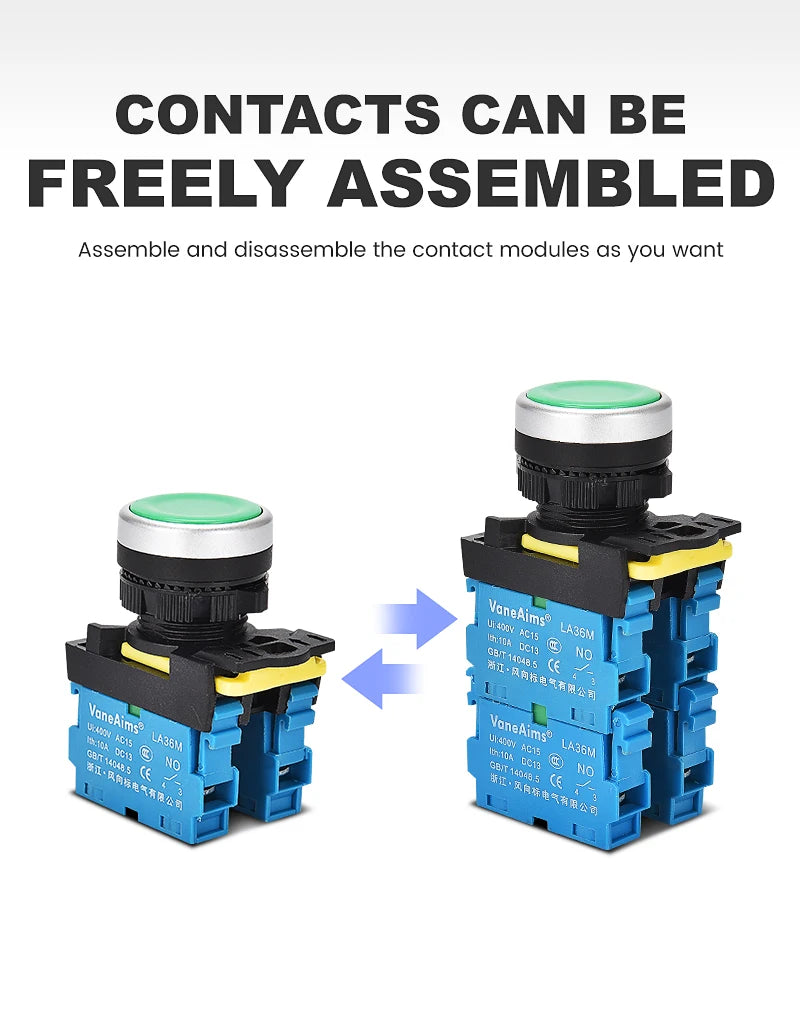

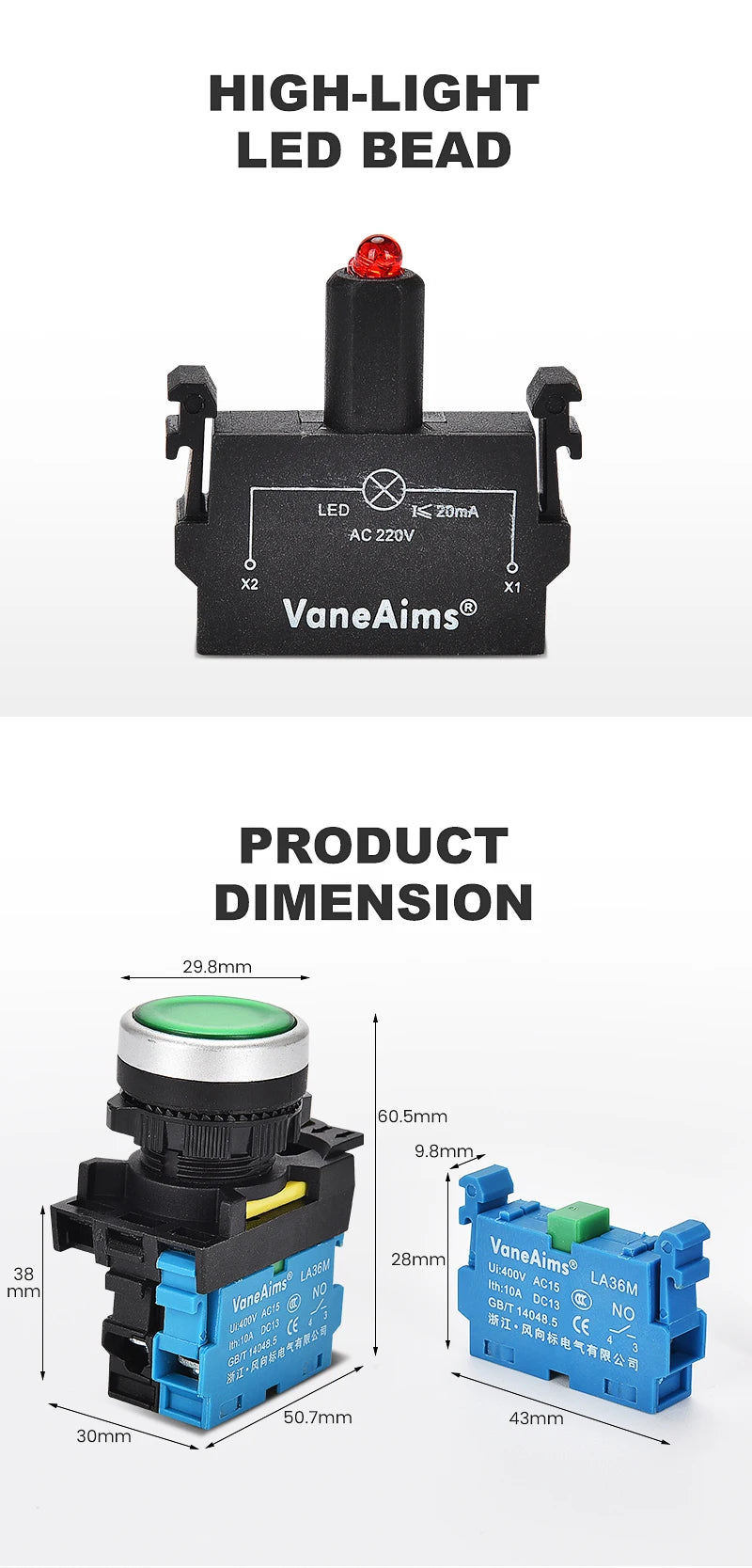

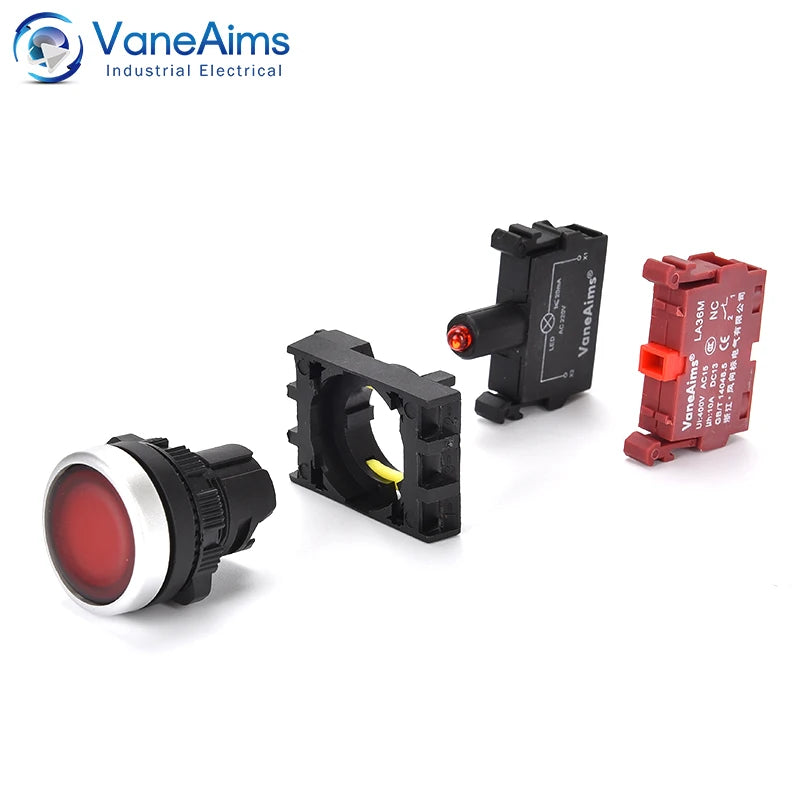

Contact modular combination

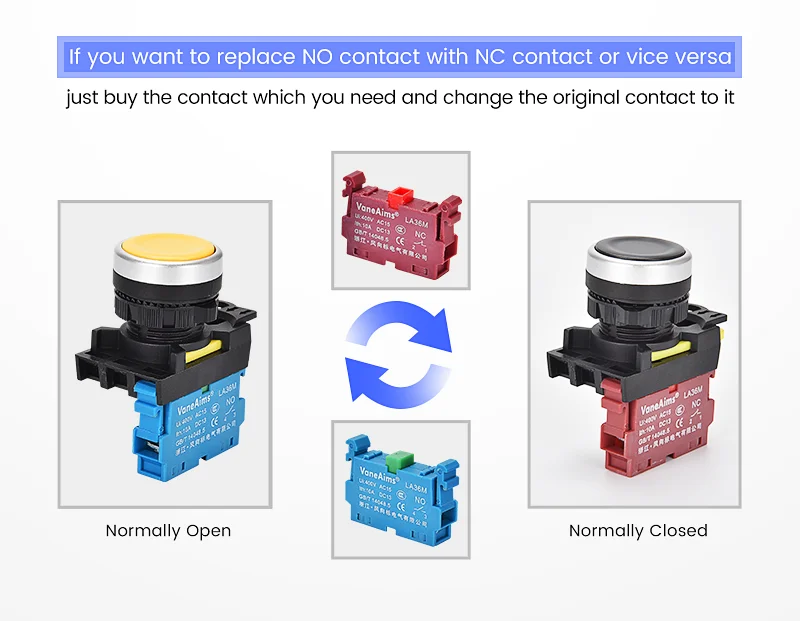

NO(normally open) and NC(normally closed ) contact can replace and add at any time. It can hold 1-4 pcs Contact modules at most.

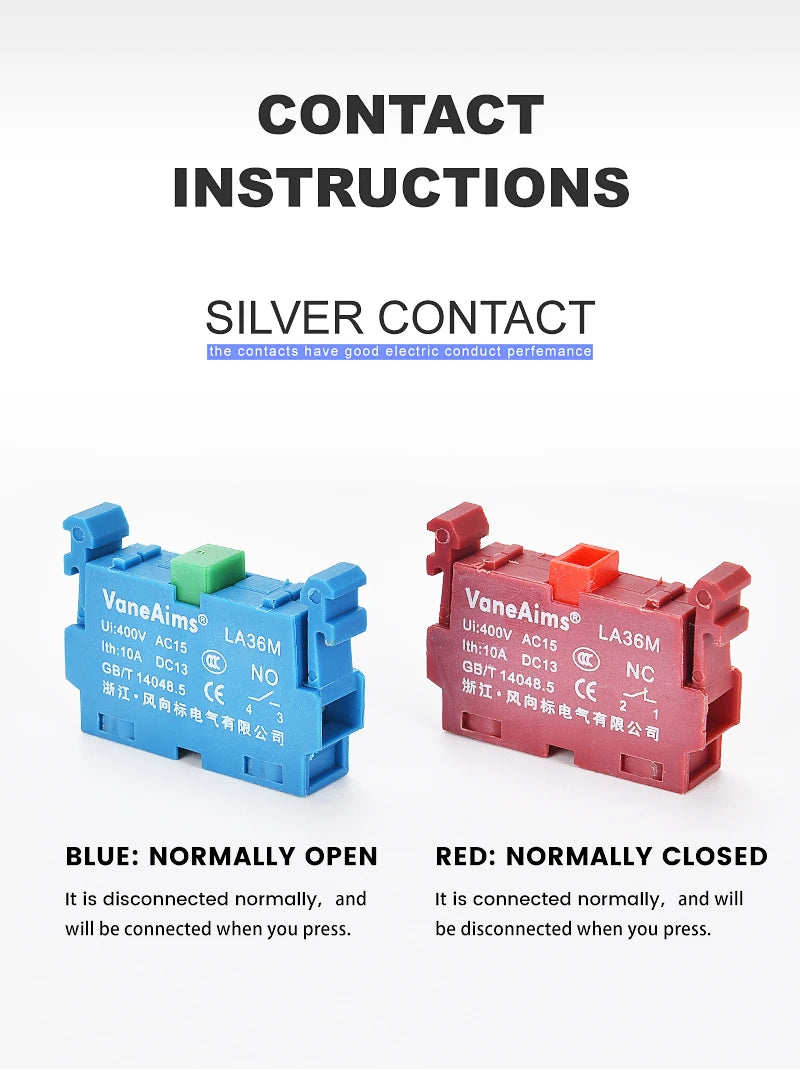

NO(Normally open contact): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press to power off.

Difference between Momentary button and Self-locking button:

For example, button with 1NO contact:

1. Momentary button: press this button to turn on the power;

Release your hand, the button will self reset, and power will turn off automatically.

2. Self-locking button: press this button into locking state and turn on the power, release your hand, the button is still in fixation;

Press the button again to turn off the power.
